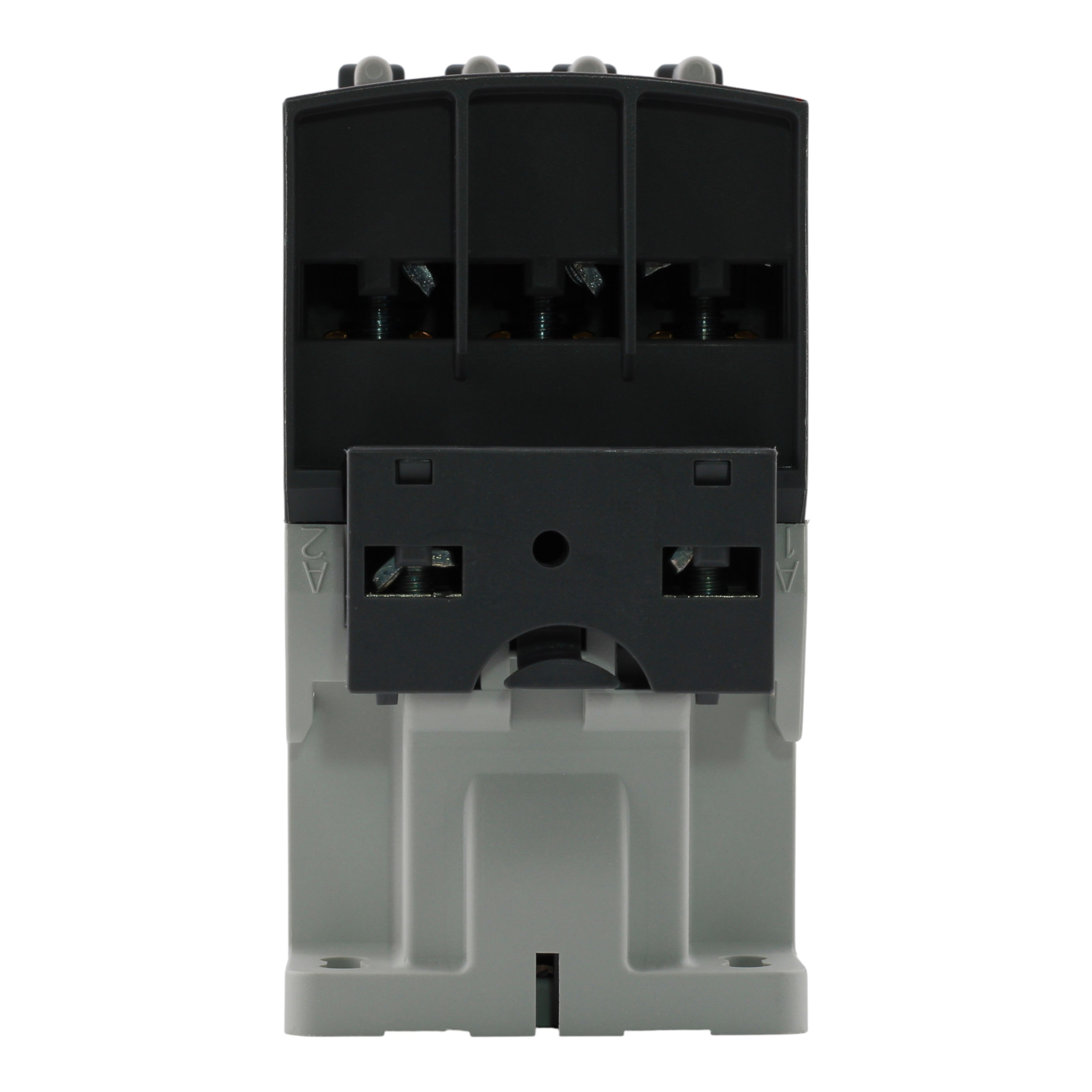

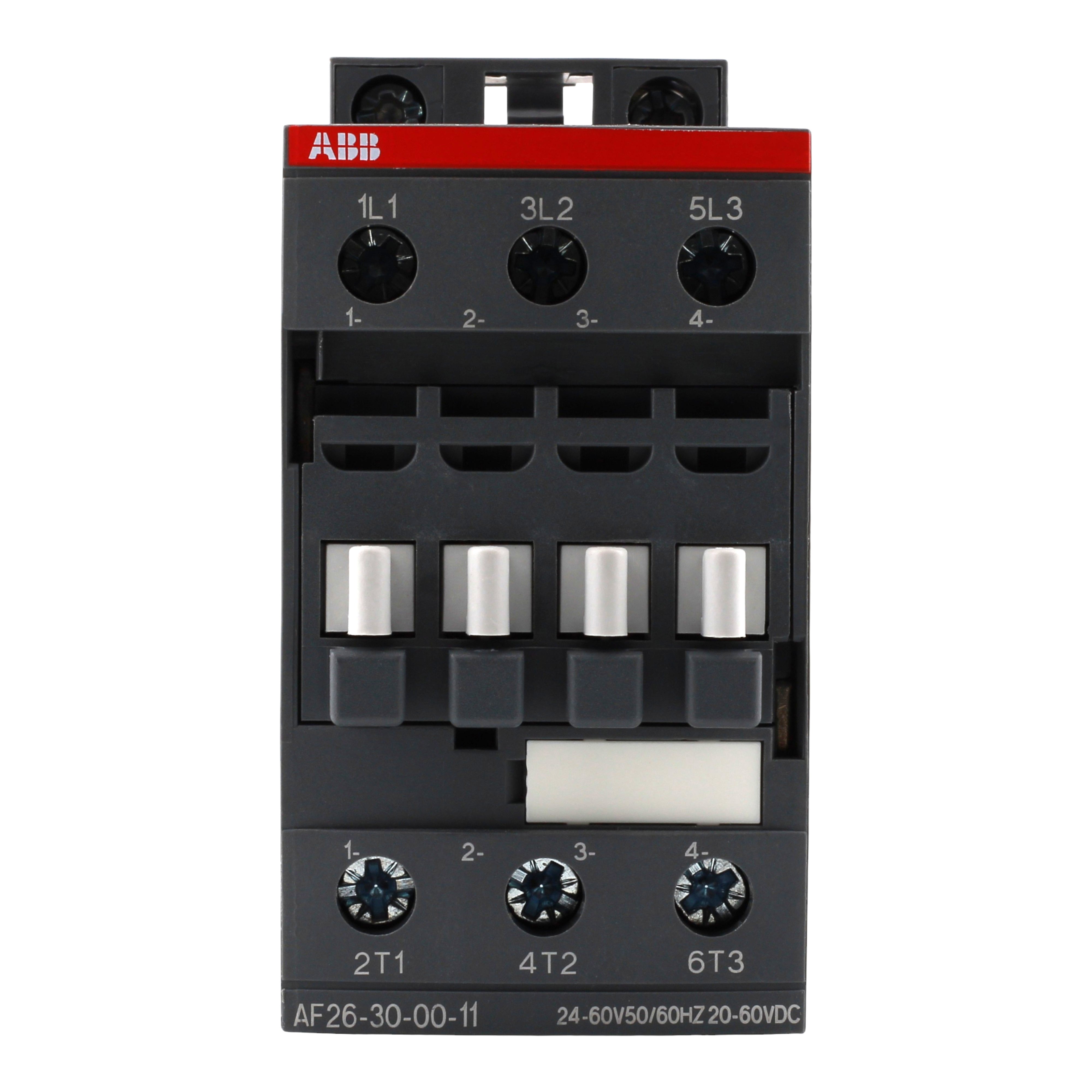

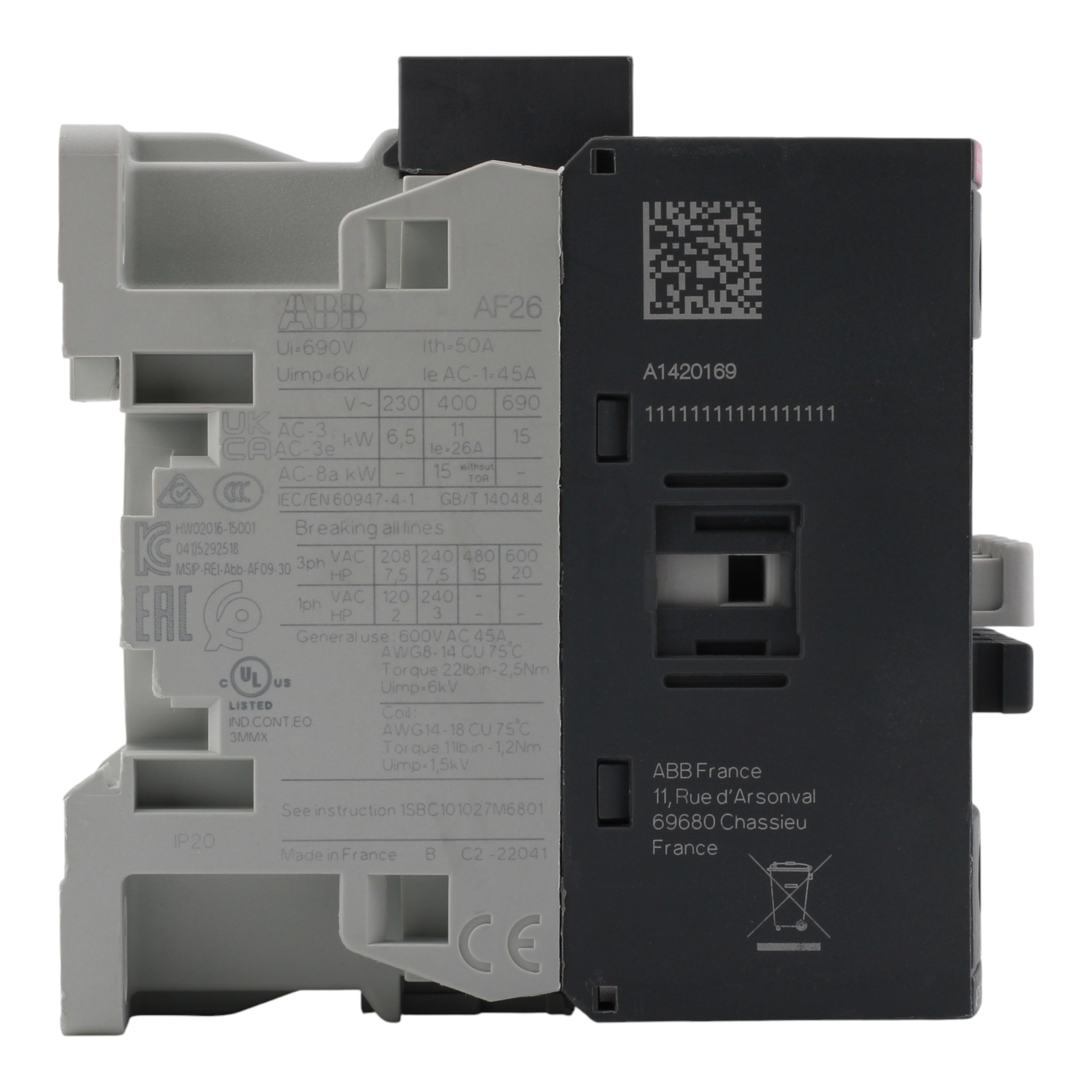

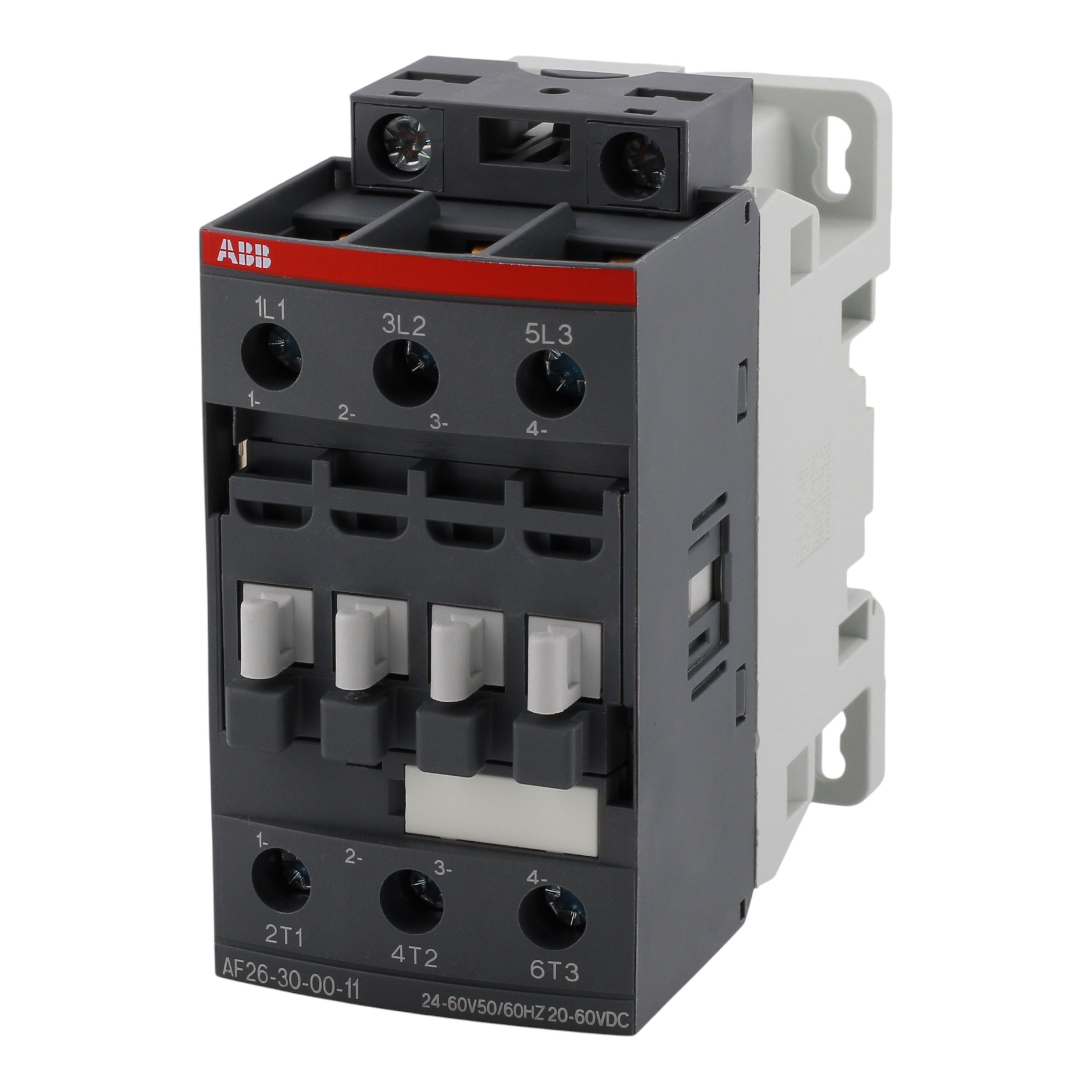

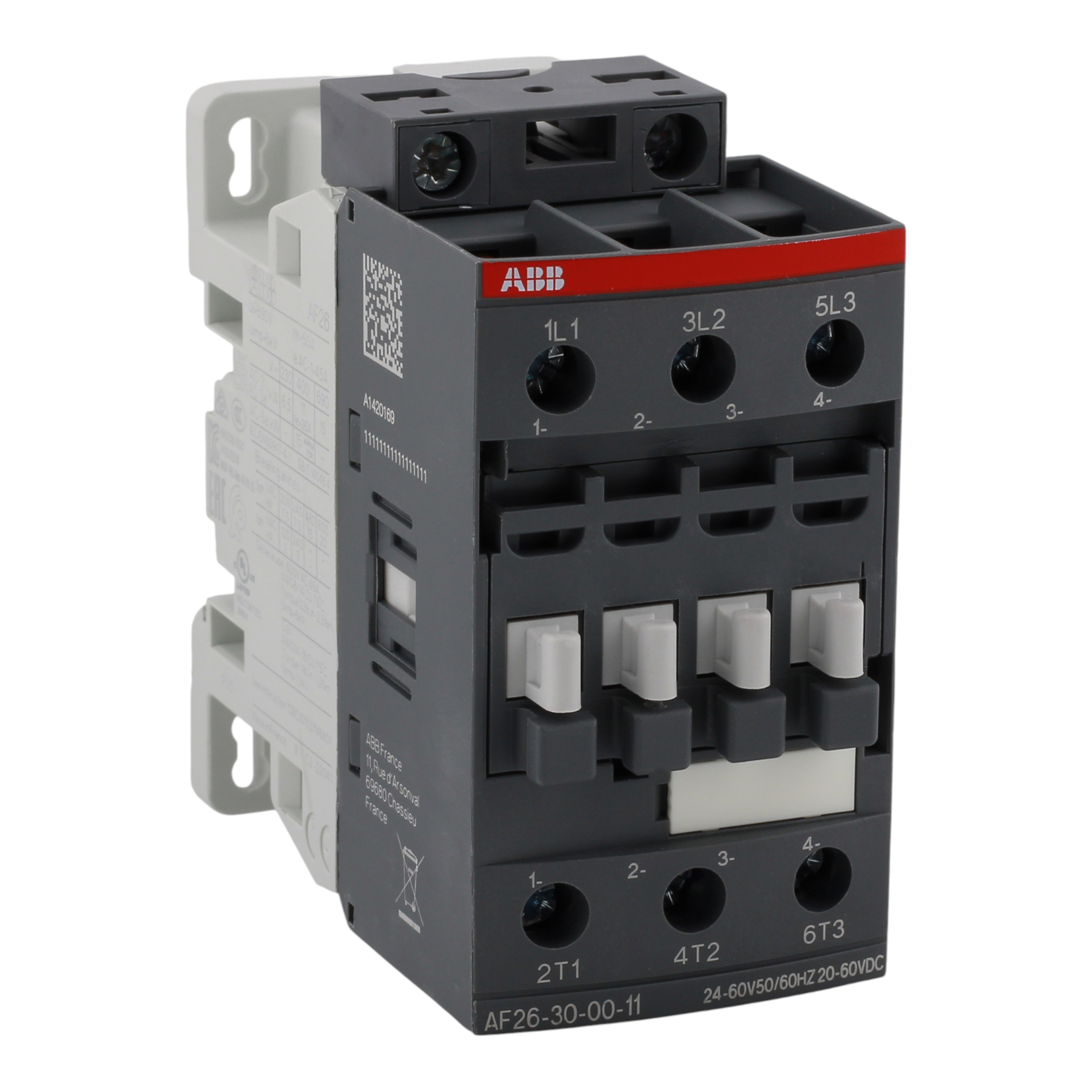

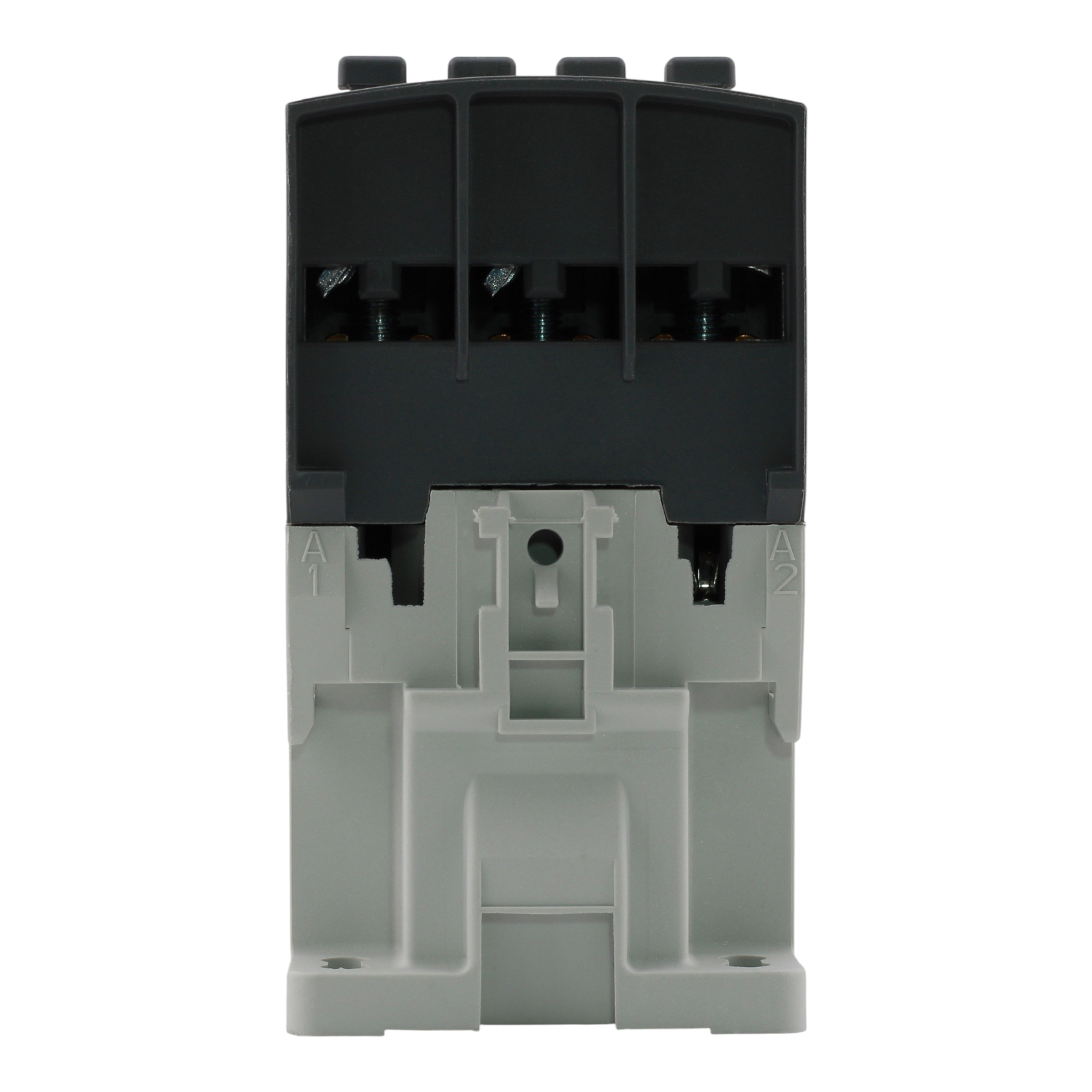

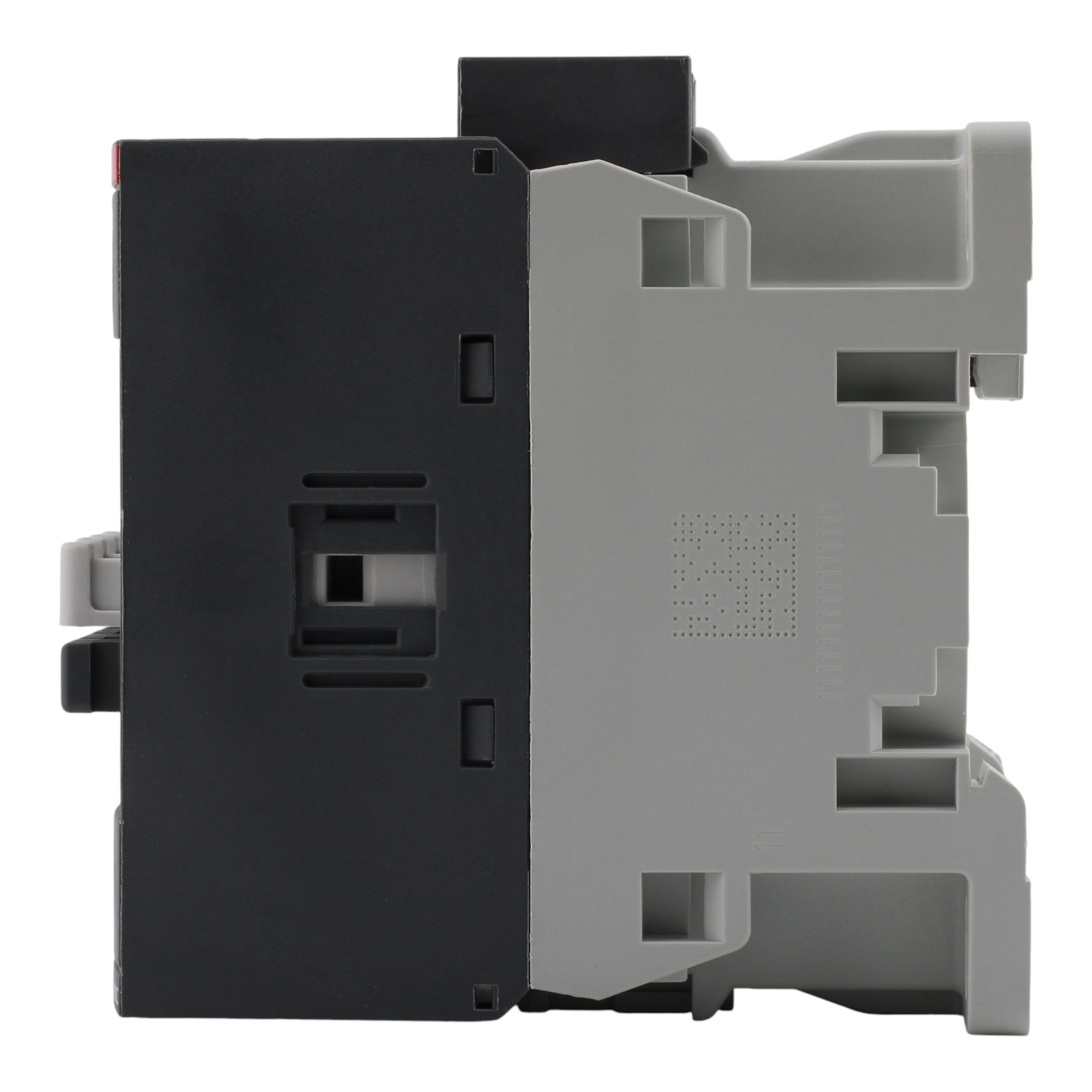

ABB AF26-30-00-11: 26 Amp 3-Pole Contactor, 690V, 50/60 Hz, 24-60V AC/DC Coil, Screw Terminals, UL Listed, CSA Certified
-
Manufacturer: ABB
-
Brand: ABB
-
Product Range: AF Series (for motor control and power switching applications)
-
UPC: 3471523110915
-
Model Number: AF26-30-00-11
-
Product Type: Contactor
-
Number of Poles: 3-Pole
-
Rated Operational Voltage: 690 Volts AC
-
Rated Control Circuit Voltage: 24-60V AC (50/60 Hz), 20-60V DC
-
Rated Operational Current AC-3: 26 Amps (400V, 60 °C)
-
Rated Operational Power AC-3: 11 kW (400V)
-
Conventional Free-air Thermal Current: 50 Amps (40 °C)
-

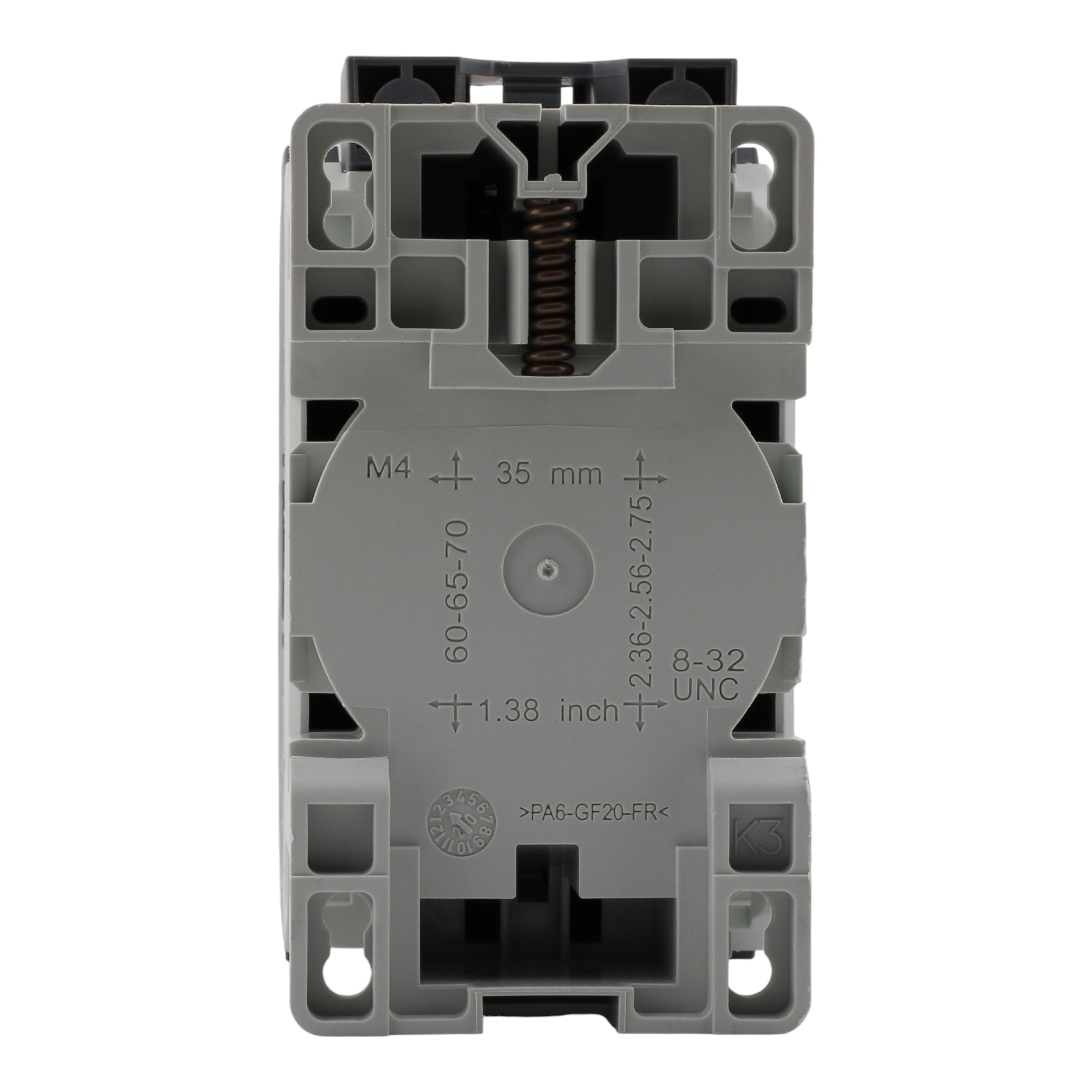

Mounting Mode: DIN Rail (TH35-15, TH35-7.5) or Screw Mounting (2 x M4 screws)
-
Connections Terminals: Screw Terminals
-
Connecting Capacity Main Circuit: Flexible: 1/2x 1.5-10 mm²; Rigid: 1/2x 2.5-10 mm²
-
Connecting Capacity Control Circuit: Flexible: 1/2x 0.75-2.5 mm²; Rigid: 1/2x 1-2.5 mm²
-
Wire Size: Main Circuit: 14-8 AWG (Rigid Stranded); Control Circuit: 18-14 AWG (Rigid)
-
Tightening Torque: Main Circuit: 22 lb-in; Control Circuit: 11 lb-in
-
Dimensions: Height: 3.39 in; Width: 1.77 in; Depth: 3.39 in
-
Weight: 0.683 lbs
-
Certifications: UL Listed, CSA Certified, IEC 60947-1, IEC 60947-4-1, UL 60335-2-40, CSA C22.2 No. 60335-2-40
This ABB AF26-30-00-11 contactor provides reliable 26A, 3-pole motor control and power switching for 690V circuits. With a wide 24-60V AC/DC coil range and screw terminals, it ensures versatile compatibility for industrial applications, delivering robust performance for motors up to 11 kW (400V AC) or 15 hp (480V UL).
