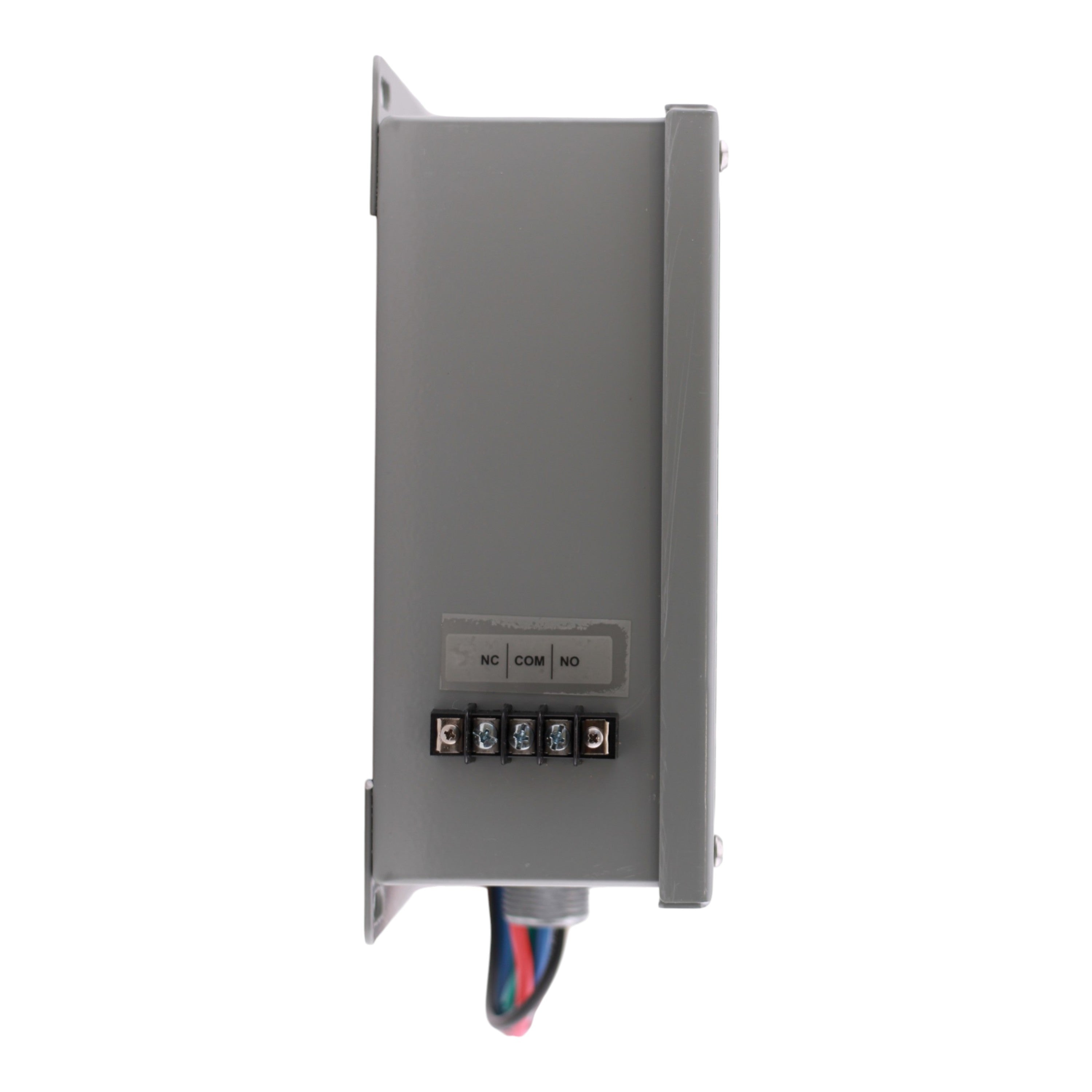

ACT 455-120Y-050: 120/208V, 3-Phase 4-Wire WYE, 50kA/mode, 7-Mode hardwired primary AC surge protective device, NEMA 12, ETL/UL 1449 listed.
-
Manufacturer: ACT Communications, Inc.
-
Brand: ACT Communications
-
Product Range: ACT 455 Surge Stryker (for panels up to 1,000 amps)
-
UPC:
-
Model Number: 455-120Y-050-CGC
-
Device Type: Hardwired Primary AC Surge Protective Device (SPD), Type 2
-
System Voltage: 120/208 Volts AC, 3-Phase, 4-Wire WYE with Ground
-
Maximum Continuous Operating Voltage (MCOV): 150V
-
Surge Current Capacity: 50 kA per mode, 100 kA per phase
-
Protection Modes: 7 discrete modes (L-N, L-G, N-G); 10 modes with L-L
-
Voltage Protection Rating (VPR): L-N: 700V; L-G: 700V; N-G: 700V; L-L: 1,000V
-
Fault Current Rating (SCCR): 200 kAIC
-

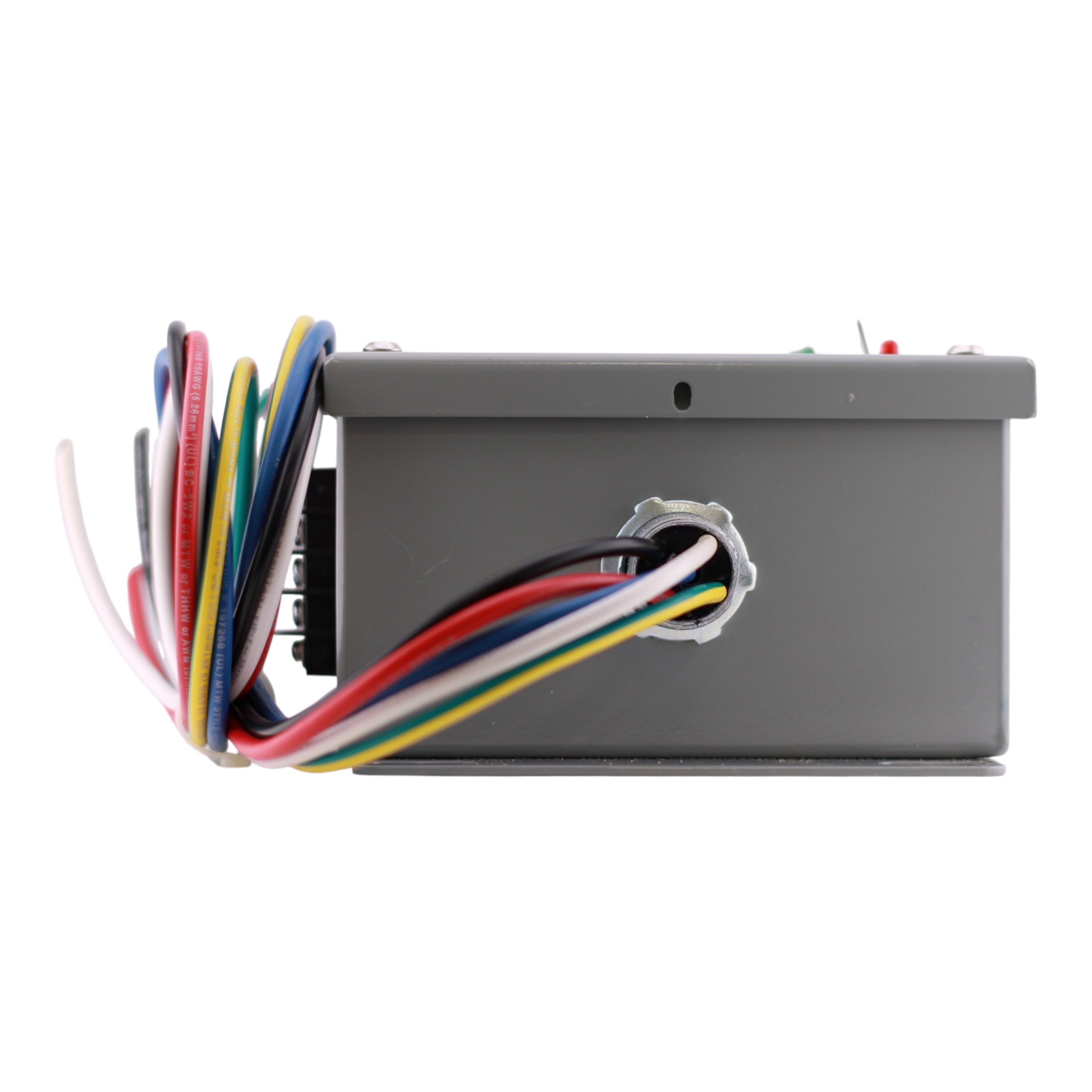

Connection Method: Parallel; pre-wired with 36 in #10 AWG stranded pigtails
-
Response Time: <5 nanoseconds
-
EMI/RFI Noise Rejection: -45 dB (3 kHz – 1 MHz)
-

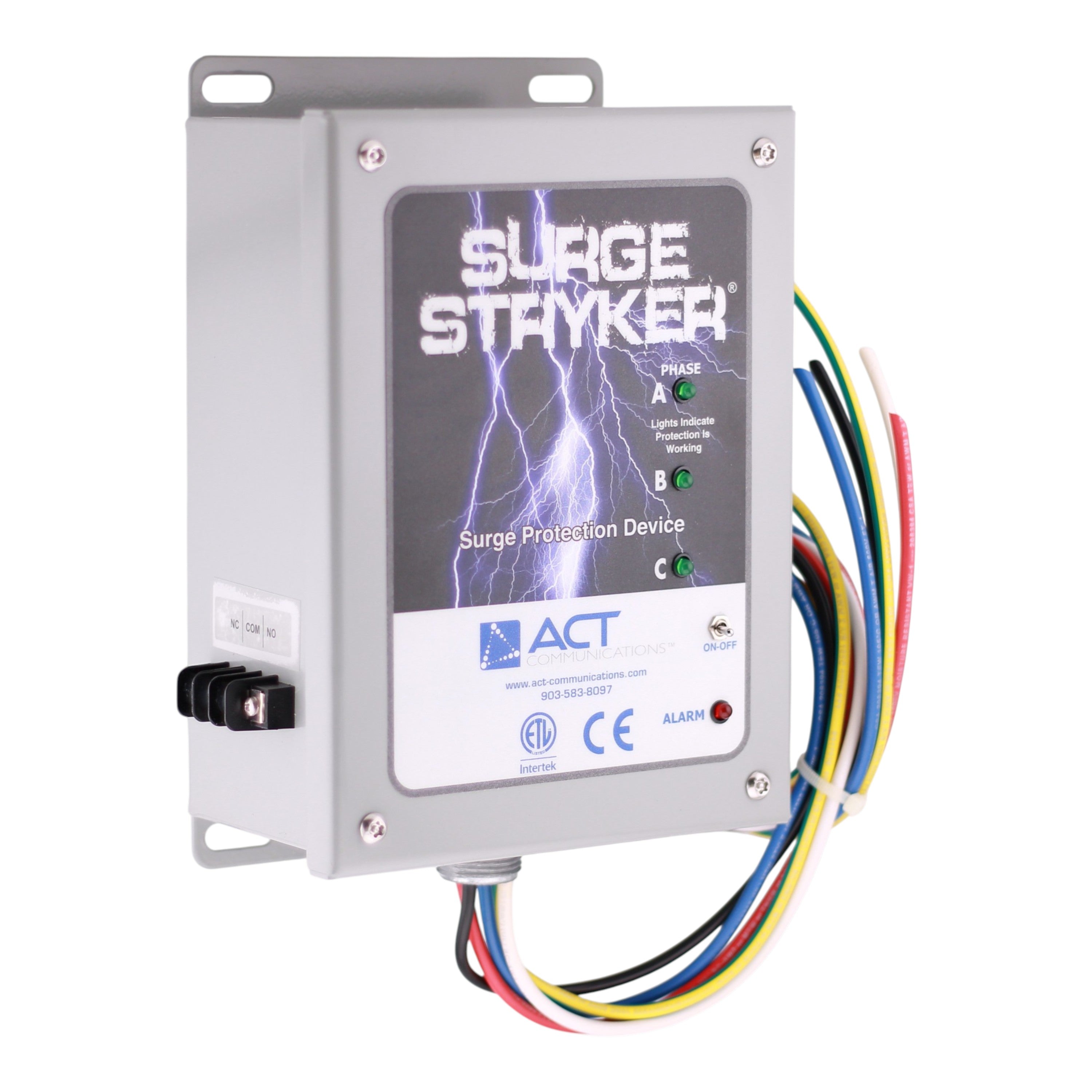

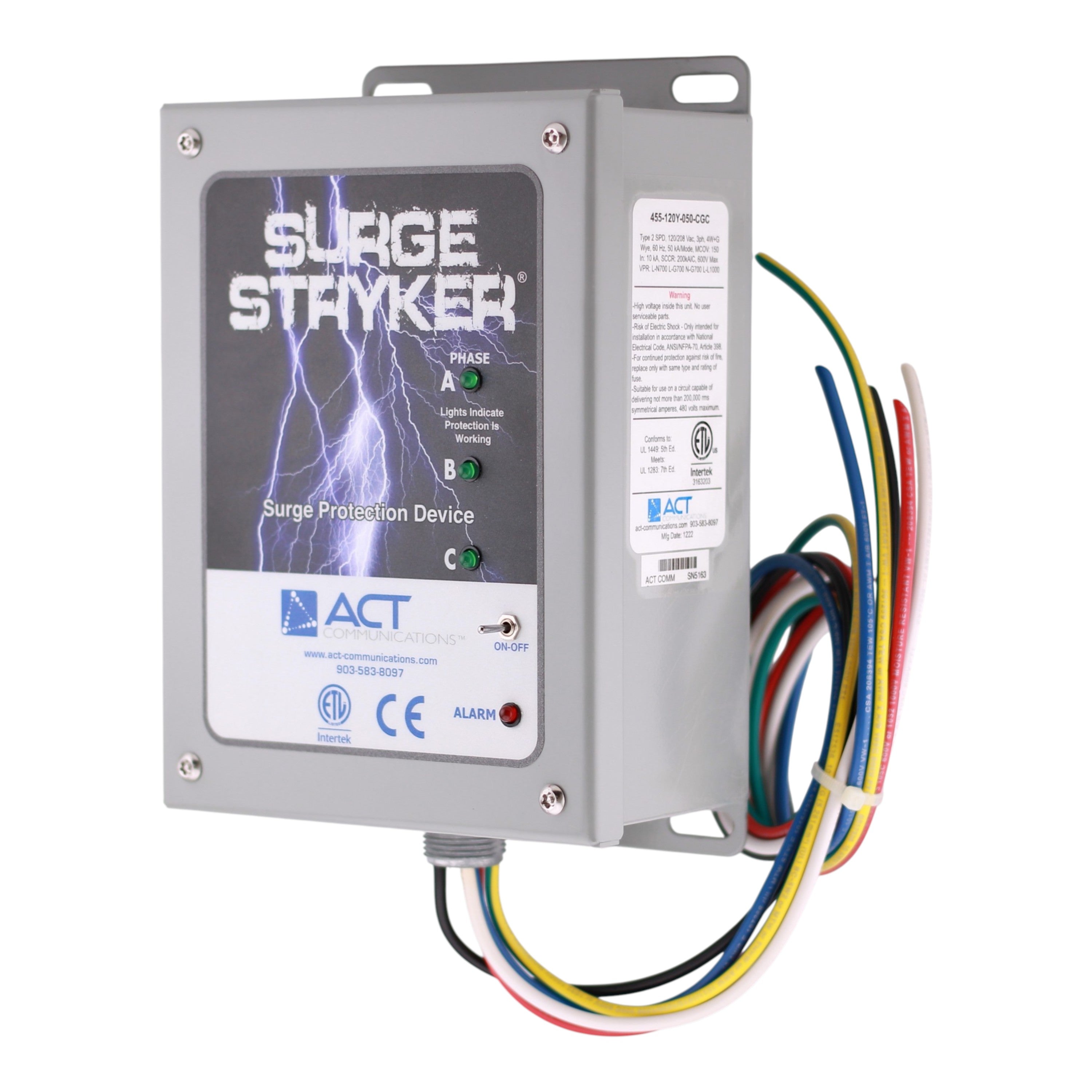

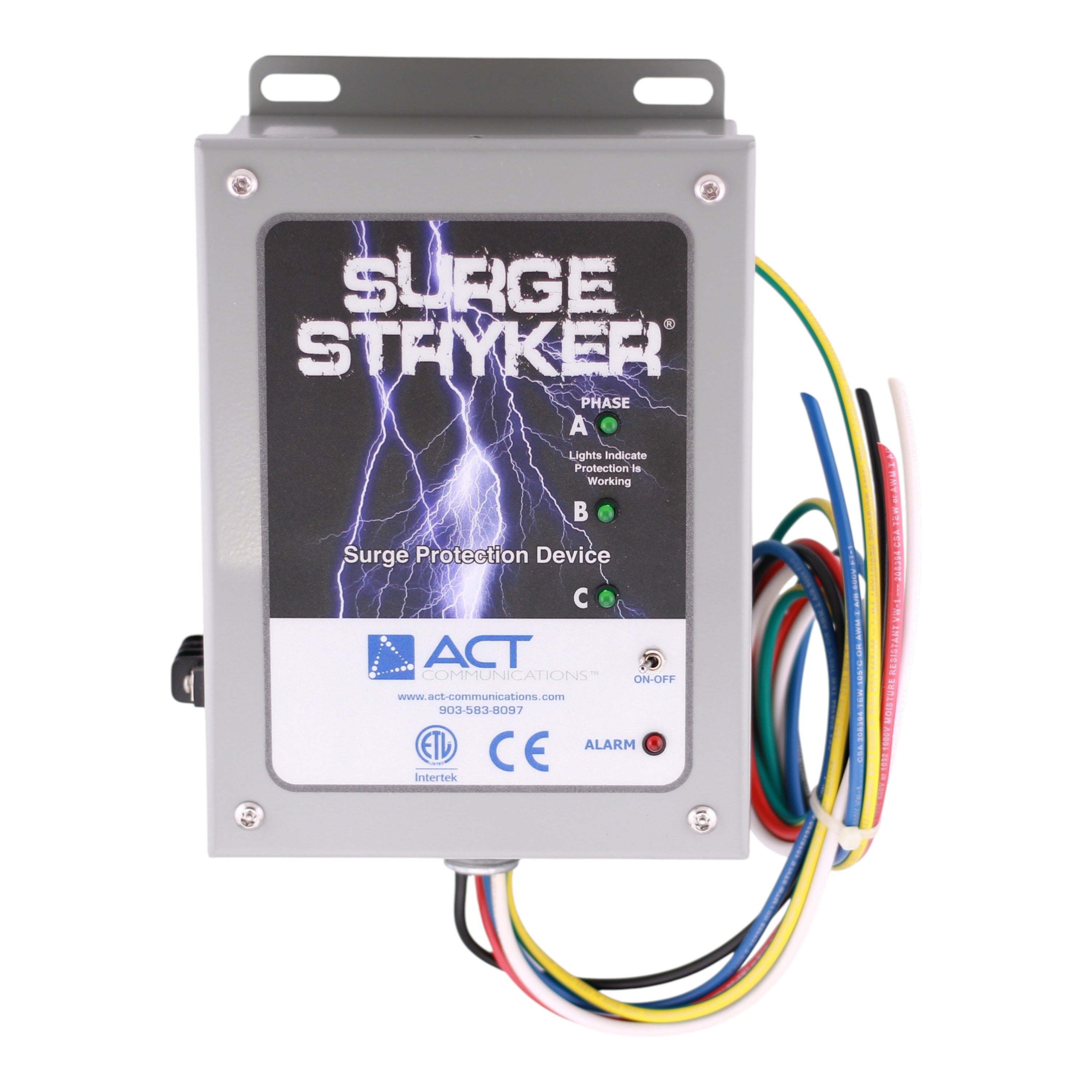

Status Indicators: Green LED per phase
-

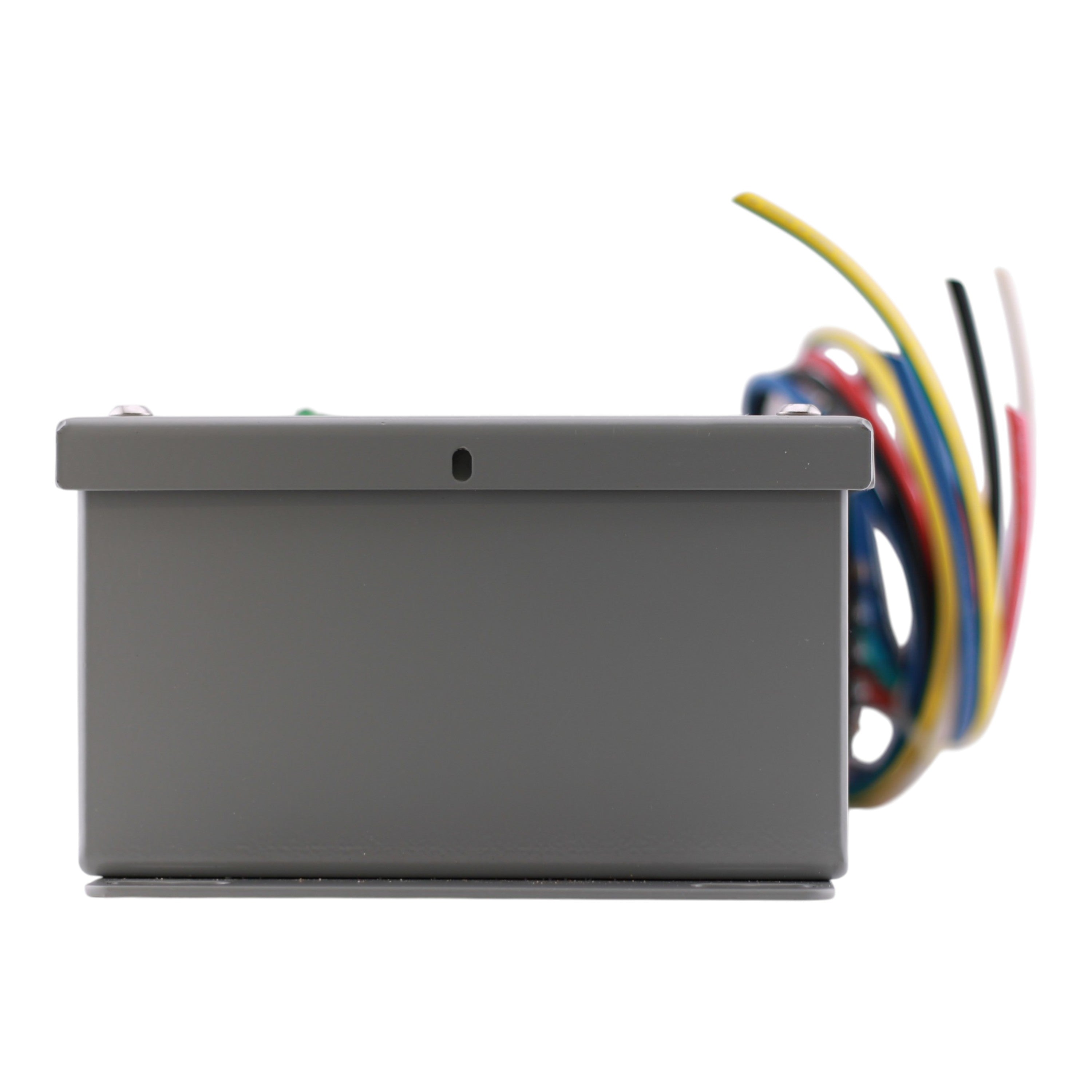

Enclosure: Painted Steel, NEMA 12
-

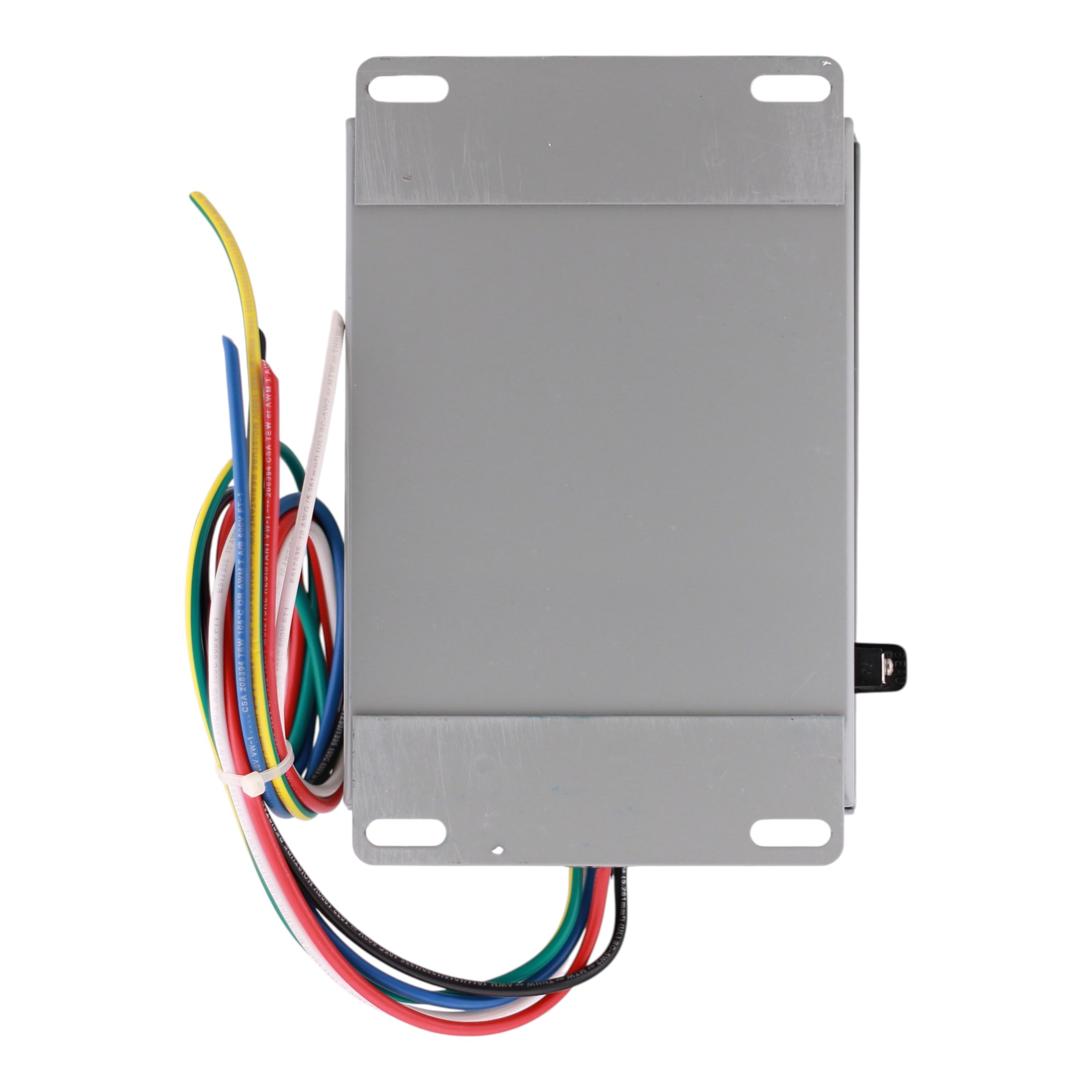

Mounting: Bottom feed standard
-
Dimensions: Height: 10.00 in; Width: 8.00 in; Depth: 6.00 in
-
Weight: 11 lbs
-
Operating Temperature: -40°C to +65°C
-

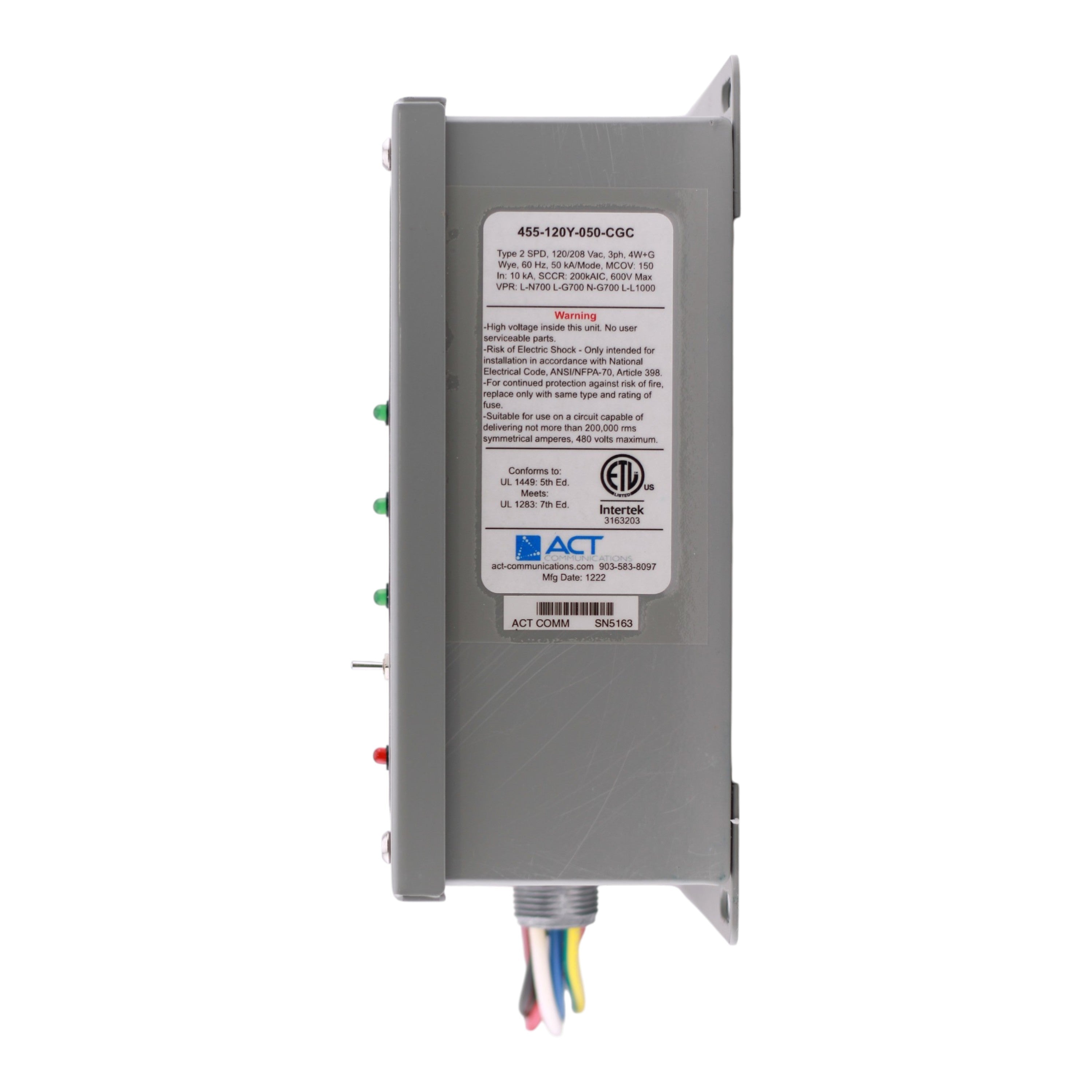

Certifications: ETL Listed UL 1449 5th Edition (Type 2), UL 1283, ANSI/IEEE C62.41, CE Mark
-
Warranty: 5-Year standard
This ACT Communications 455-120Y-050 hardwired surge protective device delivers dependable 50kA-per-mode, 7-mode primary AC surge protection for 120/208V 3-Phase WYE panels up to 1,000 amps. With 200kAIC fault current rating and built-in EMI/RFI filtering, it ensures enhanced power quality and safety for industrial and commercial applications.
