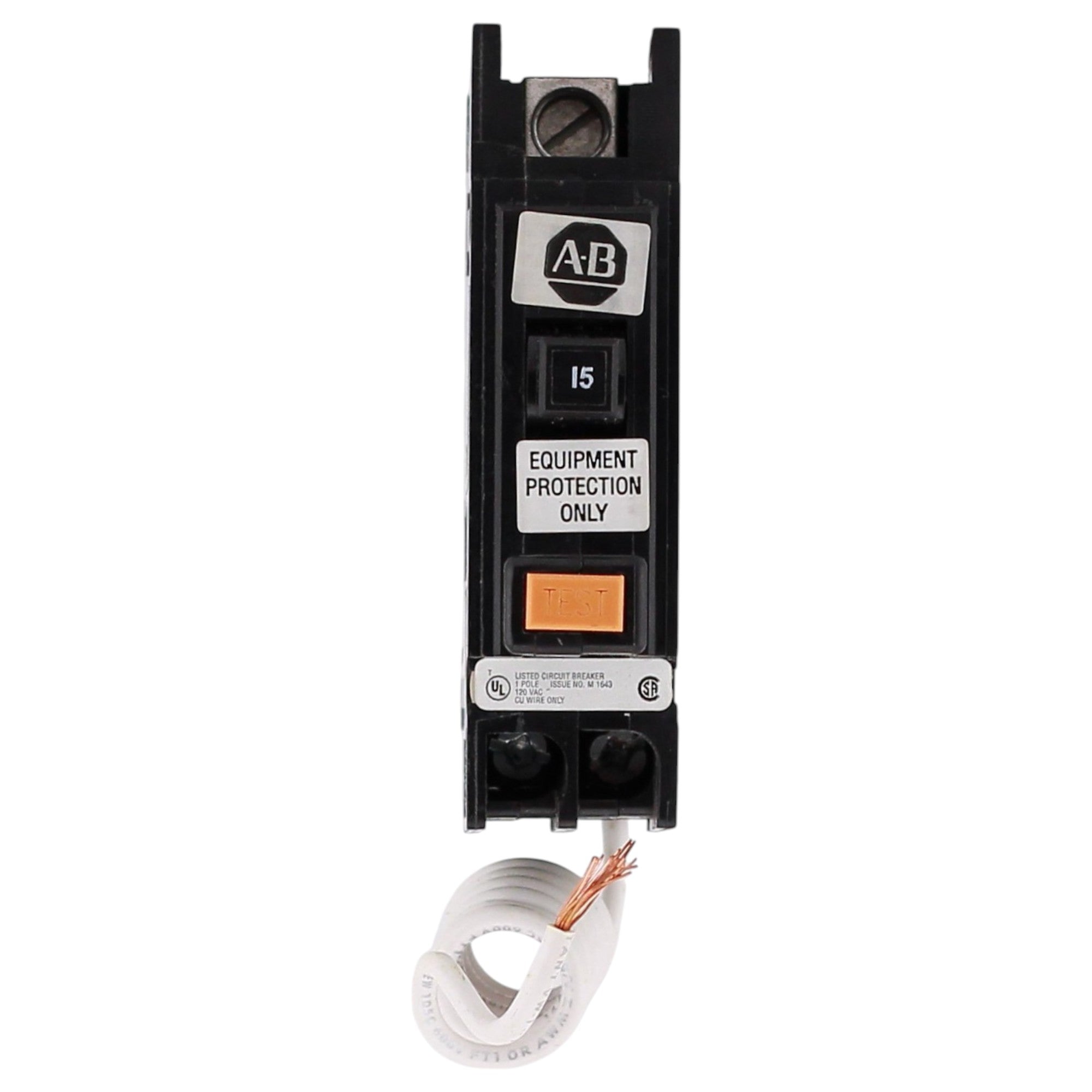

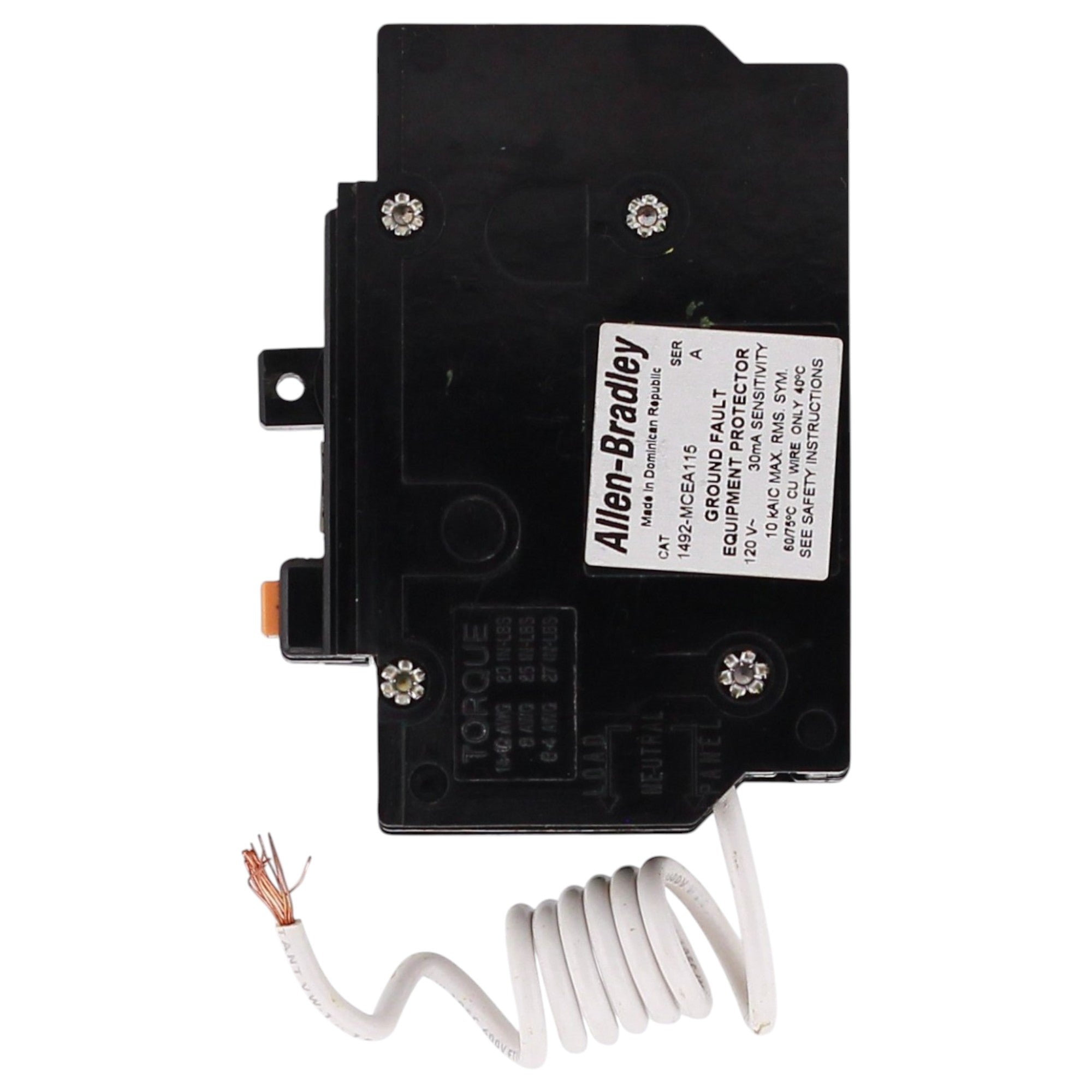

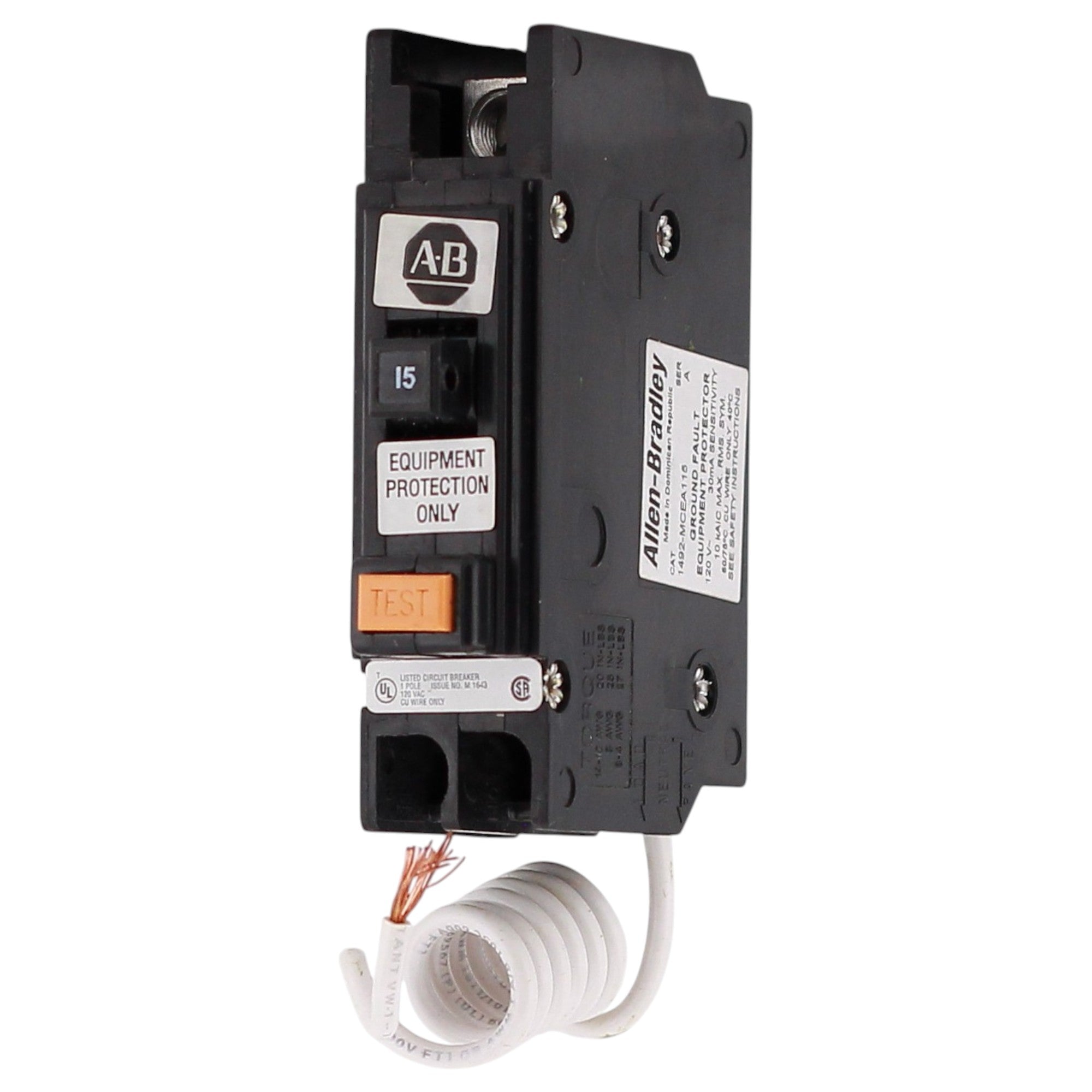

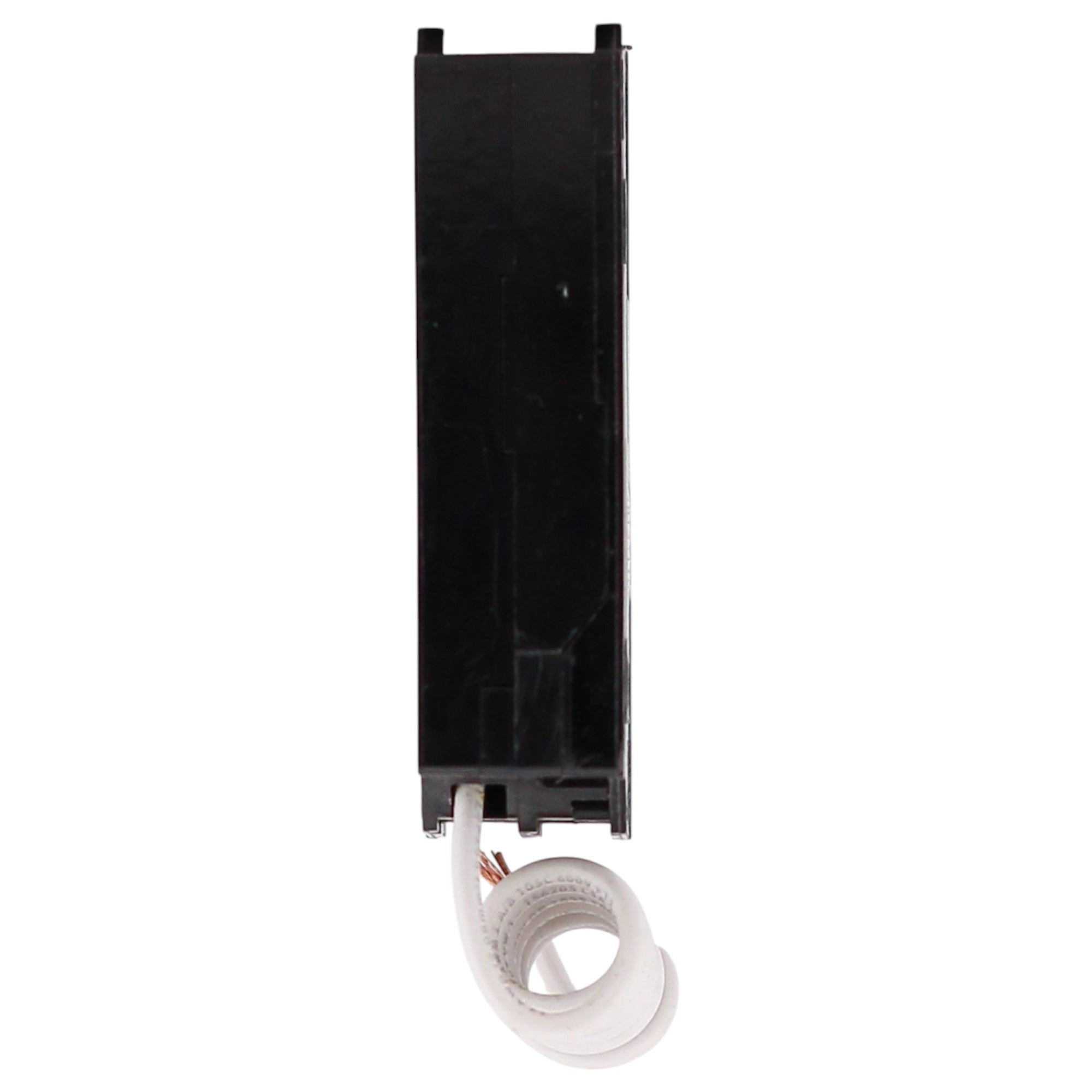

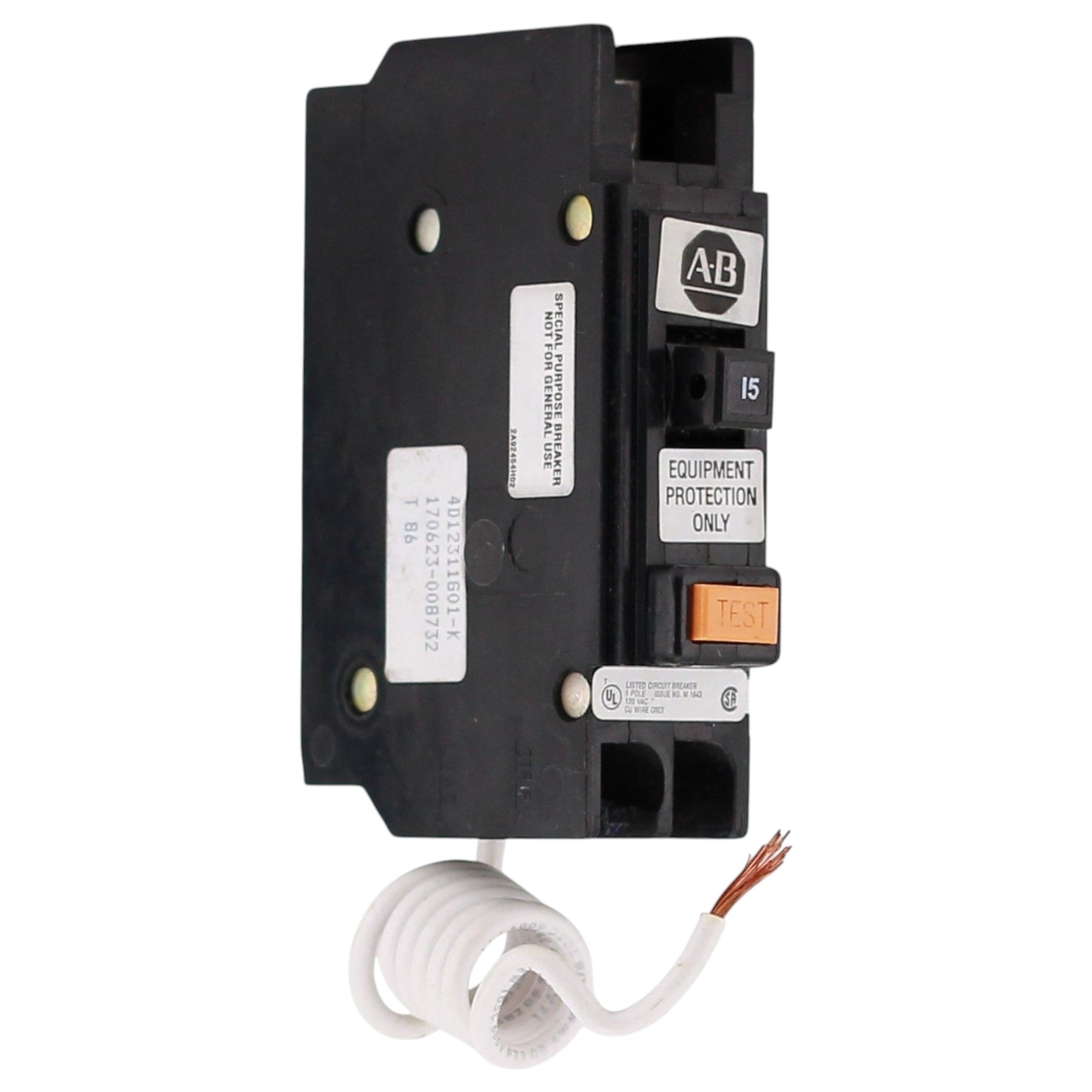

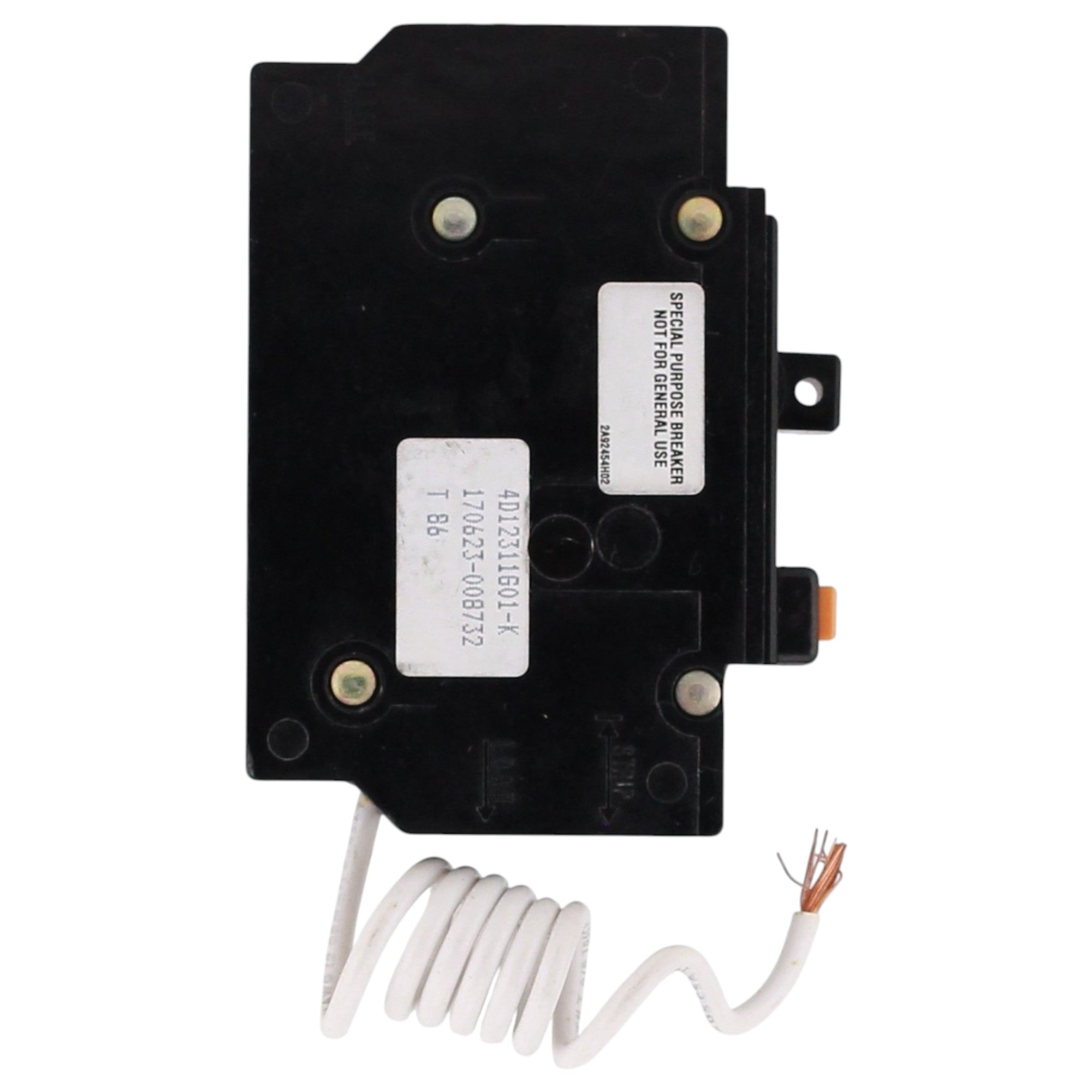

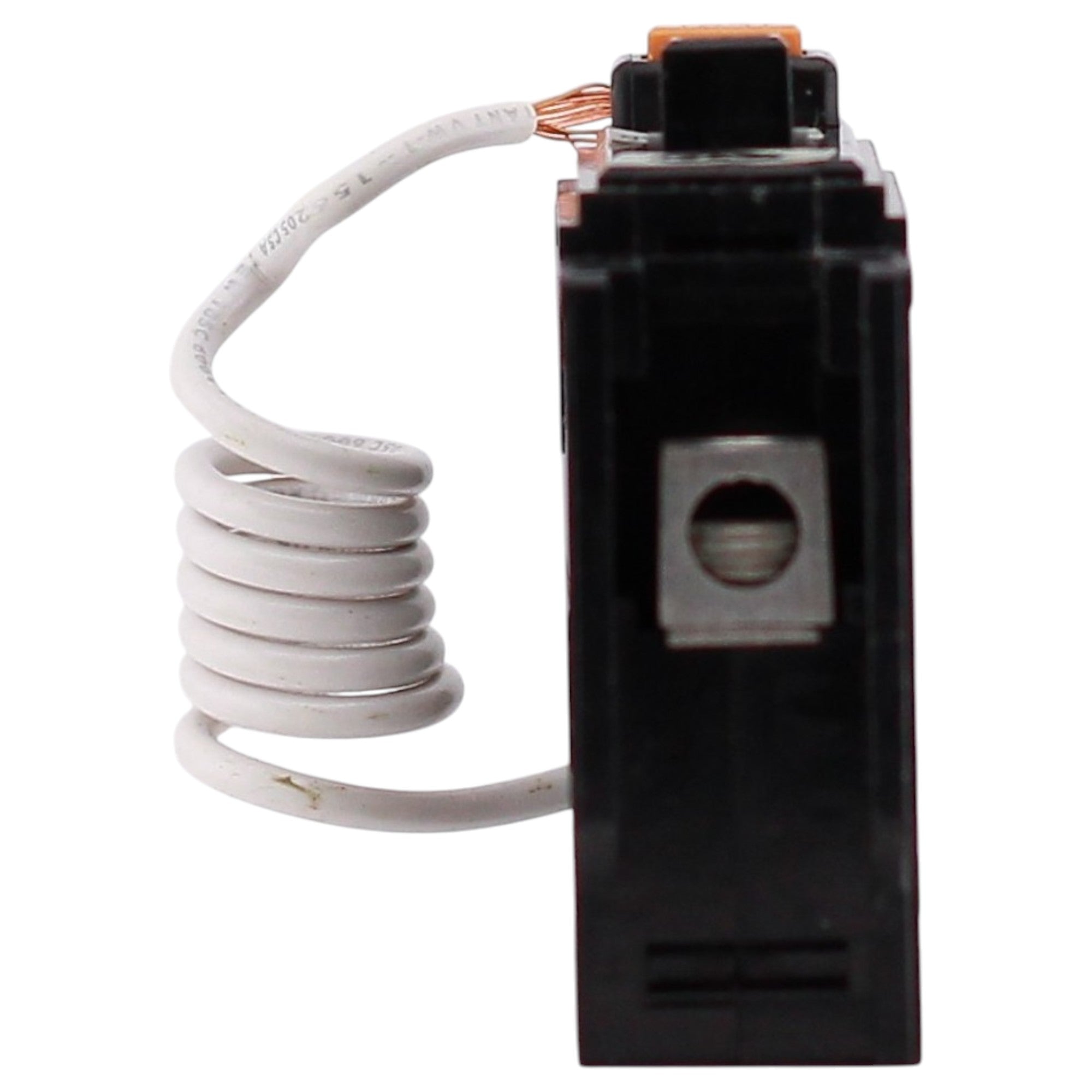

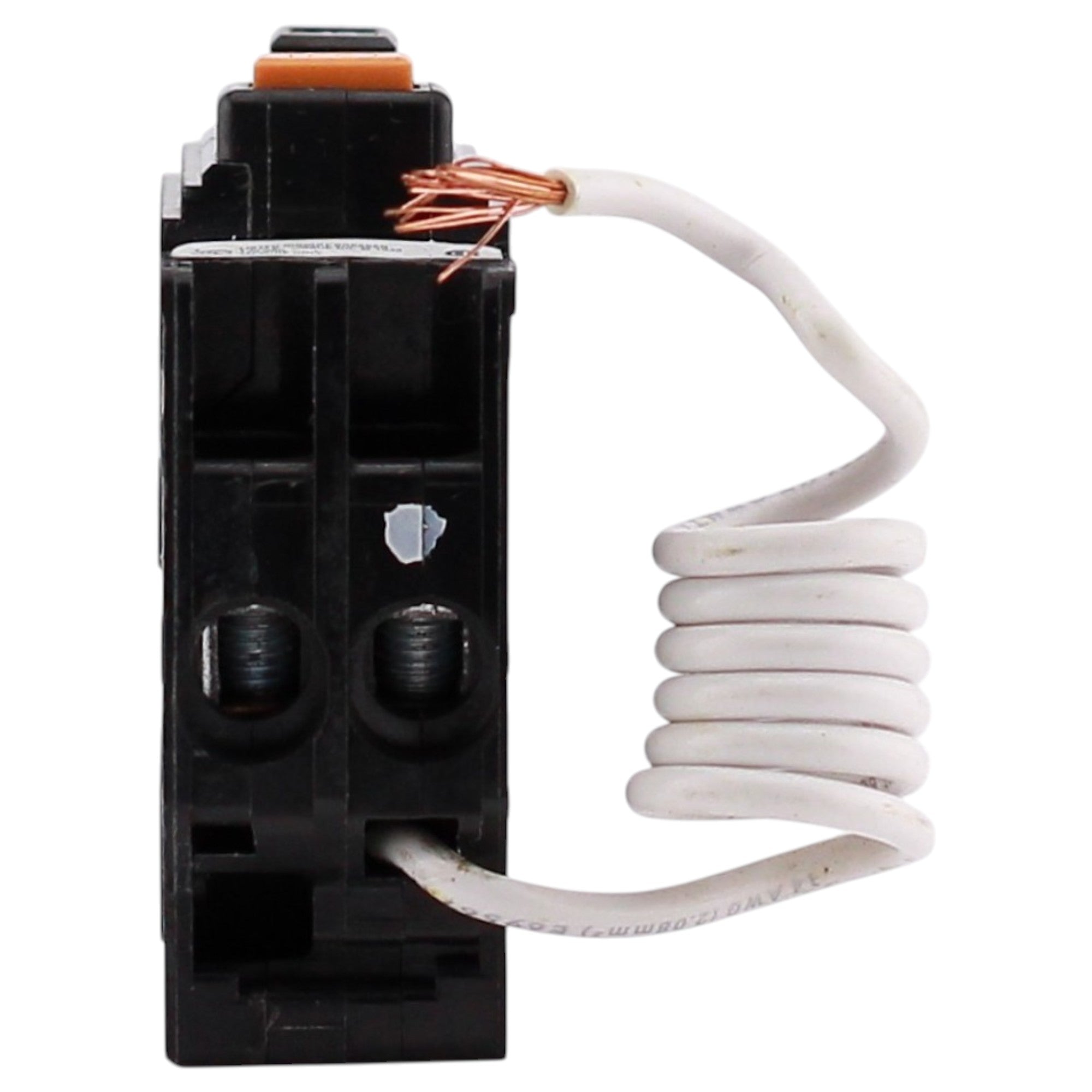

Allen-Bradley 1492-MCEA115: 15 Amp, 1-Pole, Ground Fault Equipment Protector (GFEP), 120/240V AC, 10kA, Panel Mount, 30mA Sensitivity, UL Listed.
-
Manufacturer: Rockwell Automation
-
Brand: Allen-Bradley
-
Product Range: Bulletin 1492-MC — 1492-MCE Ground Fault Equipment Protectors
-
UPC: 781180166402
-
Model Number: 1492-MCEA115
-
Breaker Type: Thermal Magnetic Circuit Breaker with Ground Fault Equipment Protector (GFEP), Class B
-
Trip Functions: LI — Long-Time and Instantaneous
-
Amperage: 15 Amps
-
Poles: 1-Pole
-
Voltage: 120/240 Volts AC
-
Interrupt Rating: 10 kAIC
-
Mounting Mode: Panel mounting (DIN rail adapter or panel mounting clips)
-
Connections / Terminals: Standard terminal
-
Wire Size: #14–8 AWG
-
Tightening Torque: 17.7 lb-in (#14–10 AWG)
-
Dimensions: Height: 3.812 in; Width: 1.00 in; Depth: 2.249 in
-
Certifications: UL Listed (File No. E197878), CSA Certified (File No. 216034), UL 489, UL 1053, CSA C22.2 No. 5, CSA C22.2 No. 144, HACR Rated, SWD Rated
-
Trip Sensitivity: 30 mA ground fault protection (Class B — Equipment Protection)
-
Weight: 0.47 lbs
This Allen-Bradley 1492-MCEA115 thermal magnetic circuit breaker with GFEP delivers reliable 15 Amp, 1-Pole equipment protection for 120/240V circuits in panel-mount industrial applications. With 30mA ground fault detection and 10kA interrupt rating, it protects equipment from low-level fault currents in commercial and industrial settings.
