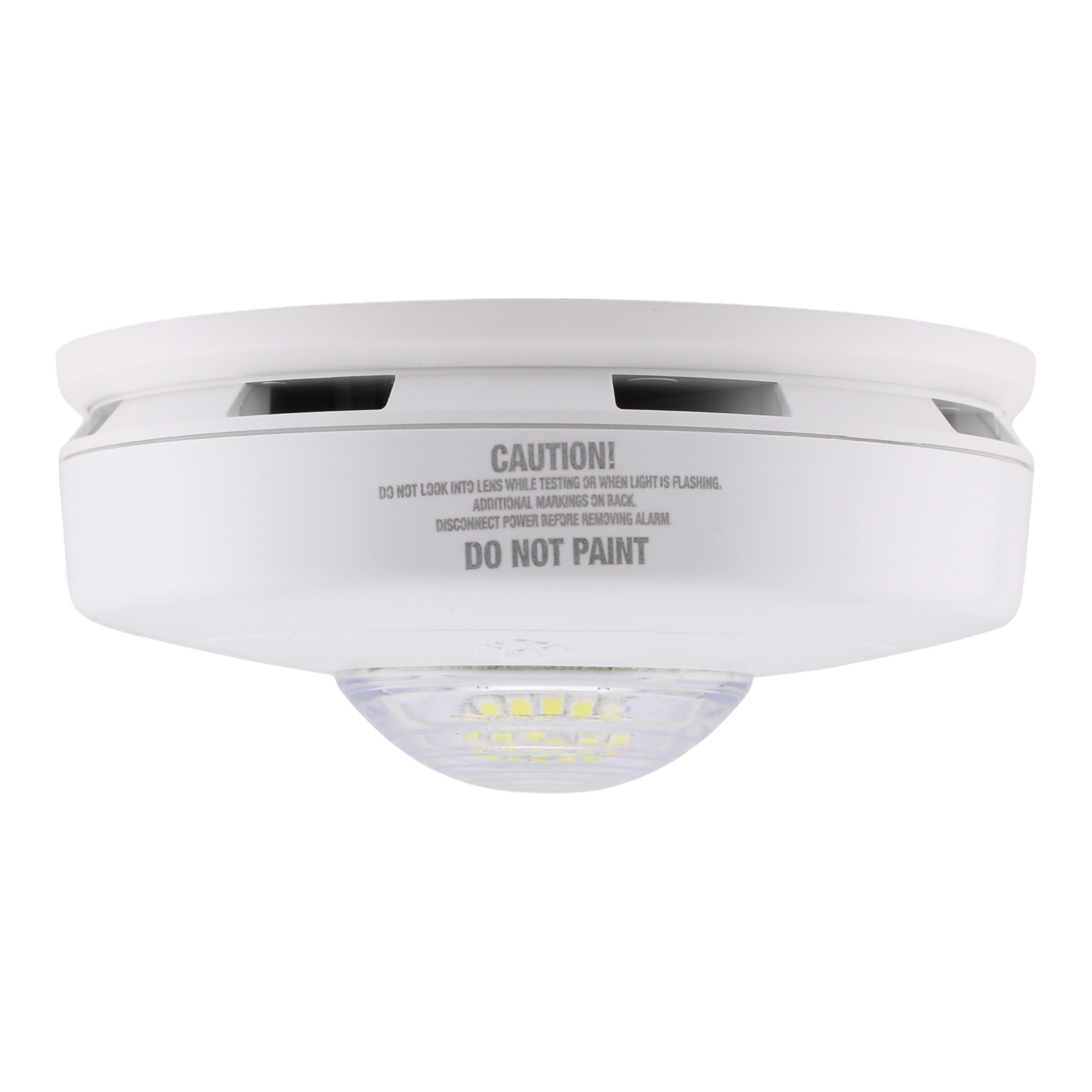

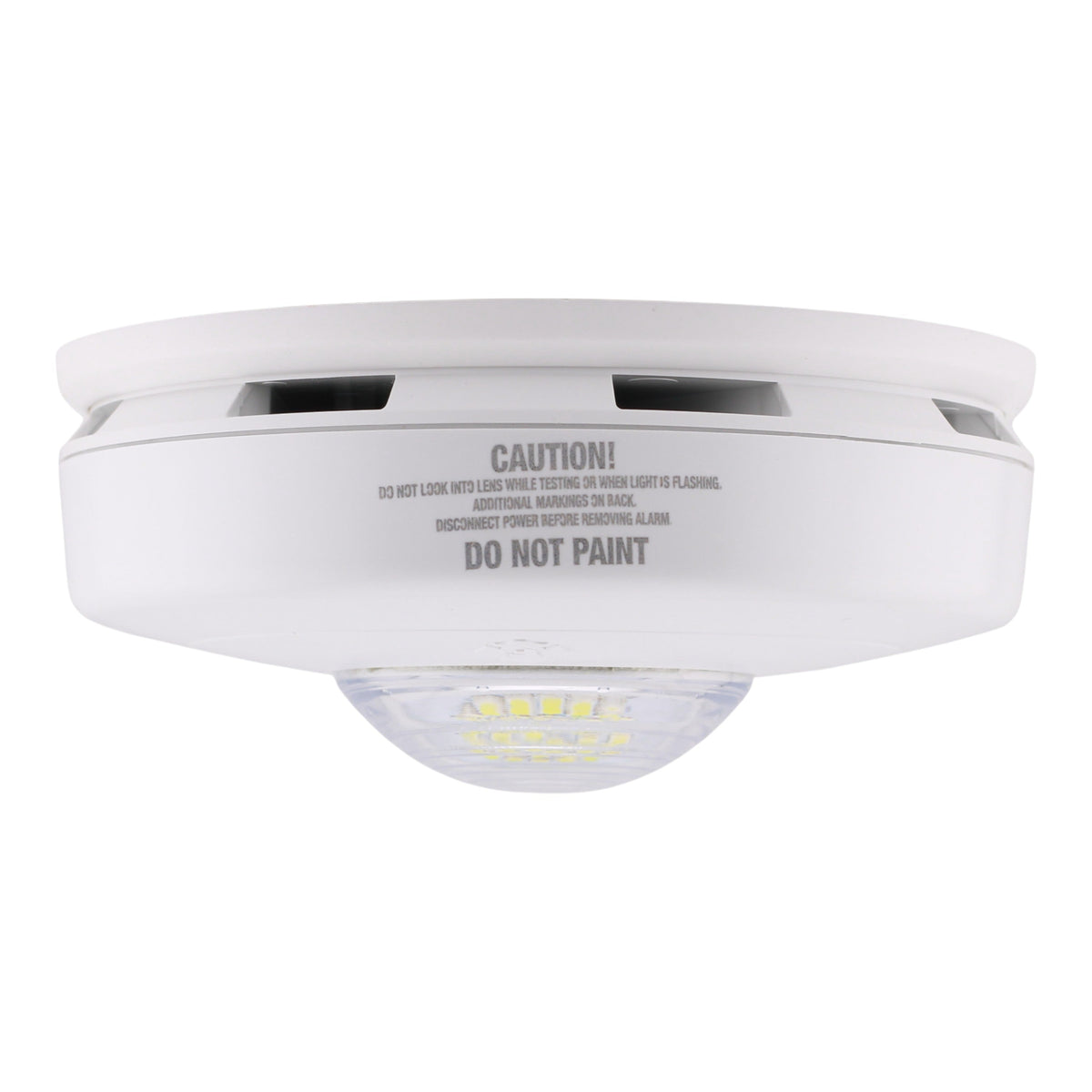

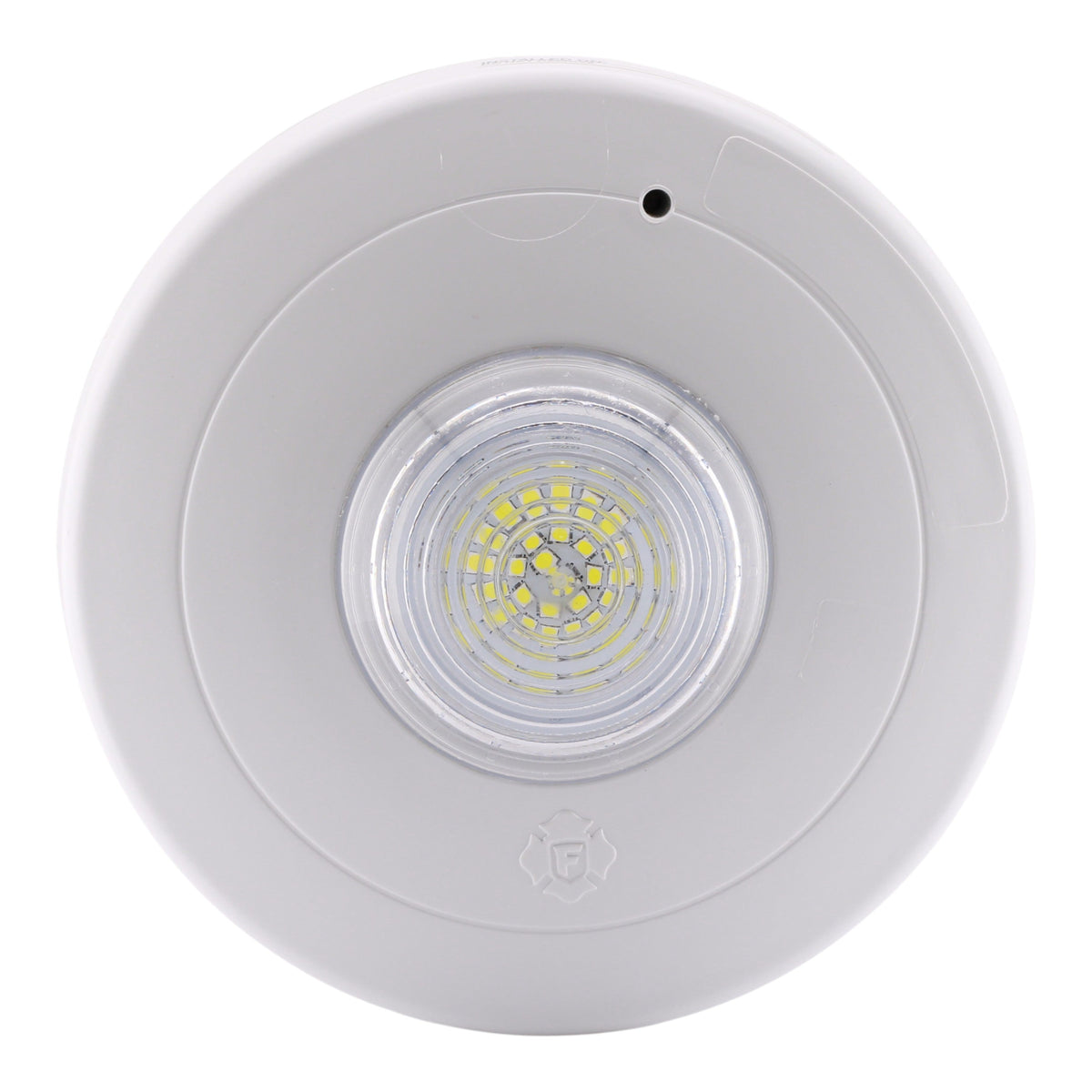

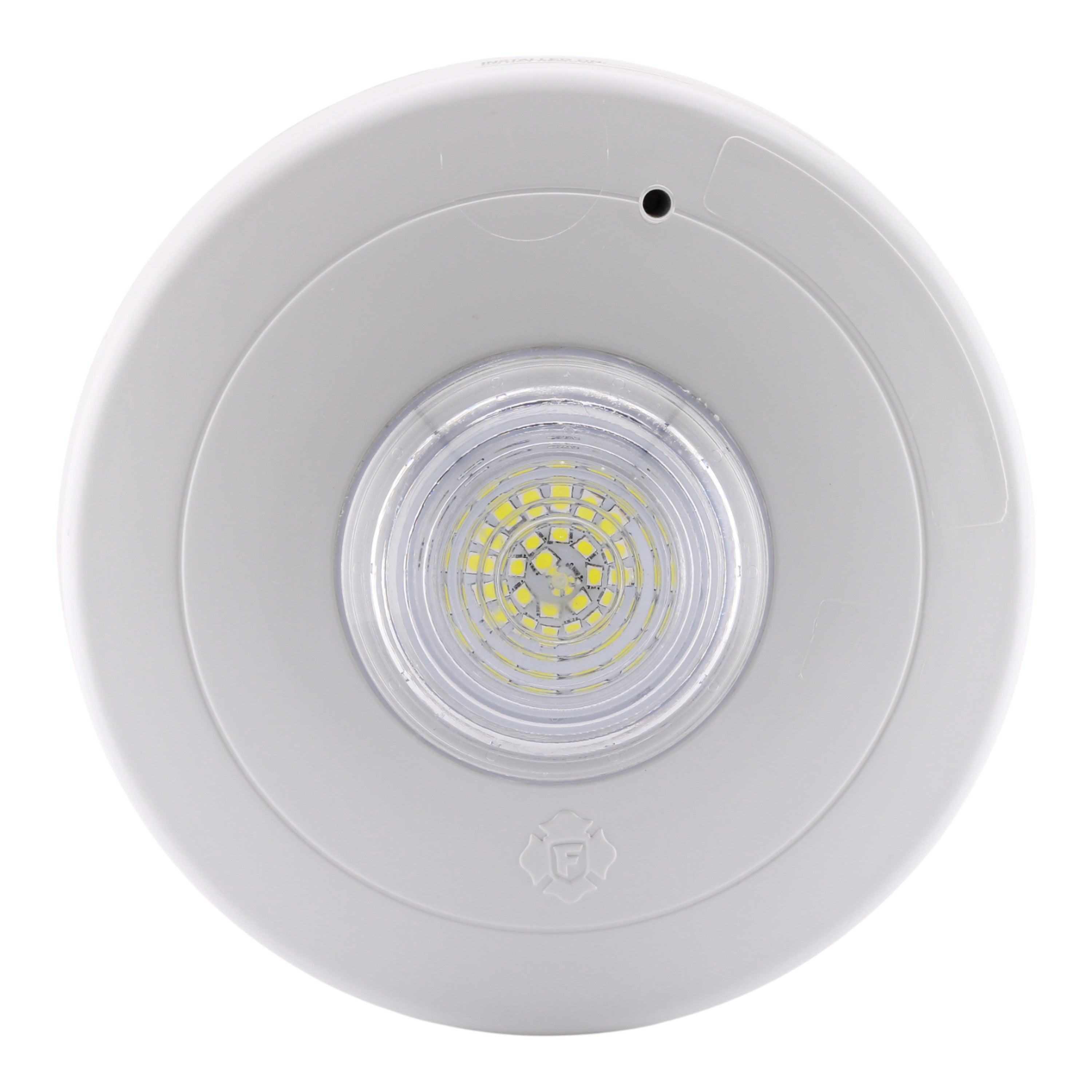

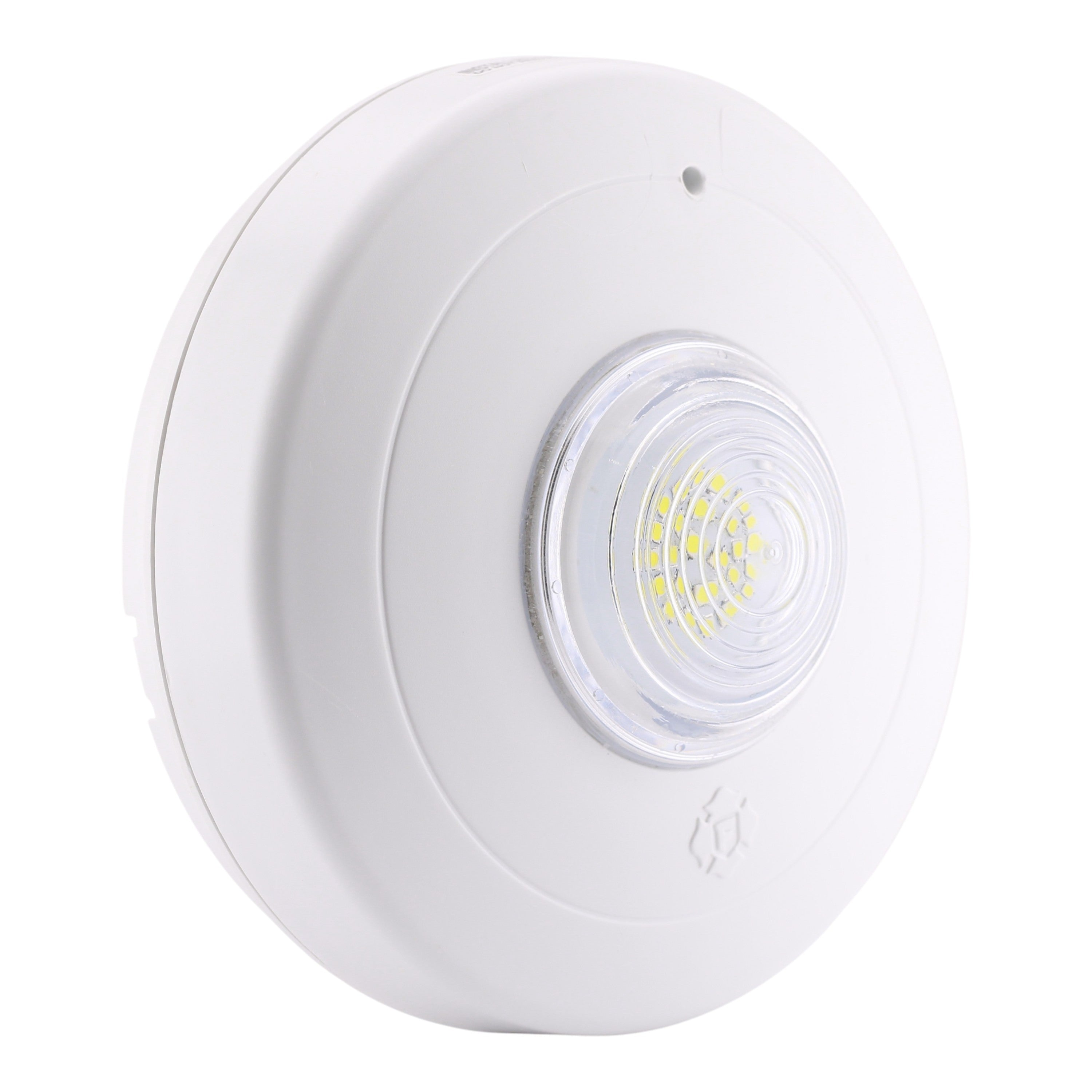

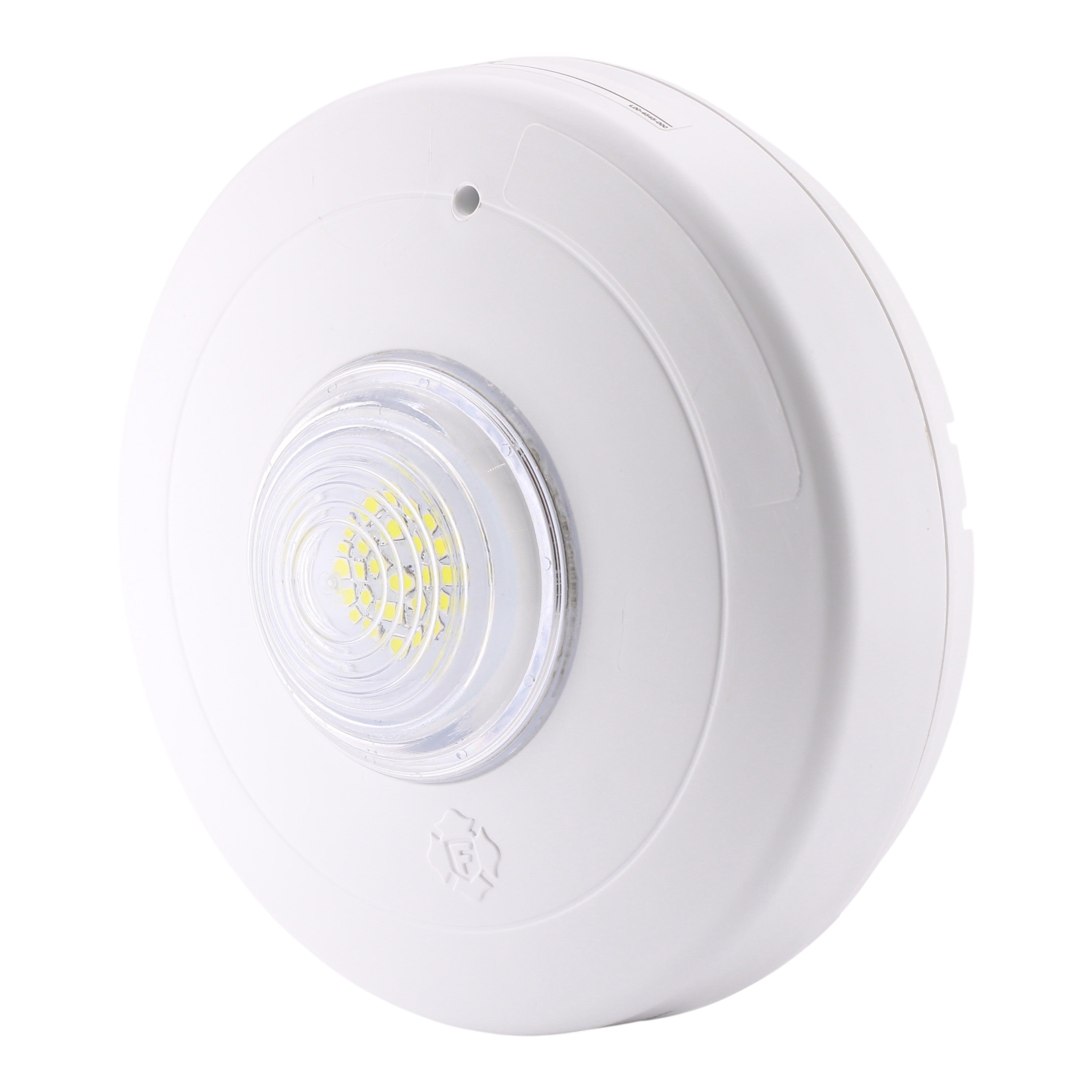

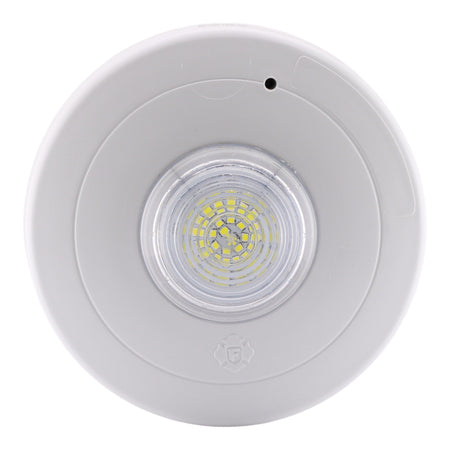

BRK SLED177: 177 Candela LED Strobe Light, 120 Volts AC, hardwired signaling device, dual flash patterns for smoke and CO alarms, synchronization capable, UL 1638 listed.
-
Manufacturer: BRK Brands, Inc. (a subsidiary of Resideo Technologies, Inc.)
-
Brand: BRK / First Alert
-
Product Range: SLED Series (LED Strobe Lights for hearing impaired applications)
-

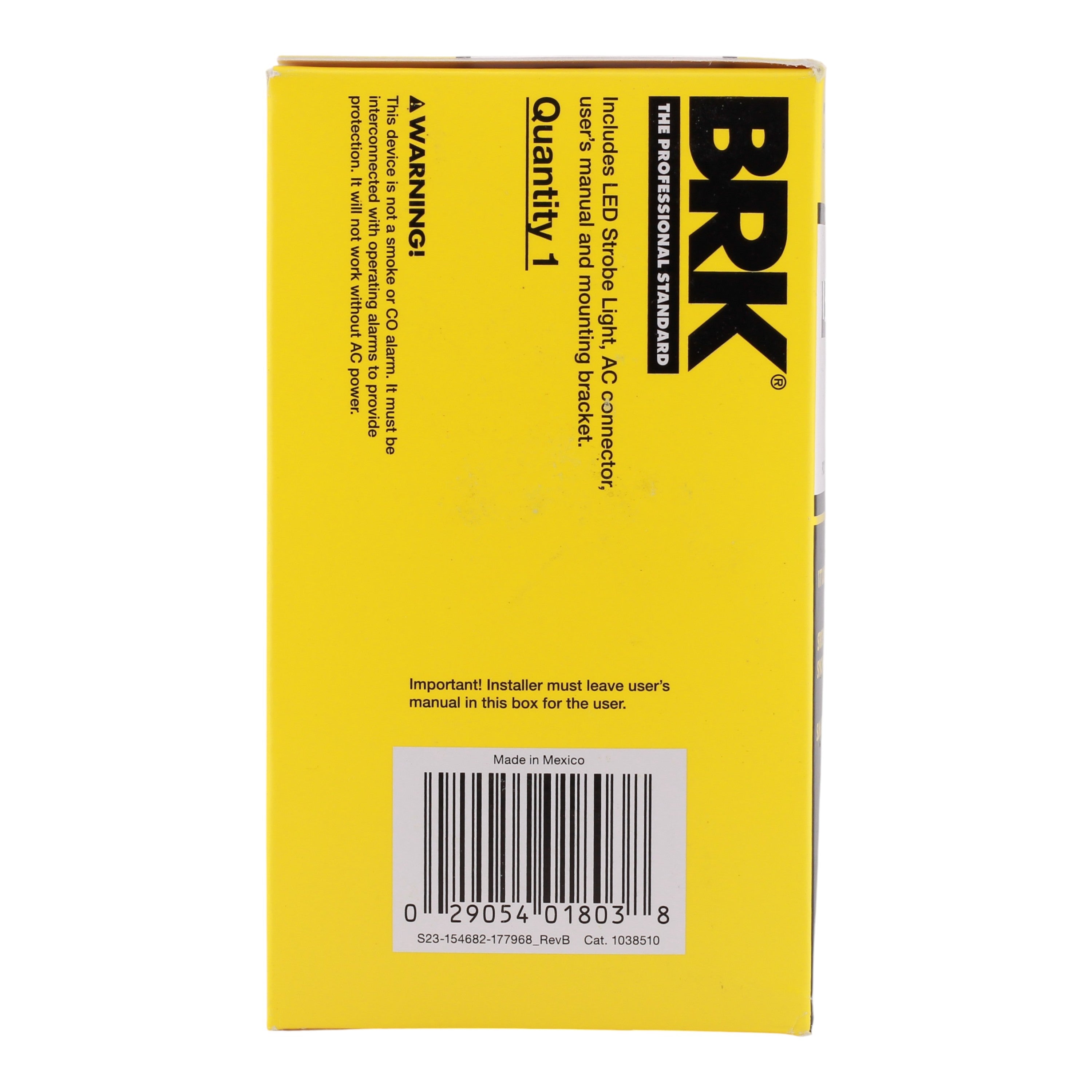

UPC: 029054018038
-
Model Number: SLED177 (Catalog Number: 1038510)
-
Product Type: AC Hardwired LED Strobe Light Signaling Device
-
Strobe Intensity: 177 Candela
-
Flash Rate: 1 Hz (60 flashes per minute average)
-
Flash Patterns: Smart Strobe with separate patterns for smoke/heat (constant 1 flash/second) and carbon monoxide (intermittent 1 flash/second for 4 flashes, then 5 seconds off)
-
Voltage: 120 Volts AC, 60 Hz
-
Sound Level: 85 dB at 10 feet
-
Interconnection Capability: Up to 18 First Alert or BRK devices (maximum 12 smoke alarms)
-
Strobe Synchronization: Multiple units flash in unison when interconnected
-
Indicator Lights: Green LED for AC power (constant), Red LED flashes during alarm activation
-

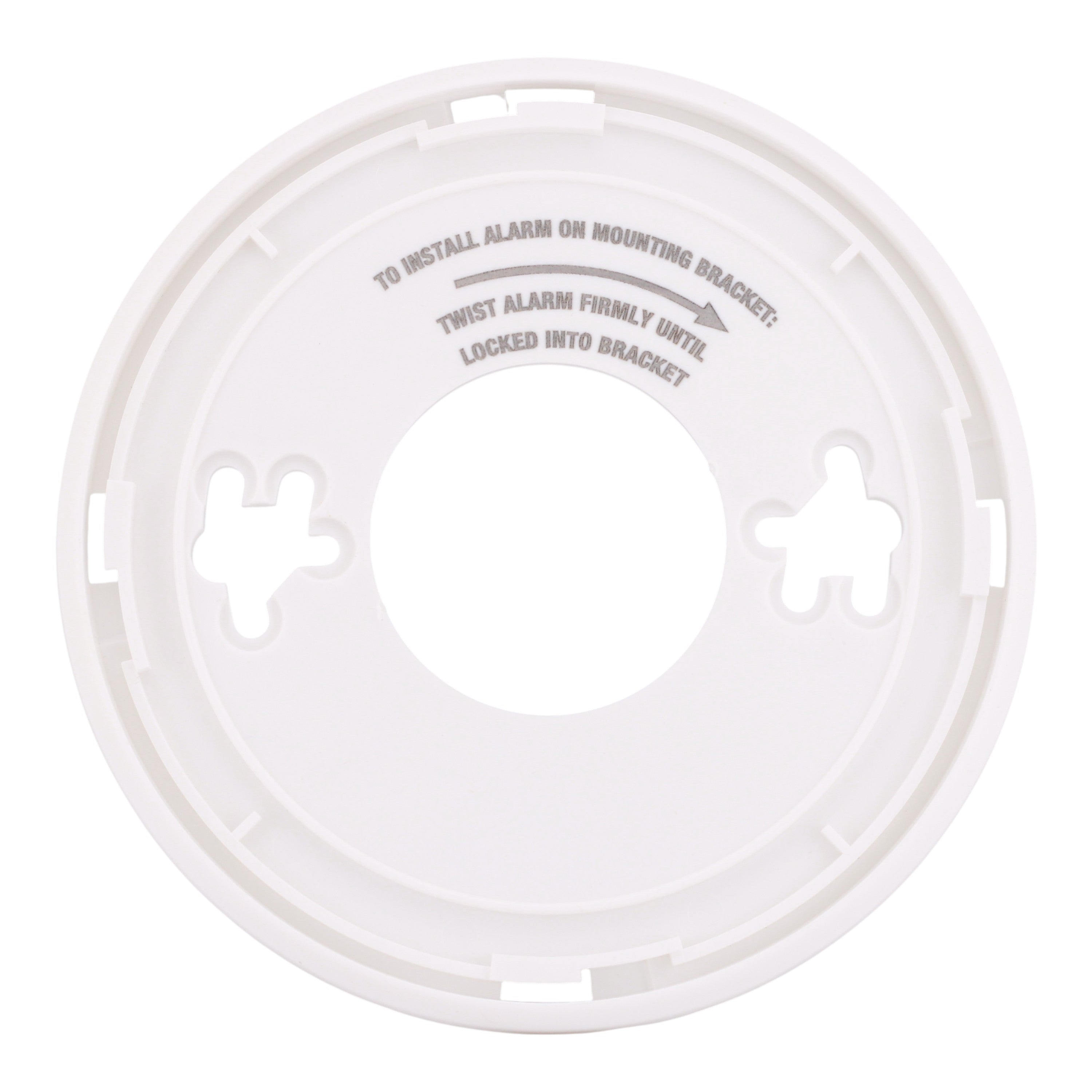

Mounting: Wall or ceiling mount
-
Dimensions: Height: 2.4 in; Width: 5.3 in; Length: 5.3 in
-
Weight: 0.51 lbs
-
Color: White
-
Temperature Range: 40°F to 100°F (4°C to 38°C)
-
Humidity Range: 10% to 90% relative humidity
-
Certifications: UL 1638 Listed, NFPA 72 compliant, ADA compliant, ANSI 117.1 compliant
-
End-of-Life Timer: 10-Year with indicator (5 green LED flashes once per minute)
-
Warranty: 10 Years Limited
This BRK SLED177 hardwired LED strobe light provides 177 candela visual warning for hearing impaired residents in residential and institutional applications. With smart dual flash patterns for smoke and carbon monoxide detection, strobe synchronization capability, and compliance with ADA, UL 1638, and NFPA 72 standards, it ensures enhanced safety when interconnected with compatible smoke and CO alarms in loadcenters and living spaces.
