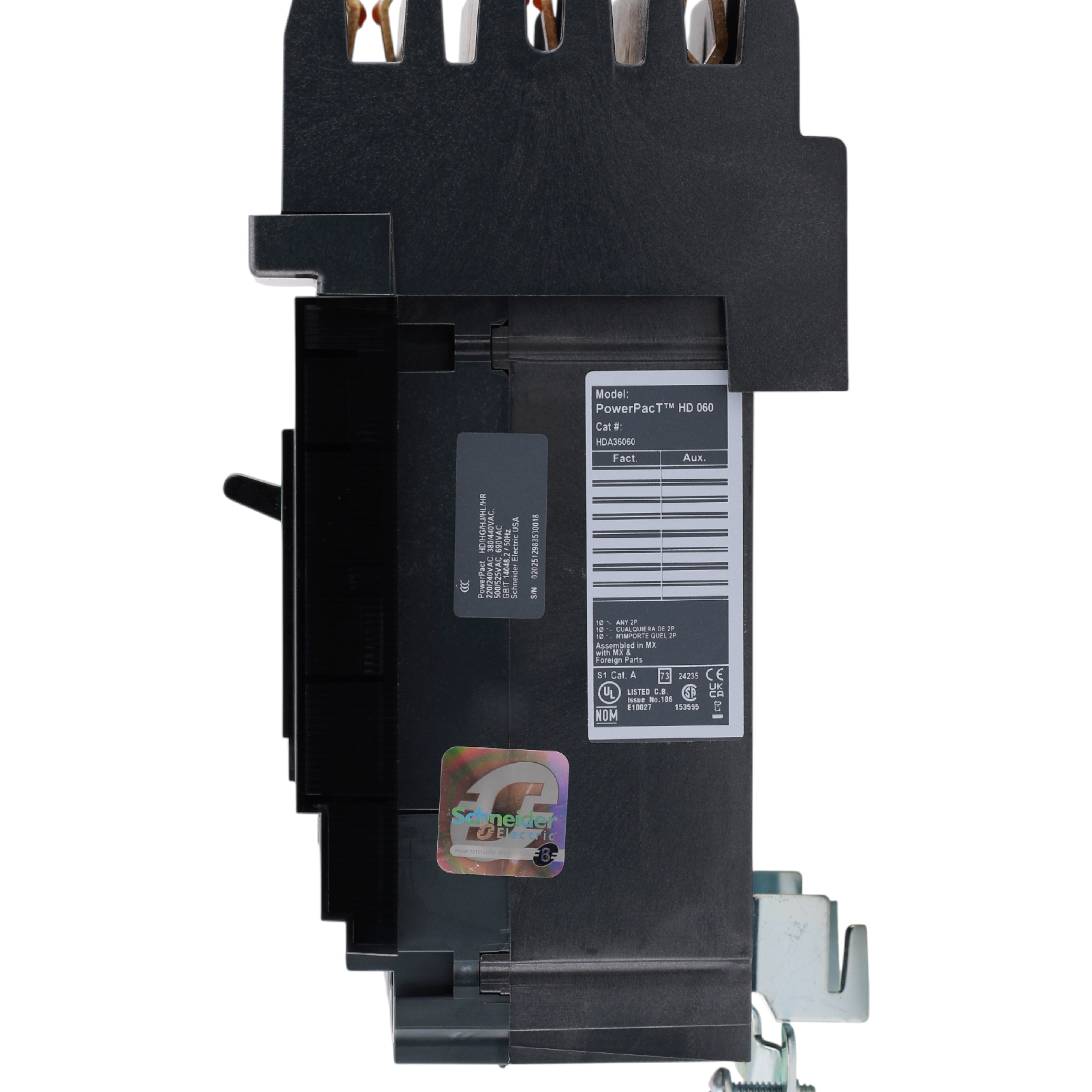

Square D HDA36060 Circuit breaker, PowerPacT H, 60A, 3 pole, 600VAC, 14kA, I-Line, ABC - Image 7
Square D HDA36060 Circuit breaker, PowerPacT H, 60A, 3 pole, 600VAC, 14kA, I-Line, ABC - Image 8
Square D HDA36060 Circuit breaker, PowerPacT H, 60A, 3 pole, 600VAC, 14kA, I-Line, ABC - Image 9

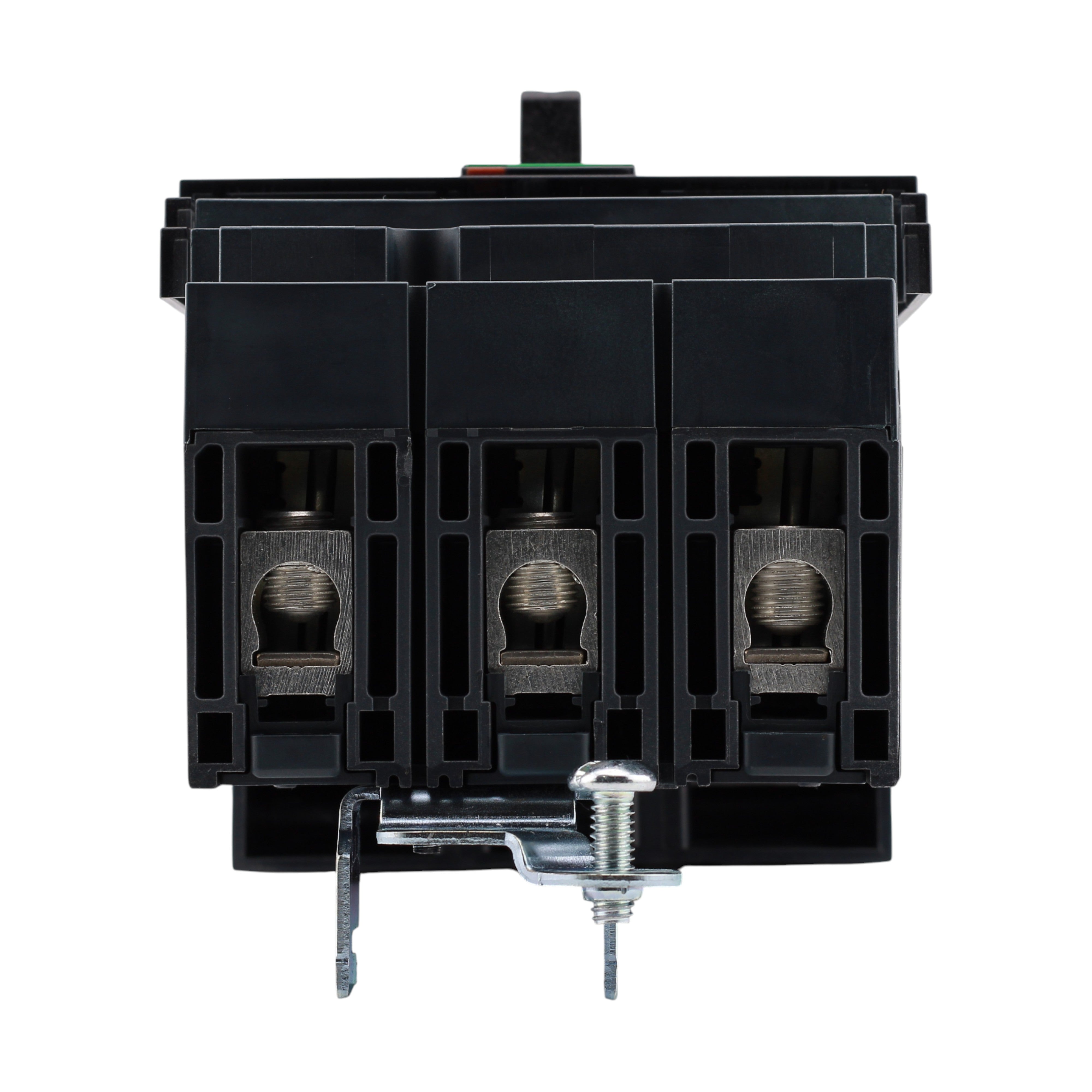

Square D HDA36060 Circuit breaker, PowerPacT H, 60A, 3 pole, 600VAC, 14kA, I-Line, ABC - Image 10

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

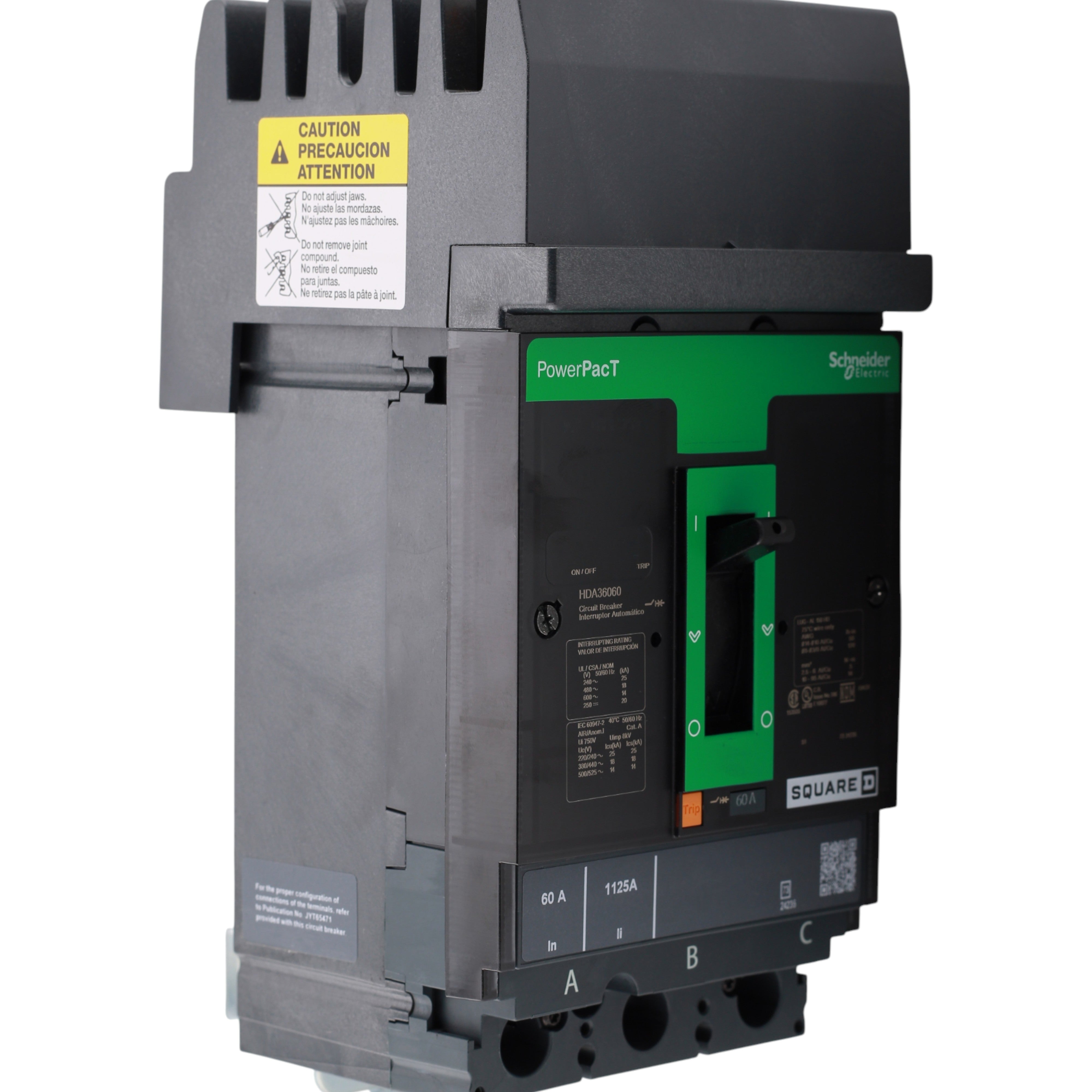

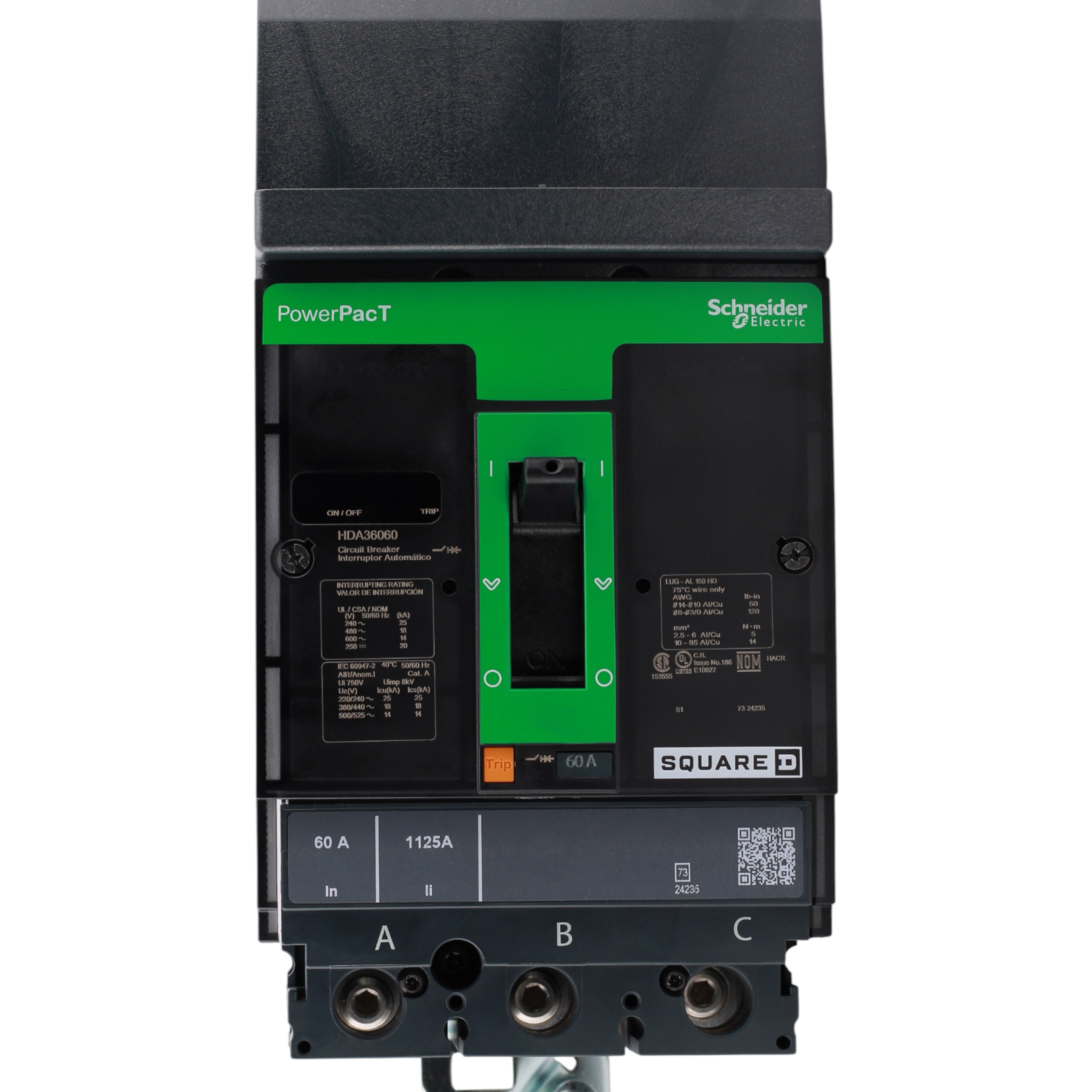

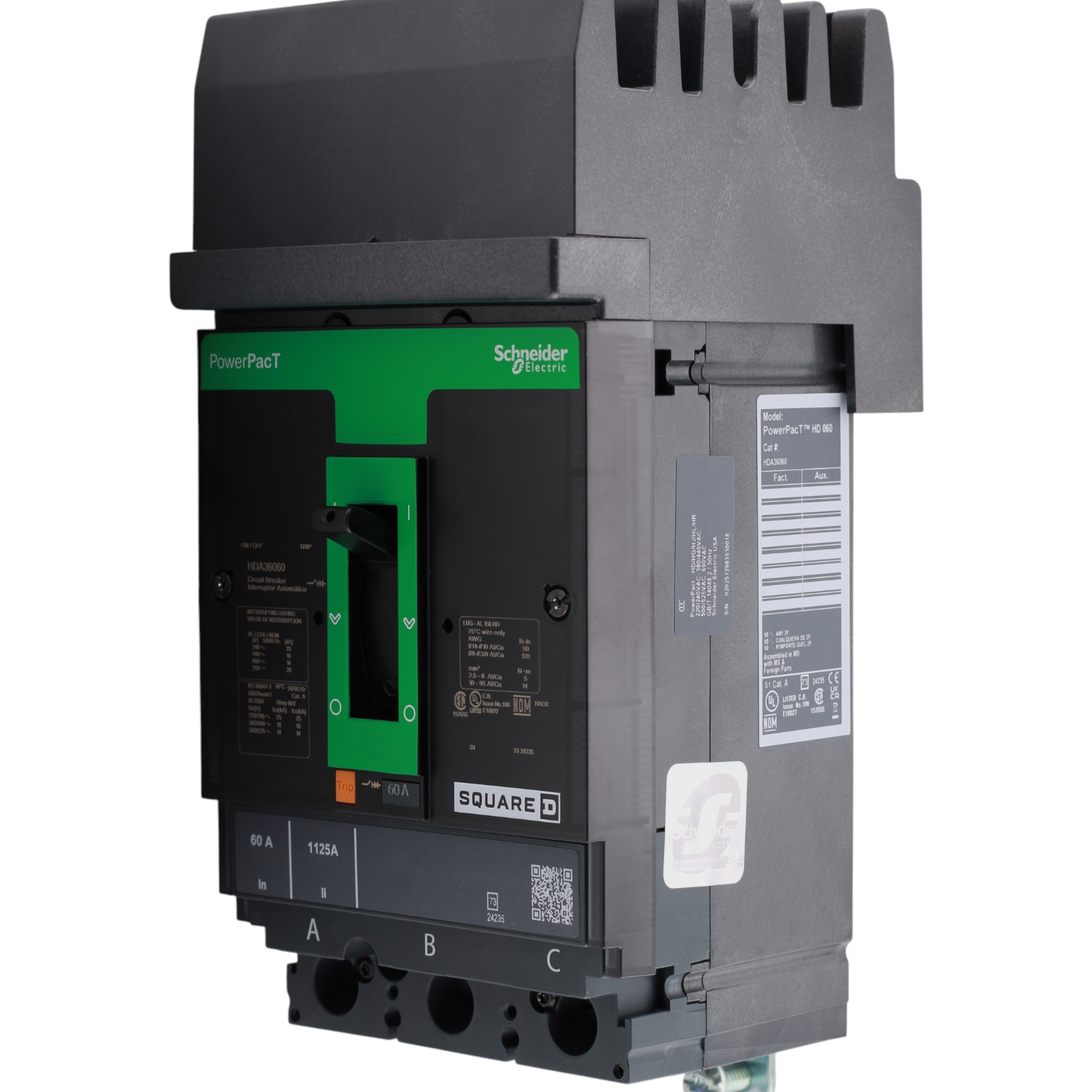

Square D HDA36060 Circuit breaker, PowerPacT H, 60A, 3 pole, 600VAC, 14kA, I-Line, ABC

Only 1 left
SKU: HDA36060 UPC: 785901419969
(0)
$420.00
Only 1 left
Low inventory - Hurry up!
Condition

HDA36060 I-Line selection: BreakerSmart's cataloged unit belongs to the Square D PowerPacT H frame and provides three-pole, 60-amp thermal-magnetic protection in an I-Line distribution assembly. Its configuration is rated through 600VAC and is not the unit-mount or generic bolt-on version of the H-frame.

HDA36060 specifications

  • Catalog number: HDA36060
  • Frame and trip: PowerPacT H, thermal-magnetic
  • Current and poles: 60A, three pole
  • Maximum AC voltage: 600VAC
  • Interrupting capacity: 14kA at 600VAC

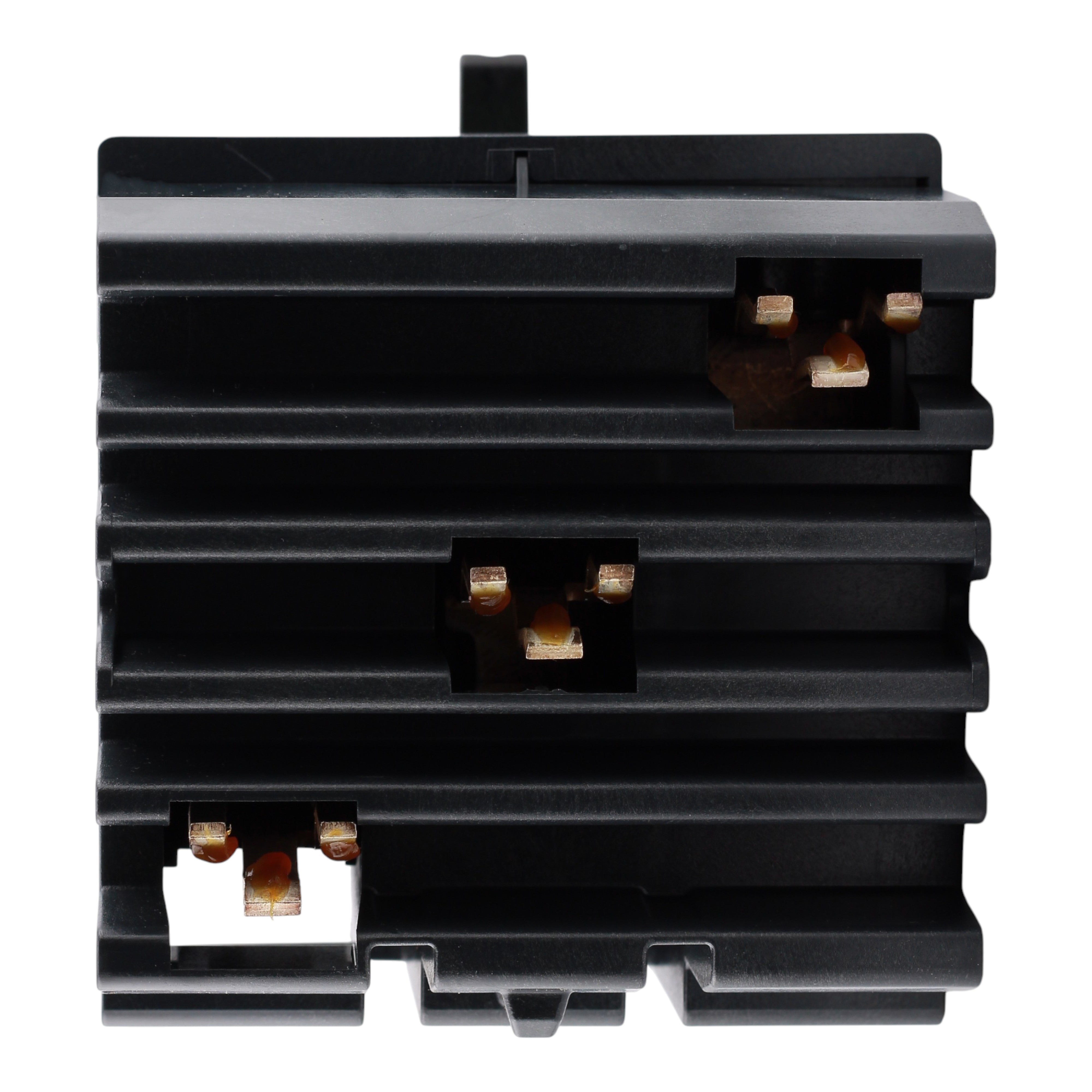

  • Mounting: I-Line, ABC configuration
  • Continuous-load rating: Standard 80%

Read the AIC at the applied voltage

The 14kA value is the 600-volt interrupting rating, not a universal rating for every system voltage. Available fault current must remain within the breaker rating shown for the actual application.

Equipment-fit review

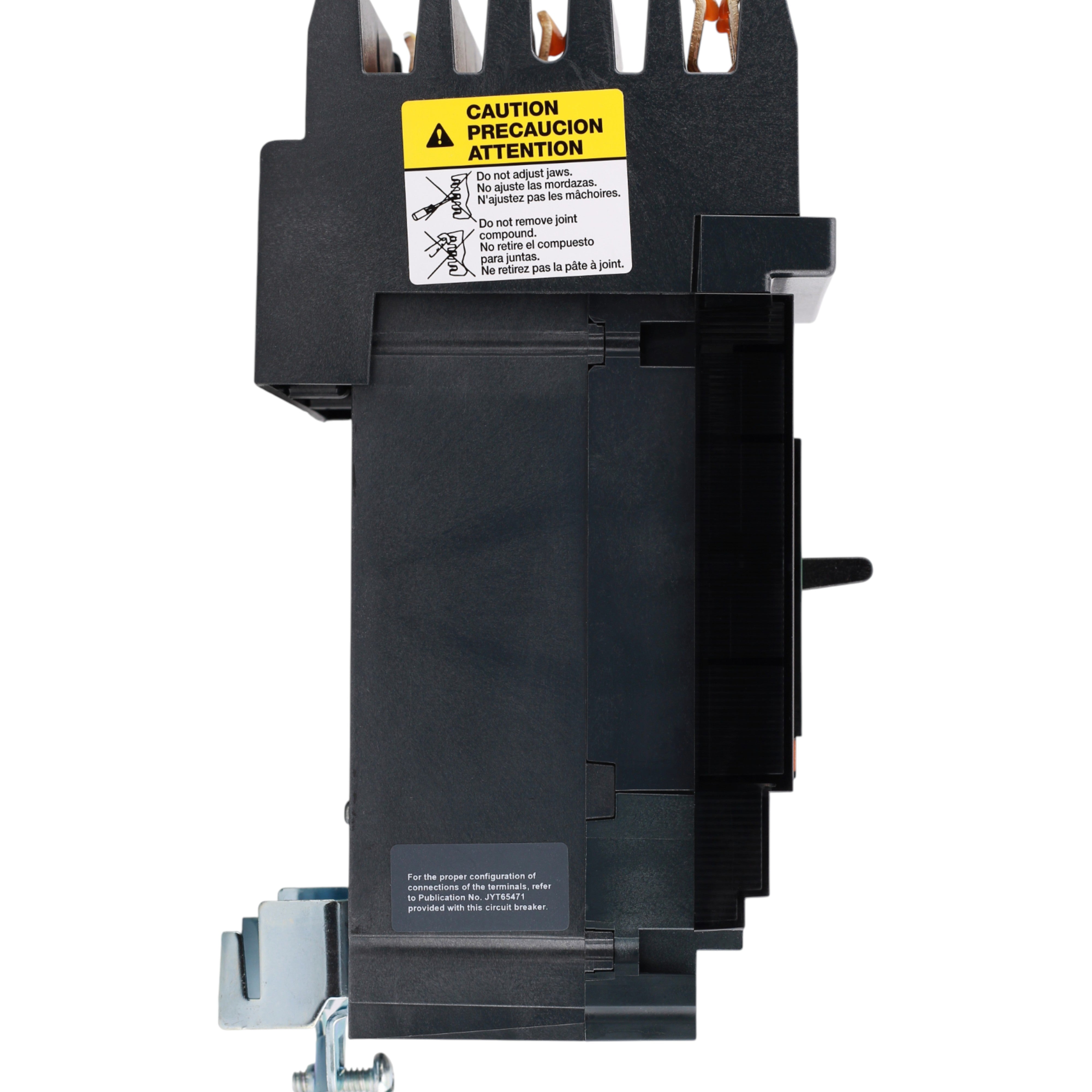

Match the full HDA36060 marking to the I-Line panel schedule, bus orientation, phase arrangement, system voltage, and accessory requirements. Inspect the physical unit for its installed load-terminal hardware. Installation, torqueing, and commissioning should be performed by qualified electrical personnel using Schneider instructions.
