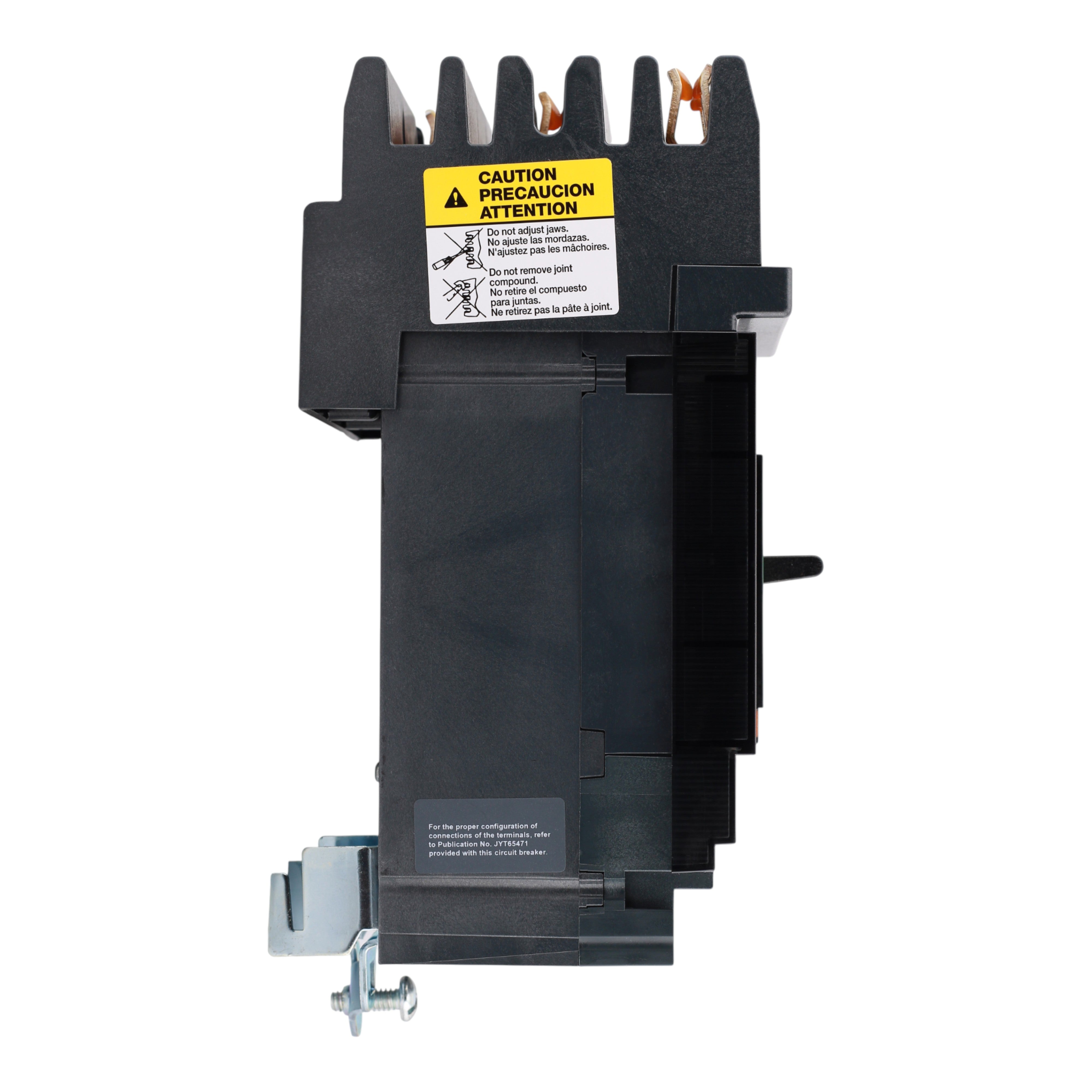

Square D HDA36070 Circuit breaker, PowerPacT H, 70A, 3 pole, 600VAC, 14kA, I-Line, thermal magnetic, 80%, ABC - Image 6
Square D HDA36070 Circuit breaker, PowerPacT H, 70A, 3 pole, 600VAC, 14kA, I-Line, thermal magnetic, 80%, ABC - Image 7

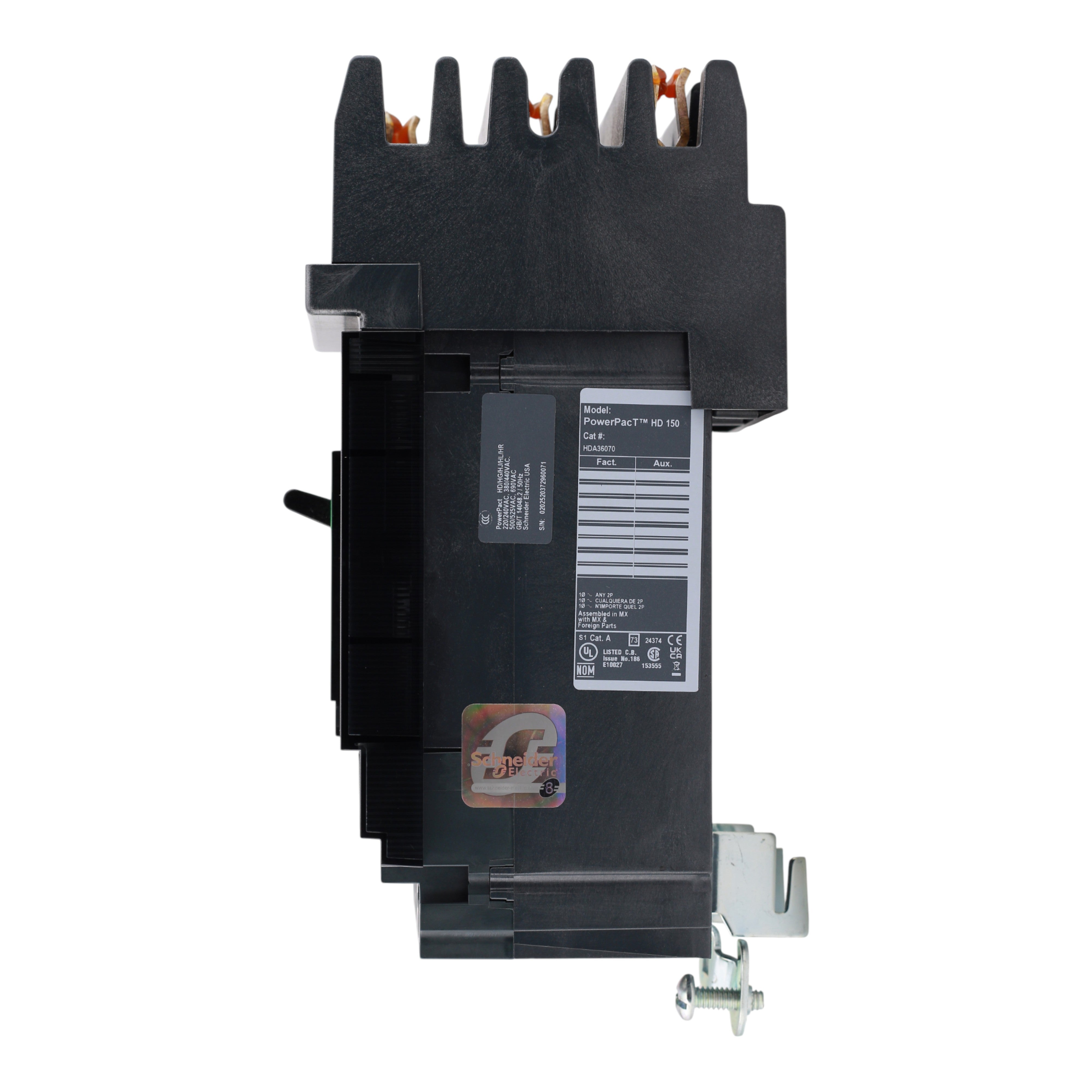

Square D HDA36070 Circuit breaker, PowerPacT H, 70A, 3 pole, 600VAC, 14kA, I-Line, thermal magnetic, 80%, ABC - Image 8

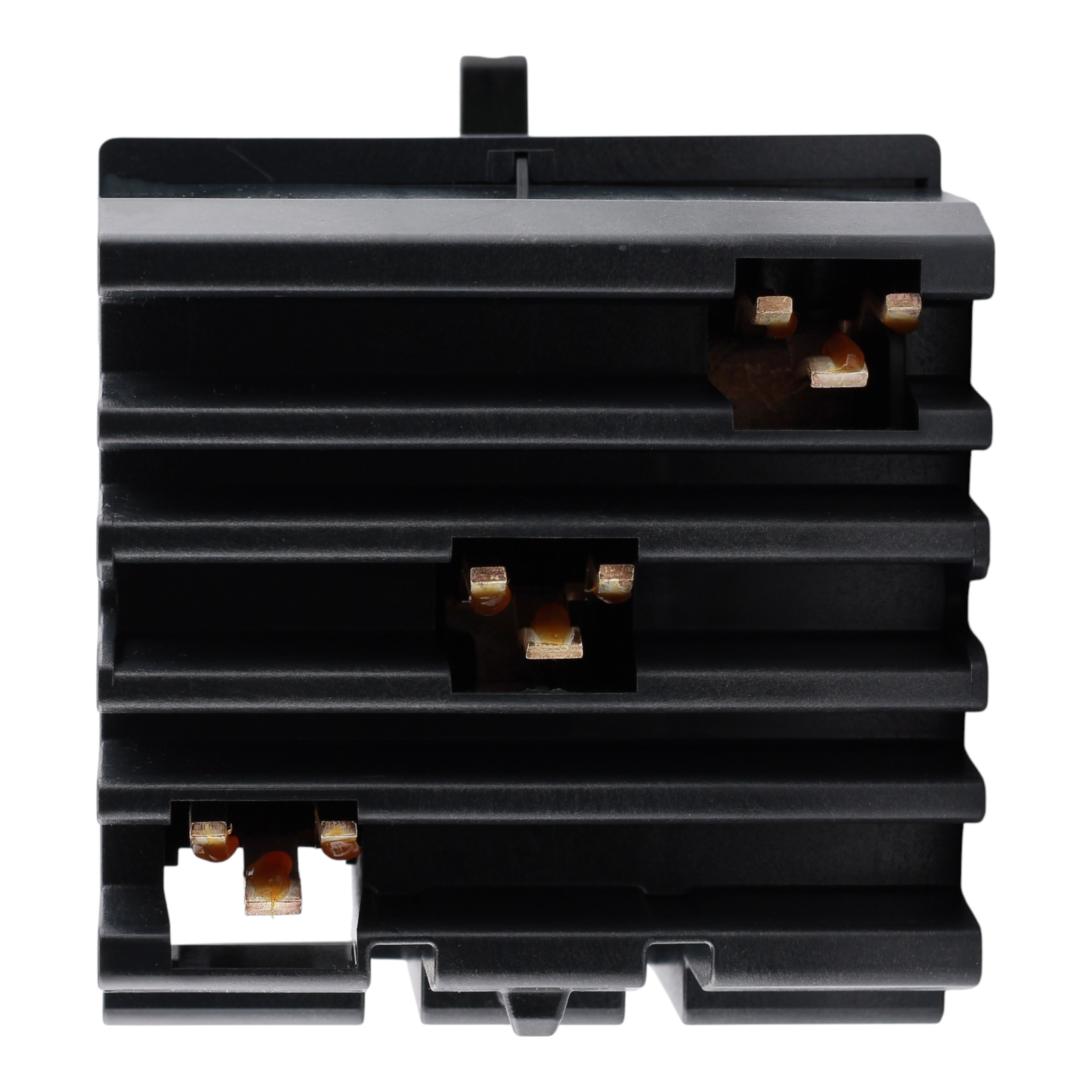

Square D HDA36070 Circuit breaker, PowerPacT H, 70A, 3 pole, 600VAC, 14kA, I-Line, thermal magnetic, 80%, ABC - Image 9
Square D HDA36070 Circuit breaker, PowerPacT H, 70A, 3 pole, 600VAC, 14kA, I-Line, thermal magnetic, 80%, ABC - Image 10

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

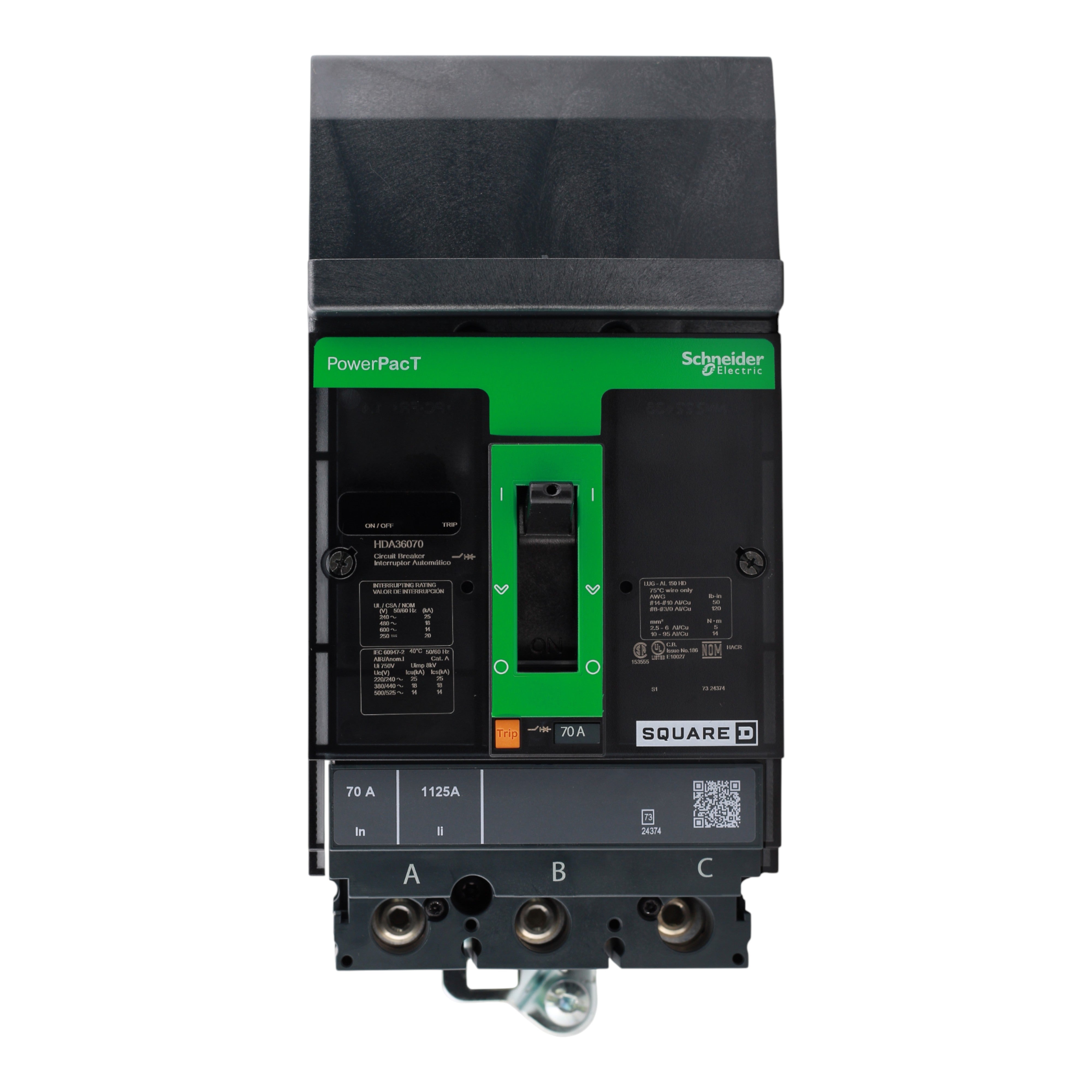

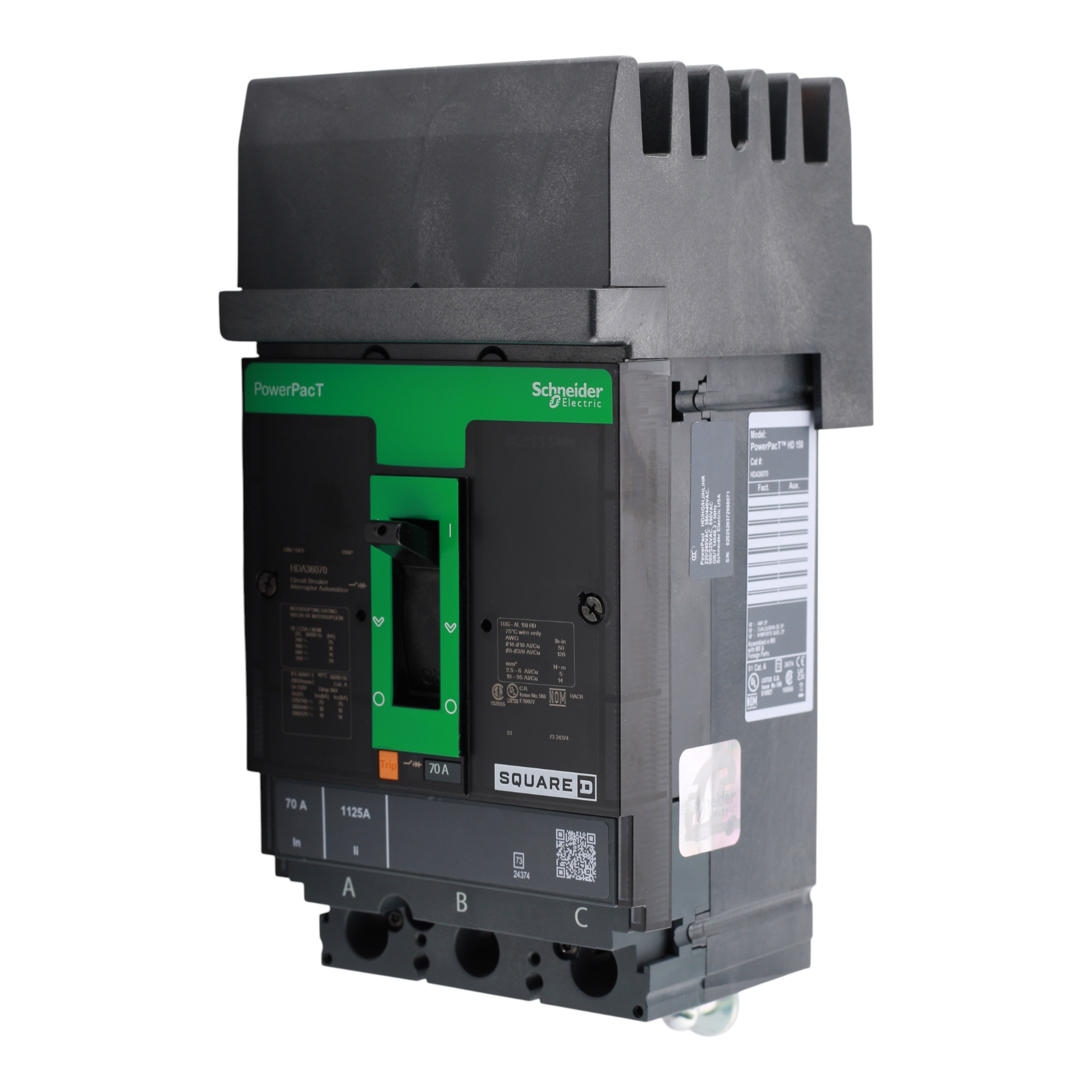

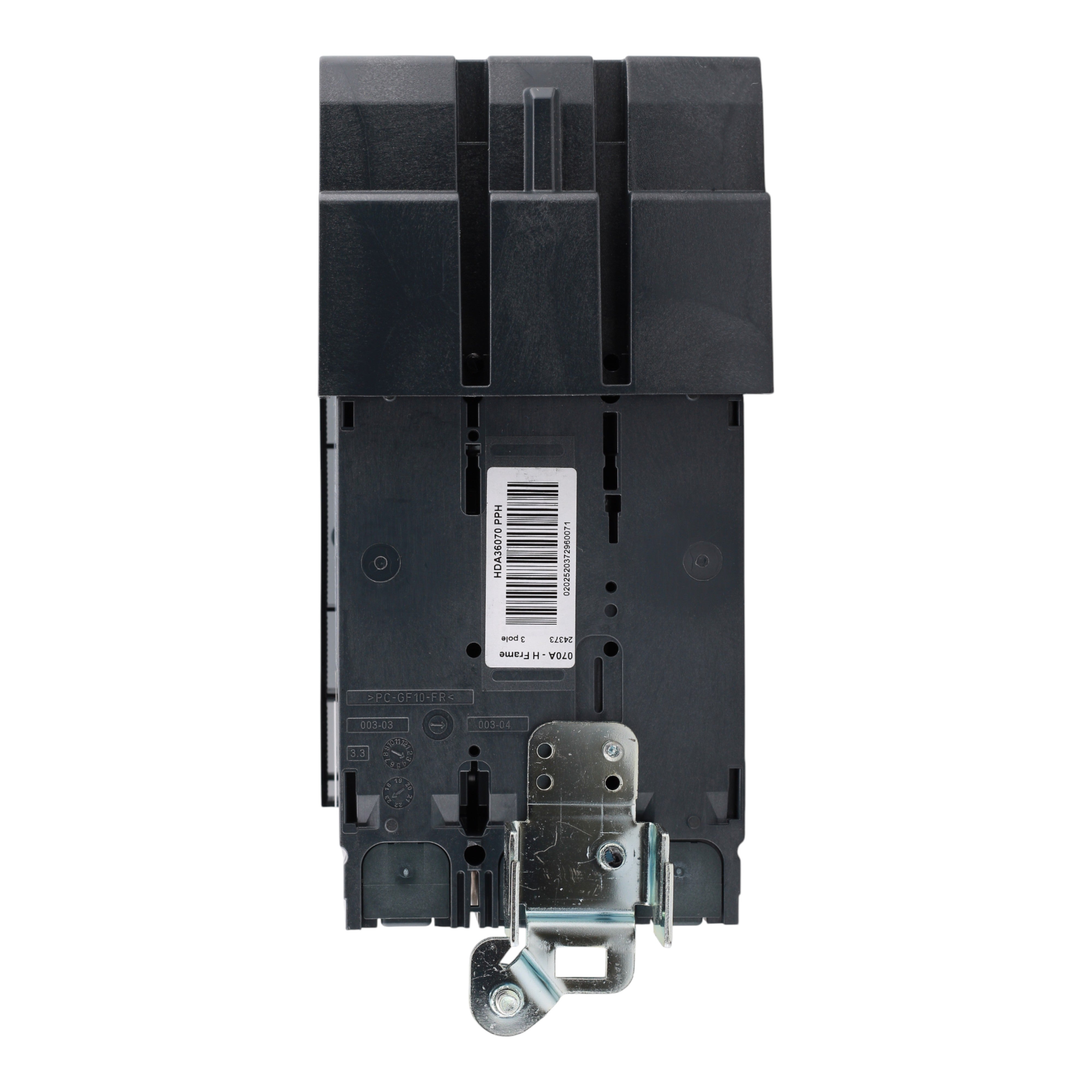

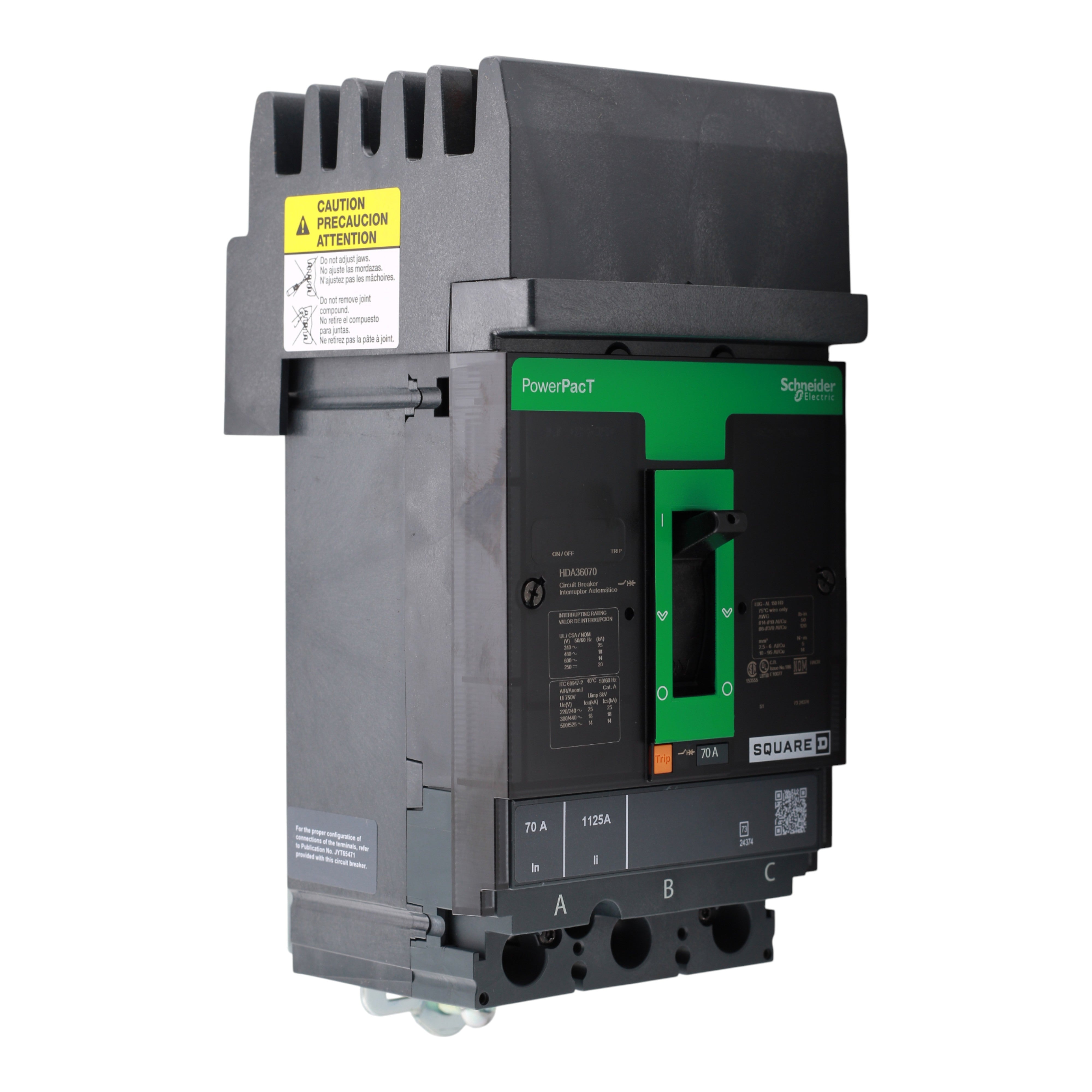

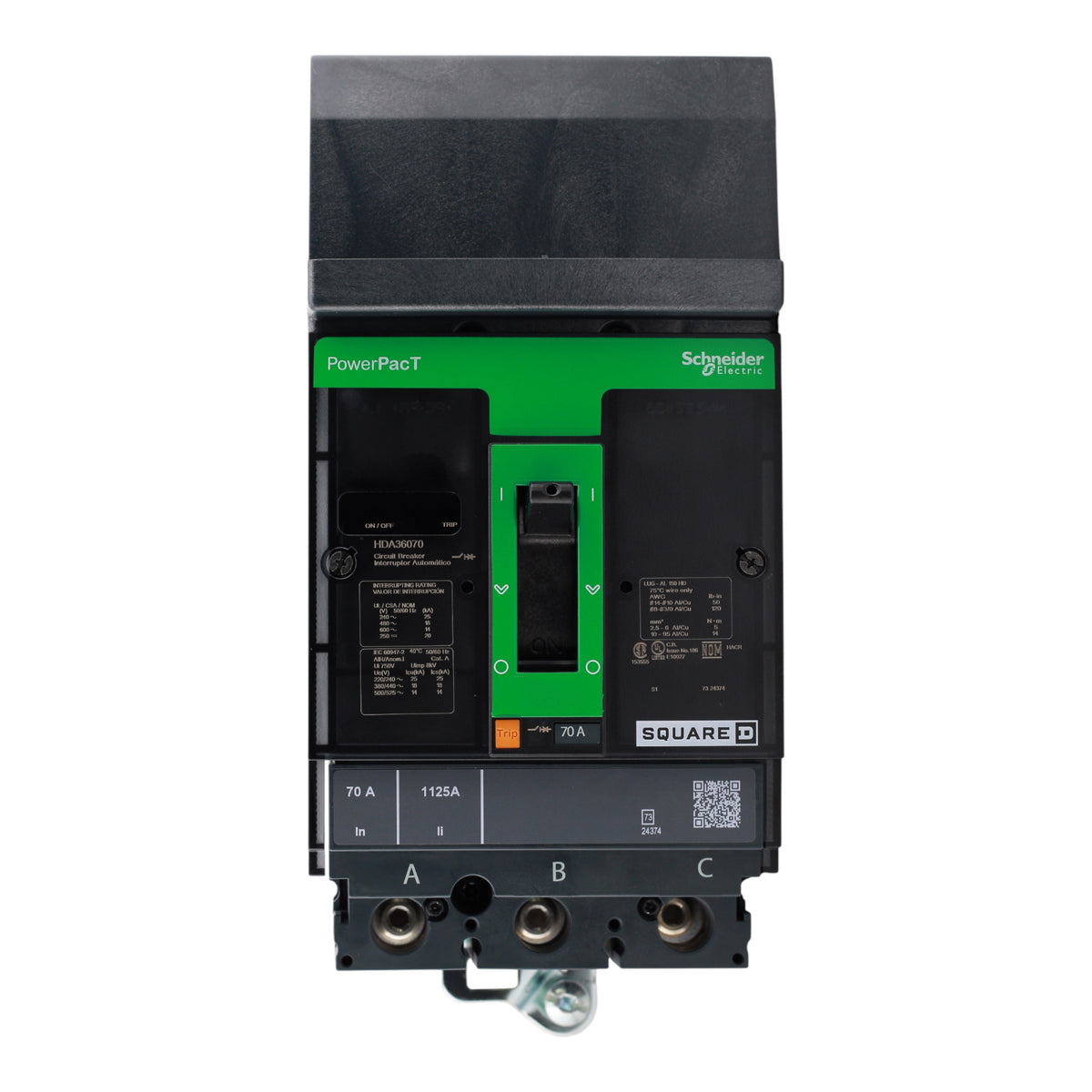

Square D HDA36070 Circuit breaker, PowerPacT H, 70A, 3 pole, 600VAC, 14kA, I-Line, thermal magnetic, 80%, ABC

Out of stock
SKU: HDA36070 UPC: 785901419976
(0)
$440.00
Out of stock
Condition

Circuit breaker, PowerPacT H: 70 Amp 3-Pole Thermal-Magnetic Circuit Breaker, 600VAC, 14kA, I-Line, 80% rated, UL, CSA, IEC certified.

  • Manufacturer: Schneider Electric
  • Brand: Square D
  • Product Range: PowerPacT H (for PowerPacT H loadcenters and equipment)
  • UPC: 785901419976
  • Model Number: HDA36070
  • Breaker Type: Thermal-Magnetic
  • Amperage: 70 Amps
  • Poles: 3-Pole
  • Voltage: 600 Volts AC
  • Interrupt Rating: 14 kAIC
  • Mounting Mode: I-Line

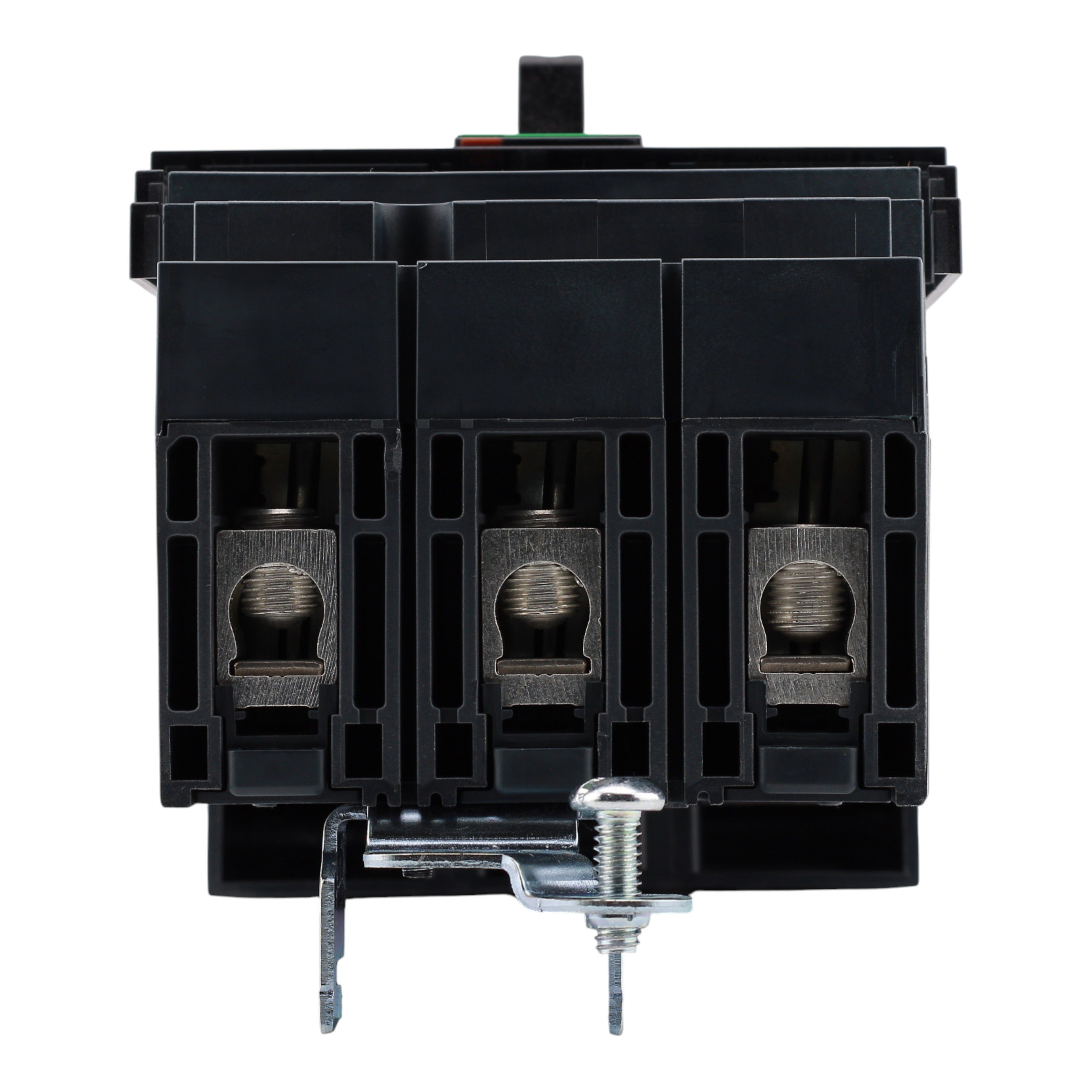

  • Connections Terminals: I-Line connection (line), Lugs (load)
  • Wire Size: AWG 14...AWG 3/0 Cu/Al
  • Tightening Torque: 44.3 lb-in (AWG 14...AWG 10), 123.9 lb-in (AWG 8...AWG 3/0)
  • Dimensions: Height: 6.4 in; Width: 4.09 in; Depth: 3.4 in
  • Weight: 4.9 lbs
  • Certifications: UL Listed, CSA Certified, NOM, IEC 60947-2, HACR Rated

This Square D PowerPacT H HDA36070 circuit breaker provides reliable 70A, 3-pole thermal-magnetic protection for 600VAC circuits in PowerPacT H loadcenters. With a 14kA interrupting capacity and I-Line mounting, it ensures robust performance and easy installation for commercial and industrial applications.
