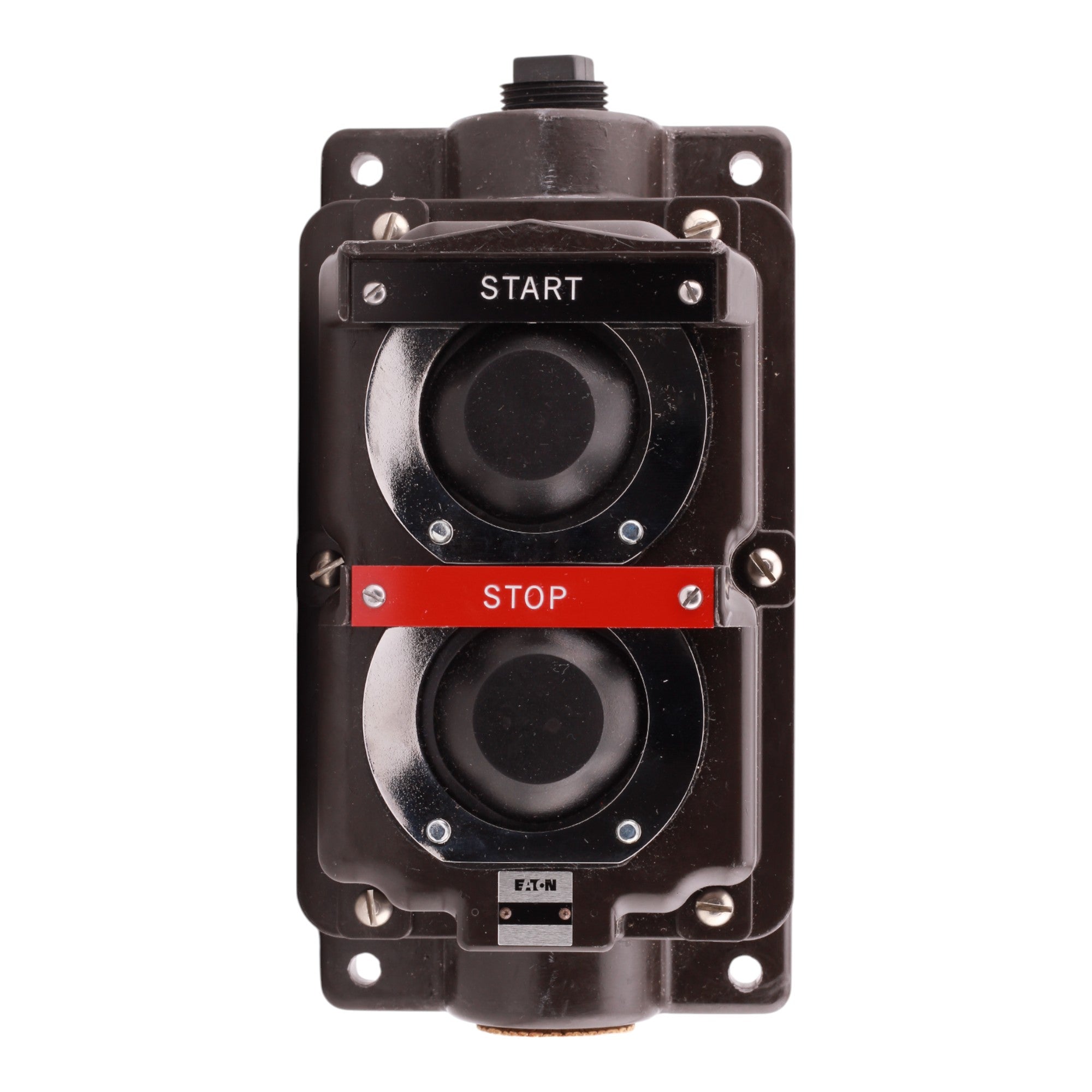

Eaton 10250T 10250H1884 30.5mm Pushbutton START STOP

10250H1884 Eaton 10250T 30.5mm Pushbutton START STOP.

10250H1884 specifications

• Manufacturer: Eaton Corporation
• Brand: Eaton
• Product Range: 10250T (for industrial control panels and equipment)
• UPC: 782113203218
• Model Number: 10250H1884
• Product Type: Pushbutton
• Actuator Type: 30.5 mm, Heavy-Duty, Booted
• Actuator Color: Black
• Legend: START STOP
• Contact Configuration: 1 Normally Open, 2 Normally Closed (1NO-2NC)
• Electrical Rating: 600 Volts AC maximum, 10 Amps continuous
• Mounting Mode: Surface
• Enclosure Material: Polyester
• NEMA Rating: NEMA 3, 3S, 4, 4X, 12, 13
• IP Rating: IP66
• Mechanical Life: 1,000,000 operations
• Operating Temperature: 1.4°F to 150.8°F
• Dimensions: Height: 6.6 in; Width: 6.3 in; Depth: 10.6 in
• Weight: 3.7 lbs
• Certifications: UL Listed, CSA Certified, CE Marked This Eaton 10250H1884 30.5mm heavy-duty pushbutton provides reliable START STOP control for industrial panels. With 1NO-2NC contacts, NEMA 4X and IP66 ratings, and a durable polyester enclosure, it ensures long-lasting performance in harsh environments.
