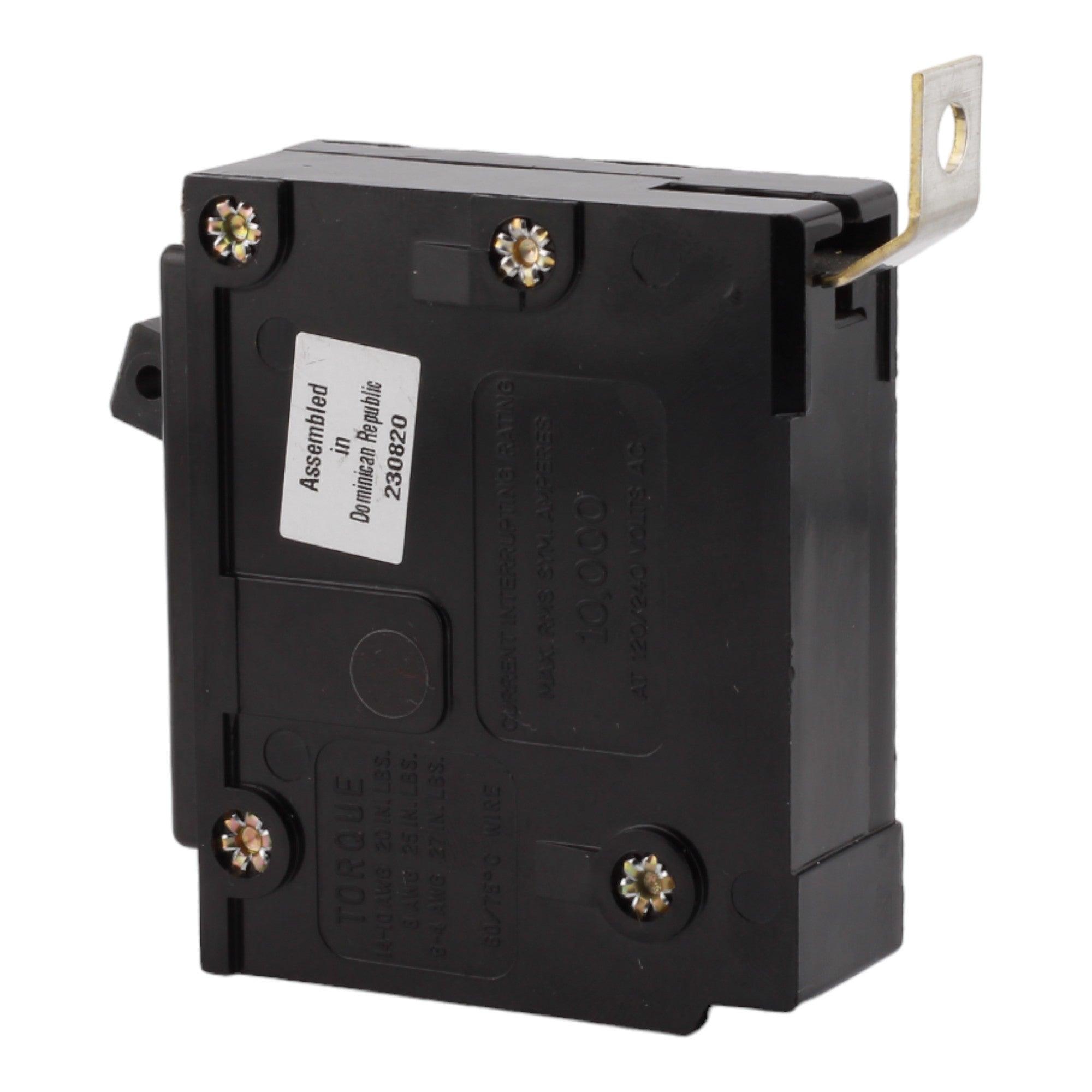

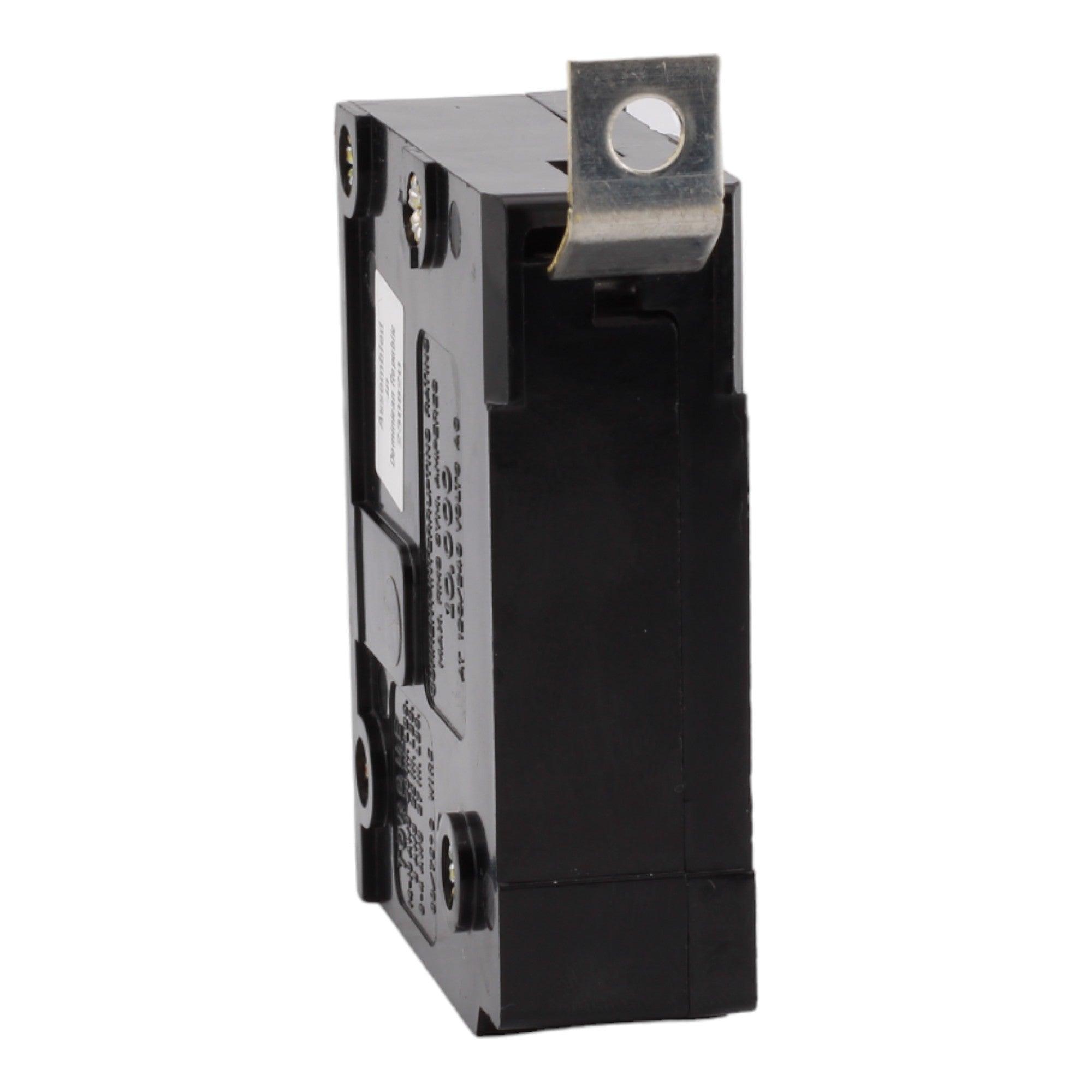

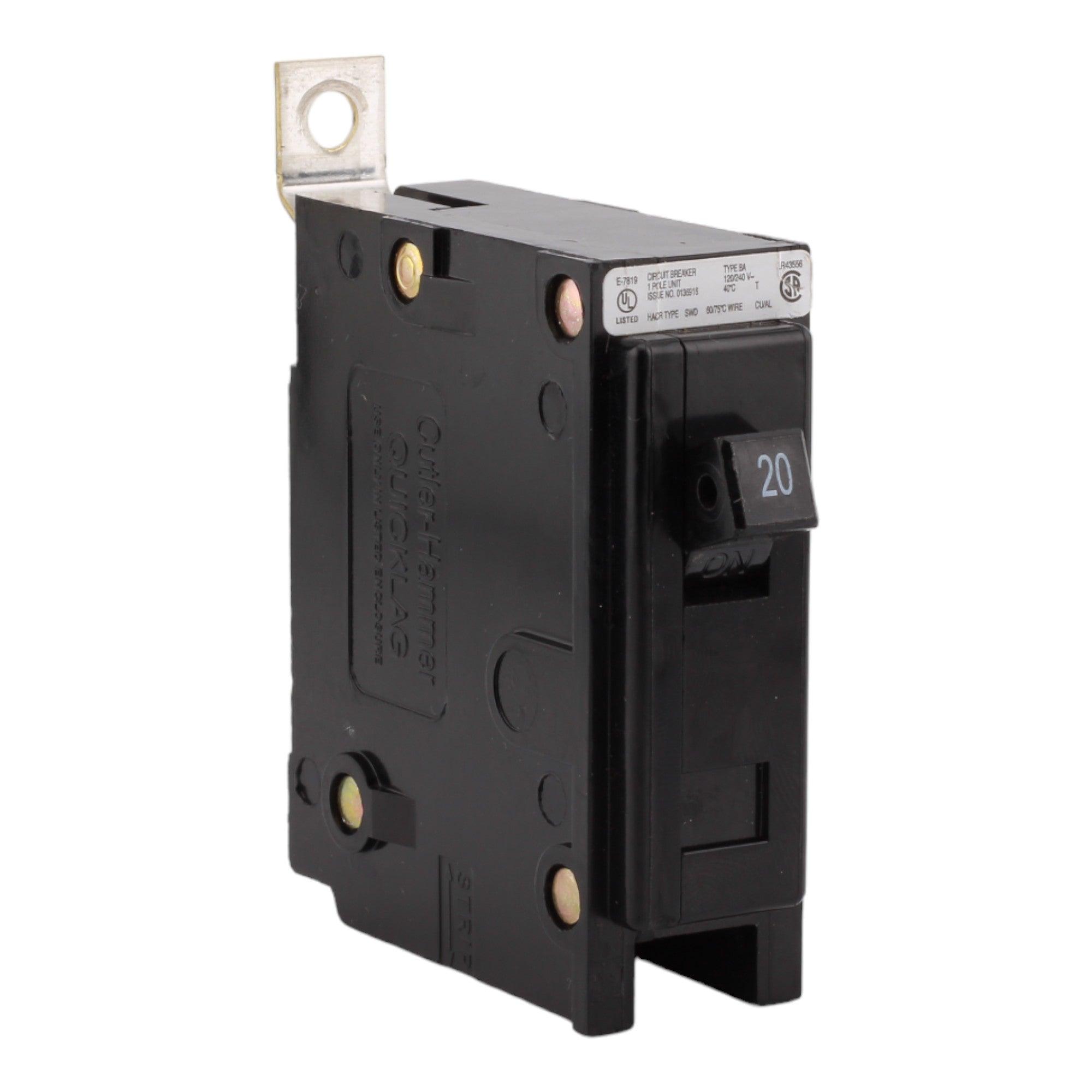

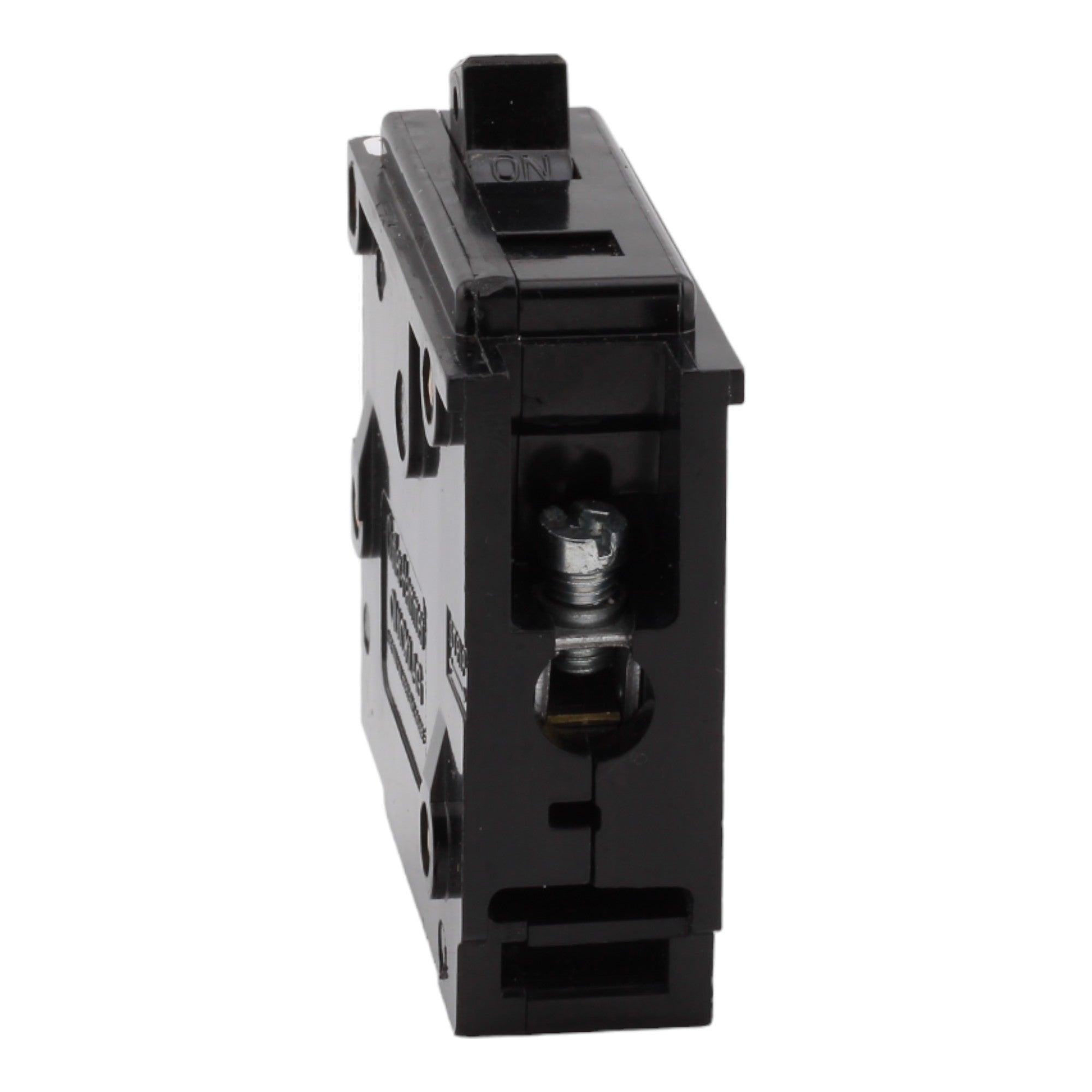

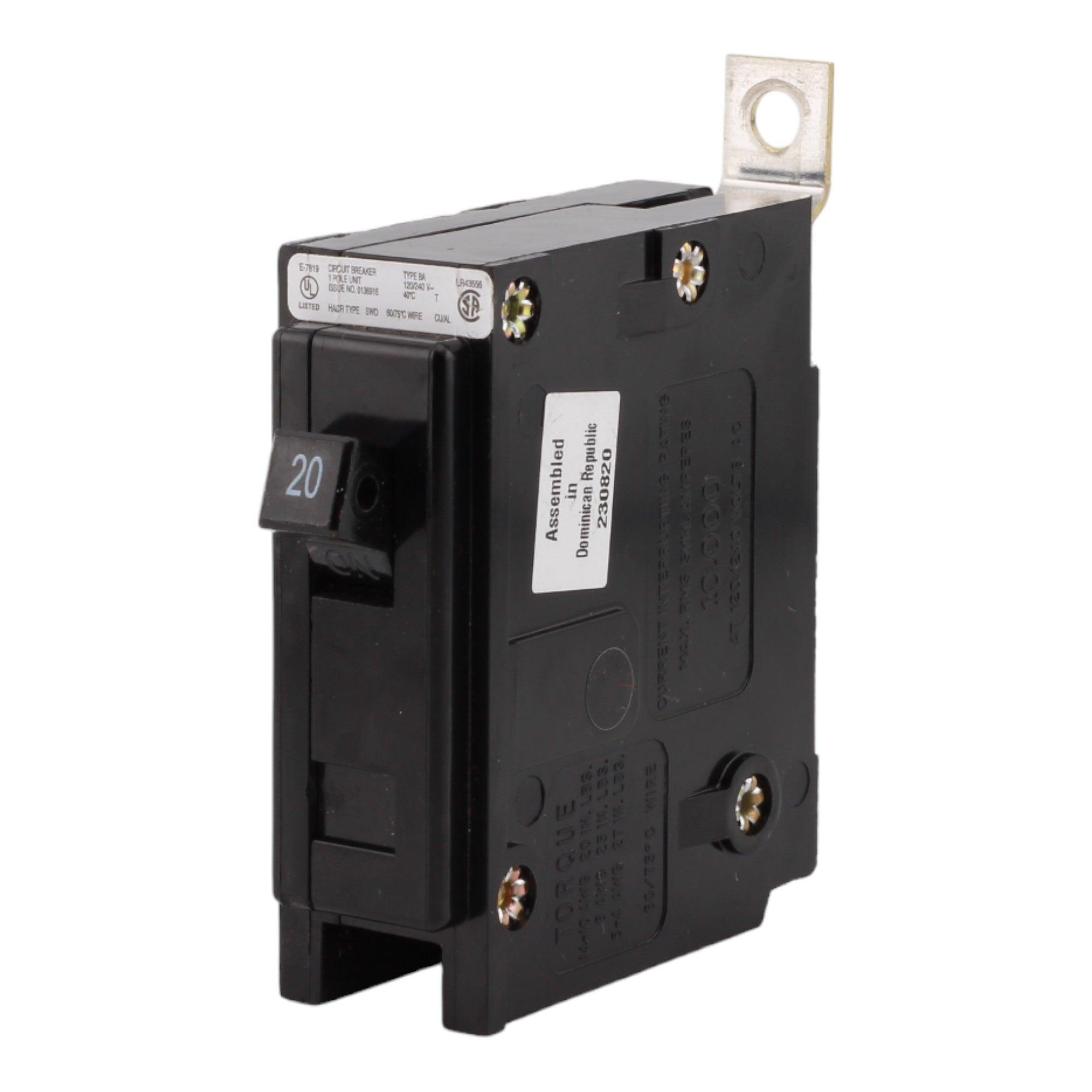

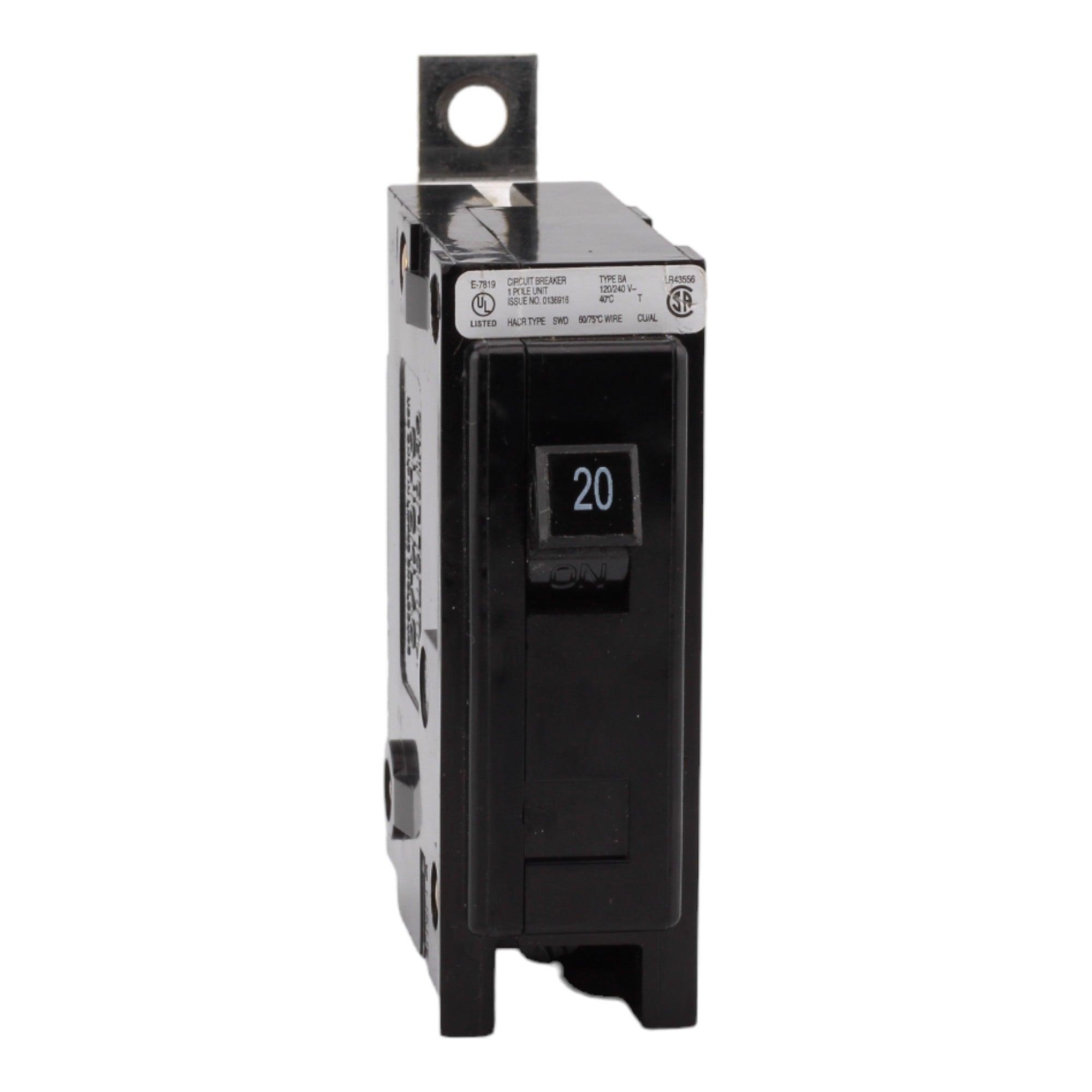

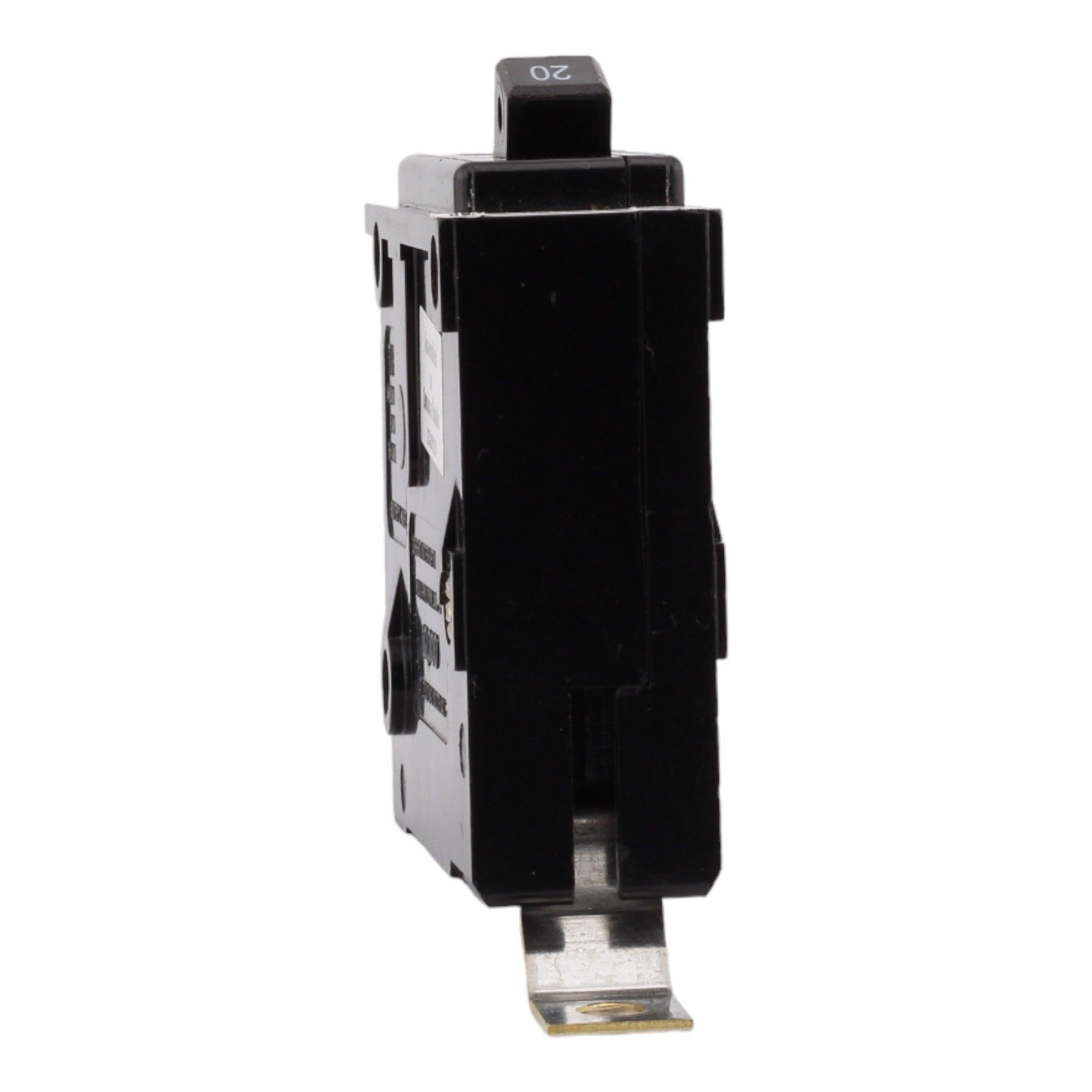

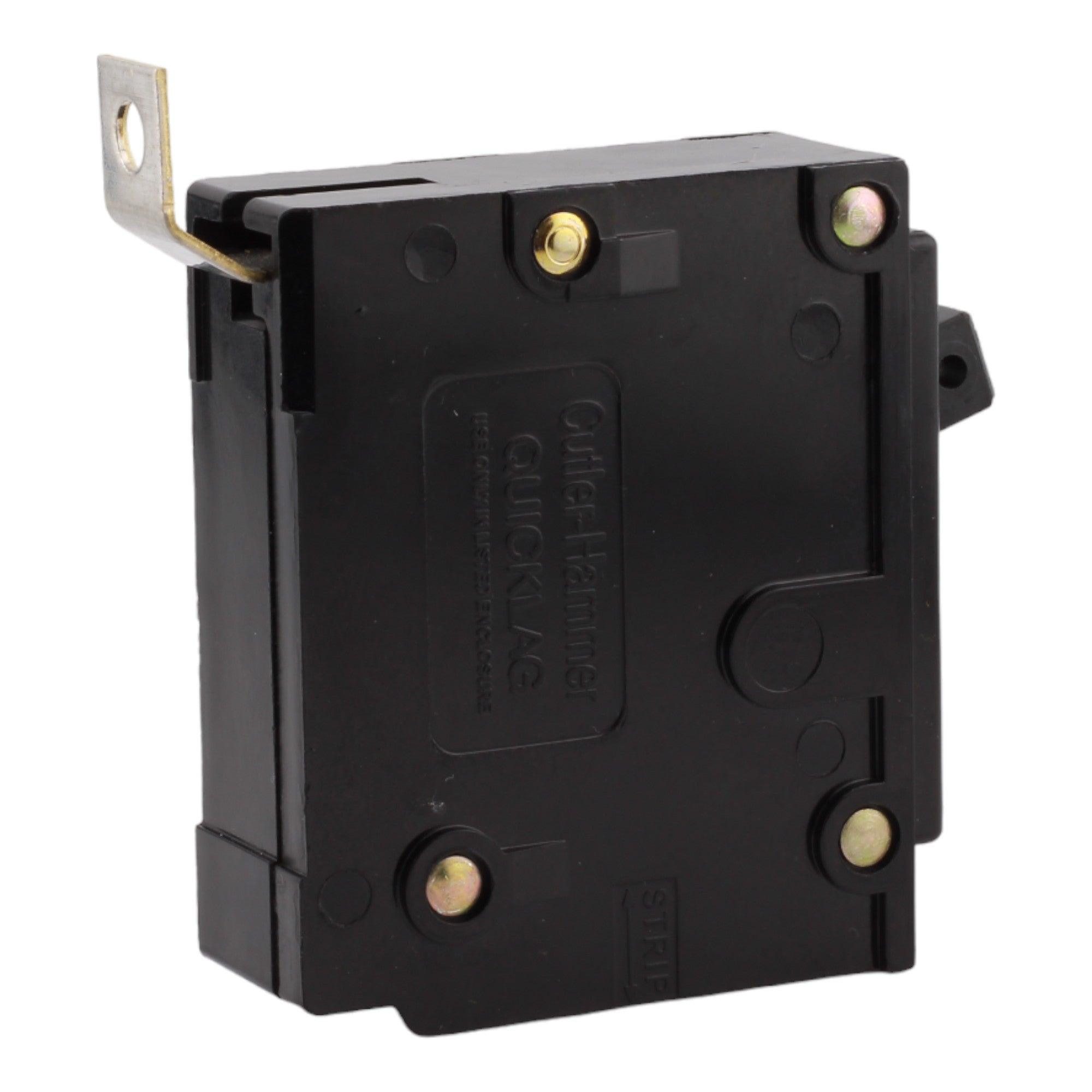

Eaton BAB1020, 20A, 120/240V, 1-Pole, 10kA, Thermal Magnetic Circuit Breaker, Bolt-On, for Load Centers & Panels

In stock
SKU: BAB1020 UPC: 786679301203
(0)
$16.00
-24% $21.00 $16.00
In stock
Usually ships within 24 hours
Condition

BAB1020 is a 20A Eaton Quicklag industrial bolt-on breaker. The single-pole thermal-magnetic device is rated 120/240V AC with 10 kAIC interrupting capacity and uses the non-interchangeable Type BAB construction.

BAB1020 specifications

  • Eaton catalog number: BAB1020
  • Family: BAB Quicklag
  • Function: Standard thermal-magnetic protection
  • Rating: 20A, 1 pole, 120/240V AC
  • Interrupt rating: 10 kAIC
  • Trip: Non-interchangeable
  • Mounting: Bolt-on
  • Ratings / approvals: HID feature; HACR note; UL Listed and CSA Certified

This is not a residential plug-in BR breaker

BAB1020 belongs to Eaton’s industrial Quicklag bolt-on line. The BAB frame, bus connection, mounting screw arrangement, and equipment listing matter; a common 20A handle value does not make BR, CH, and BAB breakers interchangeable.

Match the complete BAB specification

Confirm the panelboard documentation calls for Type BAB, one pole, 20A, the applicable 120/240V use, and 10 kAIC. Review conductor range, terminal torque, and any HID or HACR requirement from current Eaton data. A qualified professional should perform the bolt-on installation.
