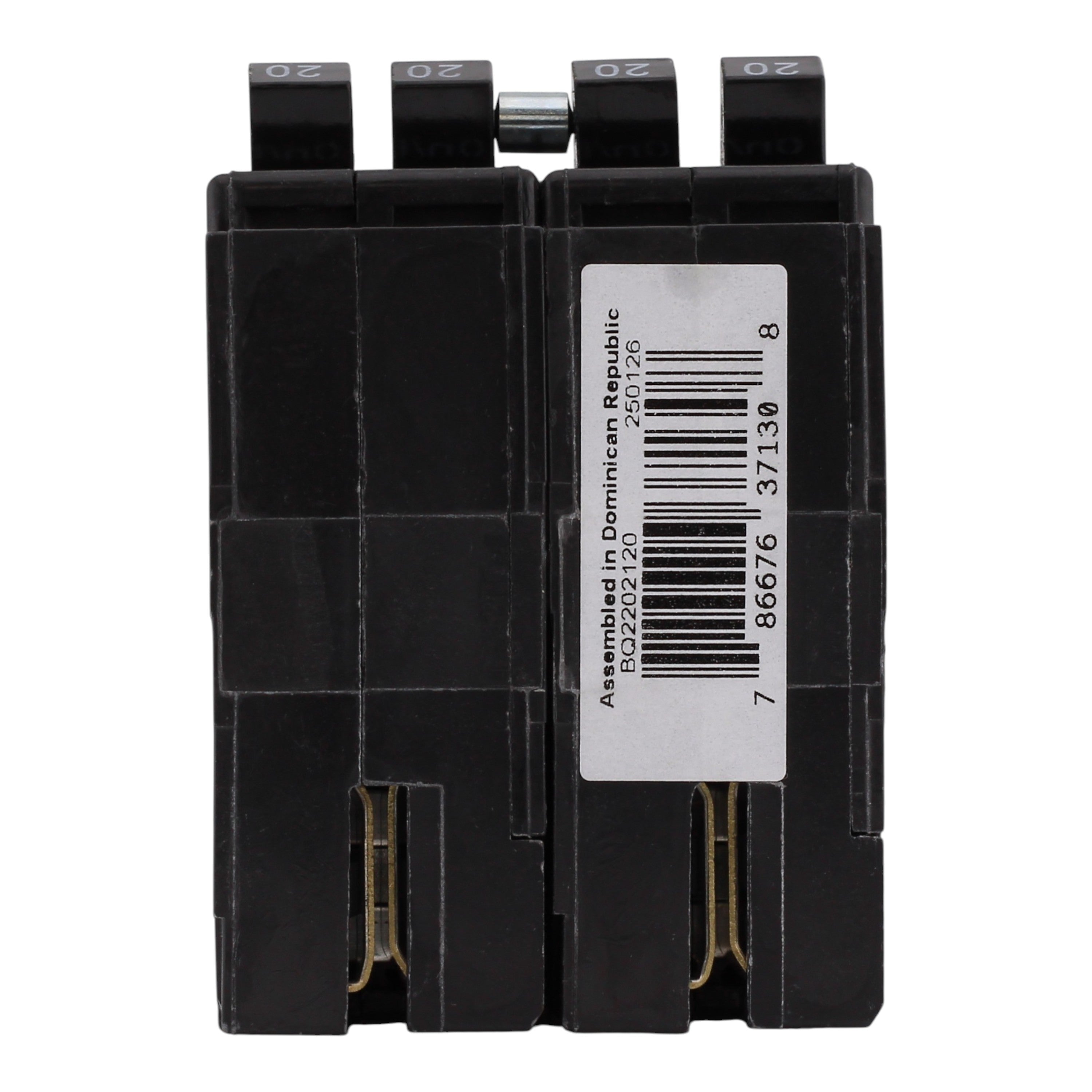

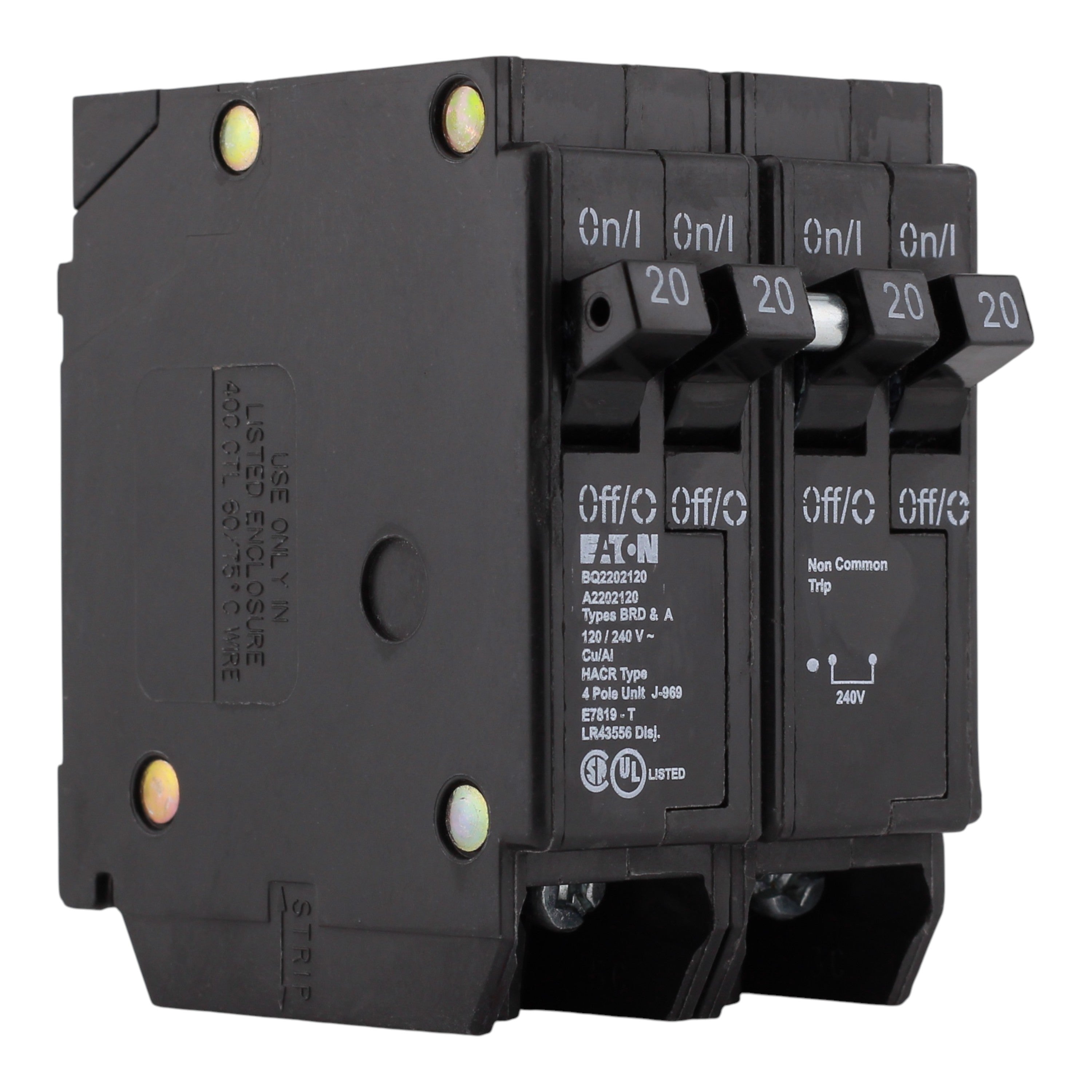

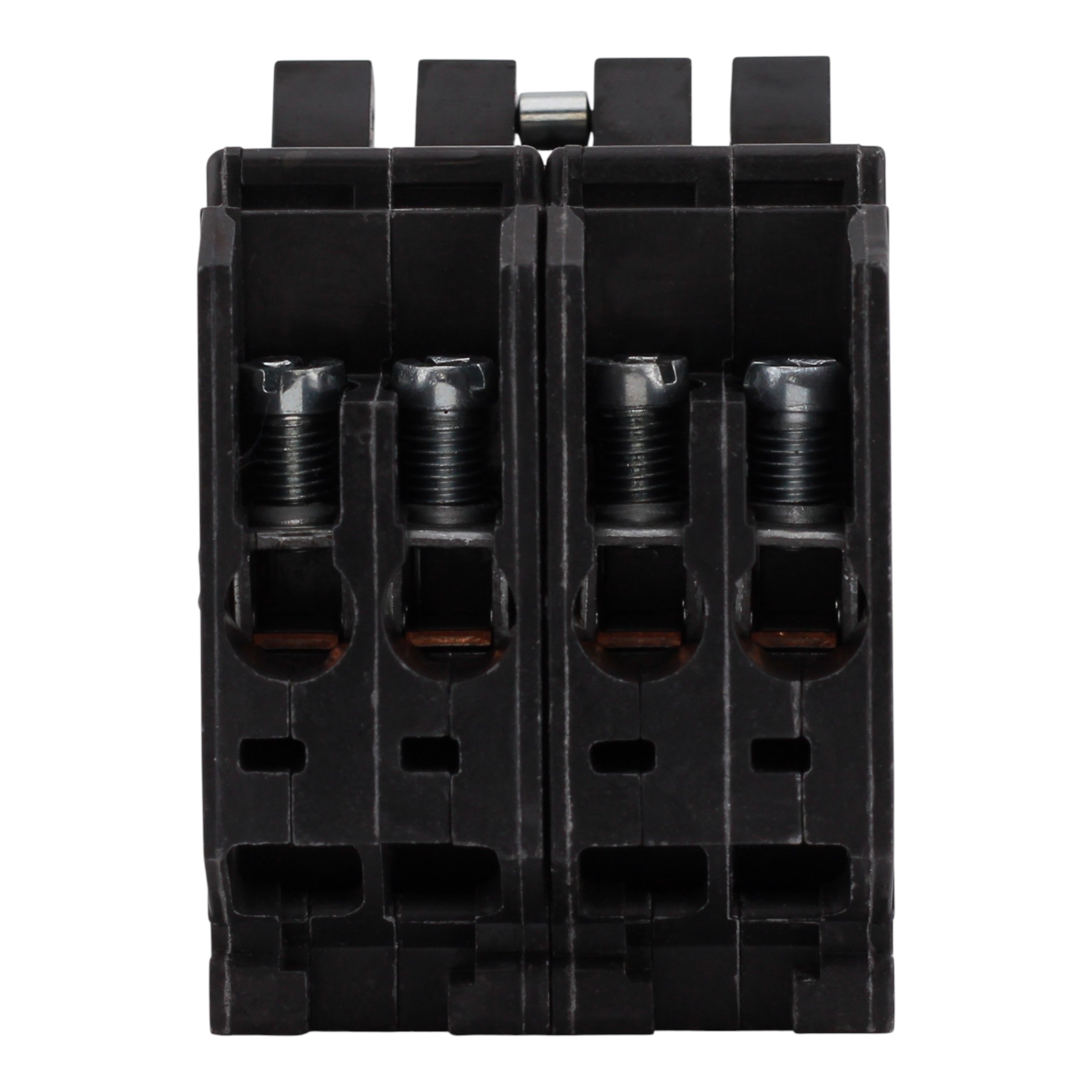

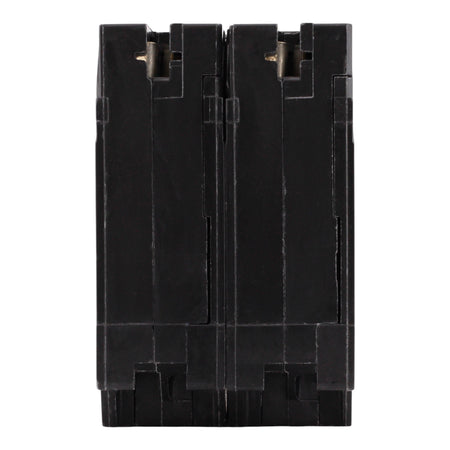

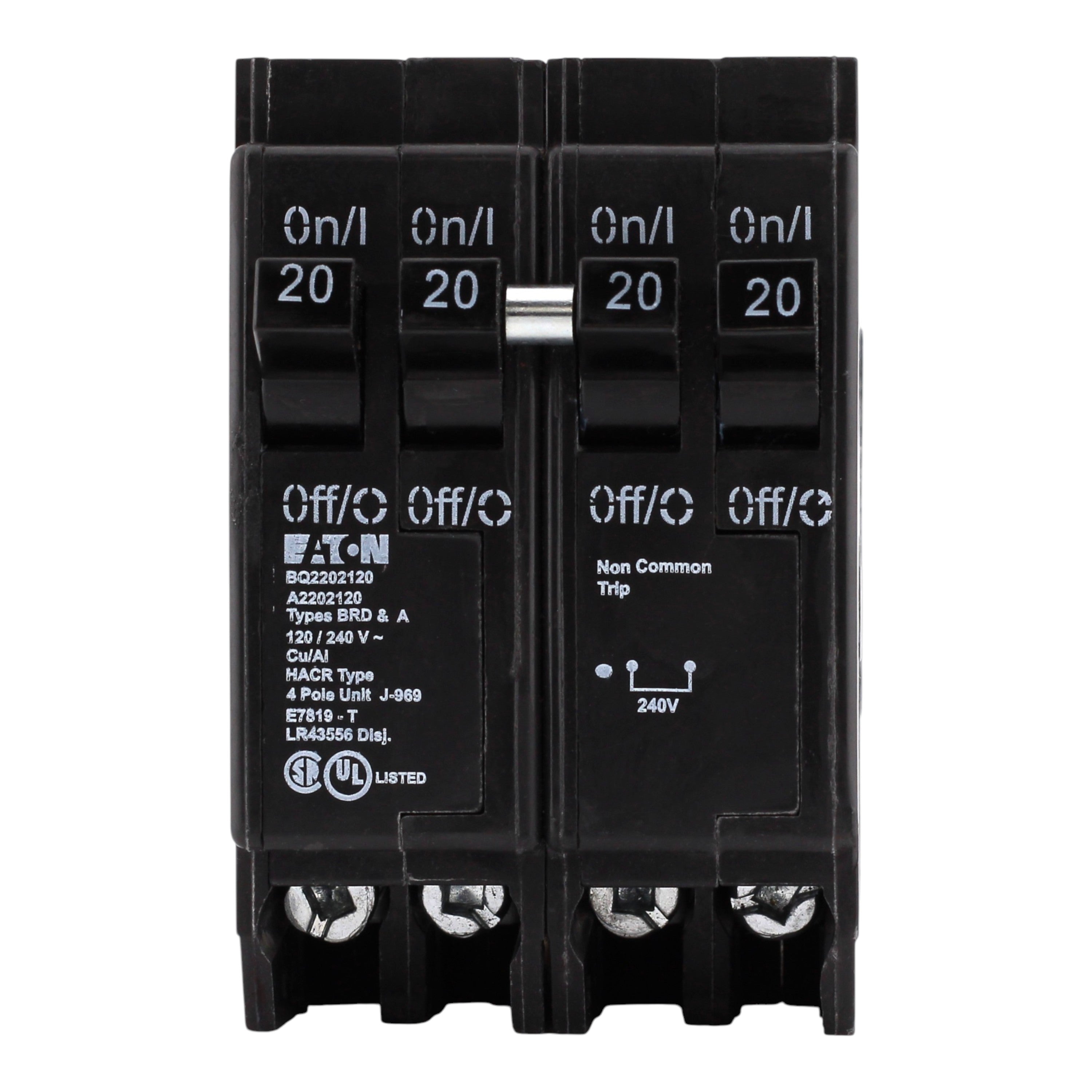

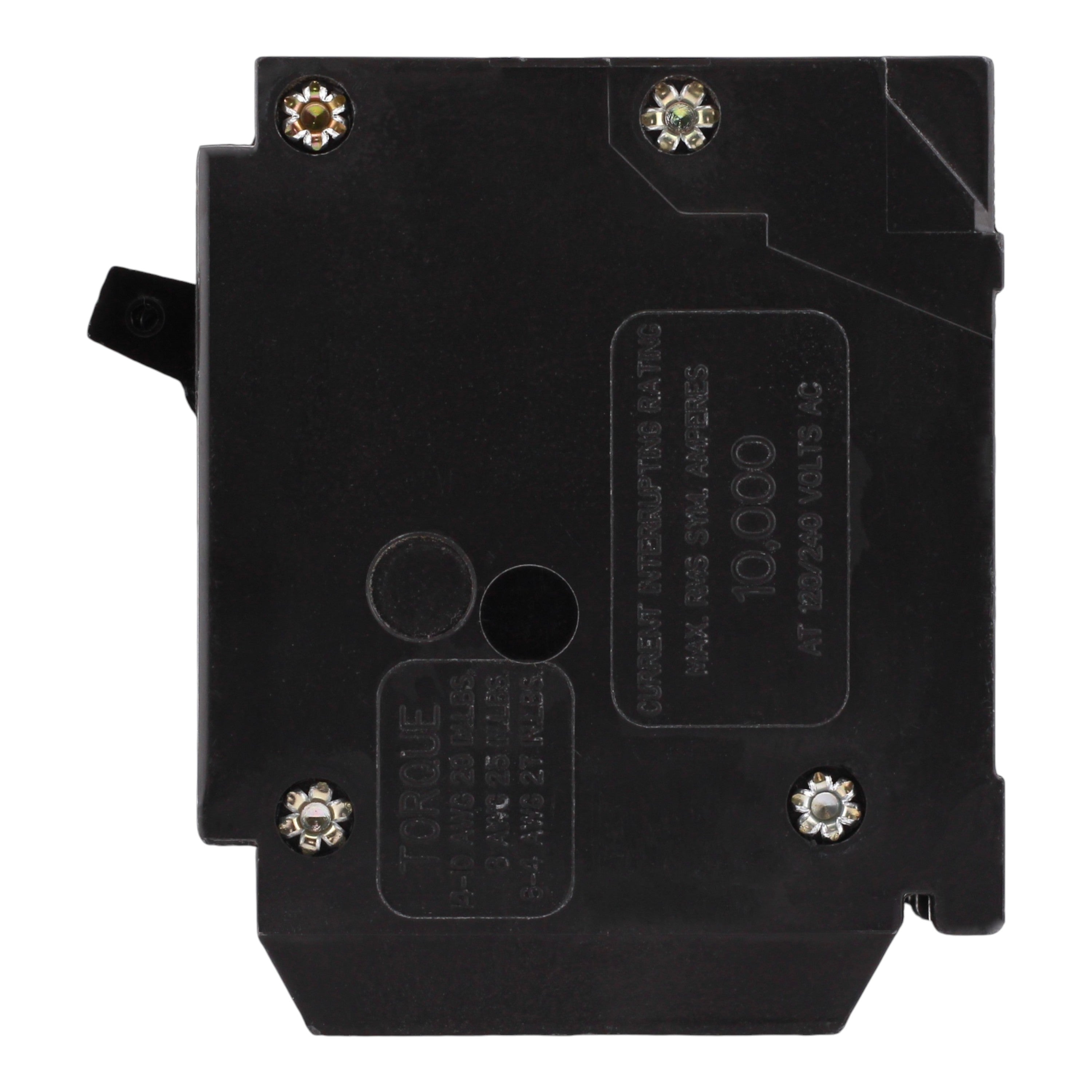

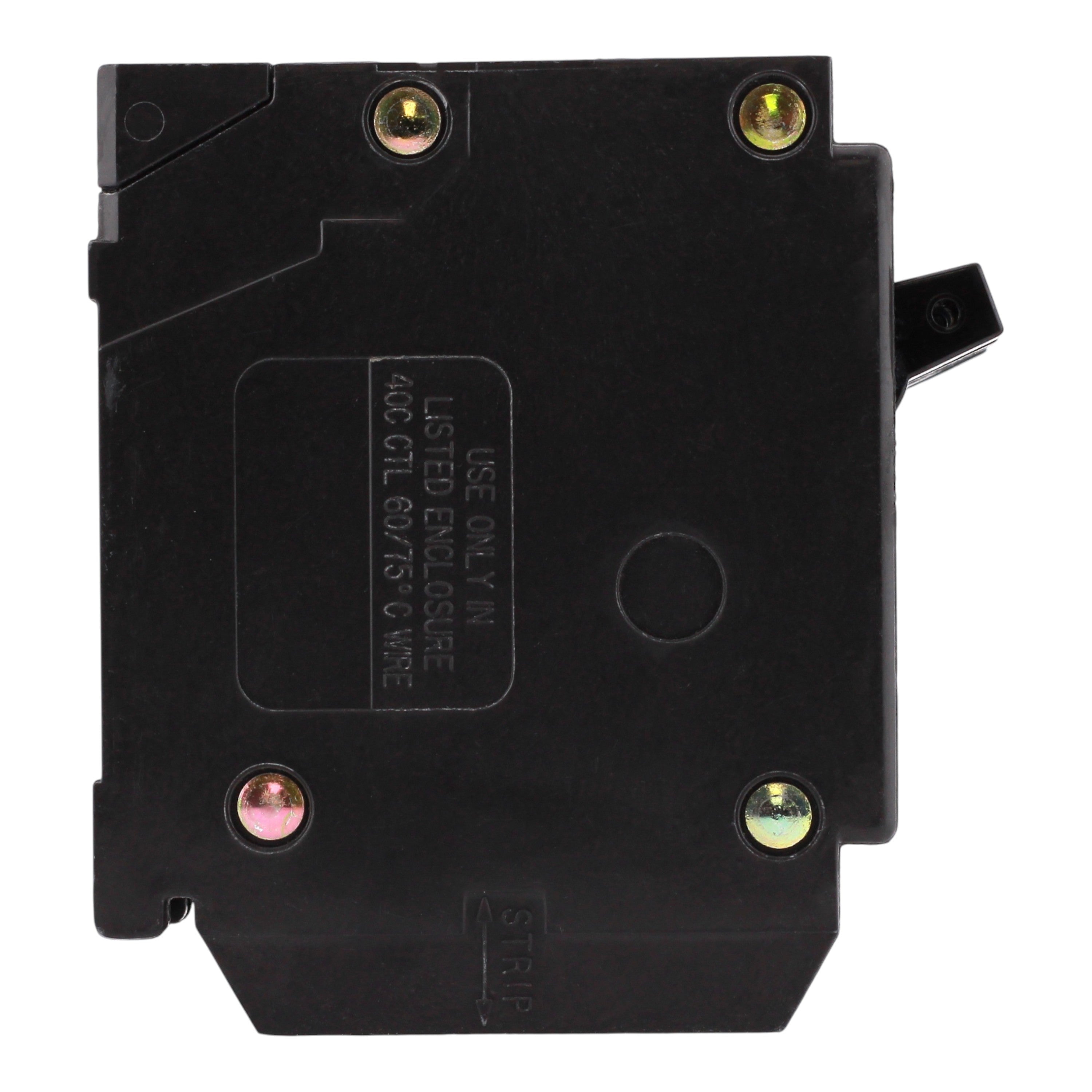

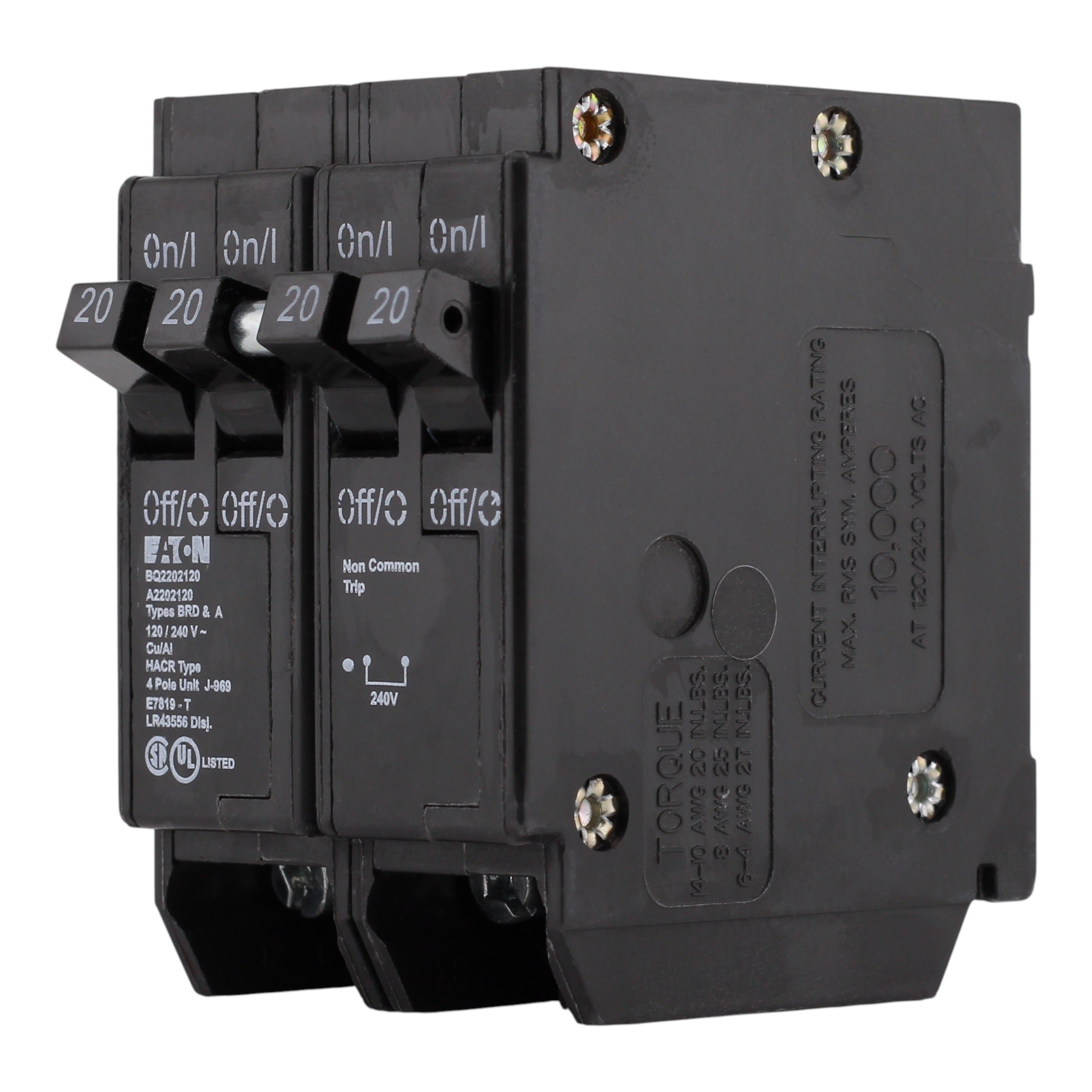

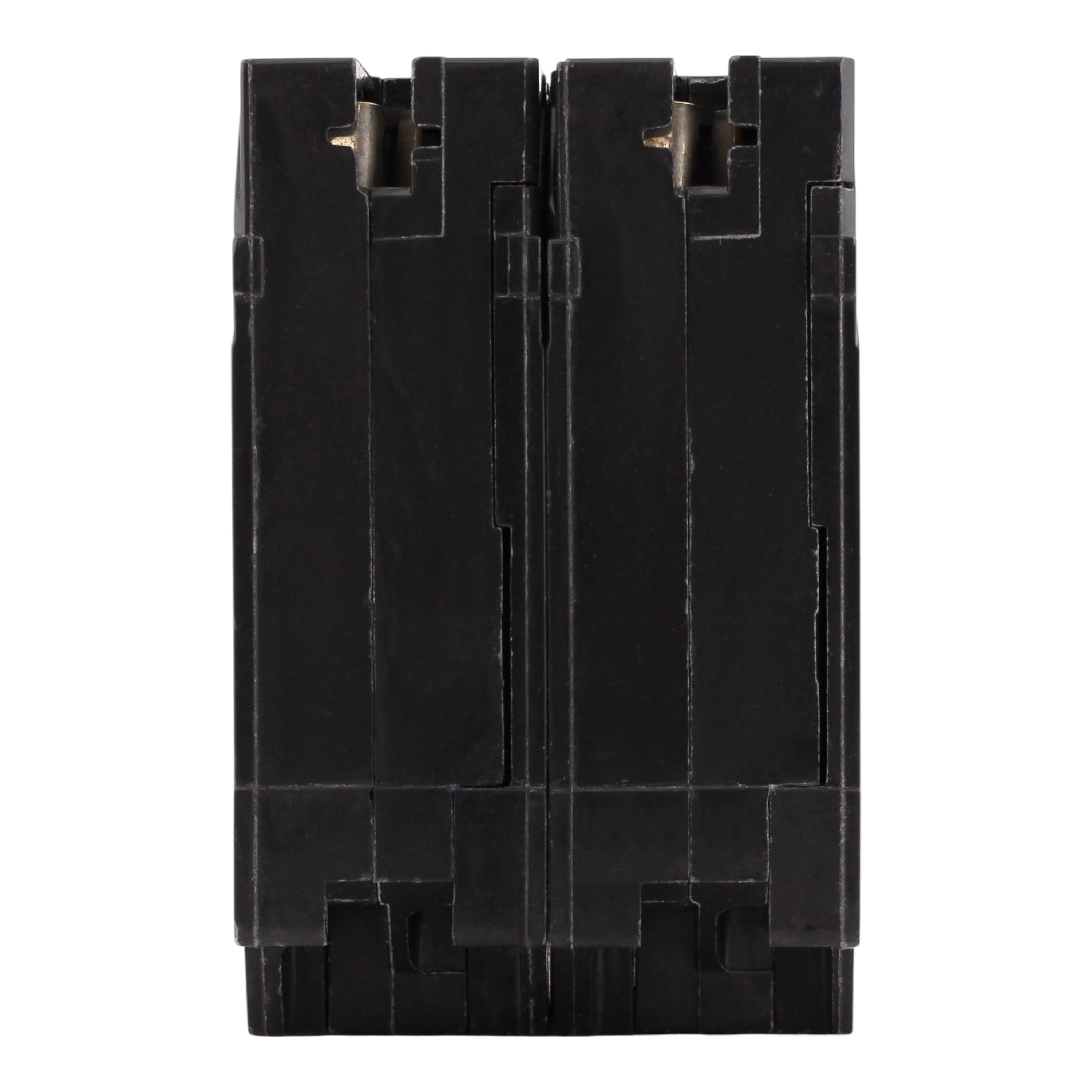

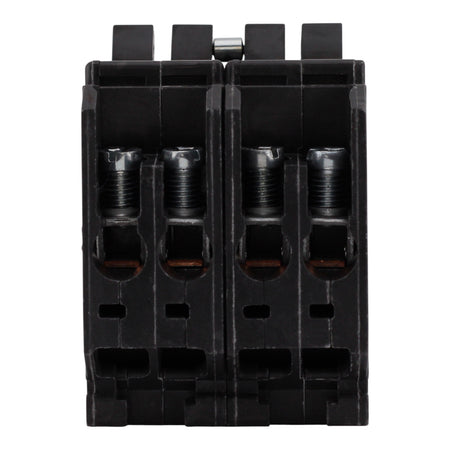

Eaton BQ2202120: (2) 20 Amp Single-Pole + (1) 20 Amp Two-Pole Quadplex Circuit Breaker, 120/240V, 10kA interrupt rating, independent trip, includes rejection tab feature, plug-on mounting for Type BR loadcenters, UL 489 listed.
-
Manufacturer: Eaton
-
Brand: Eaton
-
Product Range: BR (for Eaton BR loadcenters and equipment)
-
UPC: 786676371308
-
Model Number: BQ2202120
-
Breaker Type: Thermal Magnetic Quadplex (BQ)
-
Amperage: Outer: (2) 20 Amp Single-Pole; Inner: (1) 20 Amp Two-Pole (common trip)
-
Poles: Four-pole configuration
-
Voltage: 120/240V (20A), 120V (15A capable)
-
Interrupt Rating: 10 kAIC
-
Mounting Mode: Plug-on
-
Connections Terminals: Plug-on (1-inch CTL format with rejection tab)
-
Wire Size: #14-4 AWG Cu/Al
-
Tightening Torque: 25 lb-in
-
Dimensions: Height: 2.5 in; Width: 2 in; Depth: 3 in
-
Weight: 0.75 lbs
-
Certifications: UL 489 Listed, HACR Rated, Federal Specifications W-C375
-
Special Features: Independent trip on outer 20A single-pole breakers, common trip on inner 20A two-pole breaker, rejection tab feature for CTL compliance
This Eaton BR BQ2202120 quadplex circuit breaker provides space-saving 20A/20A + 20A/20A protection in a single 1-inch per pole CTL plug-on unit. Ideal for Eaton BR loadcenters, it delivers two independent-trip 20A single-pole circuits and one common-trip 20A two-pole circuit at 120/240V with 10kA interrupt rating and rejection tab for code-compliant installations in residential and light commercial applications.
