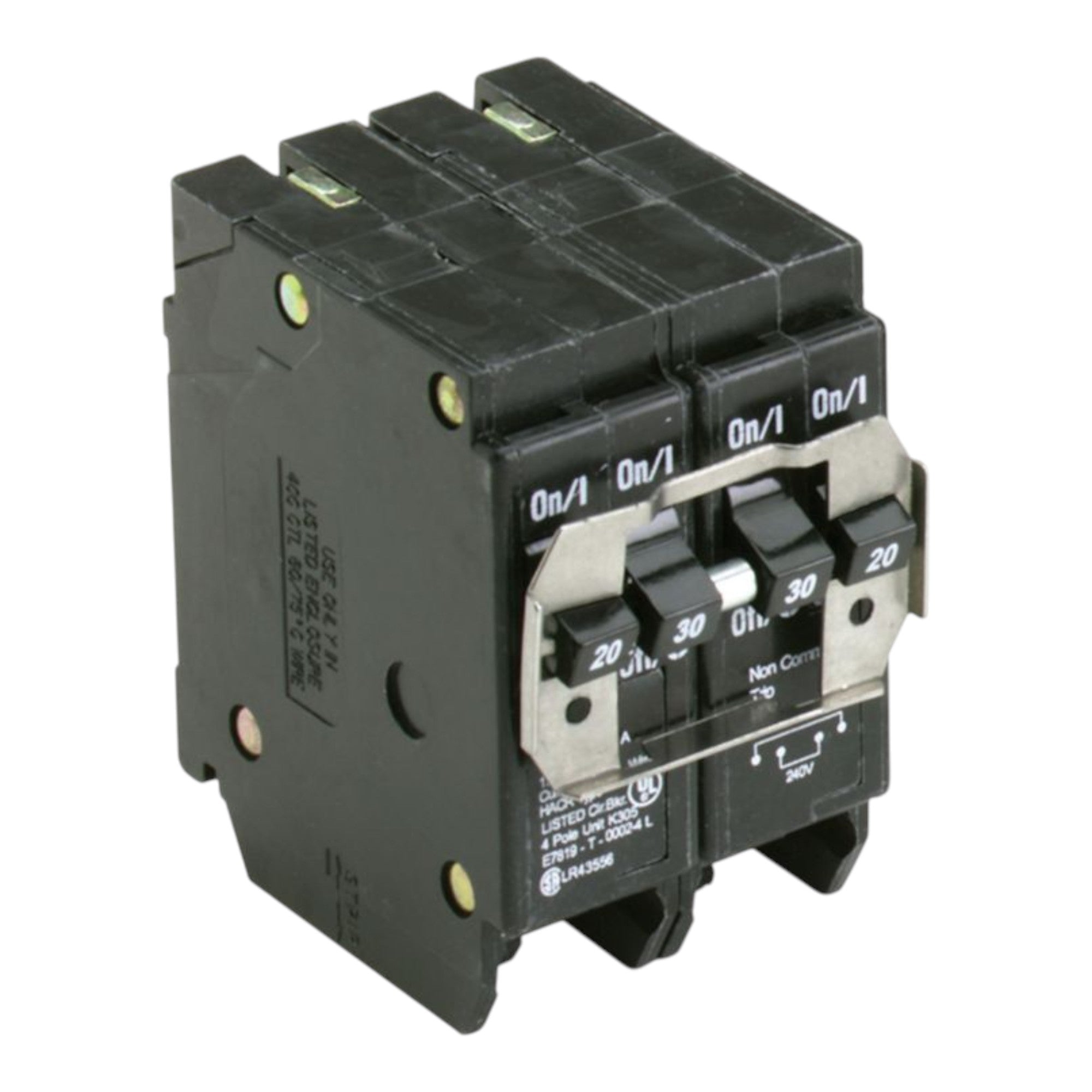

Eaton BR, BQ220230, 20A/30A, 4P, 120/240V, Plug-On, Quadplex Circuit Breaker

BQ220230 Eaton BR, 20A/30A, 4P, 120/240V, Plug-On, Quadplex Circuit Breaker.

BQ220230 specifications

• Manufacturer: Eaton Corporation

• Brand: Eaton

• Product Range: BR (for Eaton Type BR loadcenters and residential panels)

• UPC: 786676370806

• Model Number: BQ220230

• Breaker Type: Thermal Magnetic Quadplex Circuit Breaker

• Amperage: (1) Two-Pole 20 Amps, (1) Two-Pole 30 Amps

• Poles: 4-Pole

• Voltage: 120/240 Volts AC

• Interrupt Rating: 10 kAIC

• Mounting Mode: Plug-on

• Connections Terminals: Plug-on

• Wire Size: #14-4 AWG Cu/Al

• Tightening Torque: Not specified

• Dimensions: Height: 3.0 in; Width: 2.0 in; Depth: 3.0 in

• Weight: 0.700 lbs

• Certifications: UL 489 Listed, HACR Rated

• Special Features: Rejection tab feature, switch duty rated (15A & 20A SP), complies with Federal Spec W-C375

This Eaton BQ220230 quadplex circuit breaker provides two independent 2-pole breakers (20A and 30A) in a compact 4-pole plug-on design for 120/240V circuits. Designed for Type BR loadcenters, it offers thermal magnetic protection, 10kA interrupt rating, and a rejection tab feature for enhanced safety and compatibility in residential panel installations.
