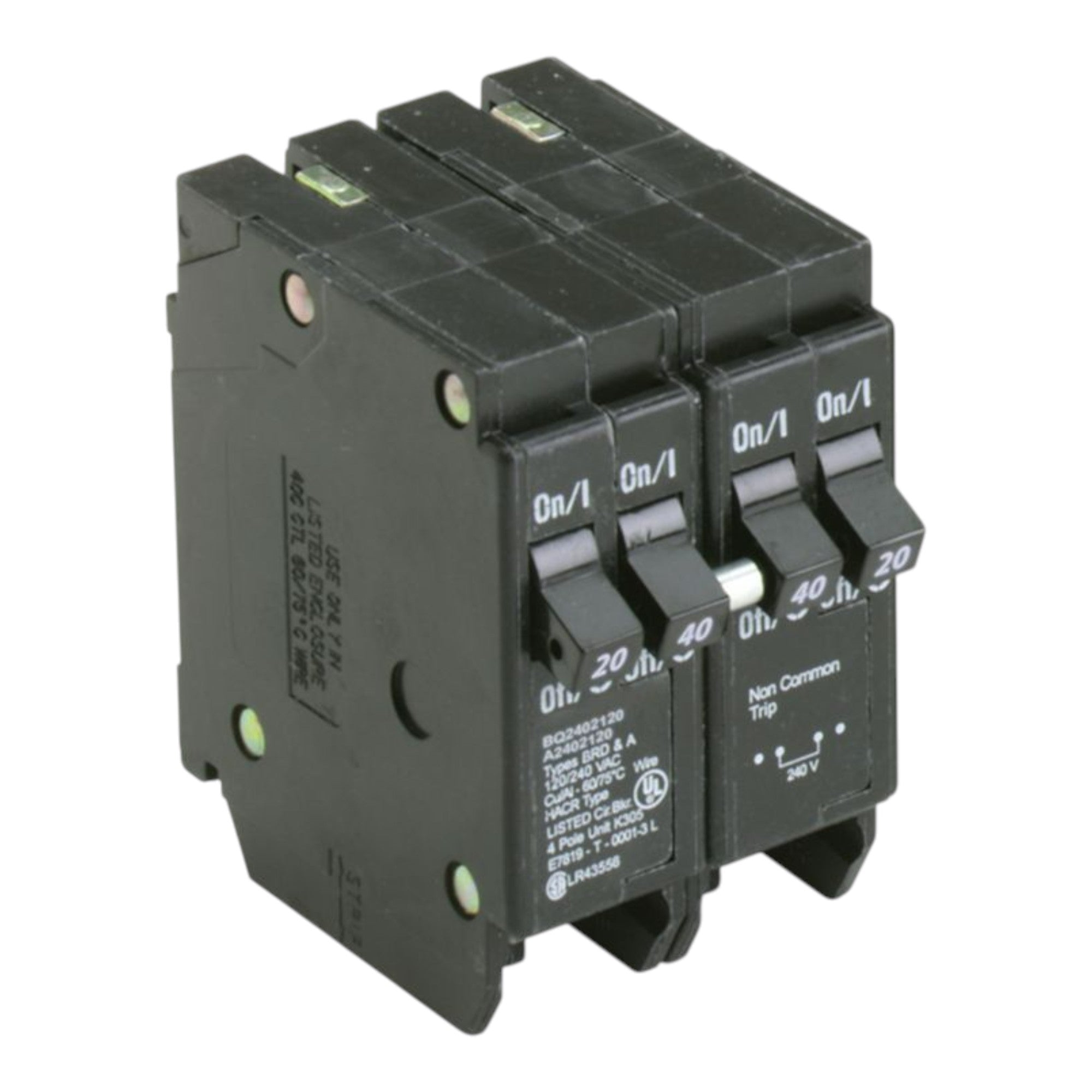

Eaton BR BQ2402120 (2) 20A 1P + 40A 2P 120/240V 4P Plug-On Circuit Breaker
Eaton BR BQ2402120 (2) 20A 1P + 40A 2P 120/240V 4P Plug-On Circuit Breaker

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eaton

Eaton BR BQ2402120 (2) 20A 1P + 40A 2P 120/240V 4P Plug-On Circuit Breaker

SKU: BQ2402120
(0)
$28.00
-22% $36.00 $28.00
Out of stock
Condition

Eaton BQ2402120: (2) 20 Amp single-pole + (1) 40 Amp double-pole thermal magnetic circuit breaker, 4-pole, 120/240V, plug-on, 10kA, UL 489.

  • Manufacturer: Eaton

  • Brand: Eaton

  • Product Range: Type BR (for Eaton Type BR loadcenters and equipment)

  • UPC: 786676371650

  • Model Number: BQ2402120

  • Breaker Type: Thermal Magnetic Circuit Breaker

  • Amperage: (2) Single-Pole 20 Amps, (1) Double-Pole 40 Amps

  • Poles: 4-Pole

  • Voltage: 120/240 Volts AC (120V at 20A, 120/240V at 40A)

  • Interrupt Rating: 10 kAIC

  • Mounting Mode: Plug-on

  • Connections Terminals: Plug-on

  • Wire Size: #14-4 AWG Cu/Al

  • Dimensions: Height: 3 in; Width: 2 in; Depth: 3 in

  • Weight: 0.7 lbs

  • Certifications: UL 489, HACR Rated, Federal Specifications Classification W-C375

  • Special Features: Includes rejection tab feature

This Eaton BQ2402120 thermal magnetic circuit breaker provides two 20A single-pole circuits and one 40A double-pole circuit in a compact 4-pole design for 120/240V applications. Compatible with Eaton Type BR loadcenters, it delivers 10kA interrupt capacity and reliable protection for residential and light commercial installations.
