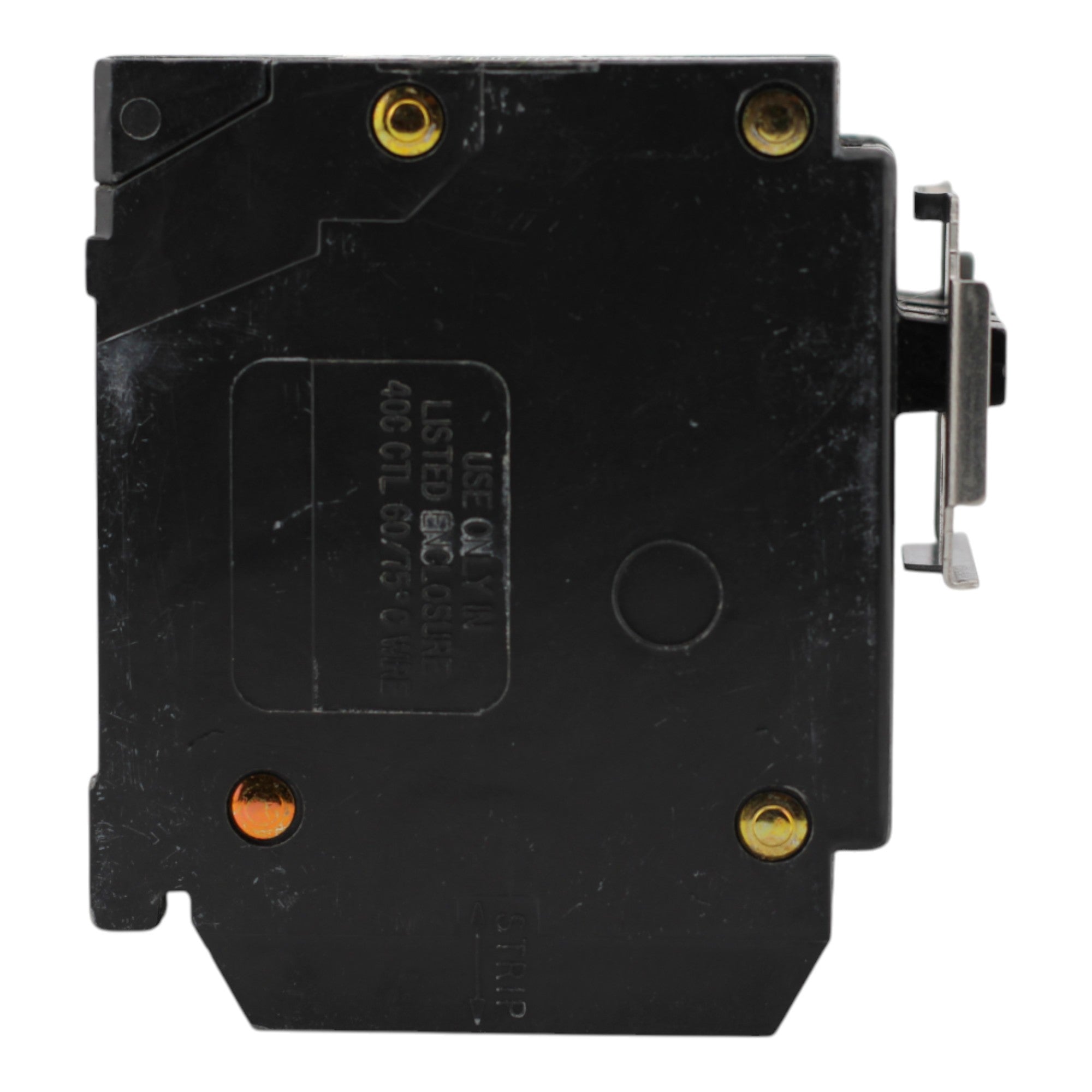

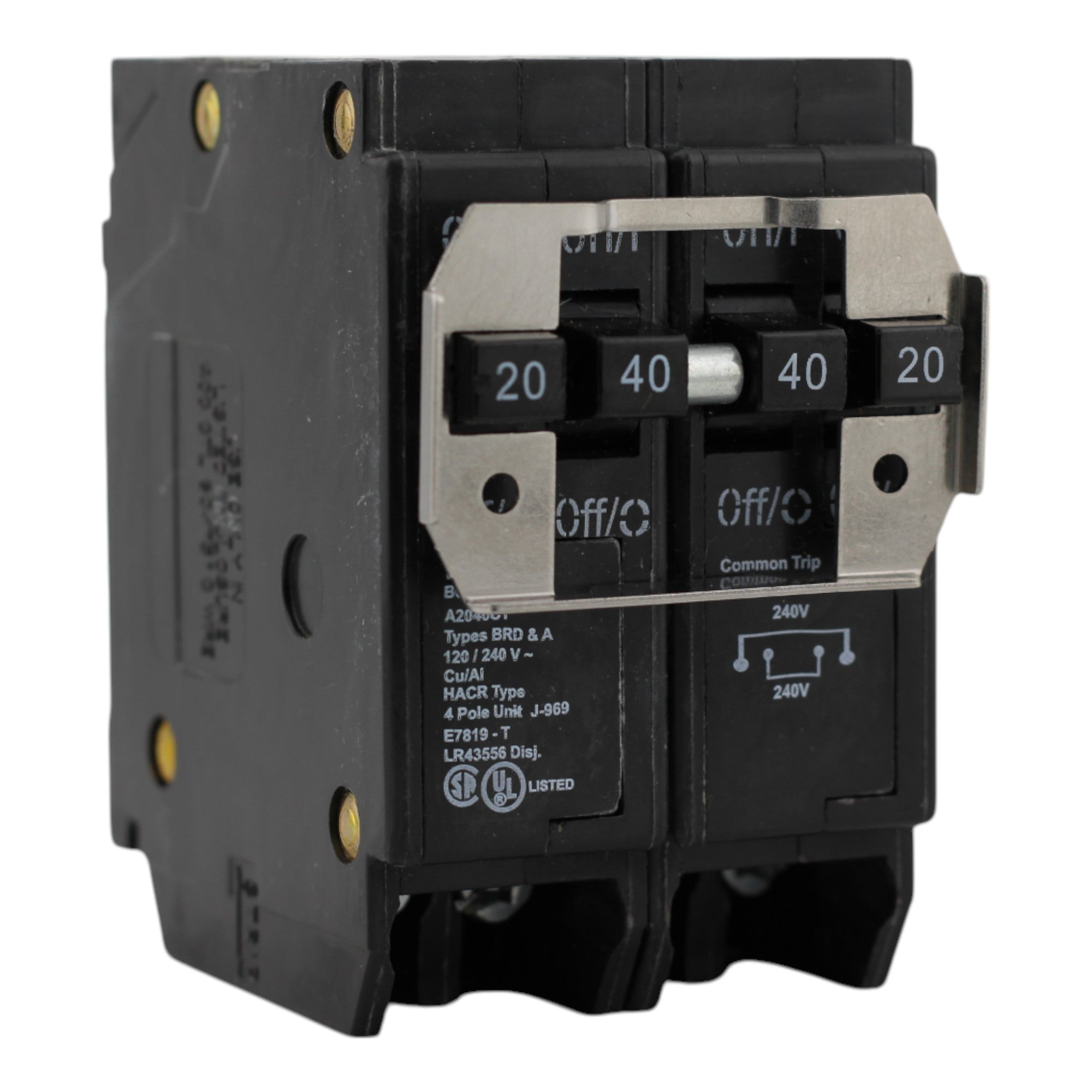

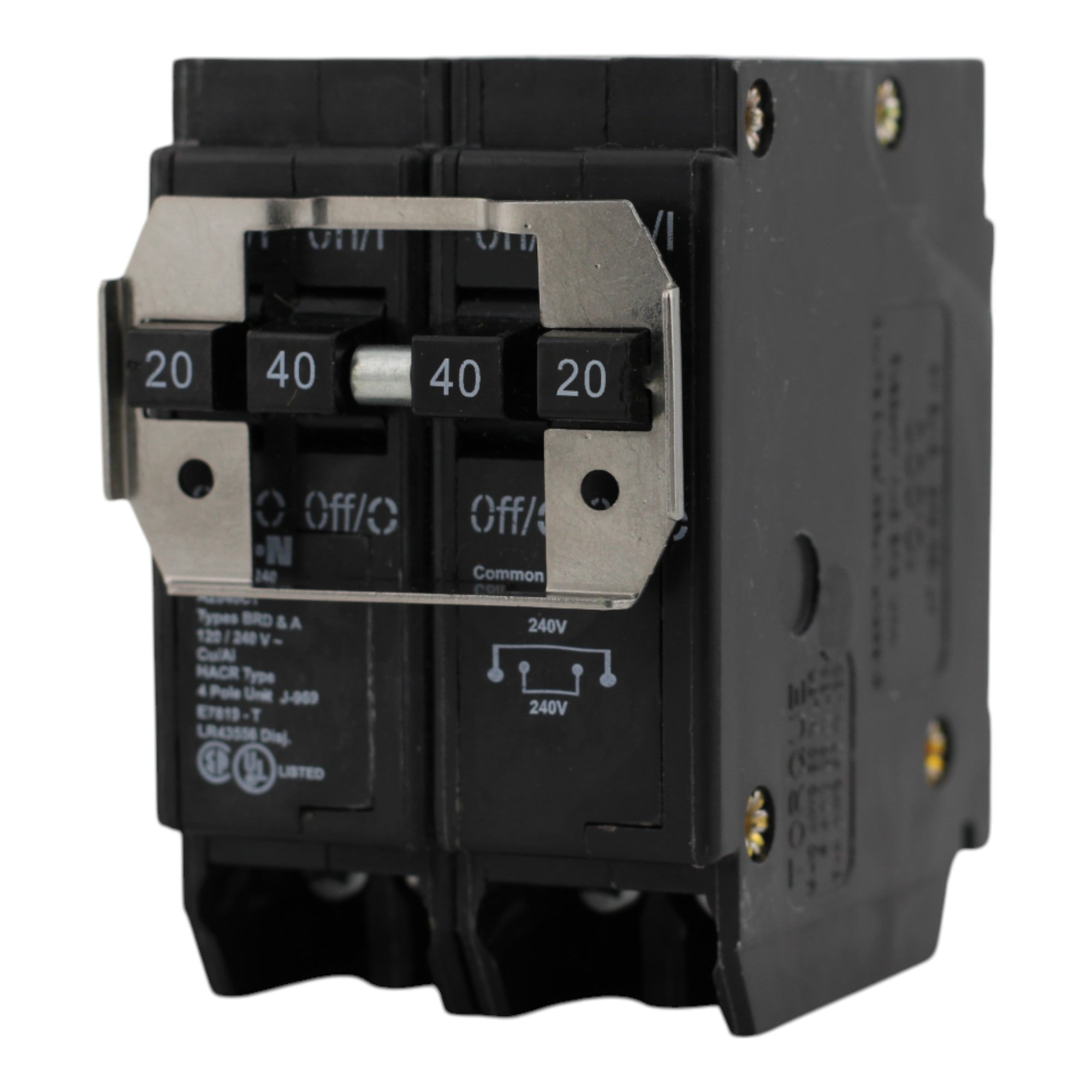

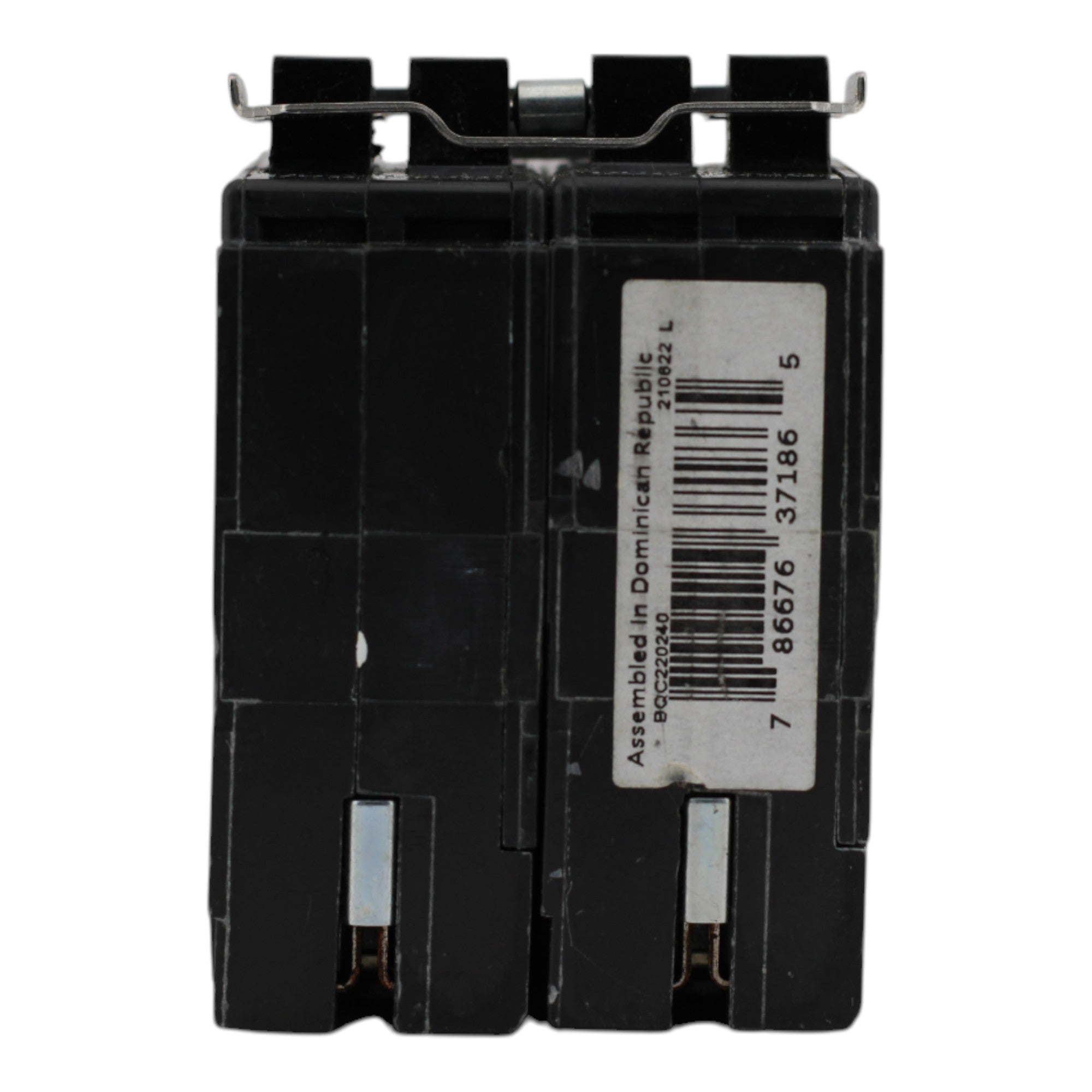

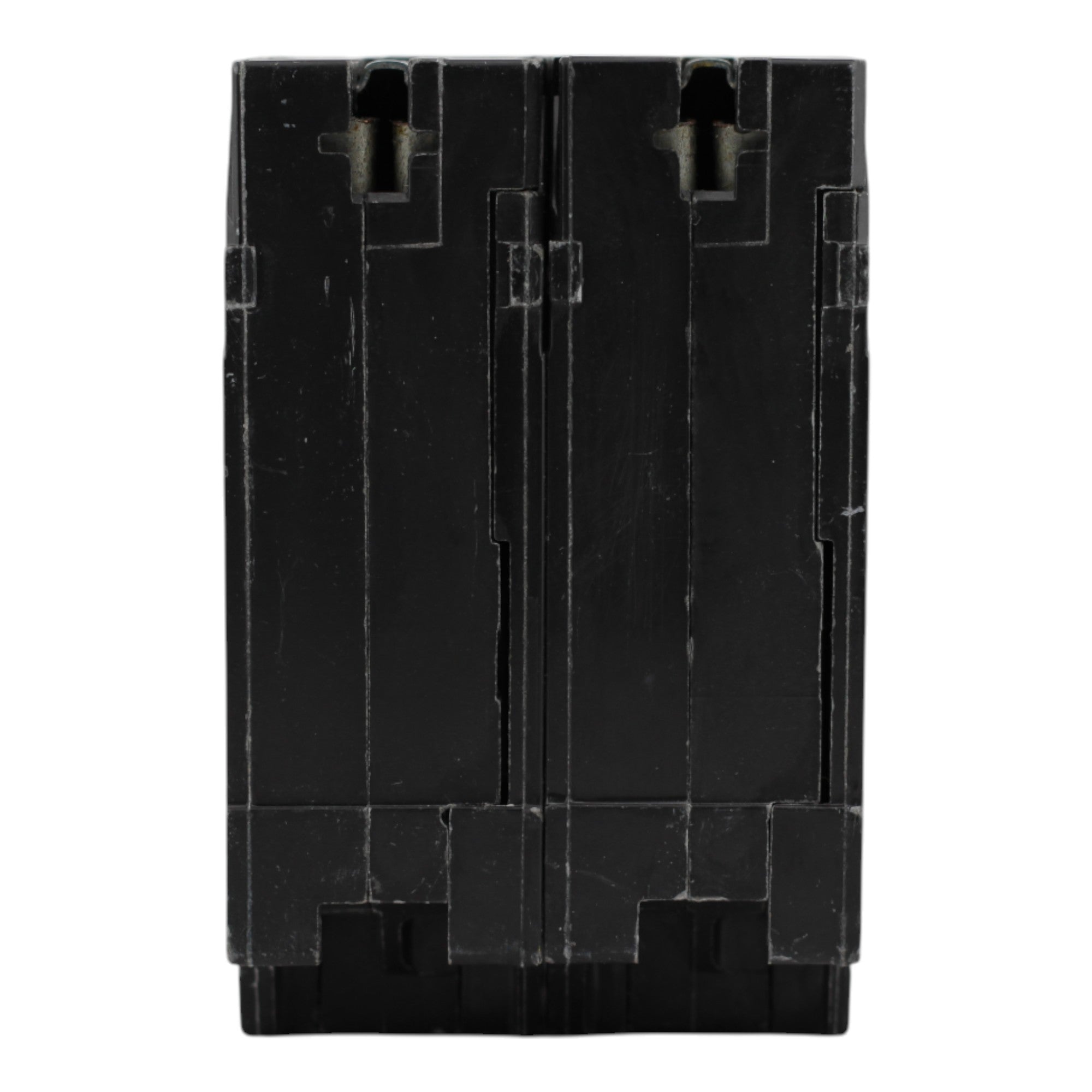

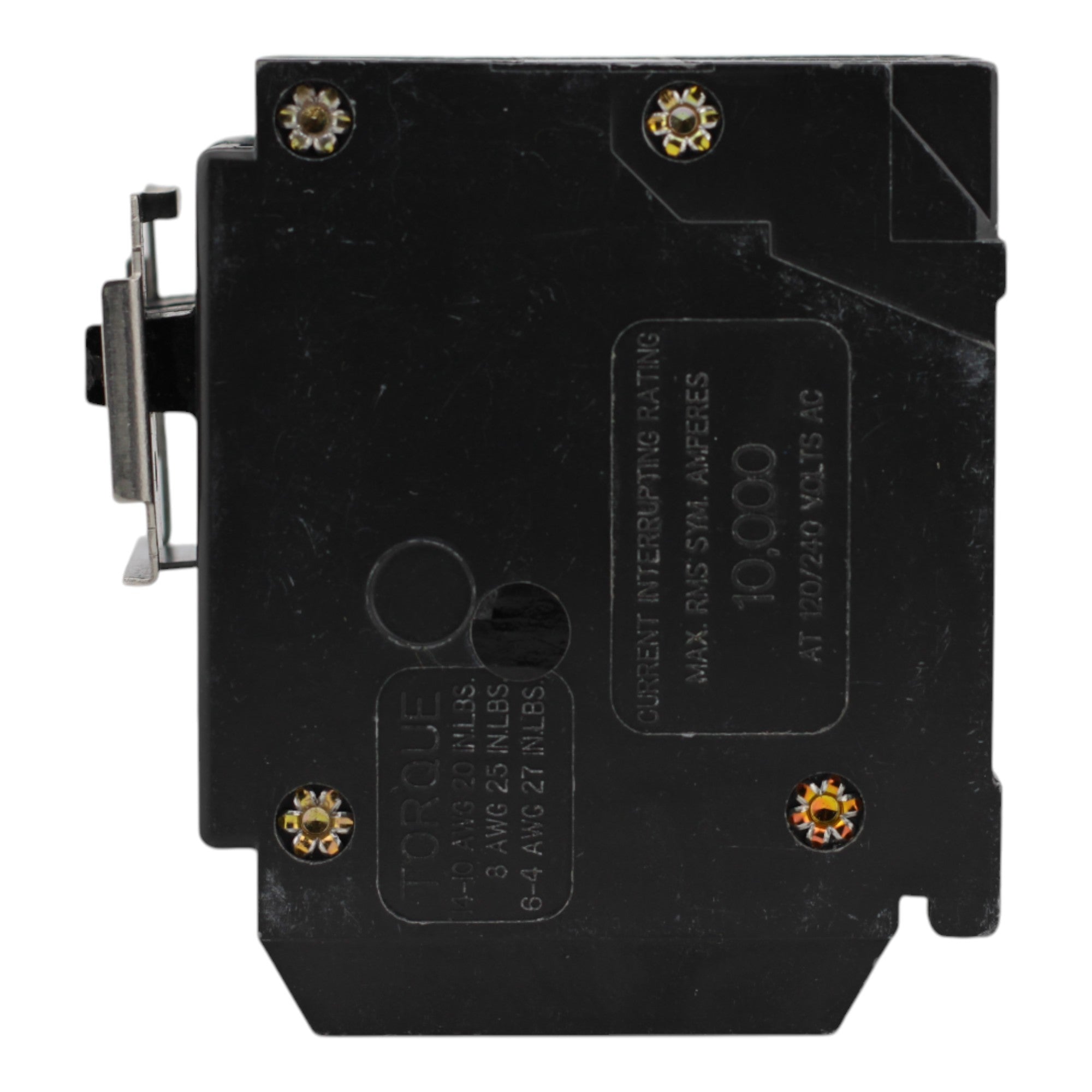

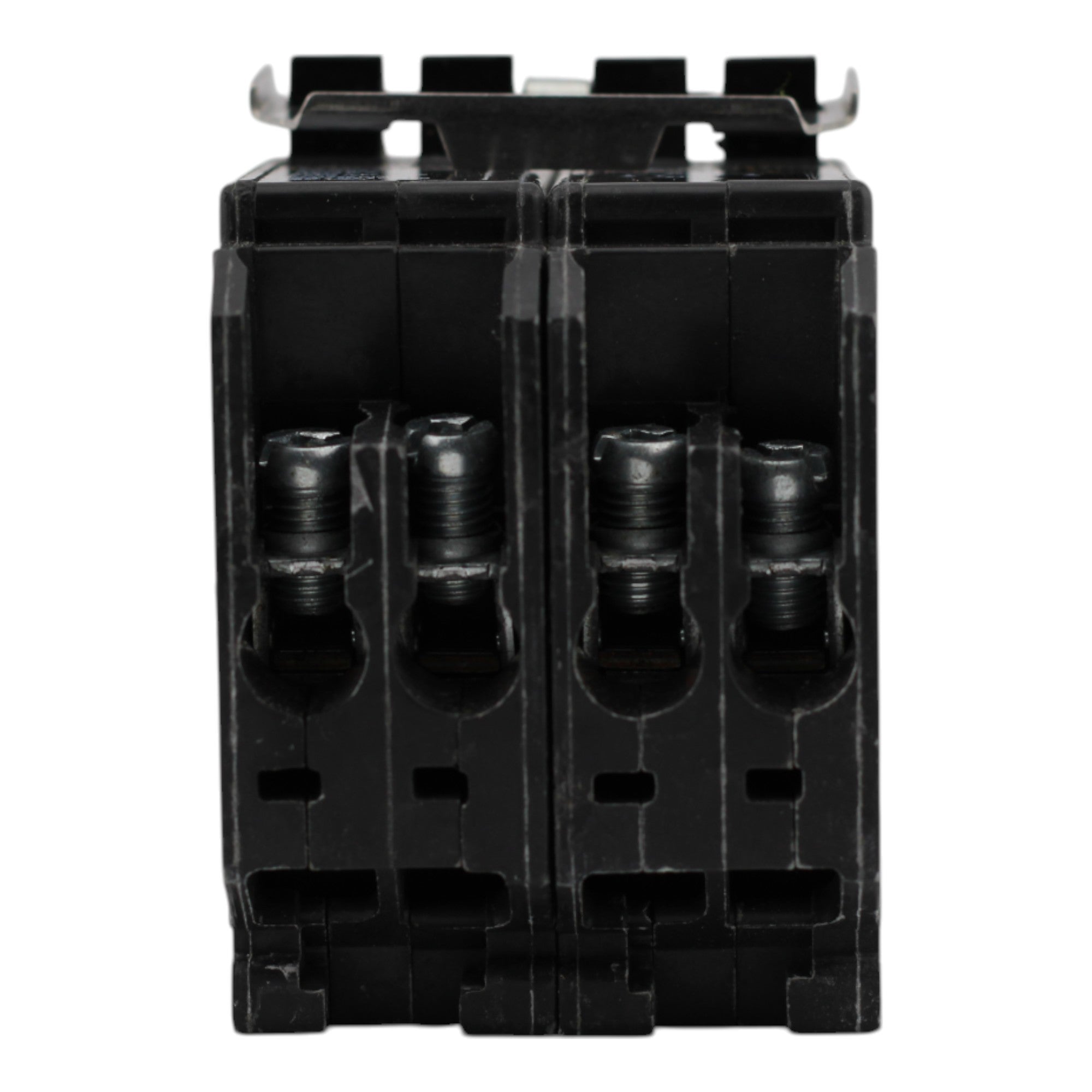

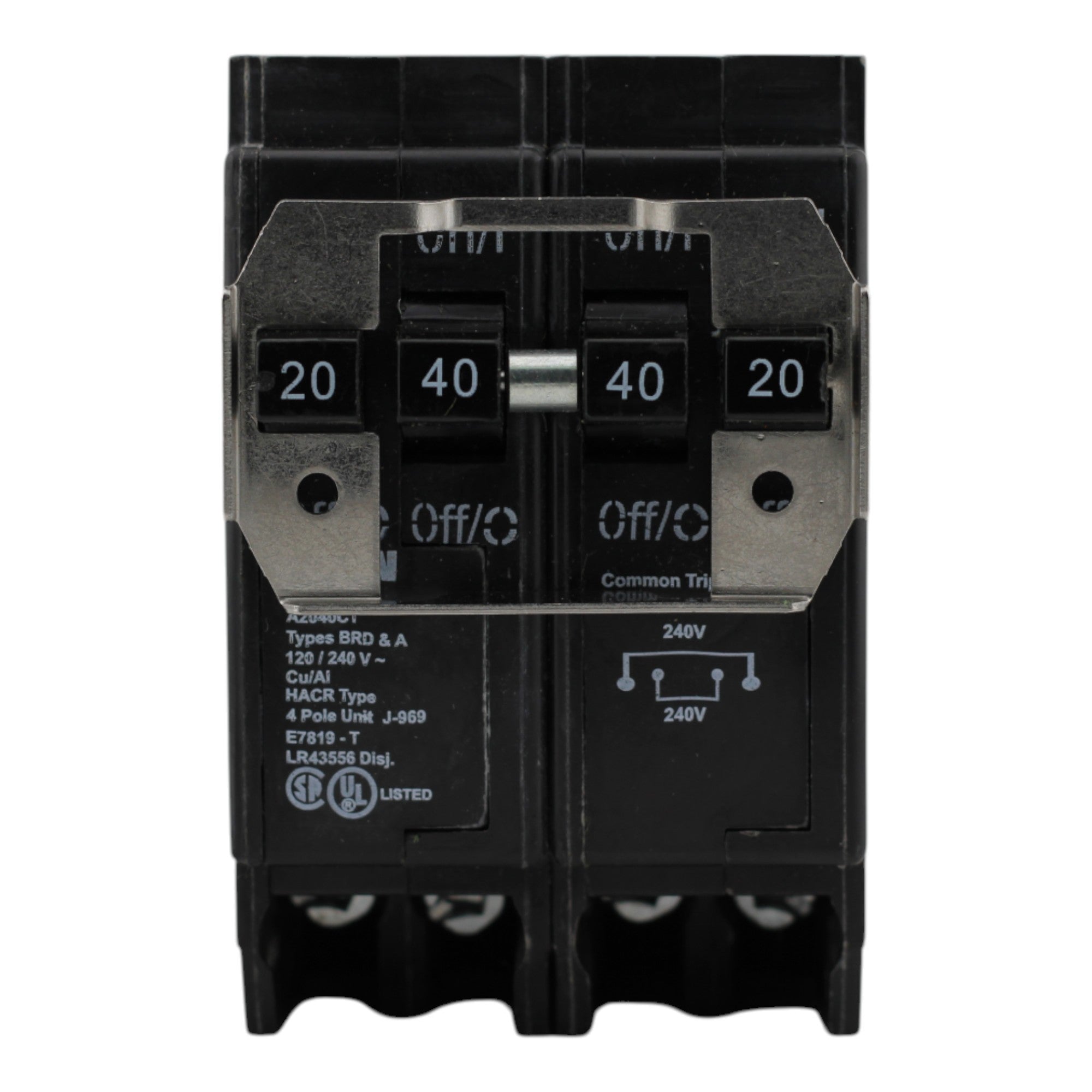

Eaton BQC220240 20/40A 4P 120/240V Quadplex Circuit Breaker

Eaton BQC220240: Quadplex breaker with 20A 2P and 40A 2P, 120/240V, 10kA SCCR, common trip, plug-on mount for BR panels, UL 489 listed, HACR rated.

BQC220240 specifications

• Manufacturer: Eaton
• Brand: Eaton BR
• UPC: 786676371865
• Model Number: BQC220240
• Product Type: Quadplex Circuit Breaker
• Product Line: BR Series, Type BQC
• Amperage Rating: (1) Two-Pole 20A, (1) Two-Pole 40A
• Voltage Rating: 120/240V AC
• Number of Poles: Four-Pole (two 2-pole breakers combined)
• Short Circuit Current Rating: 10 kA
• Mounting Type: Plug-on
• Connection Type: Terminal
• Wire Size Compatibility: 14-4 AWG (copper or aluminum)
• Dimensions: Height: 3 in; Width: 2 in; Depth: 3 in
• Weight: 0.9 lb
• Certifications: UL 489 Listed
• Ratings: HACR rated
• Features: 1-Inch CTL design, rejection tab feature, common breaker trip
• Application: For use with Type BR Loadcenters
