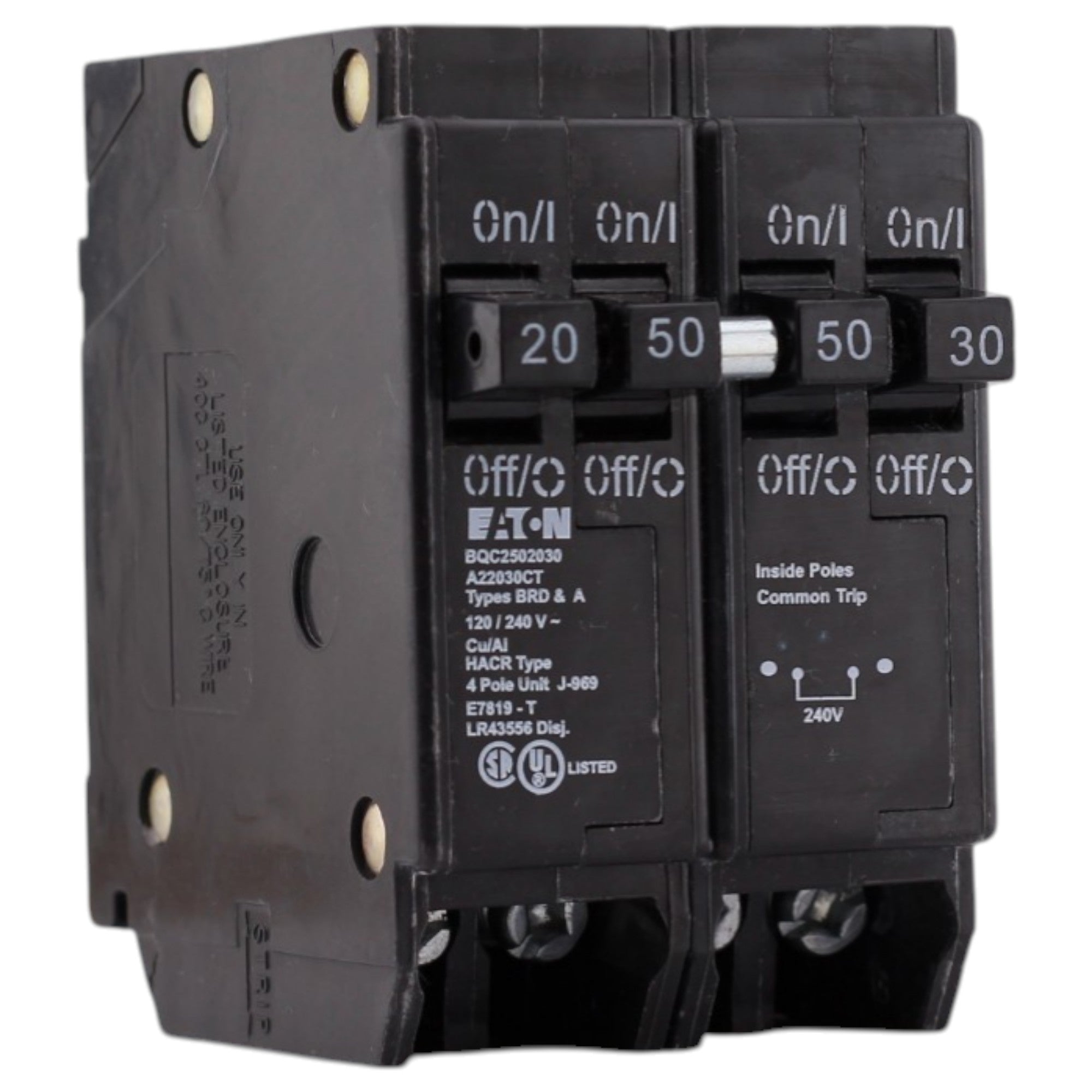

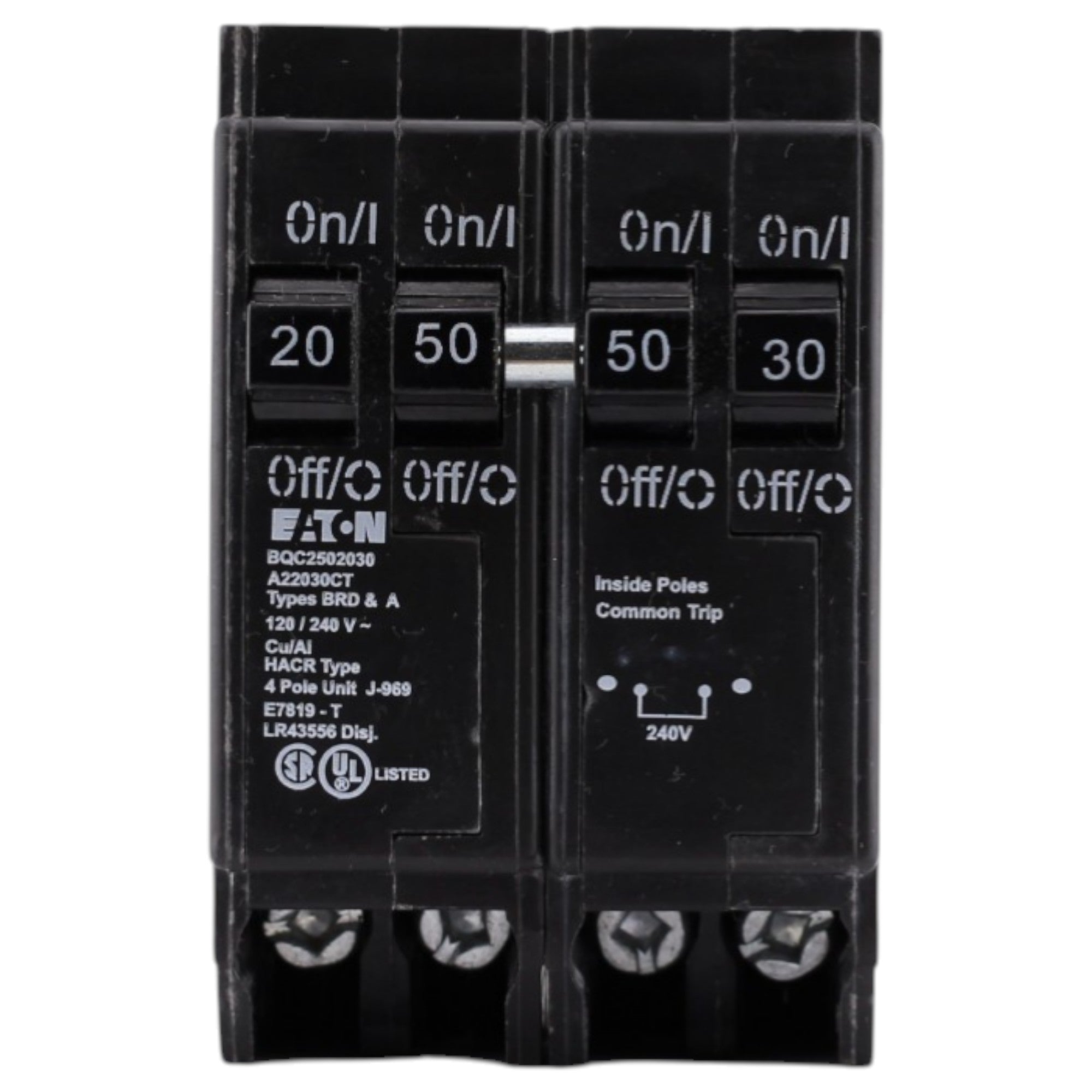

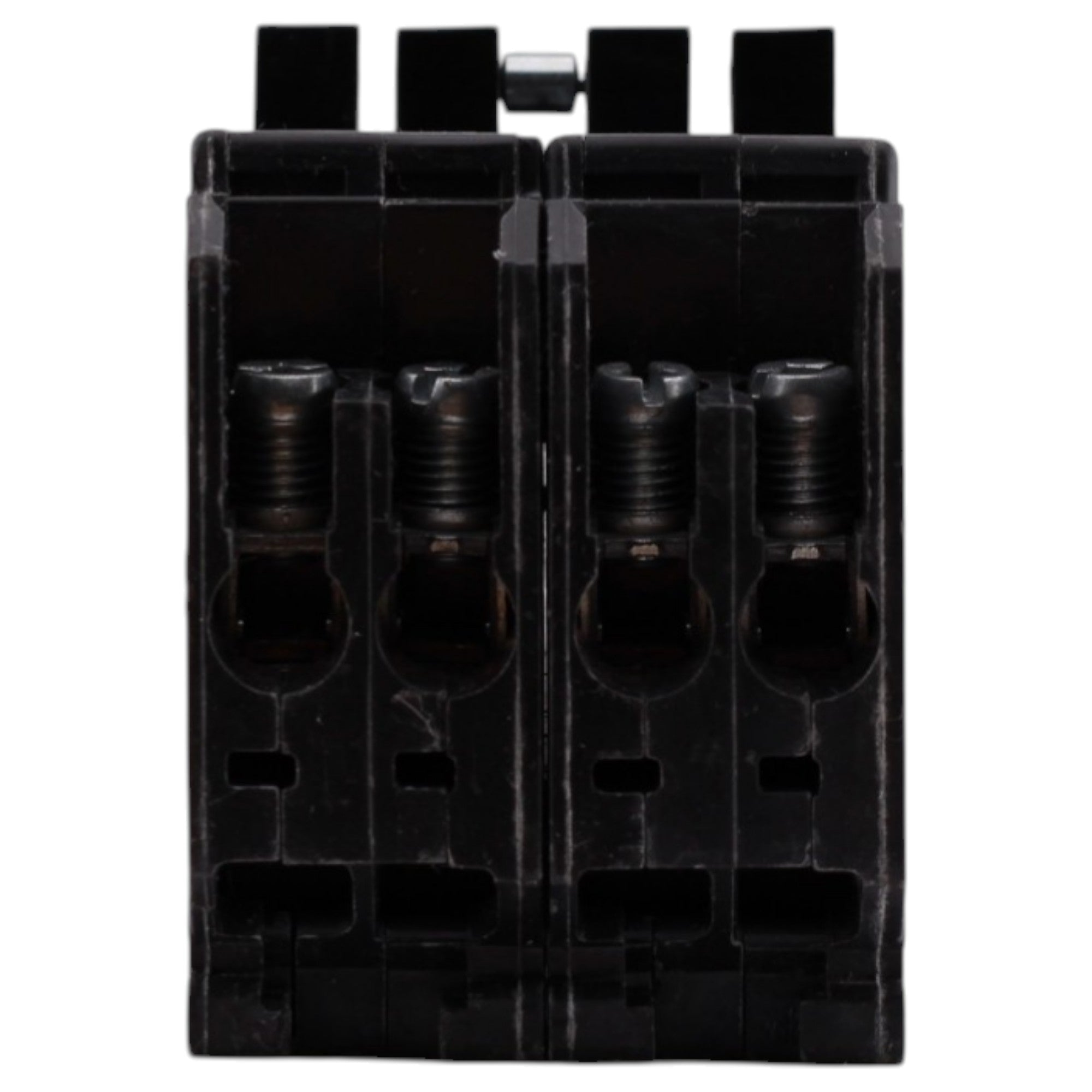

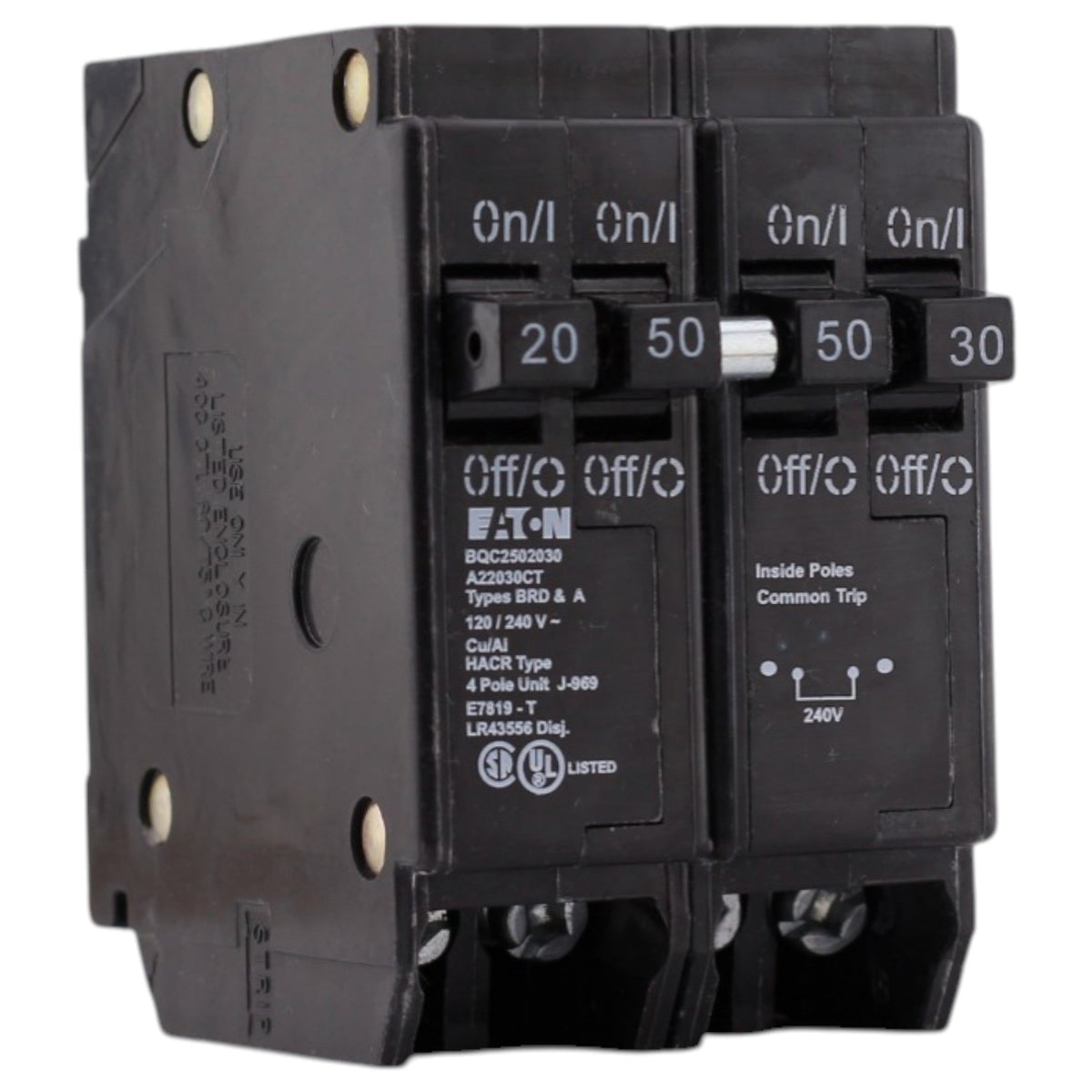

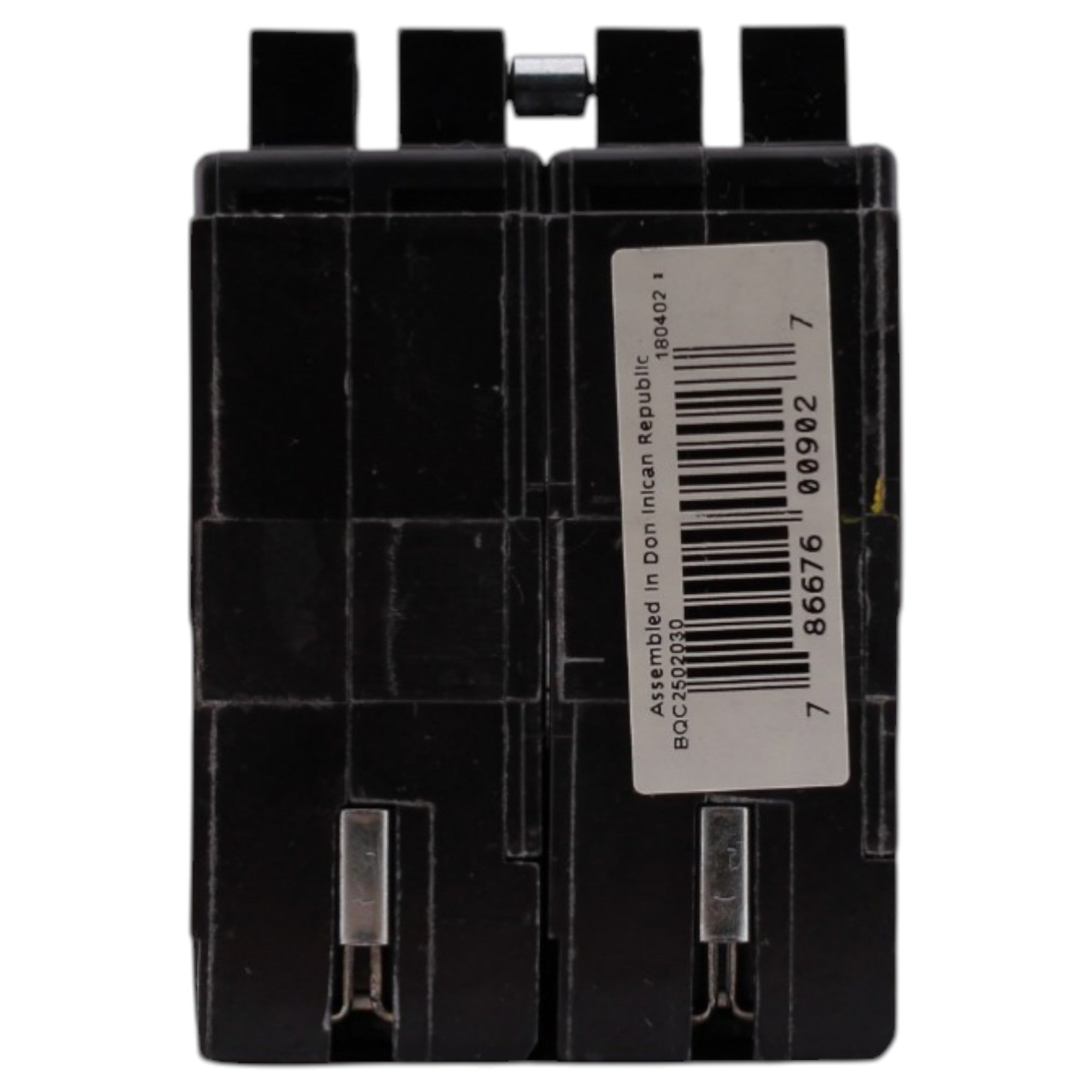

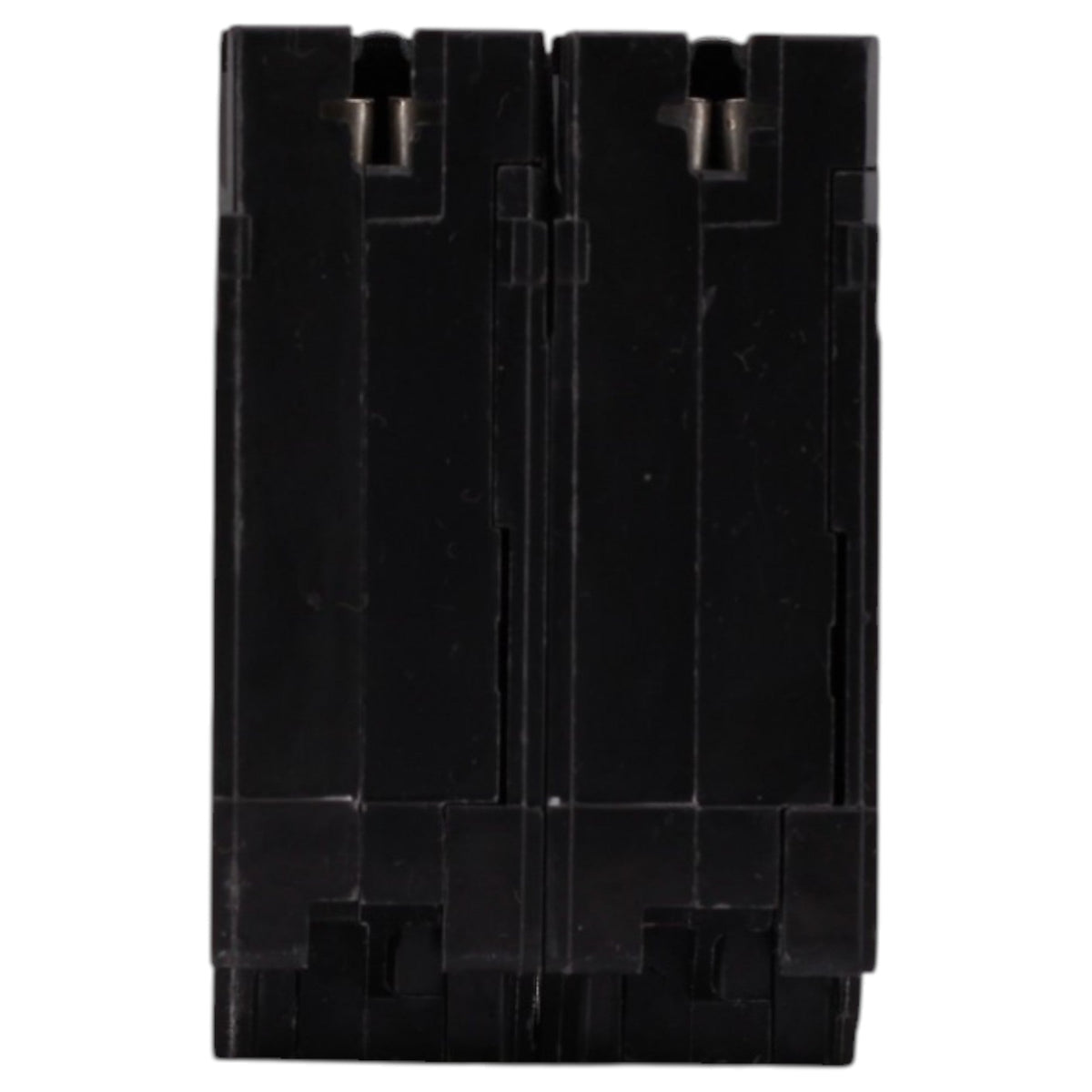

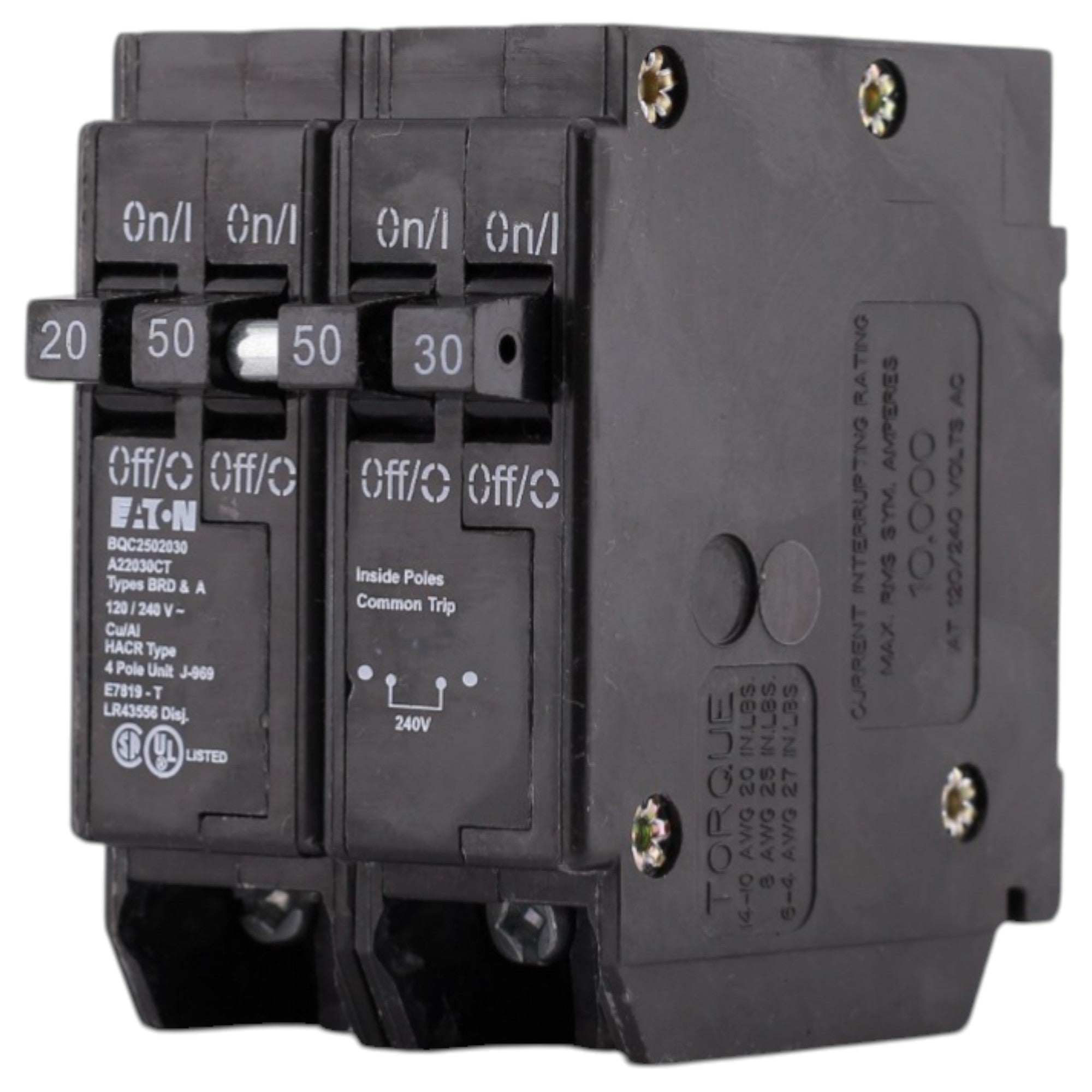

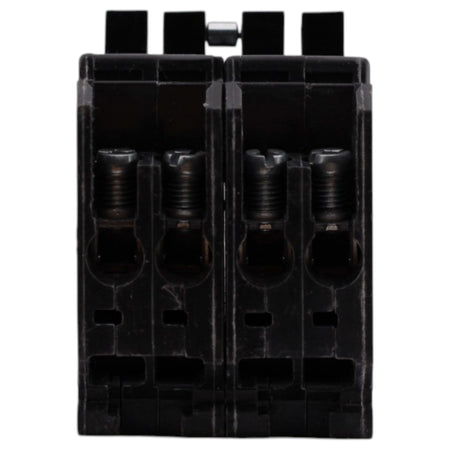

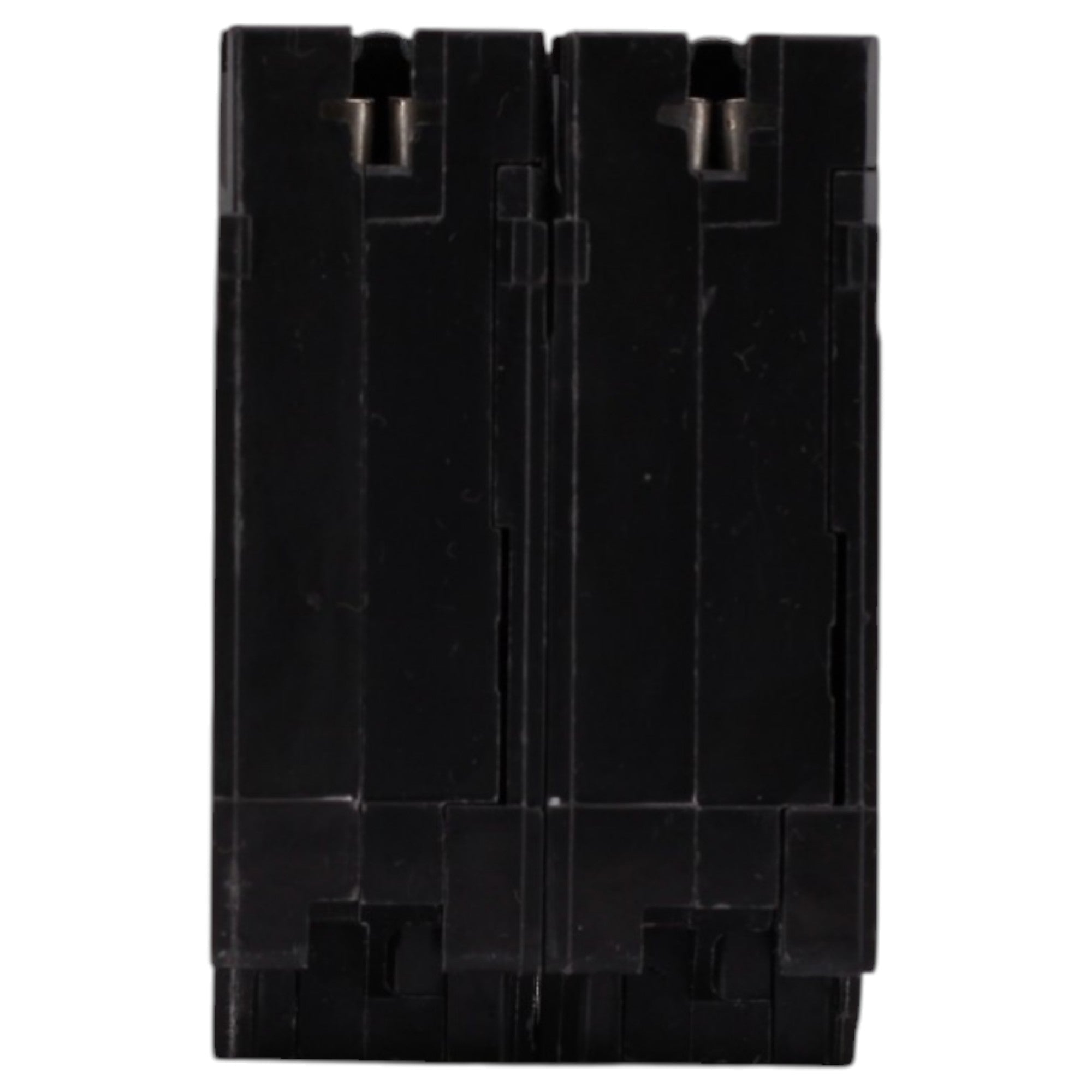

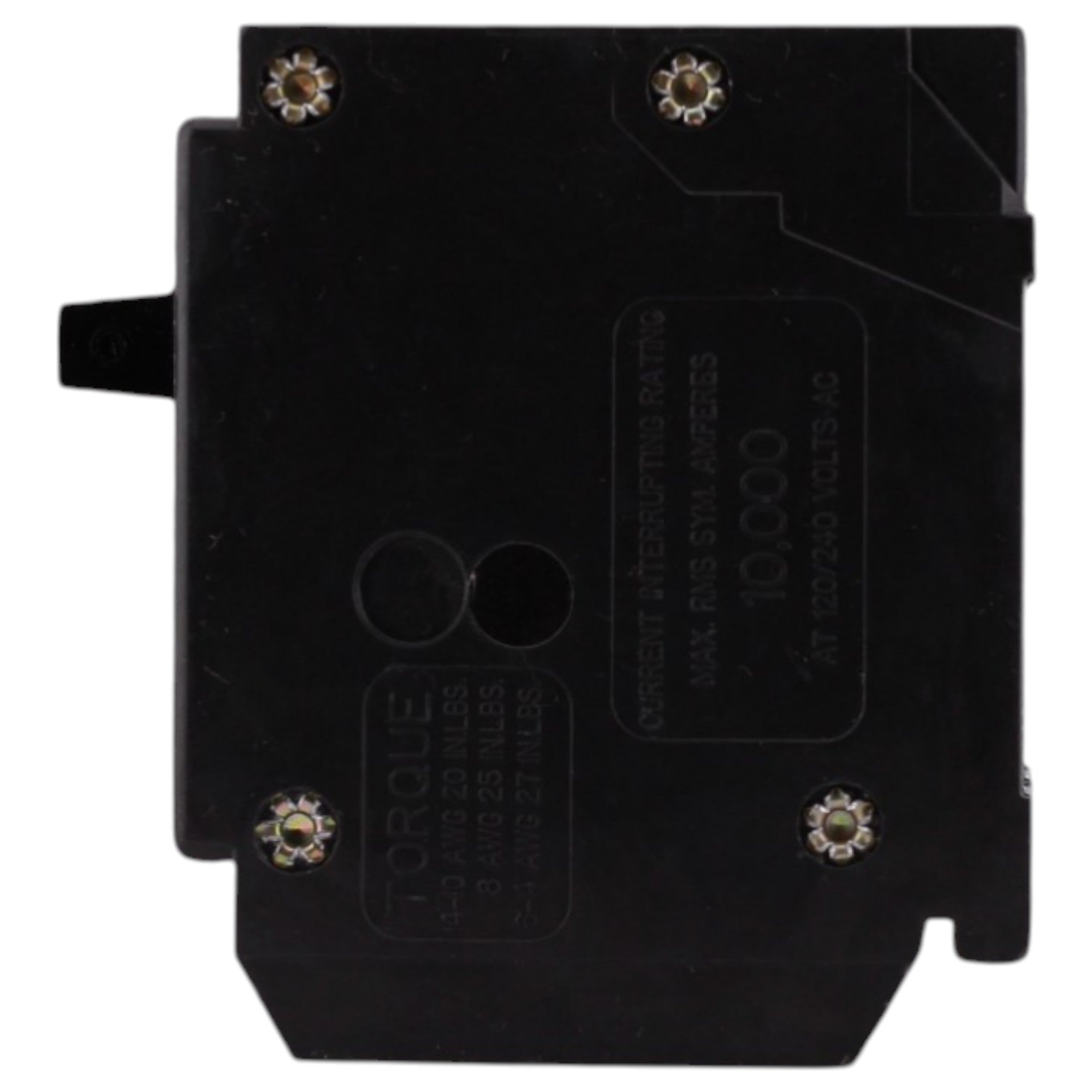

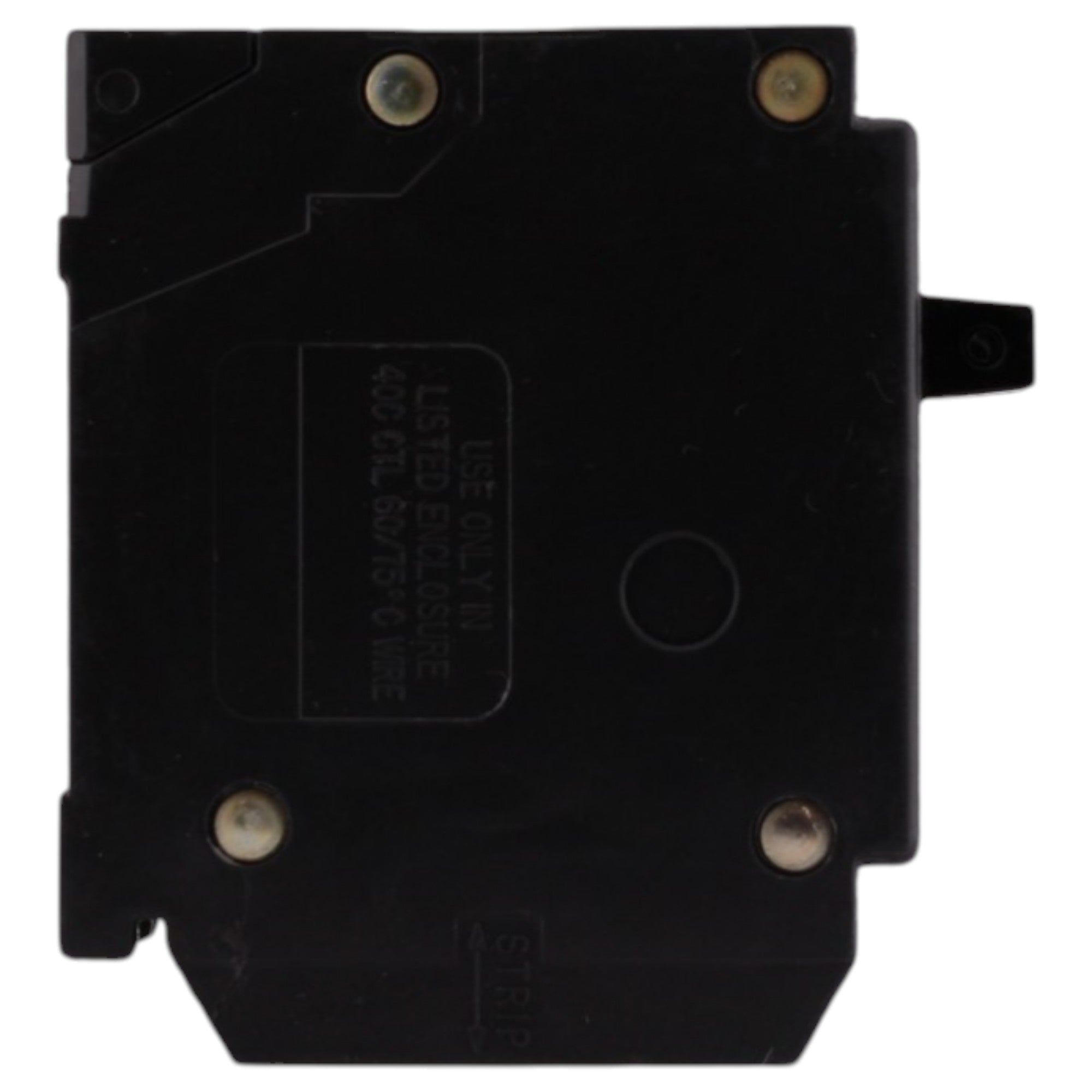

Eaton BQC2502030: 4-Pole CTL Quadplex Circuit Breaker, (1) 20A 1-Pole / (1) 50A 2-Pole / (1) 30A 1-Pole, 120/240V, 10kA, plug-on, common/independent trip, HACR, UL listed.
-
Manufacturer: Eaton
-
Brand: Eaton (Cutler-Hammer)
-
Product Range: BR – BQC Series (for Eaton Type BR loadcenters and residential panels)
-
Model Number: BQC2502030
-
Breaker Type: CTL Quadplex Thermal Magnetic Circuit Breaker
-
Configuration: (1) Single-Pole 20A (outer) + (1) Two-Pole 50A (center, common trip) + (1) Single-Pole 30A (outer) — 4 poles total in a 2-pole footprint
-
Amperage: 20A (outer pole) / 50A (center 2-pole, common trip) / 30A (outer pole)
-
Poles: 4-Pole
-
Voltage: 120/240 Volts AC
-
Interrupt Rating: 10 kAIC
-
Mounting Mode: Plug-on (CTL, includes rejection tab feature)
-
Trip Type: Common trip (50A center 2-pole); Independent (20A and 30A outer poles) — Long-Time and Instantaneous
-
Wire Size: #14–4 AWG Cu/Al
-
Spaces Required: 2 standard 1-inch spaces
-
Dimensions: Height: 3 in; Width: 2 in; Depth: 3 in
-
Certifications: UL 489, CSA Certified, HACR Rated
-
Weight:0.7 lbs
This Eaton BQC2502030 CTL quadplex circuit breaker combines independent 20A and 30A single-pole outer breakers with a common-trip 50A two-pole center breaker in a standard 2-pole footprint for 120/240V Type BR loadcenters. With 10 kAIC interrupt rating, rejection tab CTL feature, and HACR rating, it supports space-saving residential and light commercial panel installations.
