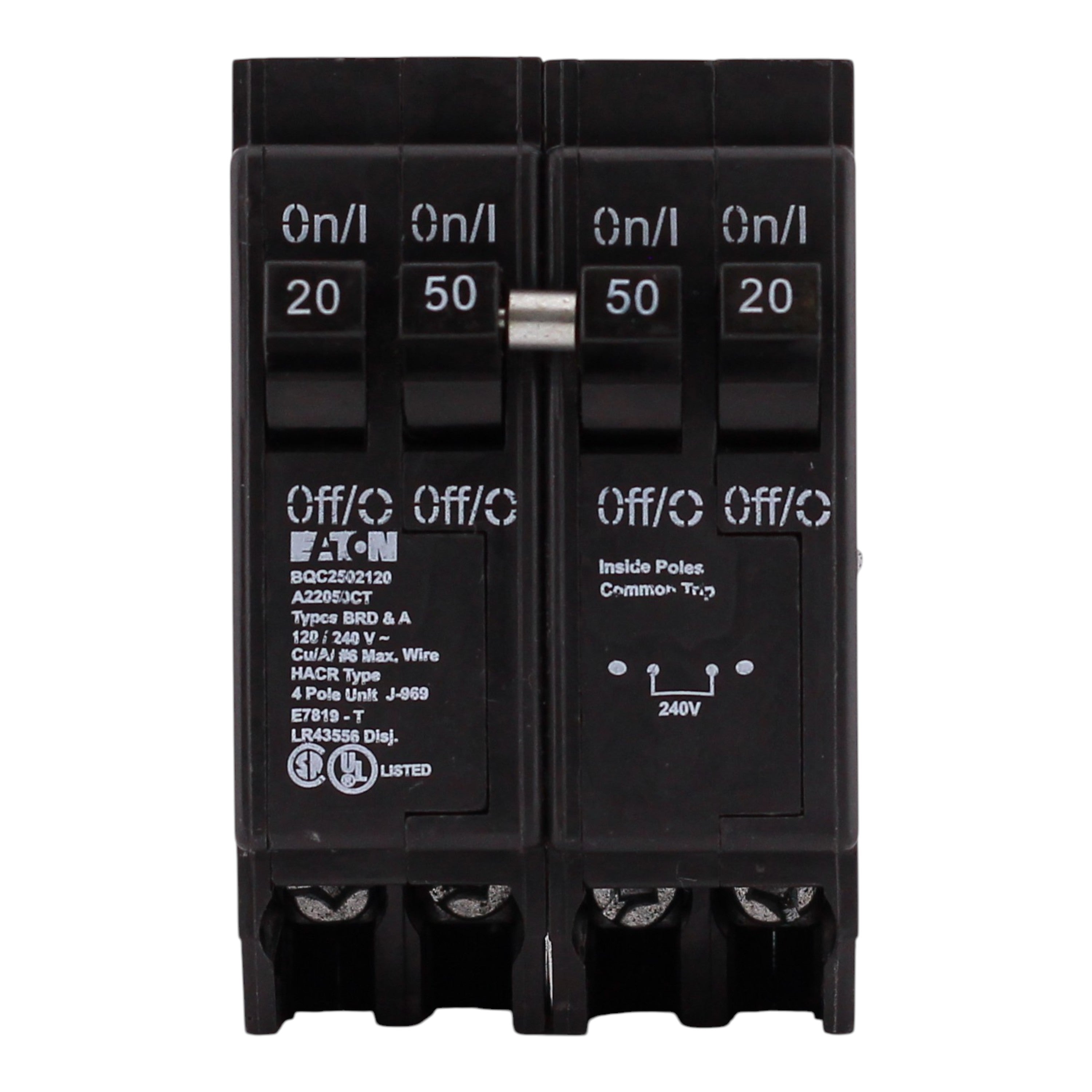

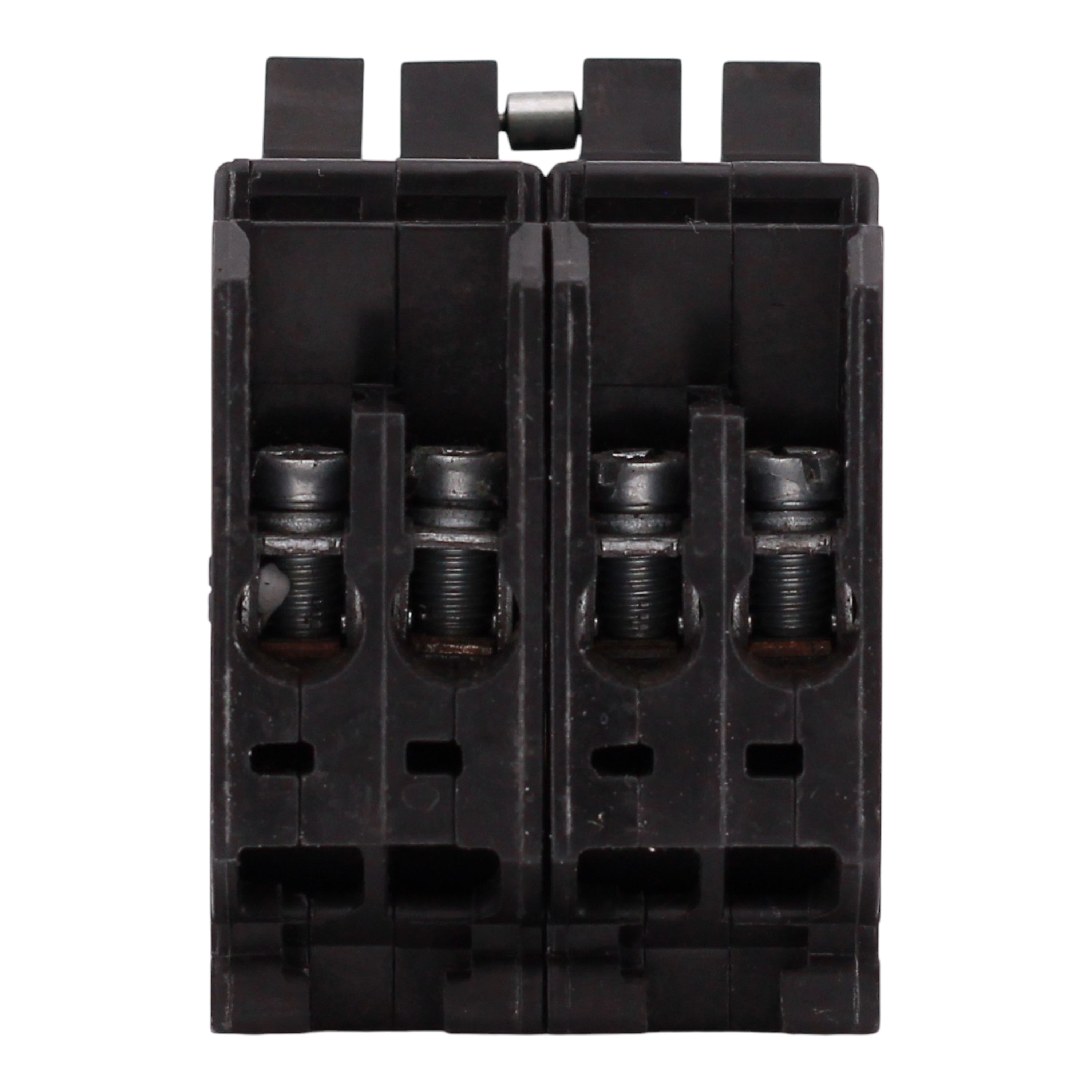

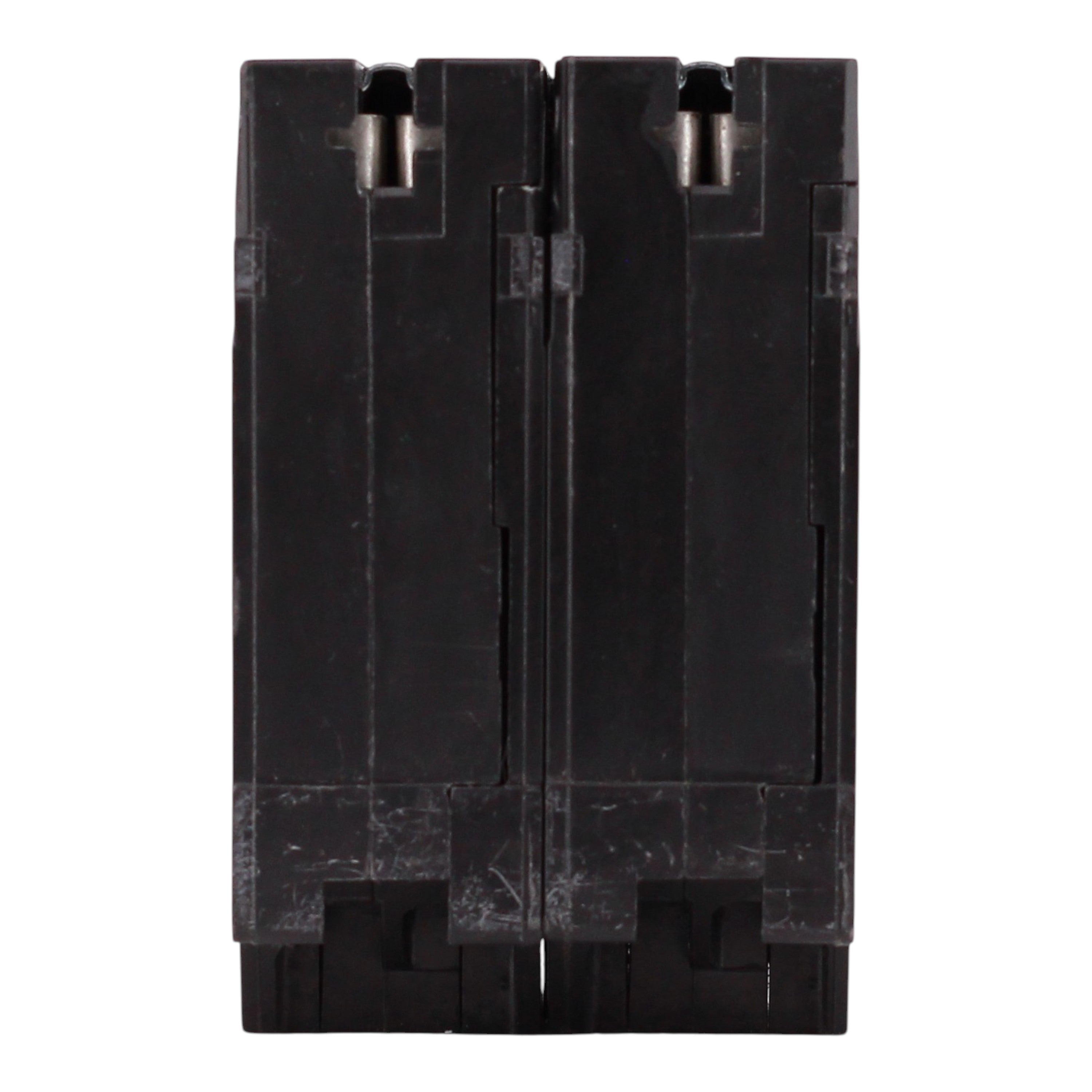

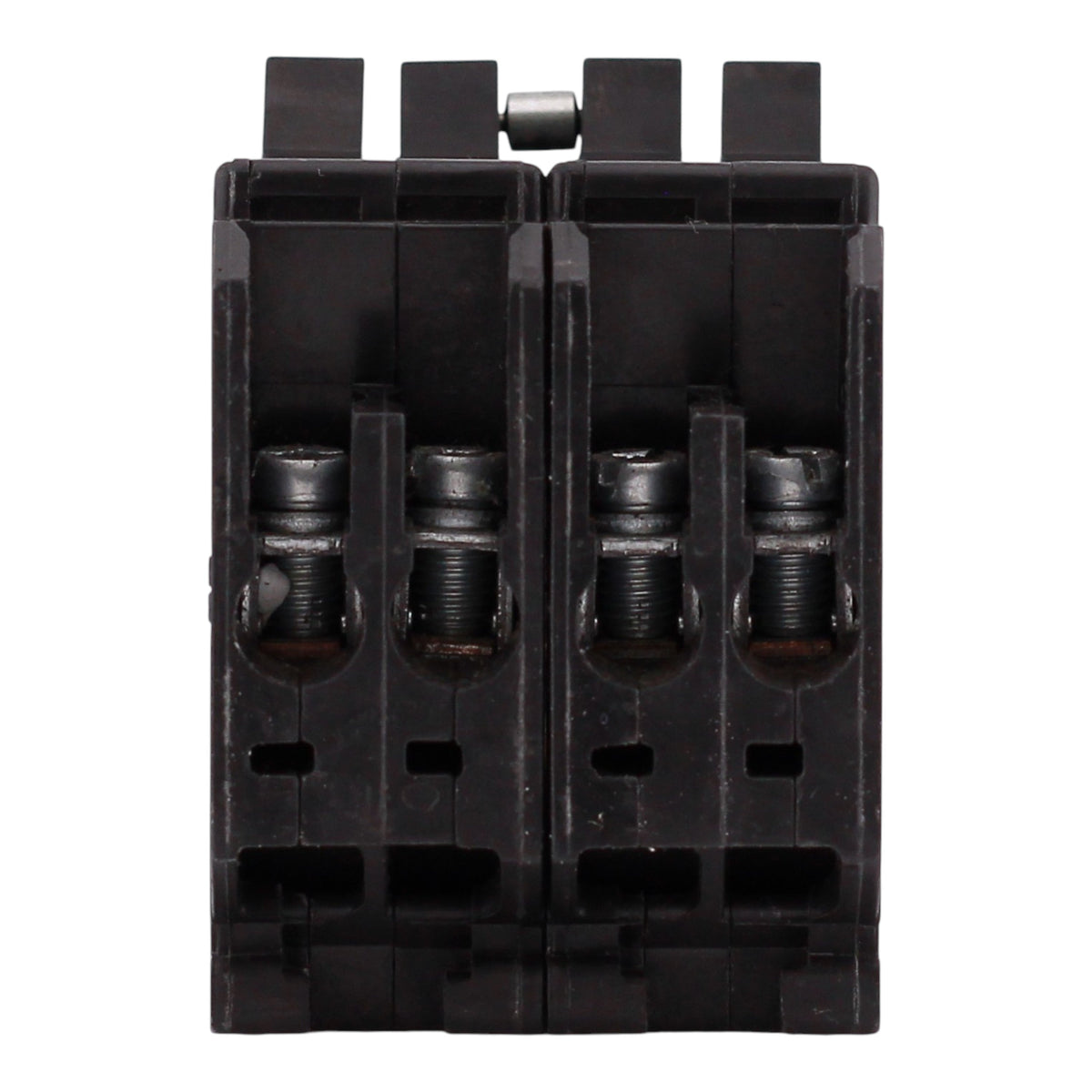

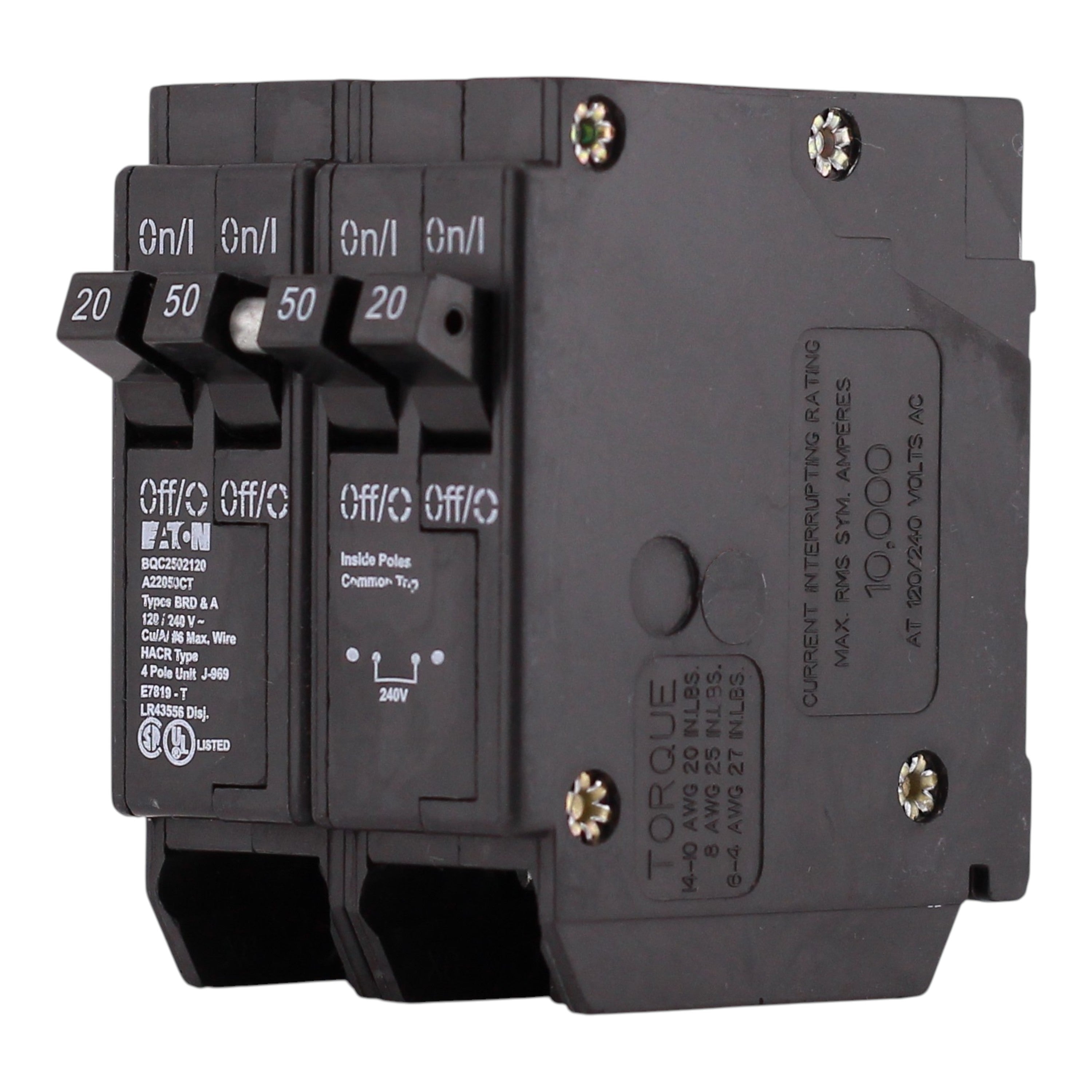

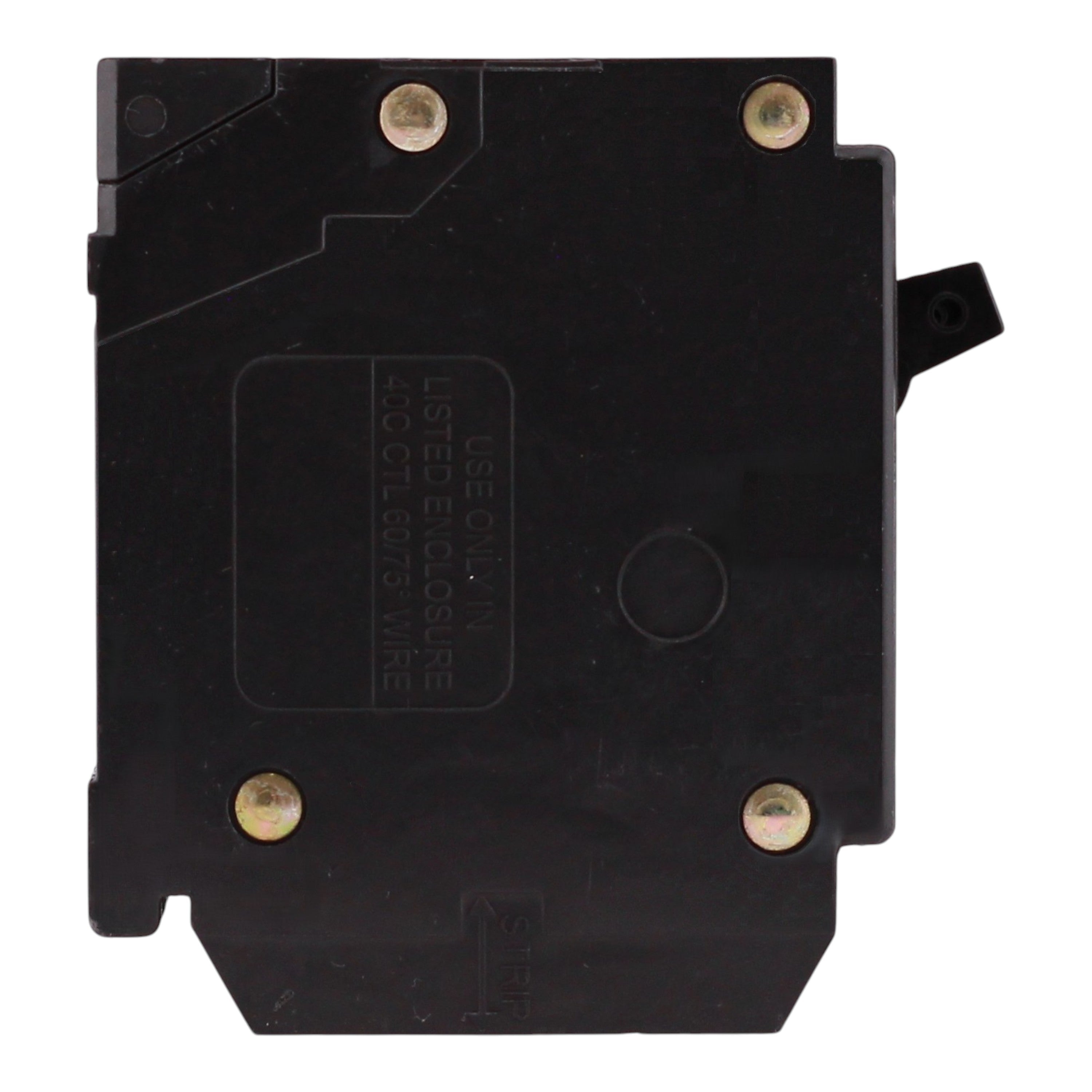

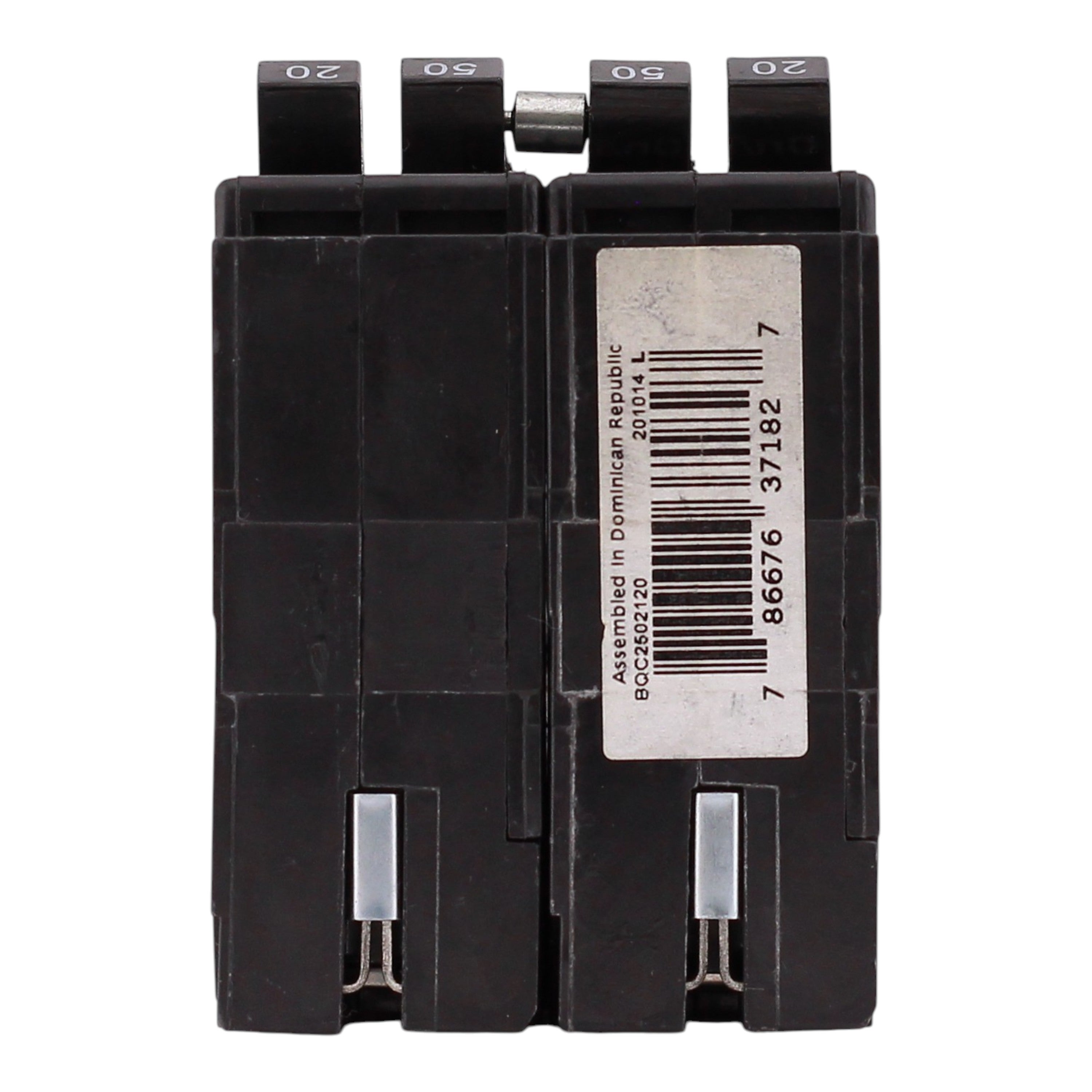

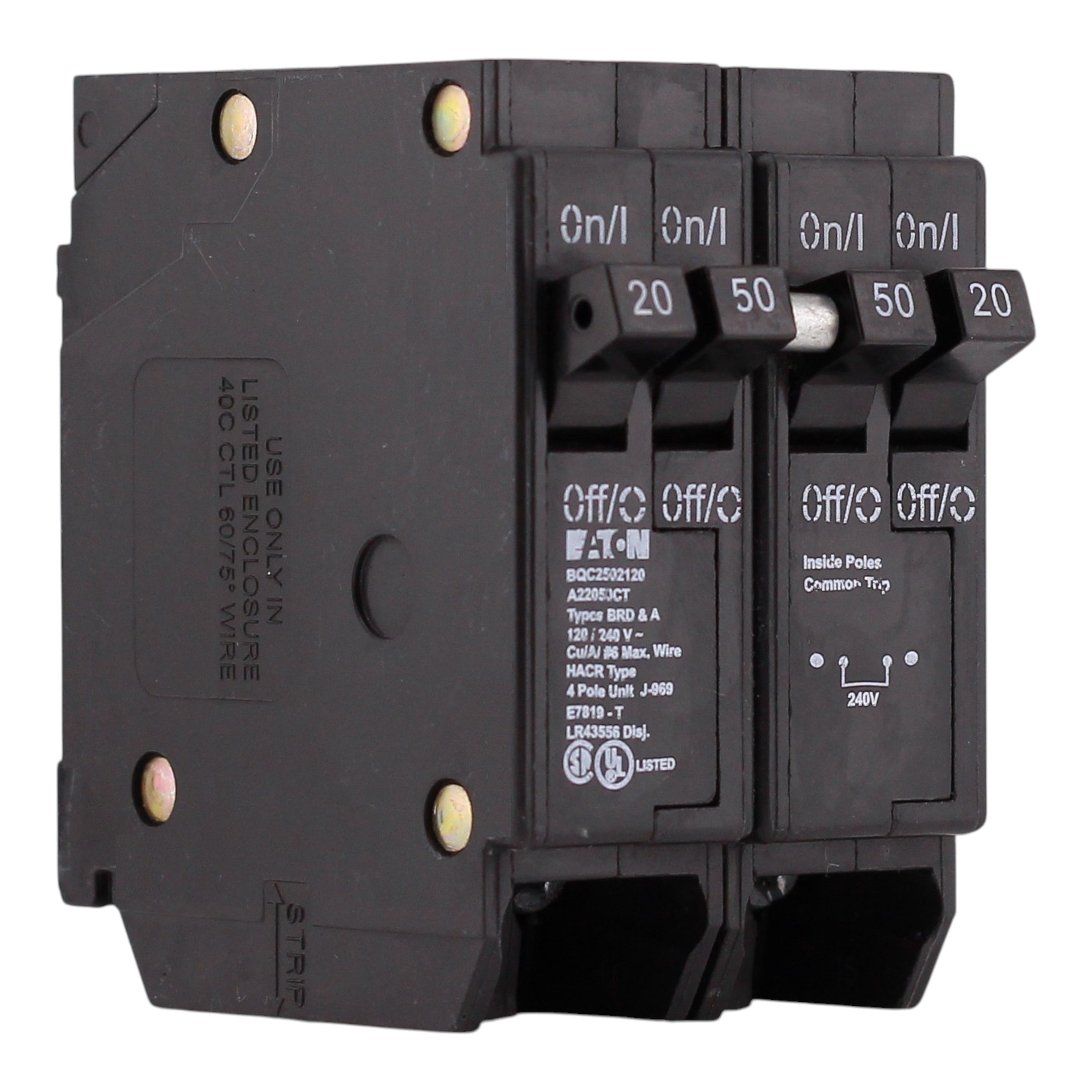

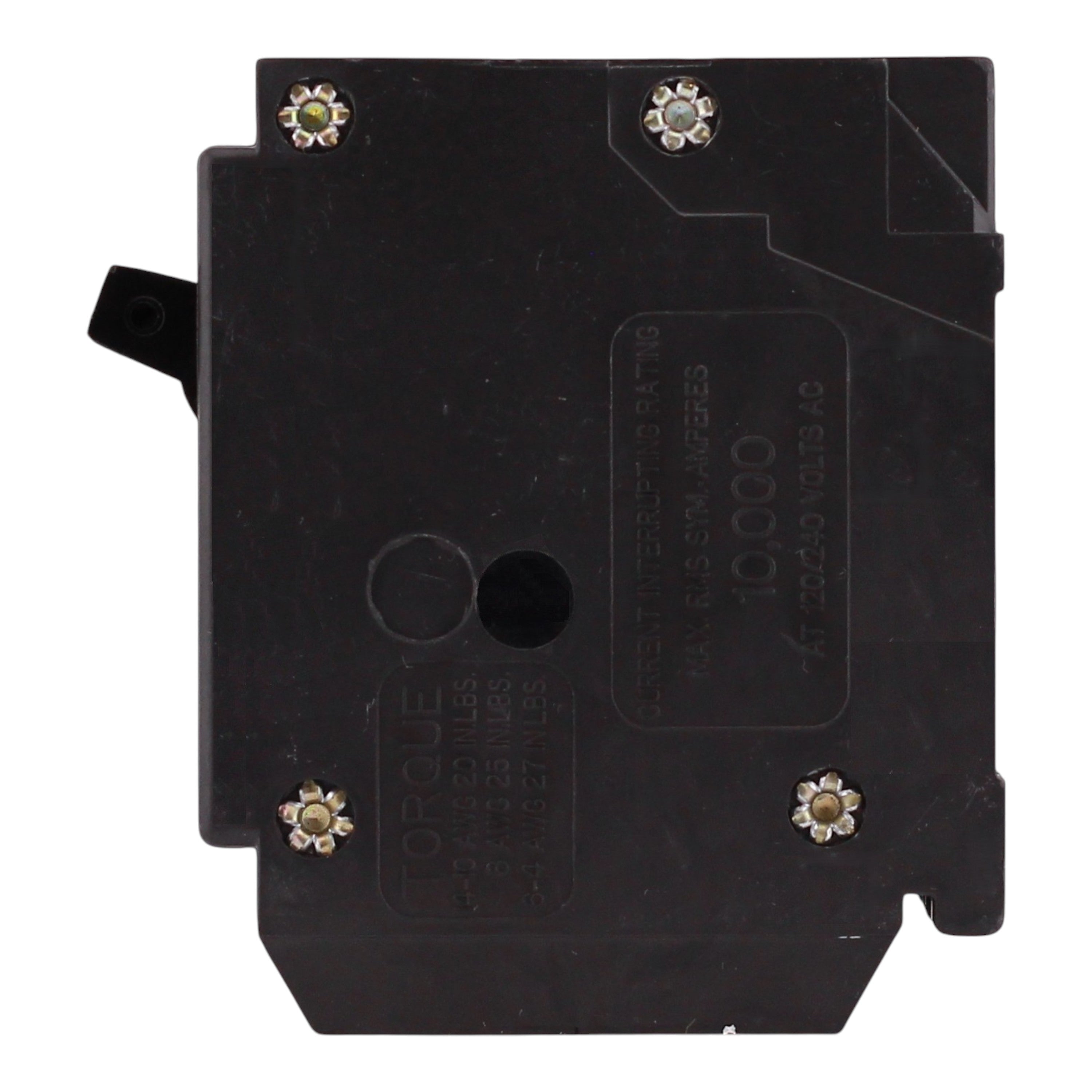

Eaton BR, BQC2502120, 50A/20A, 4P, 120/240V, Quadplex, Circuit Breaker

Eaton BQC2502120: 50 Amp 2-Pole and (2) 20 Amp 1-Pole, Quadplex thermal magnetic circuit breaker, 120/240V, 10kA, plug-on, UL listed, HACR rated.

• Manufacturer: Eaton
• Brand: Eaton (Cutler-Hammer)
• Product Range: BR (BQC — for Eaton Type BR loadcenters and CTL panelboards)
• UPC: 786676371827
• Model Number: BQC2502120
• Breaker Type: Thermal Magnetic Quadplex Circuit Breaker
• Amperage: (1) 2-Pole 50 Amps; (2) 1-Pole 20 Amps
• Poles: 4-Pole
• Voltage: 120/240 Volts AC
• Interrupt Rating: 10 kAIC
• Mounting Mode: Plug-on
• Wire Size: #14-4 AWG Cu/Al
• Dimensions: Height: 3 in; Width: 2 in; Depth: 3 in
• Weight: 0.9 lbs
• Certifications: UL Listed, HACR Rated, CSA

This Eaton BQC2502120 quadplex circuit breaker combines one 2-pole 50 Amp and two 1-pole 20 Amp breakers in a compact 4-pole design for 120/240V circuits in BR loadcenters. Ideal for space-saving residential panels.
