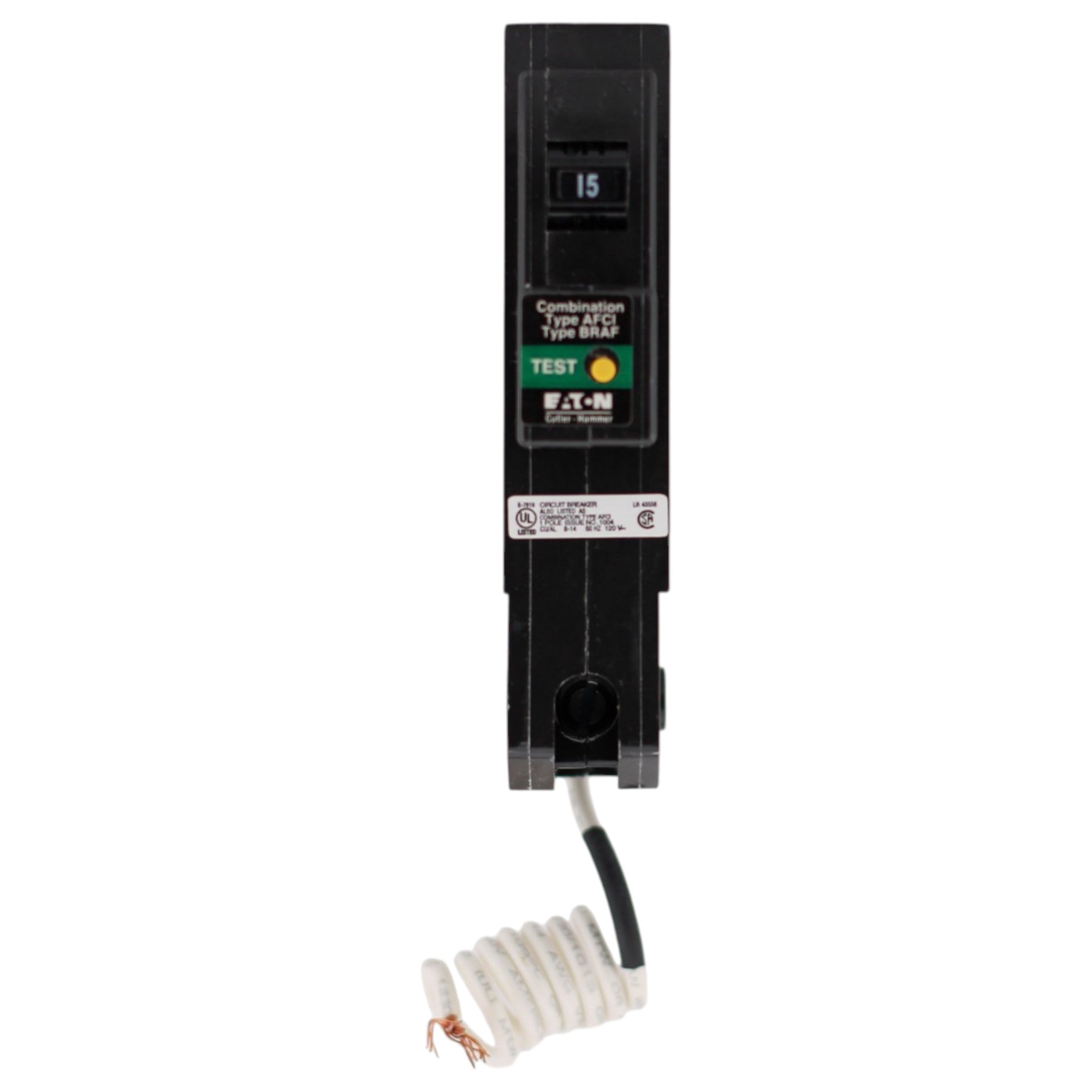

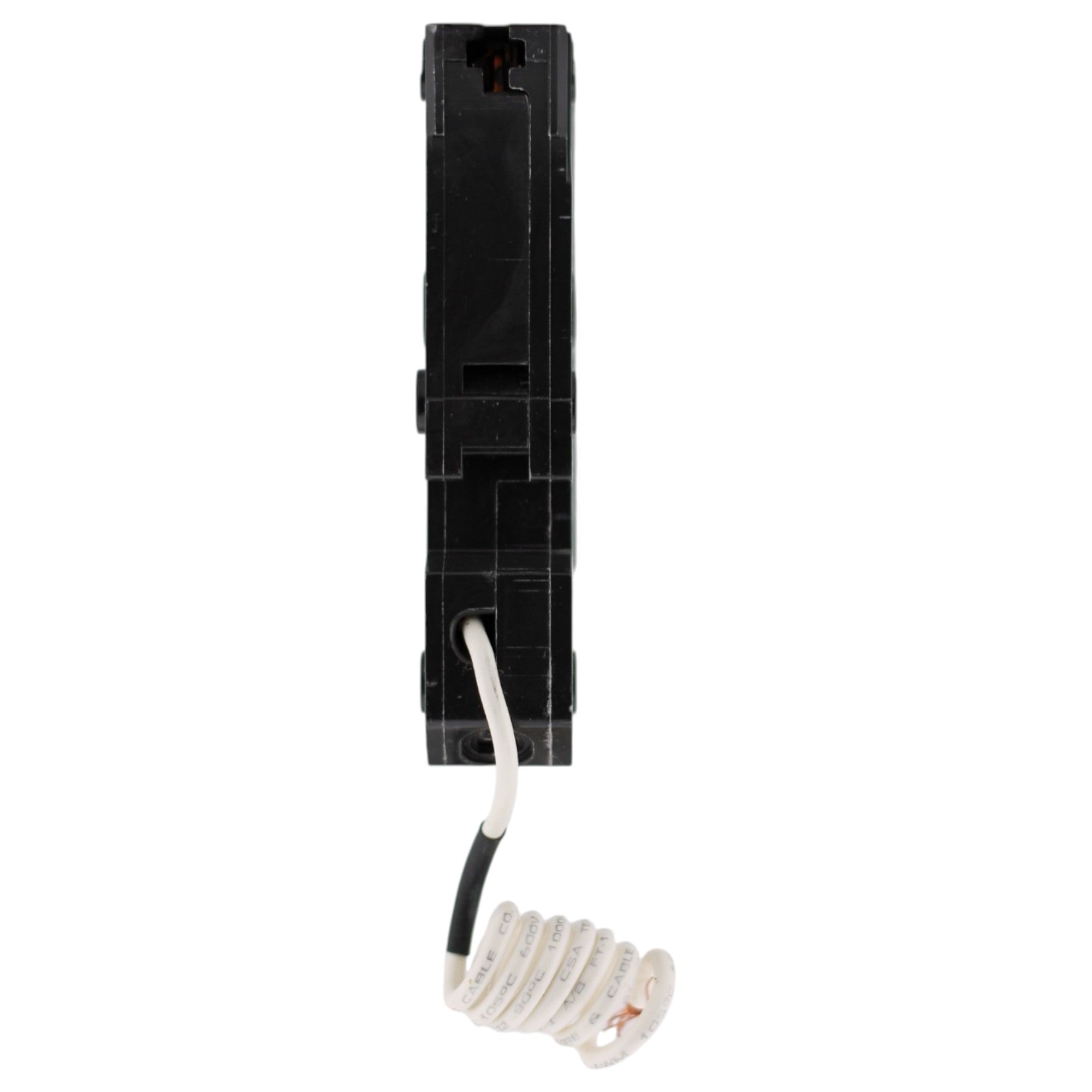

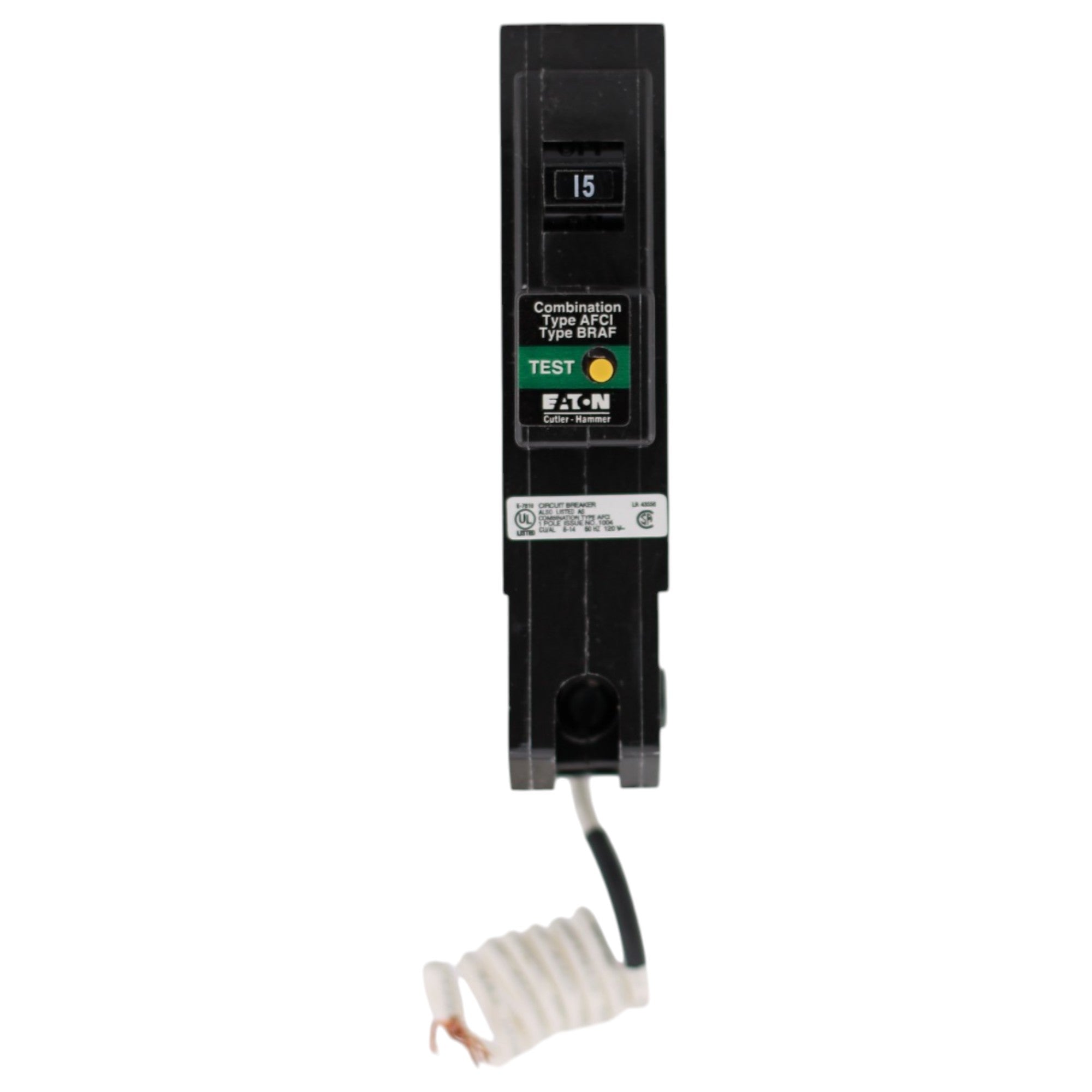

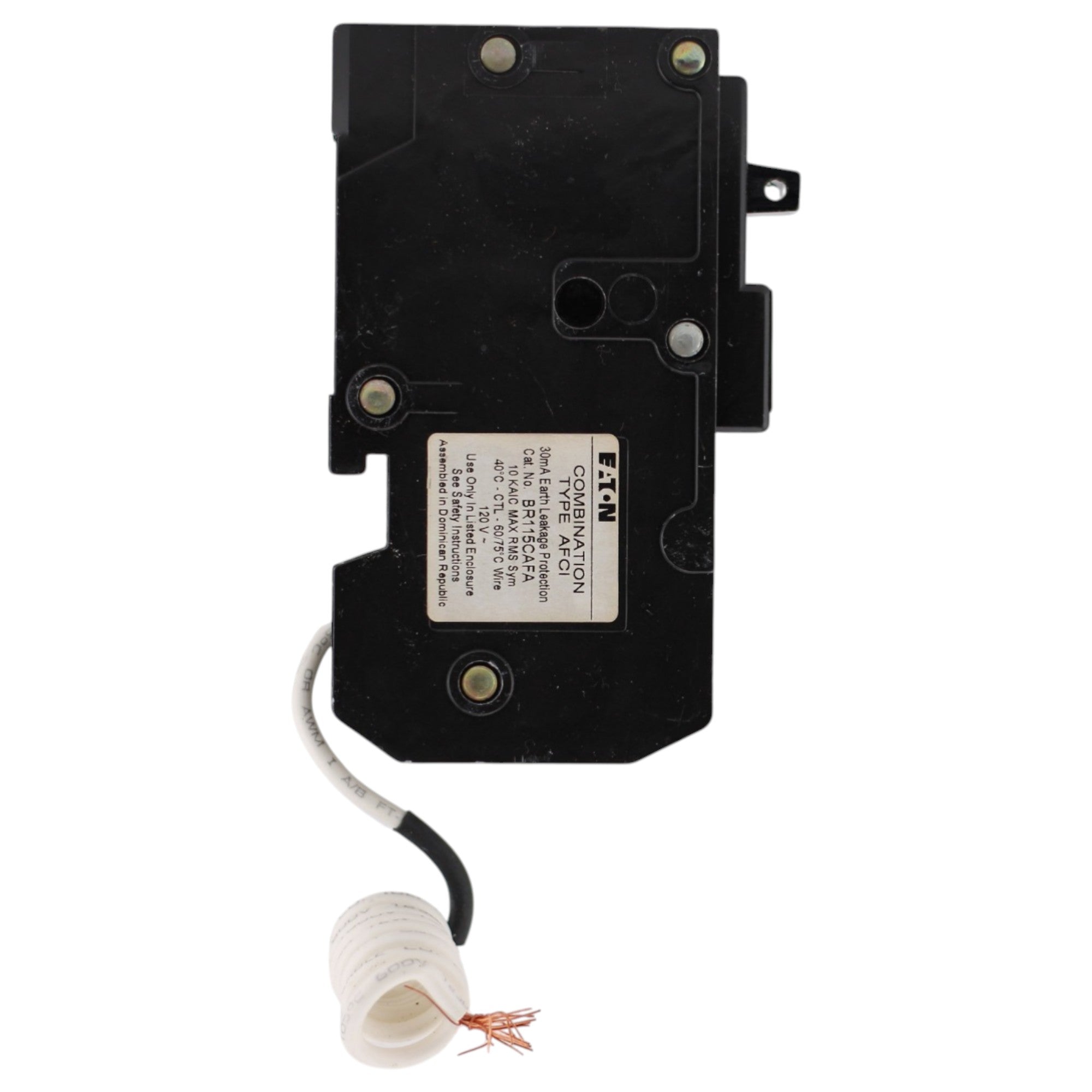

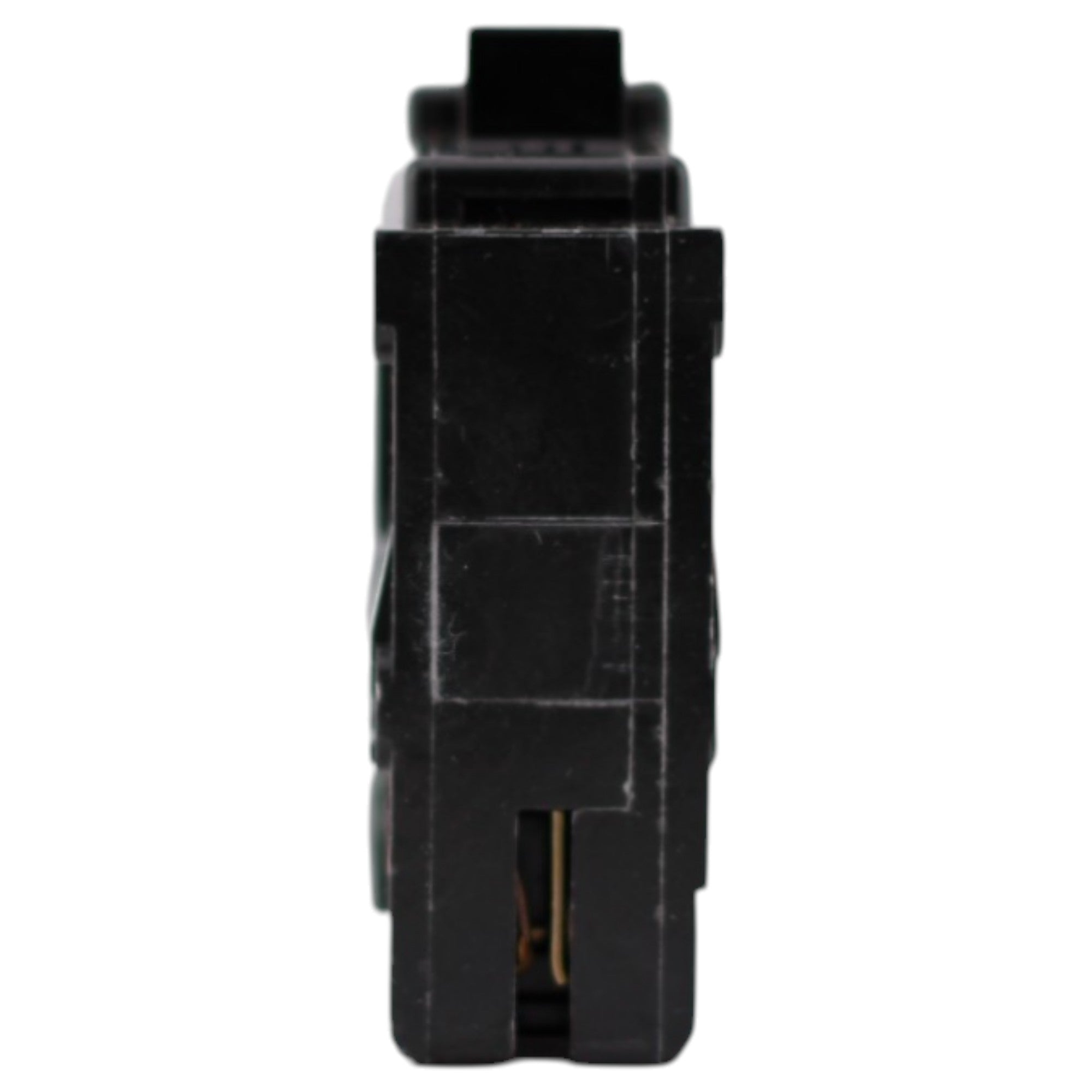

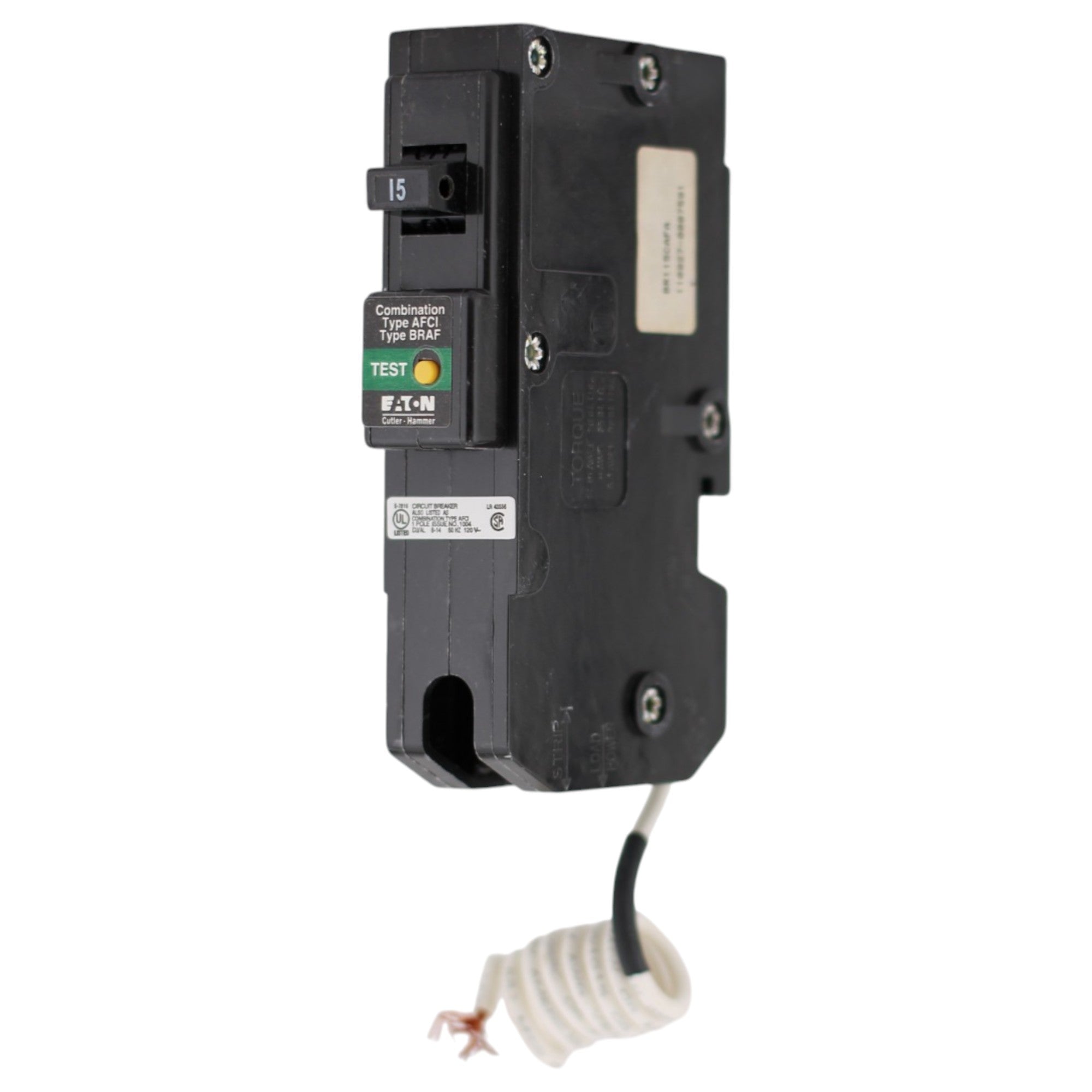

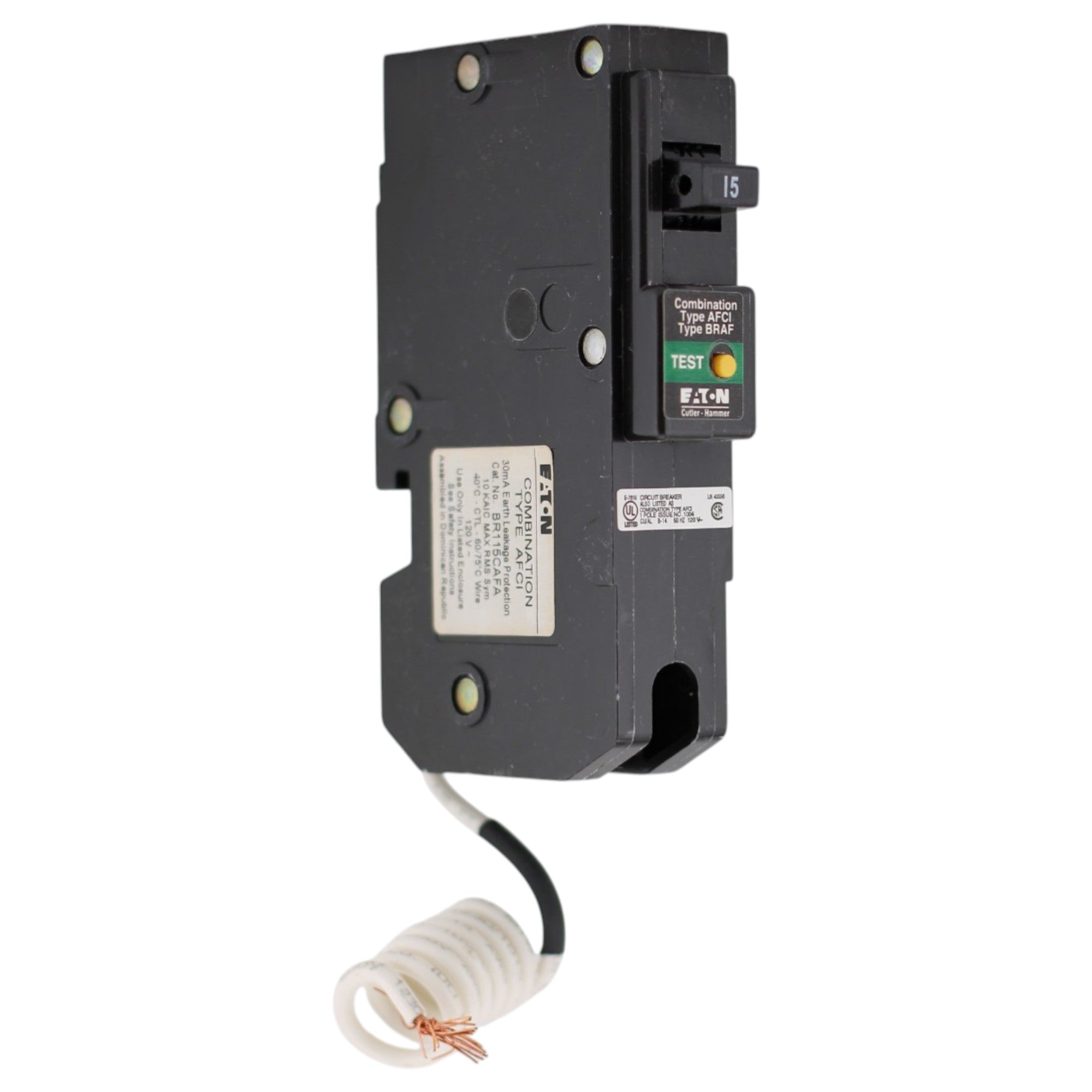

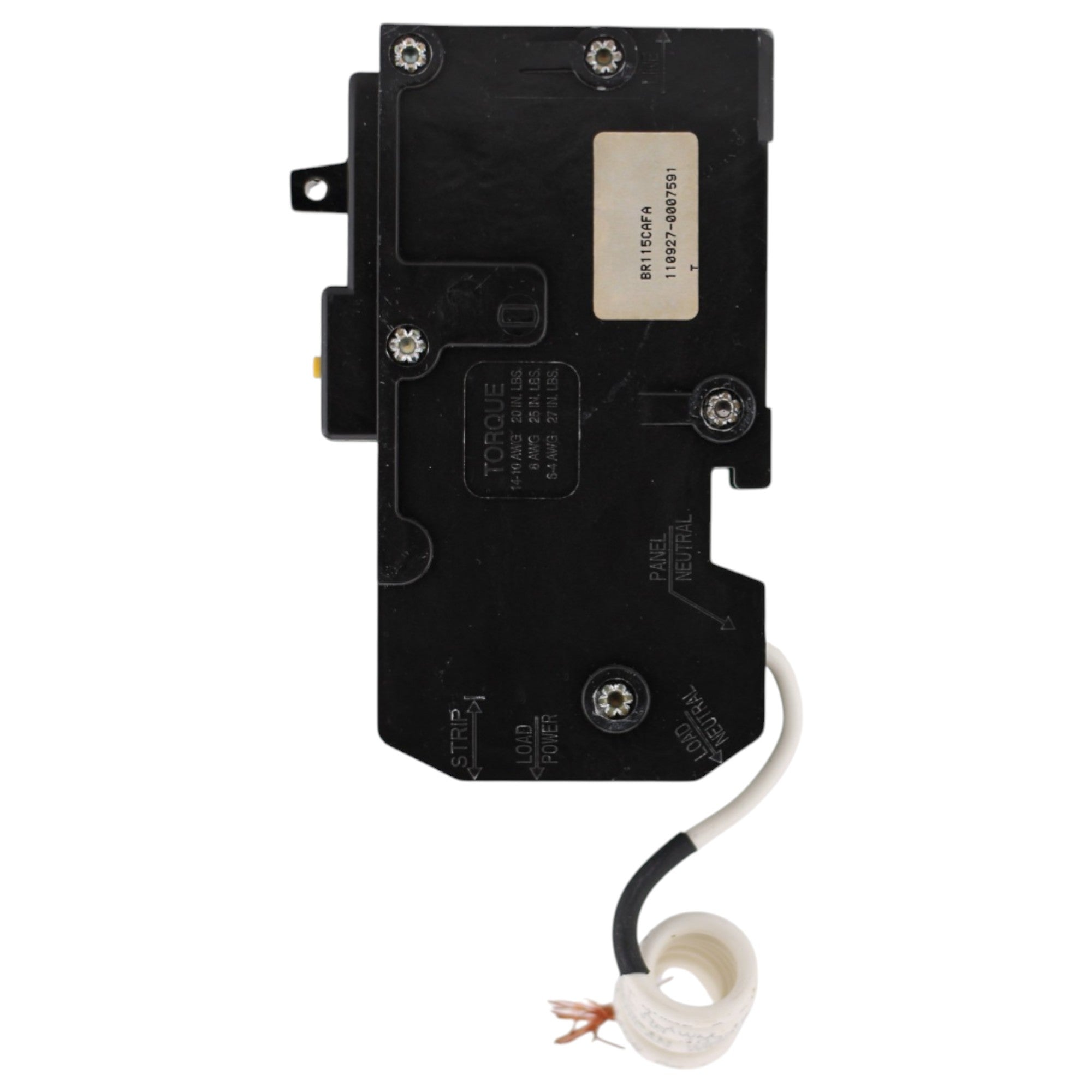

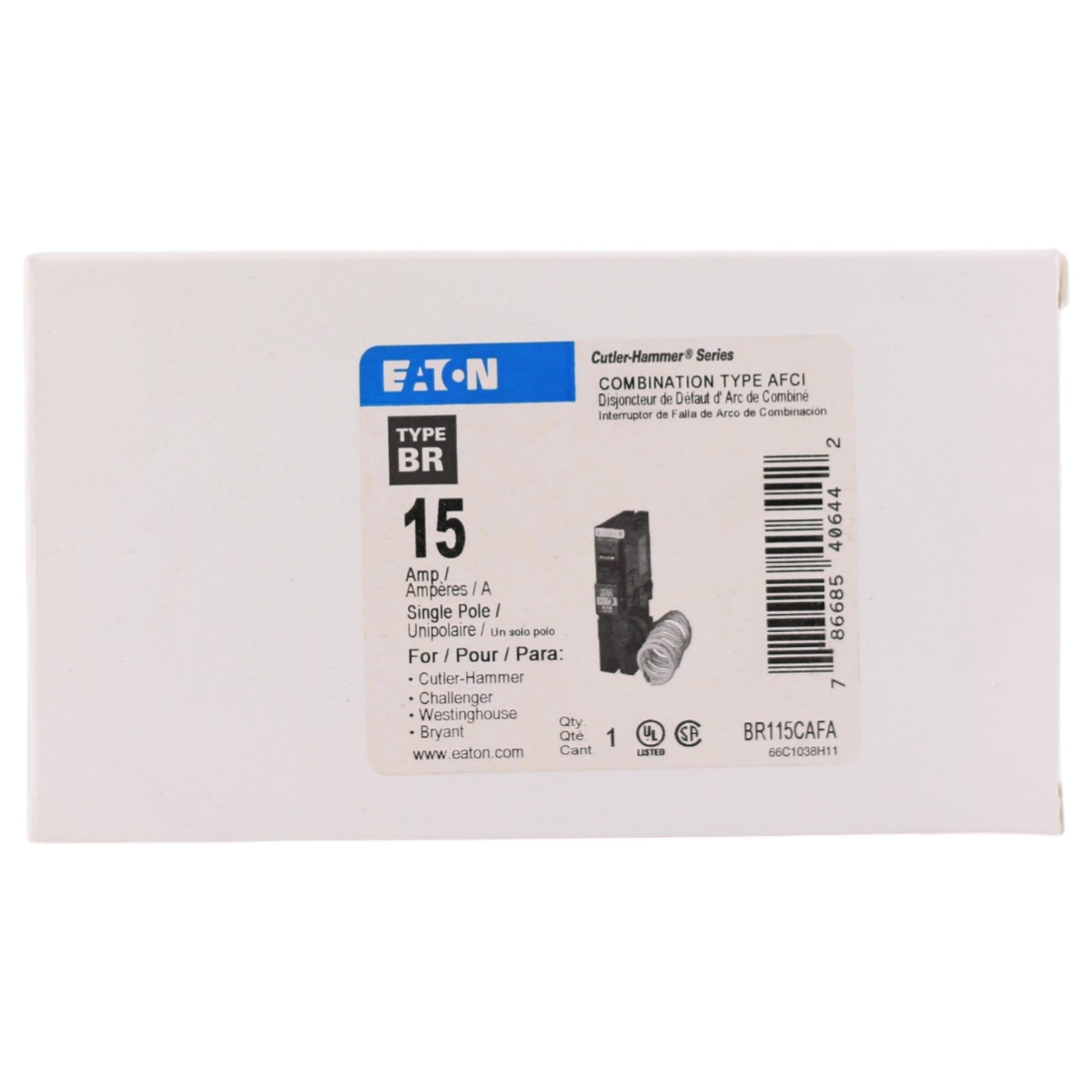

Eaton BR, BR115CAFA, 15A, 1P, 120/240V, AFCI, Pigtail Neutral, Circuit Breaker

BR115CAFA specifications

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Product Range: BR FIRE-GUARD (for Eaton Type BR loadcenters, Bryant, Westinghouse, and Challenger panels)
• UPC: 786685406442
• Model Number: BR115CAFA
• Product Status: ⚠️ Discontinued — Current replacement: BRCAF115
• Breaker Type: Combination Arc-Fault Circuit Interrupter (CAFCI)
• Amperage: 15 Amps
• Poles: 1-Pole
• Voltage: 120/240 Volts AC
• Interrupt Rating: 10 kAIC
• Mounting Mode: Plug-in

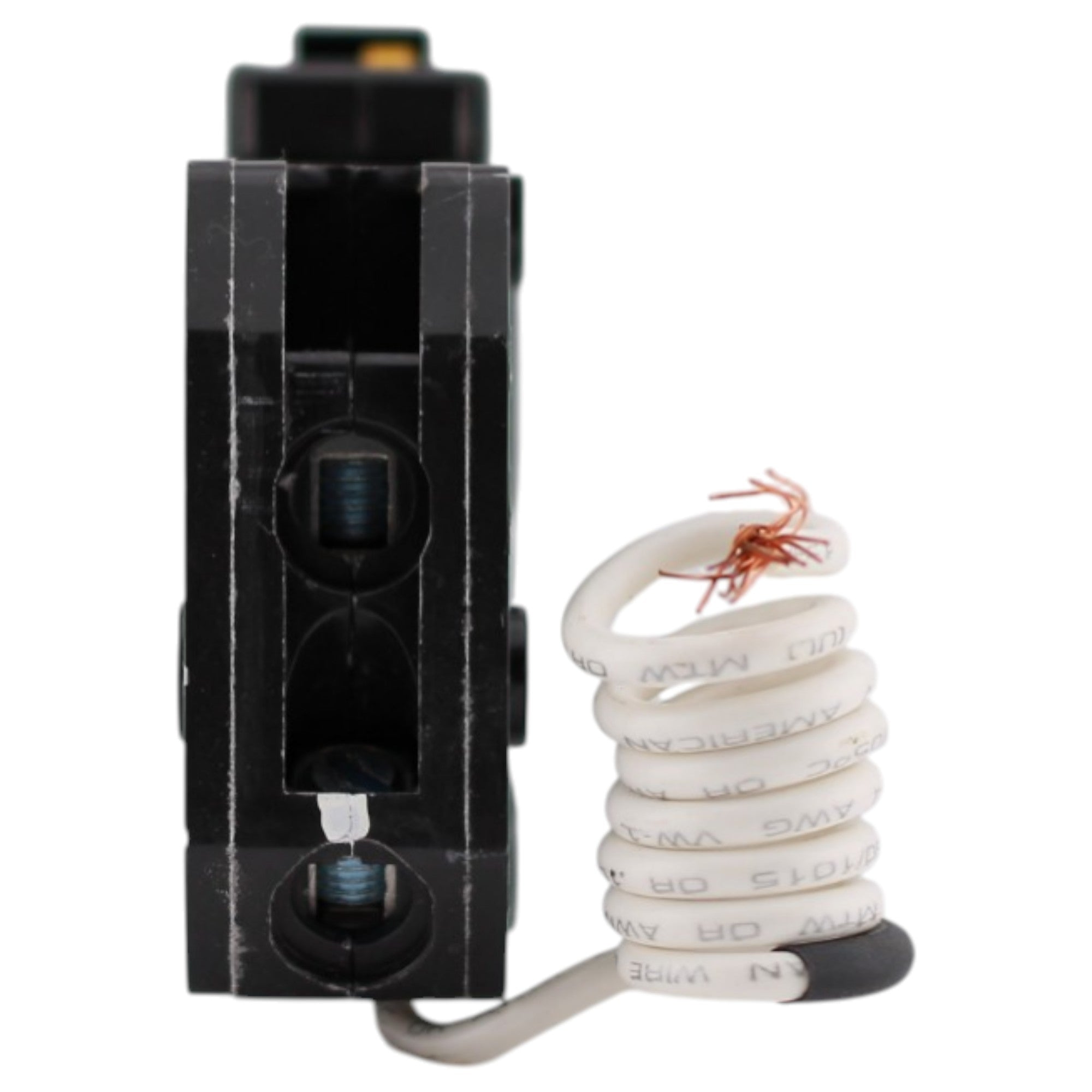

• Connections Terminals: Pigtail Neutral
• Wire Size: #14–8 AWG Cu/Al
• Trip Type: Thermal Magnetic — Long Time and Instantaneous (LI)
• Ambient Temperature Rating: 40°C
• Dimensions: Height: 3 in; Width: 1 in; Depth: 3 in
• Weight: 0.5 lbs
• Certifications: UL Listed, HACR Rated

This Eaton Cutler-Hammer BR115CAFA pigtail neutral circuit breaker provides reliable 15 Amp, 1-pole Combination AFCI protection for 120/240V circuits in Type BR loadcenters. With 10 kAIC interrupt rating and arc-fault detection down to 5 amps, it ensures enhanced fire safety for residential electrical distribution applications. ⚠️ This model is discontinued — the current replacement is the Eaton BRCAF115.
