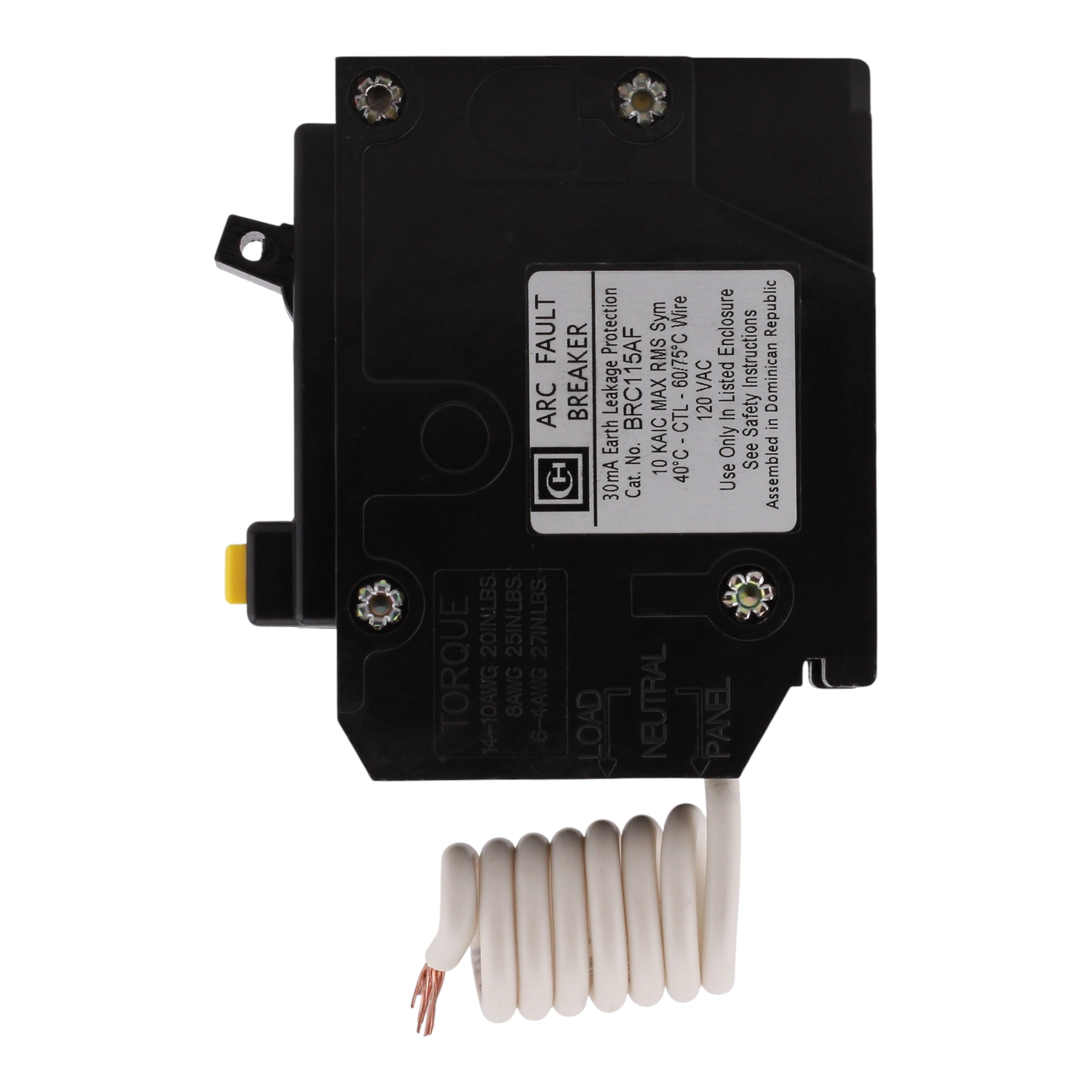

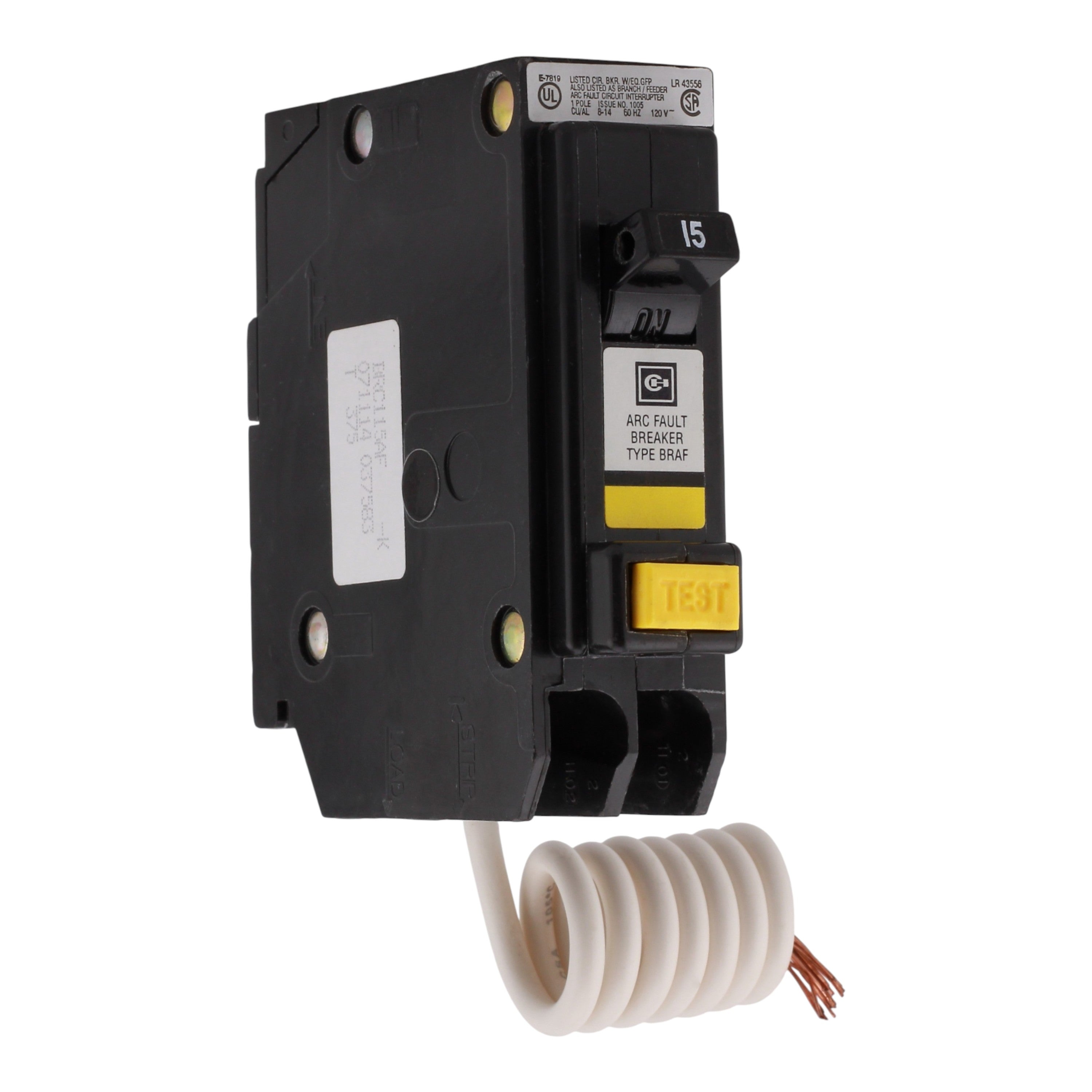

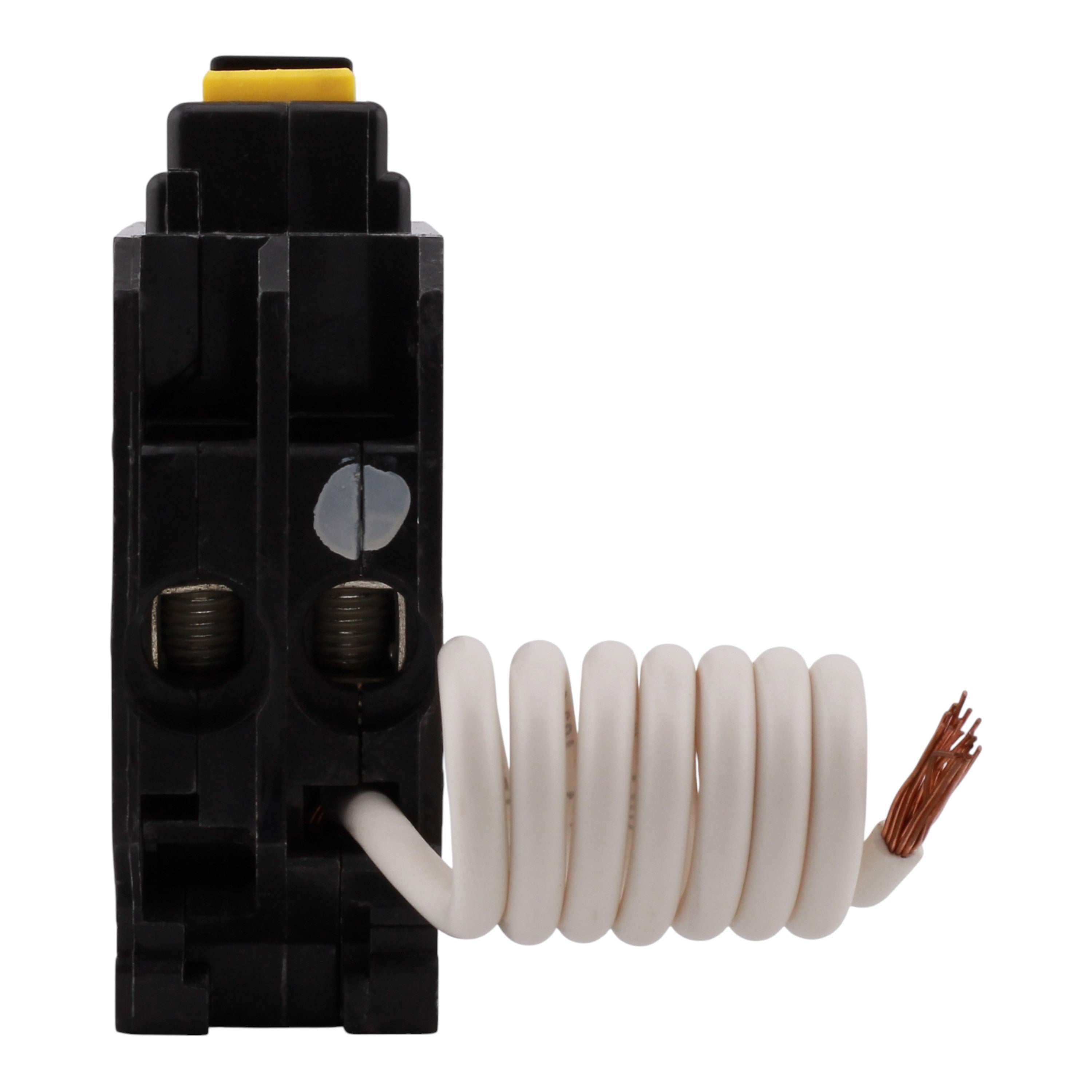

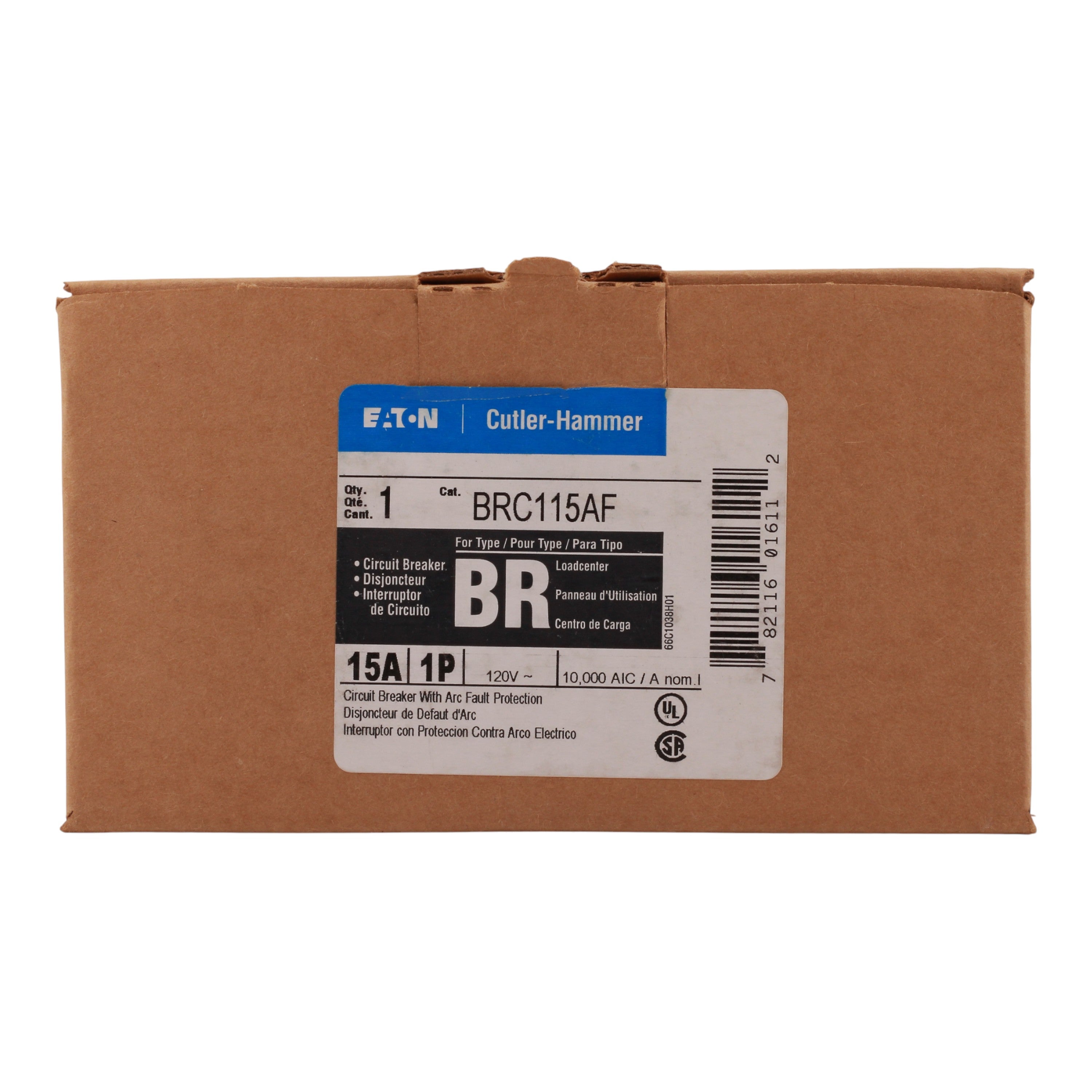

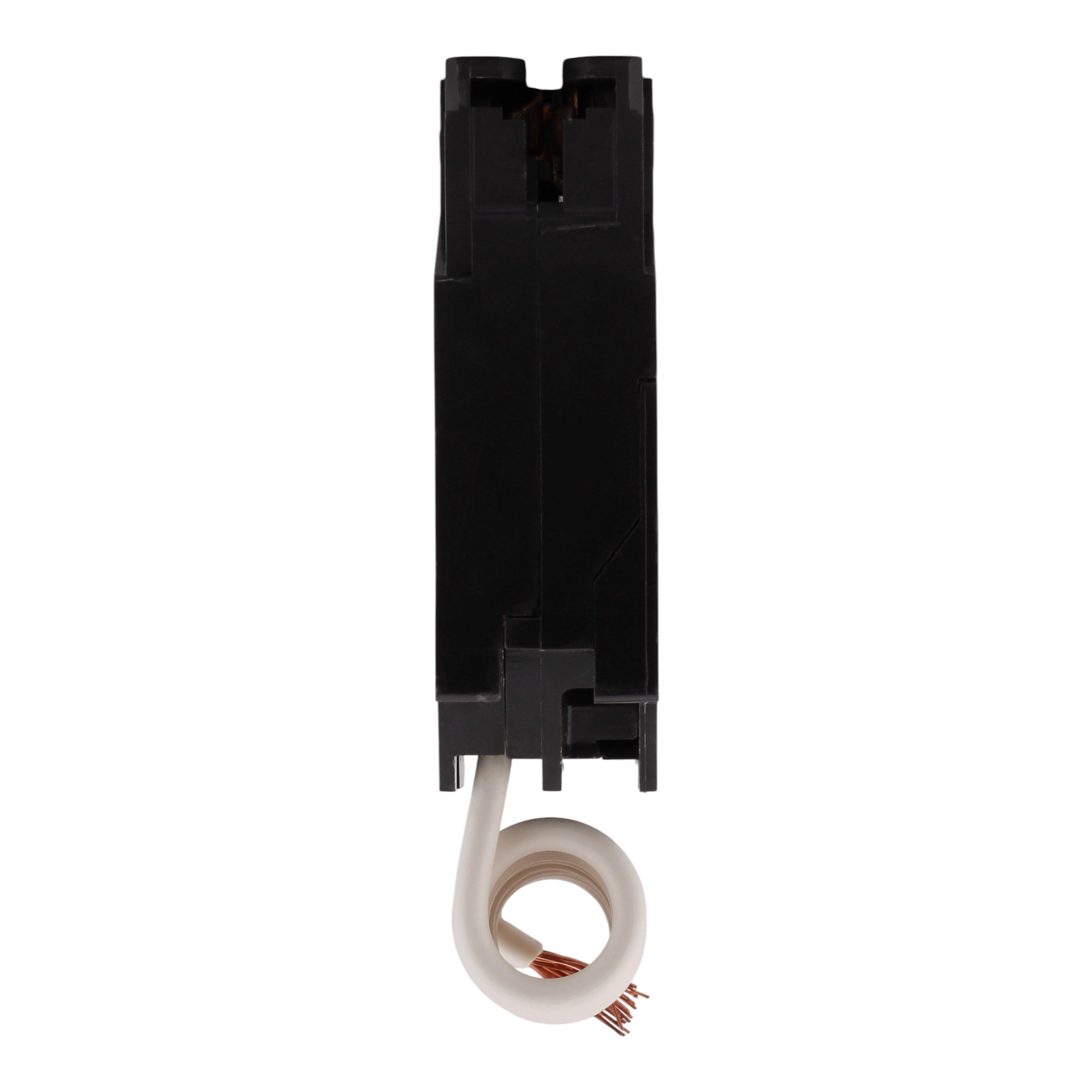

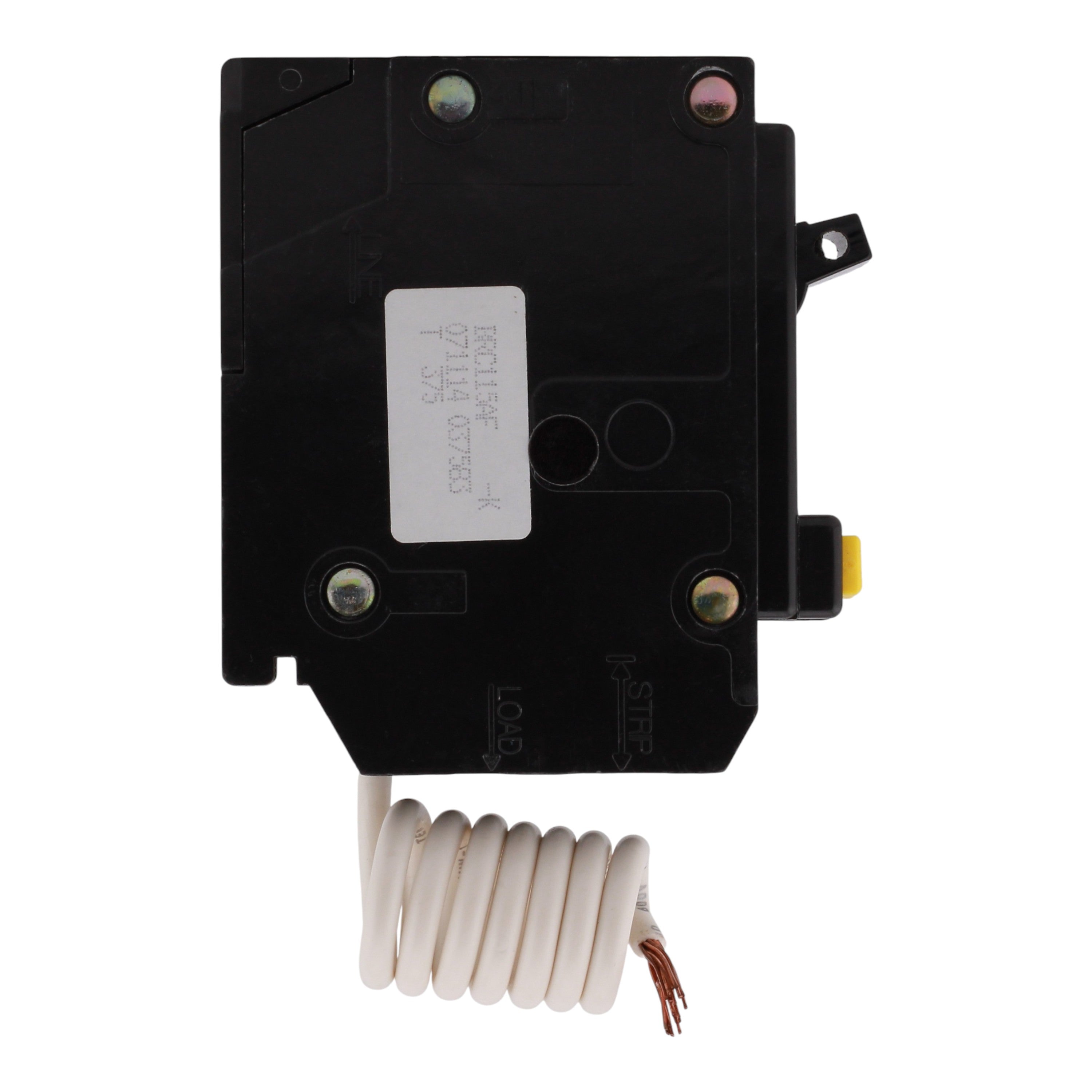

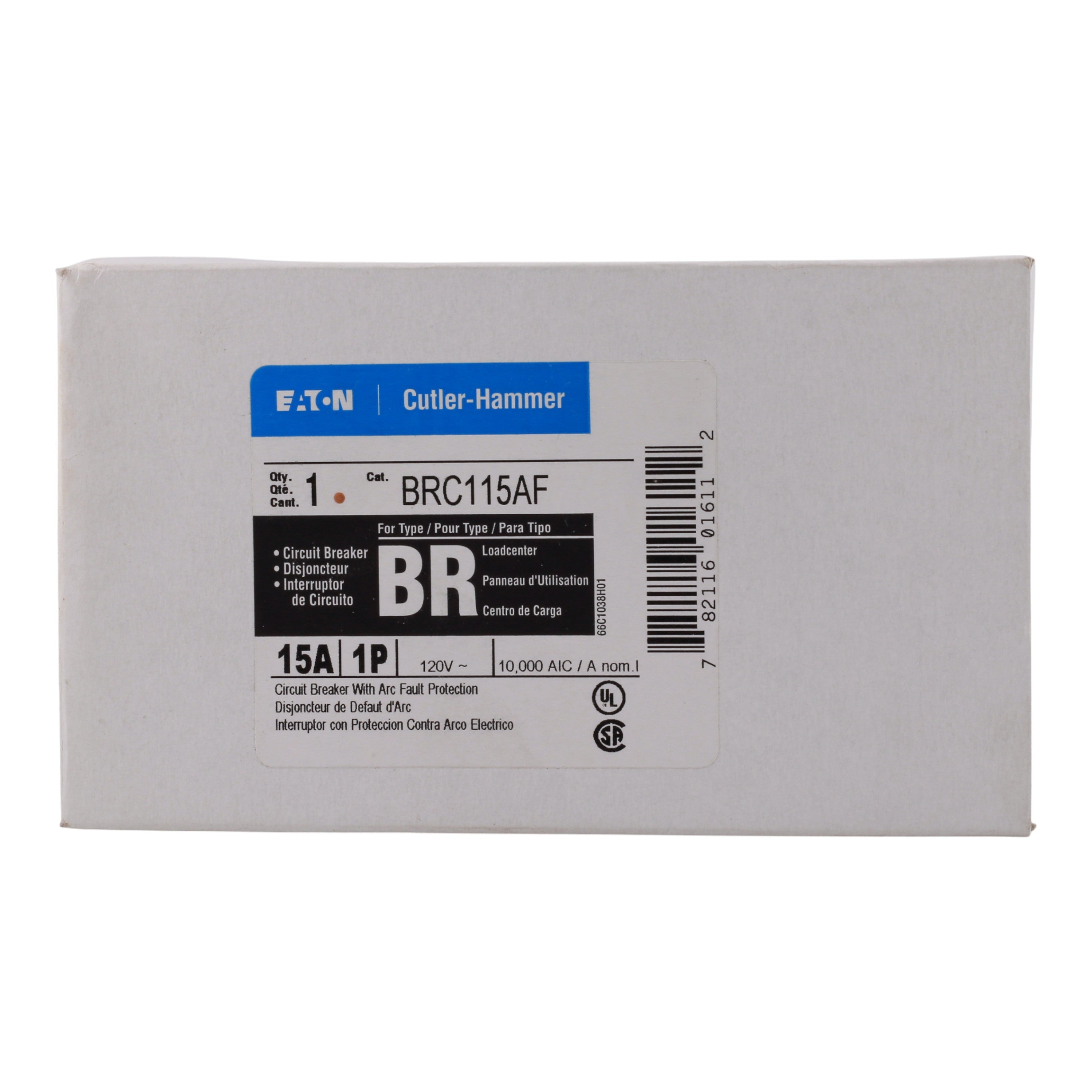

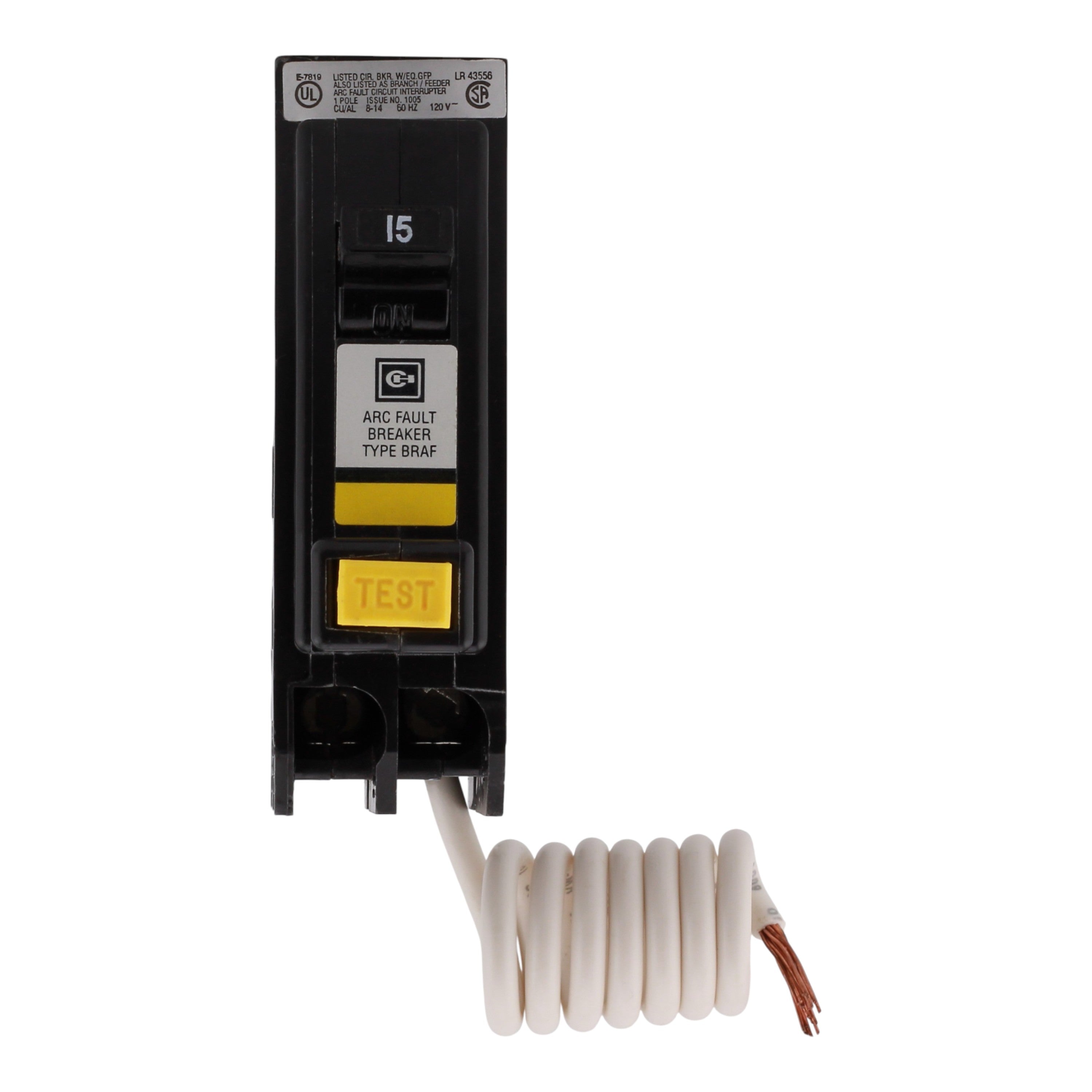

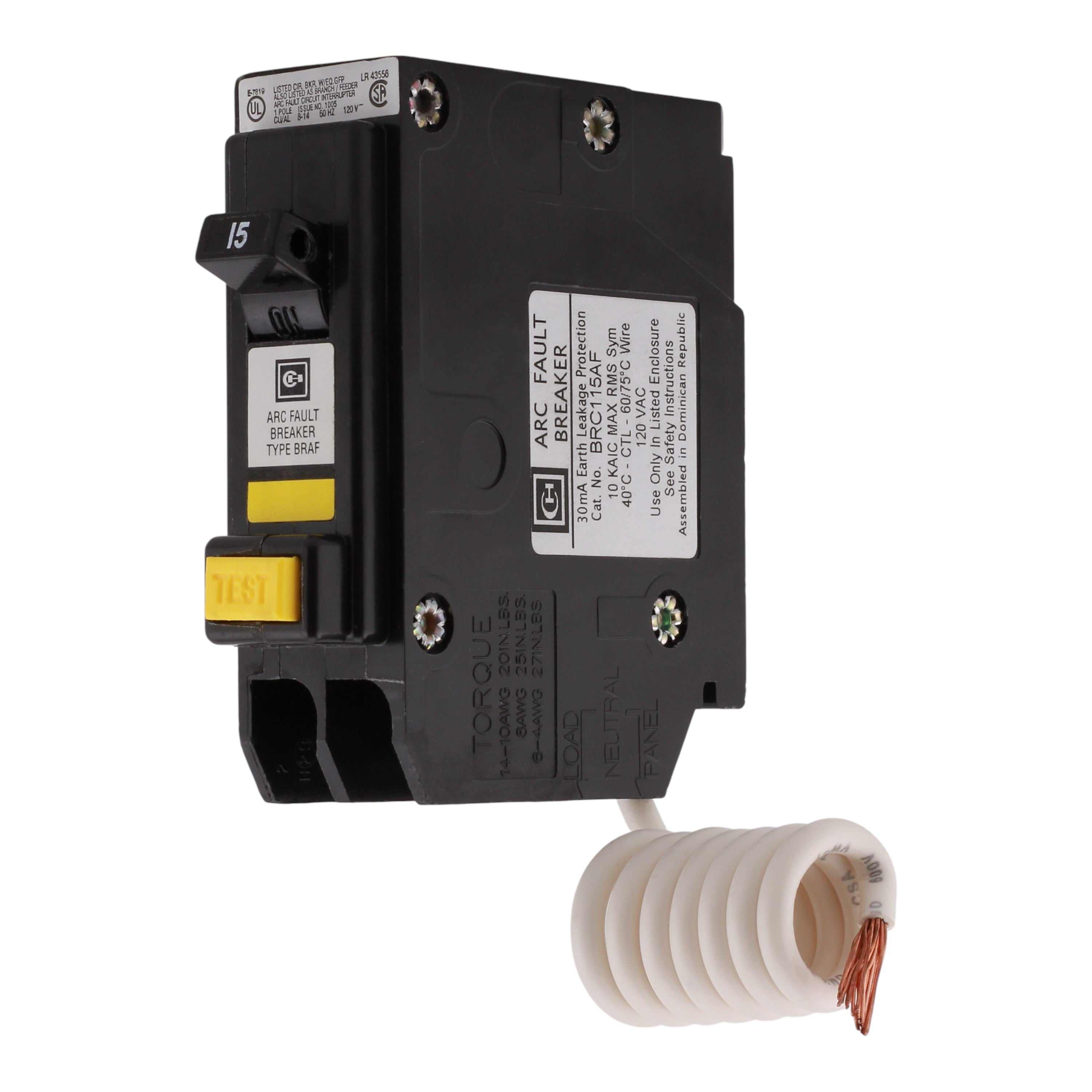

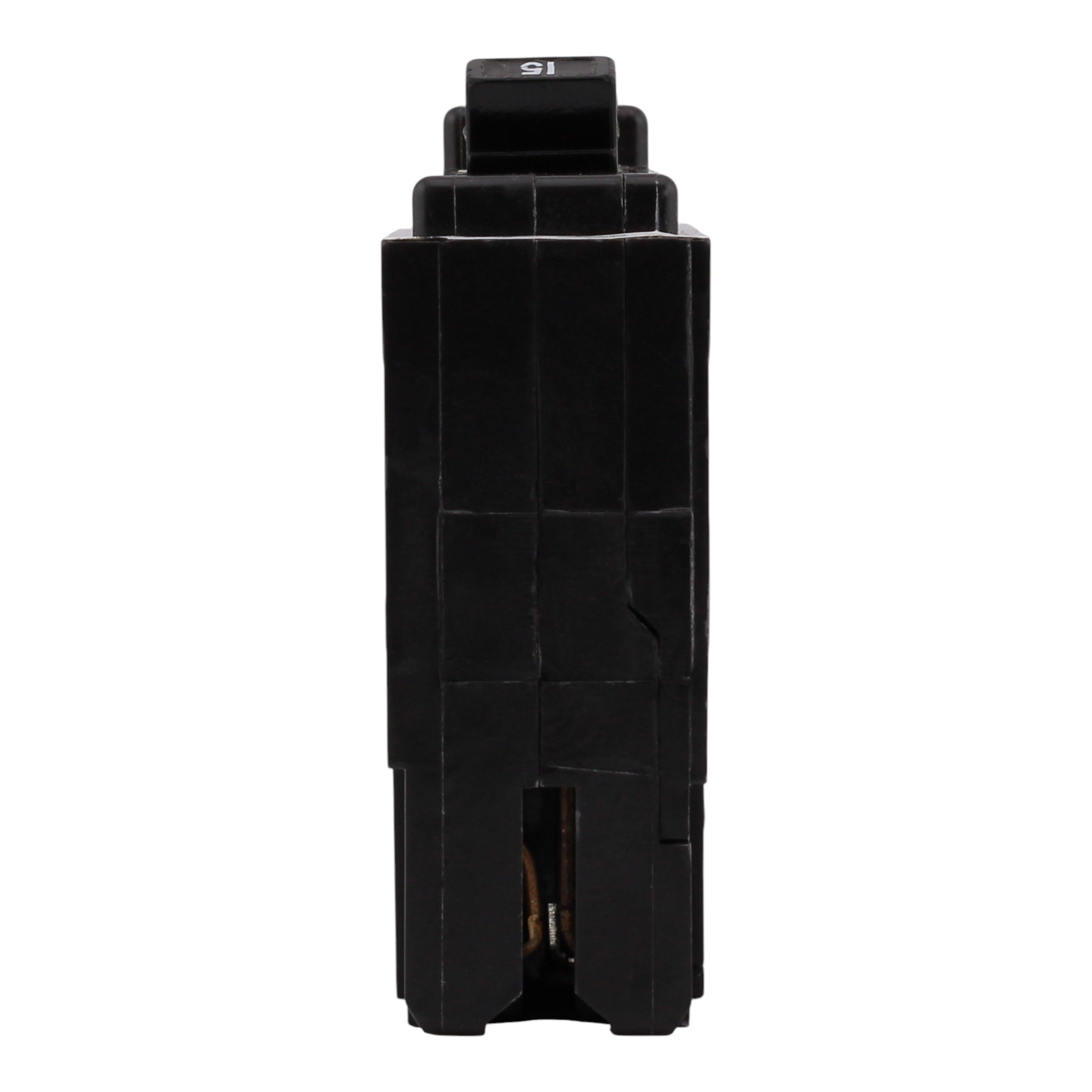

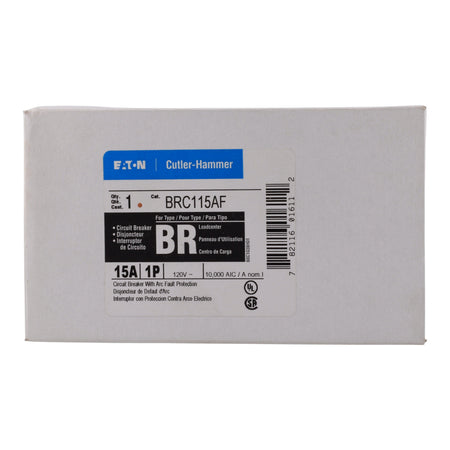

Eaton BR BRC115AF 15A 1P 120V AFCI Pigtail Neutral Circuit Breaker

BRC115AF specifications

• Manufacturer: Eaton
• Brand: Eaton
• Product Range: BR (for Type BR loadcenters and equipment)
• UPC: 782116049103
• Model Number: BRC115AF
• Breaker Type: Arc-Fault Circuit Interrupter (AFCI)
• Amperage: 15 Amps
• Poles: 1-Pole
• Voltage: 120 Volts AC
• Interrupt Rating: 10 kAIC
• Mounting Mode: Plug-in
• Connections Terminals: Pigtail neutral
• Wire Size: #14-4 AWG Cu/Al
• Tightening Torque: 35.4 lb-in
• Dimensions: Height: 1.25 in; Width: 4.75 in; Depth: 3.0 in
• Weight: 0.78 lbs
• Certifications: UL Listed

This Eaton BRC115AF pigtail neutral circuit breaker provides reliable 15A, 1-pole AFCI protection for 120V circuits in Type BR loadcenters. With arc-fault protection, it ensures enhanced safety for residential applications. Compatible with Westinghouse, Challenger, and Bryant panels.
