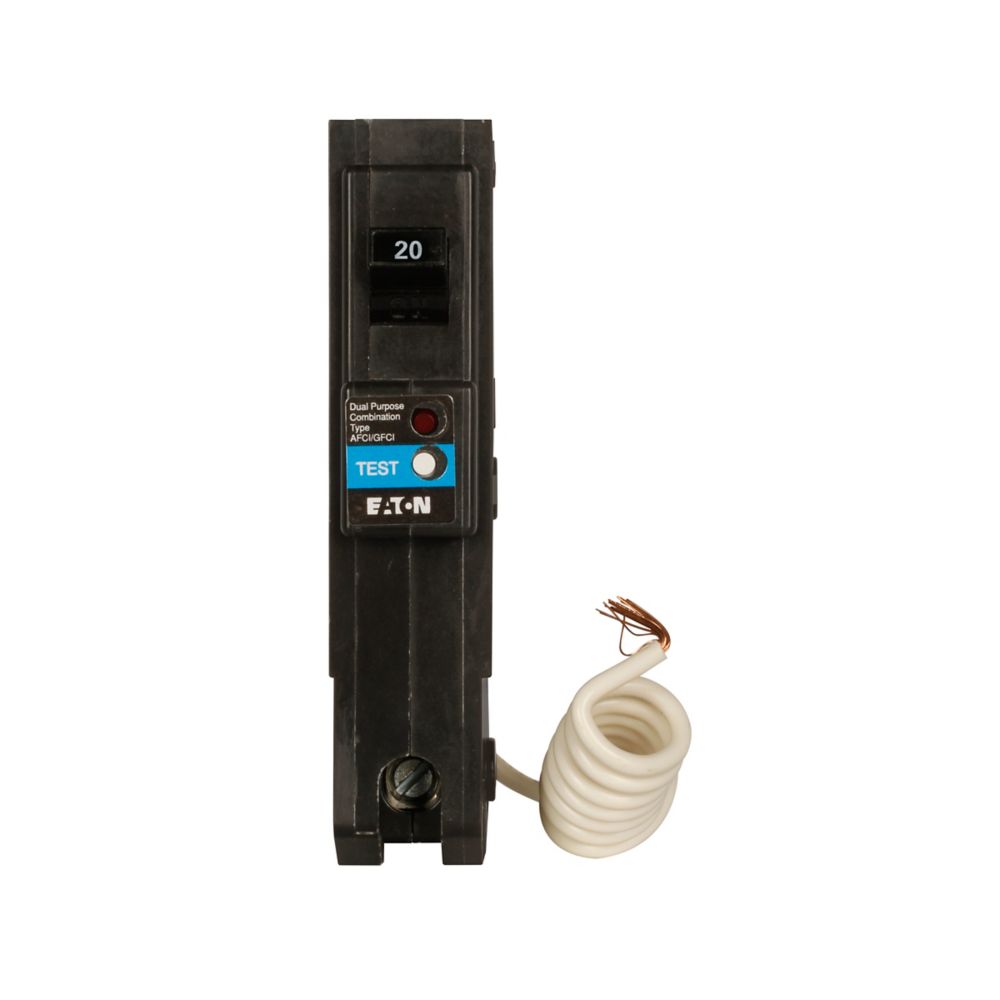

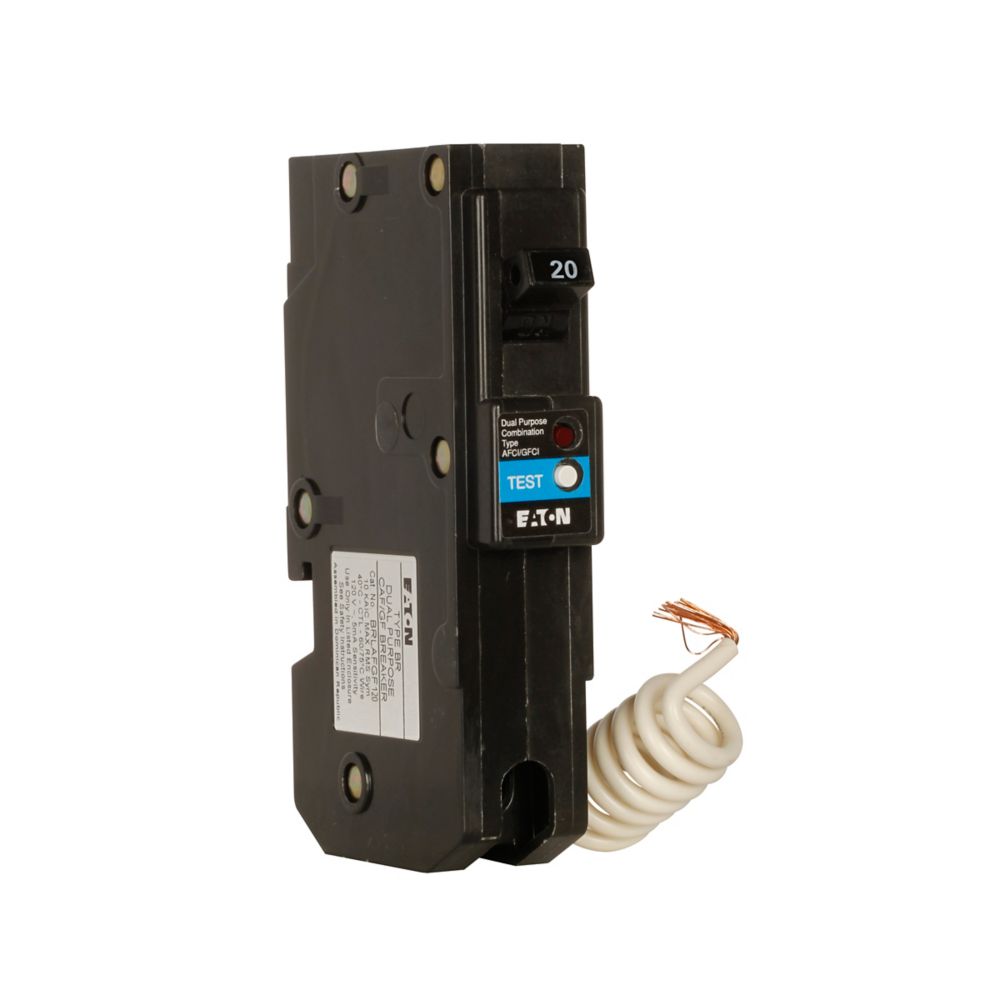

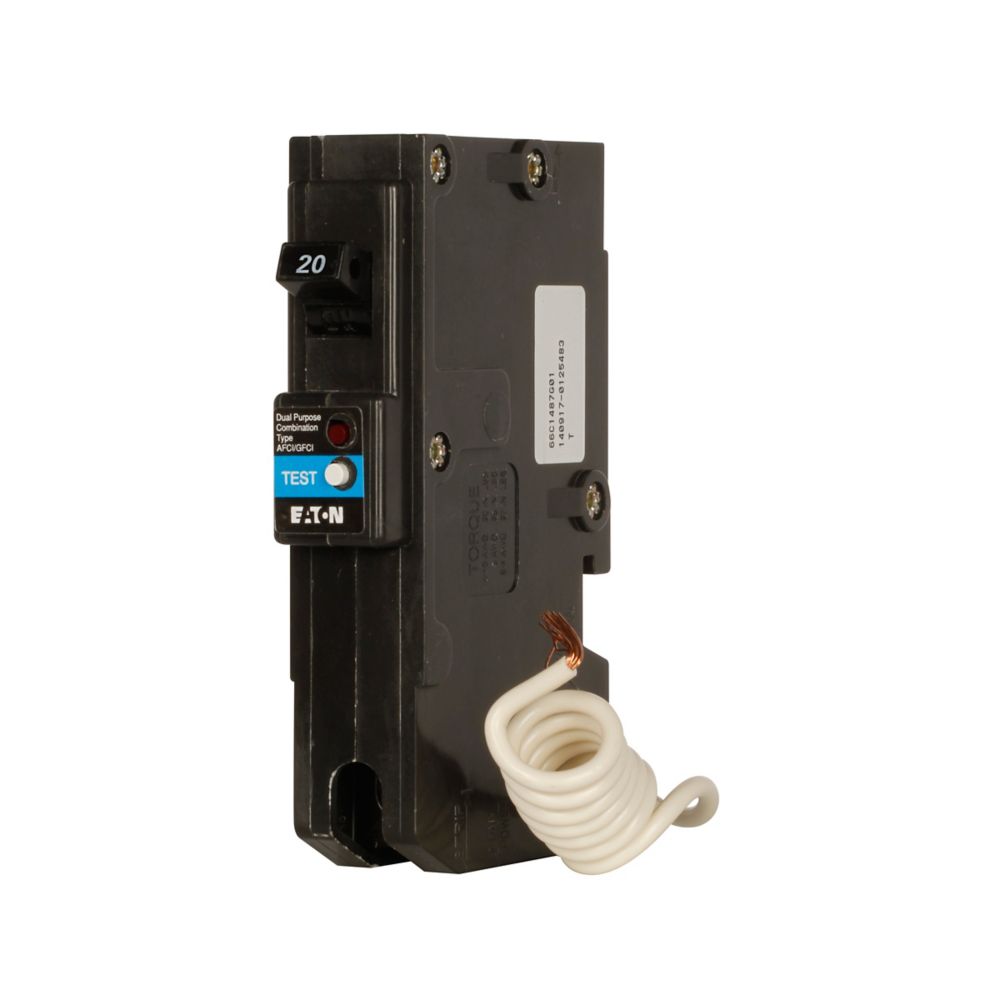

Eaton BR BRLAFGF120 20A 1P 120V AFCI/GFCI Pigtail Neutral Circuit Breaker

BRLAFGF120 specifications

• Manufacturer: Eaton
• Brand: Eaton
• Product Range: BR (for Eaton BR loadcenters and equipment)
• UPC: 786670007906
• Model Number: BRLAFGF120
• Breaker Type: Combination Arc-Fault/Ground-Fault Circuit Interrupter (AFCI/GFCI)
• Amperage: 20 Amps
• Poles: 1-Pole
• Voltage: 120 Volts AC
• Interrupt Rating: 10 kAIC
• Mounting Mode: Plug-in
• Connections Terminals: Pigtail neutral
• Wire Size: (1) #14-8 AWG, (2) #14-10 AWG Cu/Al
• Tightening Torque: 35.4 lb-in
• Dimensions: Height: 2.9 in; Width: 1.0 in; Depth: 2.9 in
• Weight: 0.4 lbs
• Certifications: UL Listed
• Trip Sensitivity: 5 mA ground fault protection

This Eaton BRLAFGF120 pigtail neutral circuit breaker provides reliable 20A, 1-pole AFCI/GFCI protection for 120V circuits in BR loadcenters. With 5mA ground fault detection and arc-fault protection, it ensures enhanced safety for residential applications.
