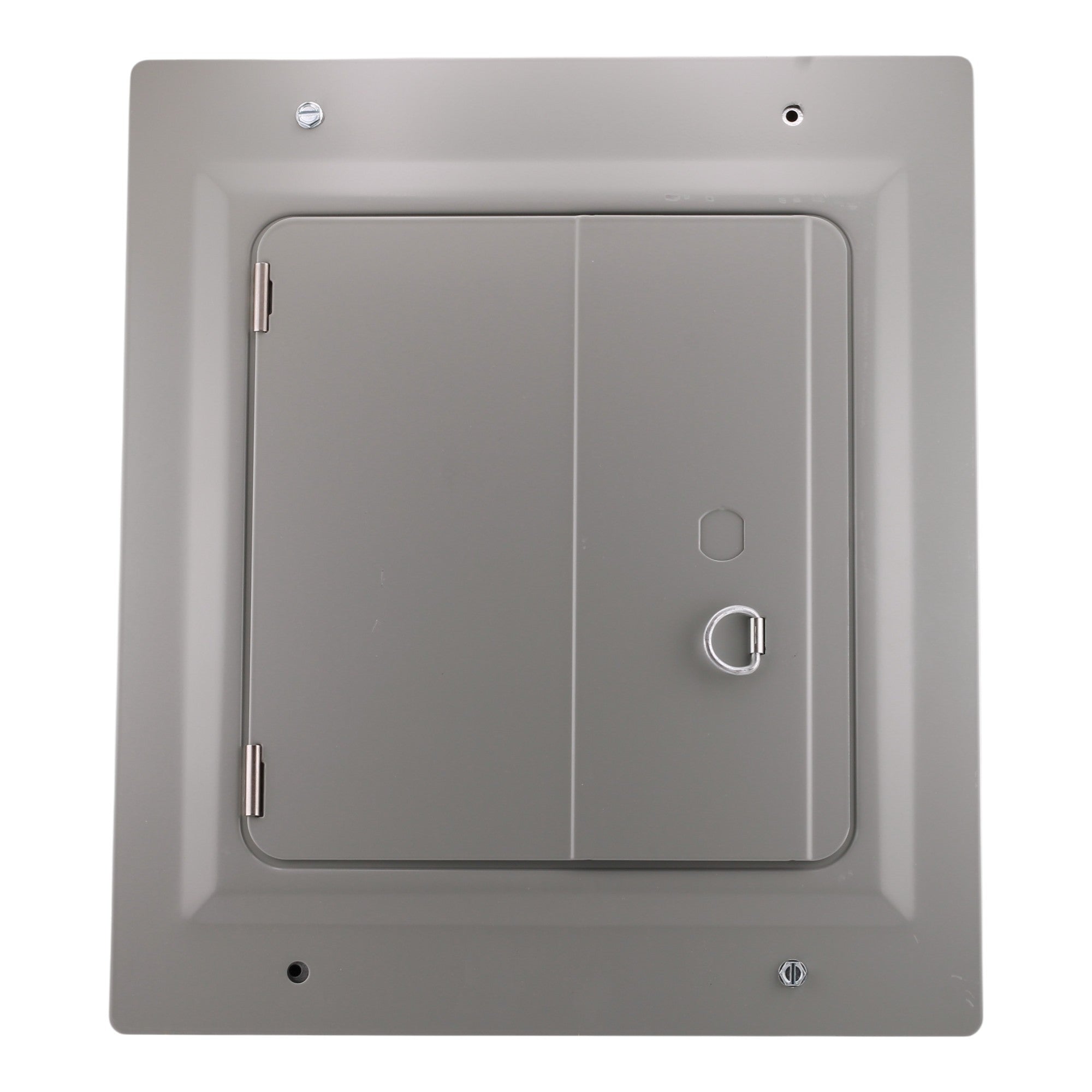

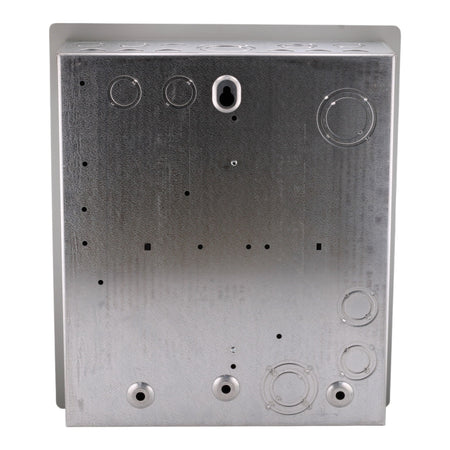

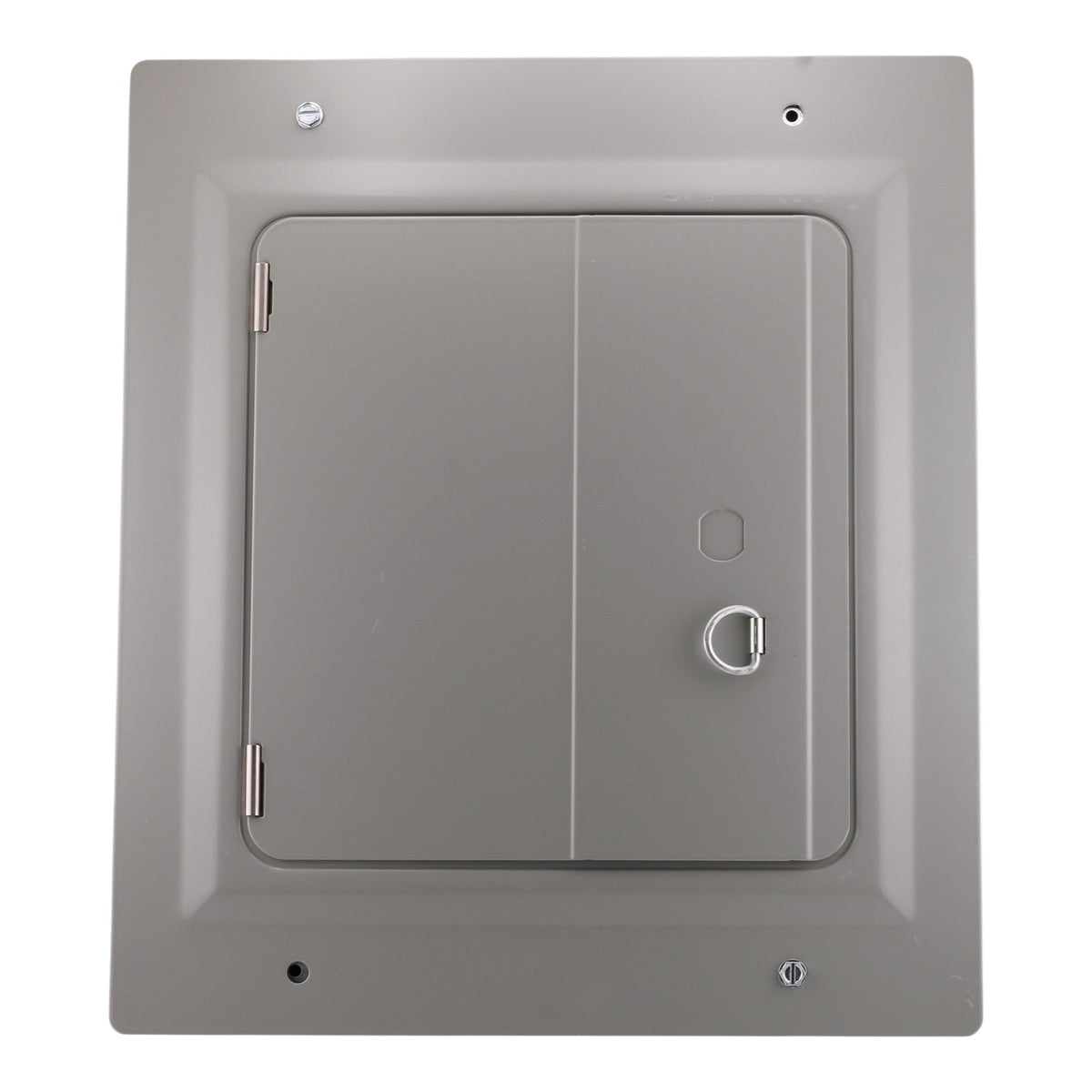

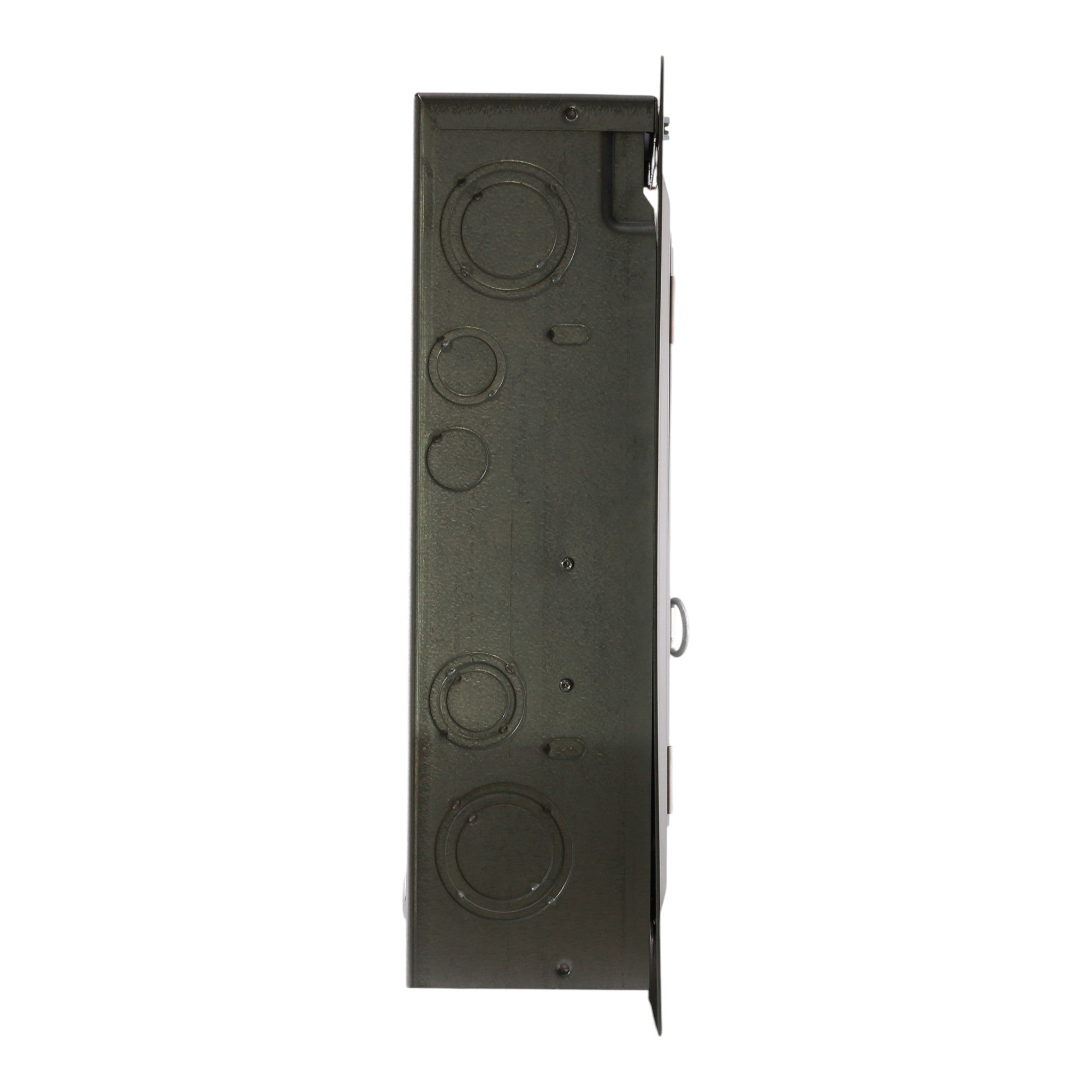

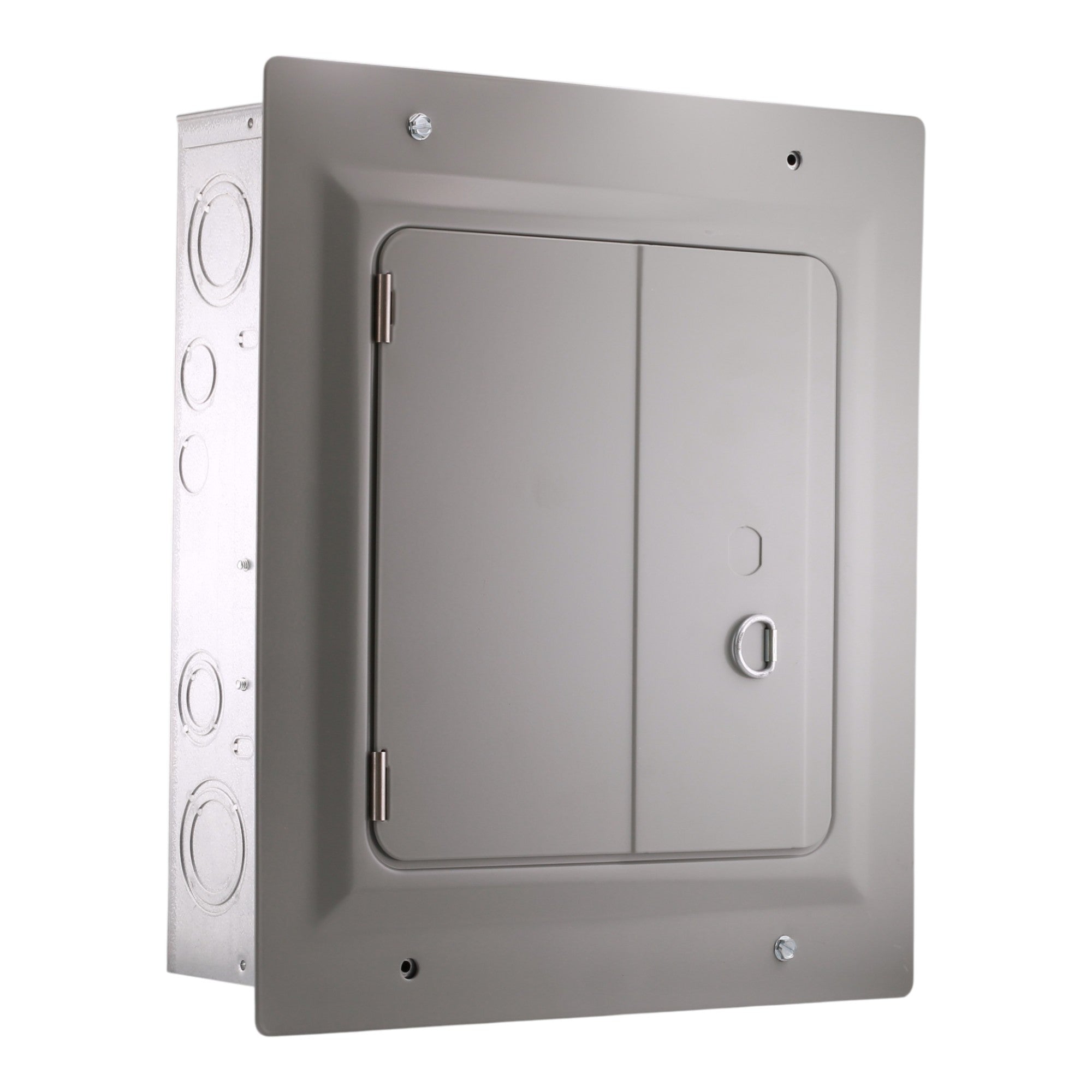

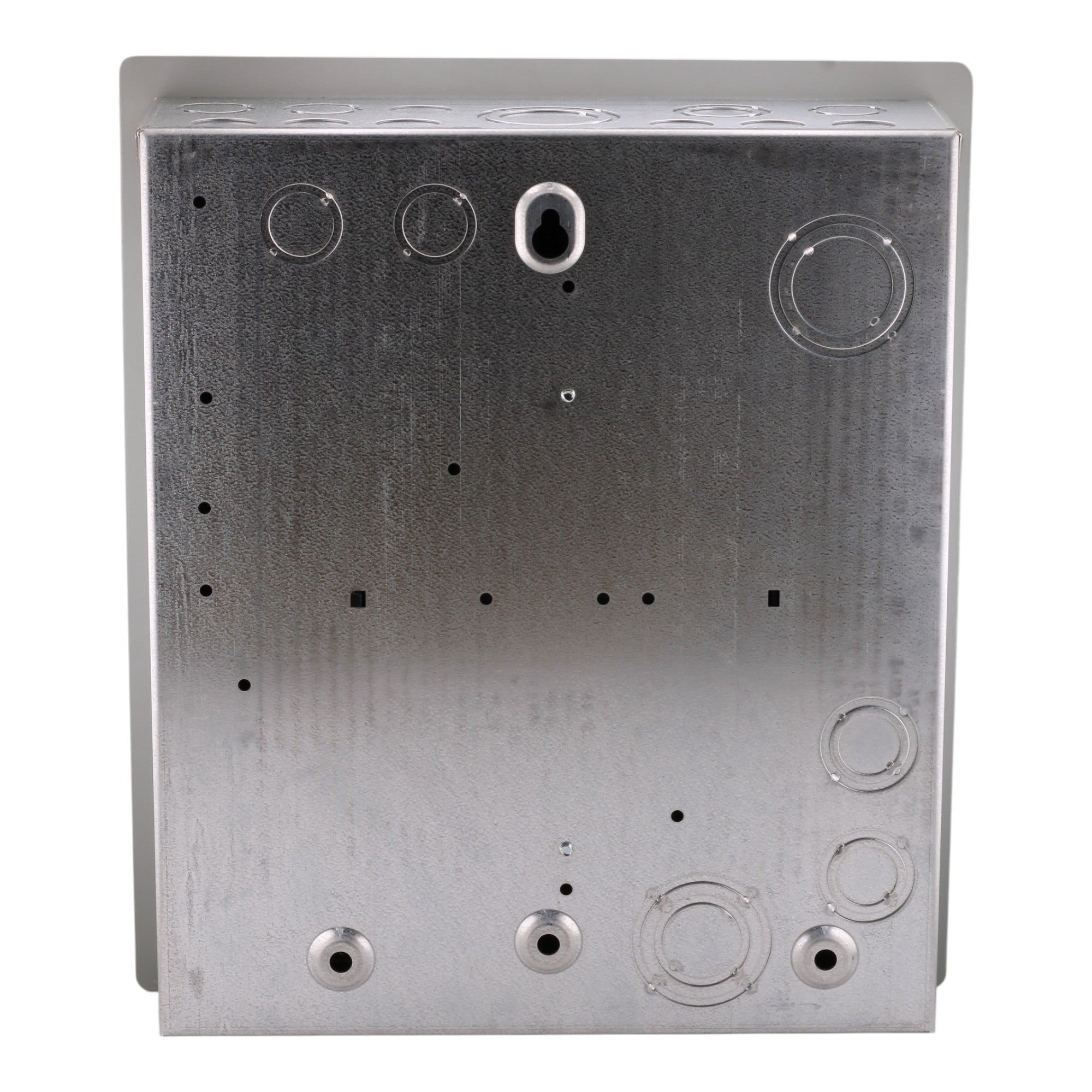

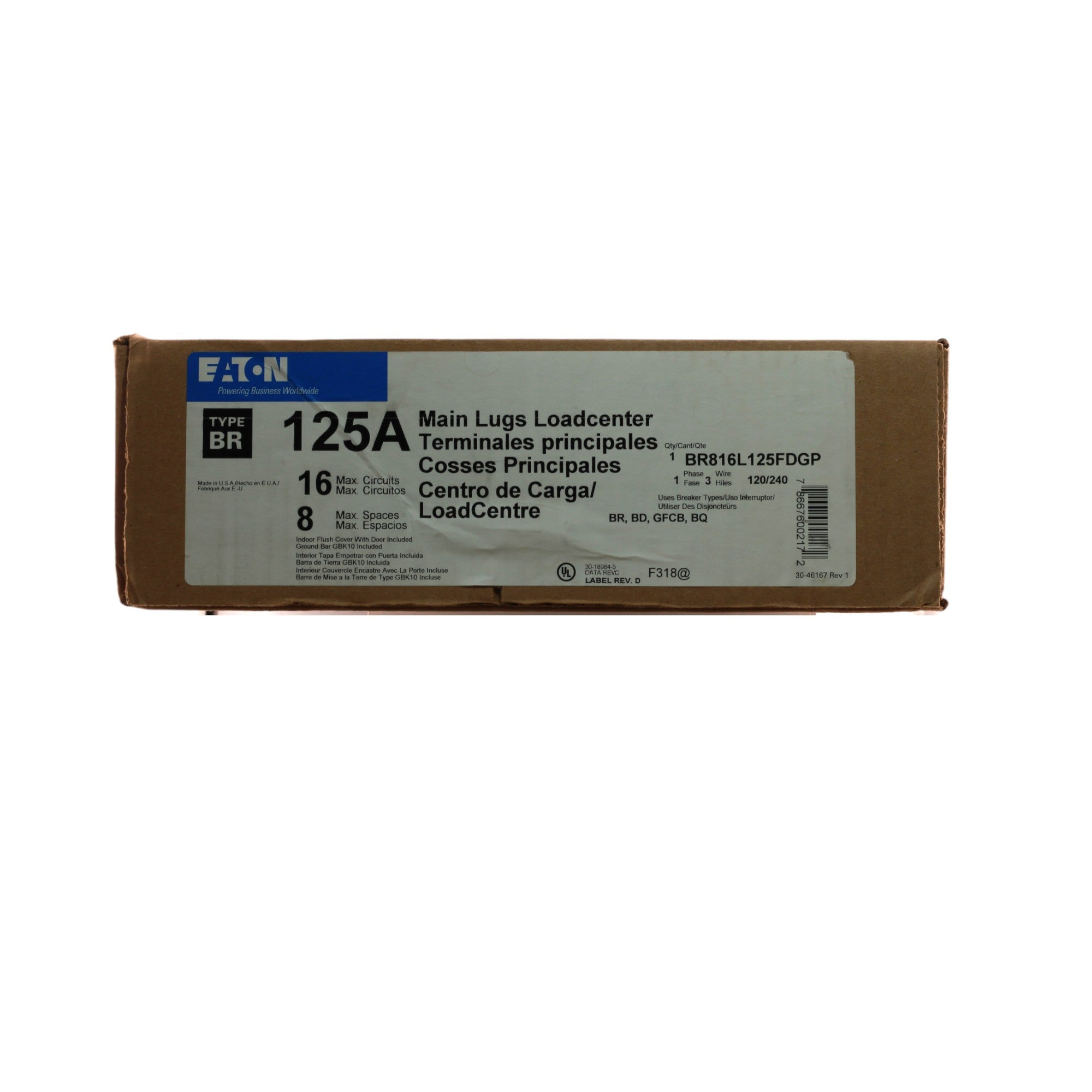

Eaton BR816L125FDGP: 125 Amp 8-Space 16-Circuit Main Lug Loadcenter, Single-Phase, 120/240V, NEMA 1 Indoor, Flush Mount, 10kA, Aluminum Bus, UL Listed.
-
Manufacturer: Eaton
-
Brand: Eaton
-
Product Range: BR (for Eaton Type BR 1-inch breakers)
-
UPC: 786676002172
-
Model Number: BR816L125FDGP
-
Product Type: Main Lug Loadcenter
-
Amperage: 125 Amps
-
Number of Spaces: 8
-
Number of Circuits: 16
-
Phase: Single-Phase
-
Voltage: 120/240 Volts AC
-
Interrupt Rating: 10 kAIC
-
Mounting Mode: Flush
-
Bus Material: Aluminum
-
Wire Size: #14-1 AWG Cu/Al
-
Enclosure: NEMA 1 Indoor
-
Enclosure Material: Metallic
-

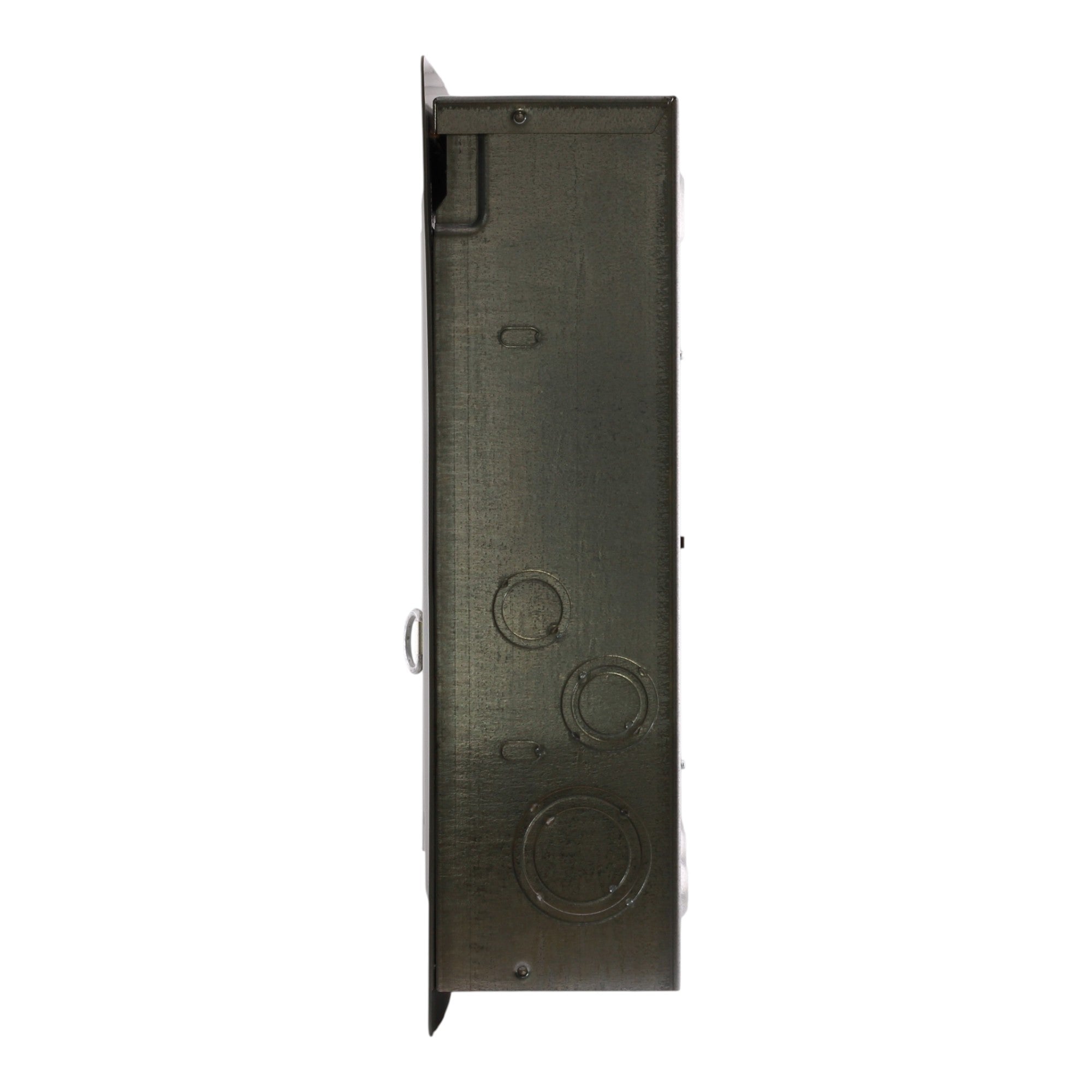

Dimensions: Height: 13.0 in; Width: 11.0 in; Depth: 3.56 in
-
Weight: 12.8 lbs
-
Certifications: UL 67, UL 50
-

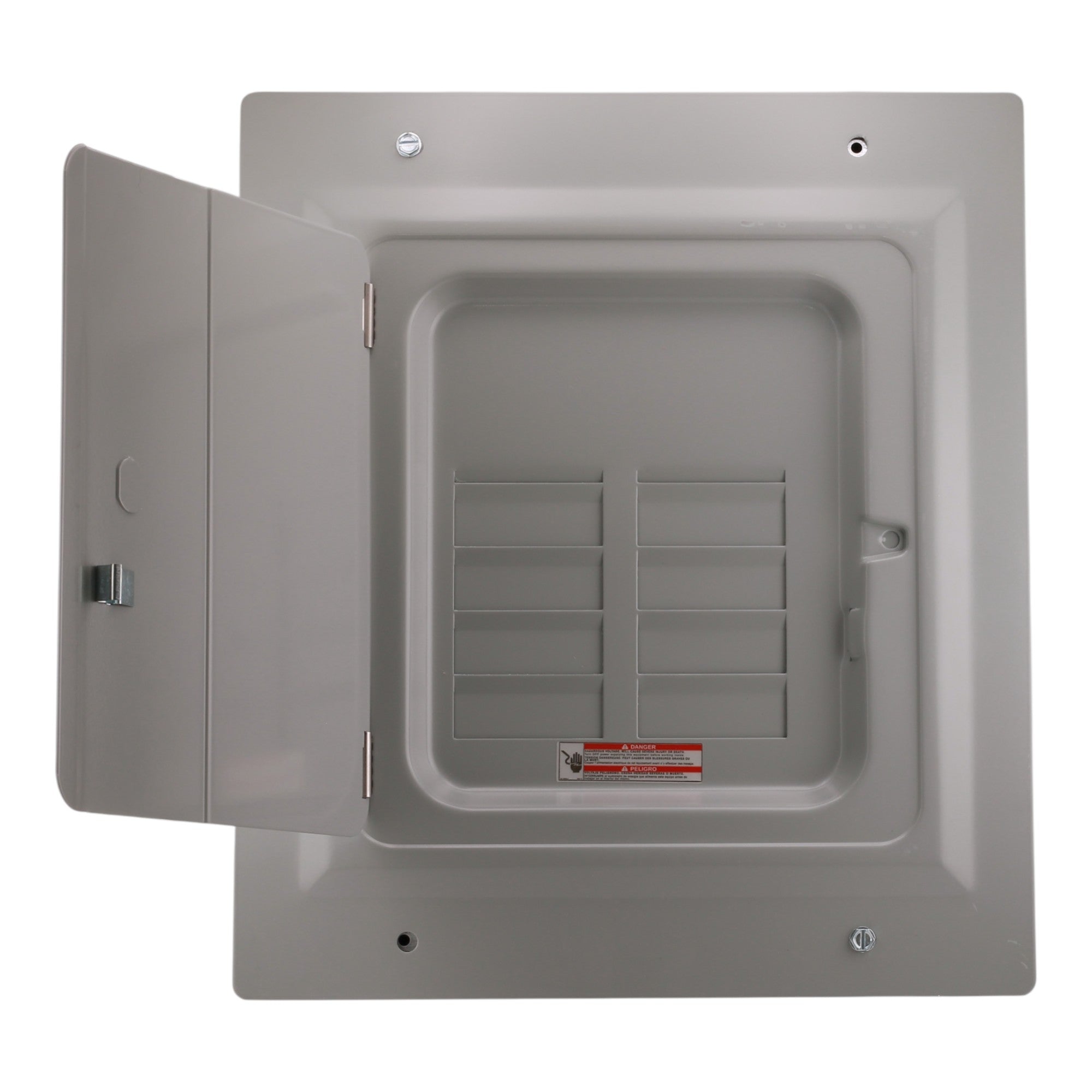

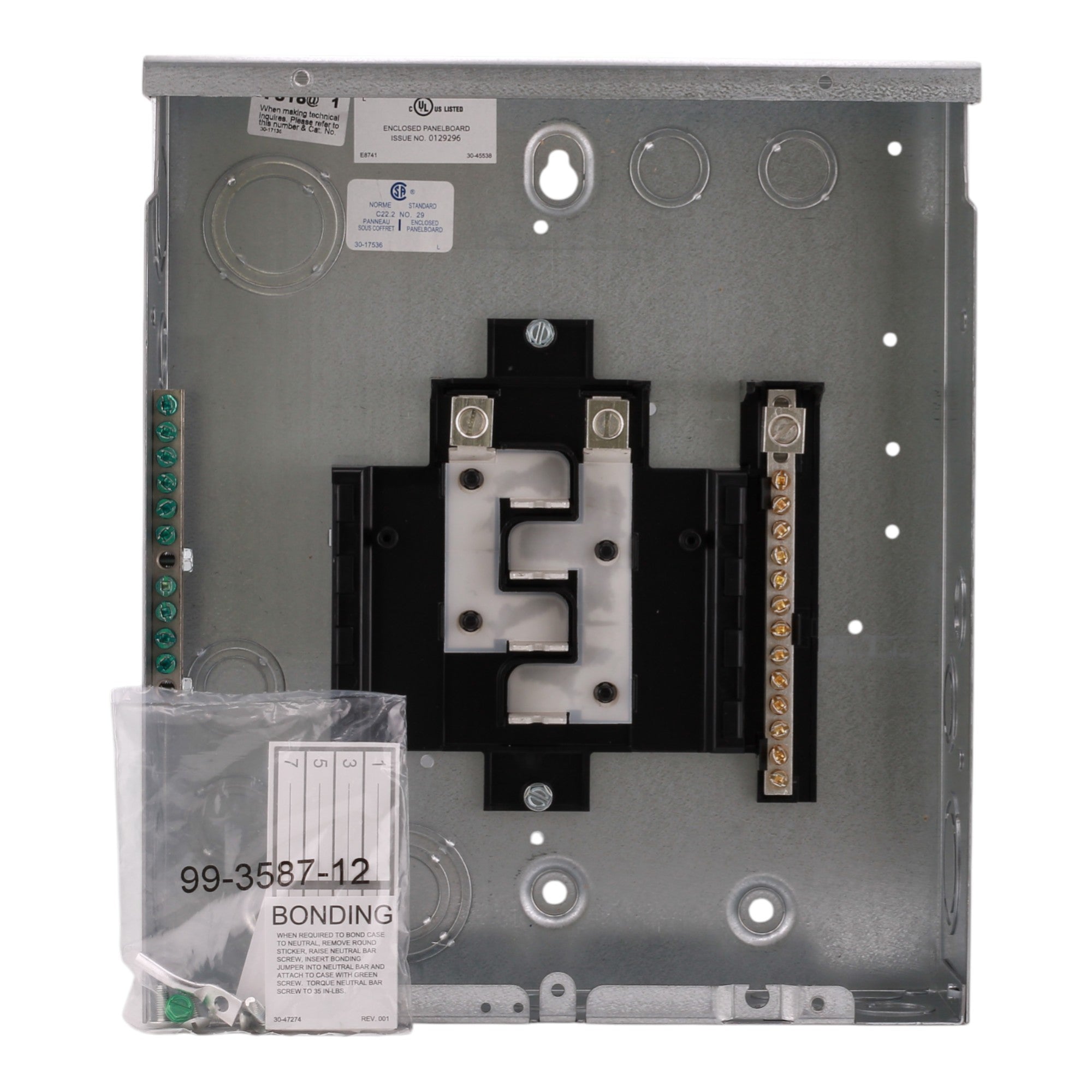

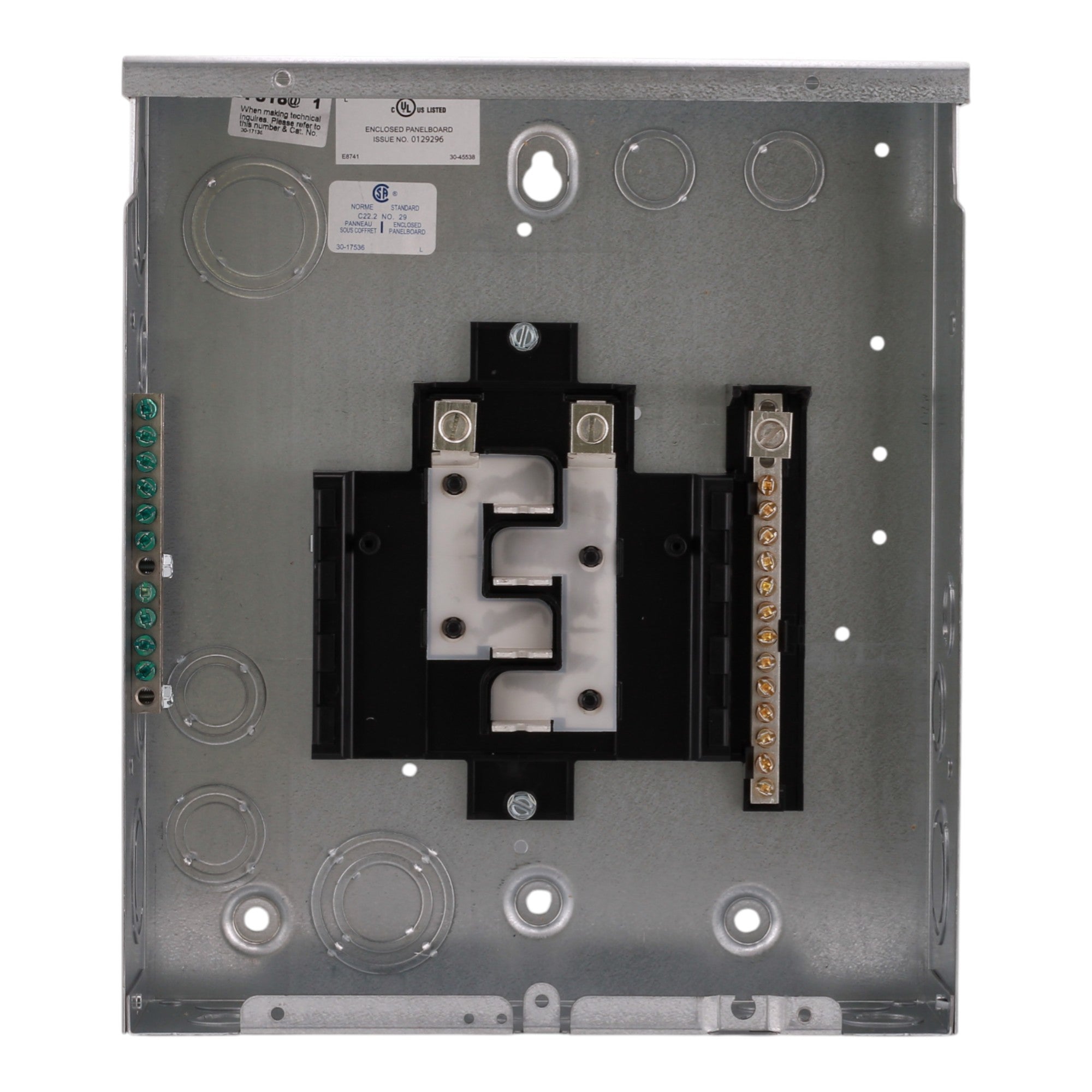

Special Features: Dual grounds, includes cover, GBK5 and GBK520 ground bars
This Eaton BR816L125FDGP main lug loadcenter provides reliable 125A, 8-space, 16-circuit power distribution for 120/240V single-phase systems in residential and light commercial applications. Designed for flush mounting with a NEMA 1 indoor metallic enclosure, it supports Eaton Type BR 1-inch breakers and features an aluminum bus for durability. Dual ground bars (GBK5 and GBK520) ensure secure grounding, making it ideal for efficient and safe electrical setups.
