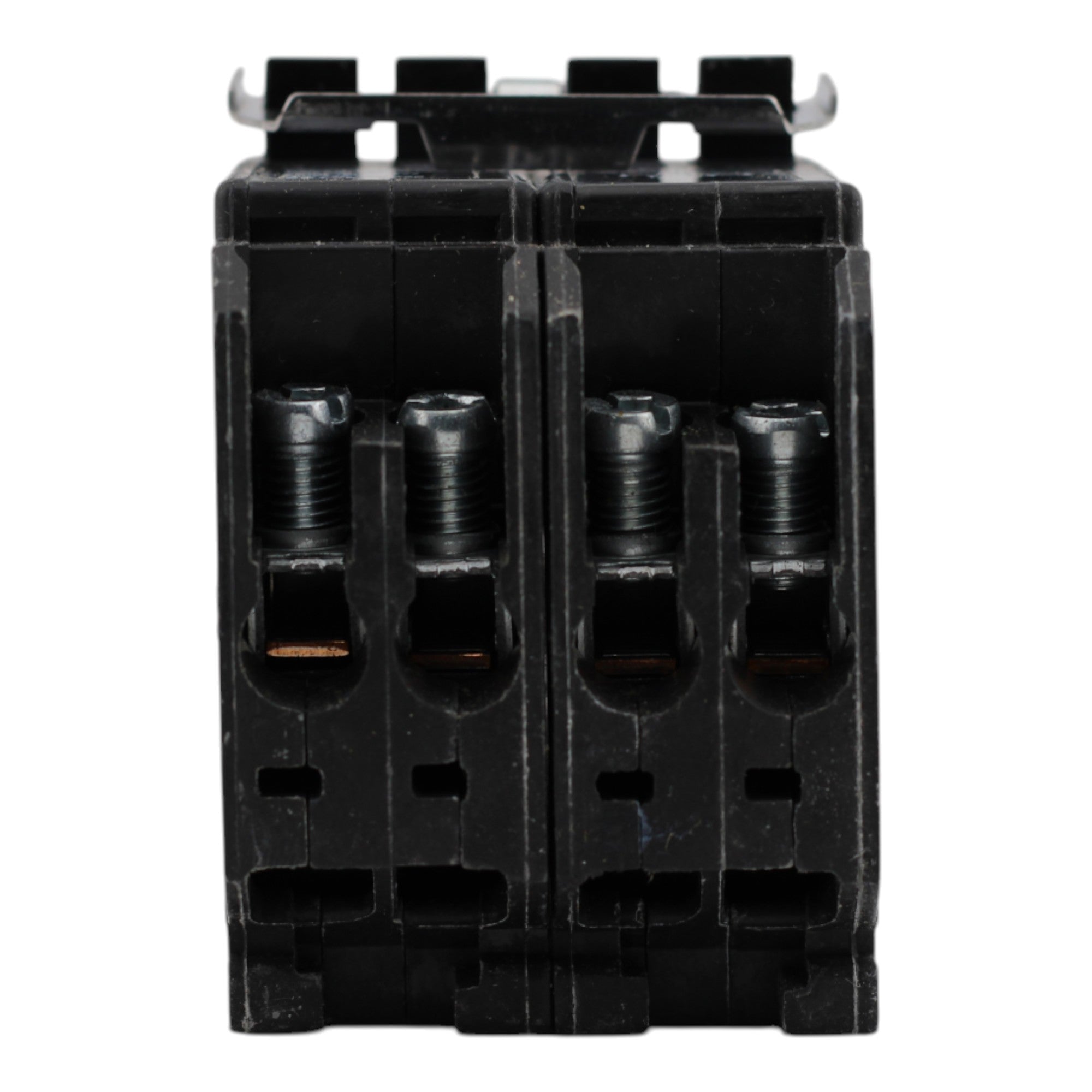

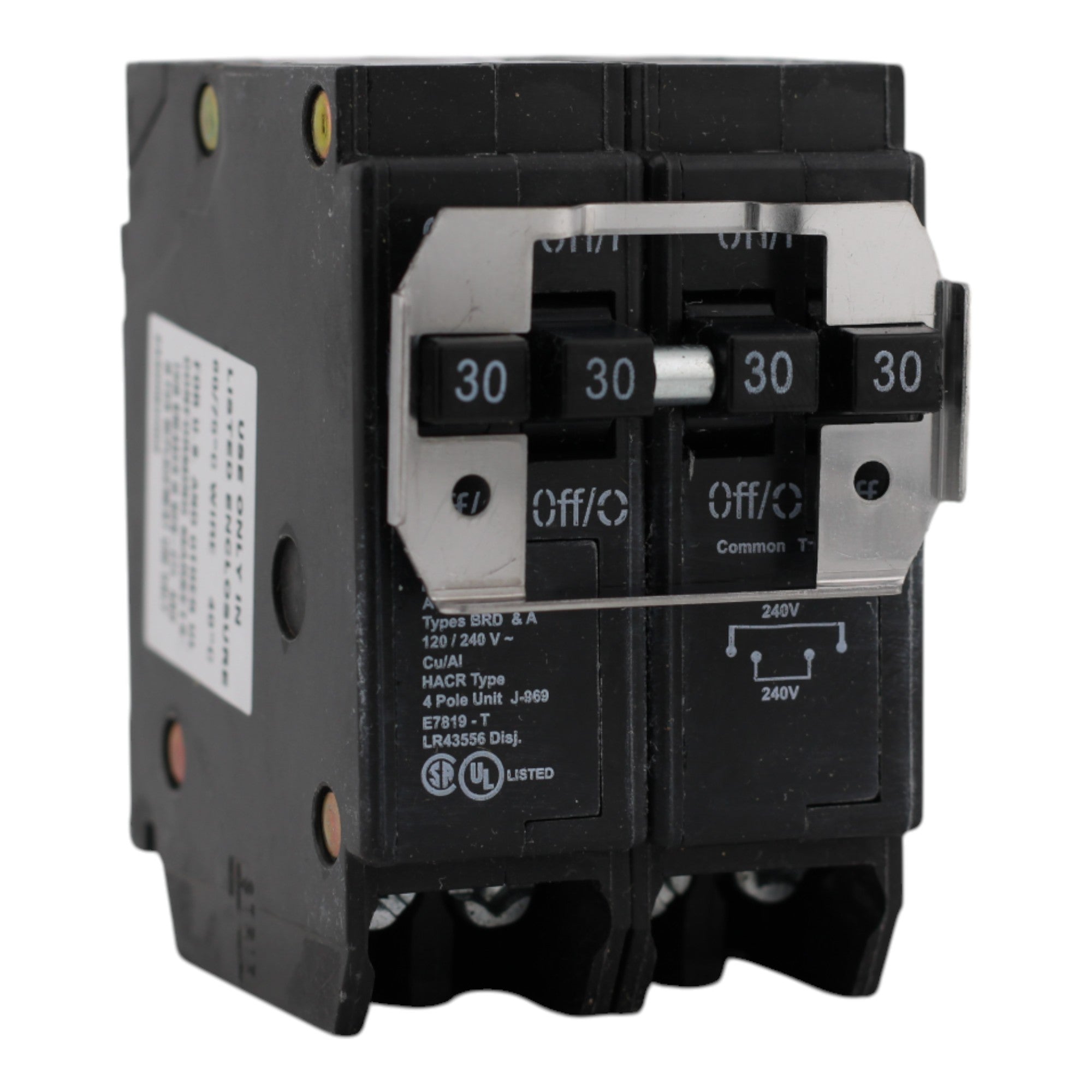

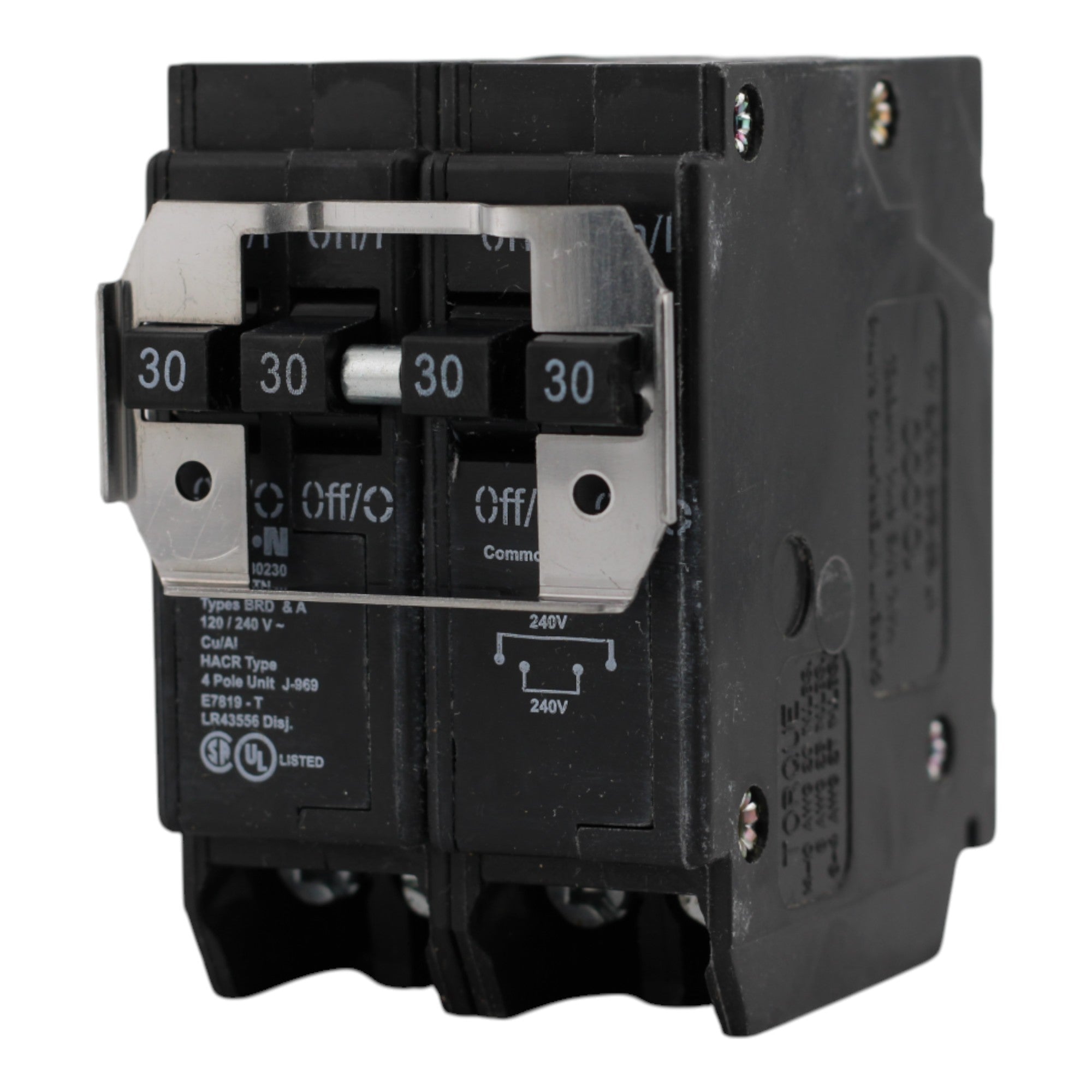

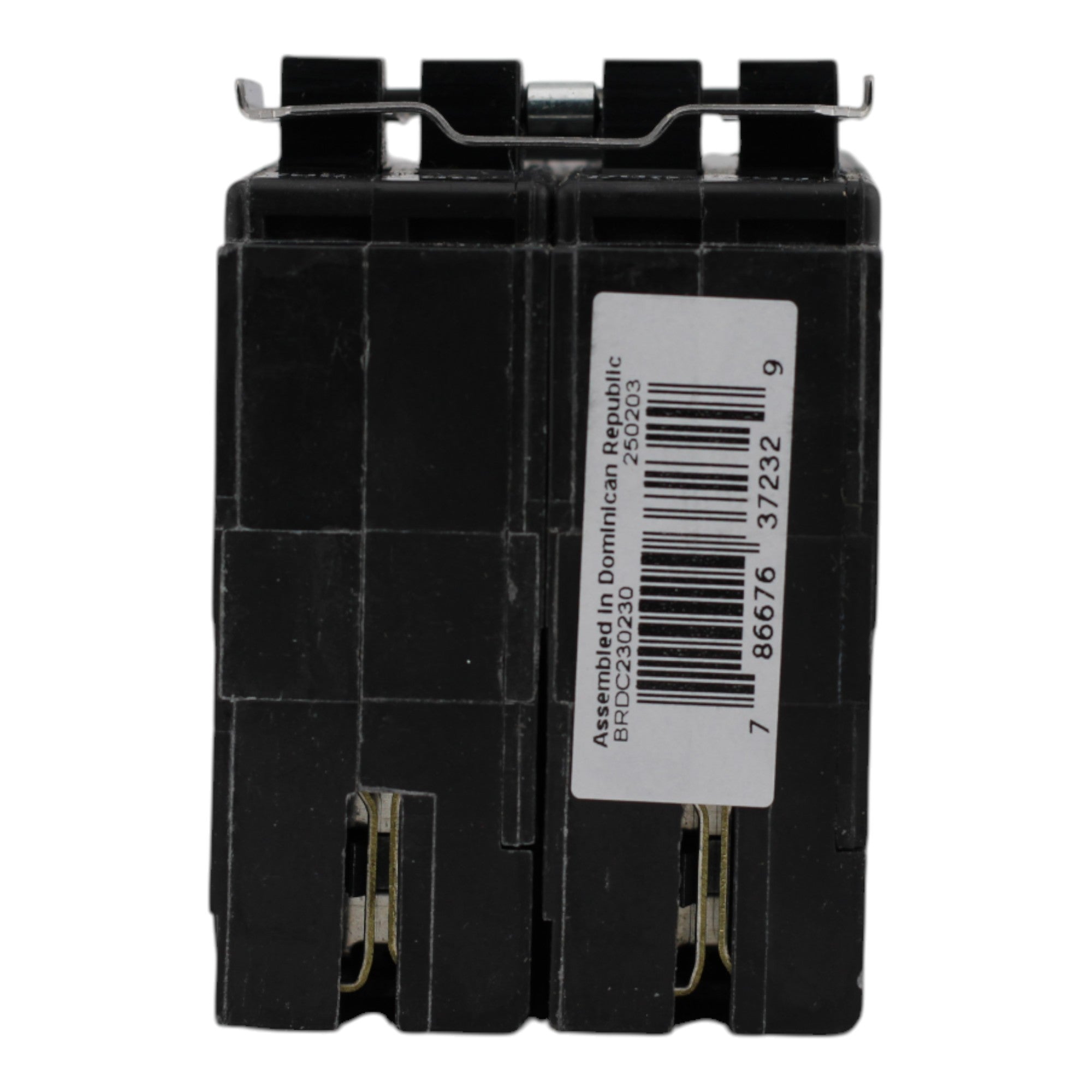

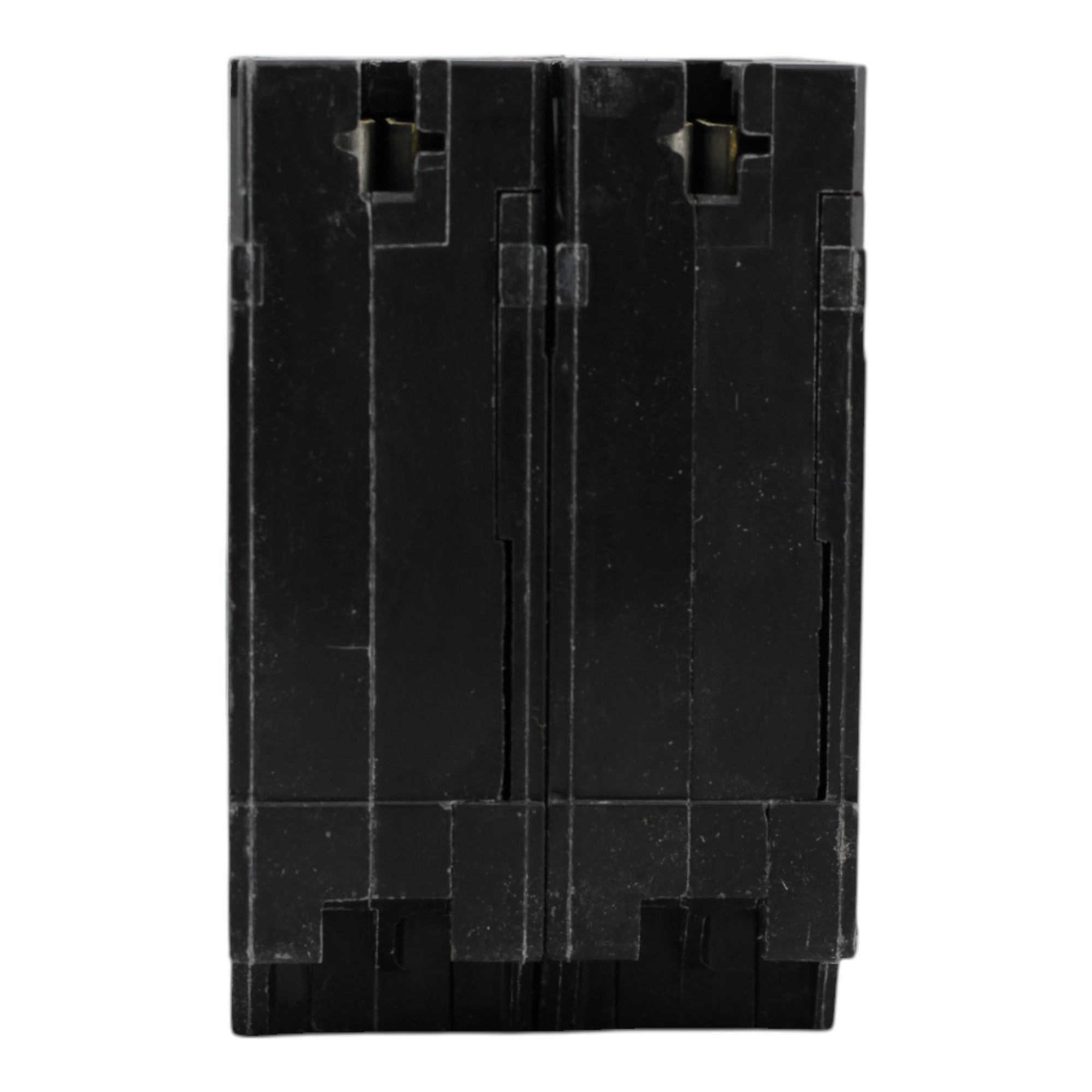

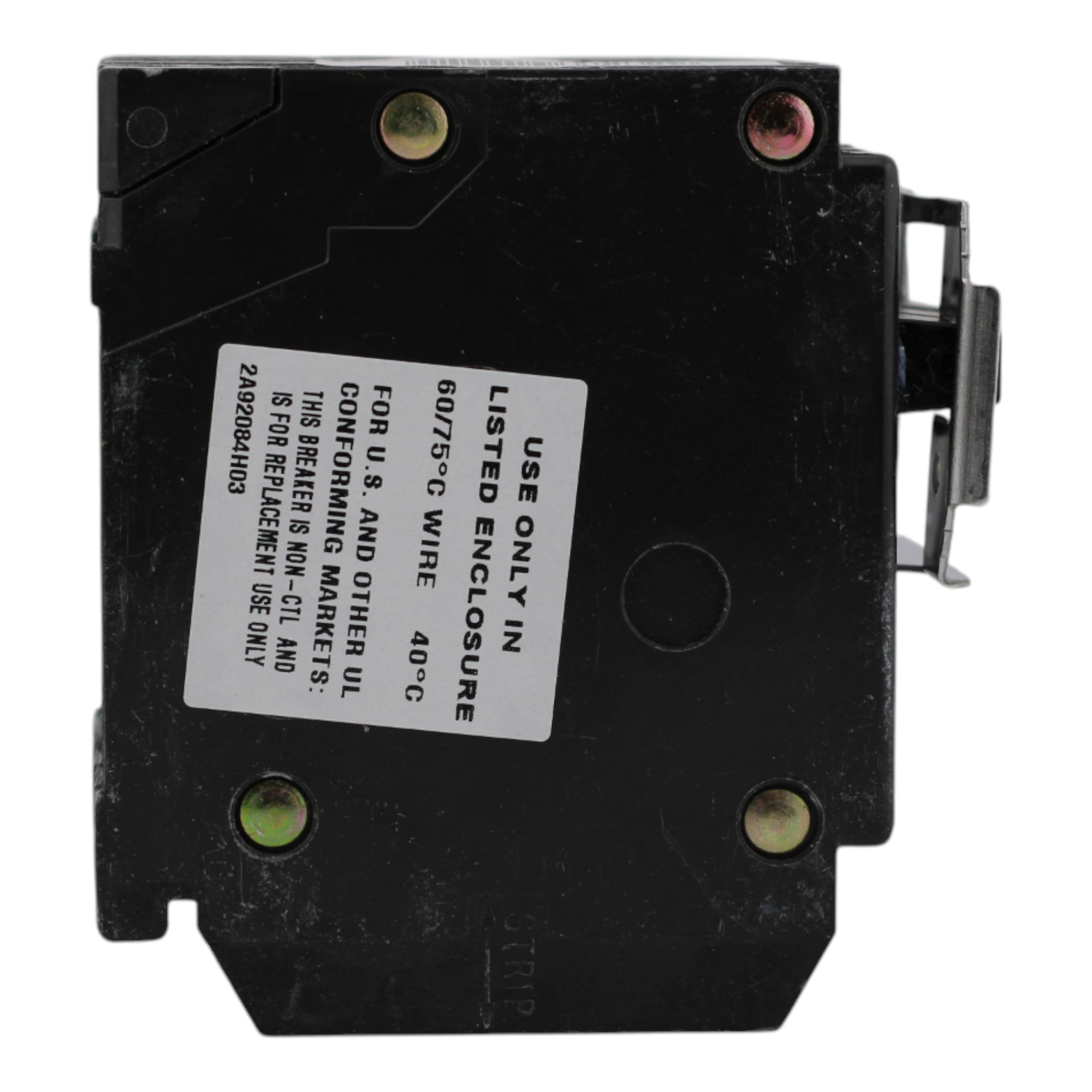

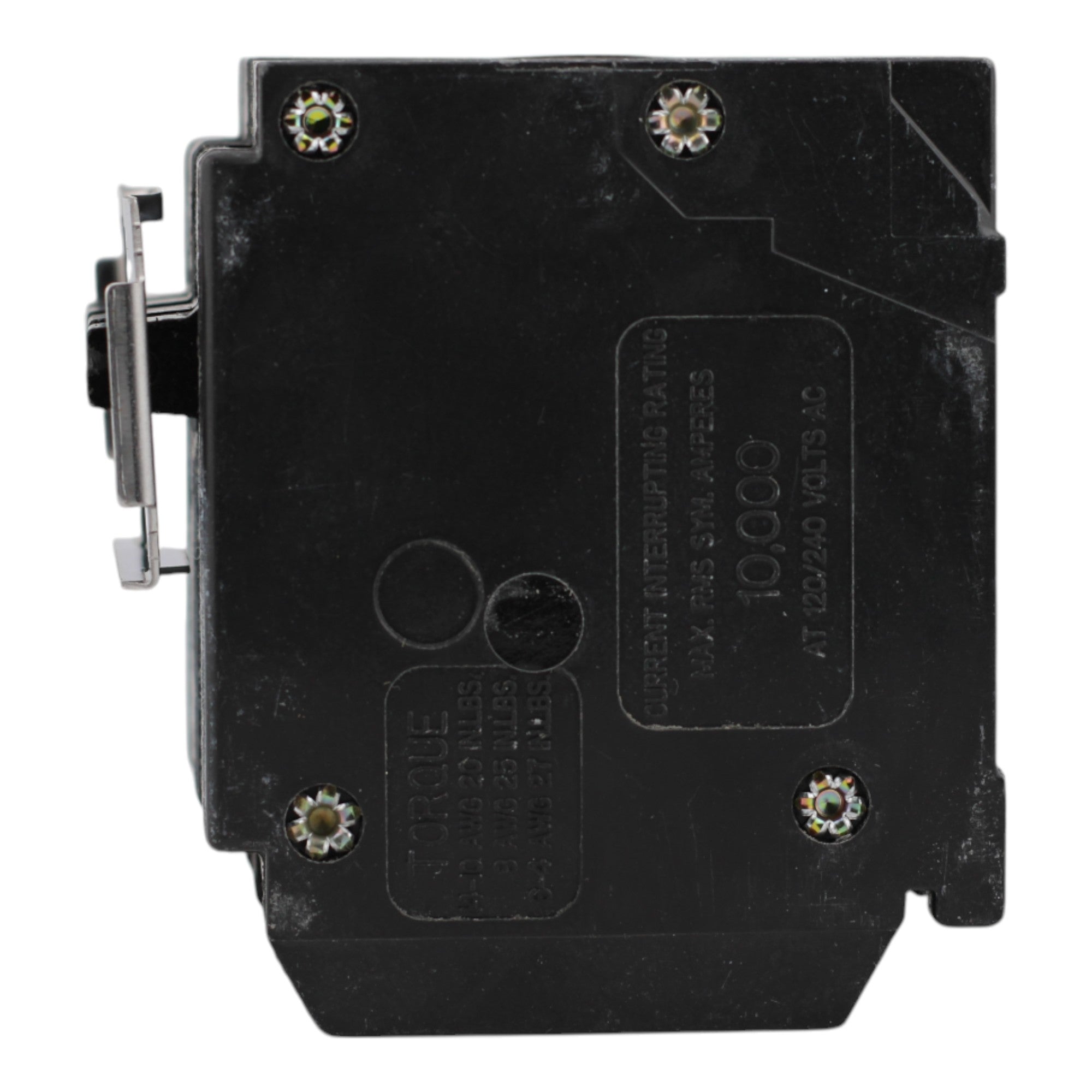

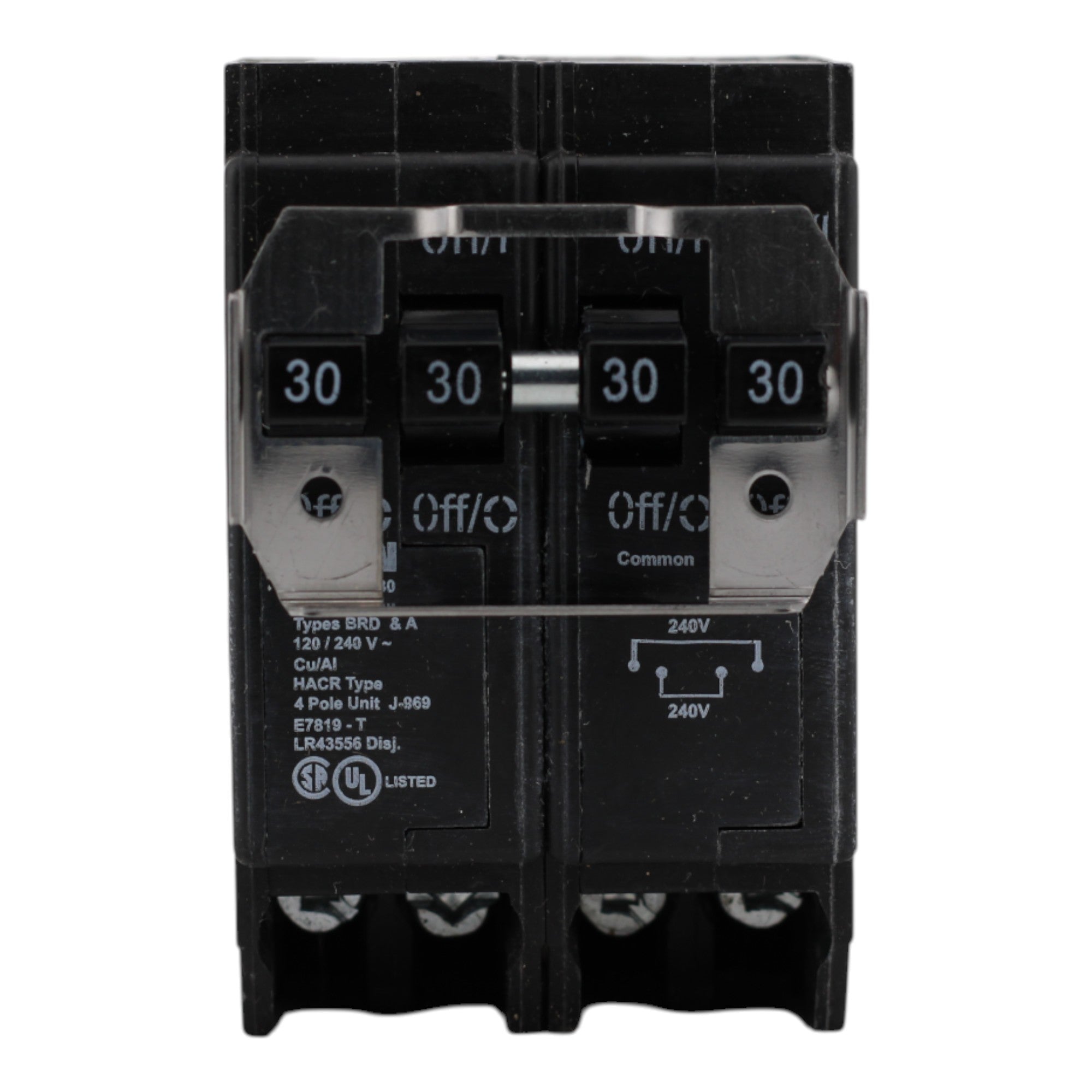

Eaton BRDC230230 30A 4P 120/240V Quad Circuit Breaker

Eaton BRDC230230: Quad breaker with four 30A poles, 120/240V, 10kA SCCR, common trip, 1-inch design for BR loadcenters, UL 489 listed, #14-4 AWG Cu/Al compatible.

BRDC230230 specifications

• Manufacturer: Eaton
• Brand: Eaton BR
• UPC: 786676372329
• Model Number: BRDC230230
• Product Type: Quad Circuit Breaker
• Product Line: BR Series
• Amperage Rating: (4) 30A
• Voltage Rating: 120/240V AC
• Number of Poles: Four-pole
• Short Circuit Current Rating: 10 kA
• Mounting Type: 1-Inch quad design
• Connection Type: Terminal
• Wire Size Compatibility: 14-4 AWG (copper or aluminum)
• Dimensions: Height: 3 in; Width: 2 in; Depth: 3 in
• Weight: 0.8 lb
• Certifications: UL 489 Listed
• Features: Common breaker trip, Non-CTL
• Application: For use with Type BR Loadcenters

There is a $15 charge for delivery. Additional charges will be imposed by our couriers for delivery to remote areas, a surcharge may be levied to cover carriage to these areas.

Warranty Coverage

We stand behind every product we sell. Coverage depends on the condition of the item at time of purchase:

• New: 12-month warranty
• New Open Box: 10-month warranty
• Reconditioned: 90-day warranty

Warranty coverage begins on the date of delivery and covers manufacturing and functional defects under normal use. It does not cover damage from misuse, improper installation, or unauthorized repair. To make a warranty claim, contact us at support@breakersmart.com with your order number and a description of the issue.
