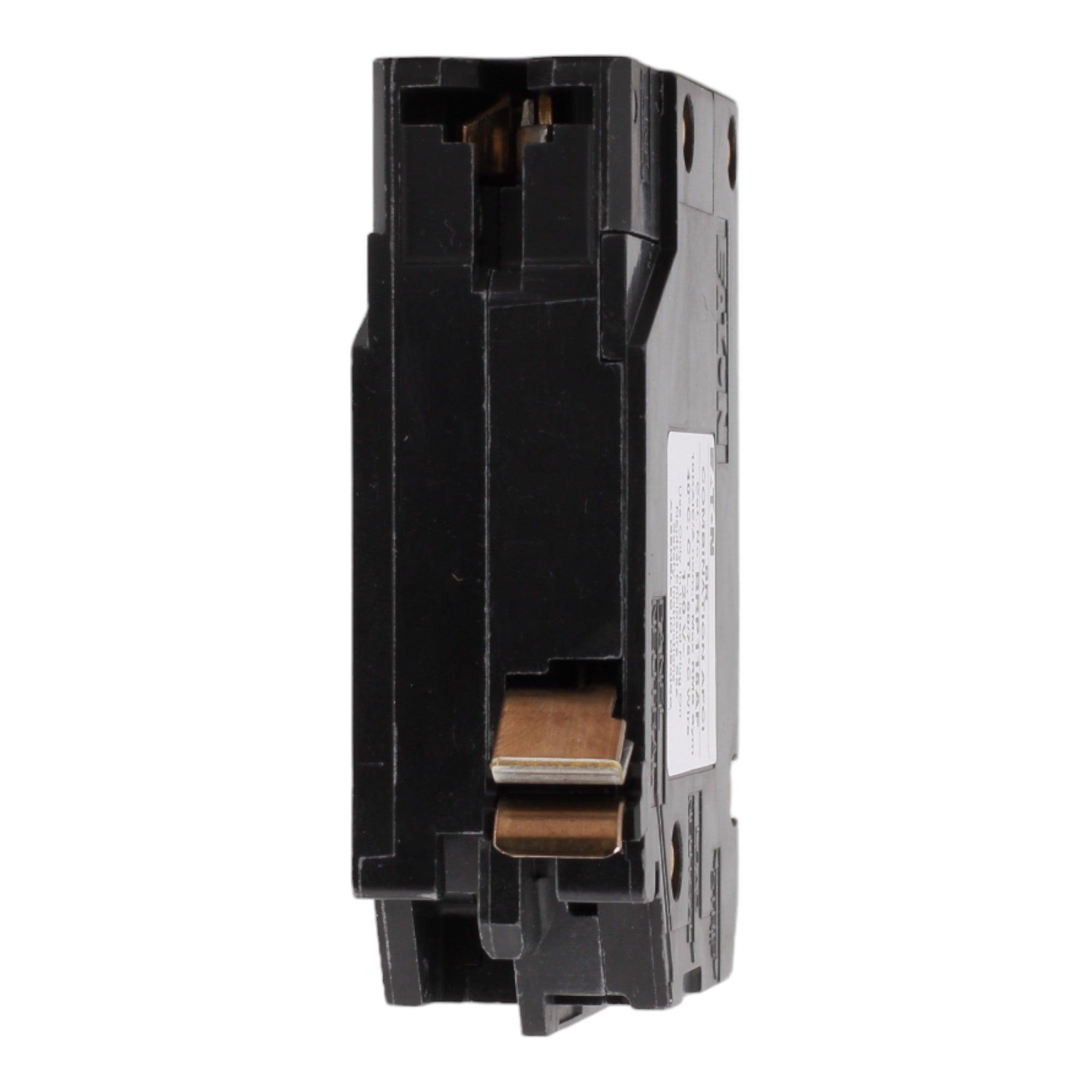

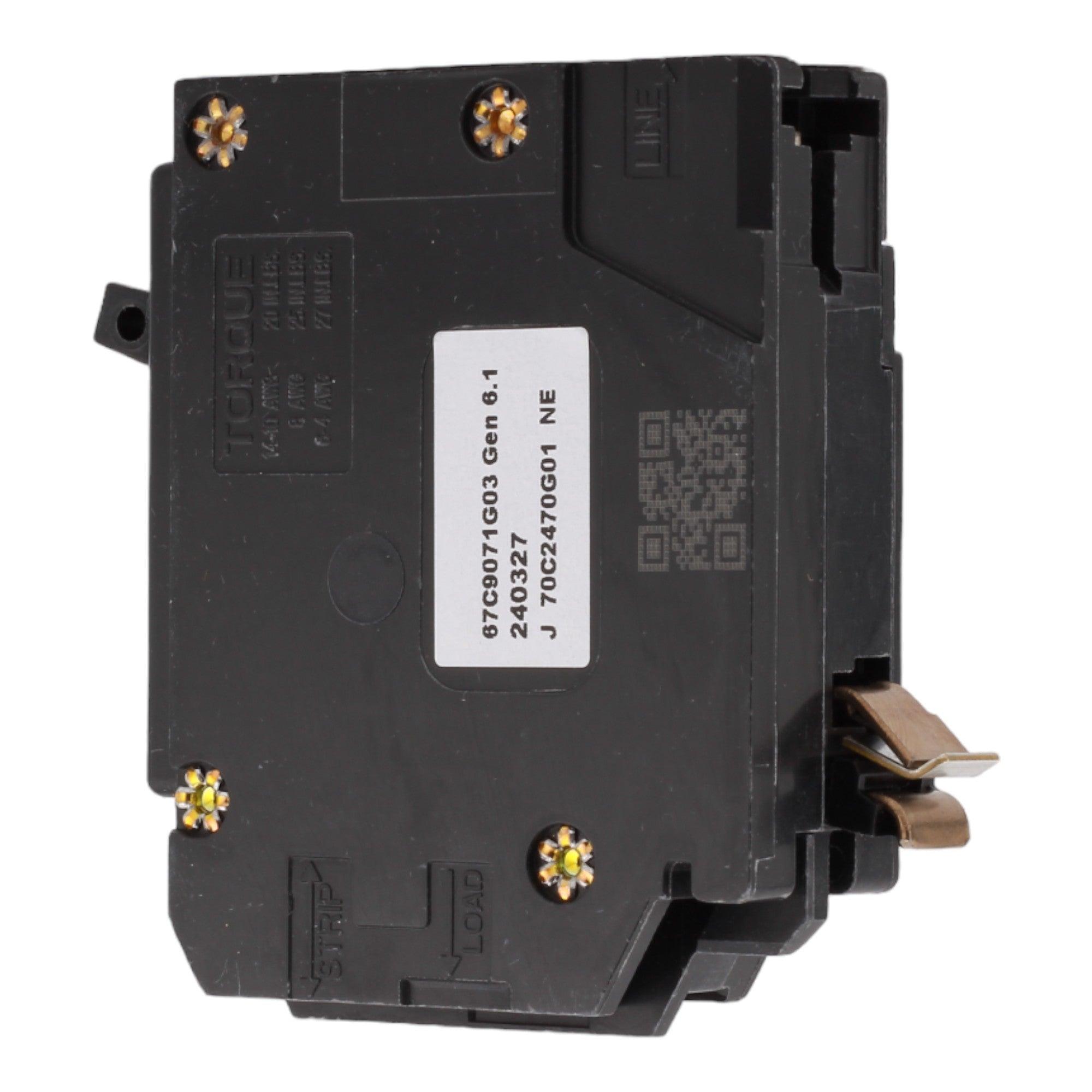

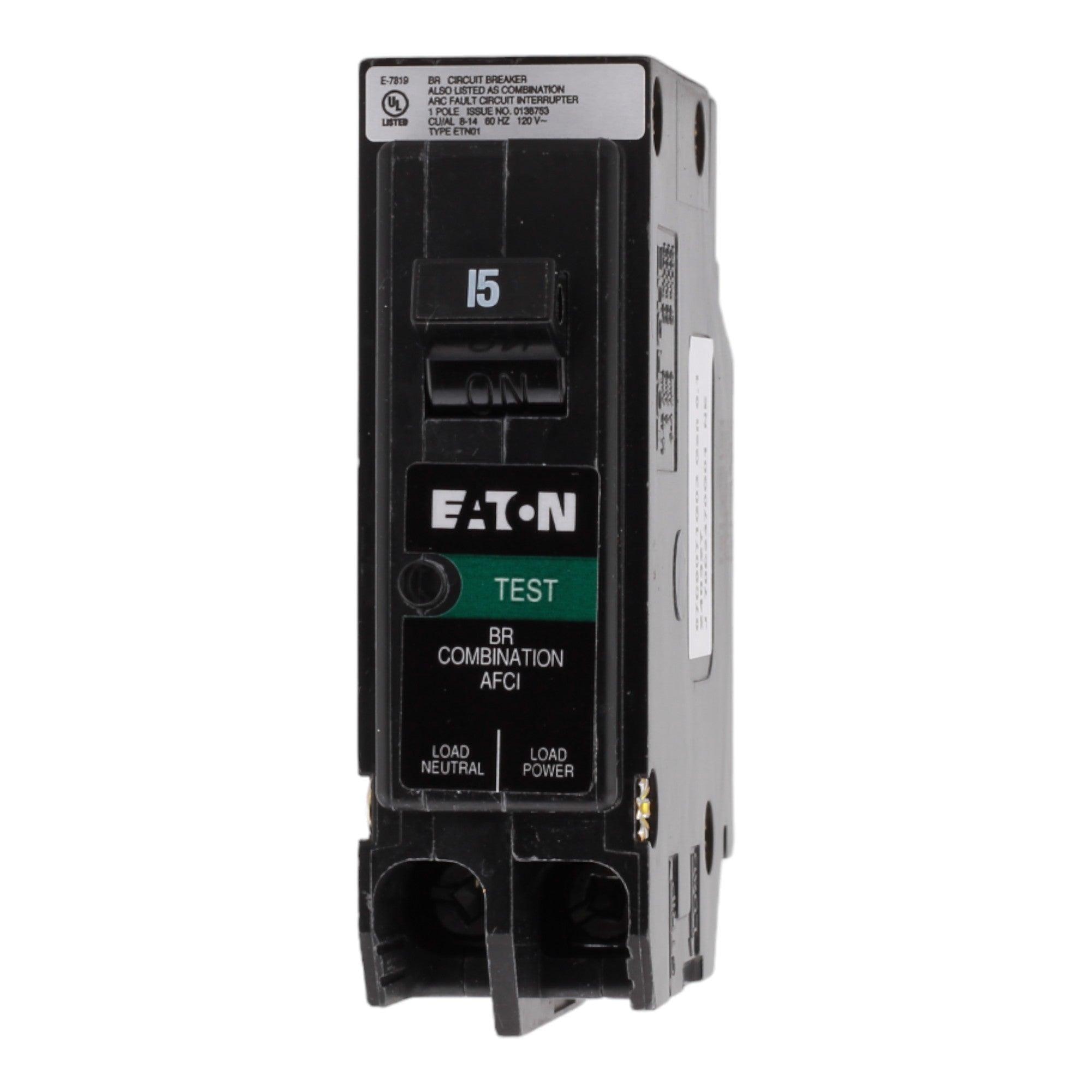

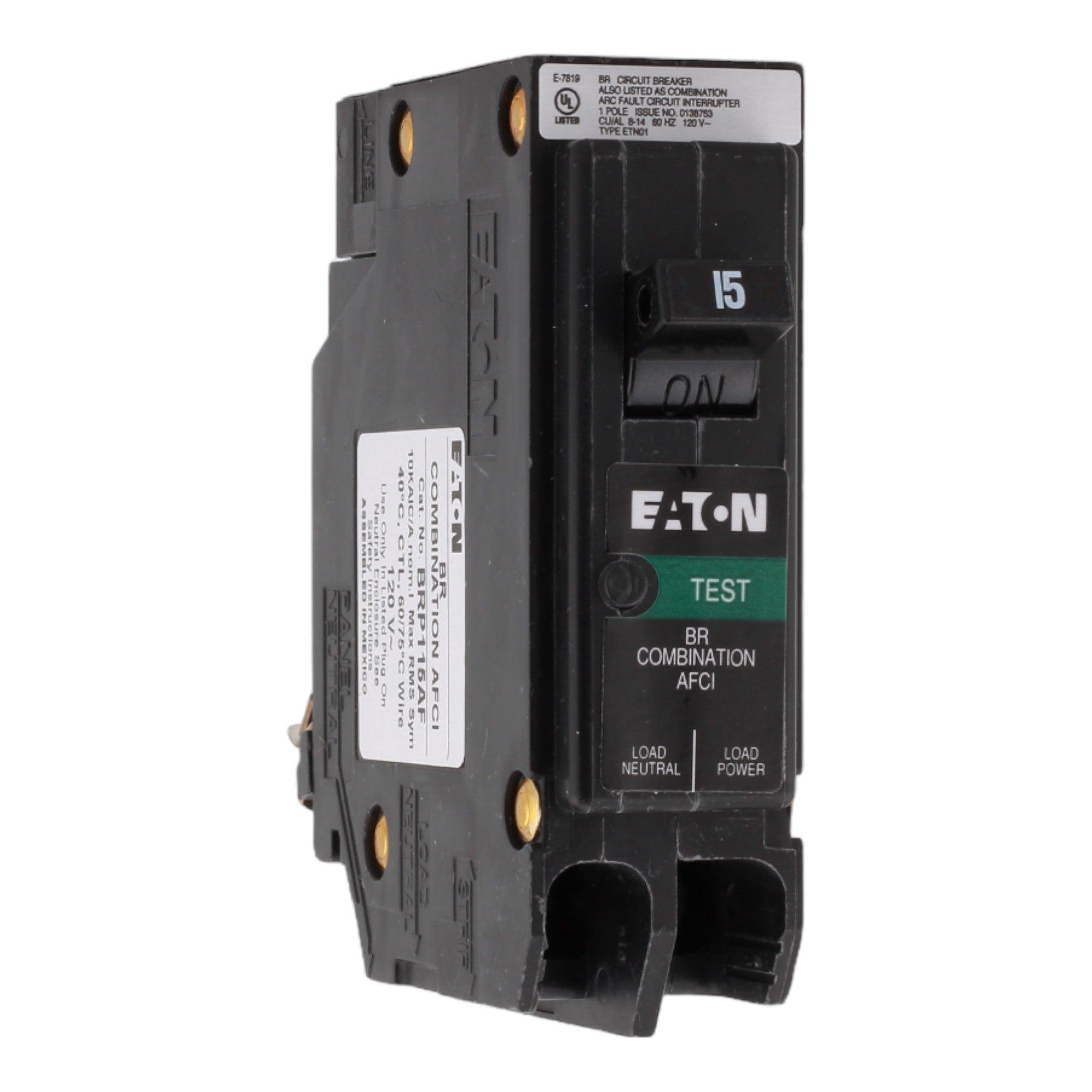

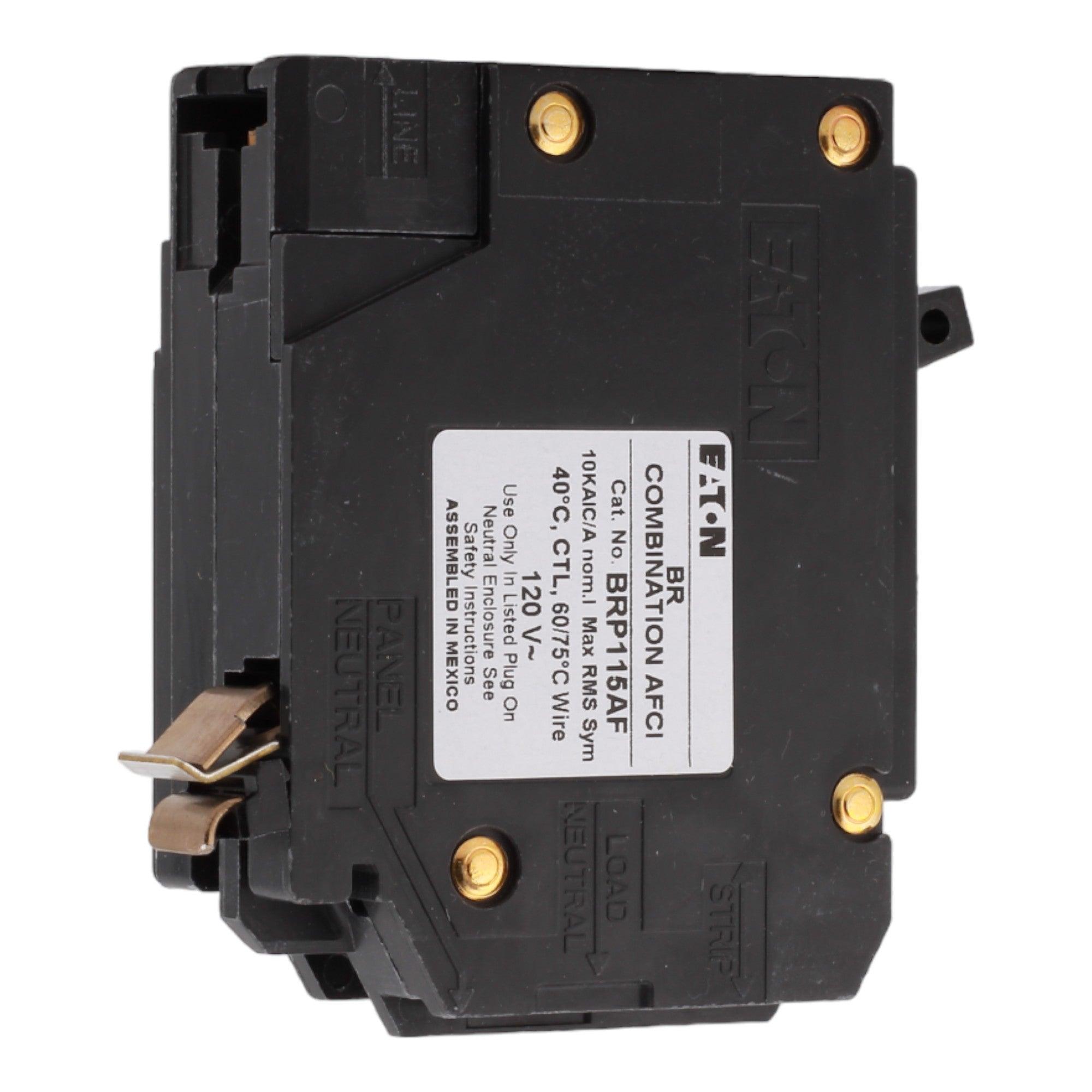

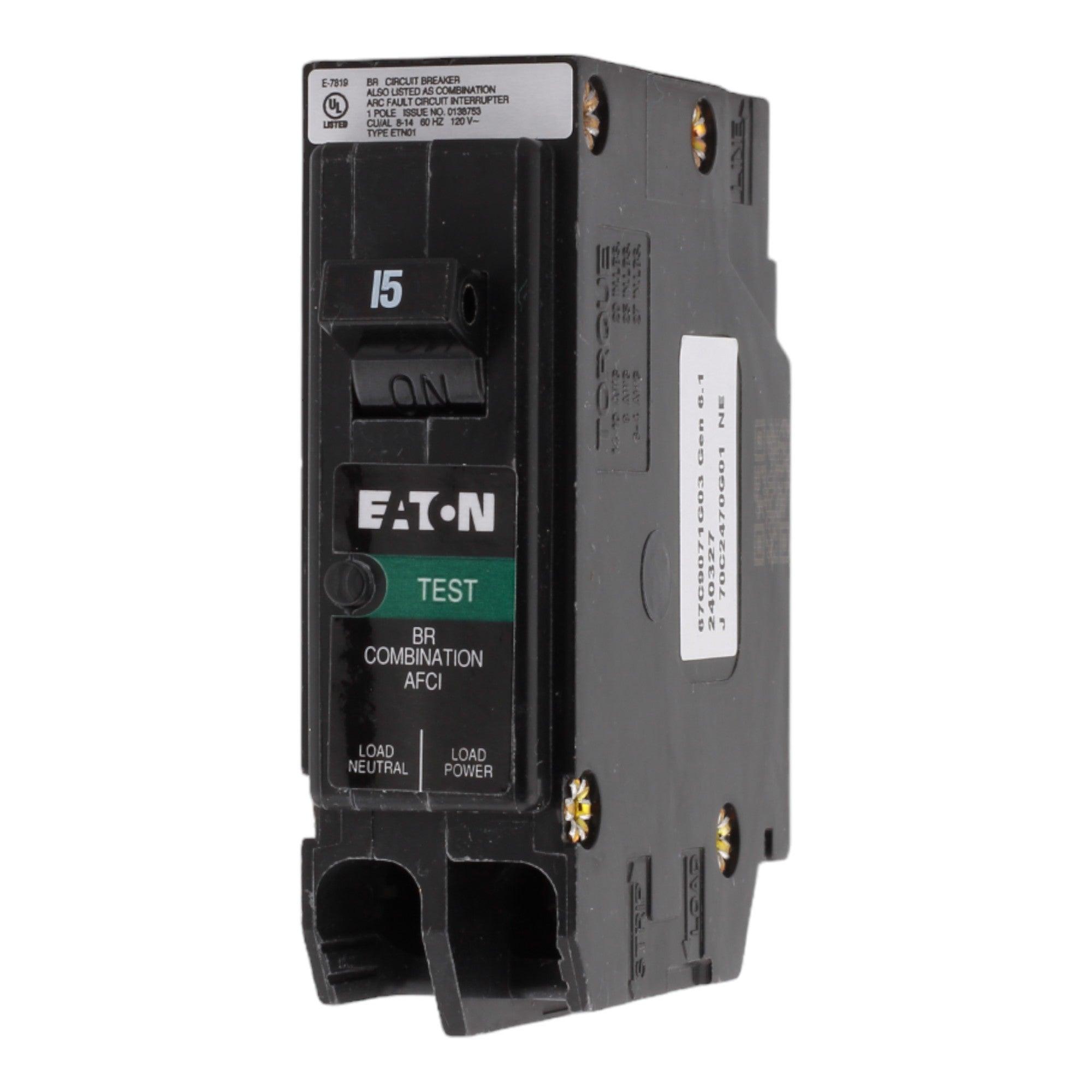

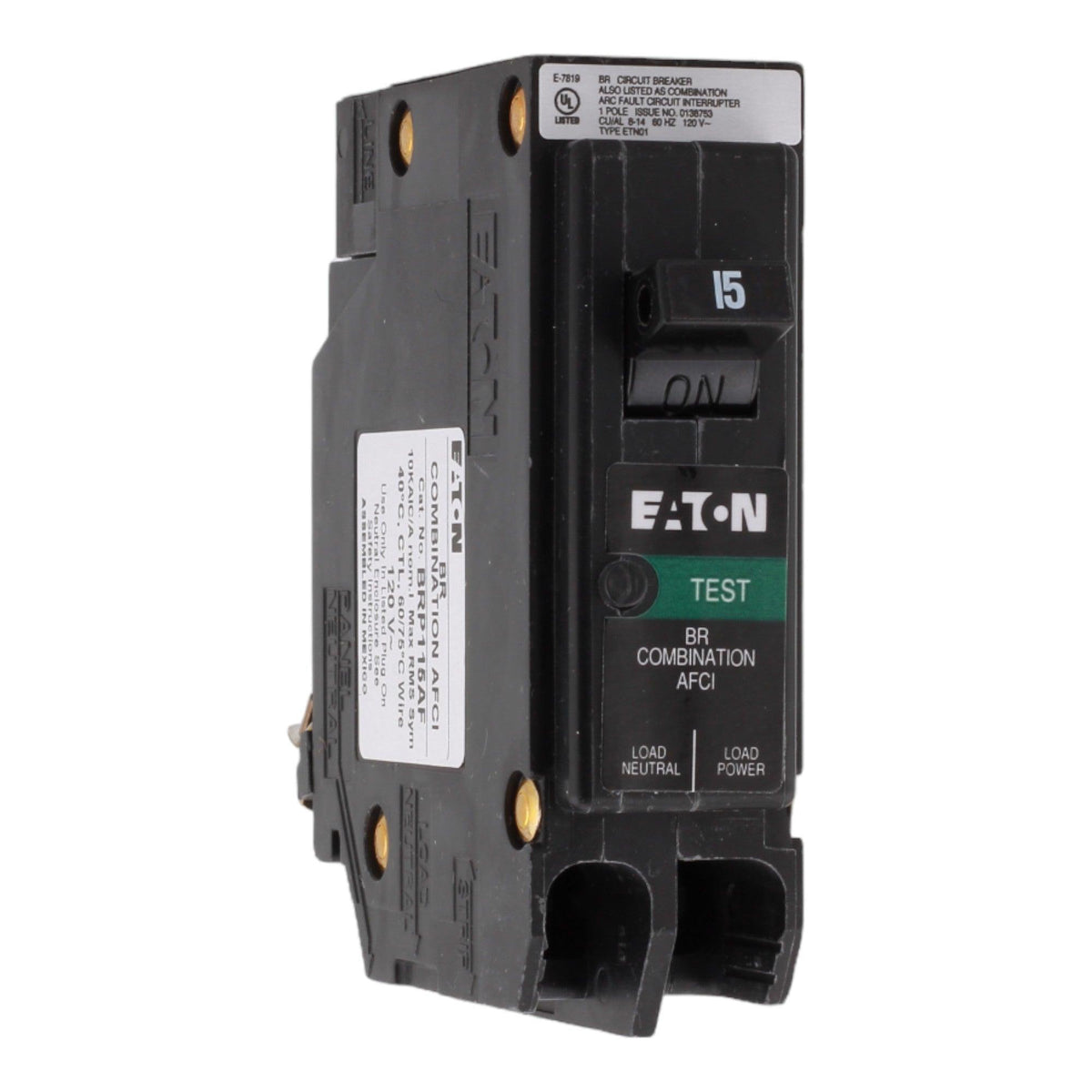

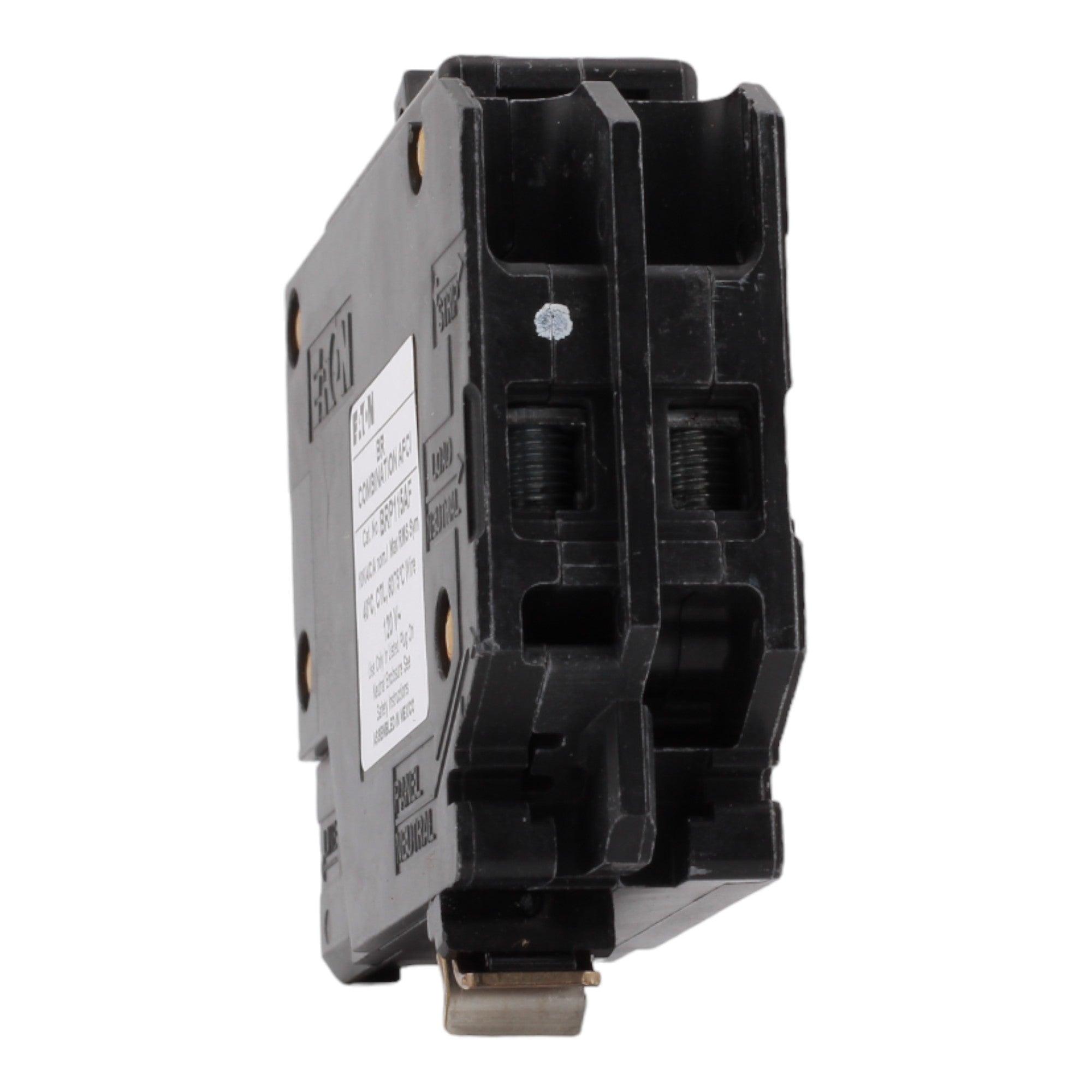

Eaton BR BRP115AF 15A 1P 120V AFCI Plug on Neutral Circuit Breaker

In stock
SKU: BRP115AF UPC: 786689041014
(0)
$43.00
-27% $59.00 $43.00
In stock
Usually ships within 24 hours
Condition

BRP115AF is a 15A Eaton Type BR combination AFCI with plug-on neutral. It serves one 120V branch circuit, carries a 10 kAIC rating, and is intended for BR loadcenters specifically listed for the direct neutral connection.

BRP115AF specifications

  • Eaton model: BRP115AF
  • Breaker family: Type BR
  • Function: Combination AFCI
  • Electrical rating: 15A, 1 pole, 120V AC
  • Interrupt rating: 10 kAIC
  • Neutral: Plug-on
  • Conductor range: #14–8 AWG Cu/Al
  • Certification: UL Listed

AF is not DF

BRP115AF protects against qualifying arc faults but does not add the Class A GFCI function of BRP115DF. A second distinction is neutral style: BRP models use plug-on neutral, while the comparable BRN pigtail products connect differently.

Type BR plug-on-neutral confirmation

Check the Eaton loadcenter label for BR plug-on-neutral acceptance, then match 15A, one pole, 120V, conductor range, 10 kAIC, and AFCI-only function. Never use physical fit as the sole approval test. Installation should be completed by a qualified person.
