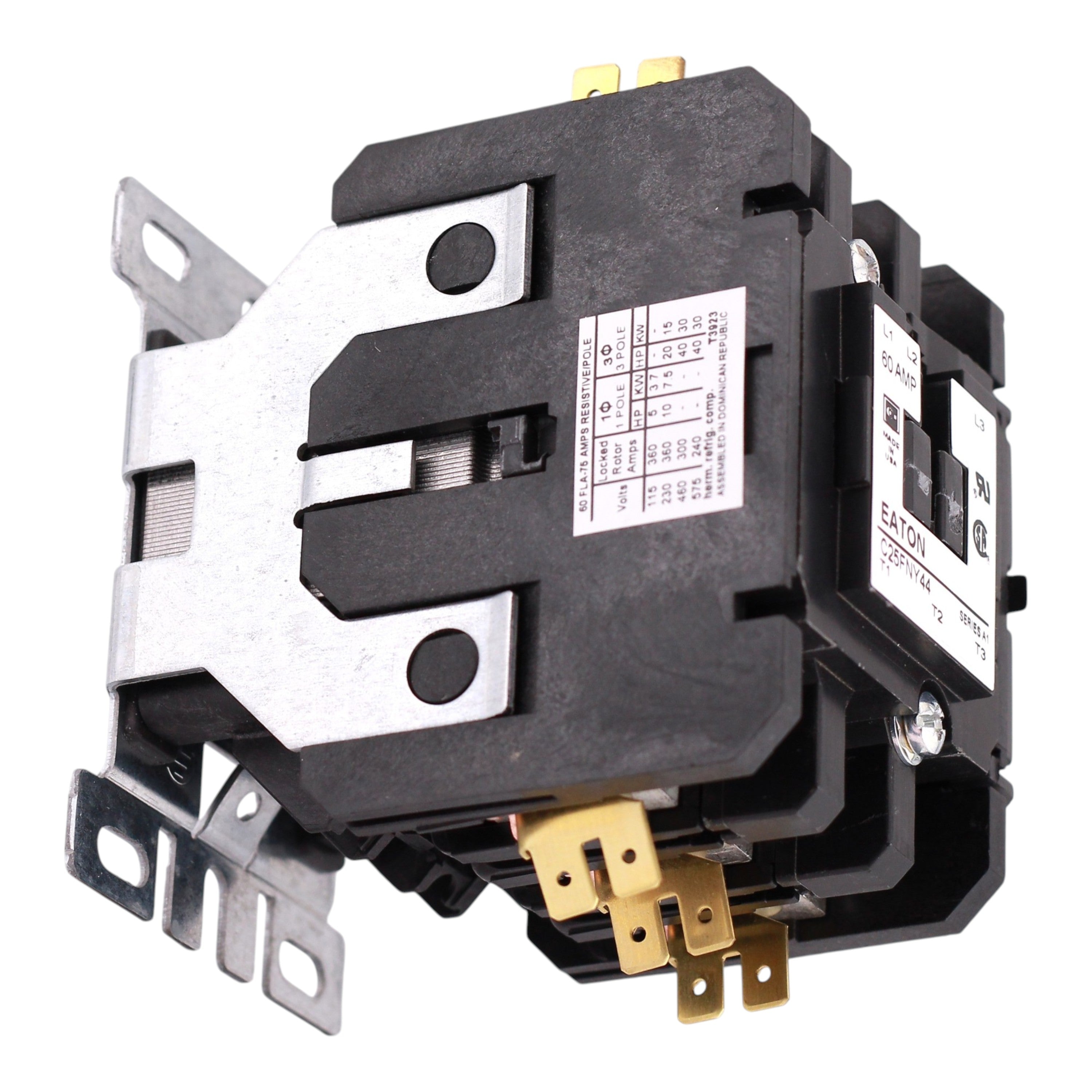

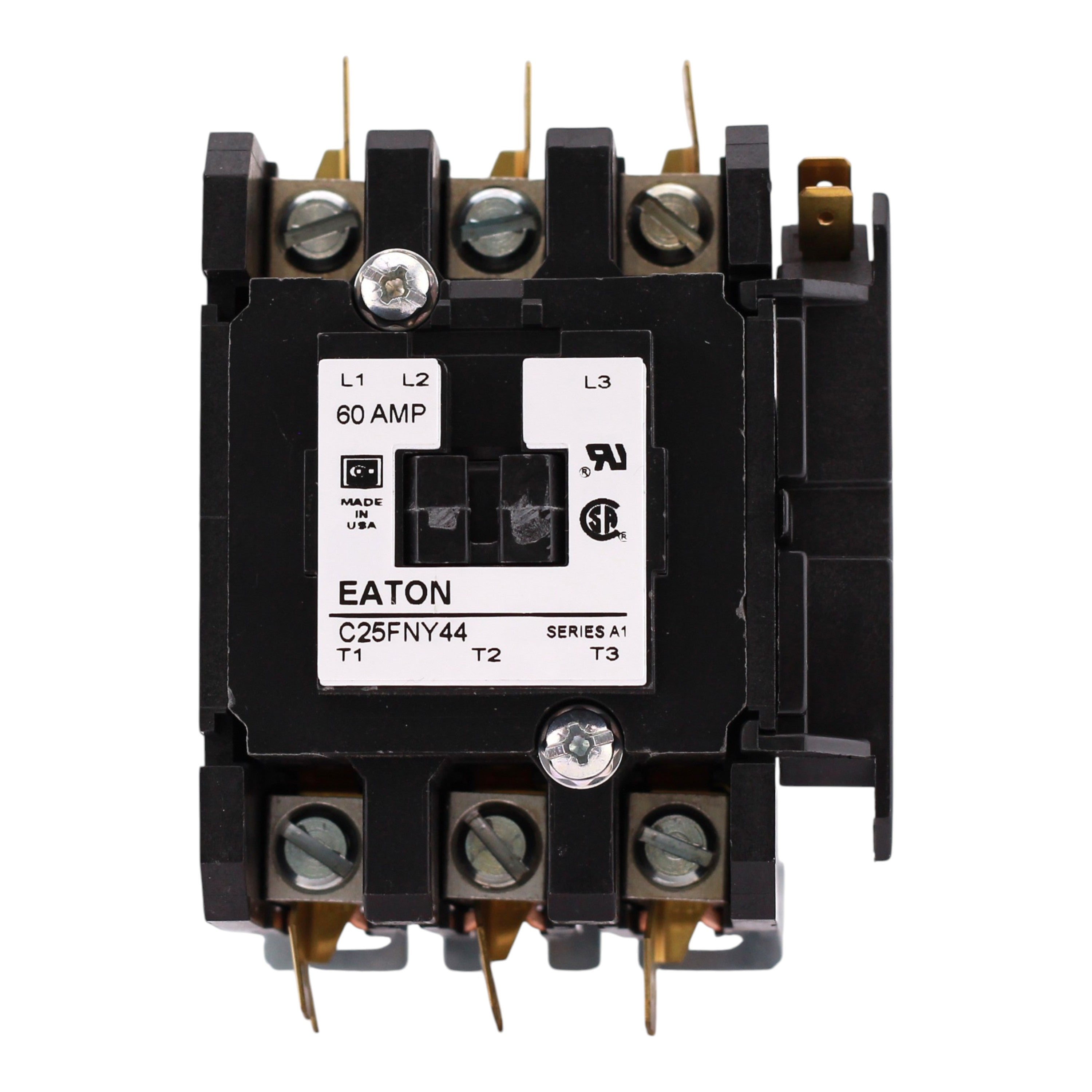

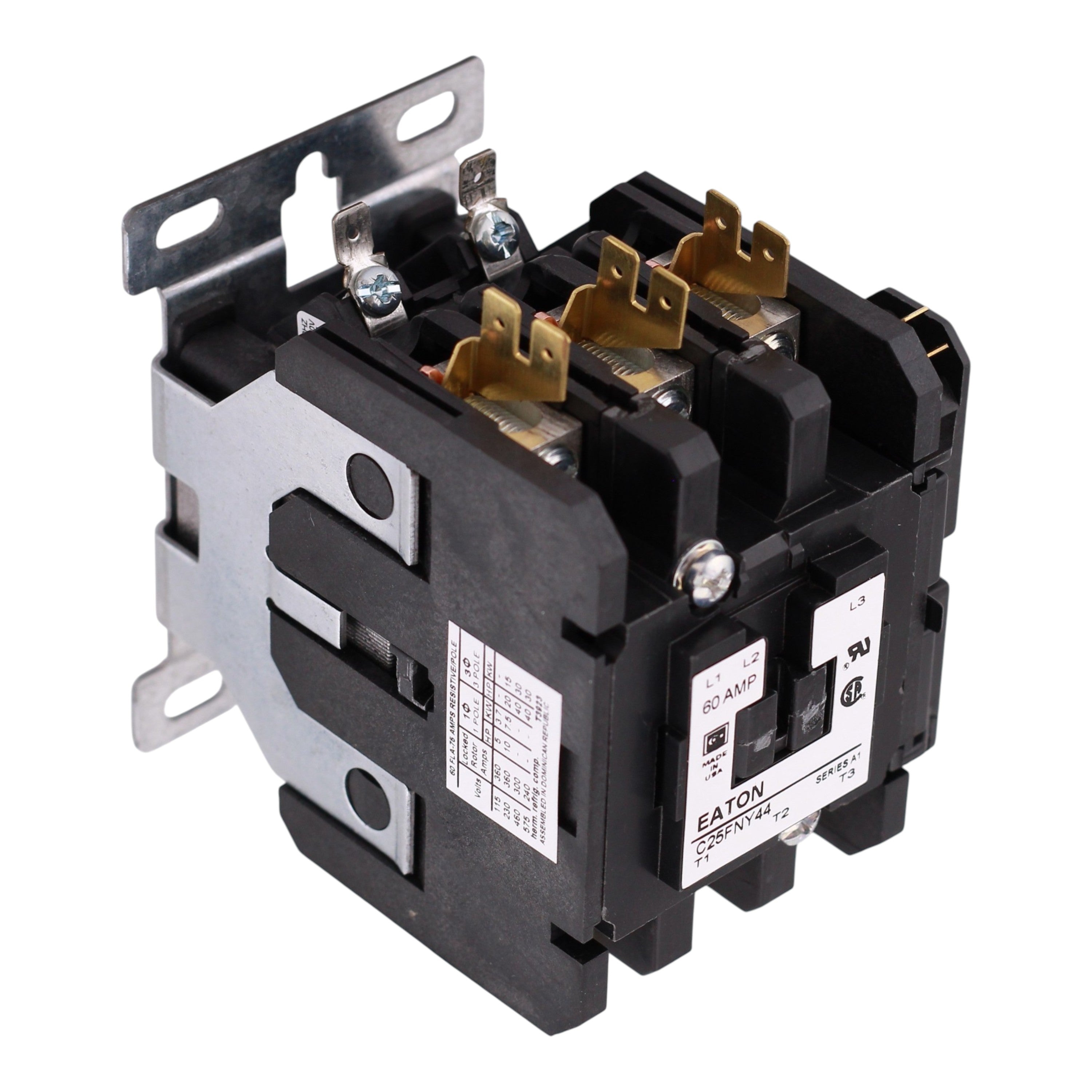

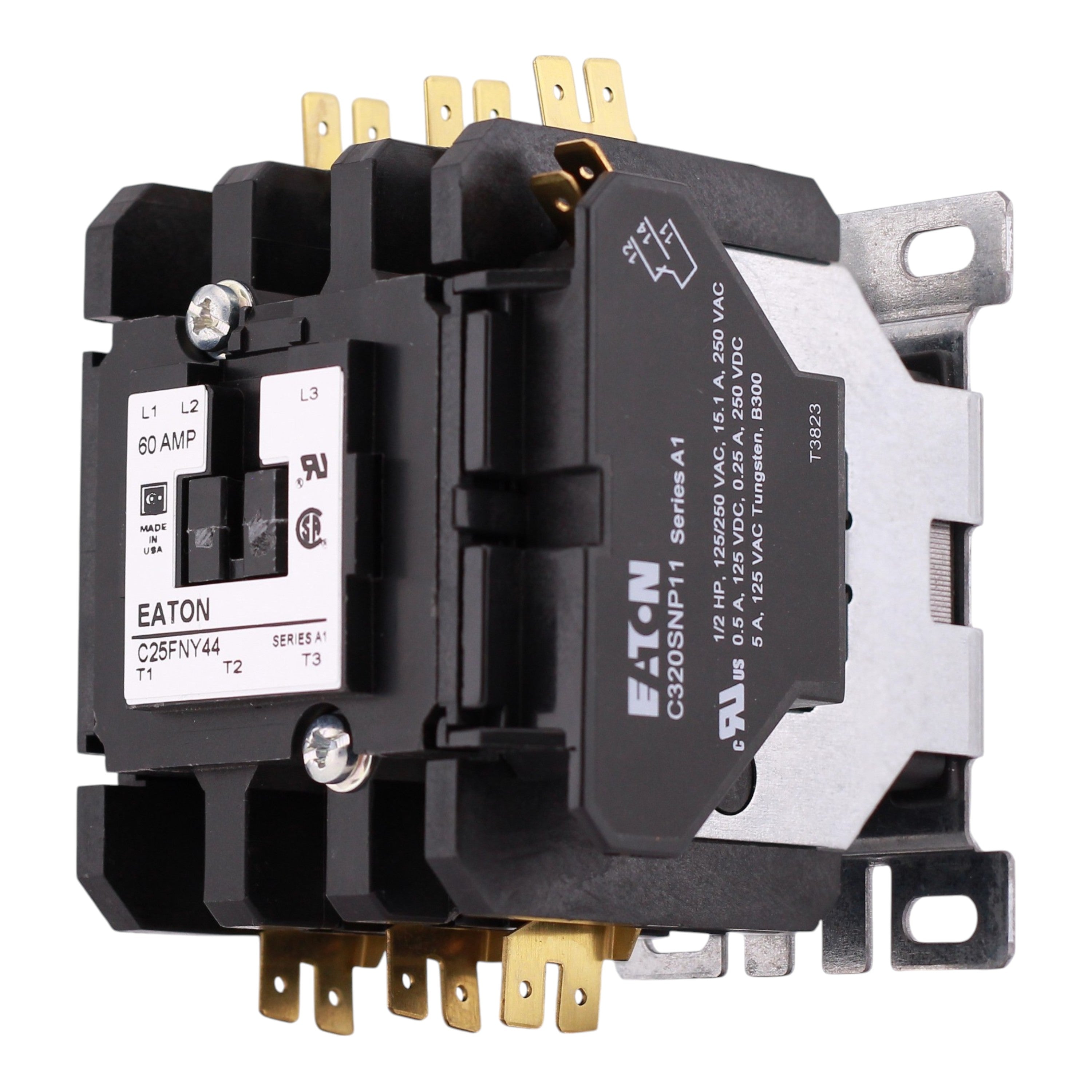

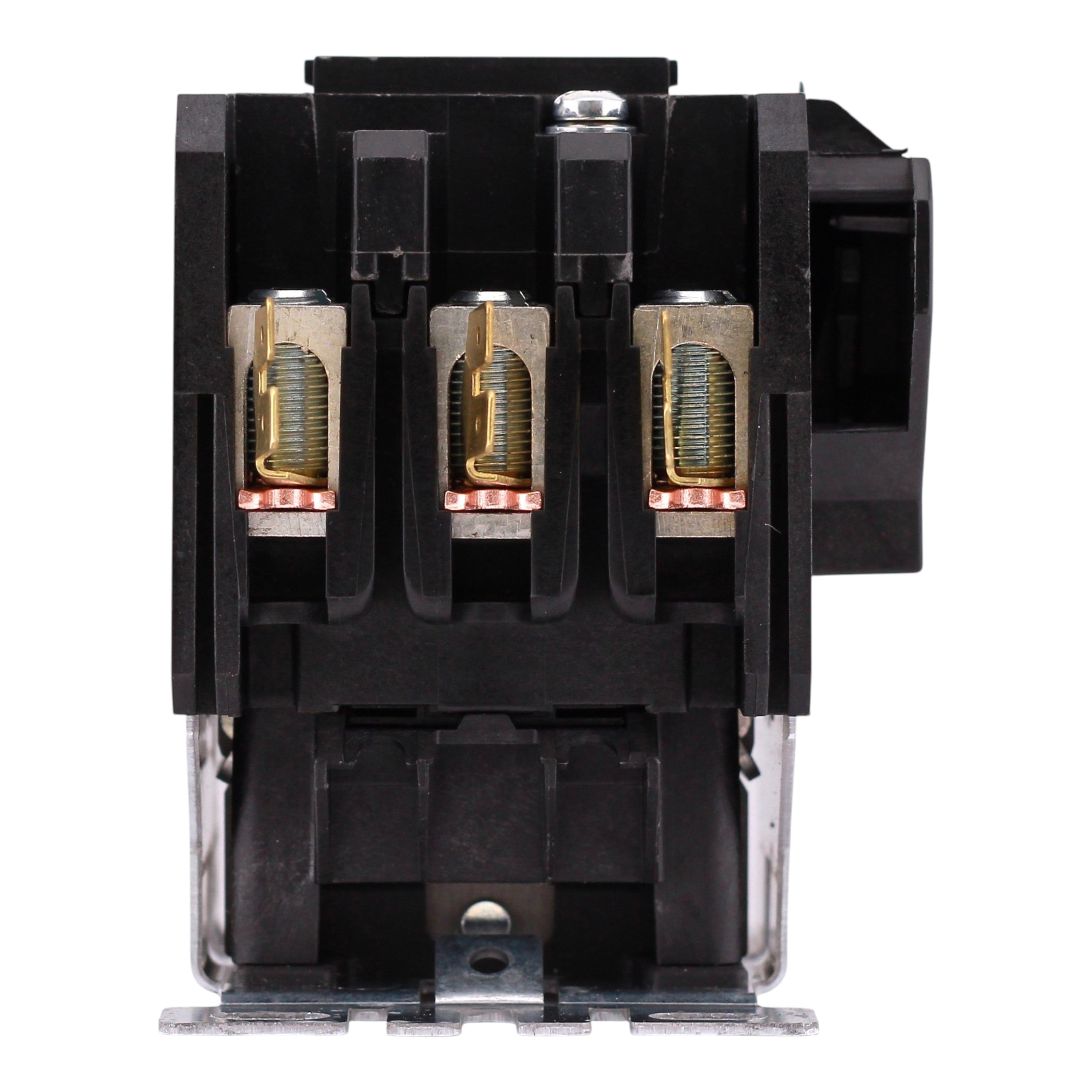

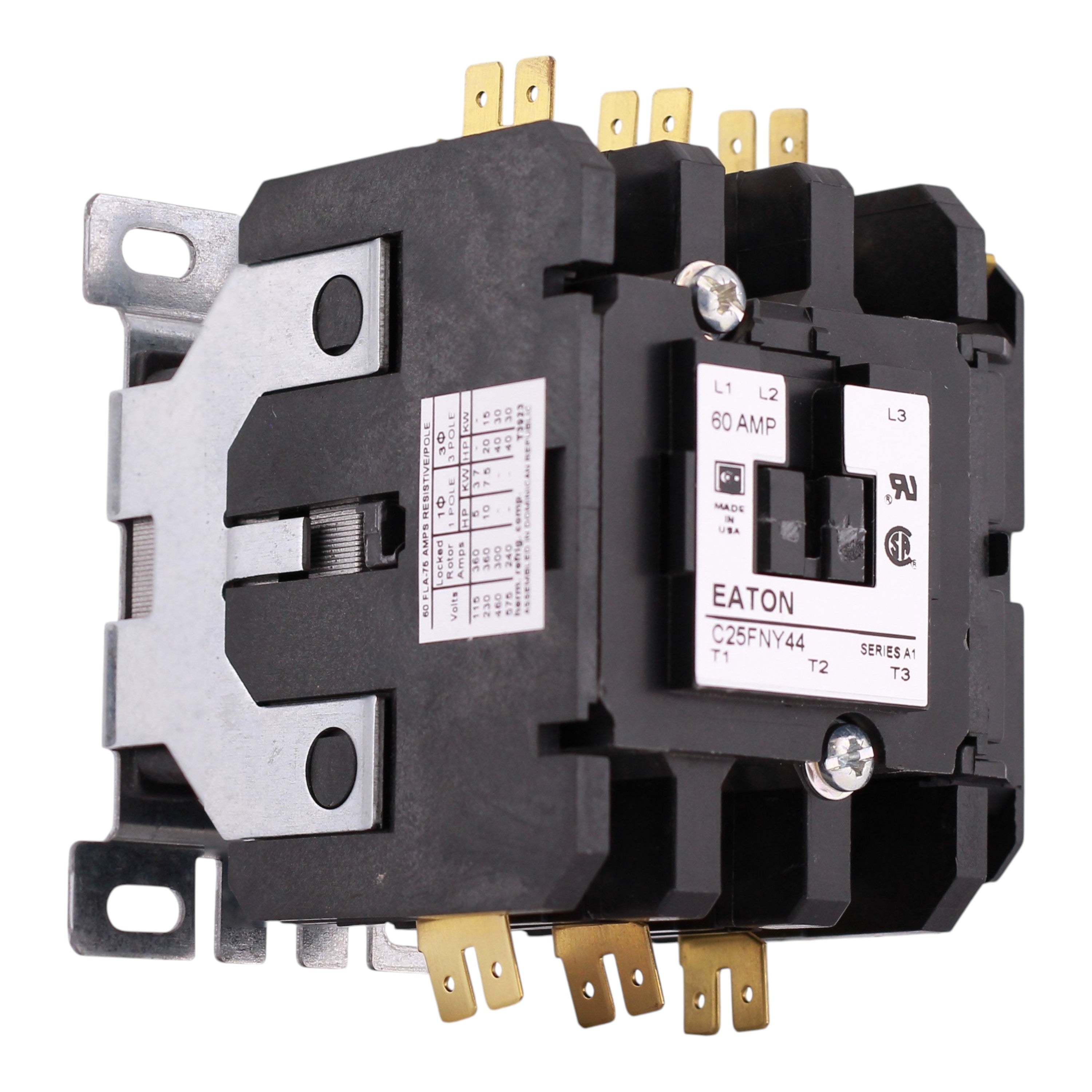

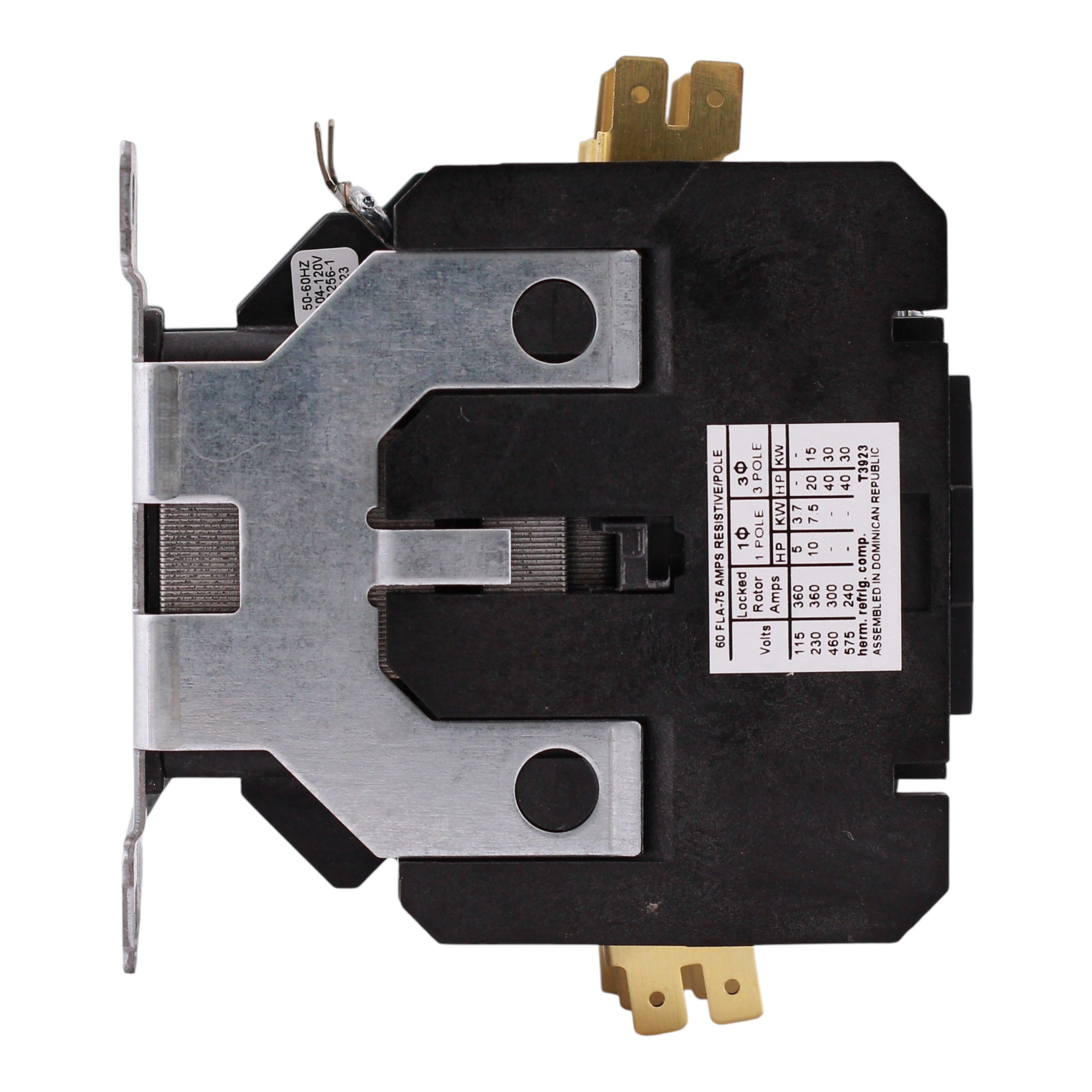

Eaton C25FNY44AL: 60 Amp, 3-Pole, Definite Purpose Control Contactor, 600V AC Load, 110/120V Coil, 50/60Hz, 1NO/1NC Auxiliary, Open with Metal Mounting Plate, UL Recognized.
-
Manufacturer: Eaton
-
Brand: Eaton
-
Product Range: C25F (Definite Purpose Contactors, 15–50A frame, 3-pole)
-
UPC: 786685122793
-
Model Number: C25FNY44AL
-
Product Type: Definite Purpose Control Contactor — Non-Reversing
-
Amperage Rating: 60 Amps (inductive full load)
-
Poles: 3-Pole
-
Maximum Load Voltage: 600 Volts AC
-
Coil Voltage: 110/120 Volts AC, 50/60 Hz
-

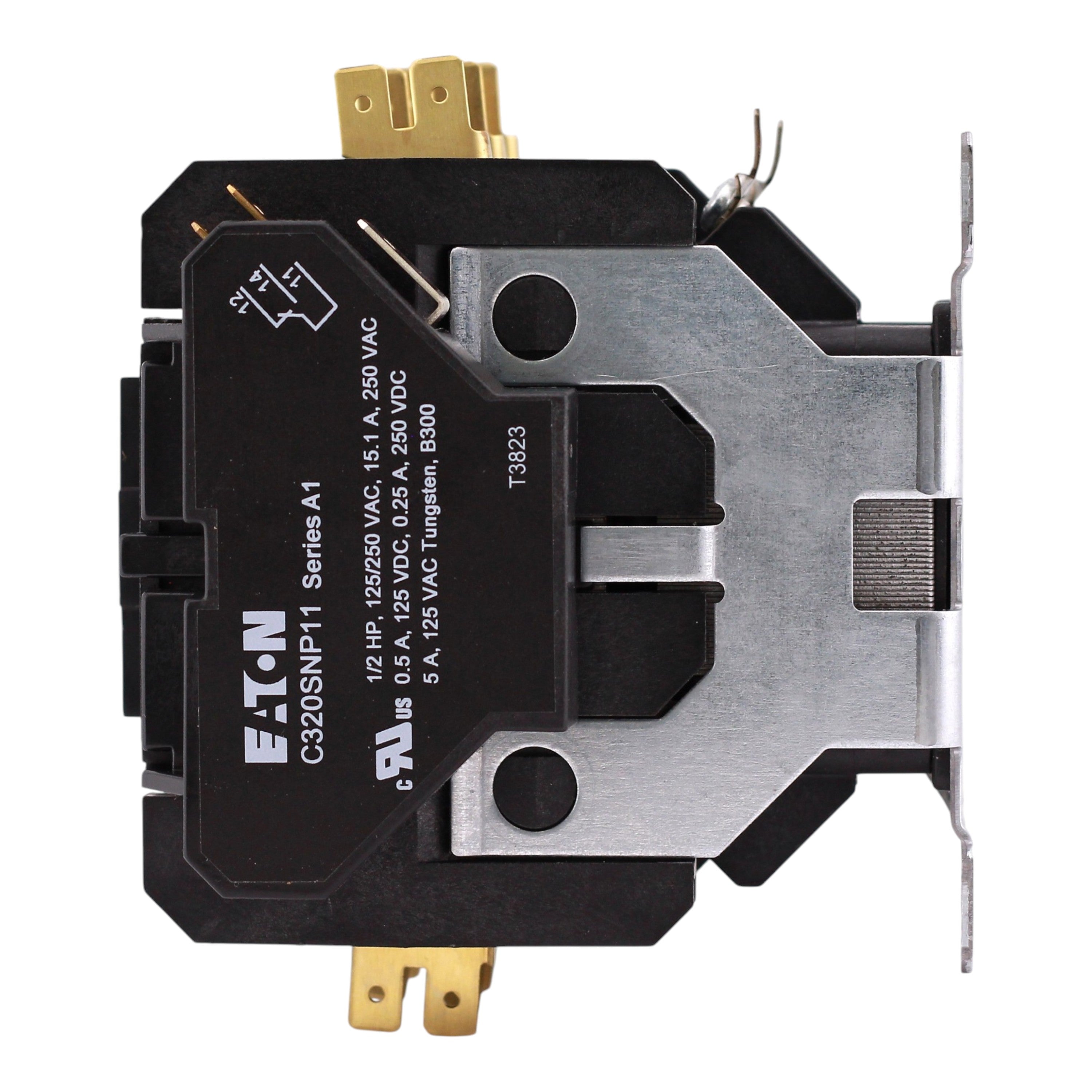

Auxiliary Contacts: 1 NO + 1 NC snap switch (Quick Connect only)
-
Terminal Type: Quick Connect (QC)
-

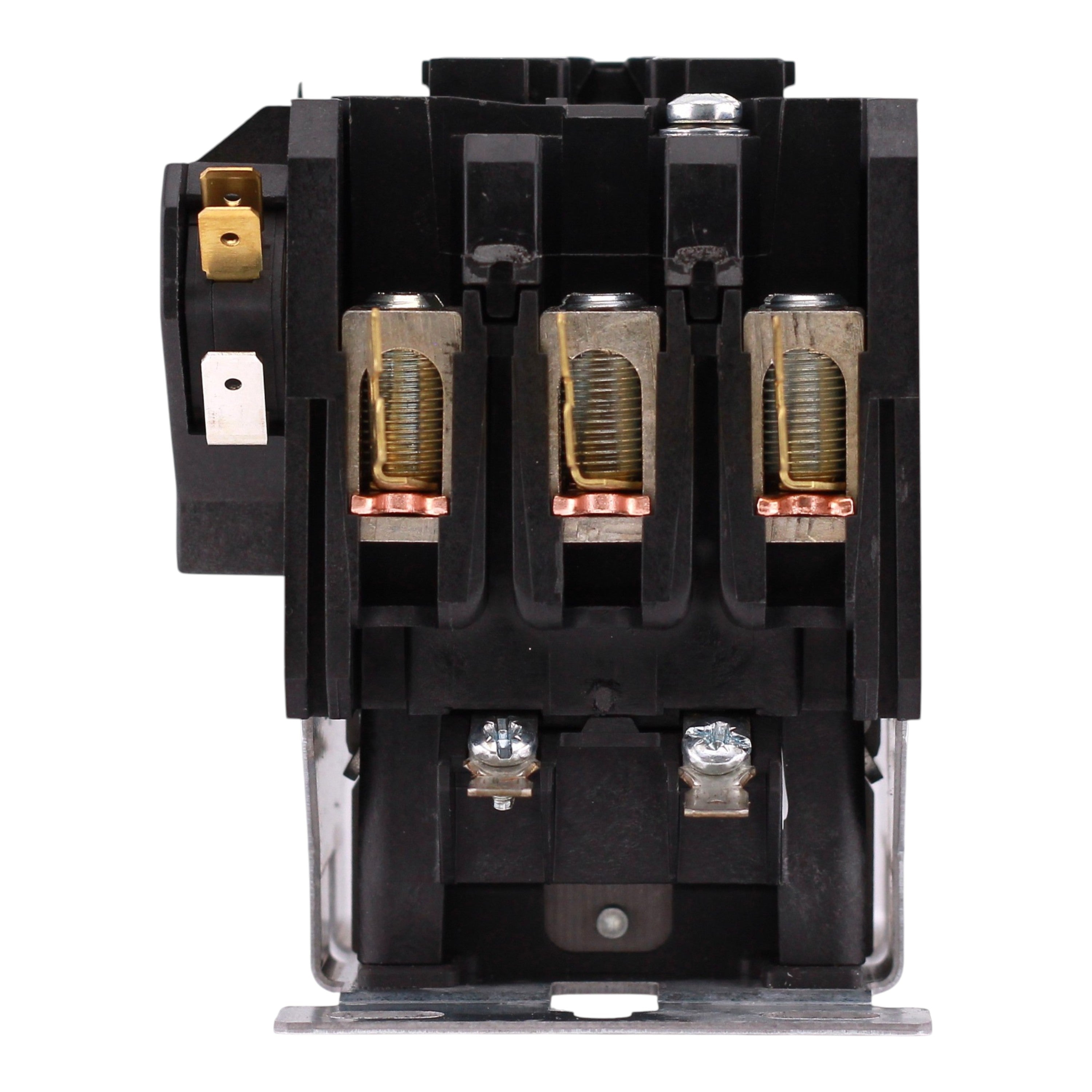

Wire Size: (2) #14–4 AWG per pole (box lug)
-

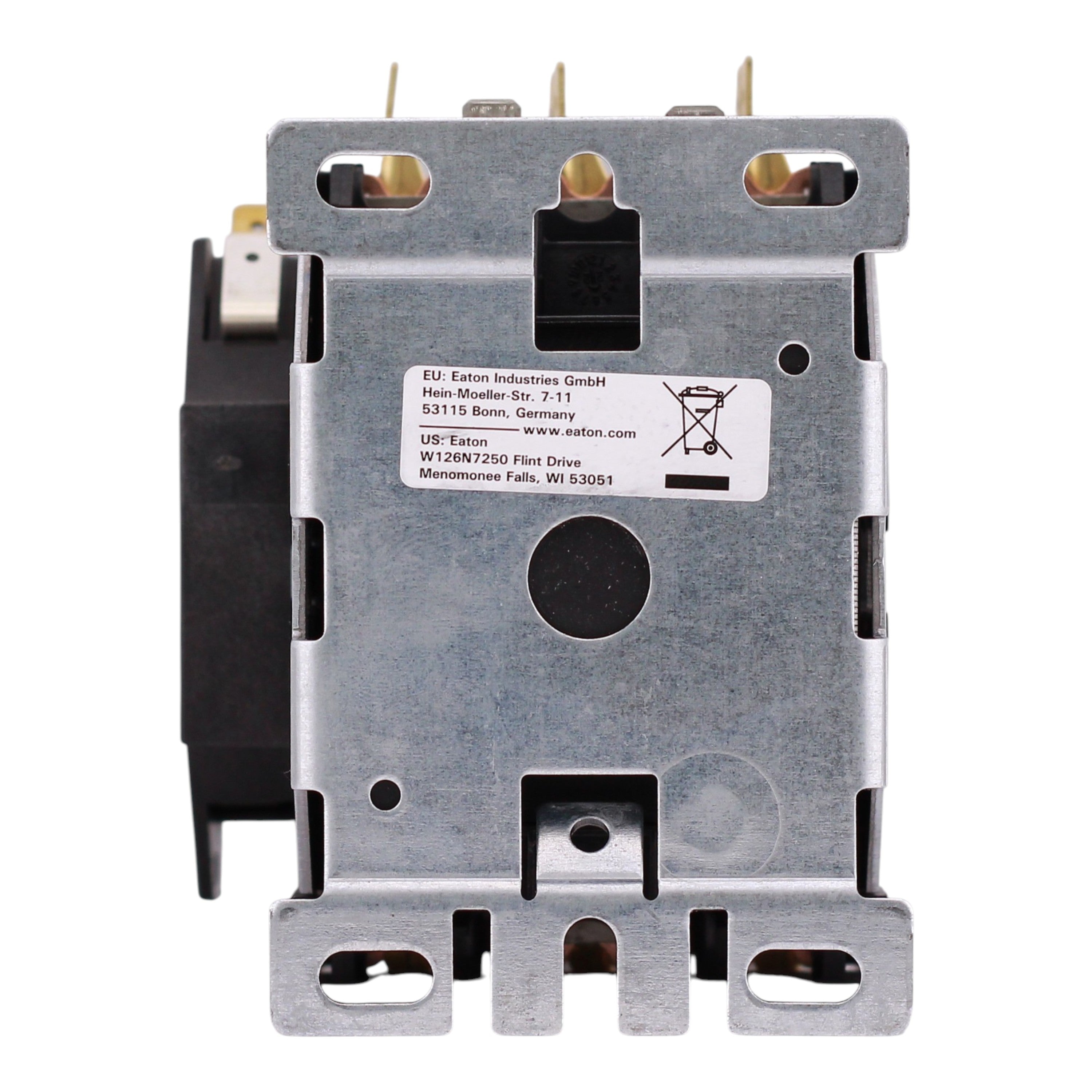

Enclosure: Open with metal mounting plate
-
Frame Size: 15–50A, 2- and 3-pole
-
Horsepower Rating: 20 HP at 480V AC; 15 HP at 240V AC (3-phase)
-
Dimensions: Height: 3.75 in; Width: 2.63 in; Depth: 3.97 in
-
Weight: 2.80 lbs
-
Certifications: UL Recognized, CSA Certified, RoHS Compliant
This Eaton C25FNY44AL definite purpose control contactor delivers reliable 60 Amp, 3-Pole switching for 600V AC motor and control loads, with a 110/120V coil, 1NO/1NC auxiliary snap switch contacts, and quick connect terminals in an open metal mounting plate configuration. Designed for HVAC, refrigeration, and motor control applications in commercial and light industrial settings.
