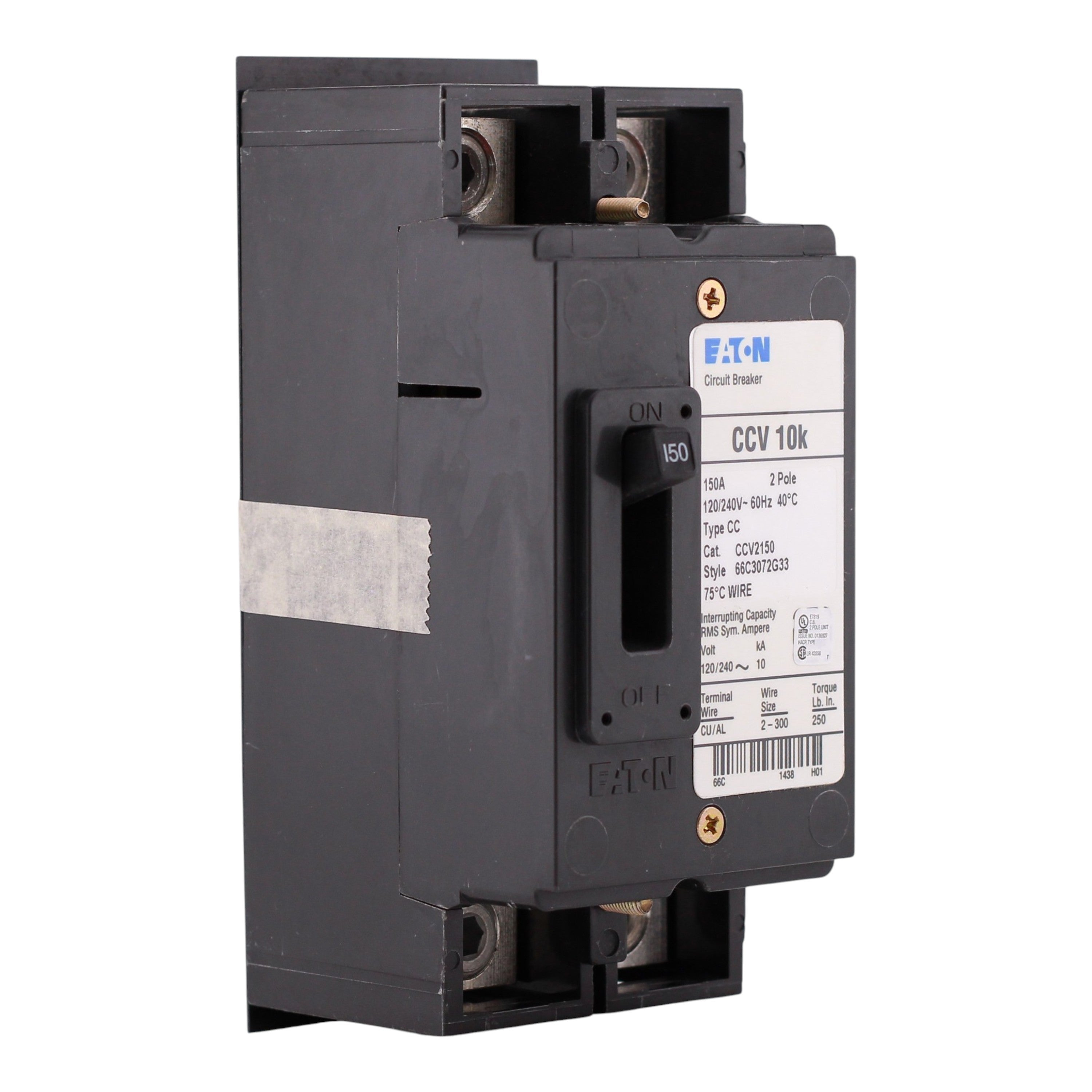

Eaton CCV, CCV2150, 150A, 2P, 120/240V, Tenant Main Circuit Breaker, 10kA, UL Listed
Eaton CCV, CCV2150, 150A, 2P, 120/240V, Tenant Main Circuit Breaker, 10kA, UL Listed - Image 2
Eaton CCV, CCV2150, 150A, 2P, 120/240V, Tenant Main Circuit Breaker, 10kA, UL Listed - Image 3
Eaton CCV, CCV2150, 150A, 2P, 120/240V, Tenant Main Circuit Breaker, 10kA, UL Listed - Image 4
Eaton CCV, CCV2150, 150A, 2P, 120/240V, Tenant Main Circuit Breaker, 10kA, UL Listed - Image 5
Eaton CCV, CCV2150, 150A, 2P, 120/240V, Tenant Main Circuit Breaker, 10kA, UL Listed - Image 6
Eaton CCV, CCV2150, 150A, 2P, 120/240V, Tenant Main Circuit Breaker, 10kA, UL Listed - Image 7
Eaton CCV, CCV2150, 150A, 2P, 120/240V, Tenant Main Circuit Breaker, 10kA, UL Listed - Image 8
Eaton CCV, CCV2150, 150A, 2P, 120/240V, Tenant Main Circuit Breaker, 10kA, UL Listed - Image 9
Eaton CCV, CCV2150, 150A, 2P, 120/240V, Tenant Main Circuit Breaker, 10kA, UL Listed

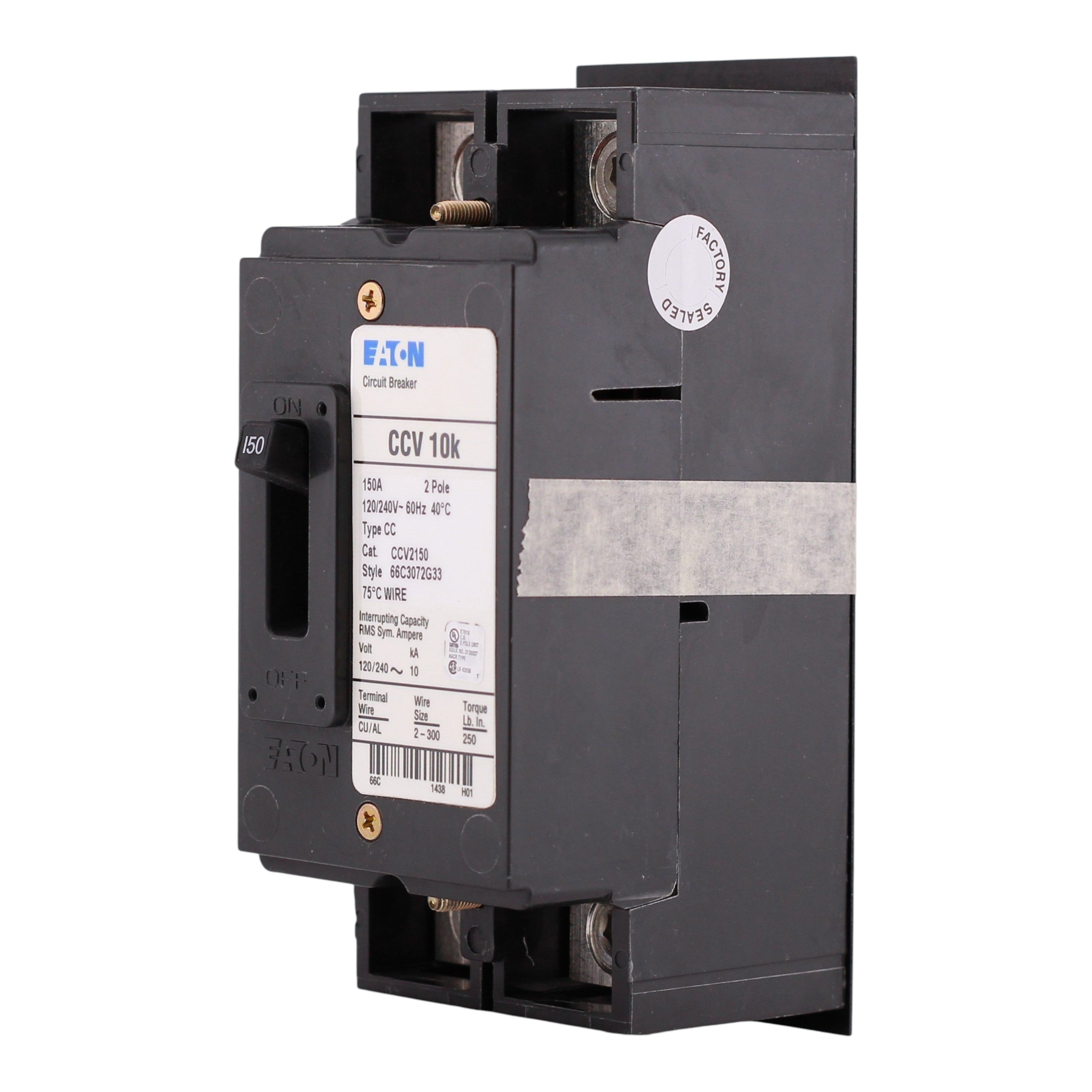

Eaton CCV, CCV2150, 150A, 2P, 120/240V, Tenant Main Circuit Breaker, 10kA, UL Listed - Image 2

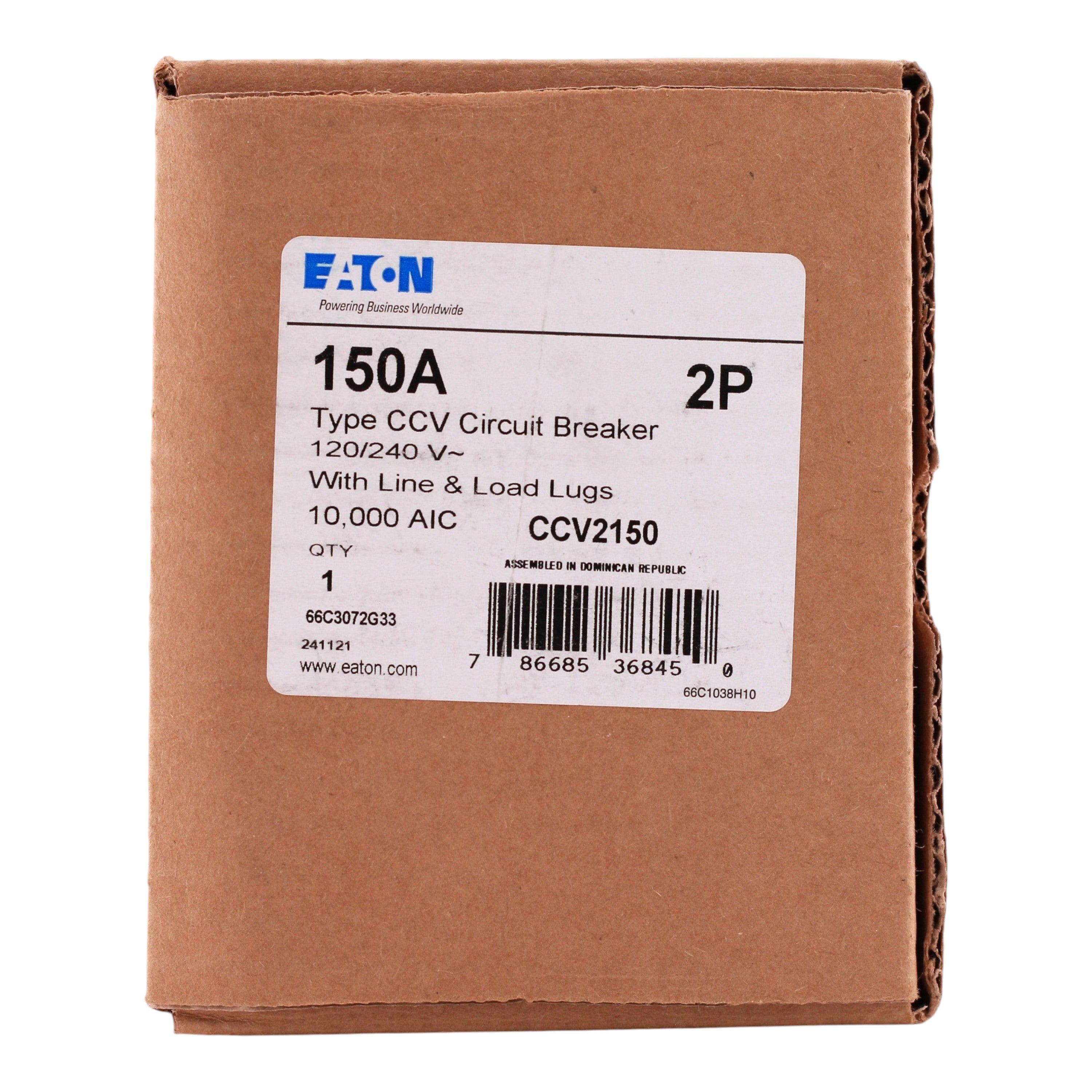

Eaton CCV, CCV2150, 150A, 2P, 120/240V, Tenant Main Circuit Breaker, 10kA, UL Listed - Image 3

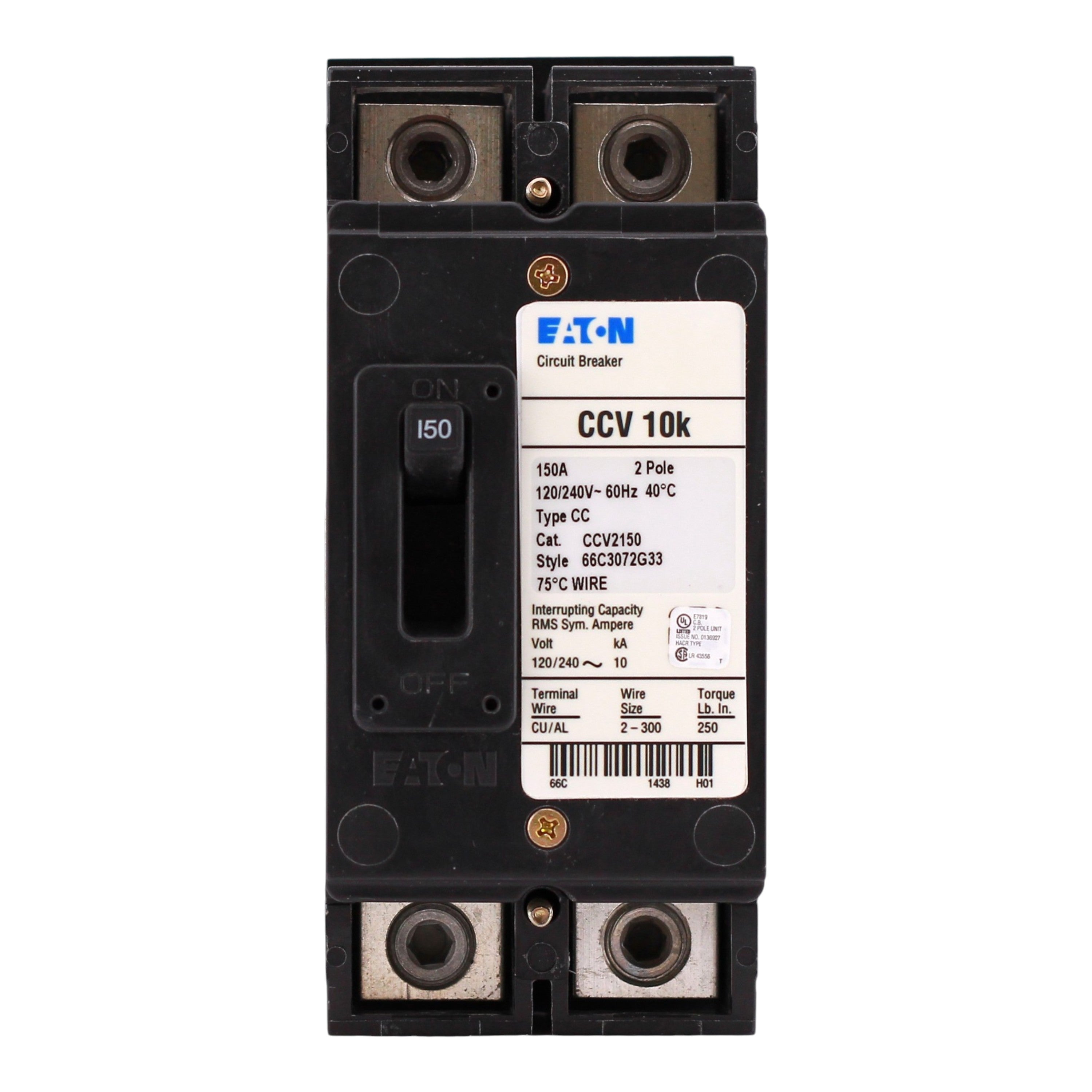

Eaton CCV, CCV2150, 150A, 2P, 120/240V, Tenant Main Circuit Breaker, 10kA, UL Listed - Image 4

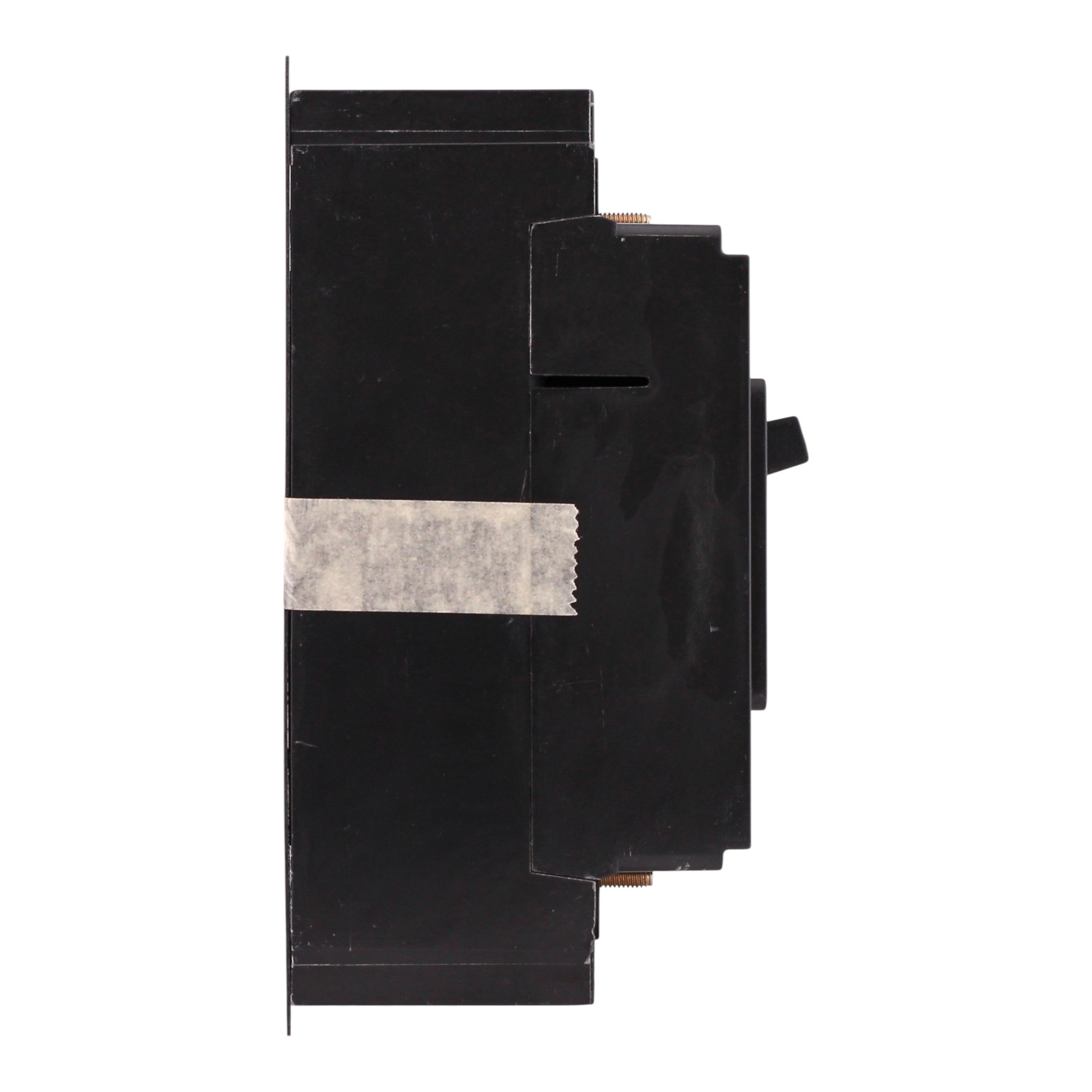

Eaton CCV, CCV2150, 150A, 2P, 120/240V, Tenant Main Circuit Breaker, 10kA, UL Listed - Image 5

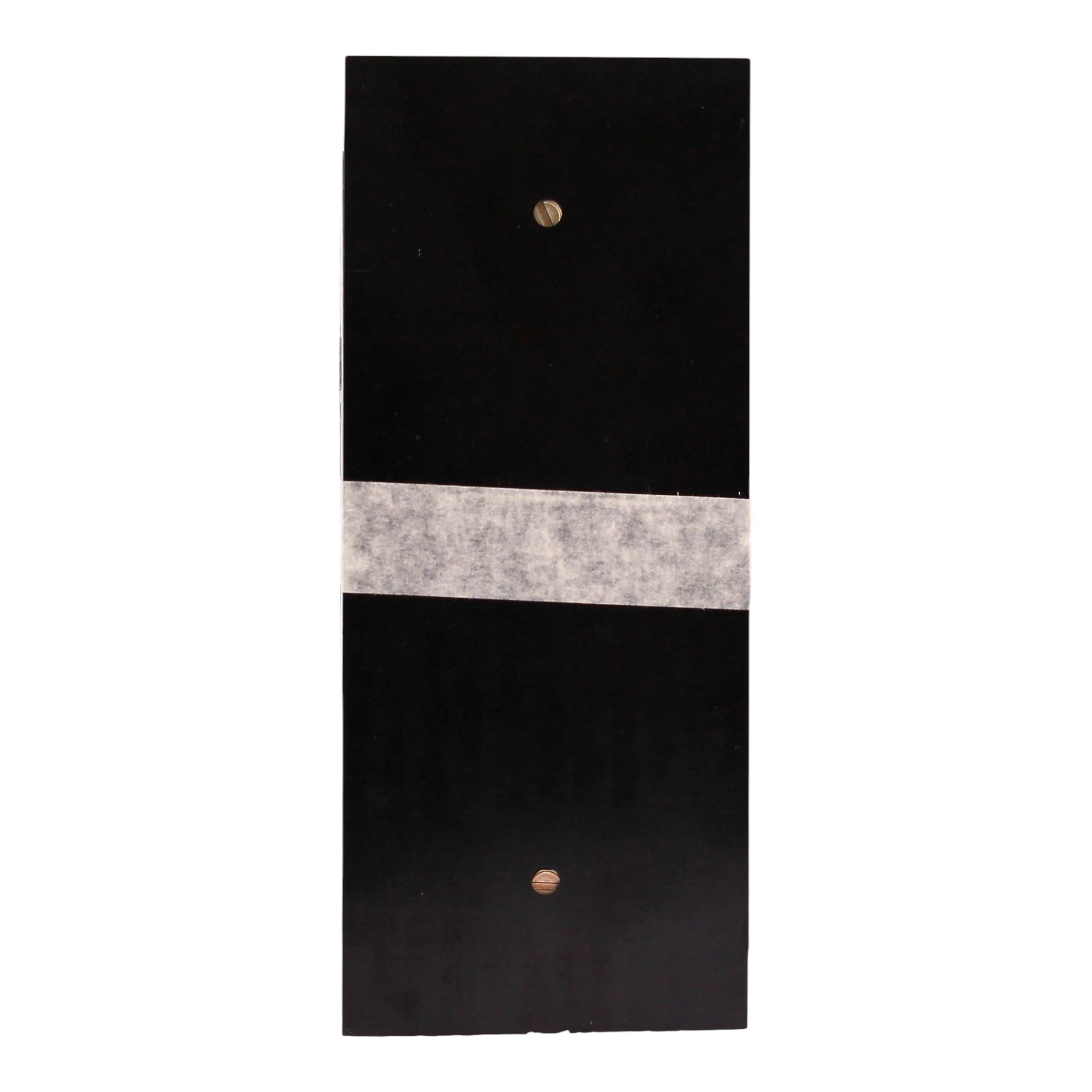

Eaton CCV, CCV2150, 150A, 2P, 120/240V, Tenant Main Circuit Breaker, 10kA, UL Listed - Image 6

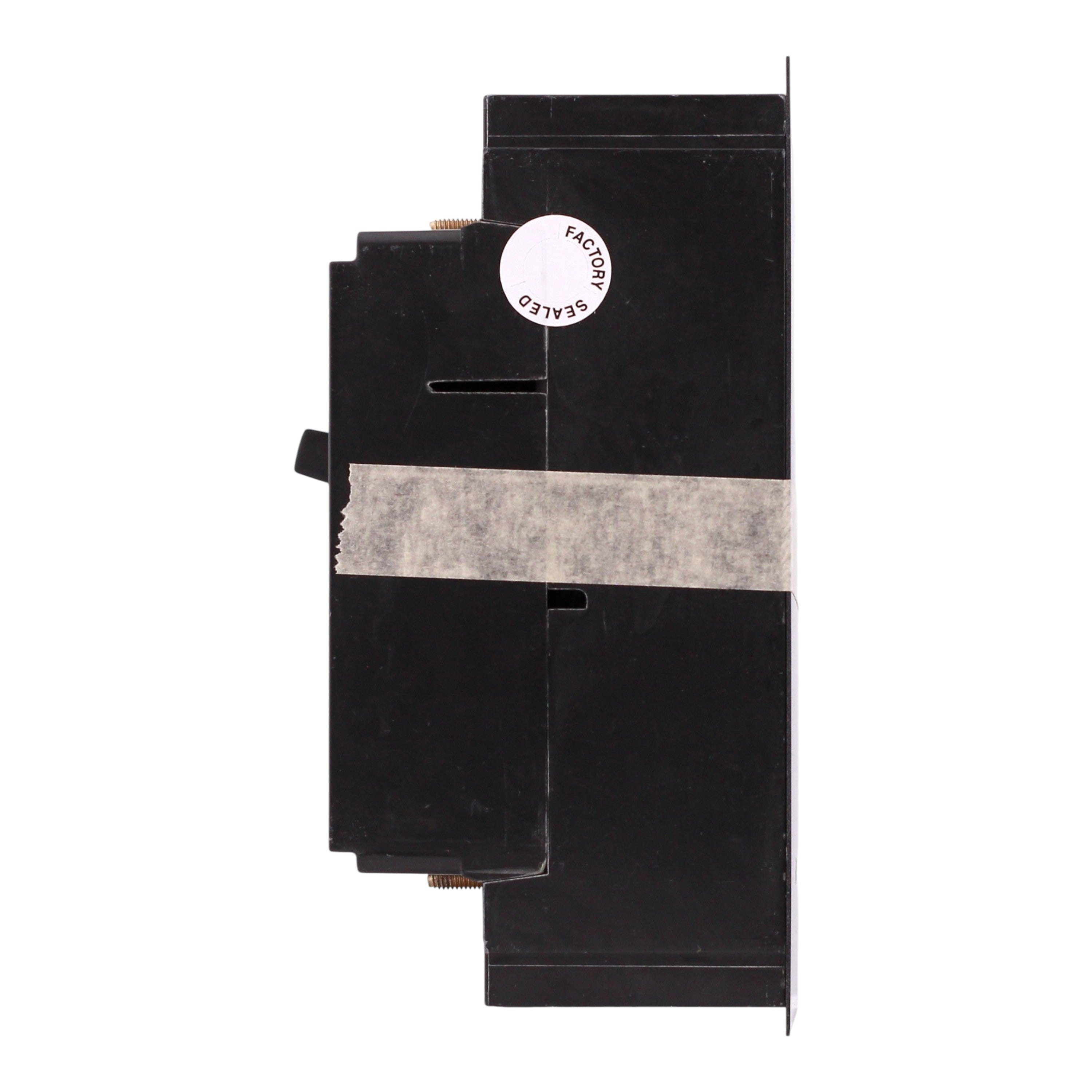

Eaton CCV, CCV2150, 150A, 2P, 120/240V, Tenant Main Circuit Breaker, 10kA, UL Listed - Image 7

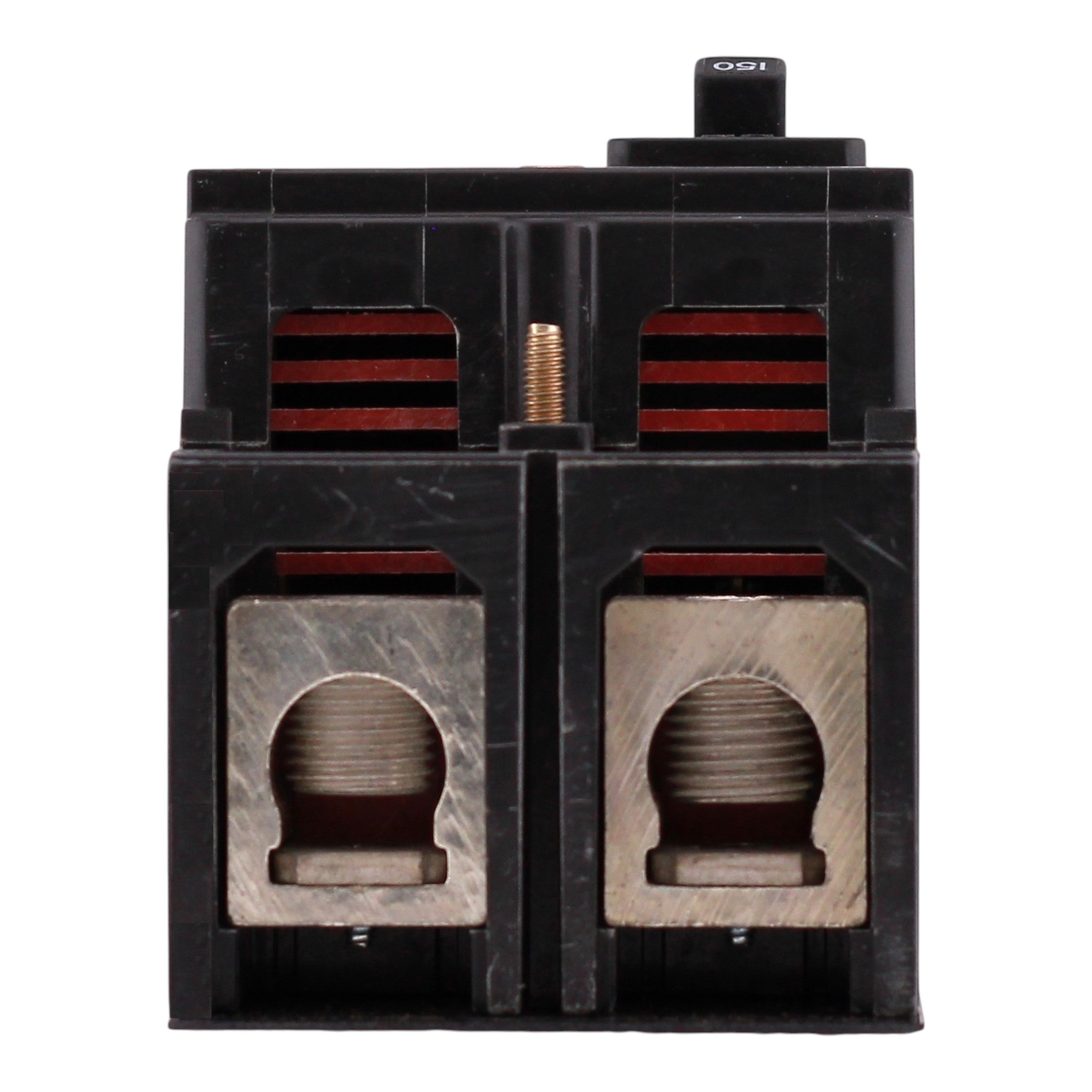

Eaton CCV, CCV2150, 150A, 2P, 120/240V, Tenant Main Circuit Breaker, 10kA, UL Listed - Image 8

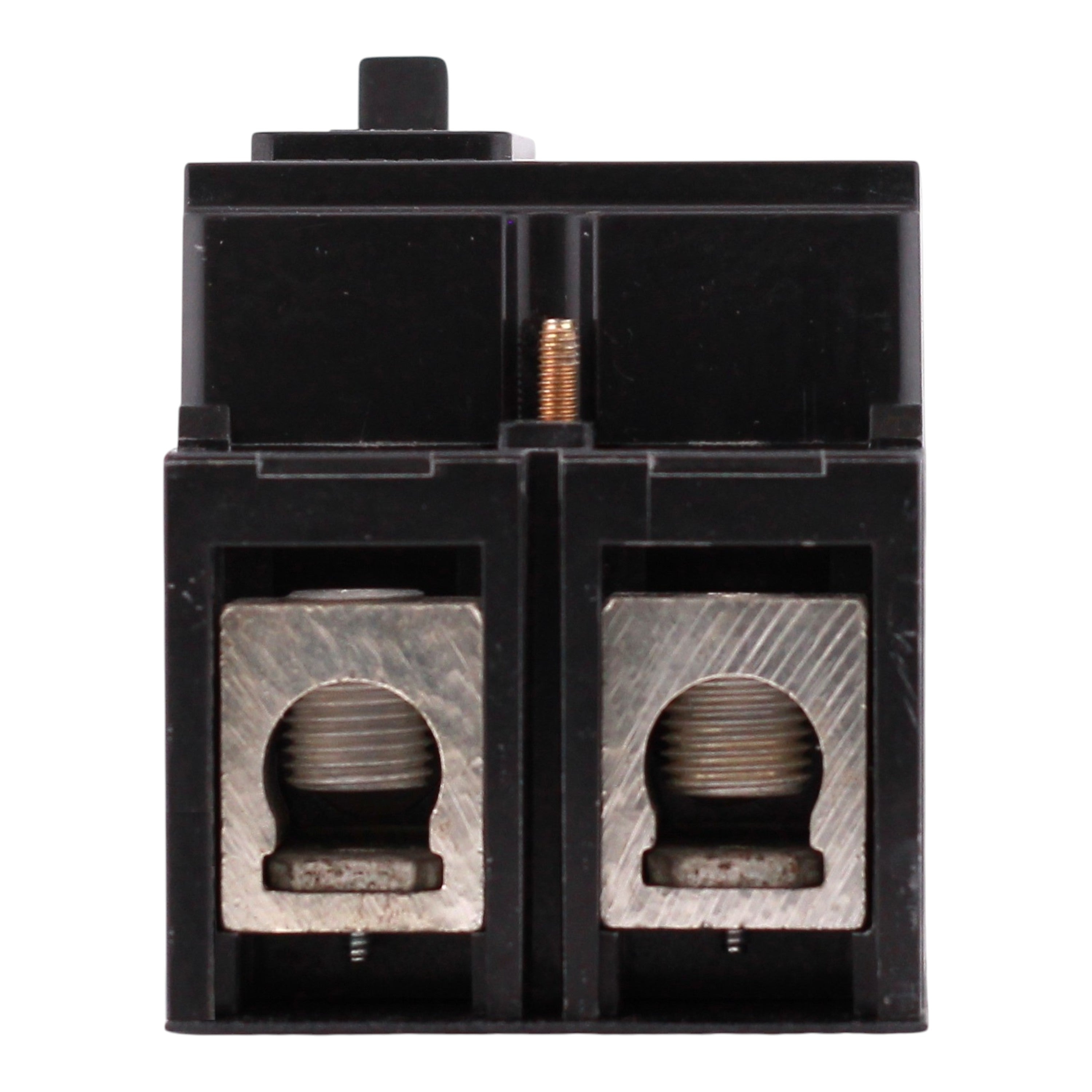

Eaton CCV, CCV2150, 150A, 2P, 120/240V, Tenant Main Circuit Breaker, 10kA, UL Listed - Image 9

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eaton

Eaton CCV, CCV2150, 150A, 2P, 120/240V, Tenant Main Circuit Breaker, 10kA, UL Listed

SKU: CCV2150
(0)
$125.00
-55% $279.99 $125.00
Out of stock
Condition

Eaton CCV2150: 150 Amp, 2-Pole, CCV Tenant Main Circuit Breaker, 120/240V, 10kA, #2/0–300 kcmil Cu/Al, for Type ECC Unit Enclosures, UL Listed.

  • Manufacturer: Eaton
  • Brand: Eaton
  • Product Range: CCV (Type CCV — for Eaton Type ECC unit enclosures)
  • UPC: 786685368450
  • Model Number: CCV2150
  • Product Type: Tenant Main Circuit Breaker
  • Frame Type: CCV
  • Amperage: 150 Amps
  • Poles: 2-Pole
  • Voltage: 120/240 Volts AC
  • Interrupt Rating: 10 kAIC
  • Mounting Mode: Fixed mount (in Type ECC unit enclosure)
  • Connections / Terminals: Standard lugs — suitable for copper or aluminum conductors
  • Wire Size: #2/0 AWG–300 kcmil Cu/Al
  • Dimensions: Height: 5.4 in; Width: 4.5 in; Depth: 7.7 in
  • Weight: 2.9 lbs
  • Certifications: UL 489

This Eaton CCV2150 tenant main circuit breaker delivers reliable 150 Amp, 2-Pole overcurrent protection for 120/240V circuits in Eaton Type ECC unit enclosures. Designed for multi-tenant residential and light commercial applications, it features standard lug terminals rated for both copper and aluminum conductors up to 300 kcmil.
