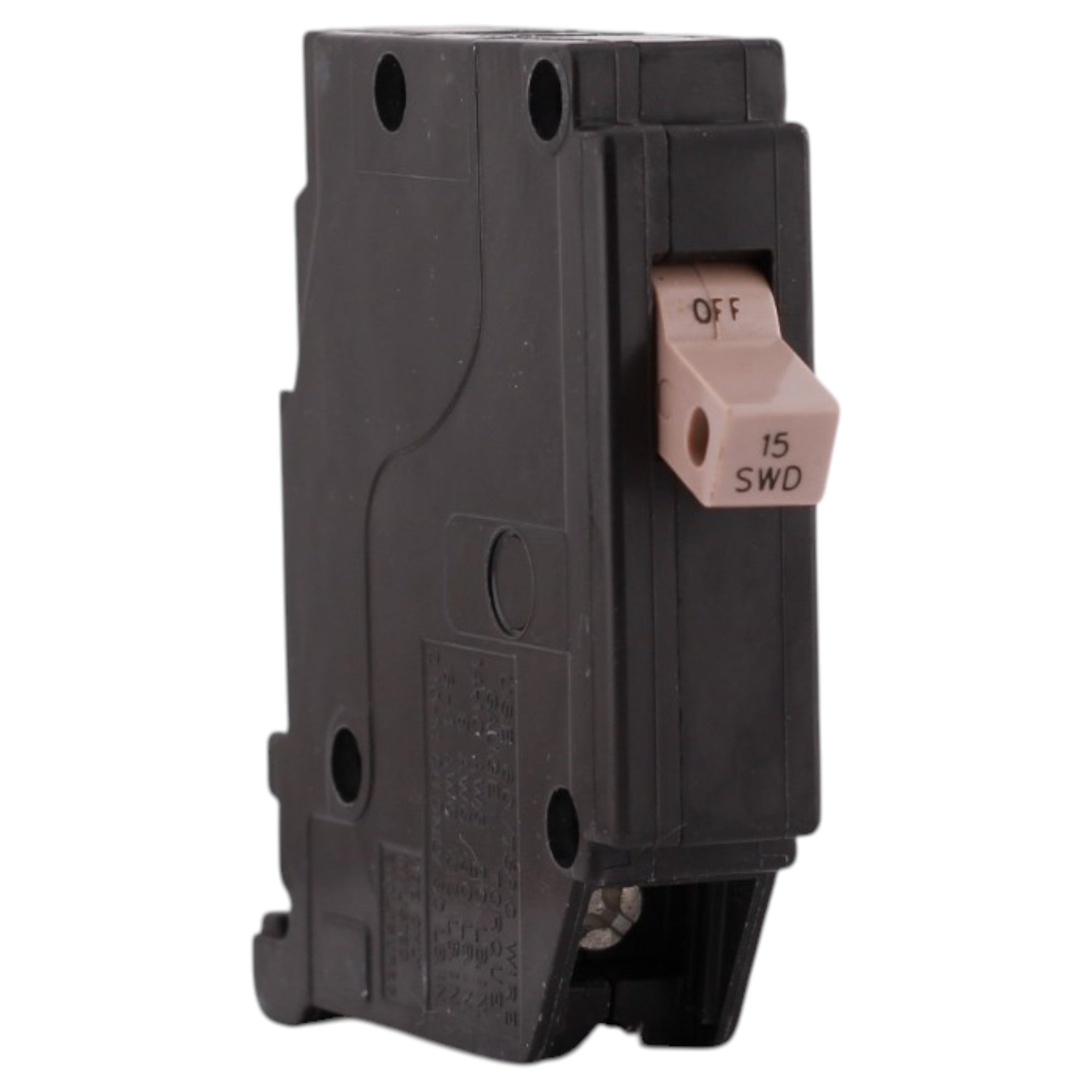

Eaton CH, CH115, 15A, 1P, 120/240V, Thermal Magnetic, Circuit Breaker

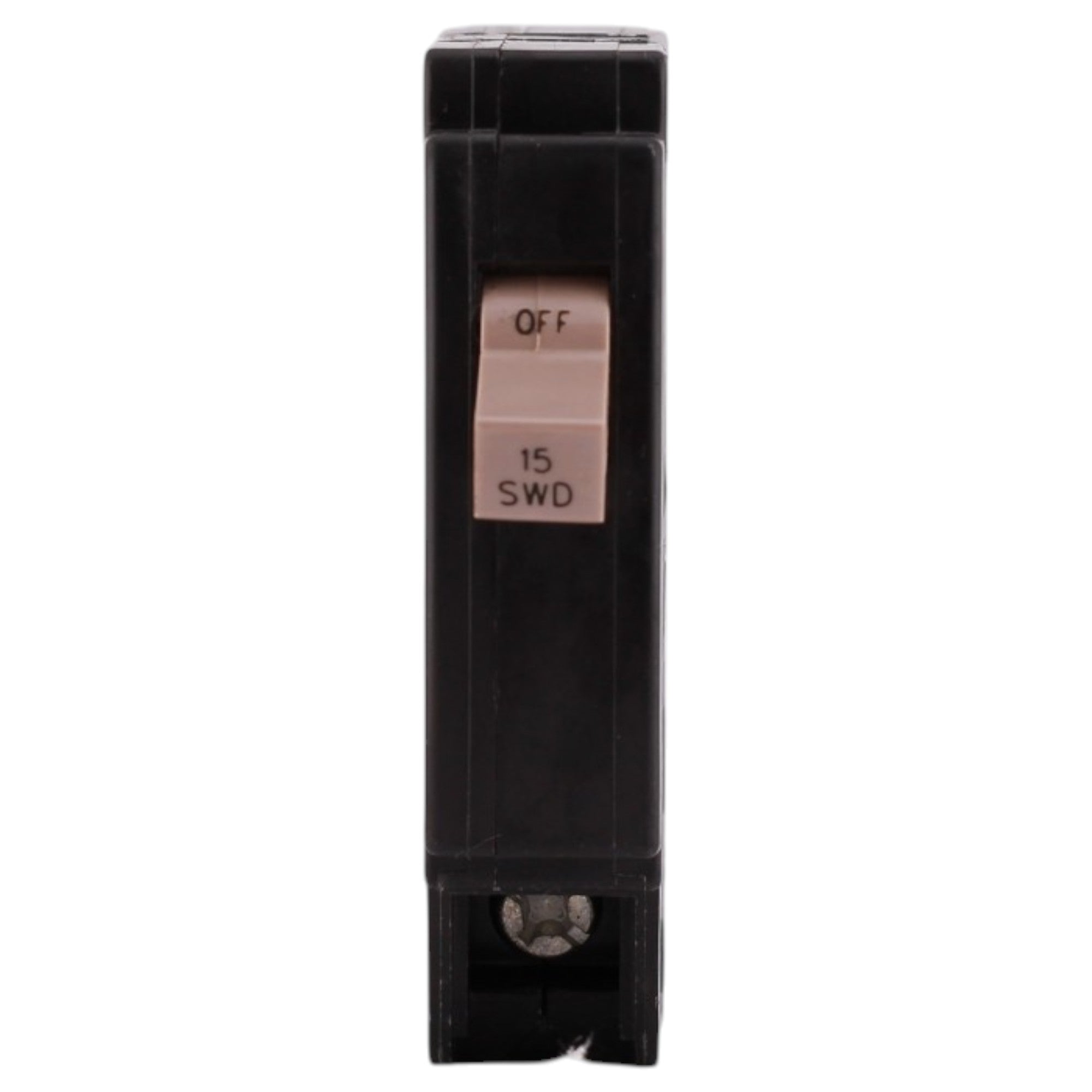

Eaton CH, CH115, 15A, 1P, 120/240V, Thermal Magnetic, Circuit Breaker - Image 2

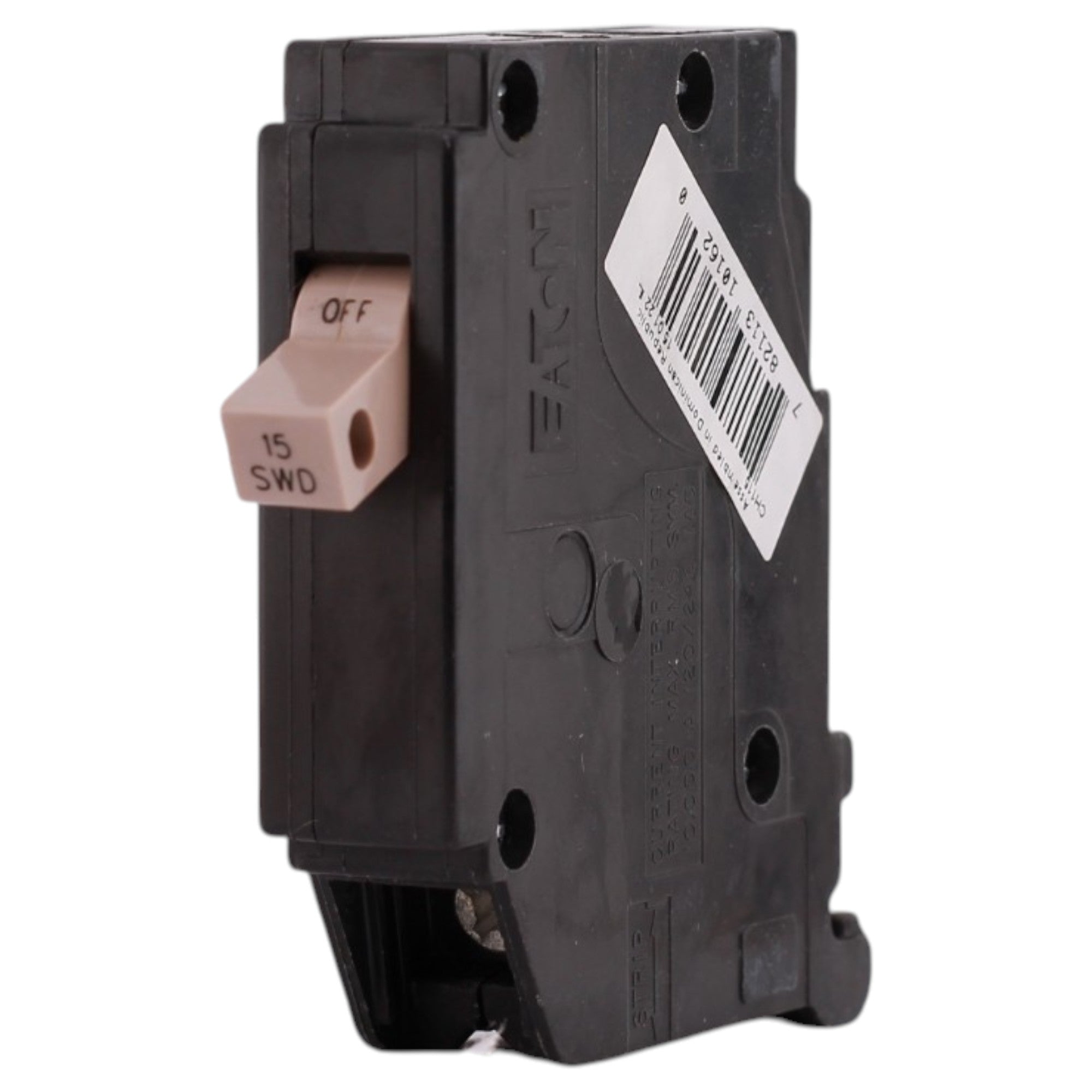

Eaton CH, CH115, 15A, 1P, 120/240V, Thermal Magnetic, Circuit Breaker - Image 3

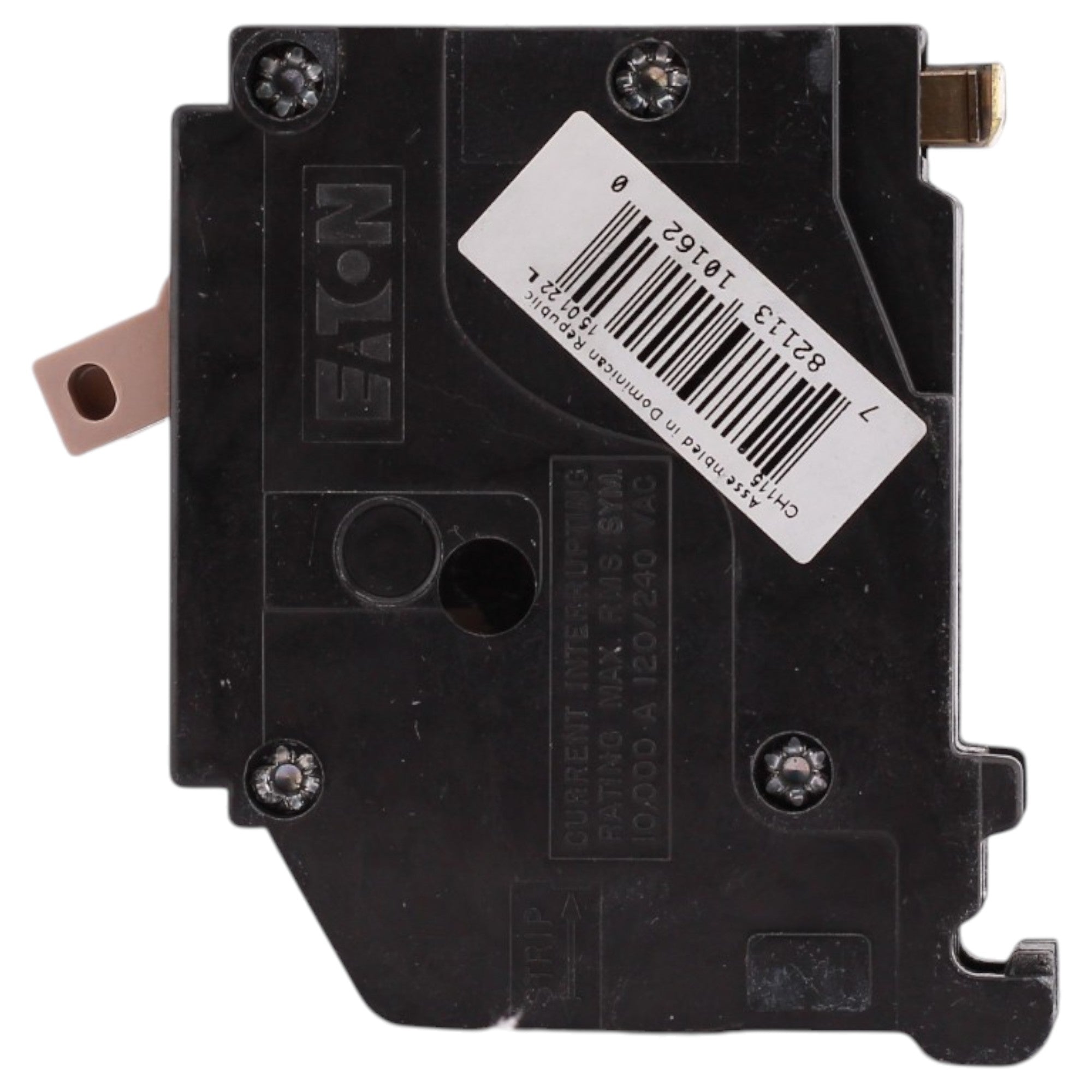

Eaton CH, CH115, 15A, 1P, 120/240V, Thermal Magnetic, Circuit Breaker - Image 4

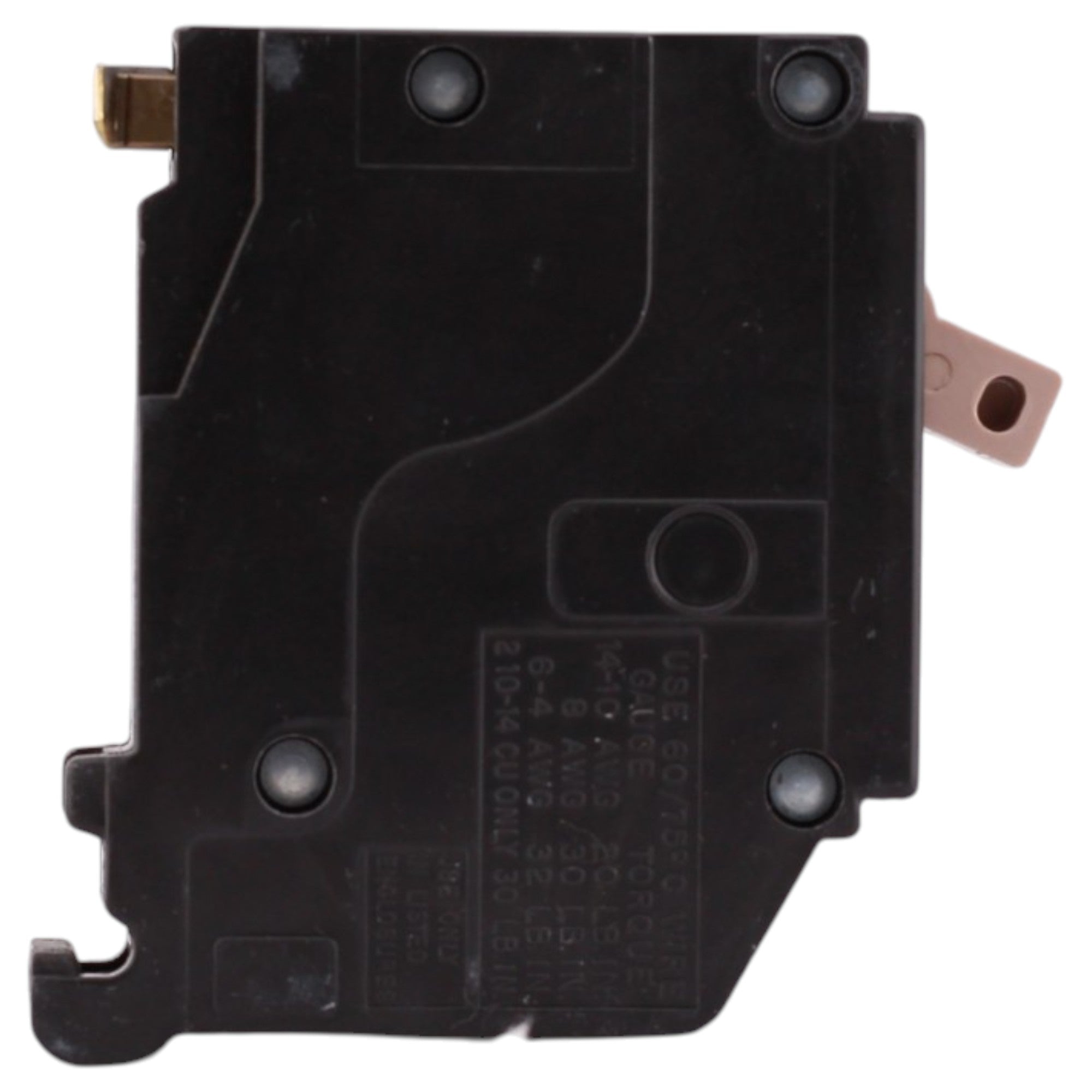

Eaton CH, CH115, 15A, 1P, 120/240V, Thermal Magnetic, Circuit Breaker - Image 5

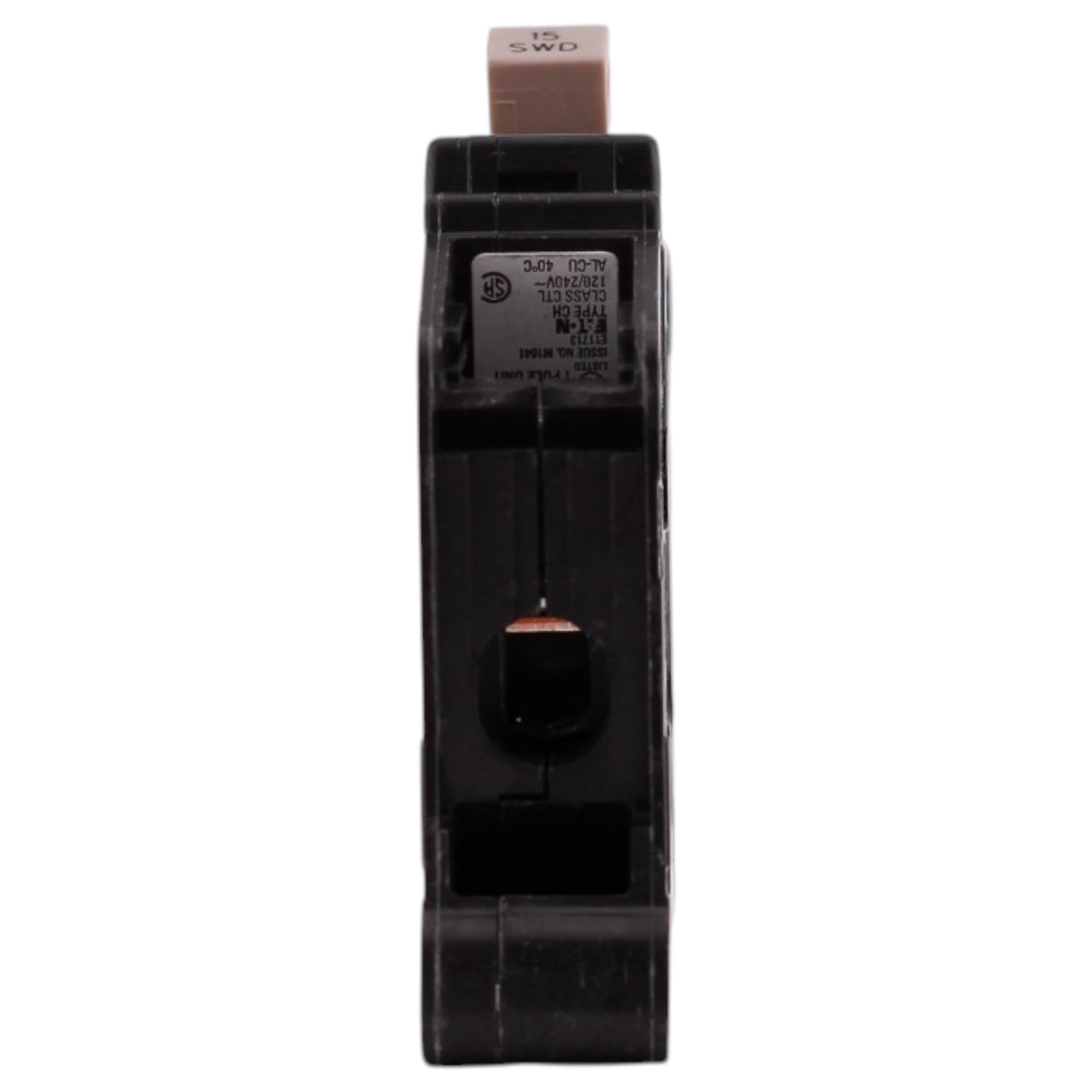

Eaton CH, CH115, 15A, 1P, 120/240V, Thermal Magnetic, Circuit Breaker - Image 6

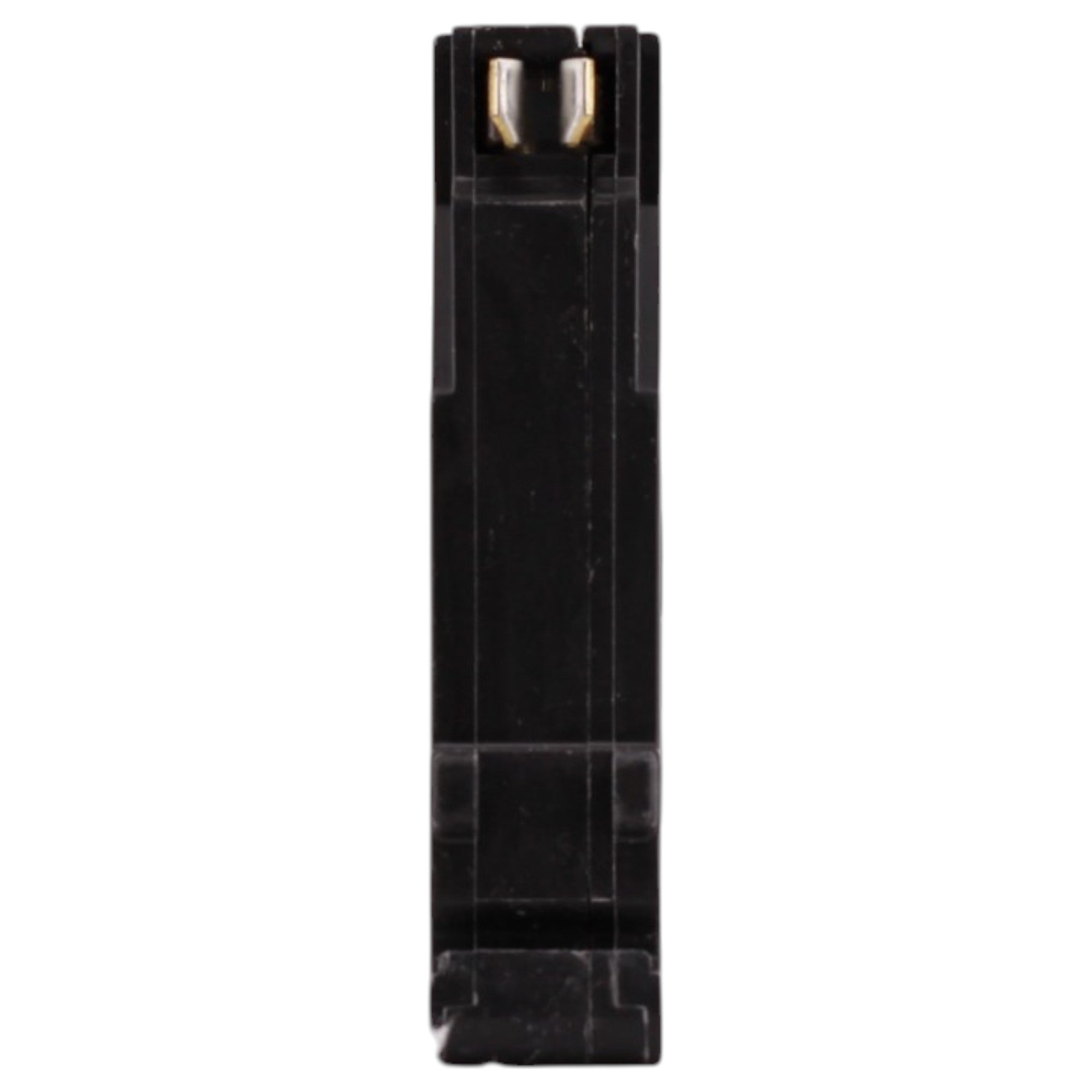

Eaton CH, CH115, 15A, 1P, 120/240V, Thermal Magnetic, Circuit Breaker - Image 7

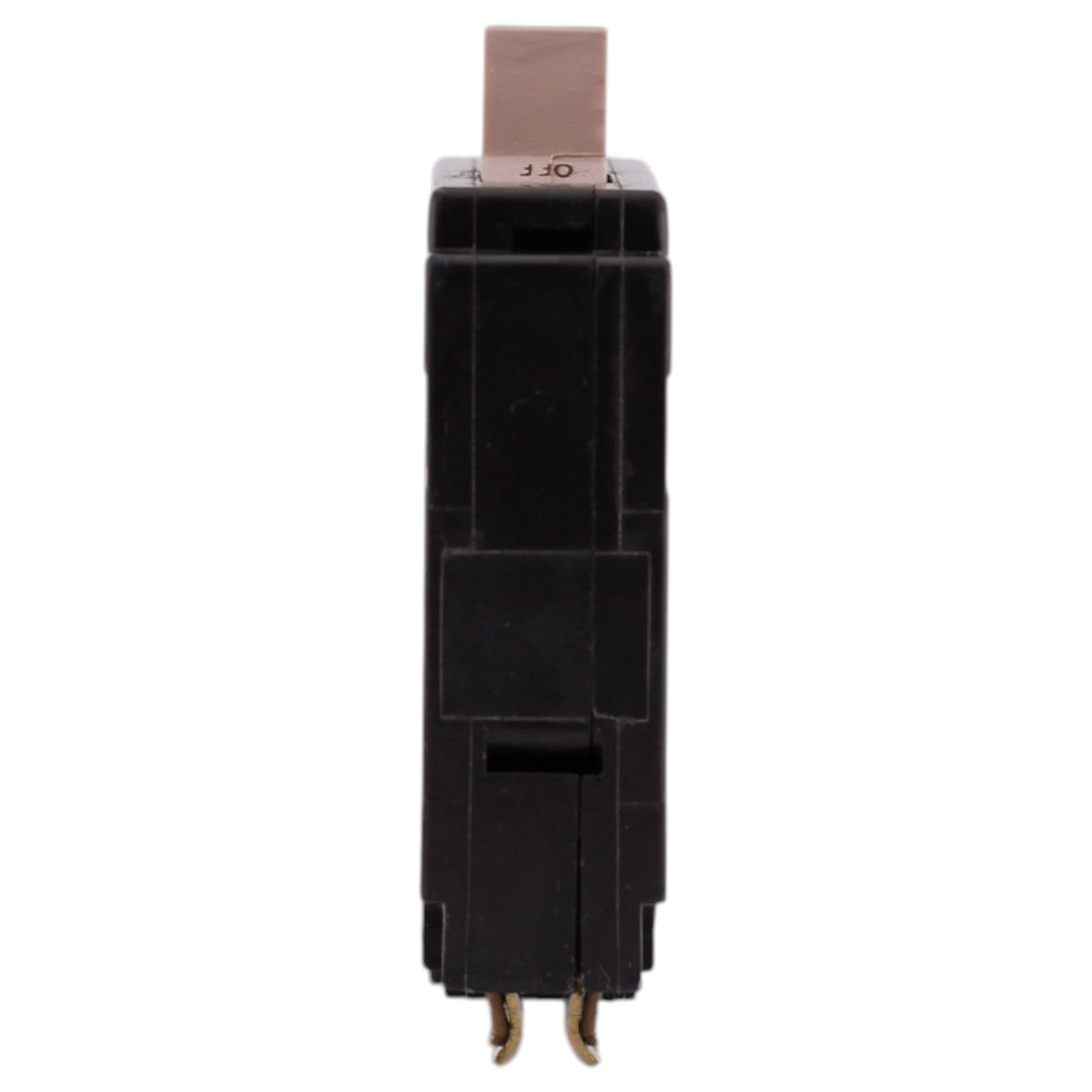

Eaton CH, CH115, 15A, 1P, 120/240V, Thermal Magnetic, Circuit Breaker - Image 8
Eaton CH, CH115, 15A, 1P, 120/240V, Thermal Magnetic, Circuit Breaker
Eaton CH, CH115, 15A, 1P, 120/240V, Thermal Magnetic, Circuit Breaker - Image 2
Eaton CH, CH115, 15A, 1P, 120/240V, Thermal Magnetic, Circuit Breaker - Image 3
Eaton CH, CH115, 15A, 1P, 120/240V, Thermal Magnetic, Circuit Breaker - Image 4
Eaton CH, CH115, 15A, 1P, 120/240V, Thermal Magnetic, Circuit Breaker - Image 5
Eaton CH, CH115, 15A, 1P, 120/240V, Thermal Magnetic, Circuit Breaker - Image 6
Eaton CH, CH115, 15A, 1P, 120/240V, Thermal Magnetic, Circuit Breaker - Image 7
Eaton CH, CH115, 15A, 1P, 120/240V, Thermal Magnetic, Circuit Breaker - Image 8

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eaton

Eaton CH, CH115, 15A, 1P, 120/240V, Thermal Magnetic, Circuit Breaker

SKU: CH115
(0)
$9.00
-40% $15.00 $9.00
Out of stock
Condition

Eaton CH115: 15 Amp, 1-Pole, thermal magnetic circuit breaker, 120/240V AC, 10kA interrupt rating, plug-in mounting, UL listed.

  • Manufacturer: Eaton (formerly Cutler-Hammer)
  • Brand: Eaton
  • Product Range: CH (for Eaton Type CH loadcenters and residential panels)
  • UPC: 782113101620
  • Model Number: CH115
  • Breaker Type: Thermal Magnetic Circuit Breaker
  • Amperage: 15 Amps
  • Poles: 1-Pole
  • Voltage: 120/240 Volts AC
  • Interrupt Rating: 10 kAIC
  • Mounting Mode: Plug-In (3/4-inch)
  • Connections Terminals: Plug-In
  • Wire Size: (1) #14-8 AWG copper/aluminum, (2) #14-10 AWG copper/aluminum
  • Dimensions: Height: 2.6 in; Width: 3.2 in; Depth: 0.7 in
  • Weight: 0.25 lbs
  • Certifications: UL 489 Listed, CSA Certified, HACR Rated

This Eaton CH115 thermal magnetic circuit breaker delivers dependable 15 Amp, 1-Pole protection for 120/240V AC circuits in CH loadcenters. Designed for plug-in installation with 10kA interrupt rating, it supports residential and light commercial electrical systems.
