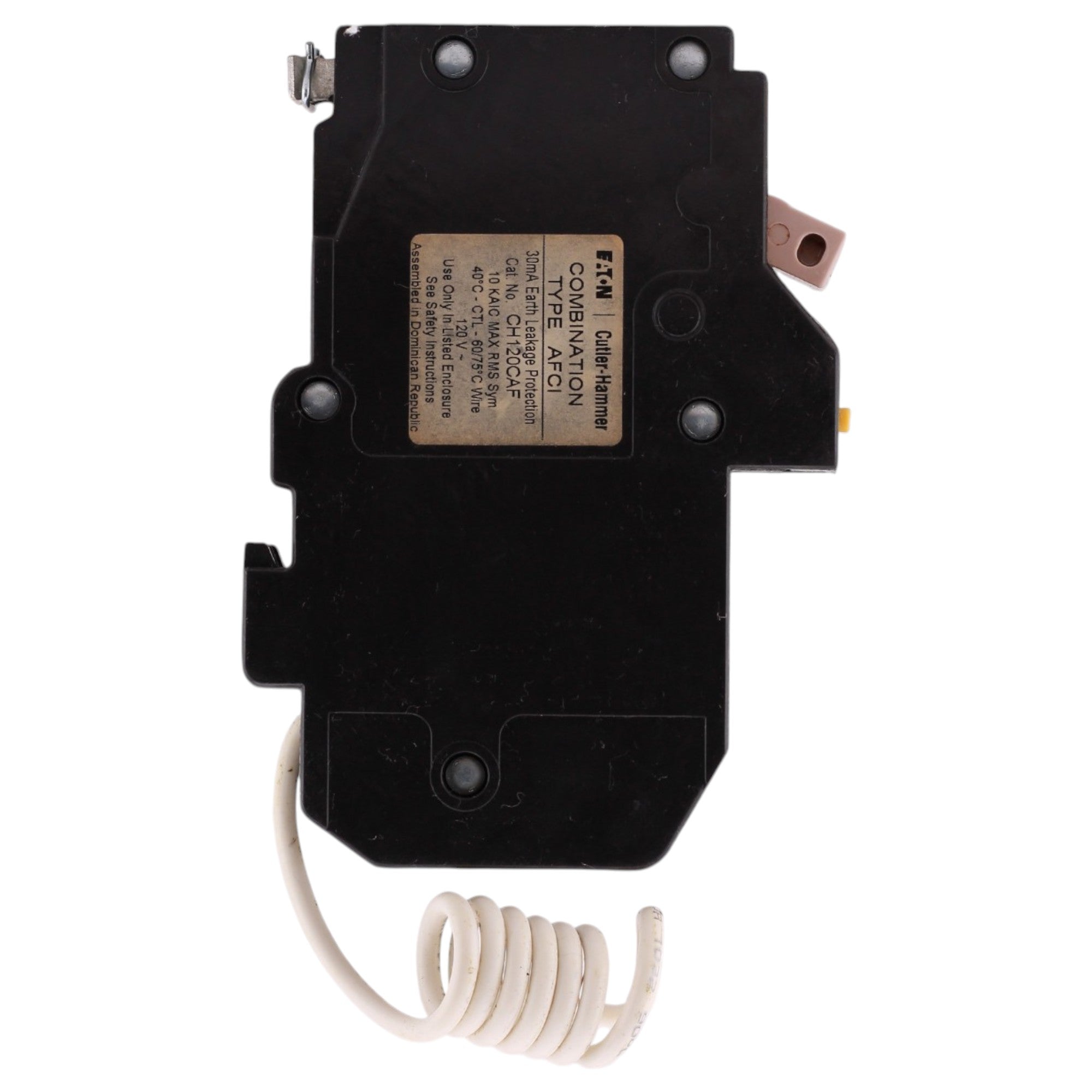

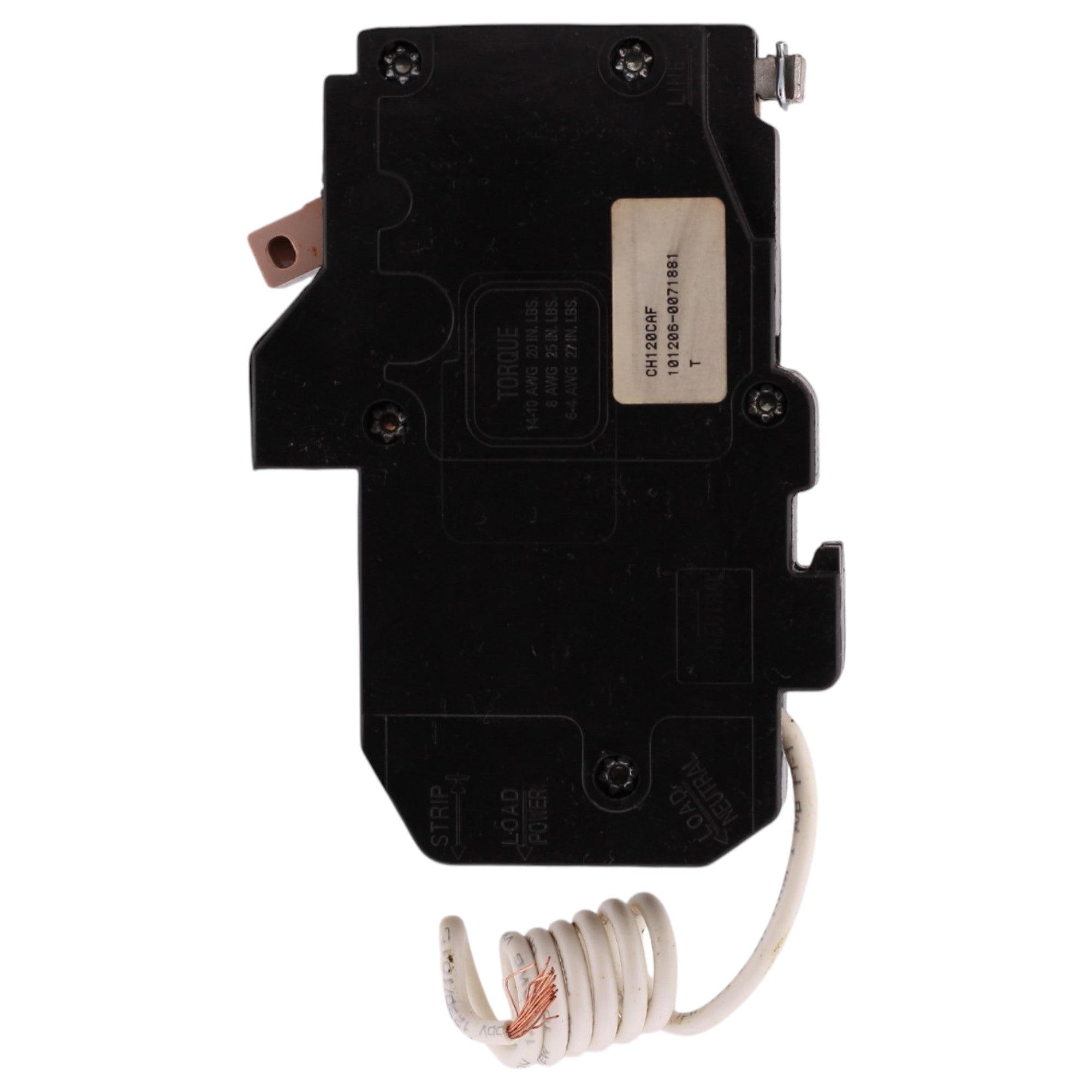

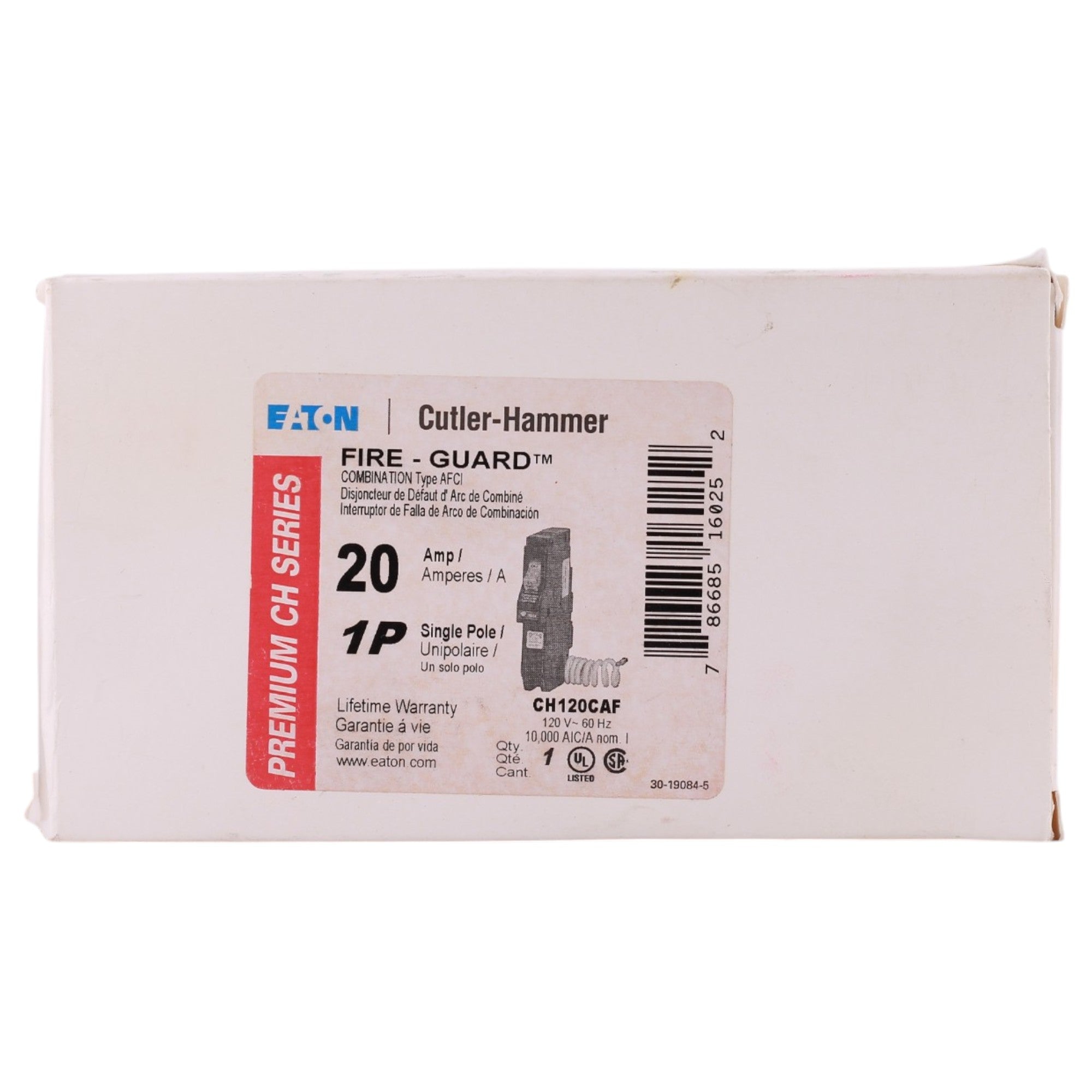

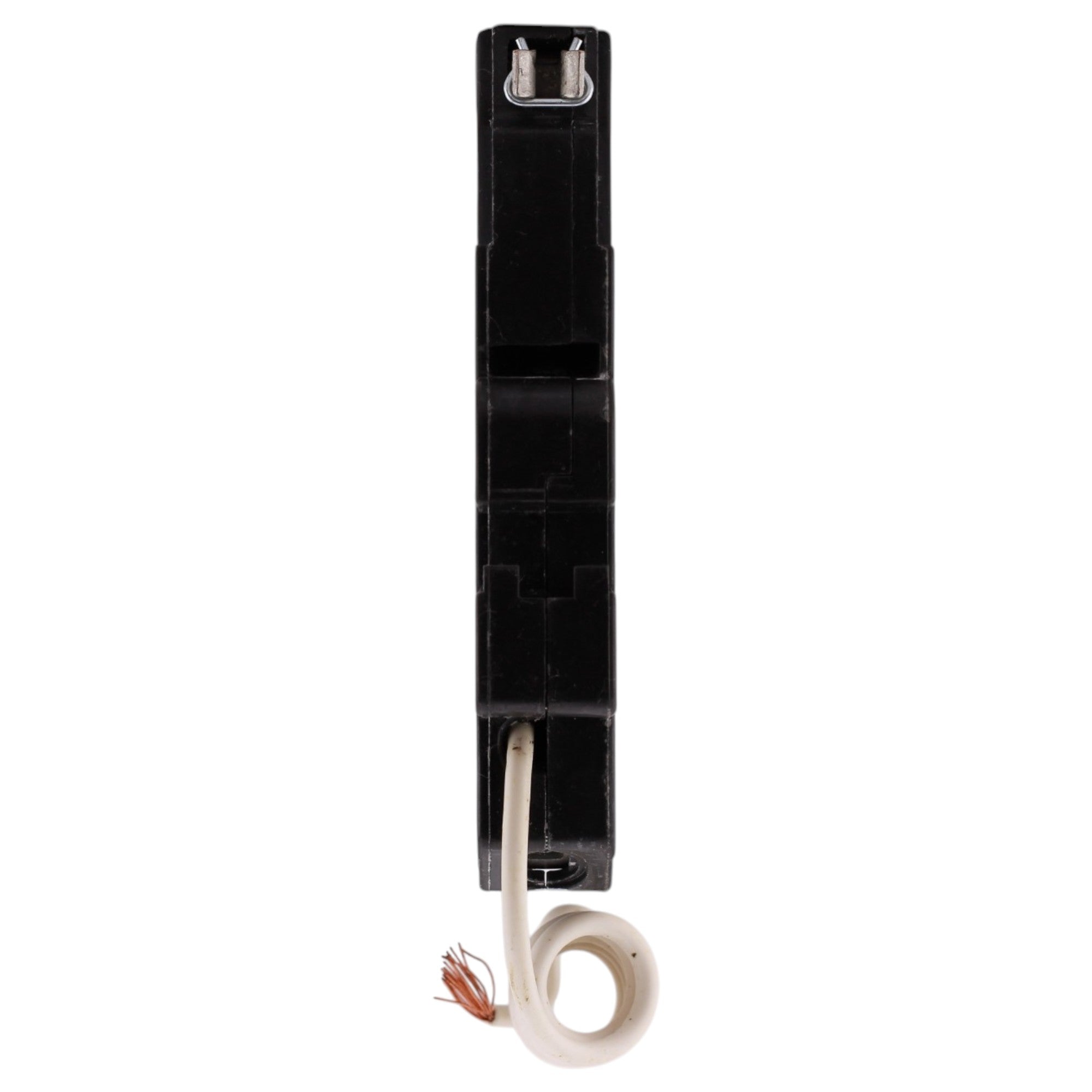

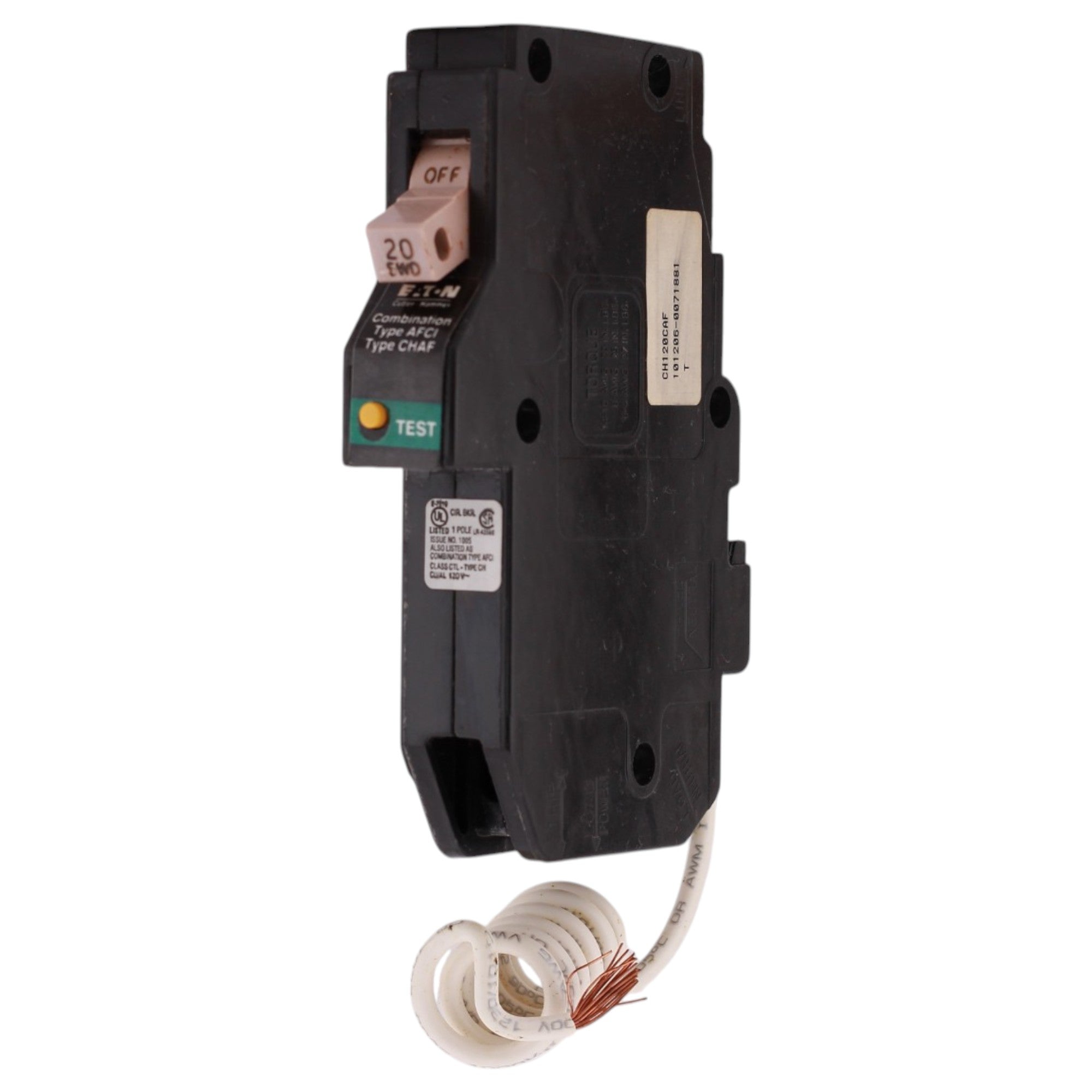

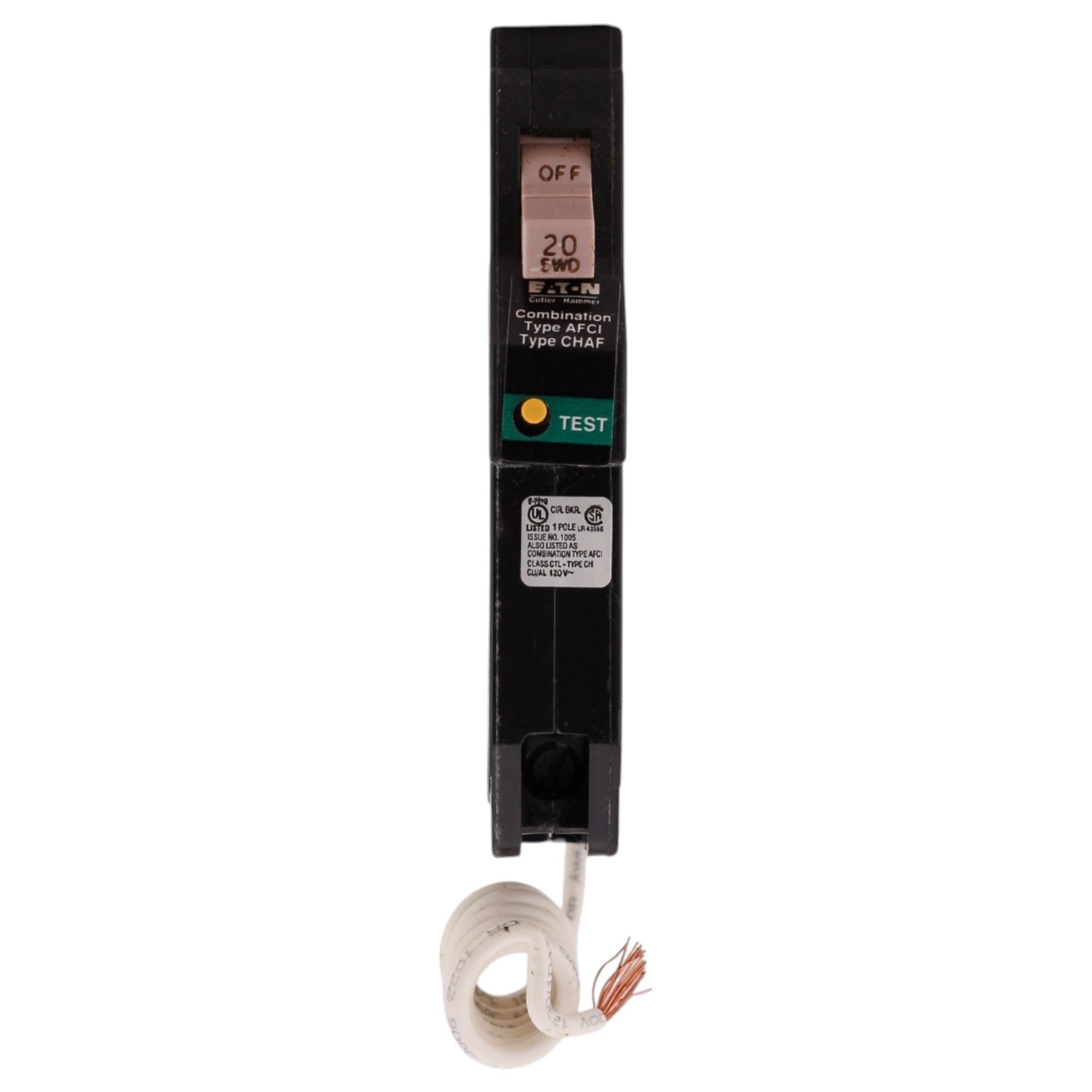

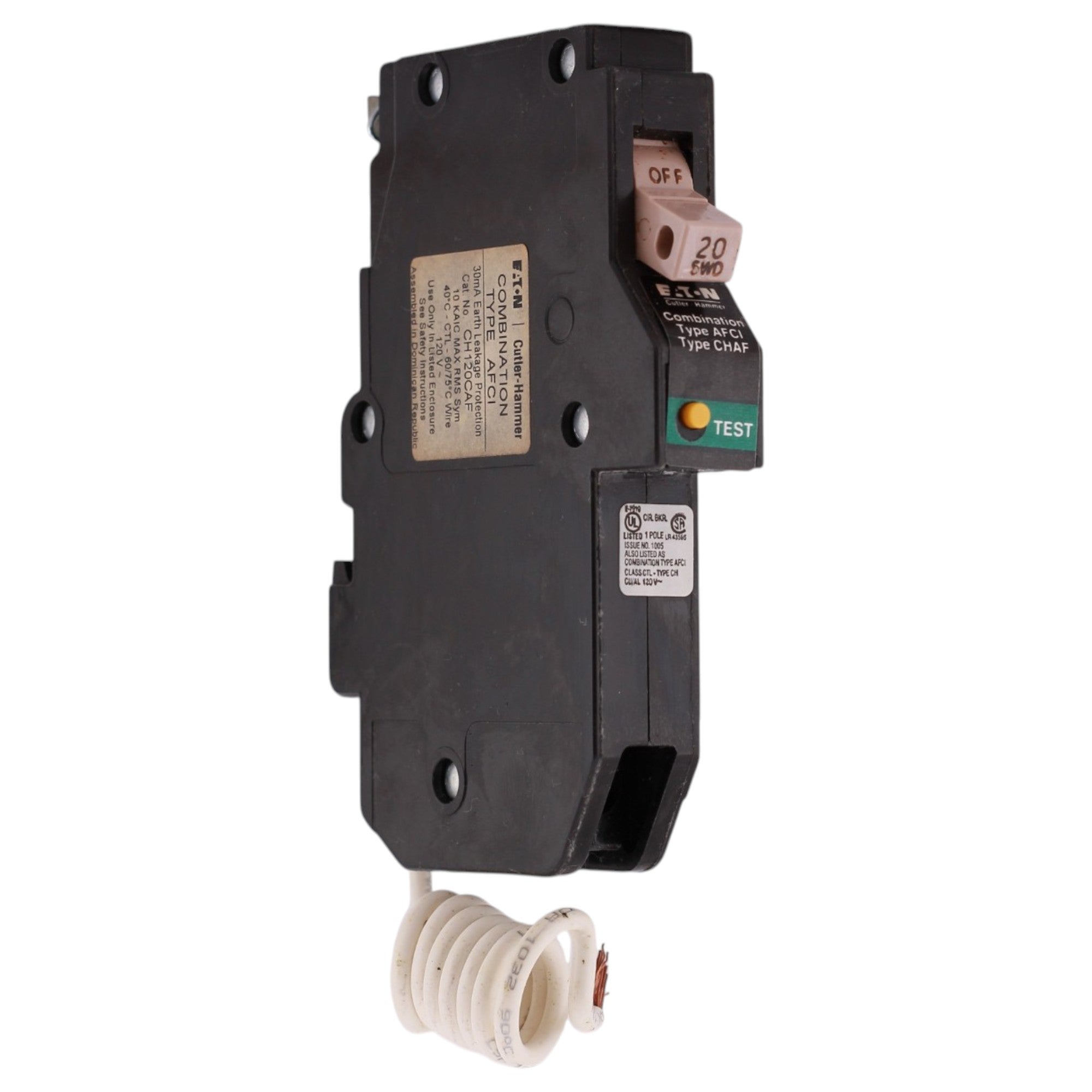

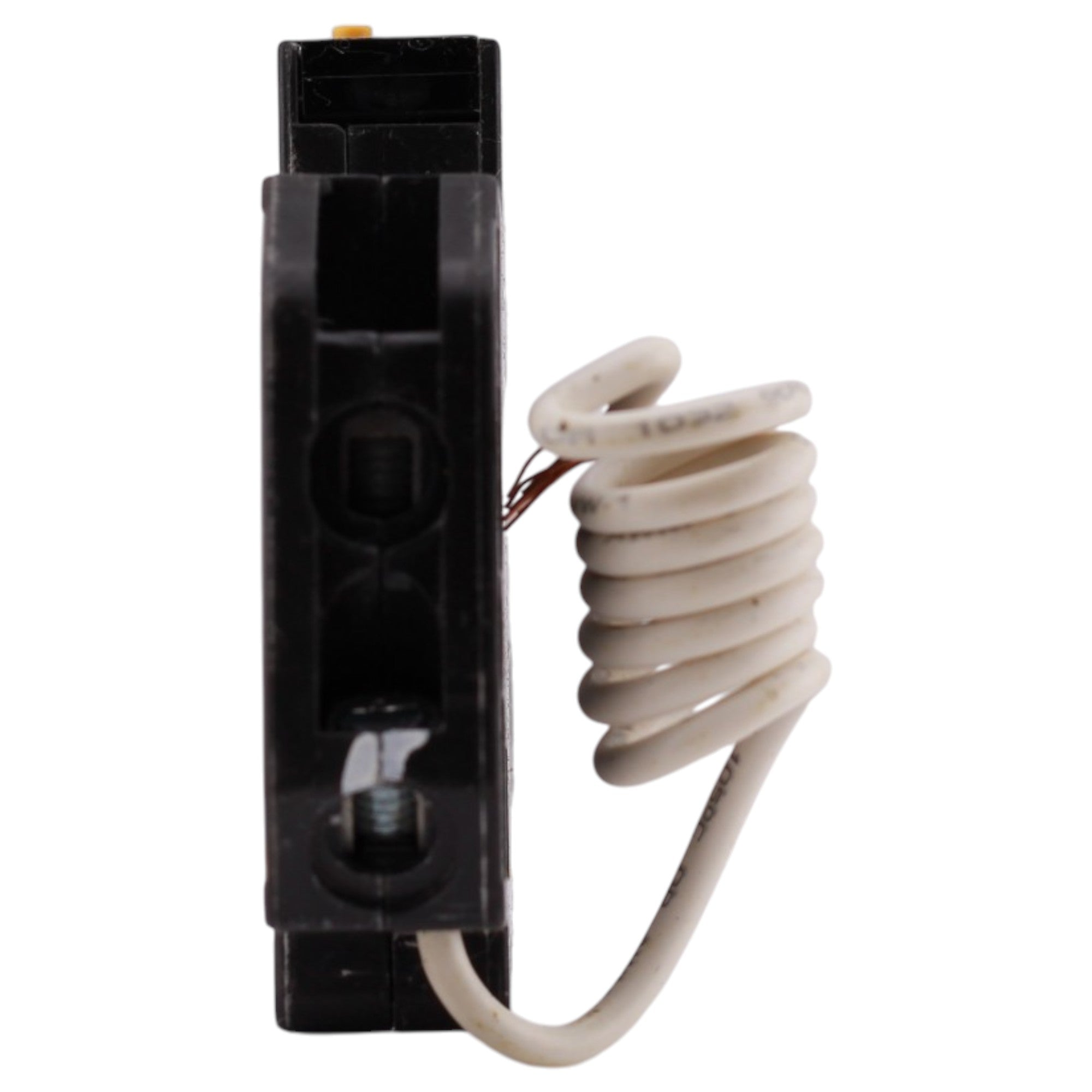

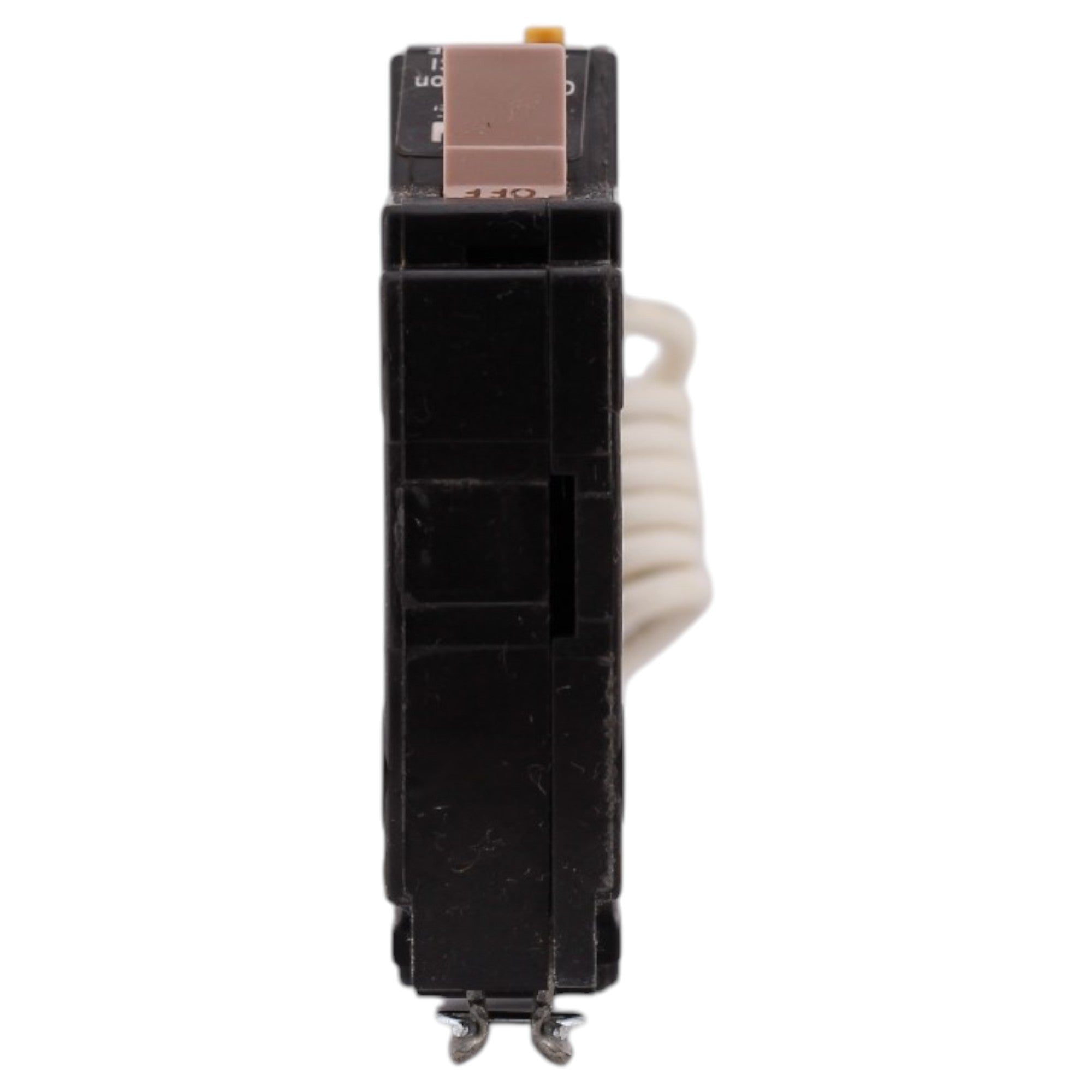

Eaton CH, CH120CAF, 20A, 1P, 120/240V, AFCI, Pigtail Neutral, Circuit Breaker

Eaton CH120CAF: 20 Amp, 1-Pole, Combination Arc-Fault Circuit Interrupter breaker, 120/240V, 10kA, pigtail neutral, UL listed, HACR rated.

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Product Range: CH (for Eaton Type CH loadcenters and residential panels)
• UPC: 786685160252
• Model Number: CH120CAF
• Breaker Type: Combination Arc-Fault Circuit Interrupter (AFCI)
• Amperage: 20 Amps
• Poles: 1-Pole
• Voltage: 120/240 Volts AC
• Interrupt Rating: 10 kAIC at 240V
• Mounting Mode: Plug-in
• Connections Terminals: Pigtail Neutral
• Wire Size: #14-8 AWG Cu, #14-10 AWG Al (two terminals); #14-8 AWG Cu/Al (one terminal)
• Certifications: UL Listed, HACR Rated
• Product Status: Discontinued (replaced by CHFCAF120)
• Weight: 0.5 lbs

This Eaton CH120CAF pigtail neutral circuit breaker provides reliable 20 Amp, 1-Pole combination AFCI protection for 120/240V circuits in CH loadcenters. With arc-fault detection and 10kA interrupt rating, it ensures enhanced fire safety for residential applications. This model has been discontinued and replaced by CHFCAF120.
