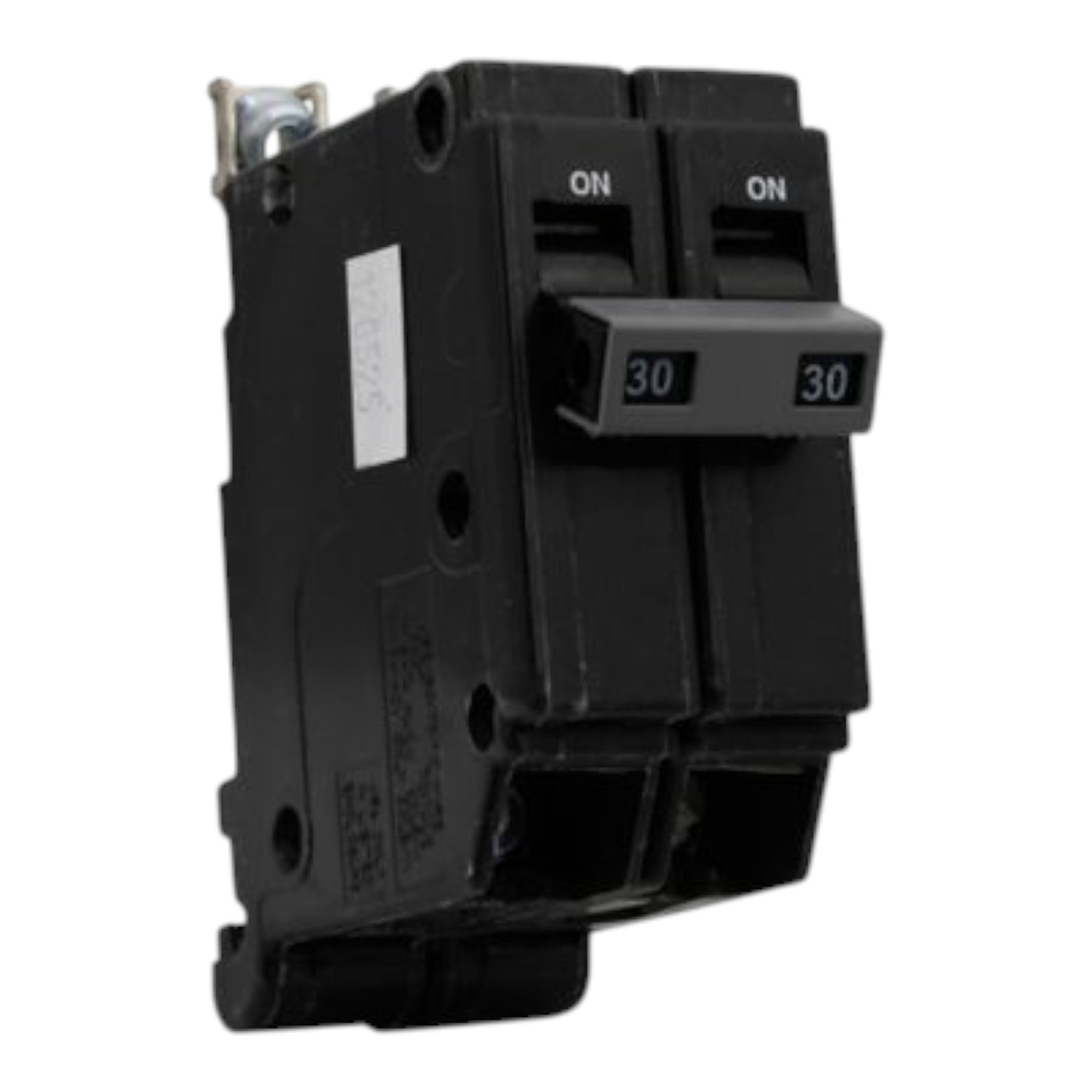

Eaton CH, CHB230, 30A, 2P, 120/240V, Standard Trip, Bolt-On, Circuit Breaker

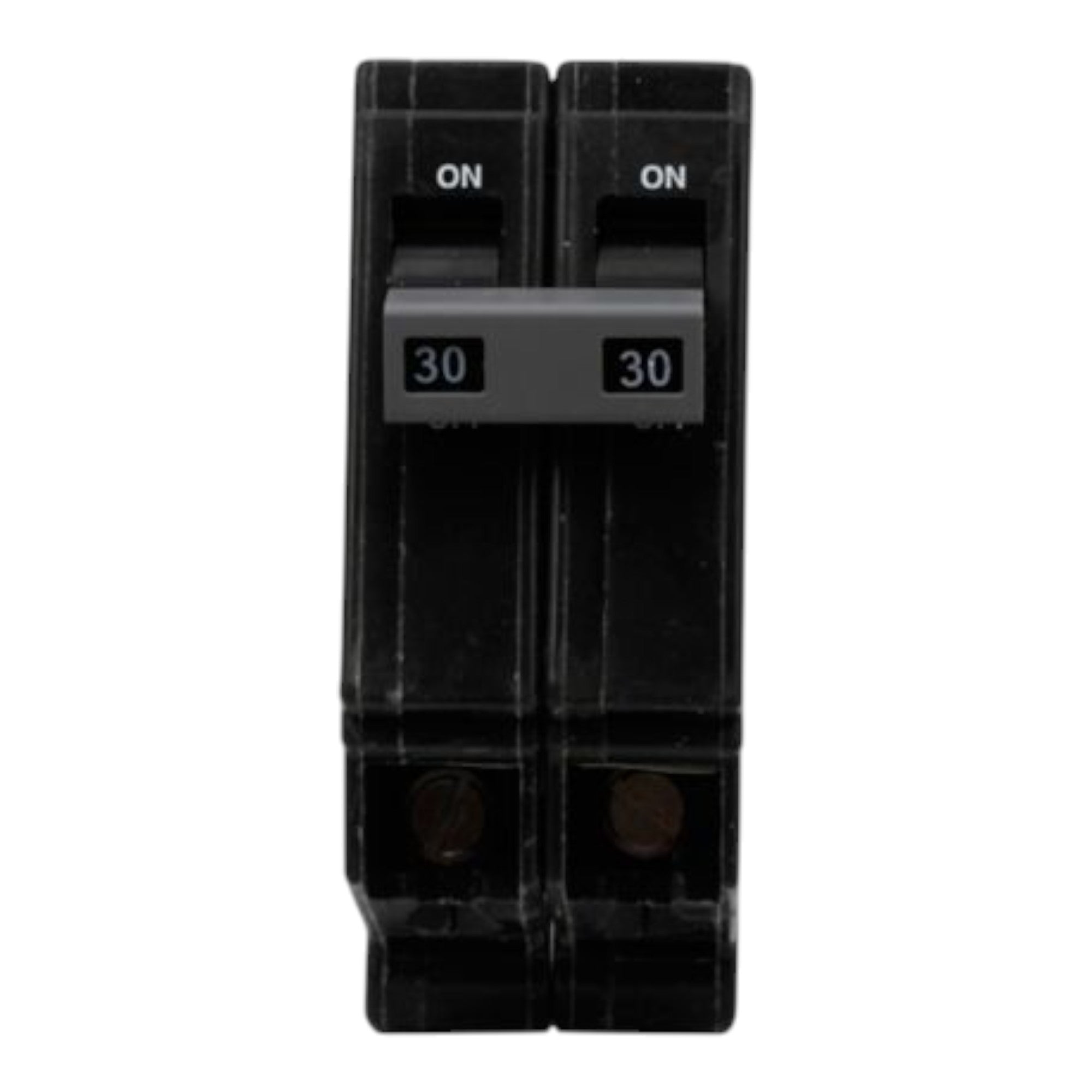

Eaton CH, CHB230, 30A, 2P, 120/240V, Standard Trip, Bolt-On, Circuit Breaker - Image 2

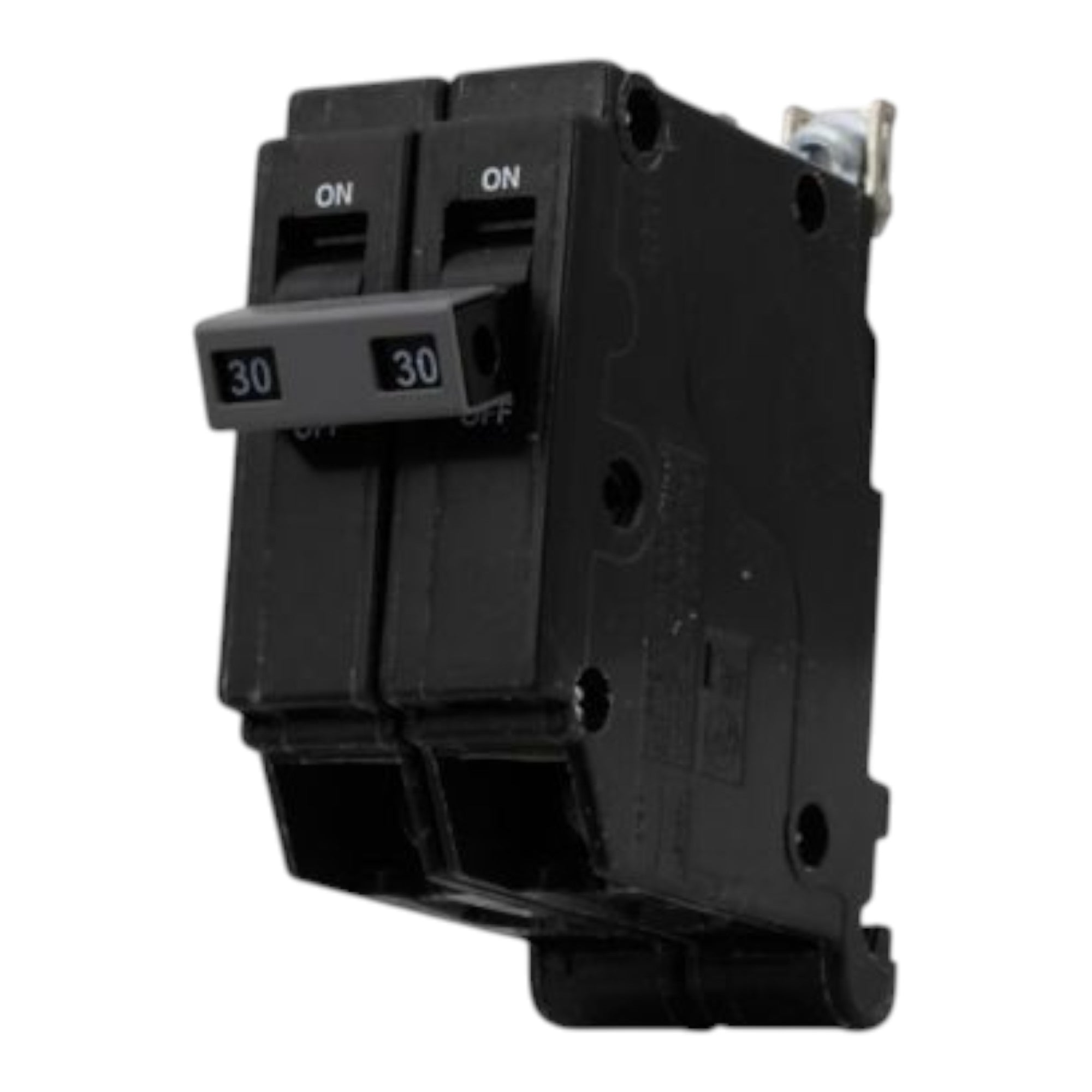

Eaton CH, CHB230, 30A, 2P, 120/240V, Standard Trip, Bolt-On, Circuit Breaker - Image 3
Eaton CH, CHB230, 30A, 2P, 120/240V, Standard Trip, Bolt-On, Circuit Breaker
Eaton CH, CHB230, 30A, 2P, 120/240V, Standard Trip, Bolt-On, Circuit Breaker - Image 2
Eaton CH, CHB230, 30A, 2P, 120/240V, Standard Trip, Bolt-On, Circuit Breaker - Image 3

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eaton

Eaton CH, CHB230, 30A, 2P, 120/240V, Standard Trip, Bolt-On, Circuit Breaker

Out of stock
SKU: CHB230 UPC: 782113112466
(0)
$16.00
-33% $24.00 $16.00
Out of stock
Condition

Eaton CHB230: 30 Amp, 2-Pole, Standard Trip circuit breaker, 120/240V, 10kA, bolt-on connection, UL listed.

  • Manufacturer: Eaton

  • Brand: Eaton

  • Product Range: CH (for Eaton Type CH loadcenters)

  • UPC: 782113112466

  • Model Number: CHB230

  • Breaker Type: Standard Trip

  • Amperage: 30 Amps

  • Poles: 2-Pole

  • Voltage: 120/240 Volts AC

  • Interrupt Rating: 10 kAIC

  • Mounting Mode: Bolt-On

  • Connection Terminals: Bolt-On Terminals

  • Wire Size: #14–8 AWG Cu/Al

  • Tightening Torque: Not Specified

  • Dimensions: Height: 3.40 in; Width: 2.10 in; Depth: 3.70 in

  • Weight: 0.85 lbs

  • Certifications: UL Listed (UL 489)

This Eaton CHB230 30A 2-pole bolt-on Standard Trip breaker provides protection for 120/240V circuits in CH loadcenters, delivering 10kA interrupt performance and reliable thermal-magnetic operation for residential and commercial installations.
