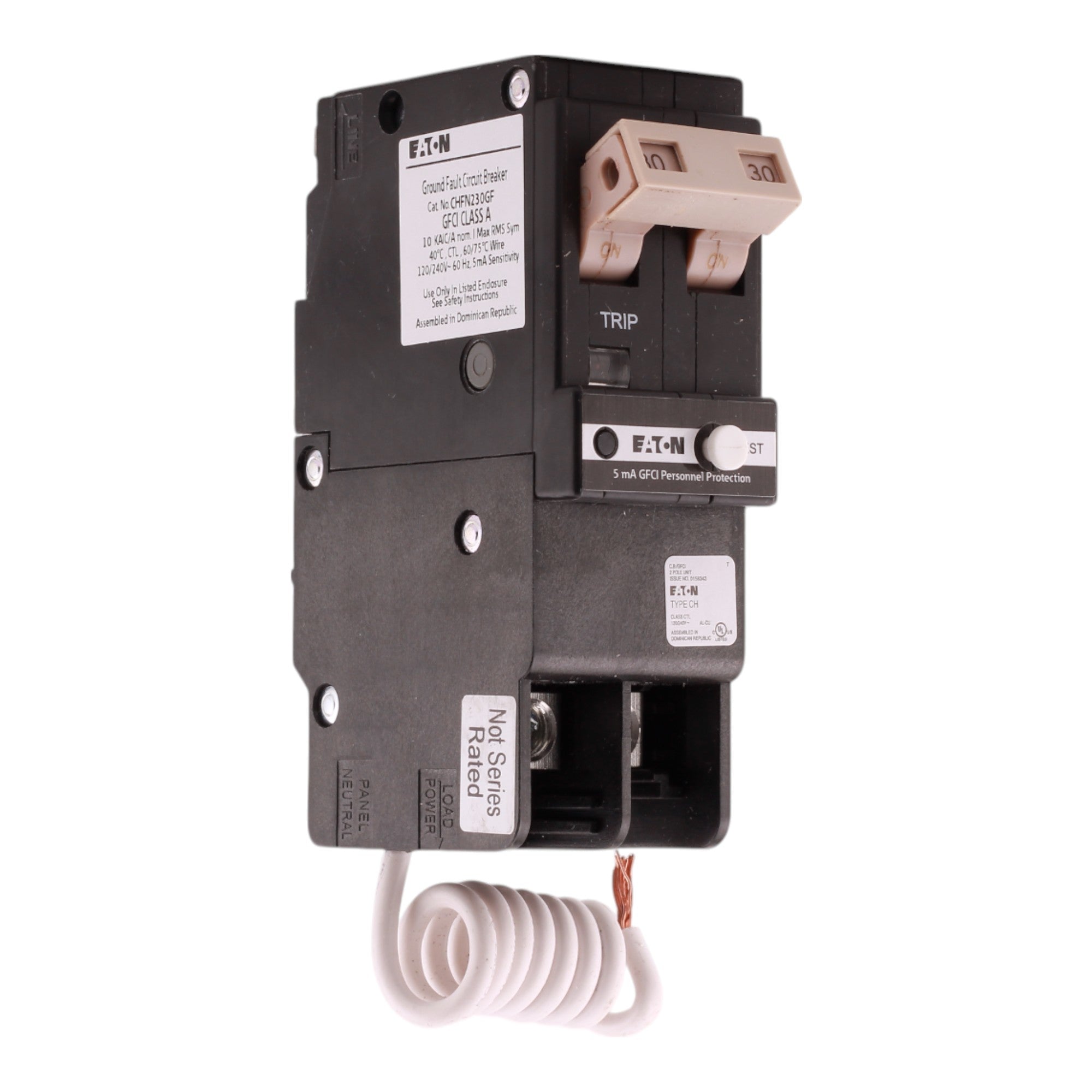

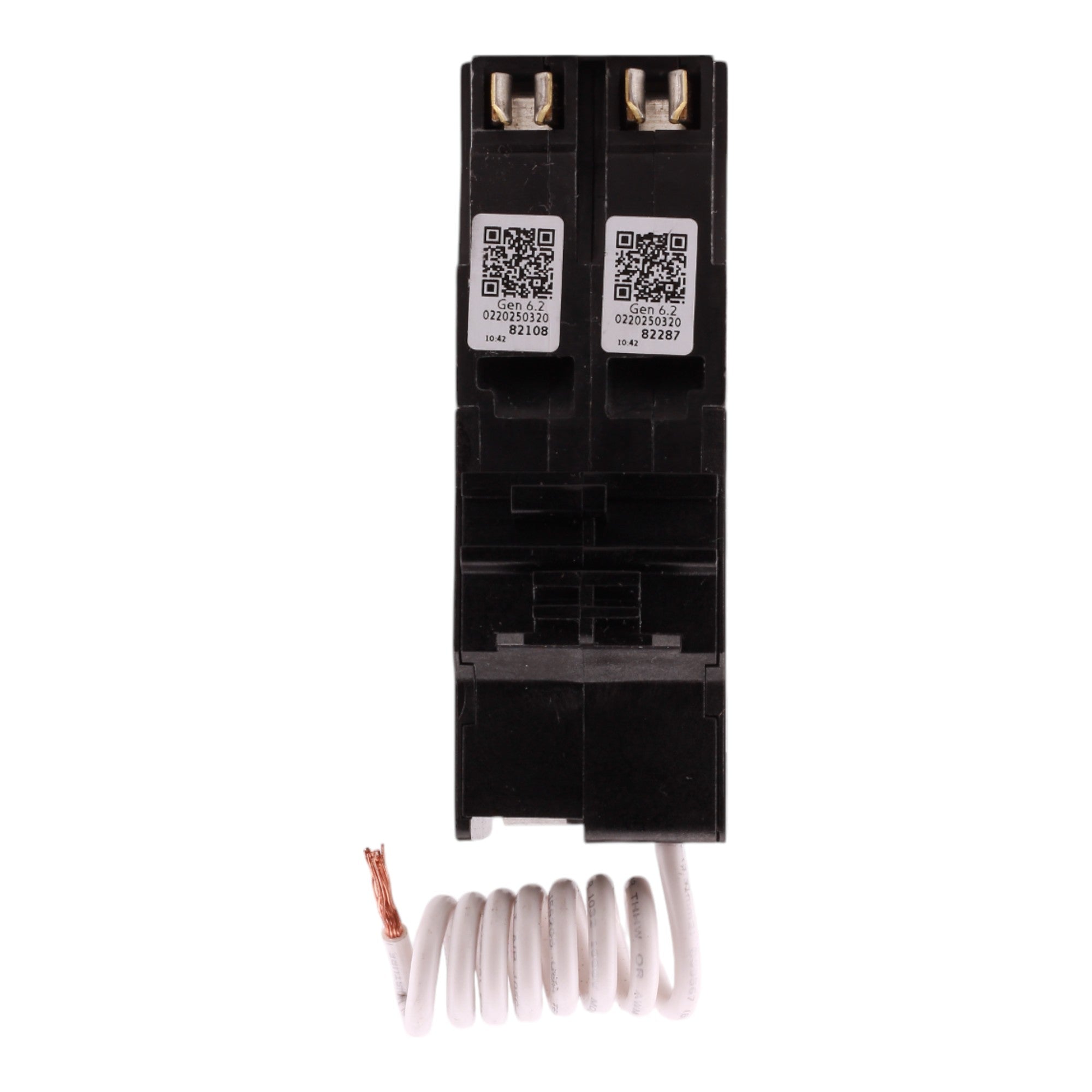

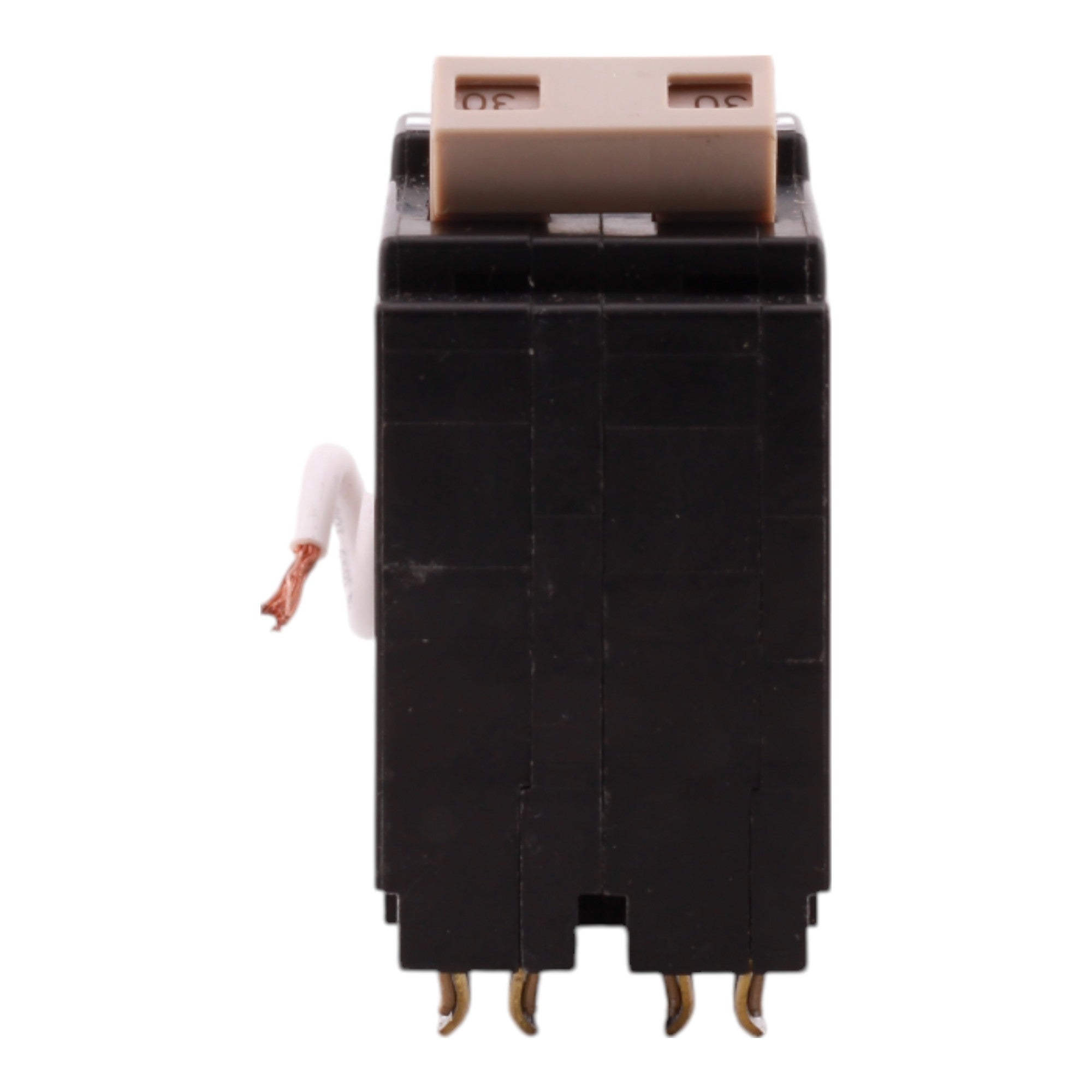

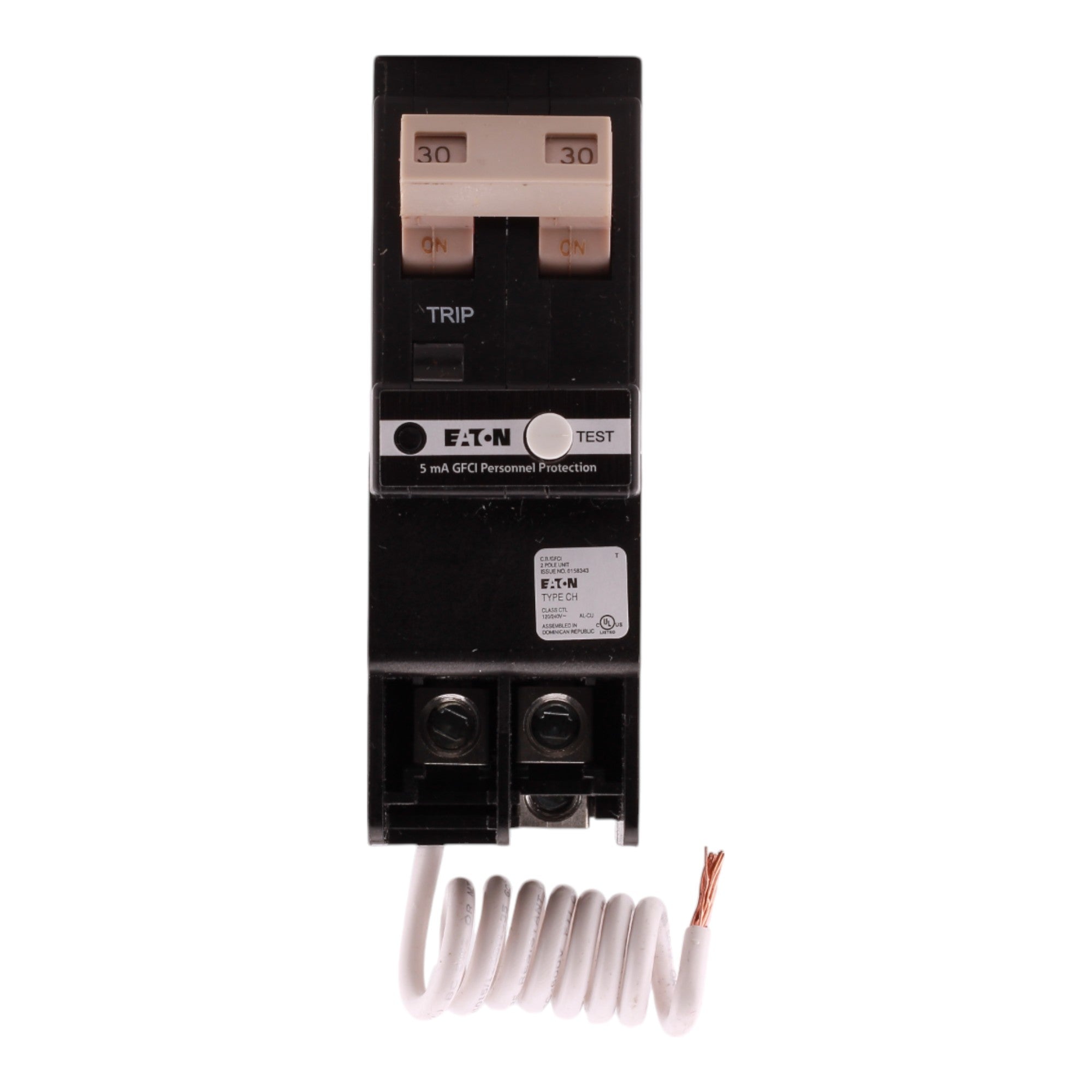

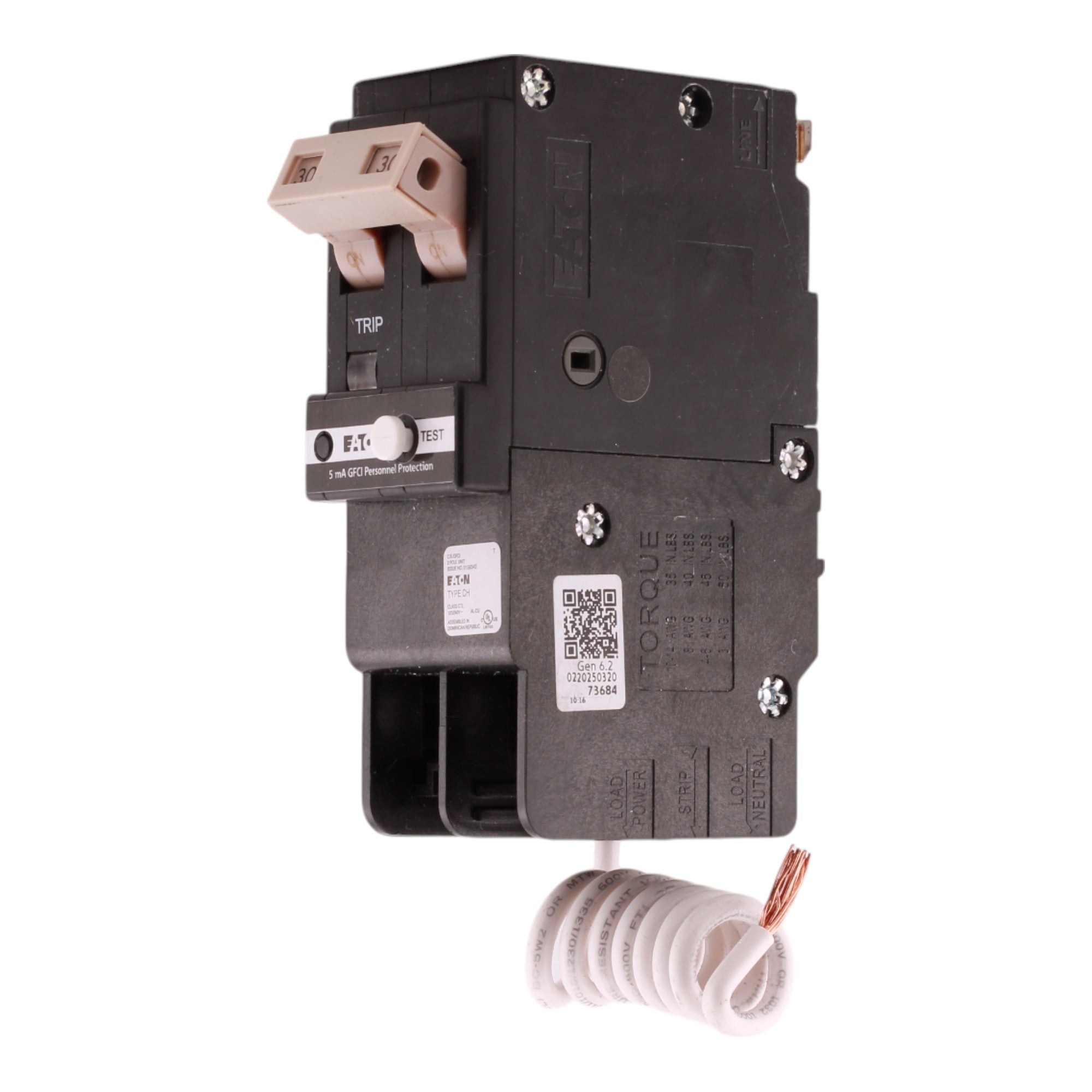

Eaton CH CHFN230GF 30A 2P 120/240V GFCI Pigtail Neutral Circuit Breaker

Eaton CHFN230GF: 30 Amp 2-Pole Ground-Fault Circuit Interrupter breaker, 120/240V, 10kA, pigtail neutral, 5mA trip sensitivity, UL listed.

• Manufacturer: Eaton
• Brand: Eaton
• Product Range: CH (for Eaton CH loadcenters and equipment)
• UPC: 786689537821
• Model Number: CHFN230GF
• Breaker Type: Ground-Fault Circuit Interrupter (GFCI)
• Amperage: 30 Amps
• Poles: 2-Pole
• Voltage: 120/240 Volts AC
• Interrupt Rating: 10 kAIC
• Mounting Mode: Plug-in
• Connections Terminals: Pigtail neutral
• Wire Size: #14-3 AWG Cu/Al
• Tightening Torque: 35.4 lb-in
• Dimensions: Height: 3.5 in; Width: 2.25 in; Depth: 6.1 in
• Weight: 1.0 lbs
• Certifications: UL 943 Listed
• Trip Sensitivity: 5 mA ground fault protection

This Eaton CHFN230GF pigtail neutral circuit breaker provides reliable 30A, 2-pole GFCI protection for 120/240V circuits in CH loadcenters. With 5mA ground fault detection, it ensures enhanced safety for residential applications, protecting against electrical shock in areas like bathrooms, kitchens, and outdoor spaces.
