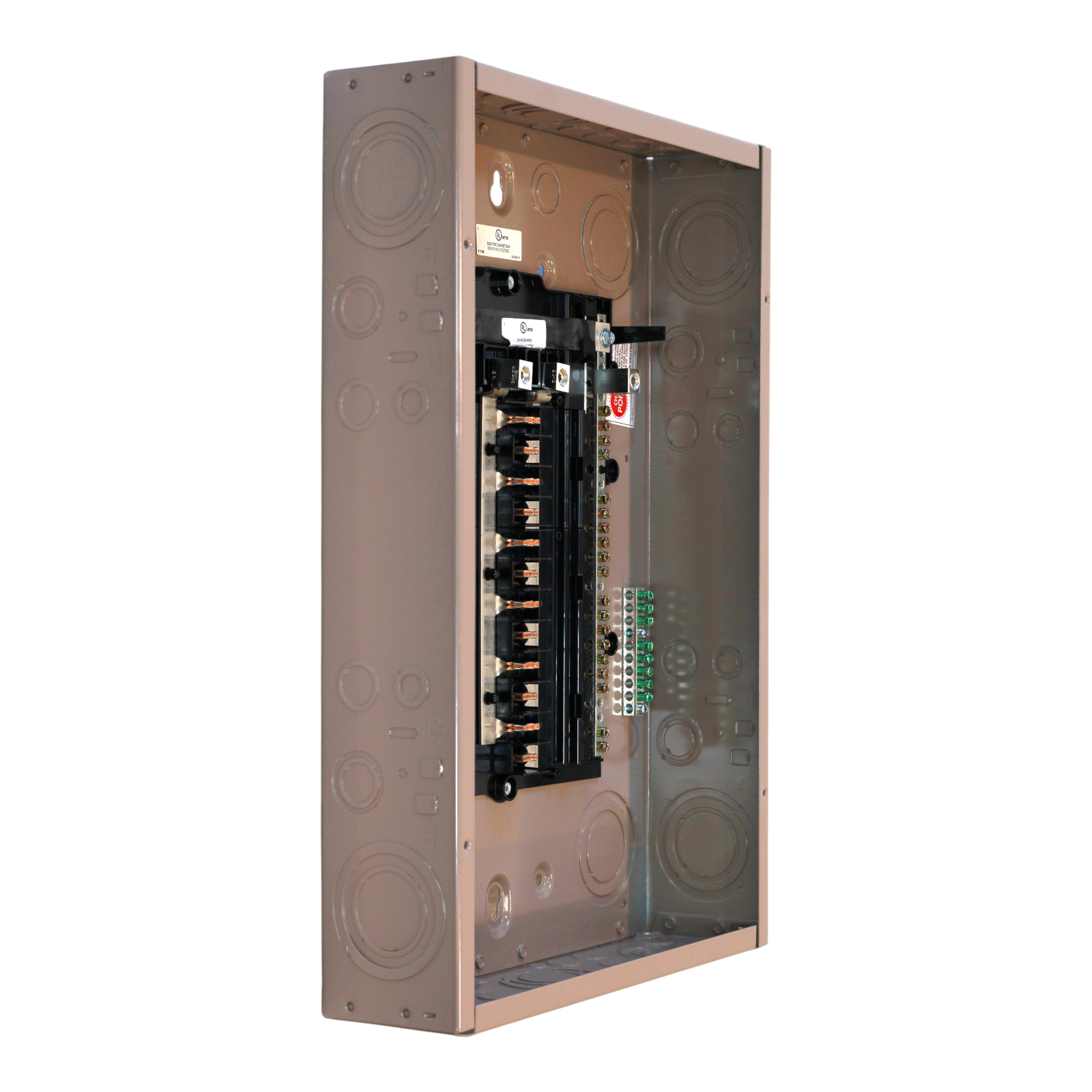

Eaton CH CHP24L125X2 125A 24-Space 48-Circuit Main Lug Loadcenter NEMA 1

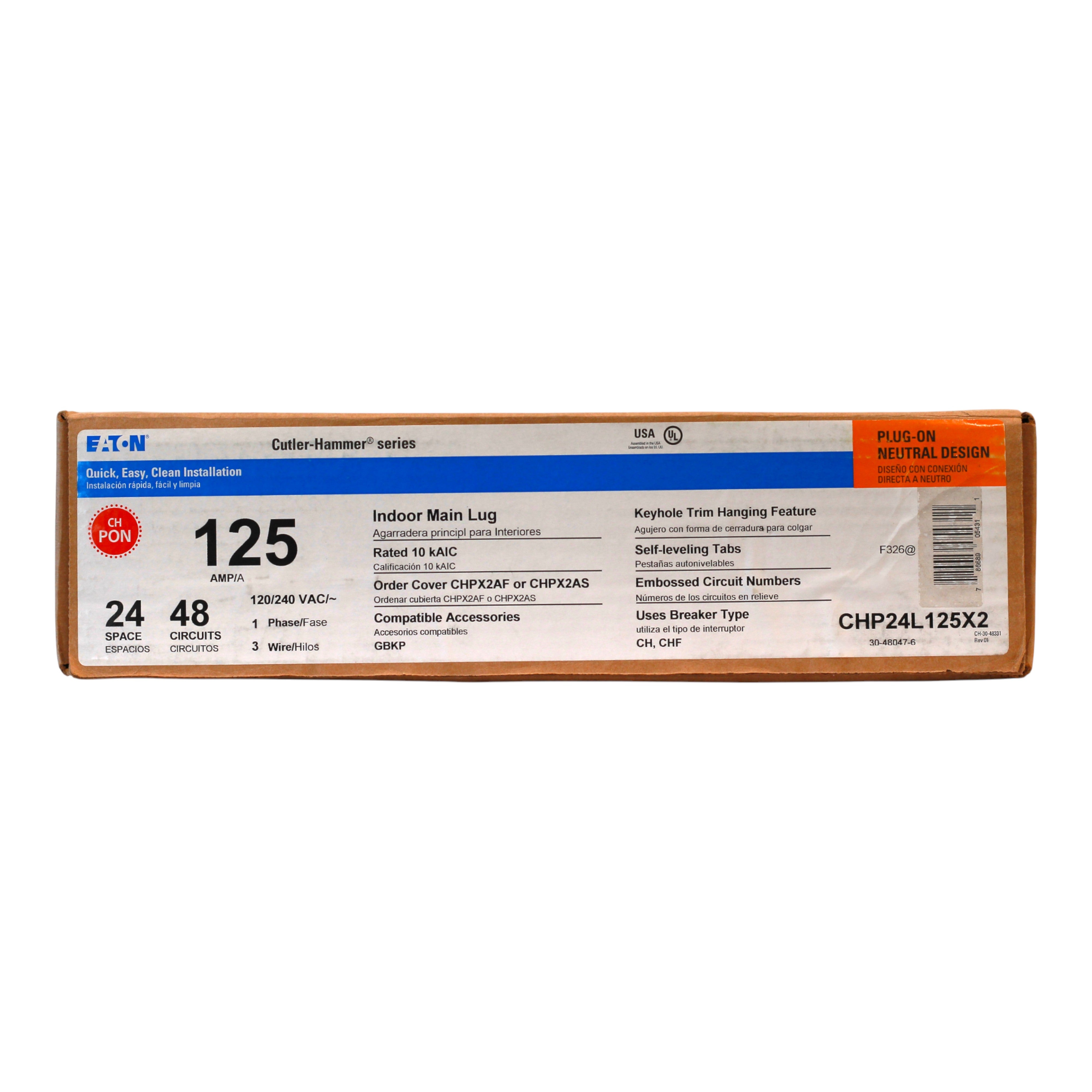

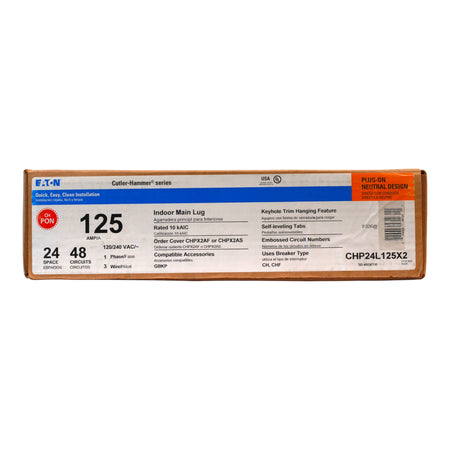

Eaton CH CHP24L125X2 125A 24-Space 48-Circuit Main Lug Loadcenter NEMA 1 - Image 2

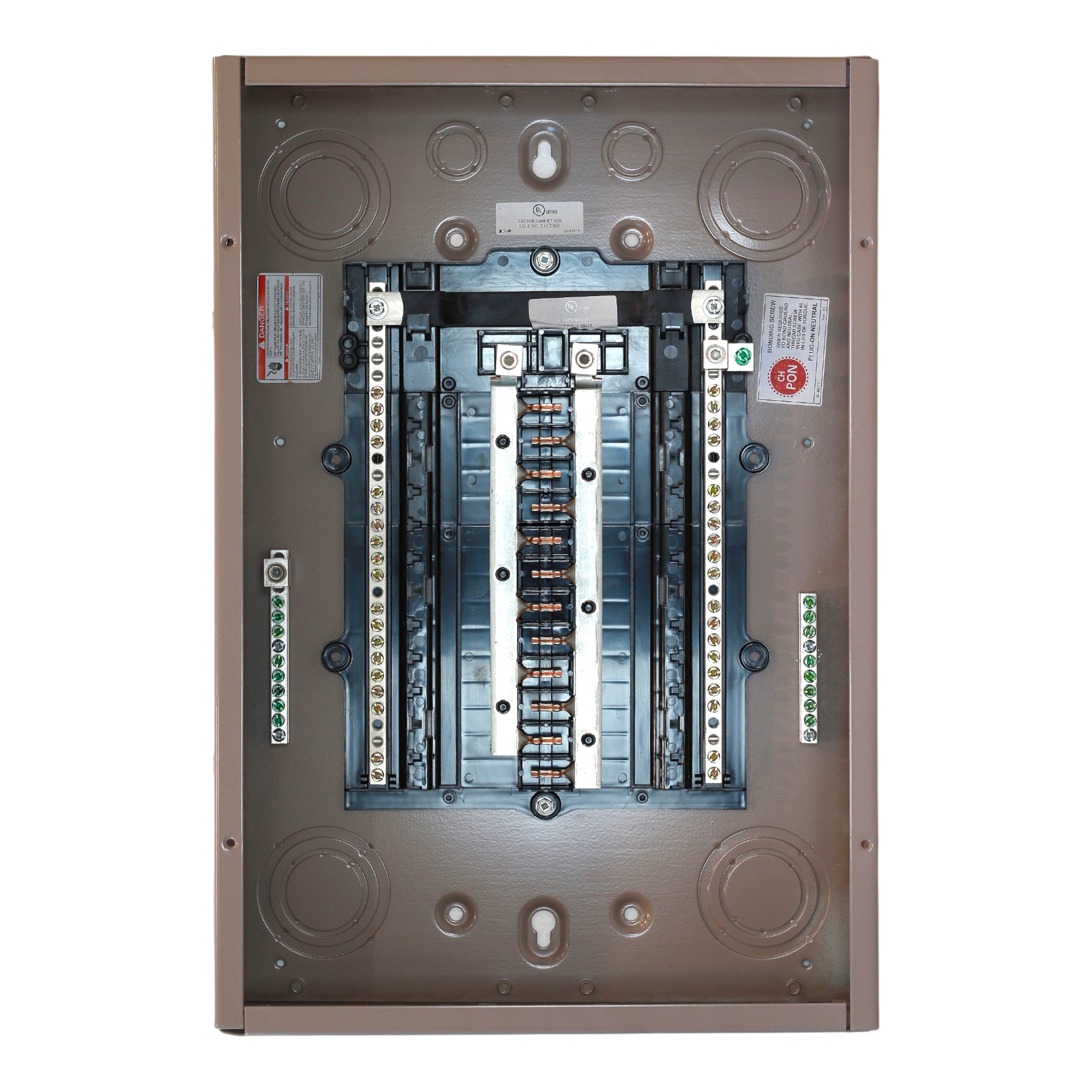

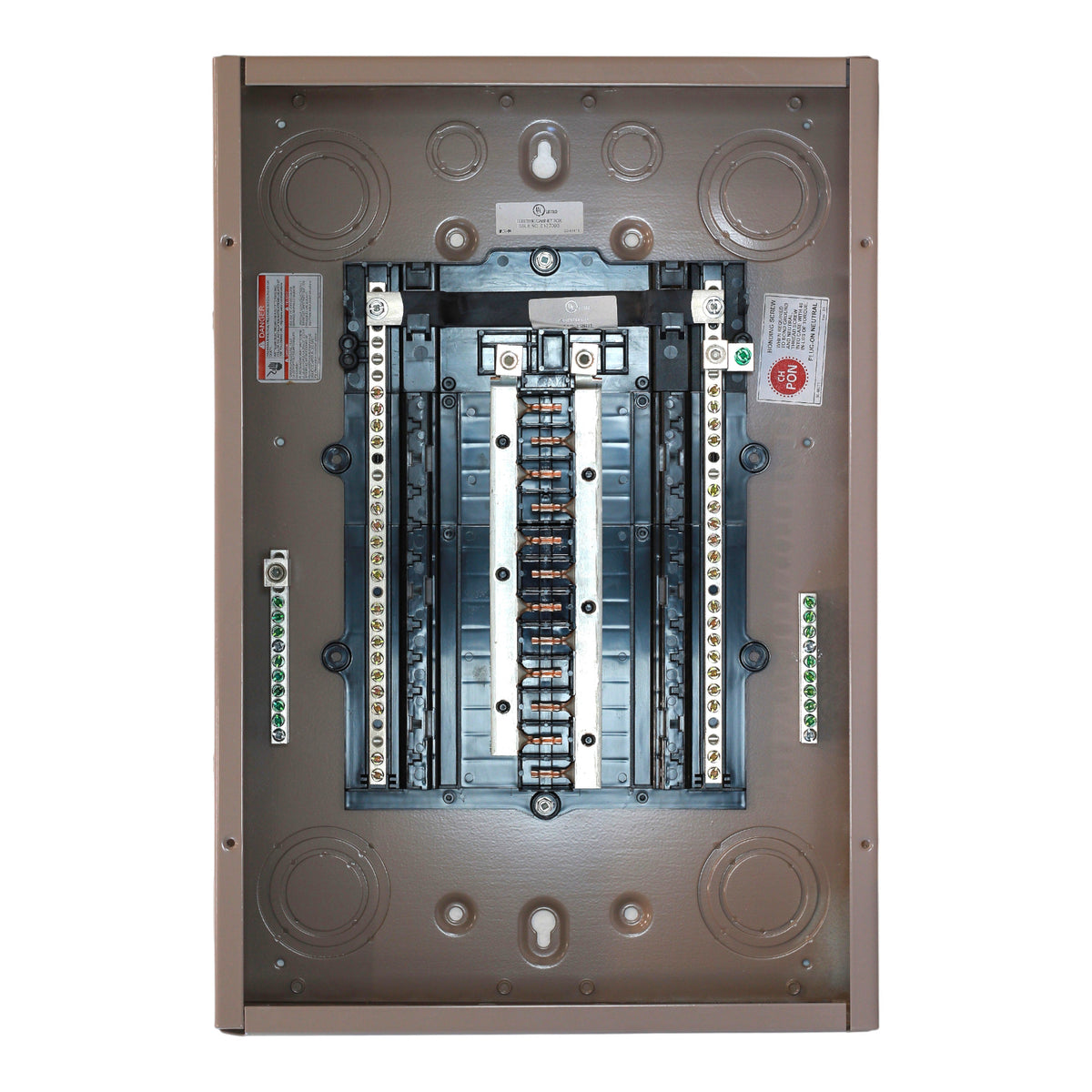

Eaton CH CHP24L125X2 125A 24-Space 48-Circuit Main Lug Loadcenter NEMA 1 - Image 3

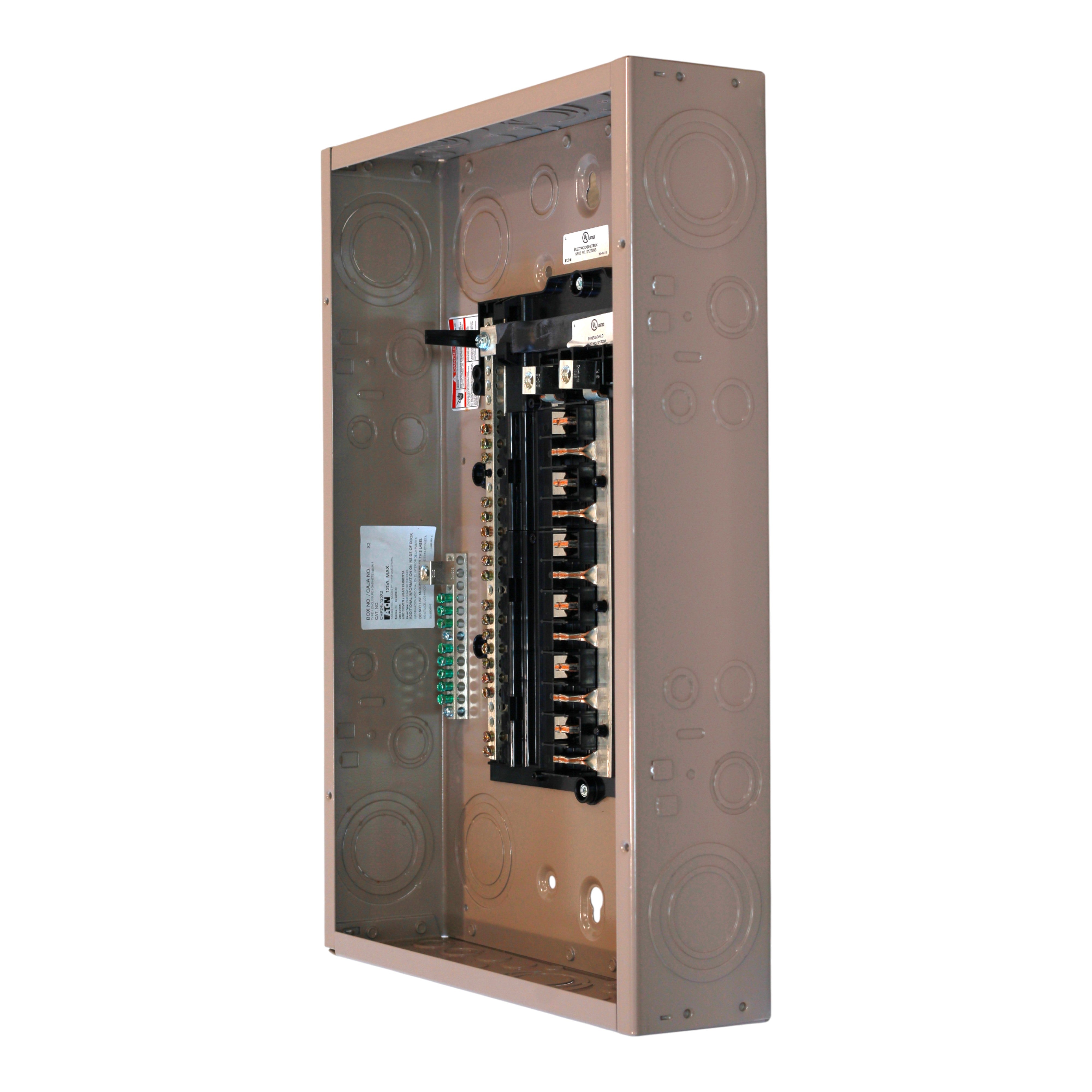

Eaton CH CHP24L125X2 125A 24-Space 48-Circuit Main Lug Loadcenter NEMA 1 - Image 4
Eaton CH CHP24L125X2 125A 24-Space 48-Circuit Main Lug Loadcenter NEMA 1
Eaton CH CHP24L125X2 125A 24-Space 48-Circuit Main Lug Loadcenter NEMA 1 - Image 2
Eaton CH CHP24L125X2 125A 24-Space 48-Circuit Main Lug Loadcenter NEMA 1 - Image 3
Eaton CH CHP24L125X2 125A 24-Space 48-Circuit Main Lug Loadcenter NEMA 1 - Image 4

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eaton

Eaton CH CHP24L125X2 125A 24-Space 48-Circuit Main Lug Loadcenter NEMA 1

Out of stock
SKU: CHP24L125X2 UPC: 786689054311
(0)
$145.00
Out of stock
Condition

CHP24L125X2 specifications

  • Manufacturer: Eaton
  • Brand: Eaton
  • Product Range: CH (for Eaton CH circuit breakers)
  • UPC: 786689054311
  • Model Number: CHP24L125X2
  • Product Type: Main Lug Loadcenter
  • Amperage: 125 Amps
  • Phase: Single-Phase
  • Voltage: 120/240 Volts
  • Interrupt Rating: 25 kAIC
  • Number of Spaces: 24
  • Number of Circuits: 48
  • Bus Material: Copper
  • Wire Size: #6-2/0 AWG Cu/Al
  • Enclosure: NEMA 1 Indoor
  • Enclosure Material: Steel
  • Dimensions: Height: 21.0 in; Width: 14.3 in; Depth: 4.0 in
  • Weight: 11.7 lbs
  • Certifications: UL Listed
  • Special Features: Plug-on Neutral (PON)

This Eaton CHP24L125X2 main lug loadcenter delivers reliable 125A, single-phase power distribution for 120/240V residential and light commercial applications. With 24 spaces and 48 circuits, it supports Eaton CH circuit breakers and features a plug-on neutral design for simplified installation. The copper bus and NEMA 1 indoor enclosure ensure durability and safety, with a 25kAIC interrupt rating for robust protection.
