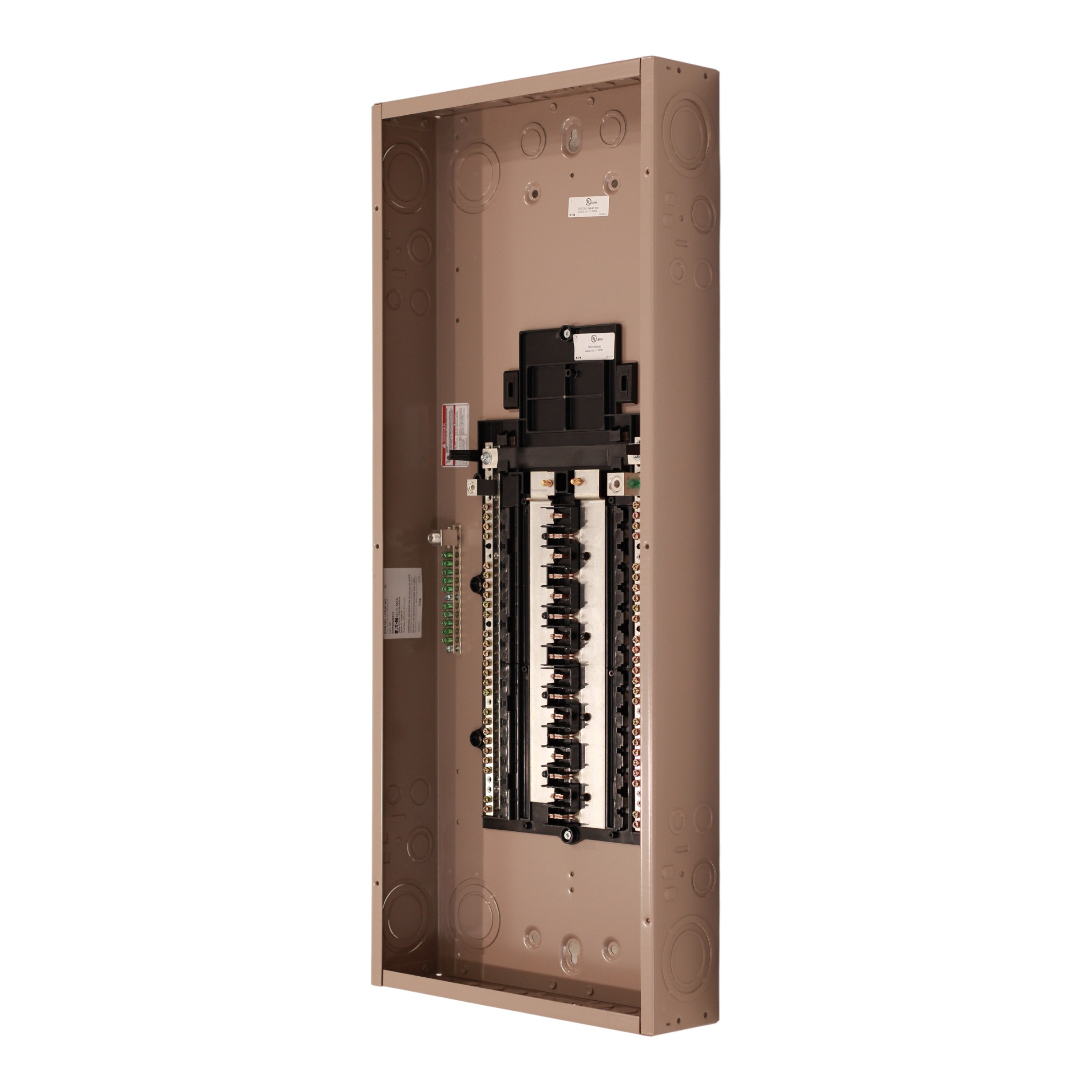

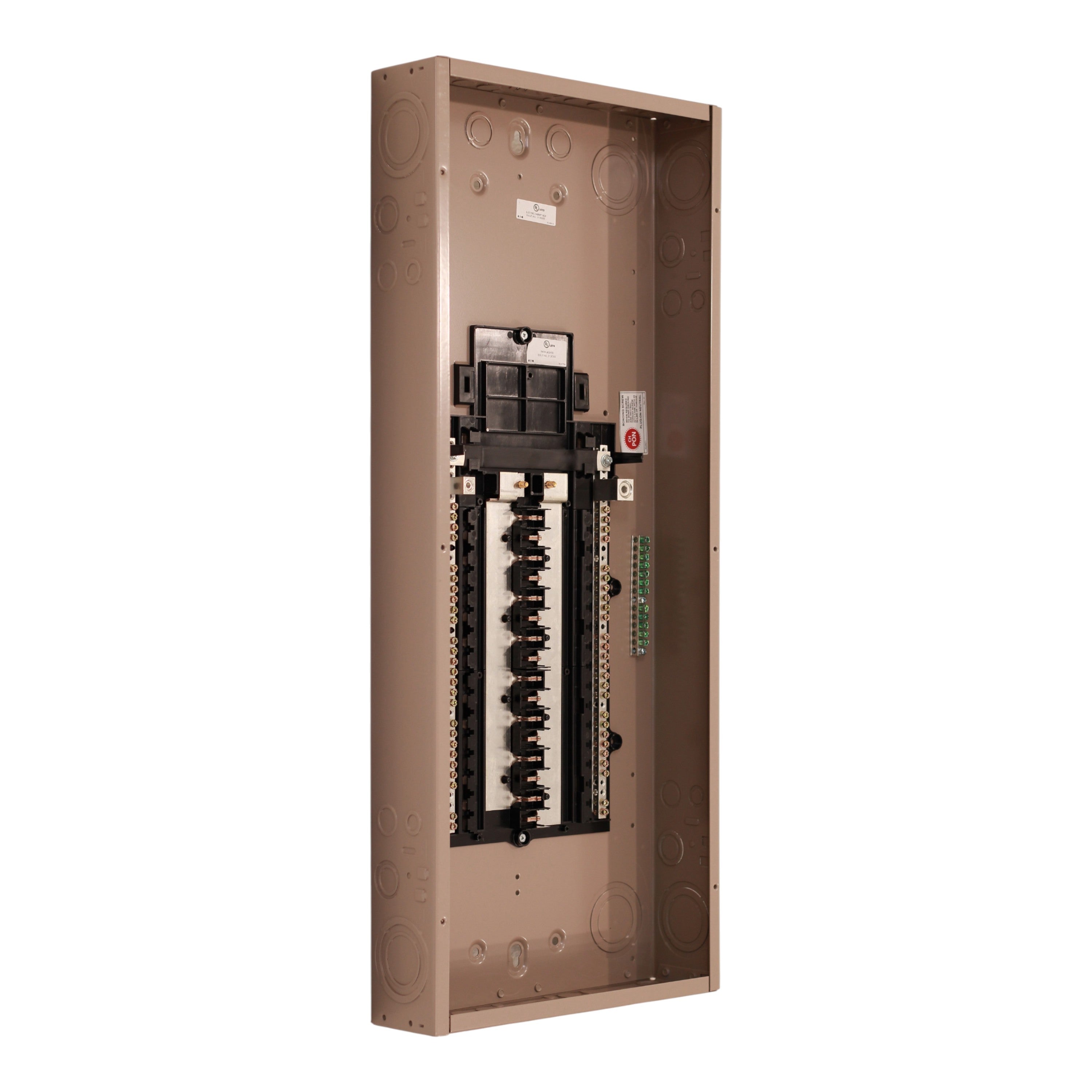

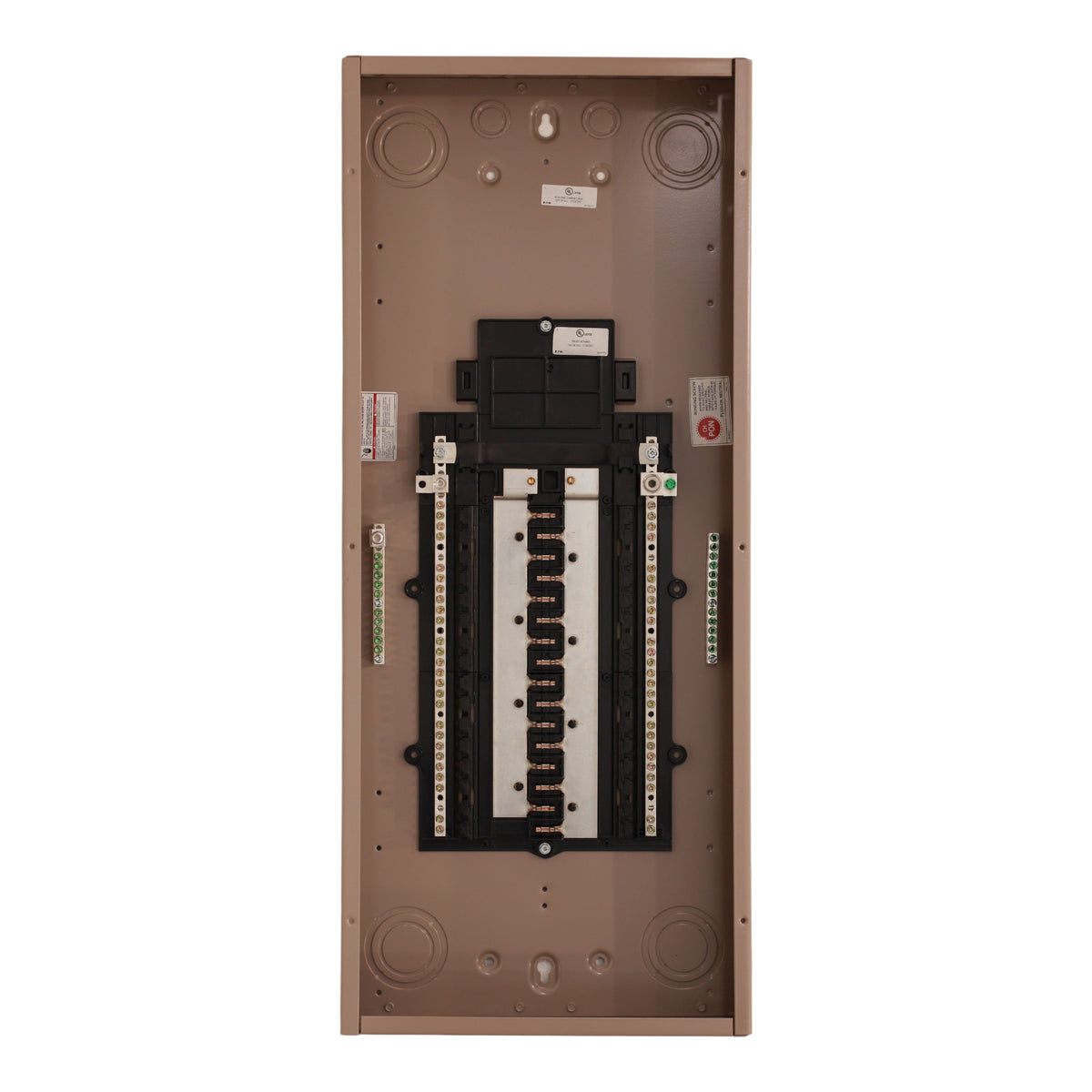

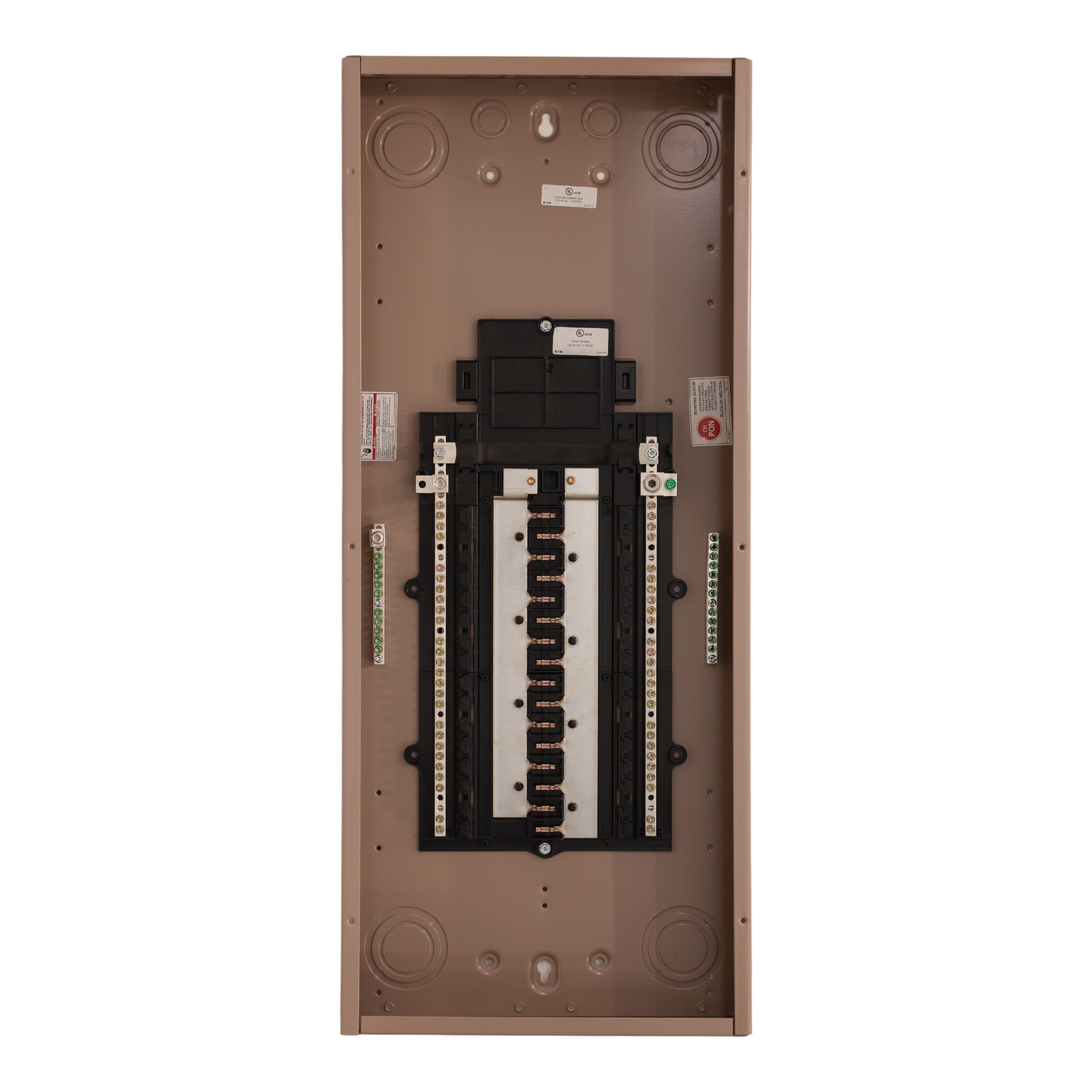

Eaton CHP32N225X6: 225 Amp, 1-Phase, plug-on neutral convertible loadcenter, 120/240V, 32 spaces, 64 circuits, 25kAIC, NEMA 1, UL listed.
-
Manufacturer: Eaton
-
Brand: CH
-
Product Range: CH (for Eaton Type CH plug-on neutral loadcenters and residential panels)
-
UPC: 786689055196
-
Model Number: CHP32N225X6
-
Loadcenter Type: Convertible (Main Lug or Main Breaker)
-
Amperage Rating: 225 Amps
-
Phases: 1-Phase
-
Voltage: 120/240 Volts AC
-
Number of Spaces: 32
-
Number of Circuits: 64
-
Interrupt Rating: 25 kAIC (depends on main breaker installed; MLO has no kAIC rating)
-
Breaker Mounting: Plug-On Neutral
-
Bus Material: Copper
-
Wire Size: #6-1/0 AWG
-
Wiring Configuration: 3-Wire (two hots, neutral, and ground)
-

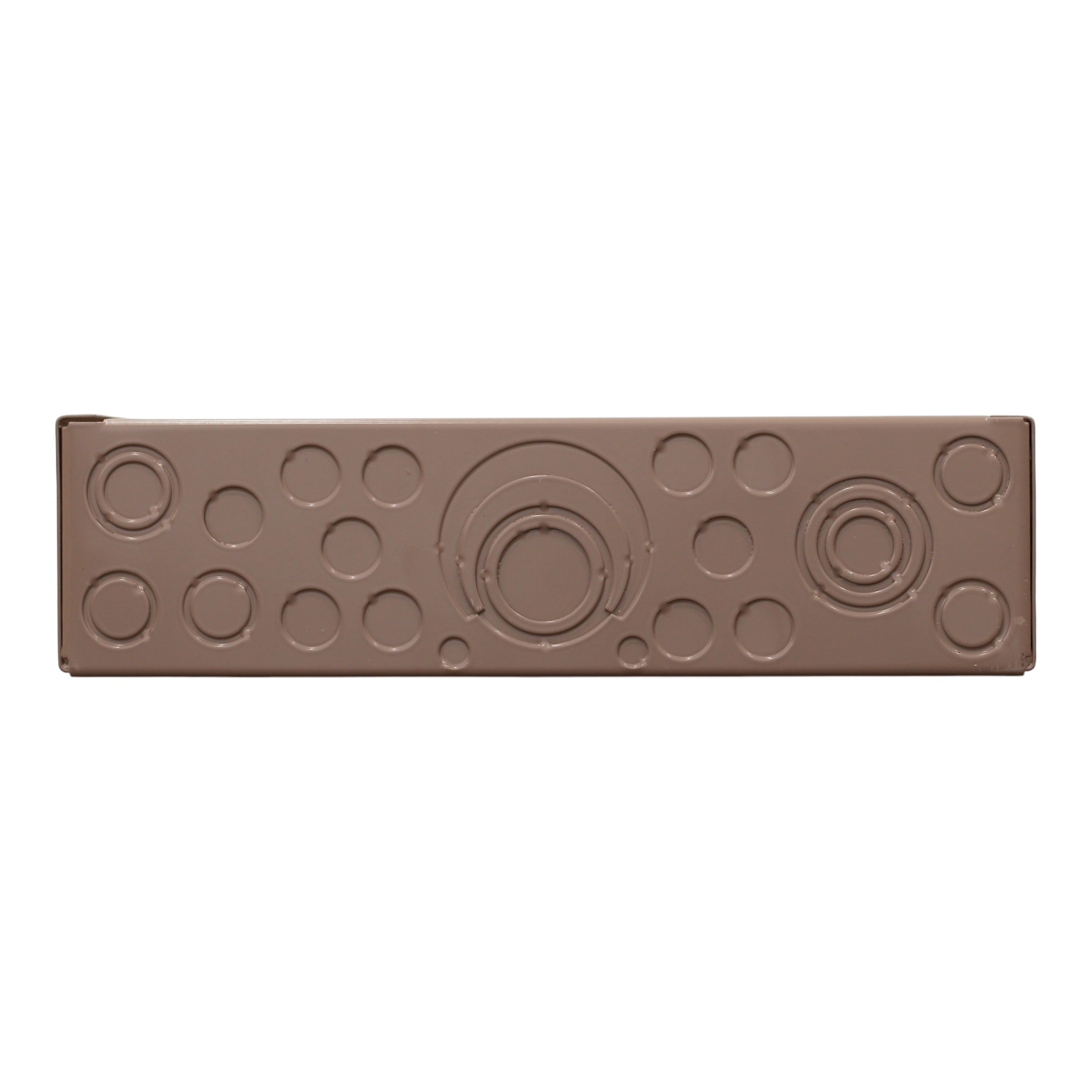

Feed Type: Top/bottom
-
Enclosure: NEMA 1 (Indoor)
-
Enclosure Size: X6
-

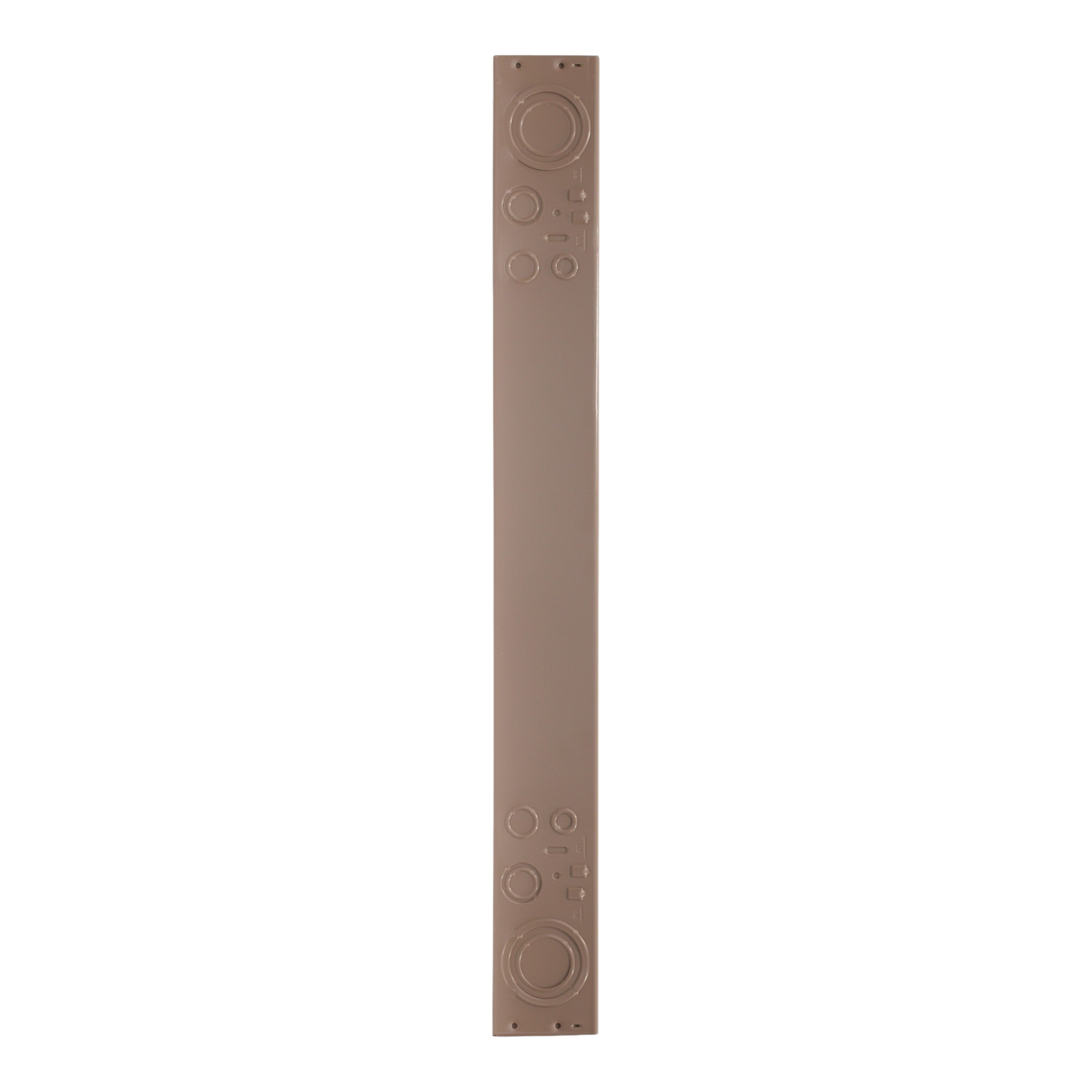

Enclosure Material: 16 ga Sheet Steel
-
Dimensions: Height: 3.88 in; Width: 14.31 in; Depth: 34.12 in
-
Weight: 17.7 lbs
-
Certifications: UL 50/67 Listed
-
Cover: Order separately (X6 cover required)
-
Main Breaker: Order separately
-
Warranty: Limited lifetime
This Eaton CHP32N225X6 plug-on neutral convertible loadcenter delivers dependable 225 Amp, 1-phase power distribution for 120/240V circuits in CH loadcenters. Designed with 32 spaces and 64 circuits, it supports flexible main lug or main breaker installation with 25kAIC interrupt rating for residential applications.
