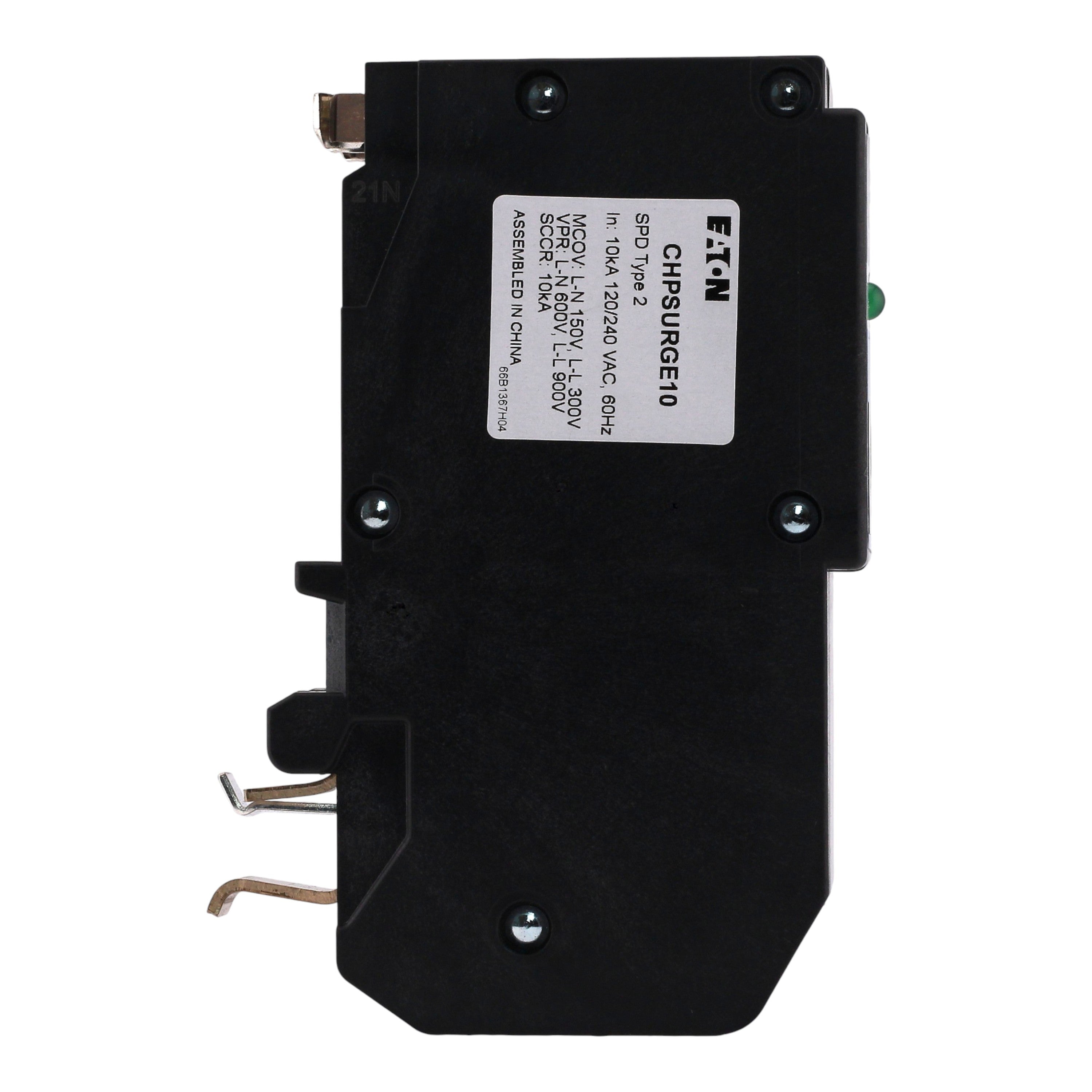

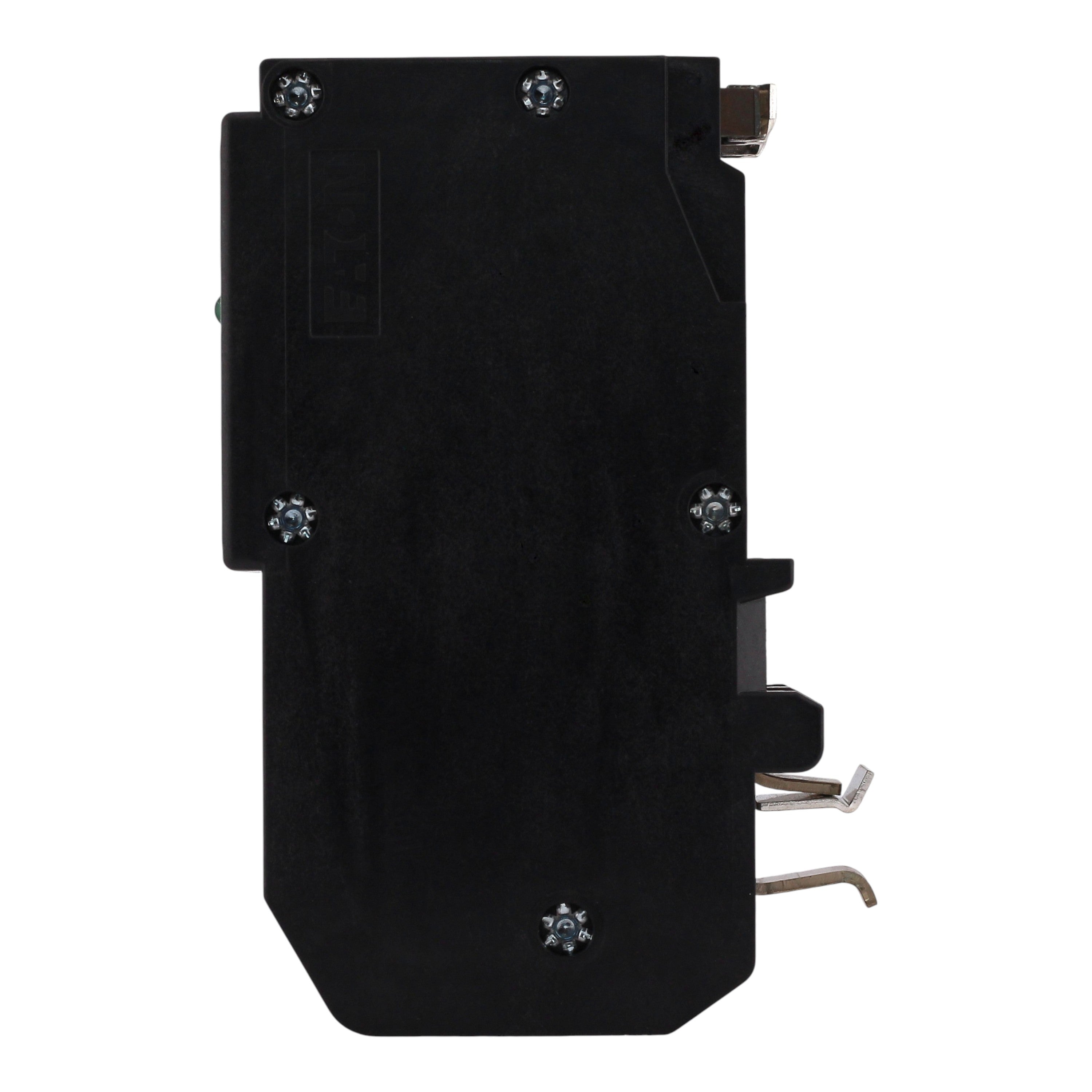

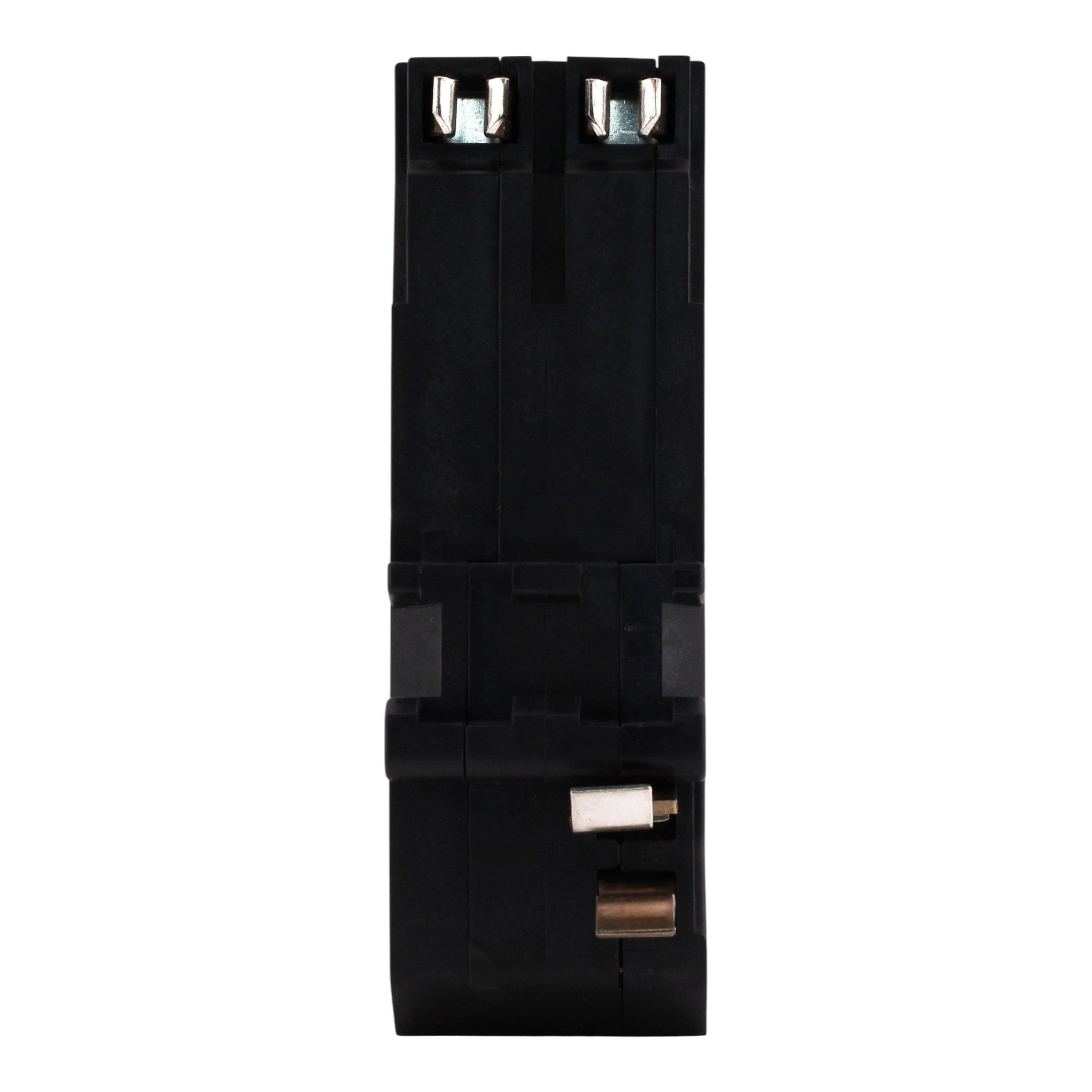

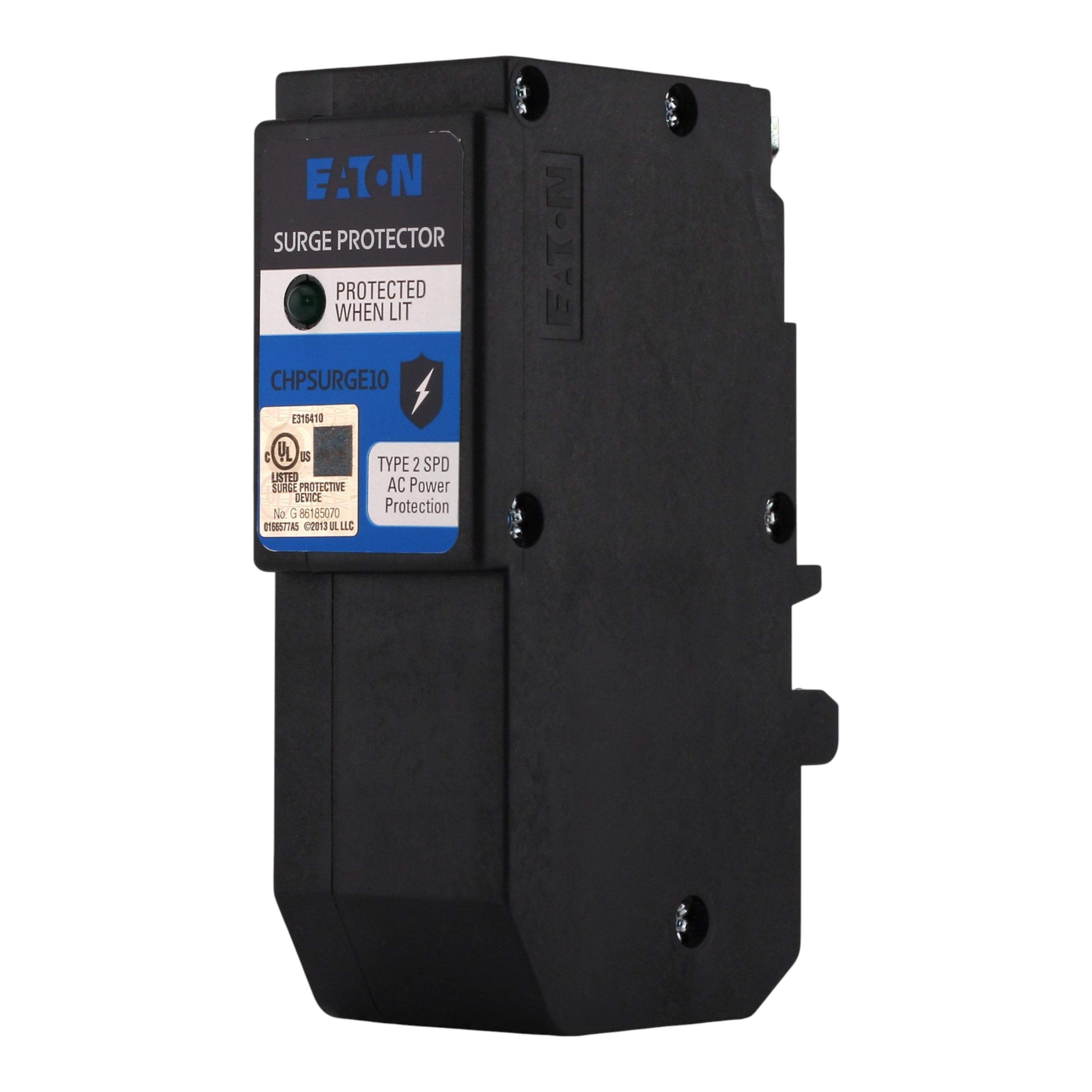

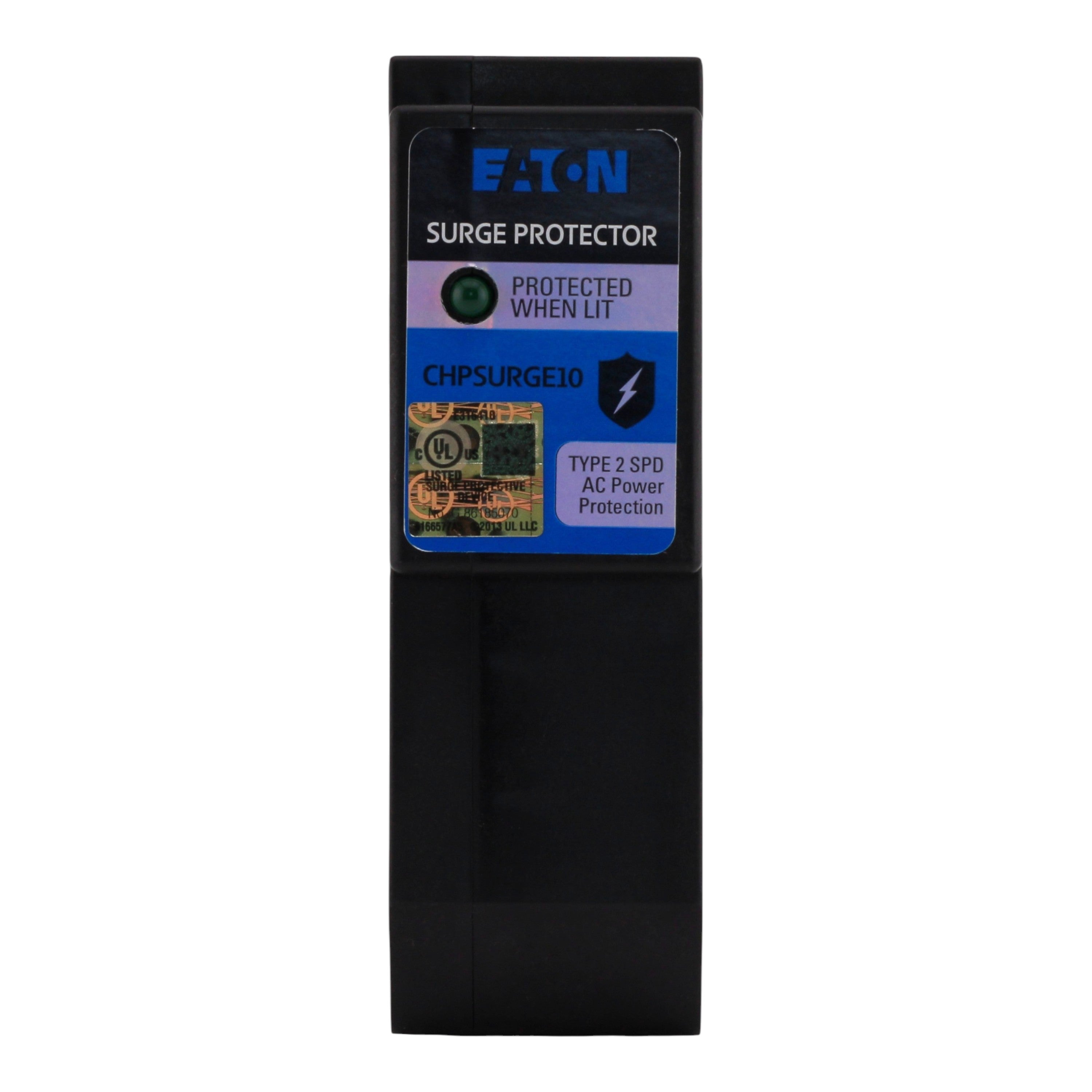

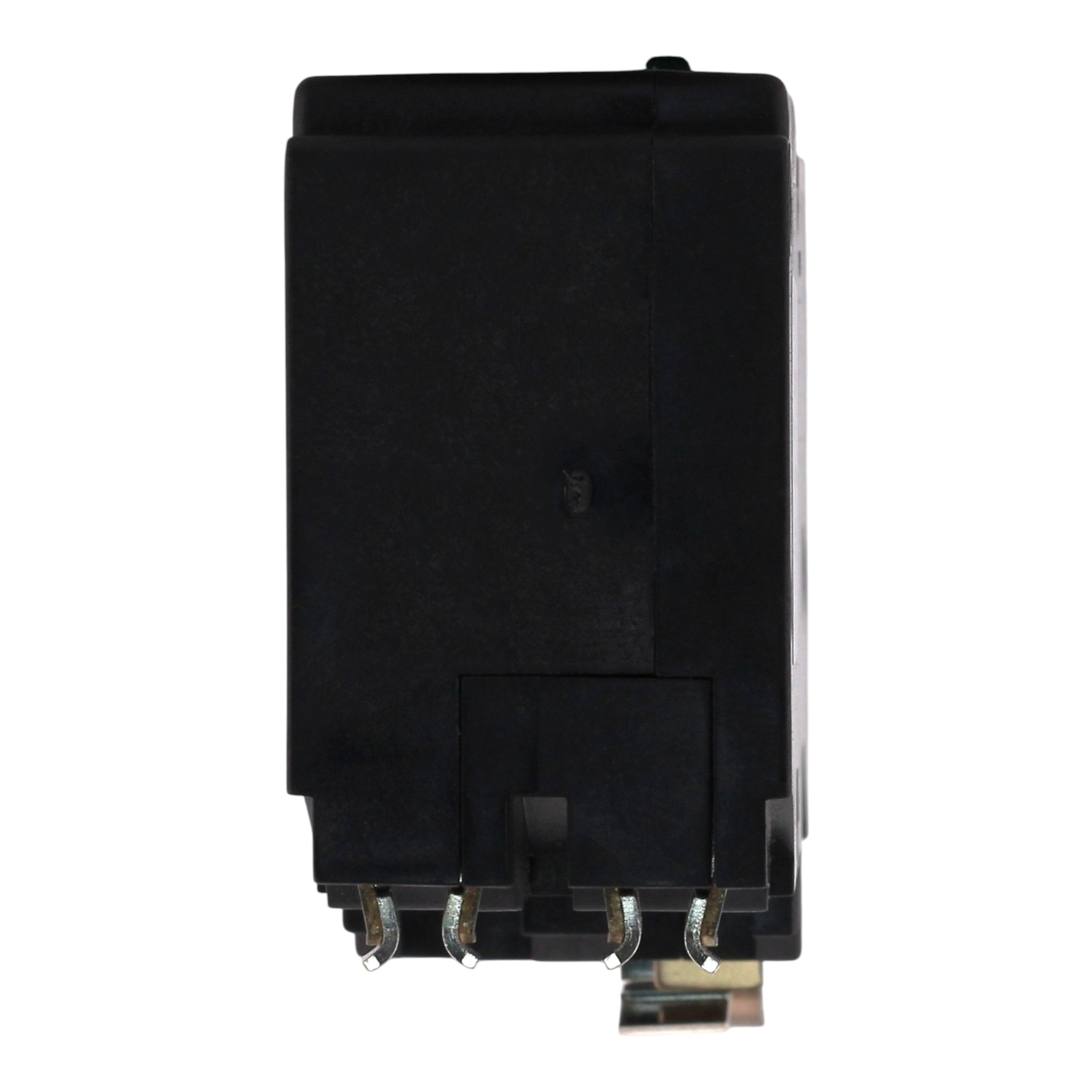

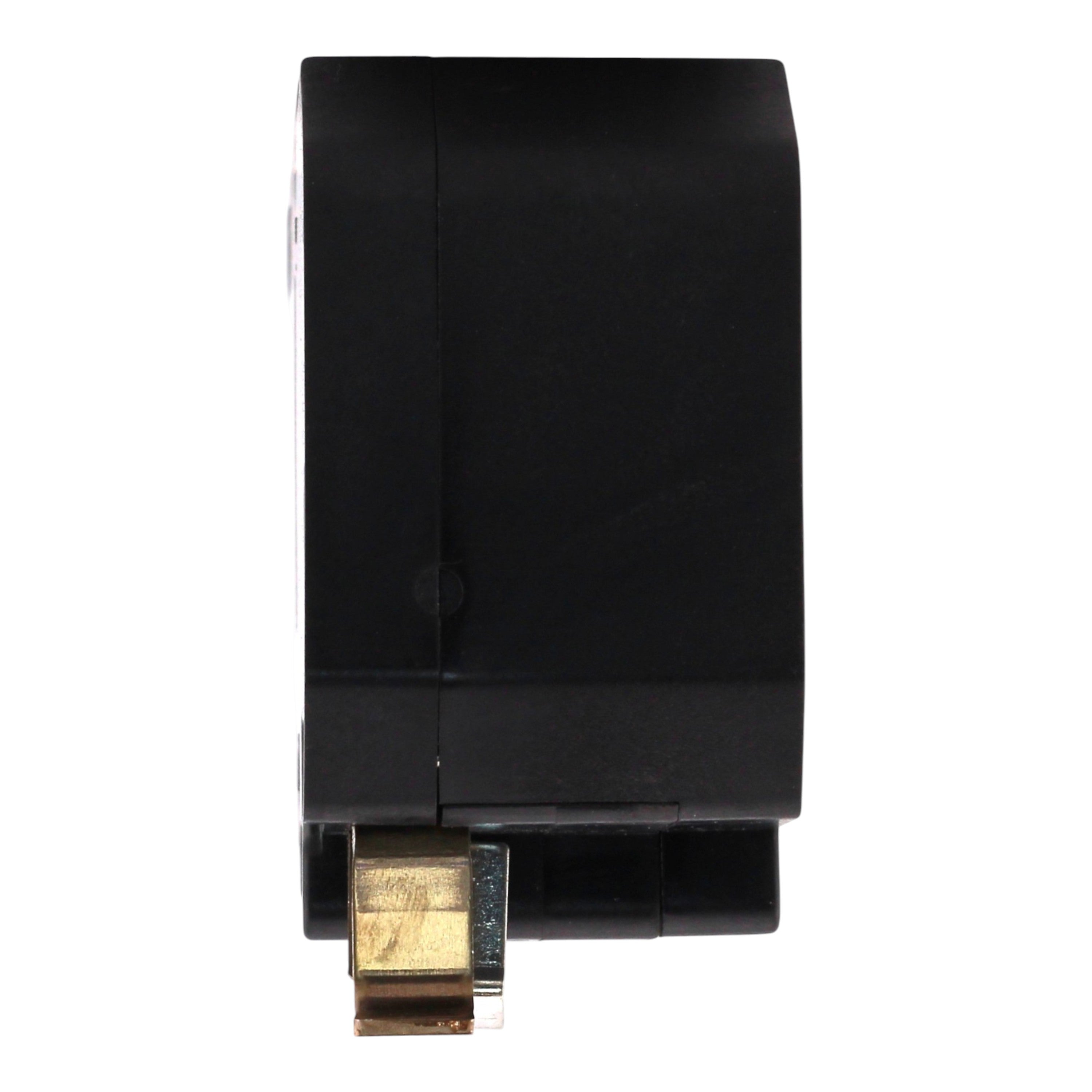

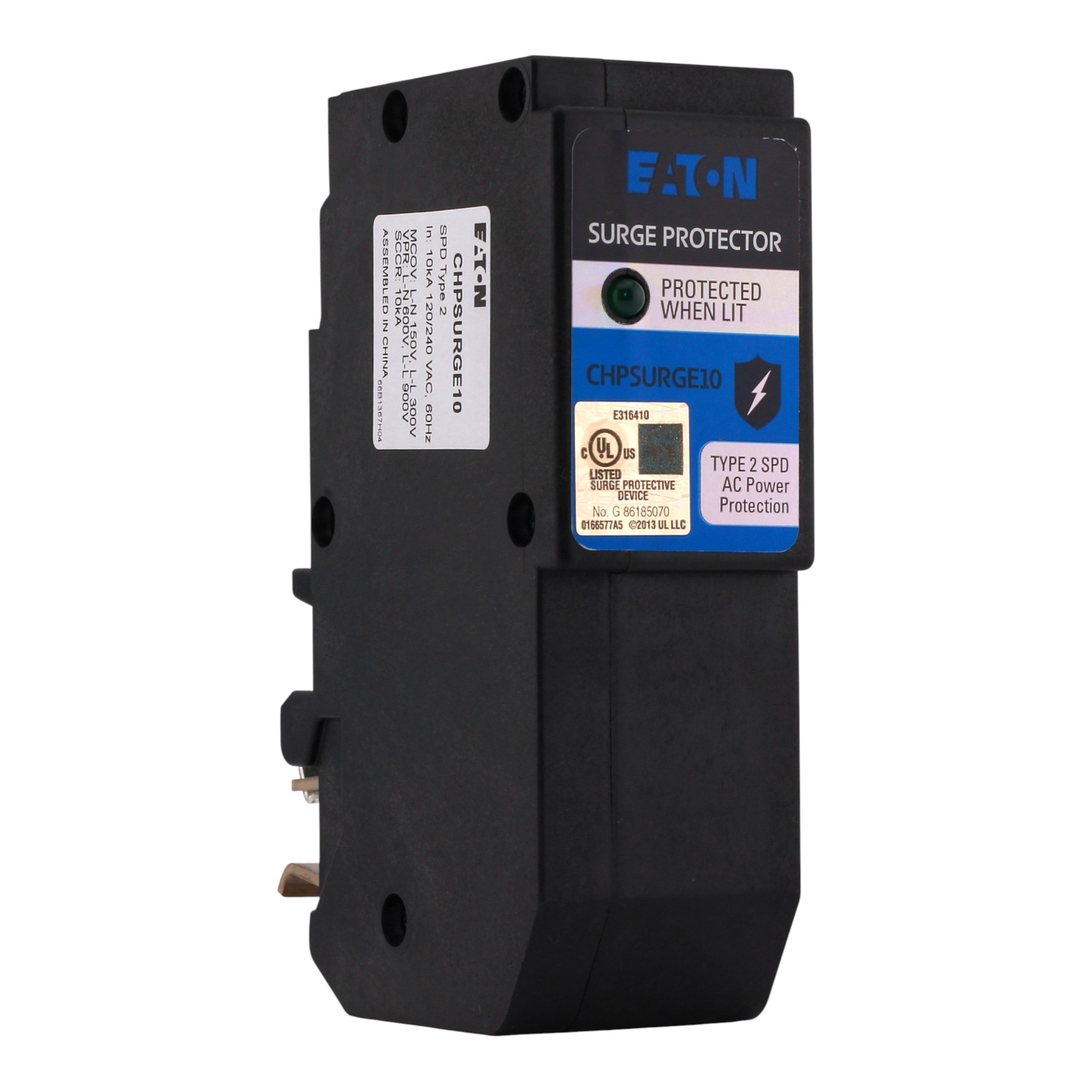

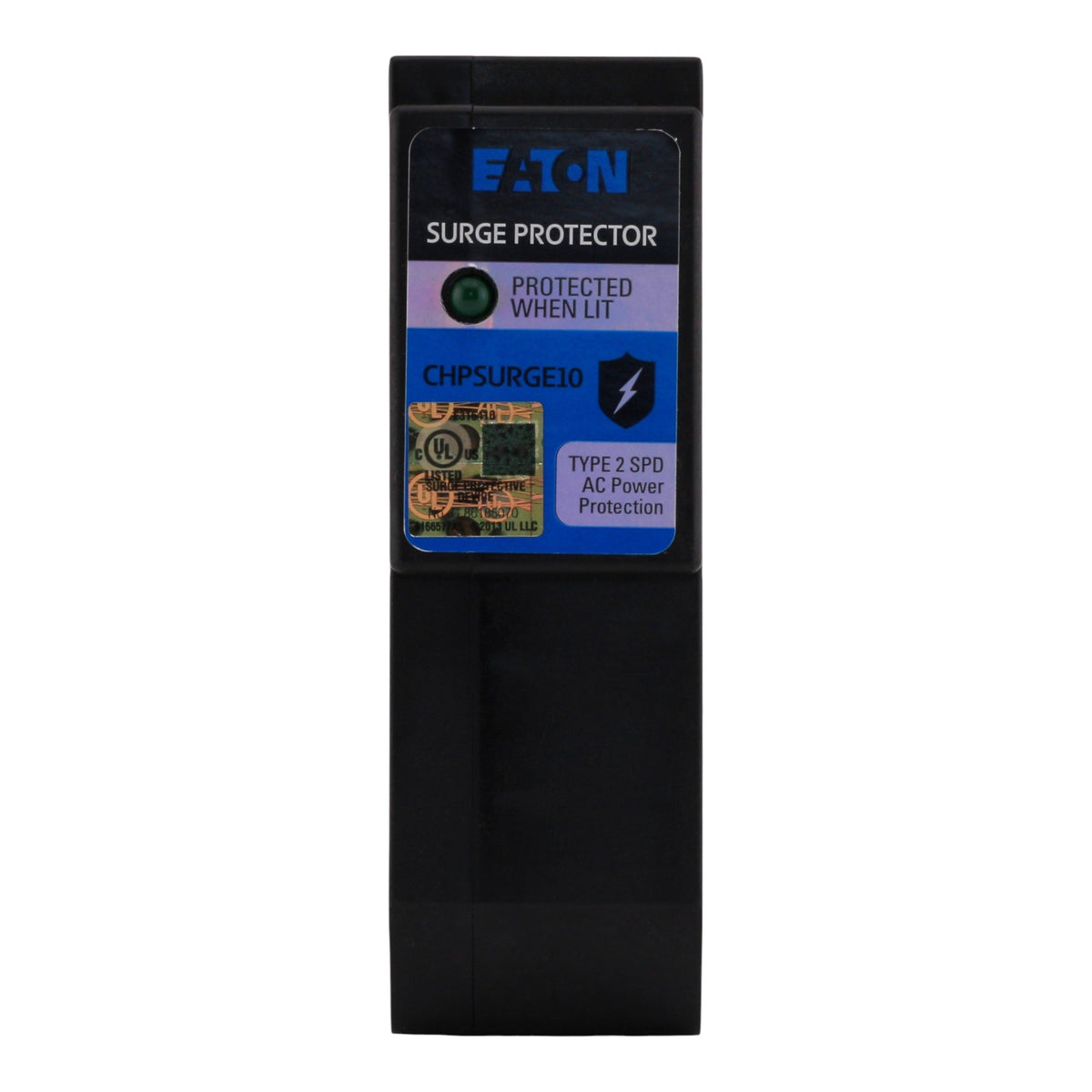

Eaton CHPSURGE10: 10kA Nominal Discharge, 20kA Surge Current Whole House Surge Protective Device, Type CH Plug-On Neutral, 120/240V, L-N/L-L Protection, UL 1449 Listed
-
Manufacturer: Eaton
-
Brand: Eaton
-
Product Range: CH (for Eaton CH loadcenters and equipment)
-
UPC: 786689885434
-
Model Number: CHPSURGE10
-
Product Type: Surge Protective Device (SPD)
-
Amperage Rating: N/A (whole-home protection, no branch circuit amperage)
-
Voltage: 120/240V AC
-
Frequency Rating: 50/60 Hz
-
Surge Current Capacity: 20 kA
-
Nominal Discharge Current (In): 10 kA
-
Maximum Continuous Operating Voltage (MCOV): 150V L-N, 300V L-L
-
Voltage Protection Rating (VPR): L-N, L-L protection
-
Short Circuit Current Rating (SCCR): 10 kA
-
Interrupt Rating: 10 kAIC
-
Mounting Mode: Plug-on neutral (PON)
-
Connections Terminals: Plug-on neutral
-
Dimensions: Height: 1.48 in; Width: 2.96 in; Depth: 4.63 in
-
Weight: 0.485 lbs
-
Certifications: UL 1449
This Eaton CHPSURGE10 plug-on neutral whole home surge protective device delivers robust 20kA surge current protection with 10kA nominal discharge rating for Eaton CH loadcenters. Featuring true plug-on neutral installation, L-N and L-L protection modes, and UL 1449 certification, it safeguards sensitive electronics and appliances from damaging power surges in residential 120/240V systems.
