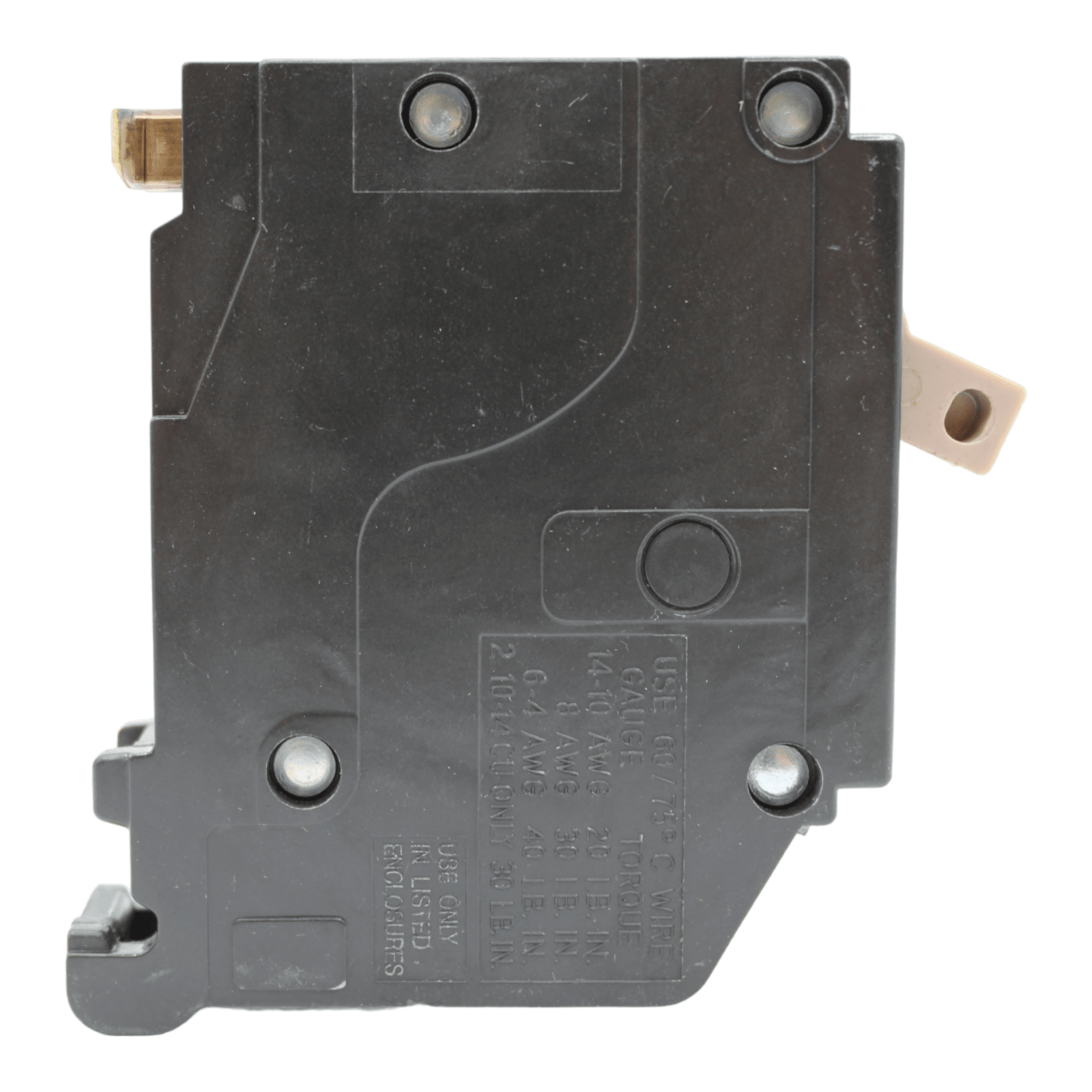

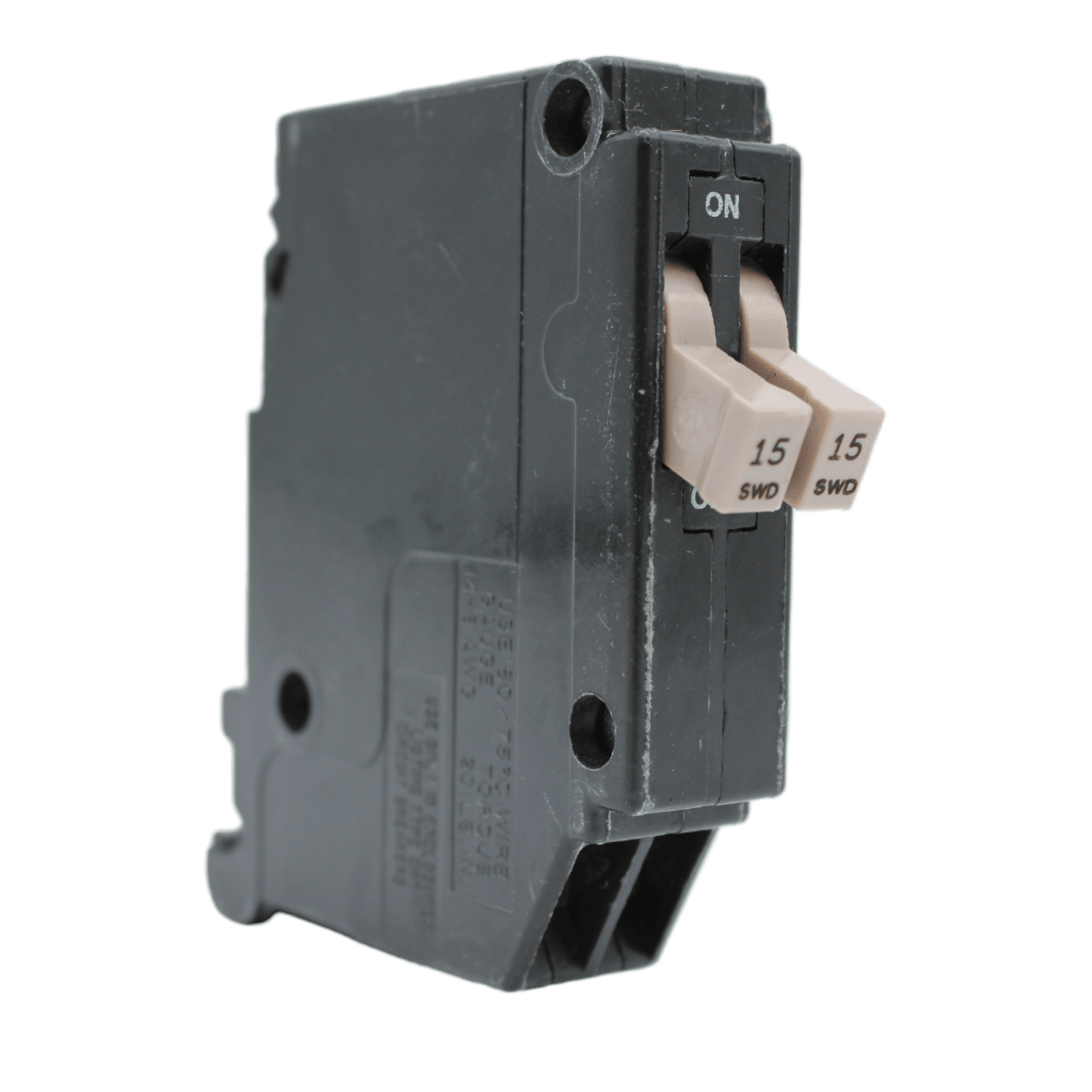

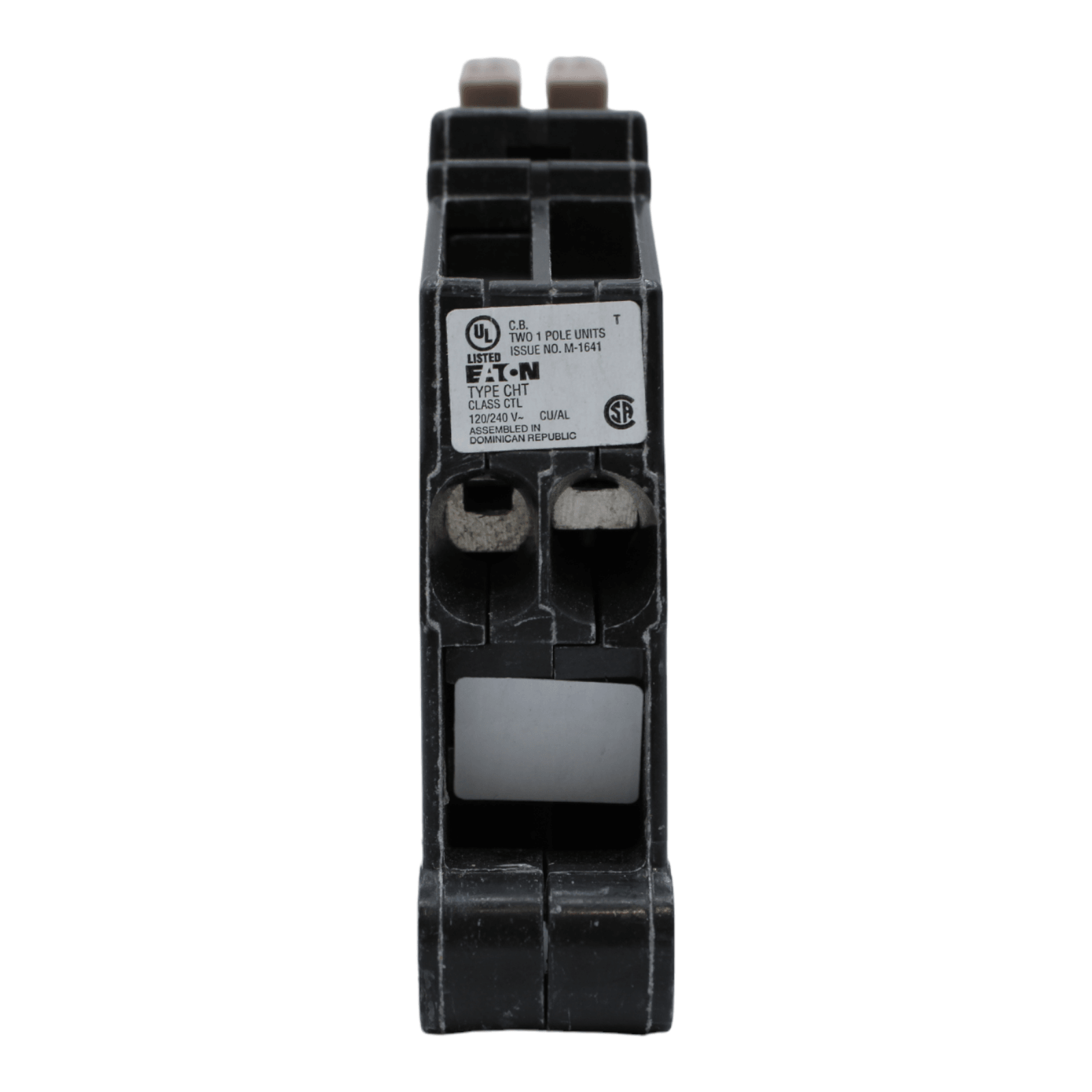

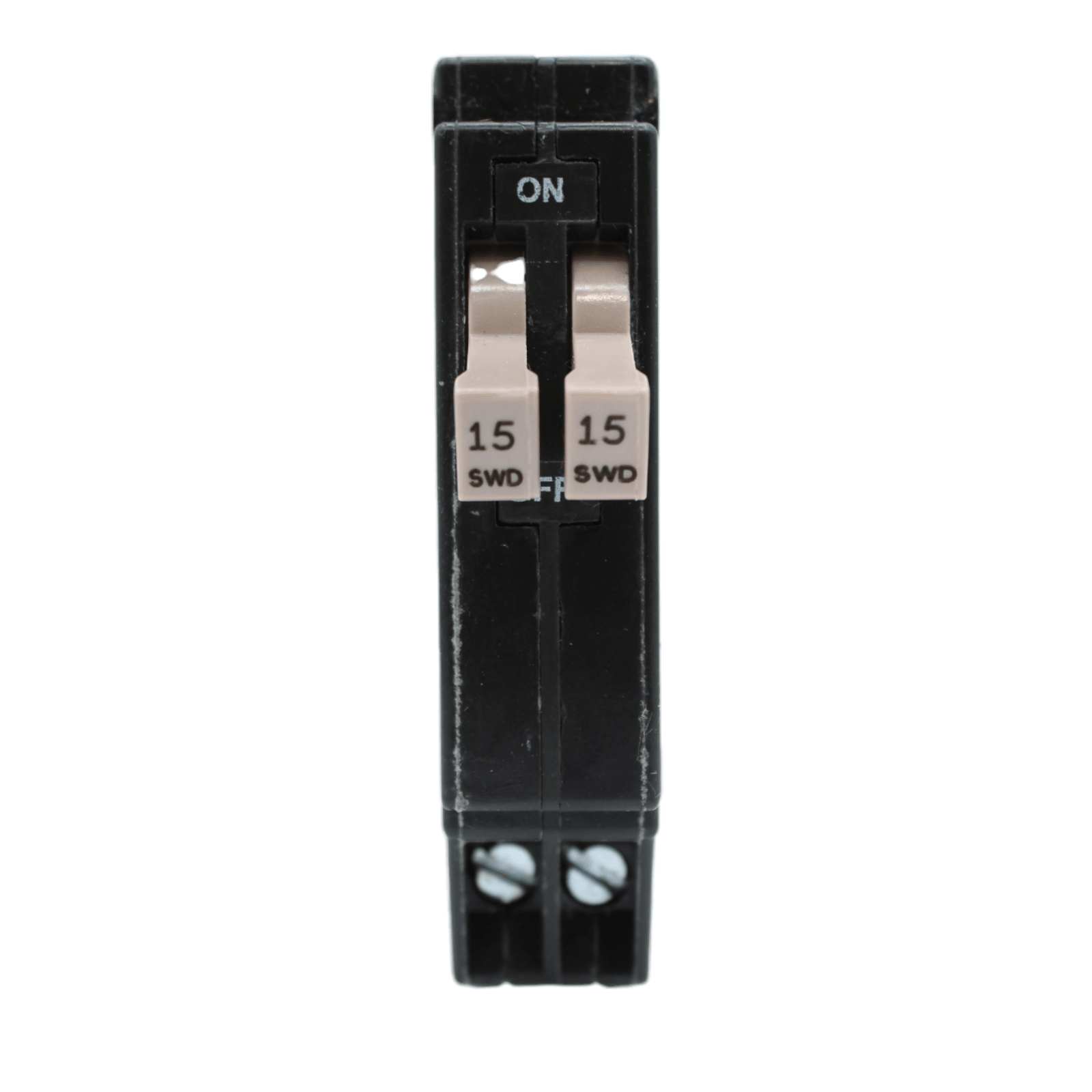

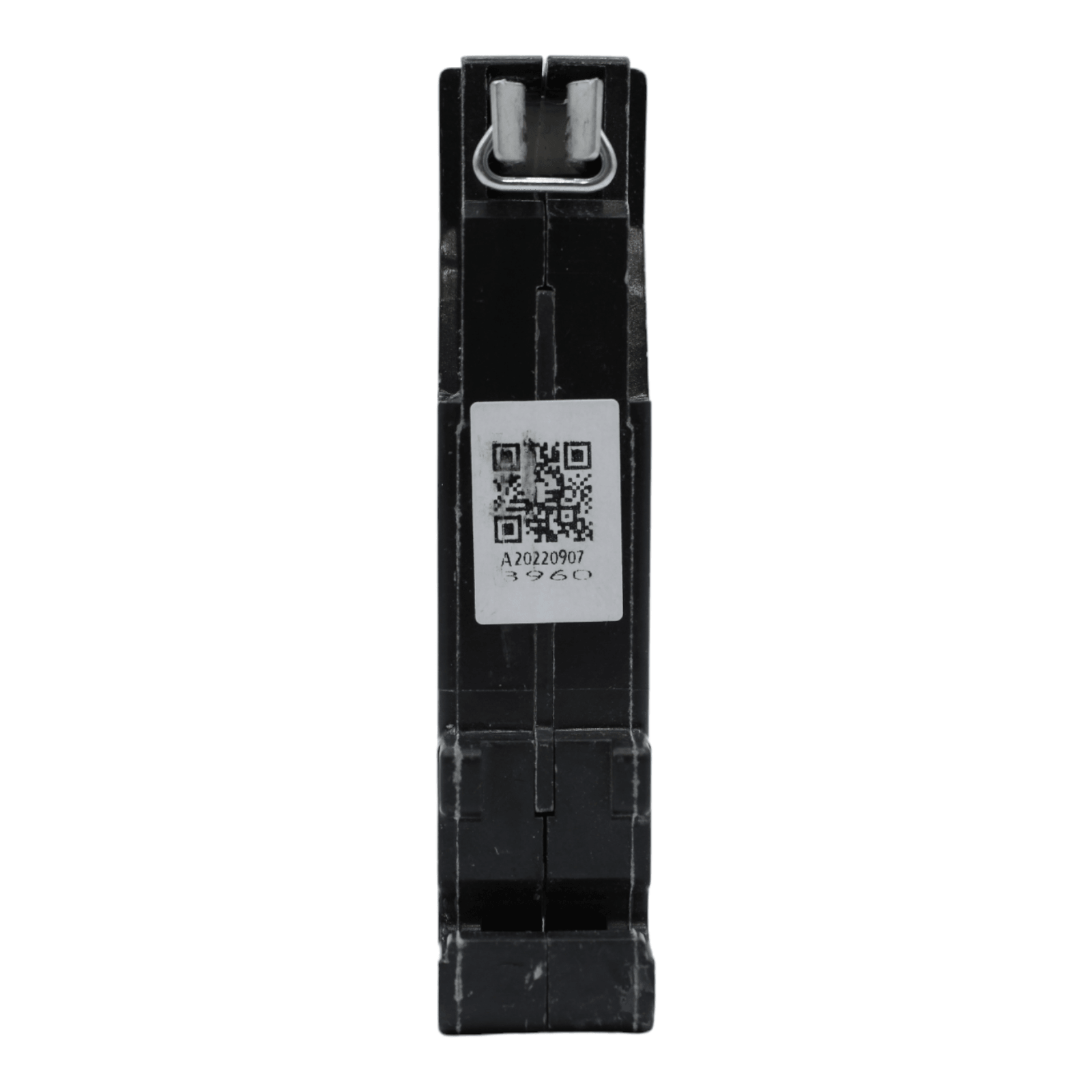

Eaton CH CHT1515 15A 1P 120/240V Tandem Thermal-Magnetic Circuit Breaker

Eaton CHT1515: 15 Amp 1-Pole tandem thermal-magnetic breaker, 120/240V, 10kA, lug terminals, UL listed, HACR rated, for CH loadcenters.

• Manufacturer: Eaton
• Brand: Eaton
• Product Range: CH (for Eaton CH loadcenters and equipment)
• UPC: 782113631530
• Model Number: CHT1515
• Breaker Type: Thermal-Magnetic
• Amperage: 15 Amps
• Poles: 1-Pole
• Voltage: 120/240 Volts AC
• Interrupt Rating: 10 kAIC
• Mounting Mode: Plug-on
• Connections Terminals: Lug terminals
• Wire Size: #14-8 AWG Cu/Al
• Tightening Torque: 20 lb-in
• Dimensions: Height: 2.6 in; Width: 3.2 in; Depth: 0.7 in
• Weight: 0.25 lbs
• Certifications: UL Listed, HACR Rated
• Special Features: Tandem twin breaker, switching duty rated

This Eaton CHT1515 tandem thermal-magnetic circuit breaker provides reliable 15A, 1-pole protection for 120/240V circuits in Eaton CH loadcenters. With a 10kA interrupt rating and lug terminals, it offers space-saving overcurrent protection for residential applications.
