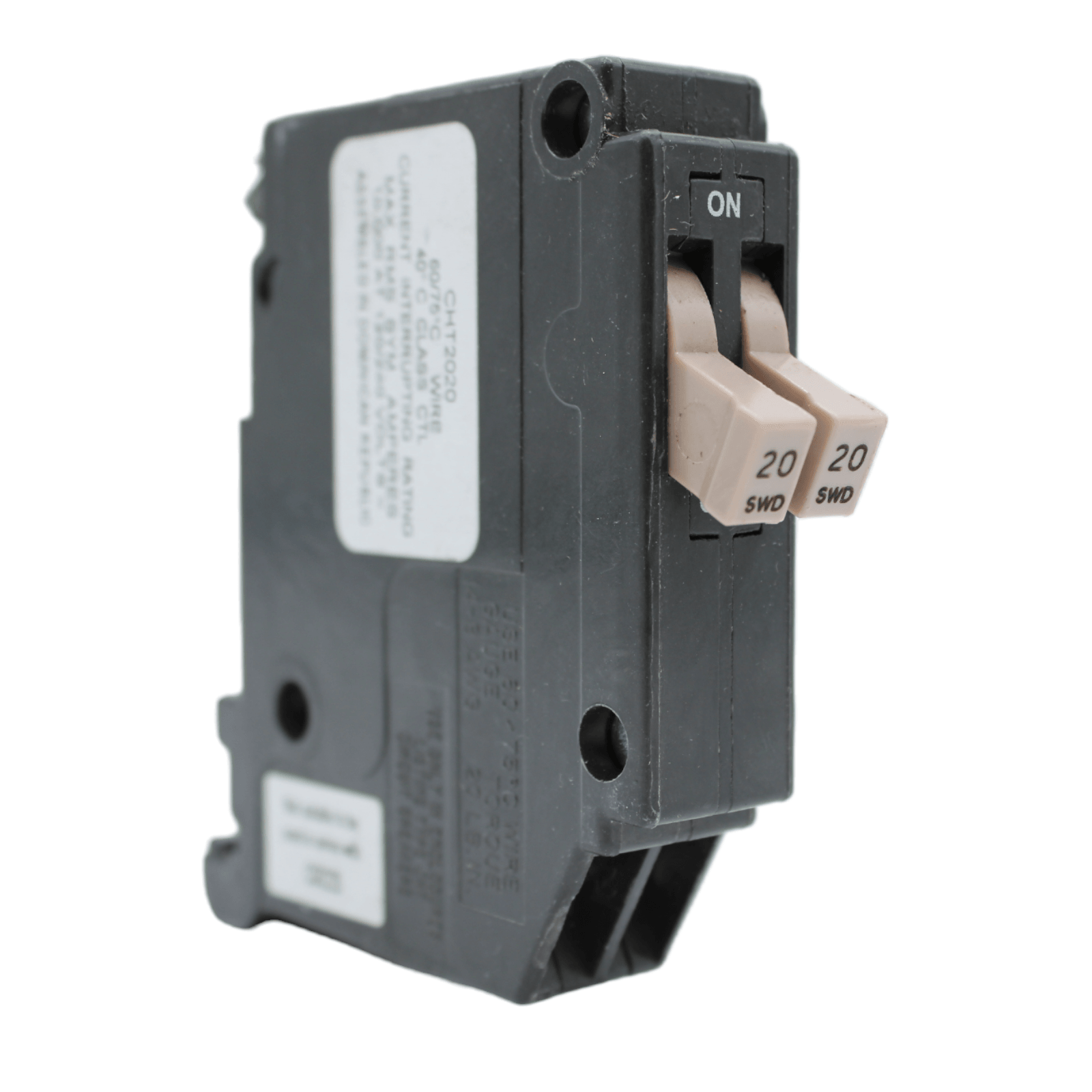

Eaton CH CHT2020 20A 1P 120/240V Tandem Thermal-Magnetic Circuit Breaker

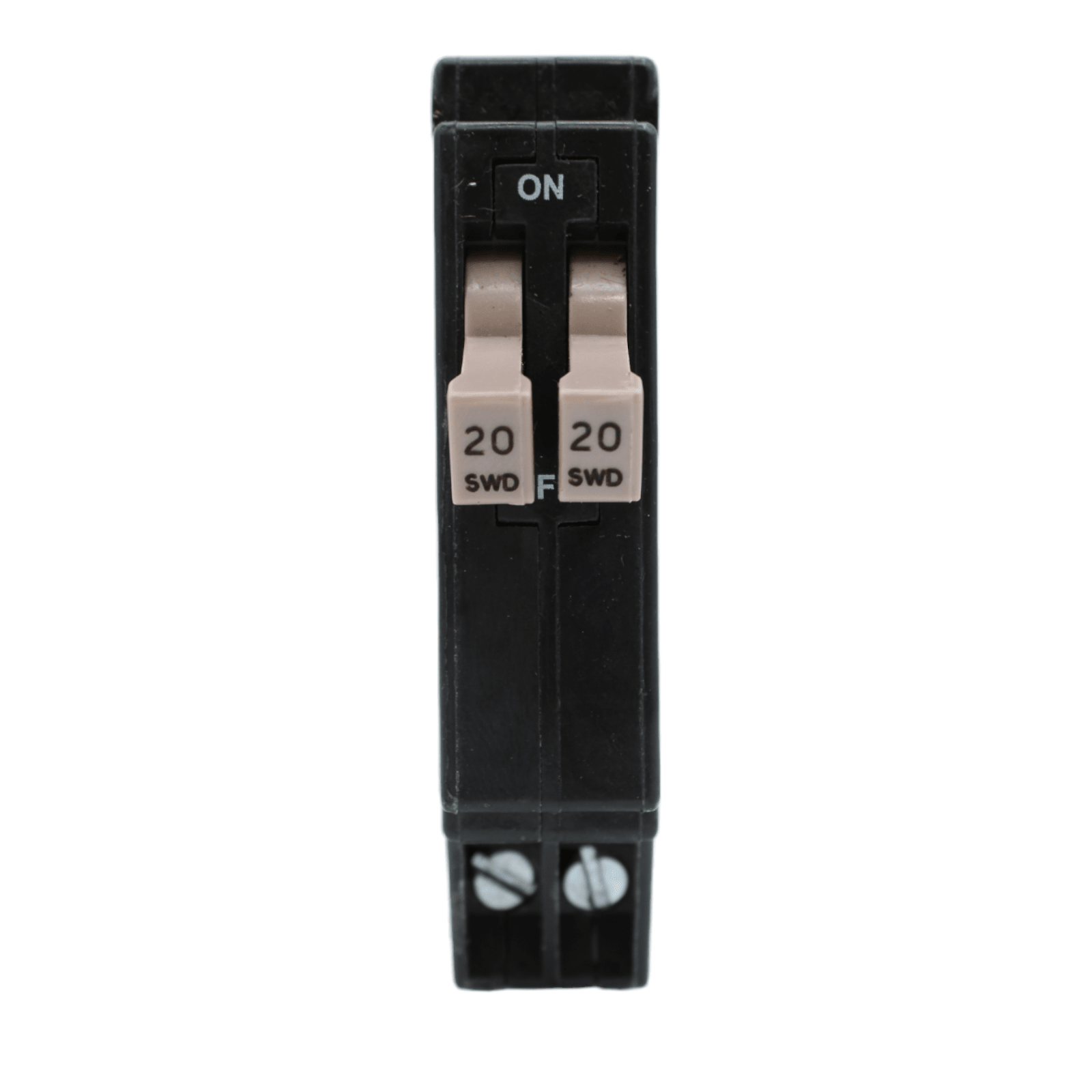

Eaton CH CHT2020 20A 1P 120/240V Tandem Thermal-Magnetic Circuit Breaker - Image 2

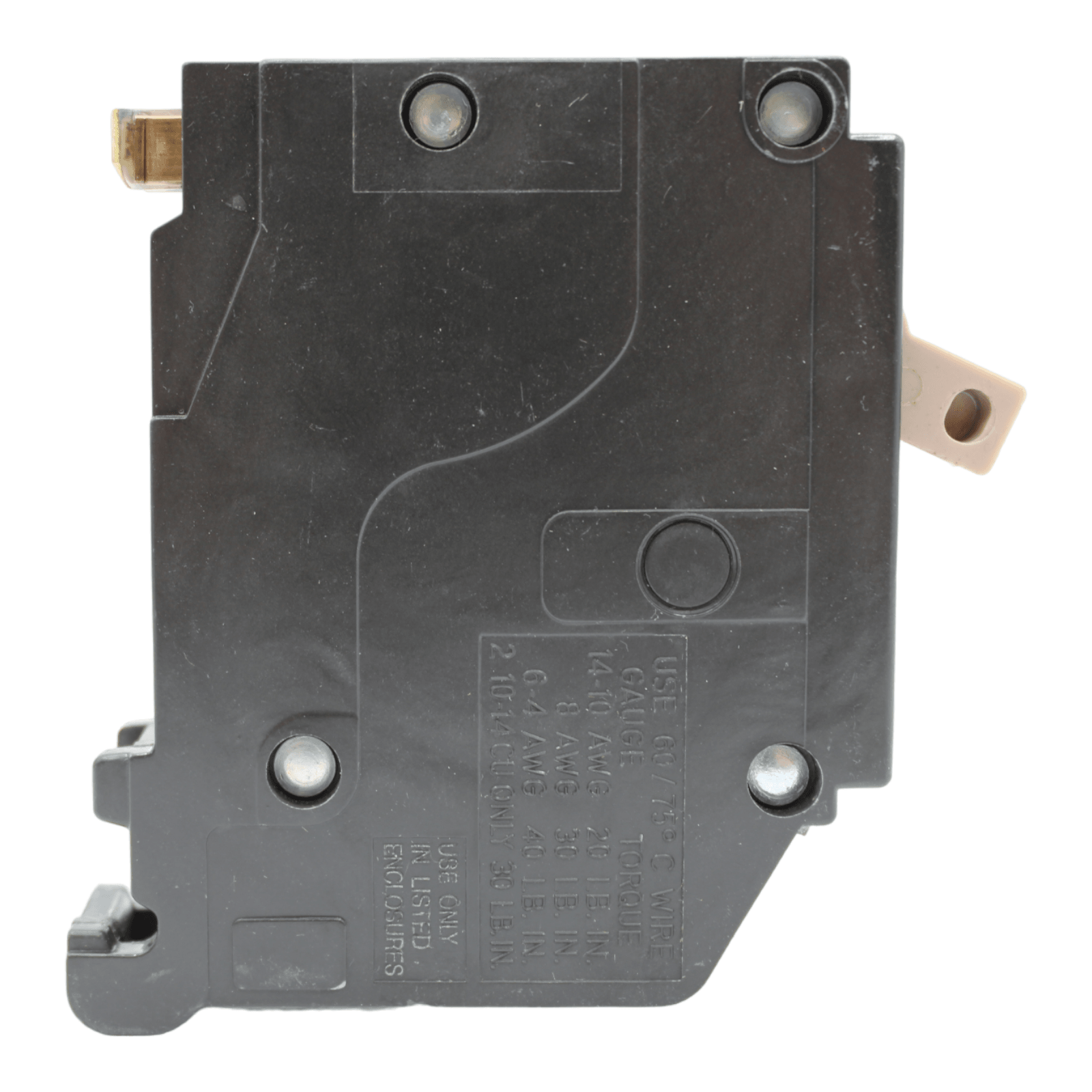

Eaton CH CHT2020 20A 1P 120/240V Tandem Thermal-Magnetic Circuit Breaker - Image 3

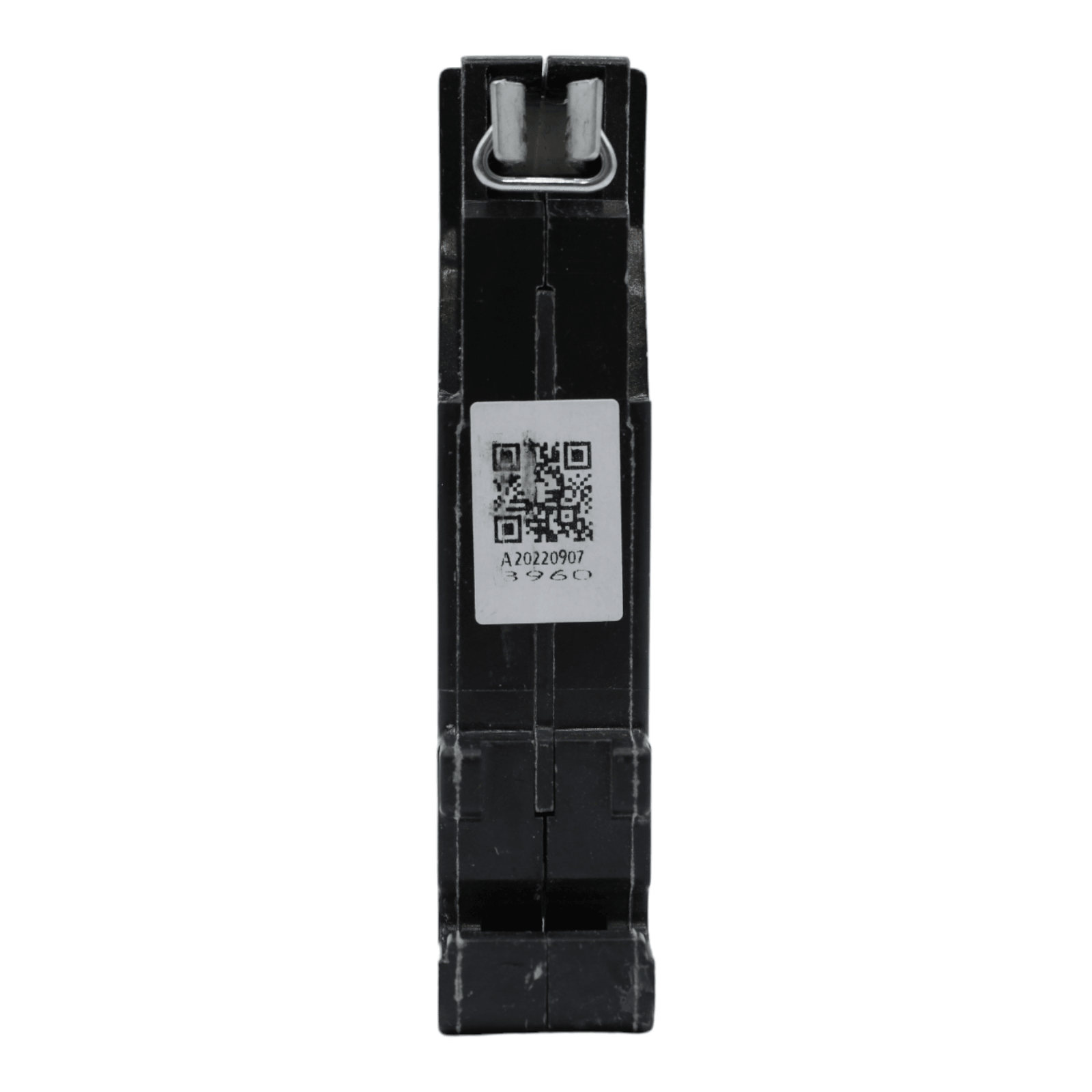

Eaton CH CHT2020 20A 1P 120/240V Tandem Thermal-Magnetic Circuit Breaker - Image 4

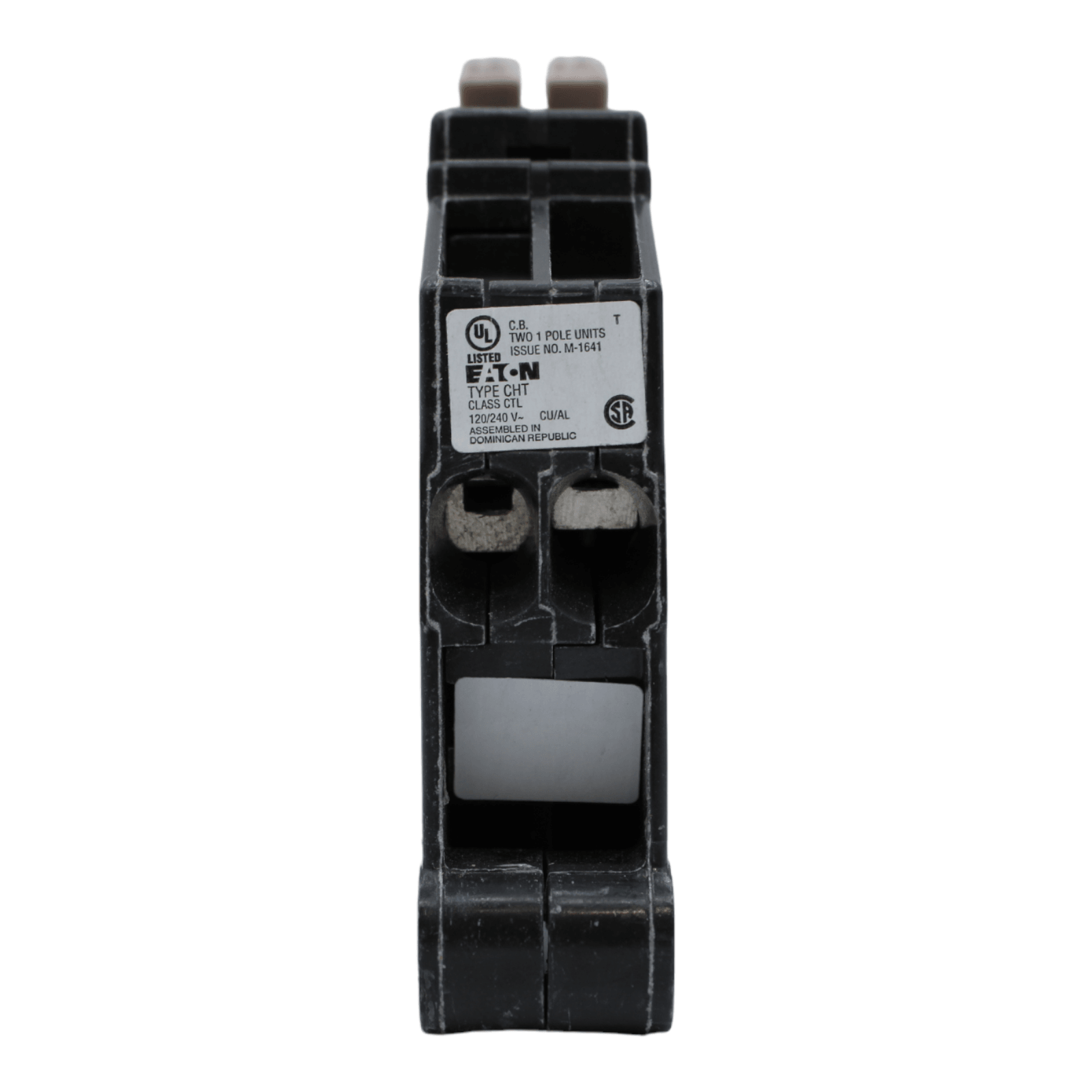

Eaton CH CHT2020 20A 1P 120/240V Tandem Thermal-Magnetic Circuit Breaker - Image 5

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eaton

Eaton CH CHT2020 20A 1P 120/240V Tandem Thermal-Magnetic Circuit Breaker

Out of stock
SKU: CHT2020 UPC: 782113631547
(0)
$35.00
-8% $38.00 $35.00
Out of stock
Condition

CHT2020 specifications

  • Manufacturer: Eaton
  • Brand: Eaton
  • Product Range: CH (for Eaton CH loadcenters and equipment)
  • UPC: 782113631547
  • Model Number: CHT2020
  • Breaker Type: Thermal-Magnetic
  • Amperage: 20 Amps
  • Poles: 1-Pole
  • Voltage: 120/240 Volts AC
  • Interrupt Rating: 10 kAIC
  • Mounting Mode: Plug-on
  • Connections Terminals: Lug terminals
  • Wire Size: #14-8 AWG Cu/Al
  • Tightening Torque: 20 lb-in
  • Dimensions: Height: 2.6 in; Width: 0.7 in; Depth: 0.9 in
  • Weight: 0.29 lbs
  • Certifications: UL Listed, HACR Rated
  • Special Features: Tandem twin breaker, switching duty rated

This Eaton CHT2020 tandem thermal-magnetic circuit breaker provides reliable 20A, 1-pole protection for 120/240V circuits in Eaton CH loadcenters. With a 10kA interrupt rating and lug terminals, it offers space-saving overcurrent protection for residential applications.

There is a $15 charge for delivery. Additional charges will be imposed by our couriers for delivery to remote areas, a surcharge may be levied to cover carriage to these areas.

Warranty Coverage

We stand behind every product we sell. Coverage depends on the condition of the item at time of purchase:

  • New: 12-month warranty
  • New Open Box: 10-month warranty
  • Reconditioned: 90-day warranty

Warranty coverage begins on the date of delivery and covers manufacturing and functional defects under normal use. It does not cover damage from misuse, improper installation, or unauthorized repair. To make a warranty claim, contact us at support@breakersmart.com with your order number and a description of the issue.
