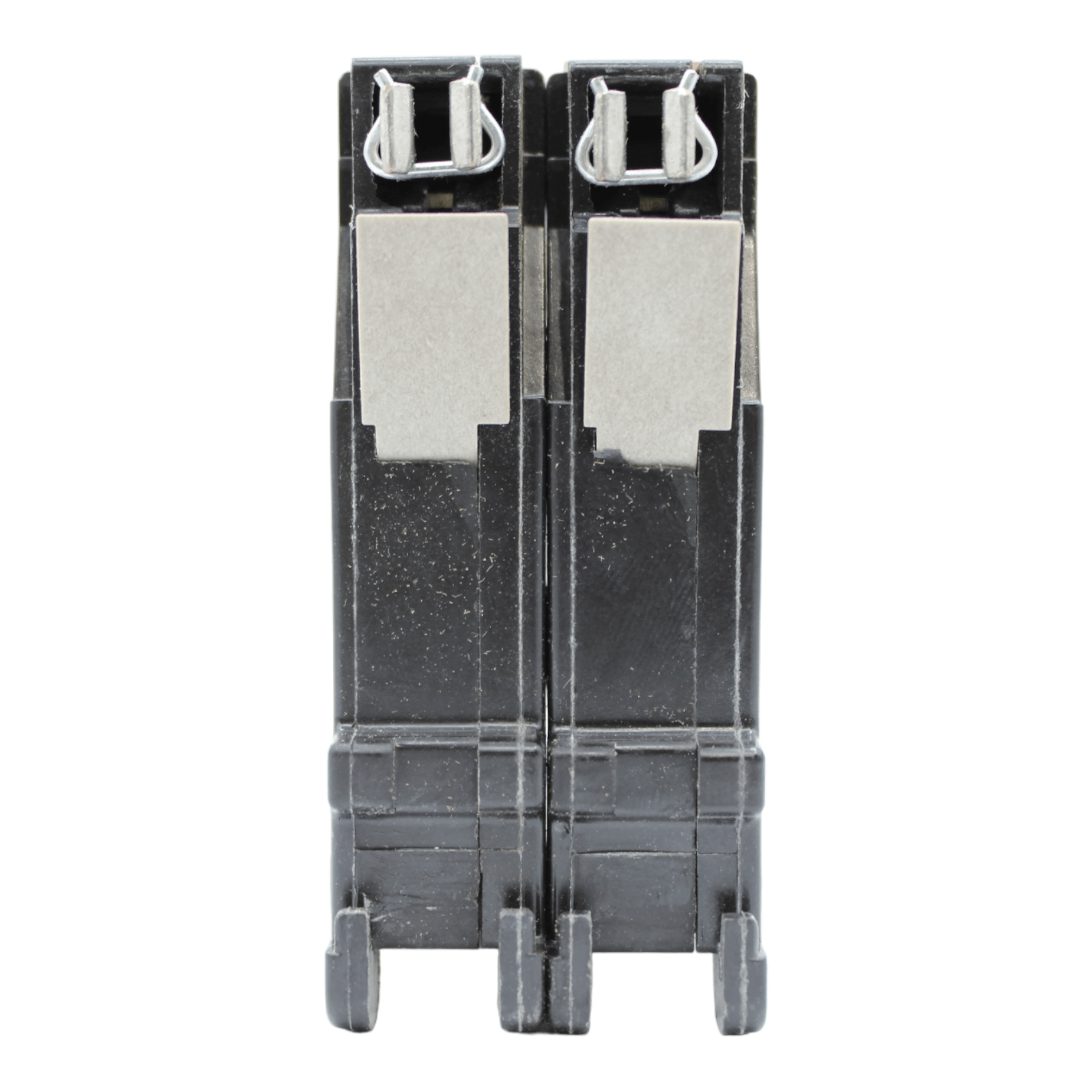

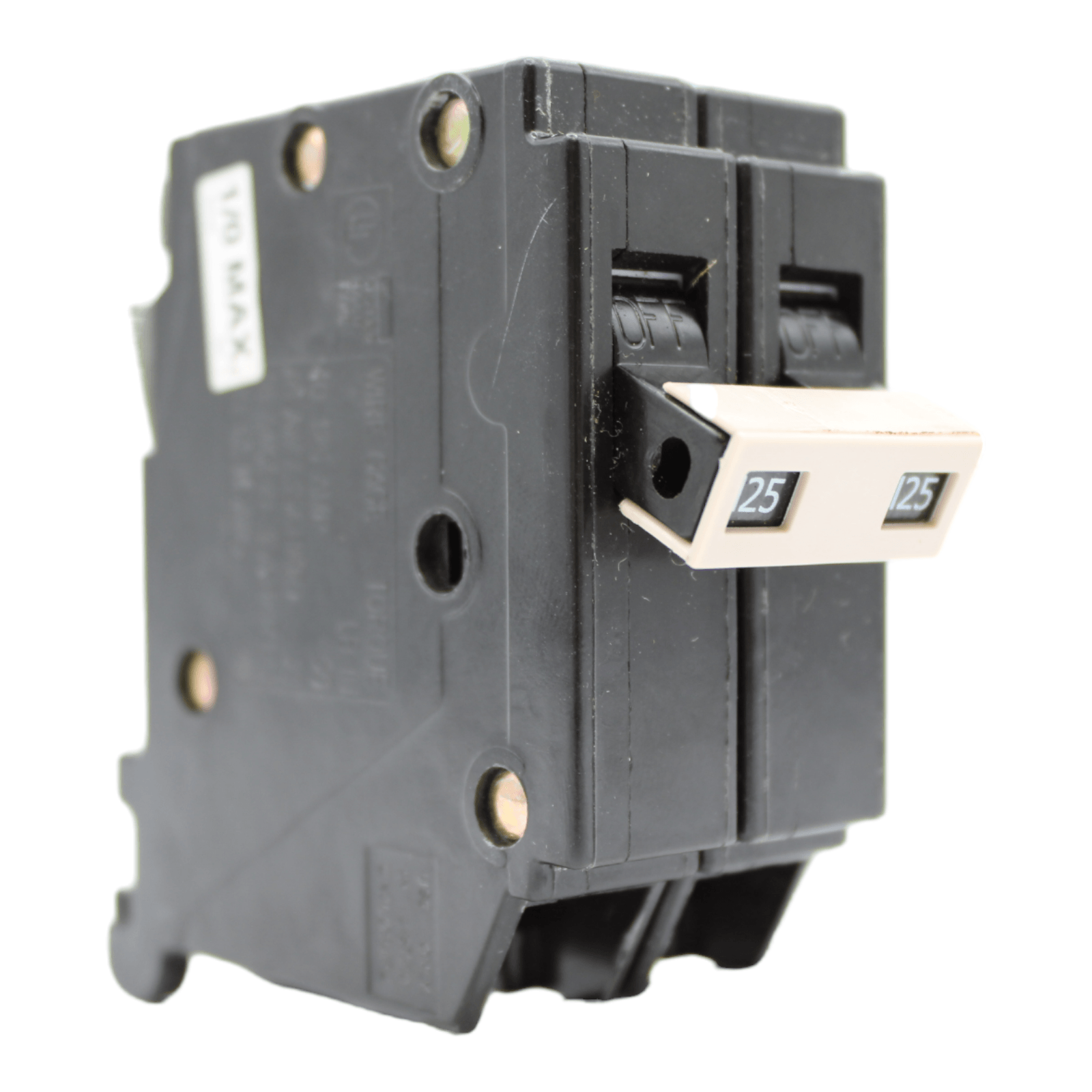

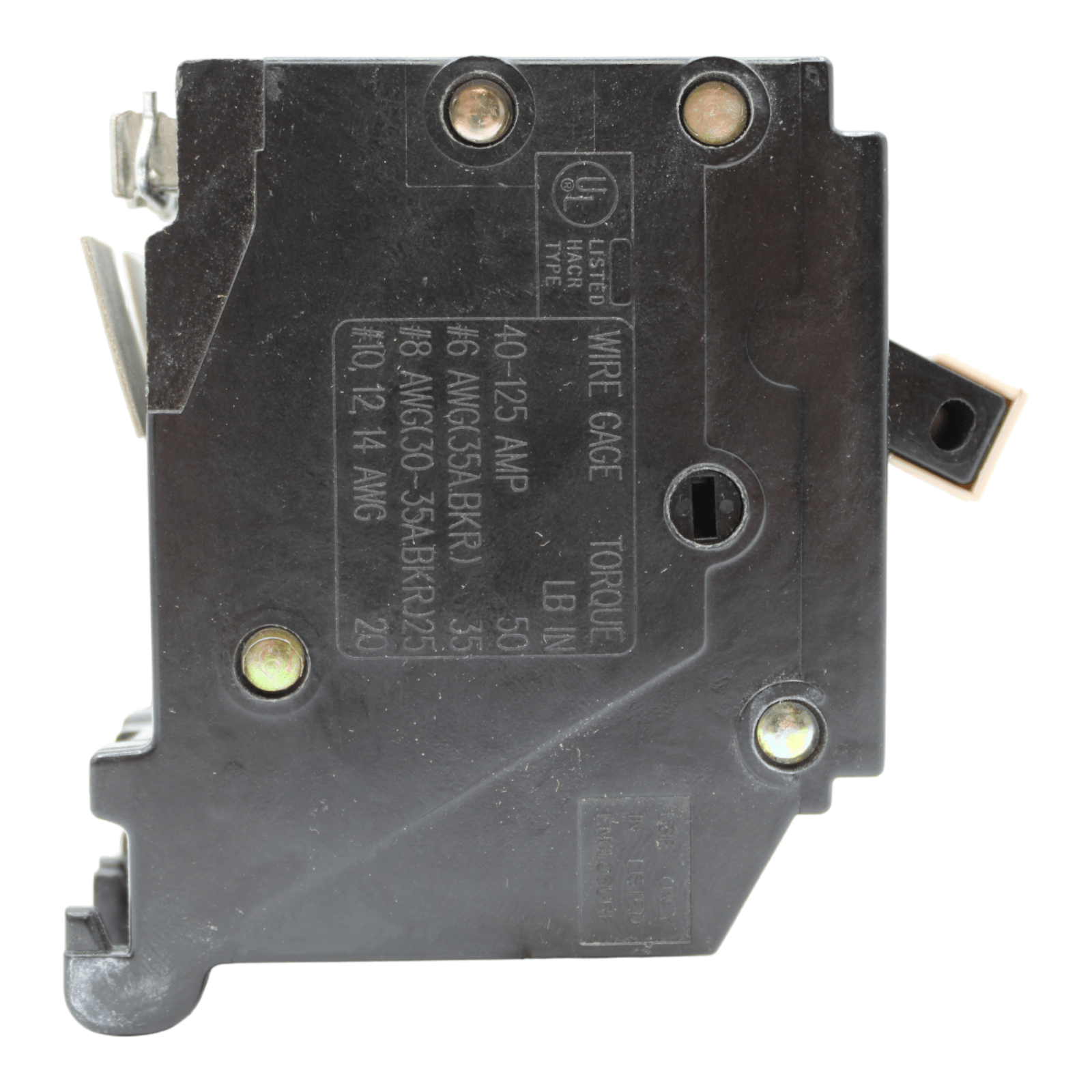

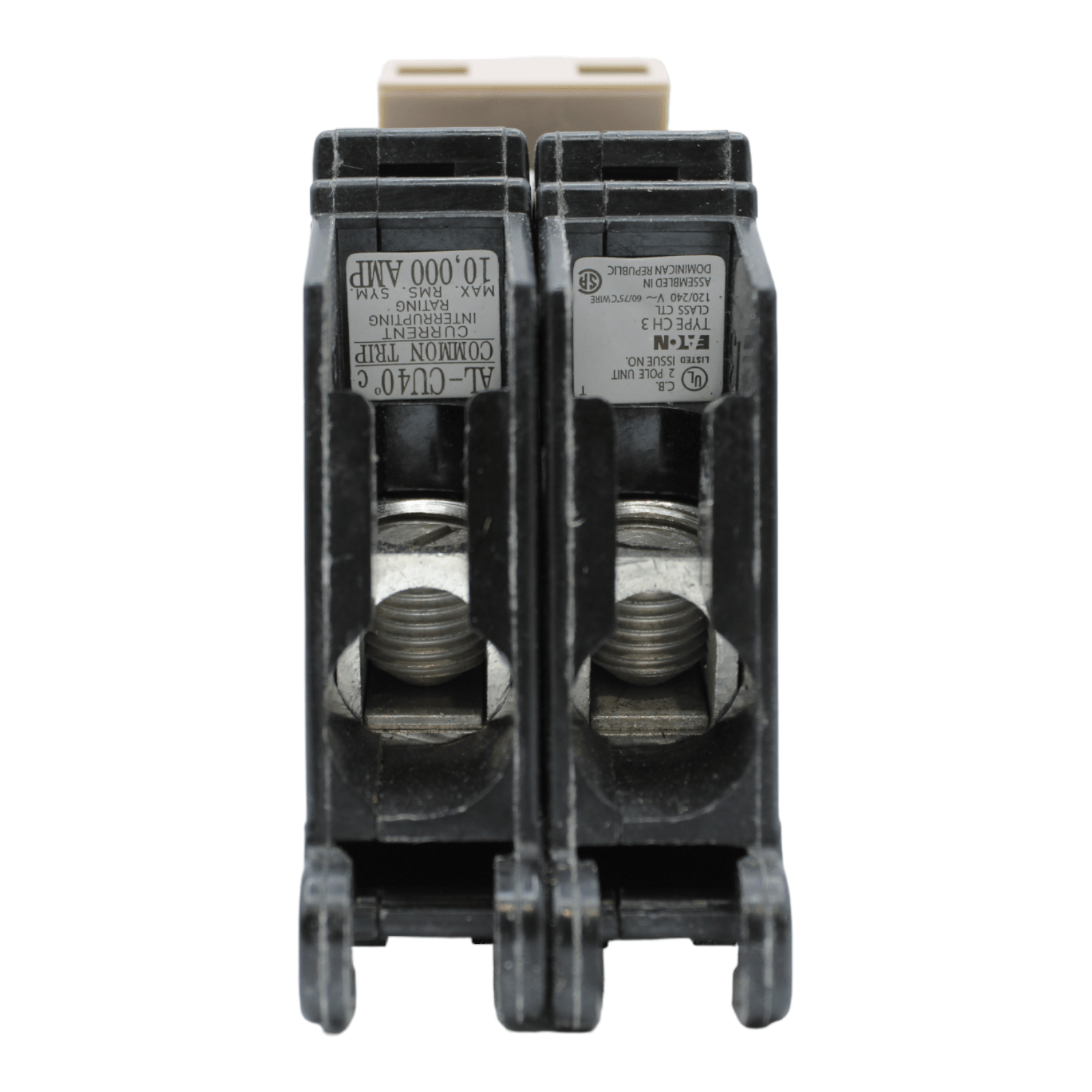

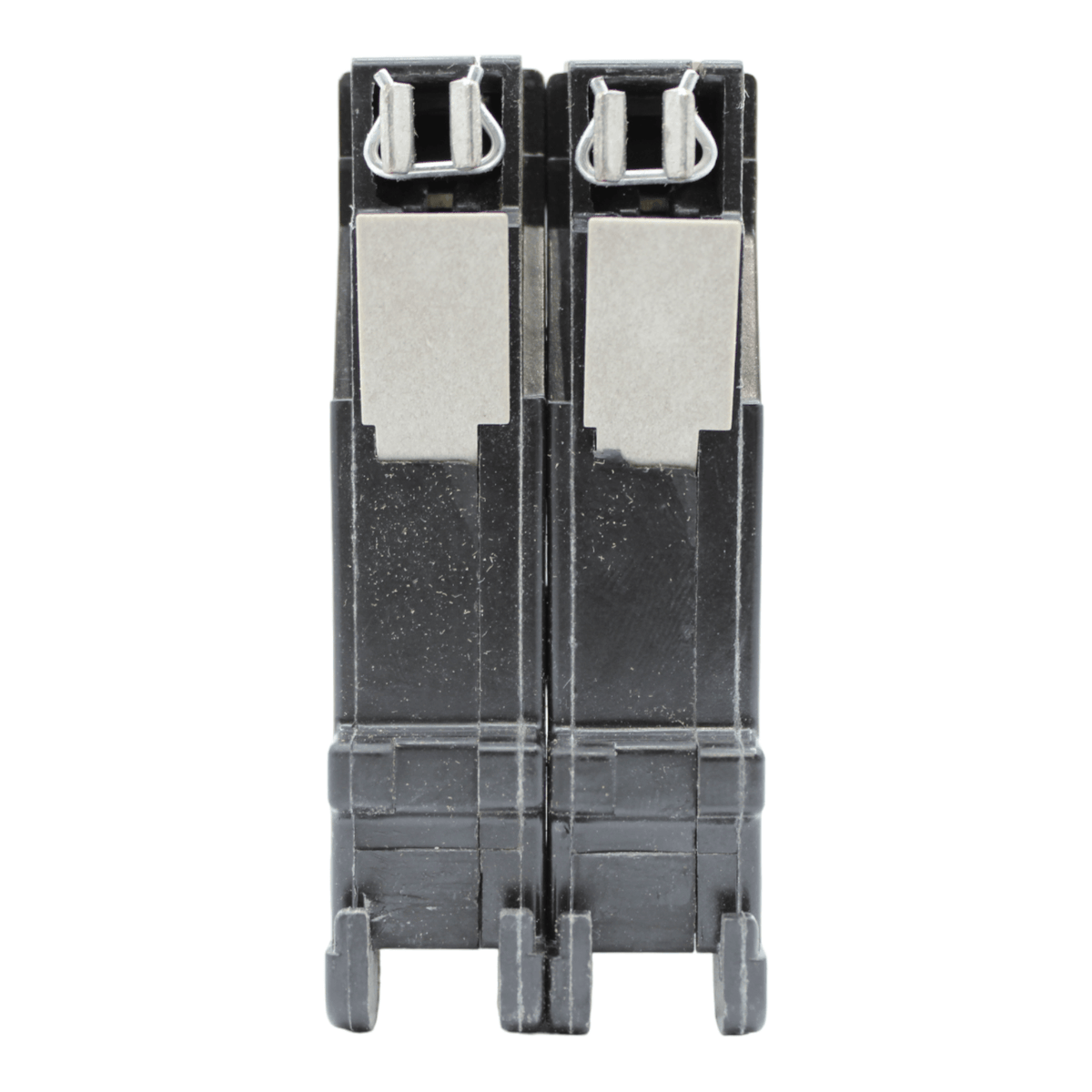

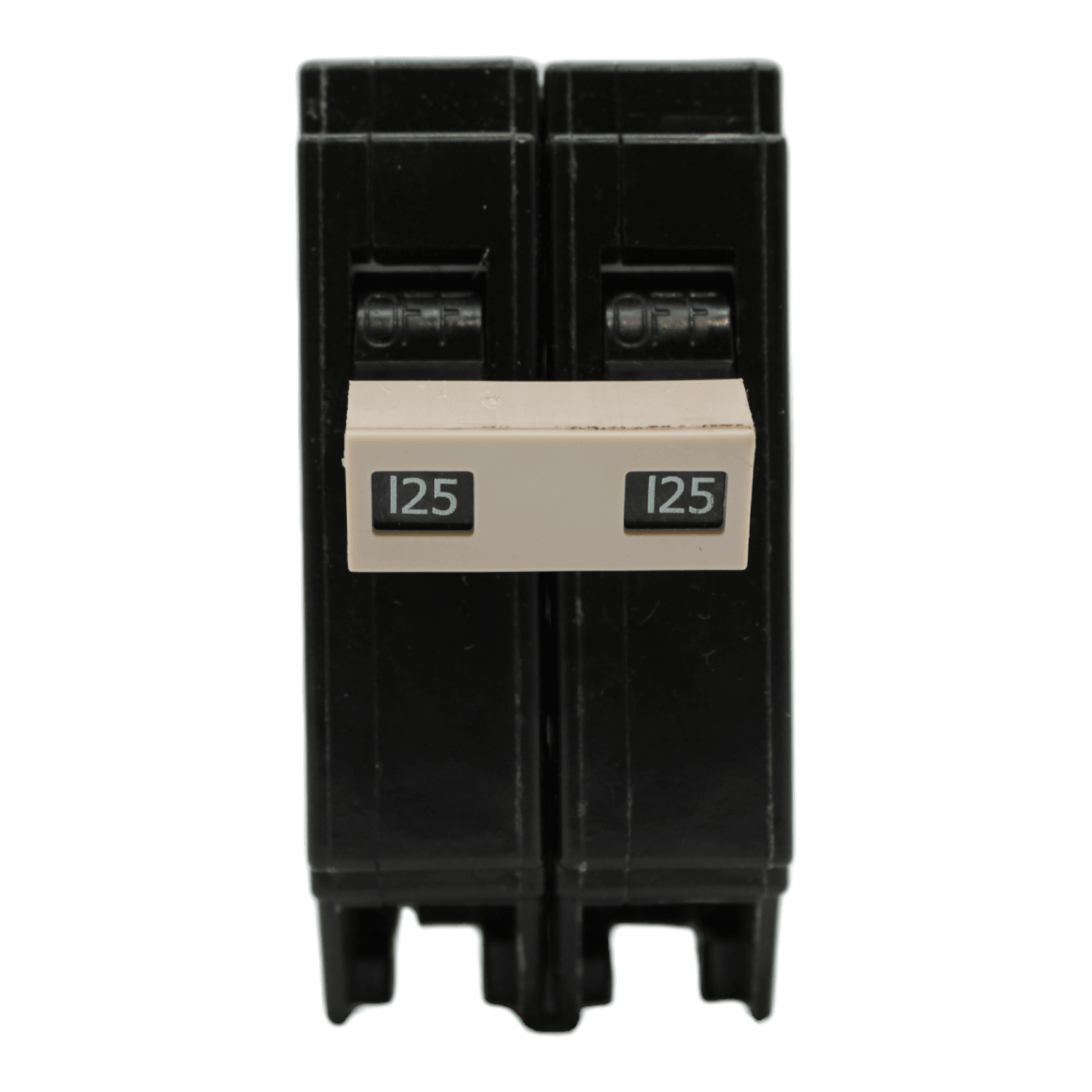

Eaton CH CH2125 125A 2P 120/240V Thermal-Magnetic Circuit Breaker

Eaton CH2125: 125 Amp 2-Pole thermal-magnetic breaker, 120/240V, 10kA, lug terminals, UL listed, for CH loadcenters.

• Manufacturer: Eaton
• Brand: Eaton
• Product Range: CH (for Eaton CH loadcenters and equipment)
• UPC: 782113298788
• Model Number: CH2125
• Breaker Type: Thermal-Magnetic
• Amperage: 125 Amps
• Poles: 2-Pole
• Voltage: 120/240 Volts AC
• Interrupt Rating: 10 kAIC
• Mounting Mode: Plug-on
• Connections Terminals: Lug terminals
• Wire Size: #10-1/0 AWG
• Tightening Torque: 65 lb-in
• Dimensions: Height: 2.75 in; Width: 2.5 in; Depth: 3.75 in
• Weight: 0.58 lbs
• Certifications: UL Listed

This Eaton CH2125 thermal-magnetic circuit breaker provides reliable 125A, 2-pole protection for 120/240V circuits in Eaton CH loadcenters. With a 10kA interrupt rating and lug terminals, it ensures robust overcurrent protection for residential and commercial applications.
