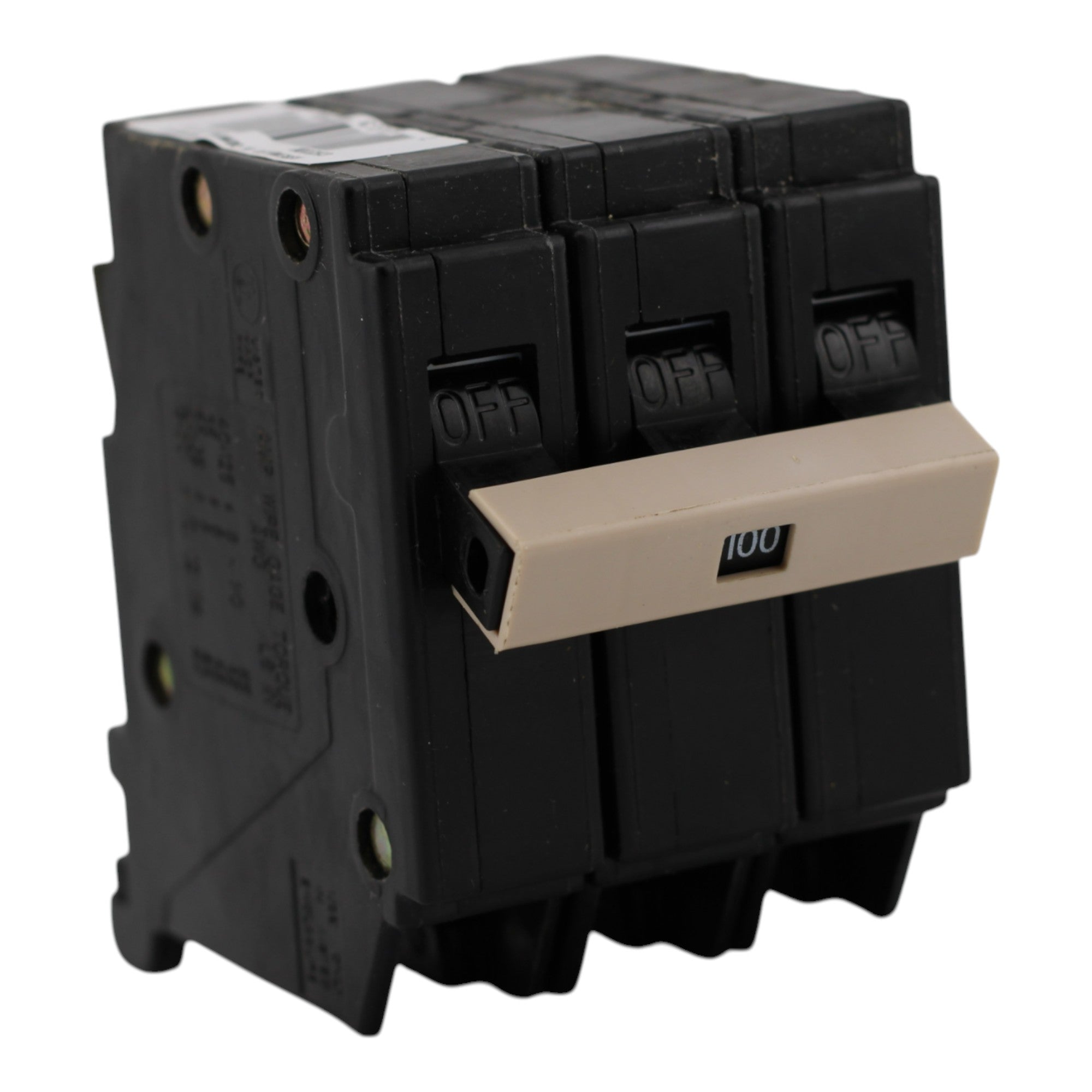

Eaton CH3100 100A 3P 240V Circuit Breaker

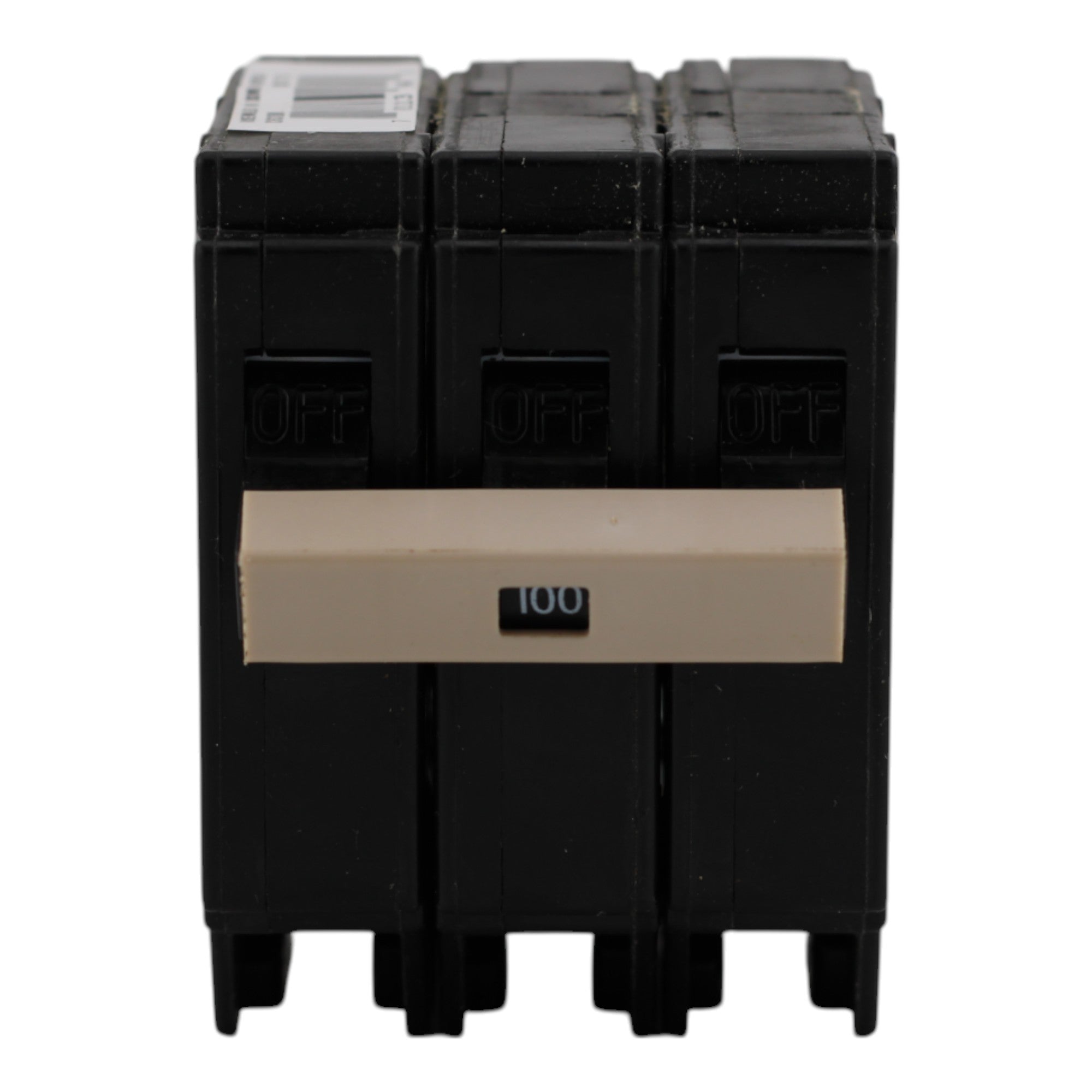

Eaton CH3100 100A 3P 240V Circuit Breaker - Image 2

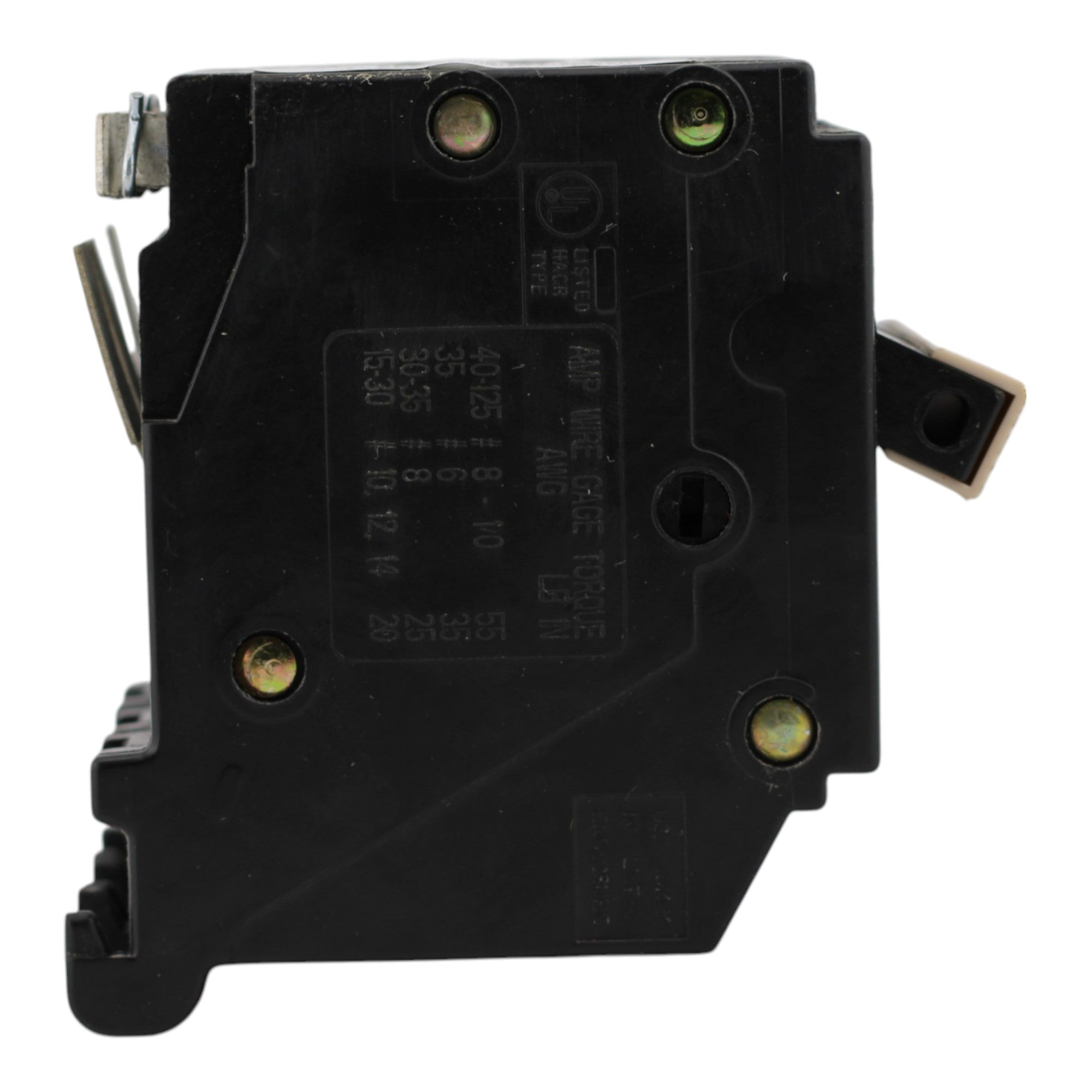

Eaton CH3100 100A 3P 240V Circuit Breaker - Image 3

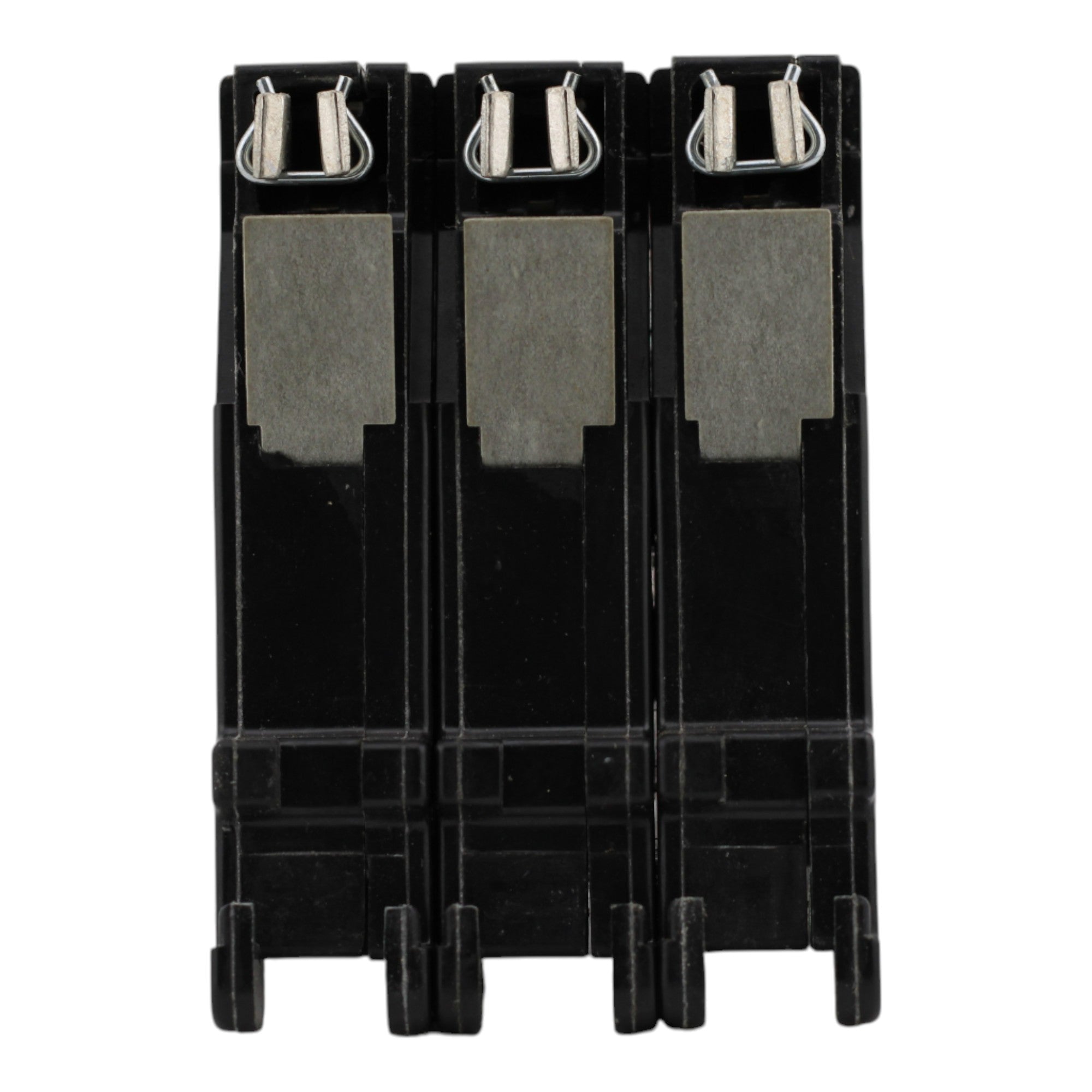

Eaton CH3100 100A 3P 240V Circuit Breaker - Image 4

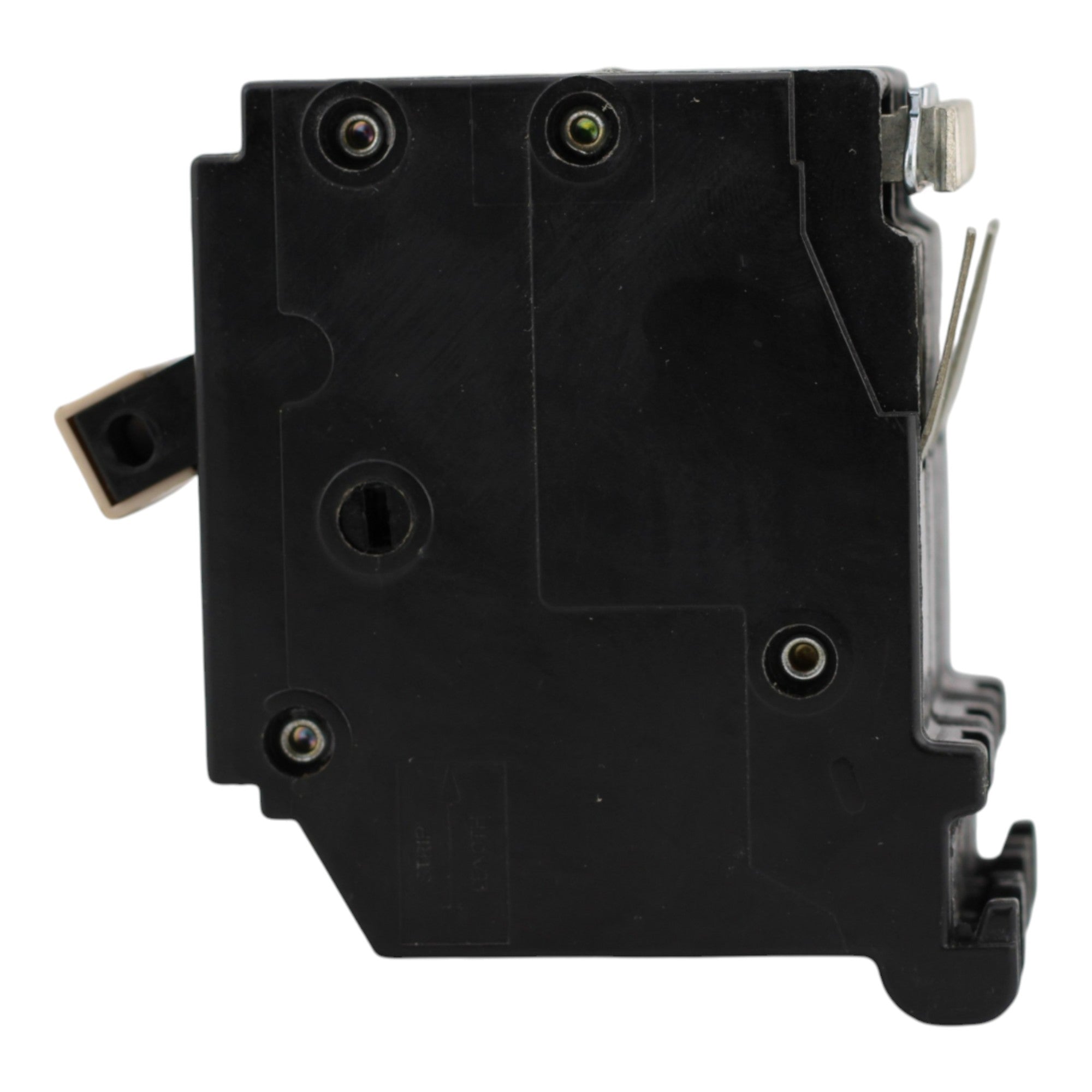

Eaton CH3100 100A 3P 240V Circuit Breaker - Image 5

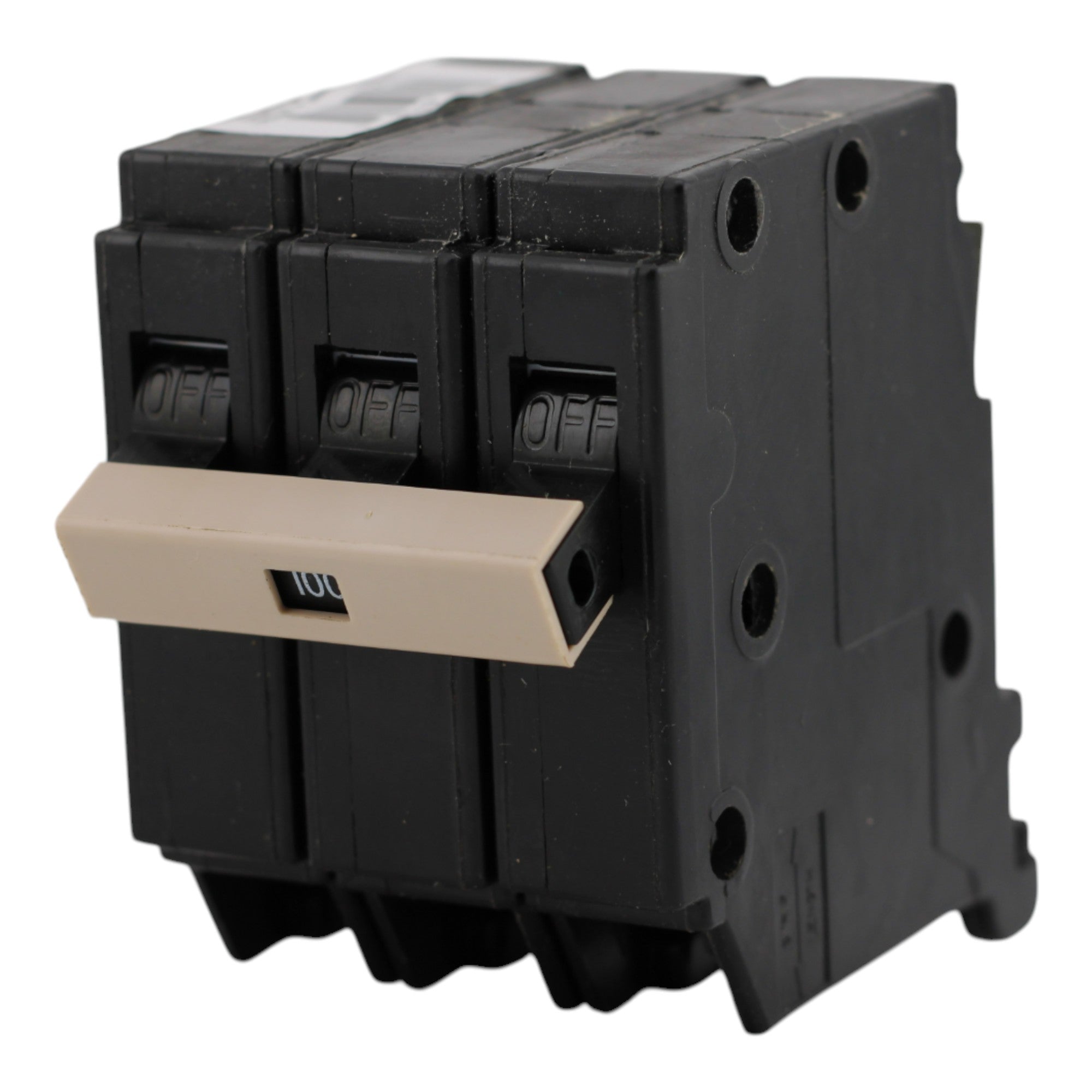

Eaton CH3100 100A 3P 240V Circuit Breaker - Image 6

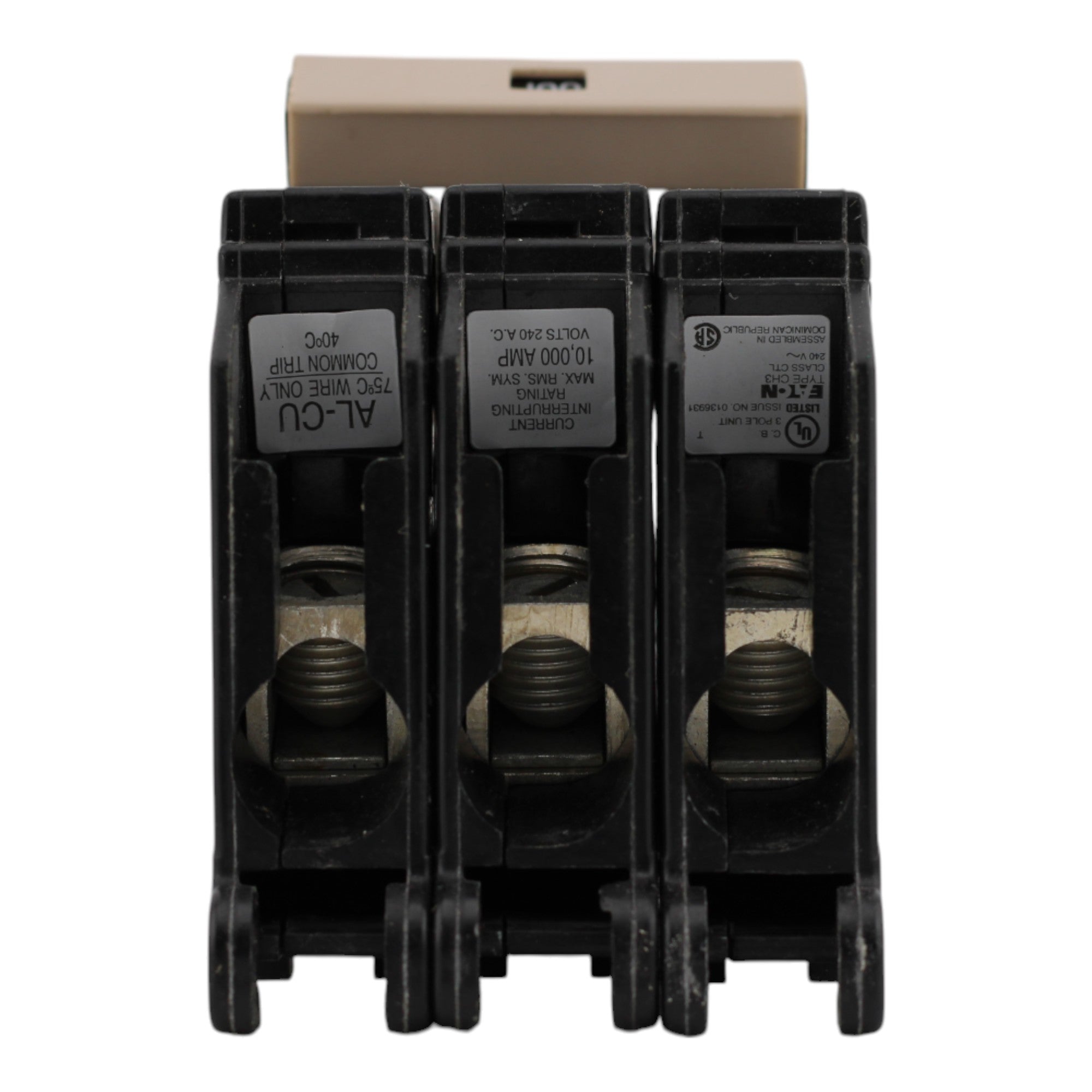

Eaton CH3100 100A 3P 240V Circuit Breaker - Image 7

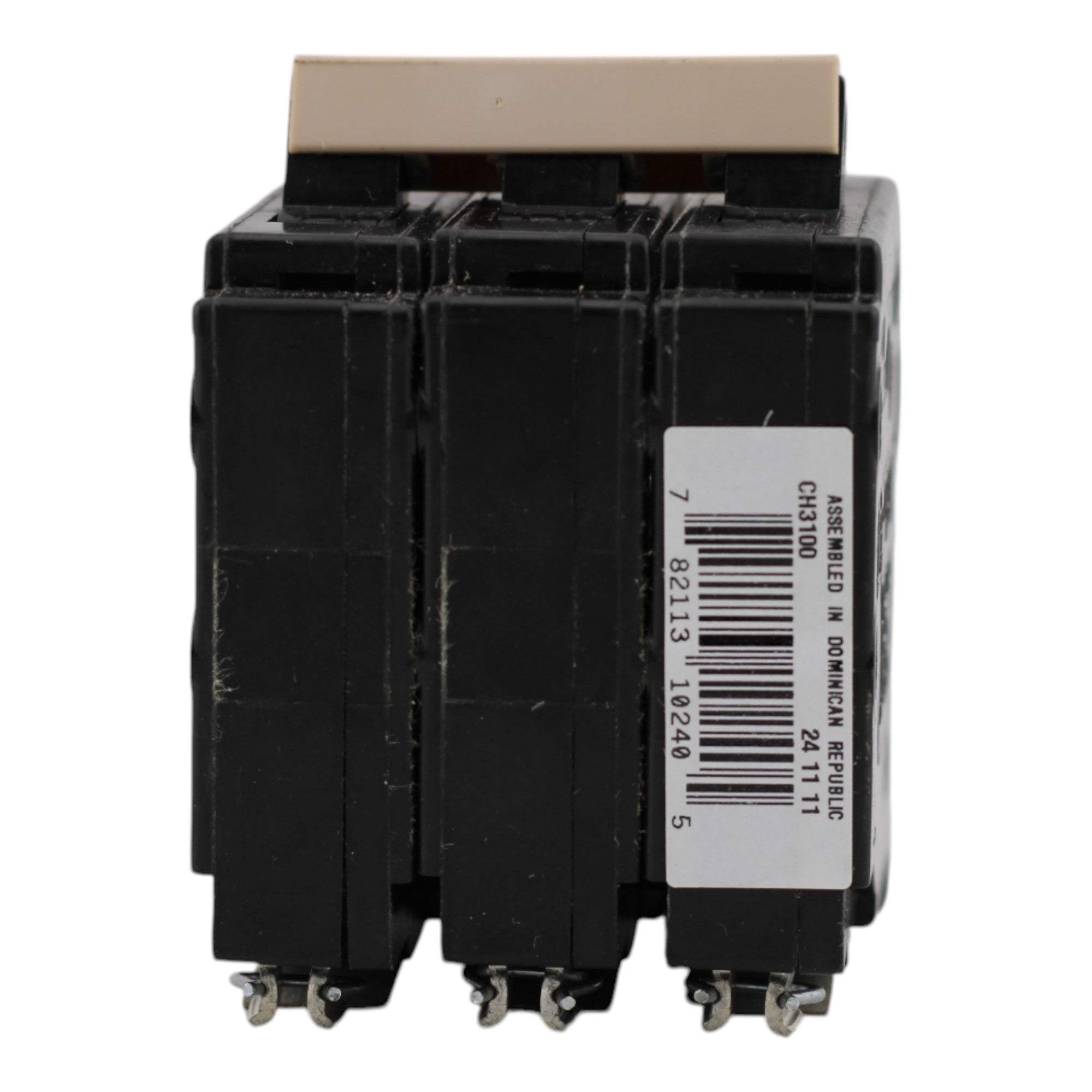

Eaton CH3100 100A 3P 240V Circuit Breaker - Image 8
Eaton CH3100 100A 3P 240V Circuit Breaker
Eaton CH3100 100A 3P 240V Circuit Breaker - Image 2
Eaton CH3100 100A 3P 240V Circuit Breaker - Image 3
Eaton CH3100 100A 3P 240V Circuit Breaker - Image 4
Eaton CH3100 100A 3P 240V Circuit Breaker - Image 5
Eaton CH3100 100A 3P 240V Circuit Breaker - Image 6
Eaton CH3100 100A 3P 240V Circuit Breaker - Image 7
Eaton CH3100 100A 3P 240V Circuit Breaker - Image 8

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eaton

Eaton CH3100 100A 3P 240V Circuit Breaker

SKU: CH3100
(0)
$170.00
-15% $200.00 $170.00
Out of stock
Condition

Eaton CH3100: 100A 3P standard breaker, 240V, 10kA SCCR, common trip, 3/4-inch design, UL 489 listed, for CH loadcenters, #10-1/0 AWG Cu/Al compatible.

Product Specifications

  • Manufacturer: Eaton
  • Brand: Eaton CH
  • UPC: 782113102405
  • Model Number: CH3100
  • Product Type: Standard Circuit Breaker
  • Product Line: CH Series
  • Amperage Rating: 100A
  • Voltage Rating: 240V AC
  • Number of Poles: 3-Pole
  • Short Circuit Current Rating: 10 kA
  • Mounting Type: 3/4-Inch Standard
  • Connection Type: Terminal
  • Wire Size Compatibility: 10-1/0 AWG (copper or aluminum)
  • Dimensions: Height: 2.6 in; Width: 3.1 in; Depth: 2.2 in
  • Weight: 0.85 lb
  • Certifications: UL 489 Listed
  • Features: Common breaker trip
  • Application: For use with Type CH Loadcenters
  • Space Required: Three 3/4-inch spaces
