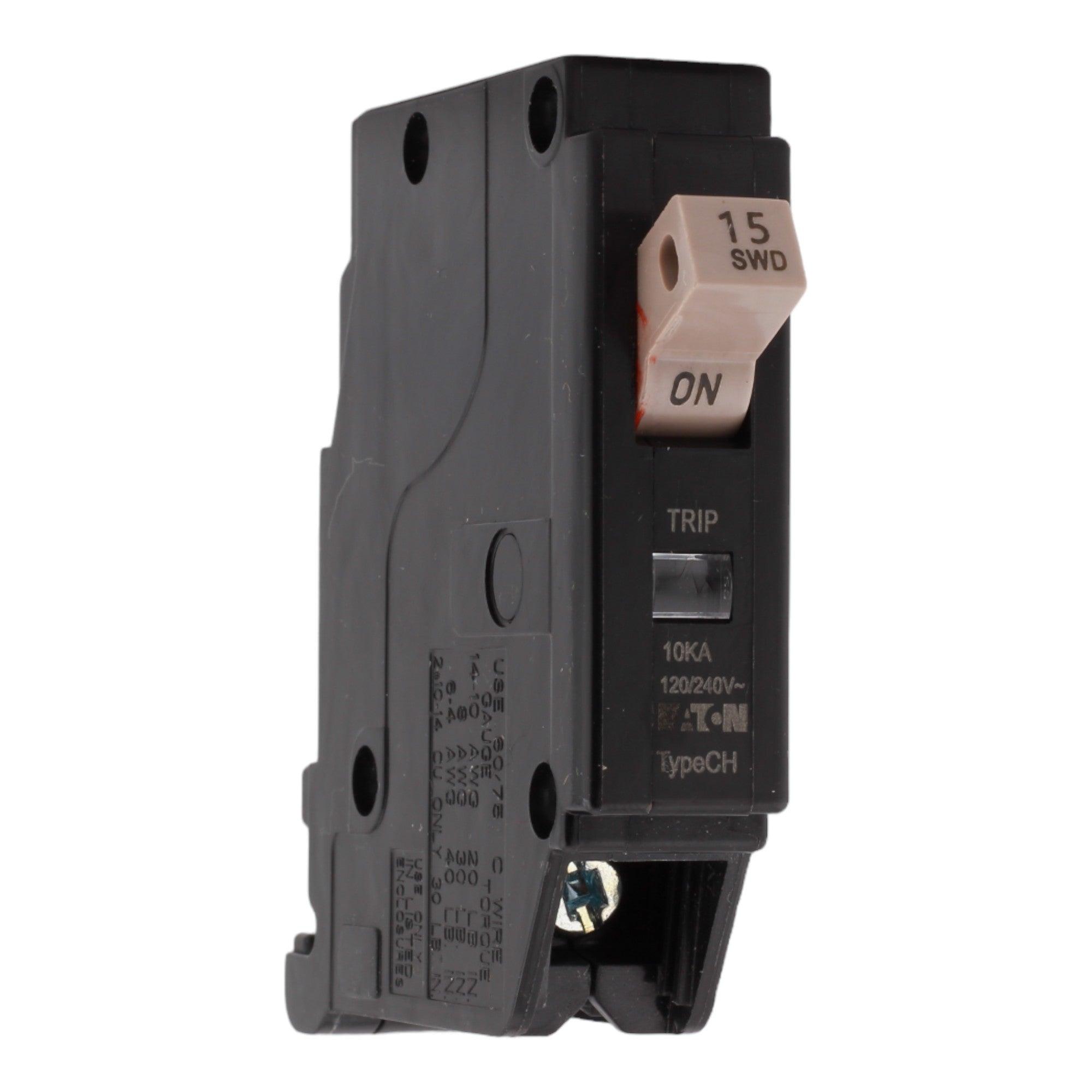

Eaton CH CHF115 15A 1P 120/240V Standard Circuit Breaker

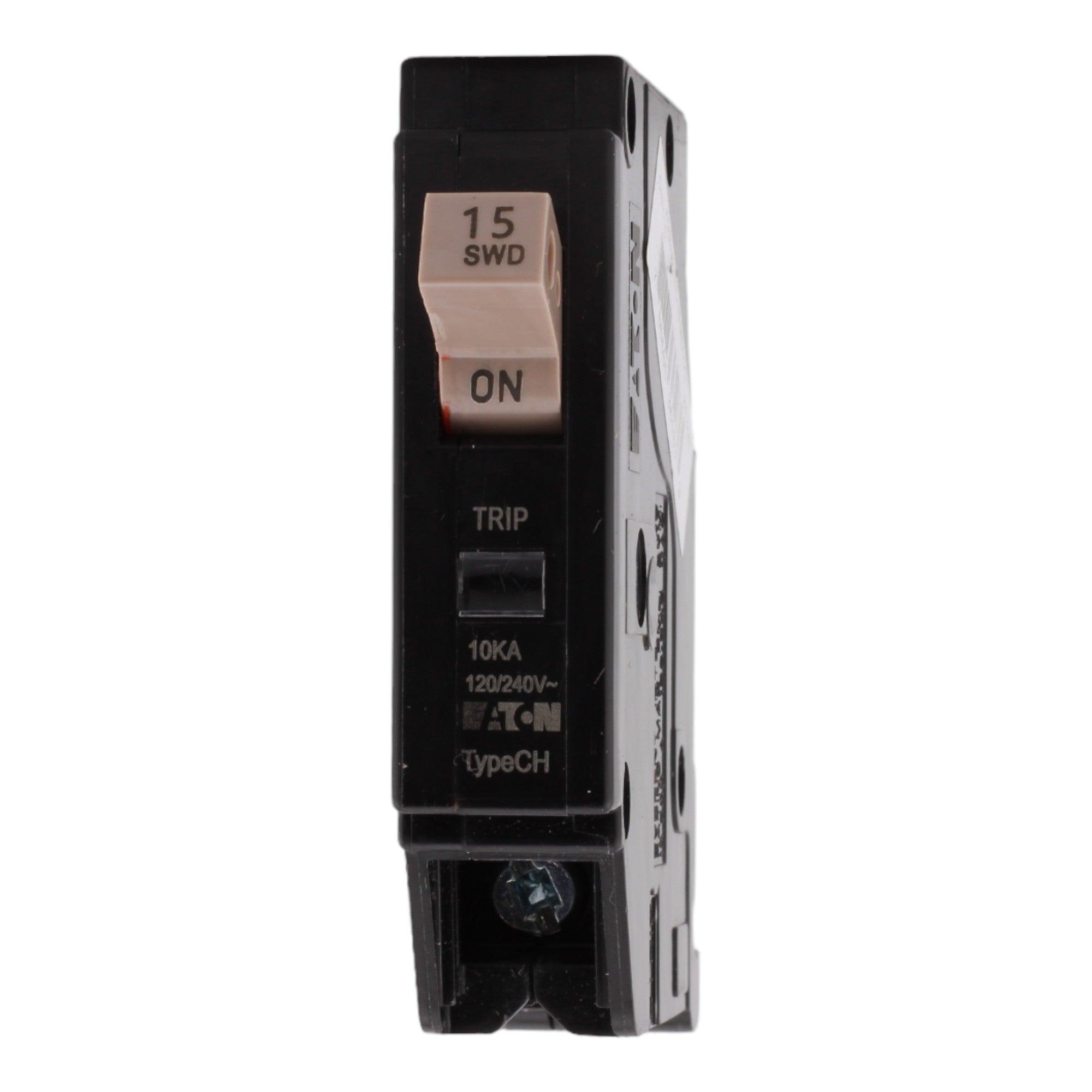

Eaton CH CHF115 15A 1P 120/240V Standard Circuit Breaker - Image 2

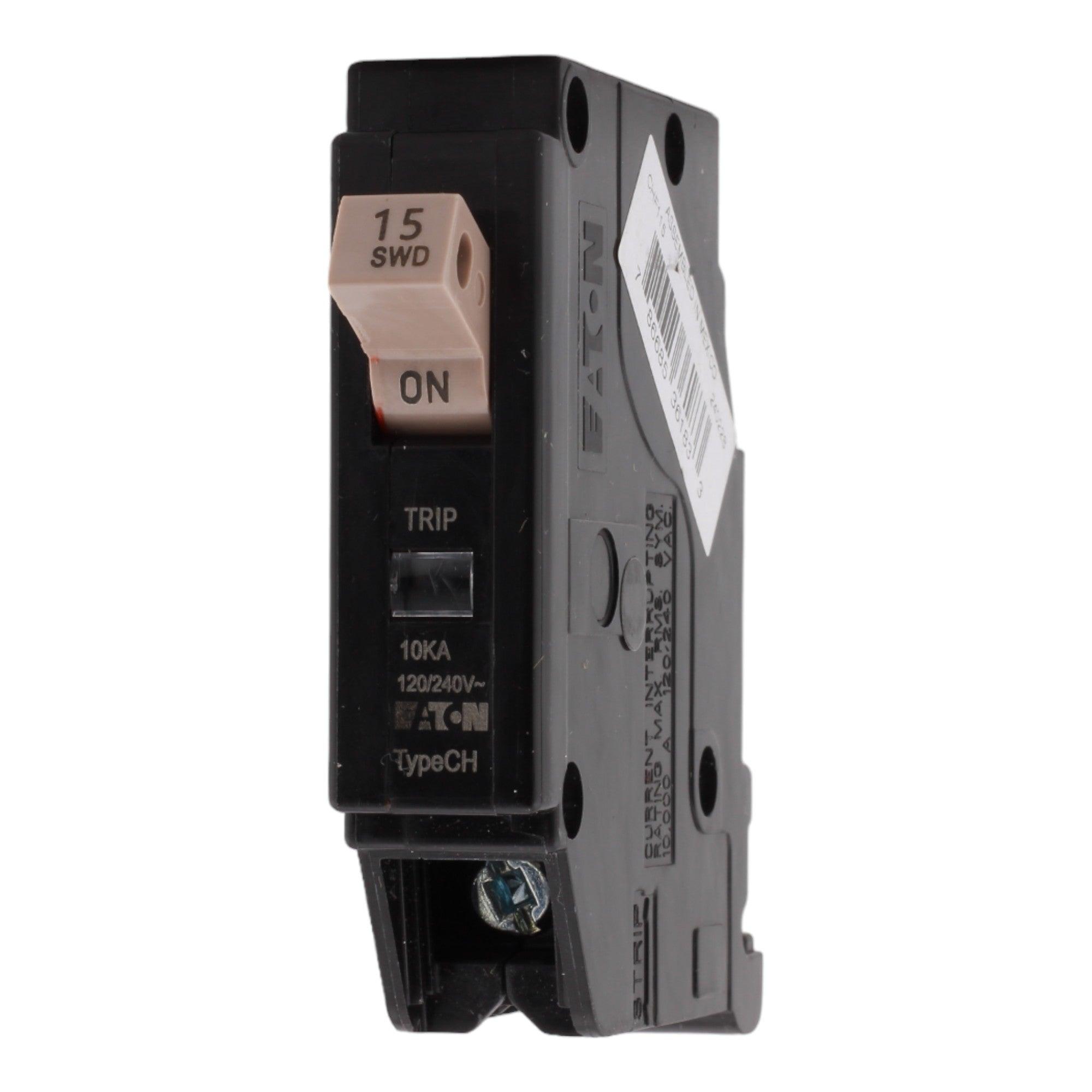

Eaton CH CHF115 15A 1P 120/240V Standard Circuit Breaker - Image 3

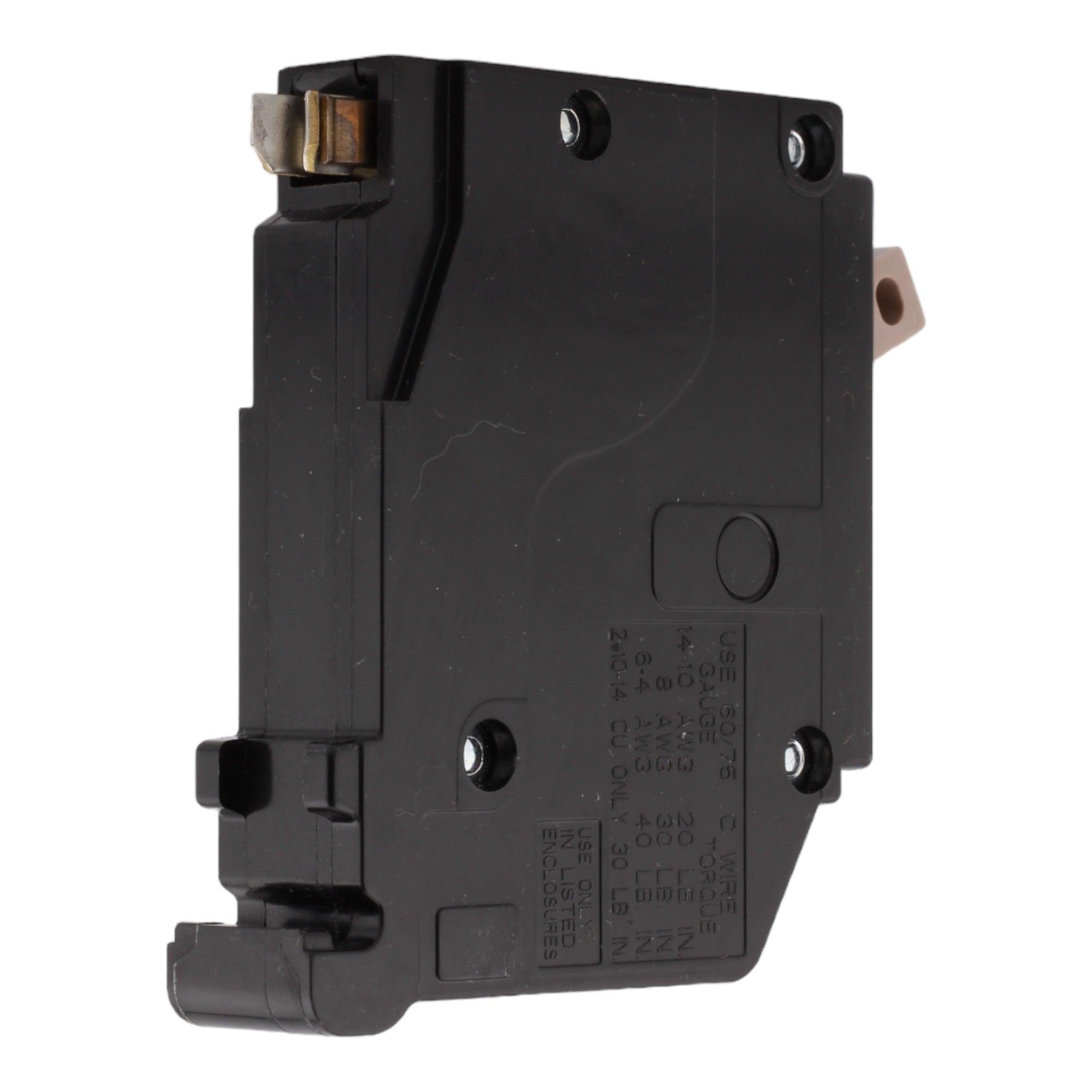

Eaton CH CHF115 15A 1P 120/240V Standard Circuit Breaker - Image 4

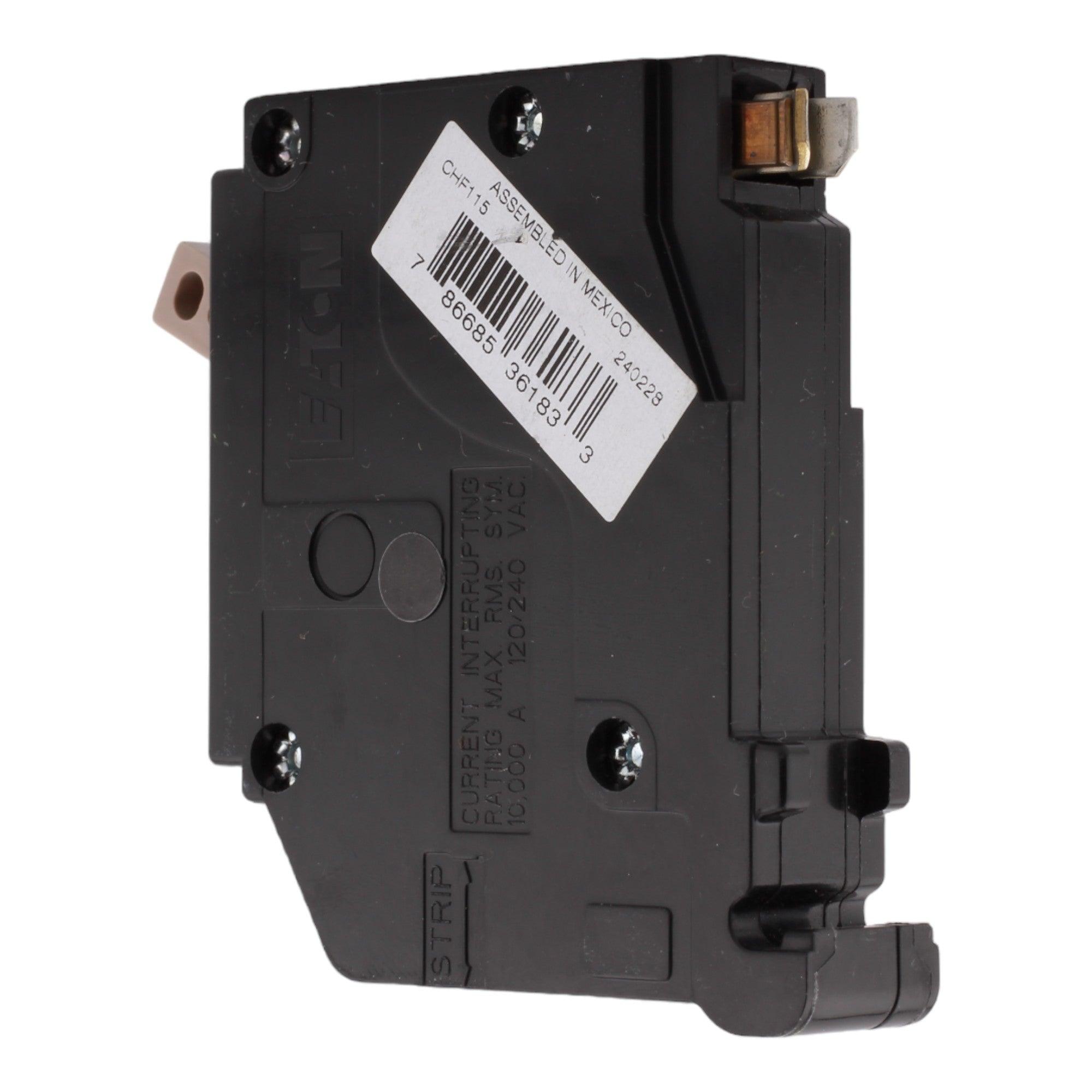

Eaton CH CHF115 15A 1P 120/240V Standard Circuit Breaker - Image 5

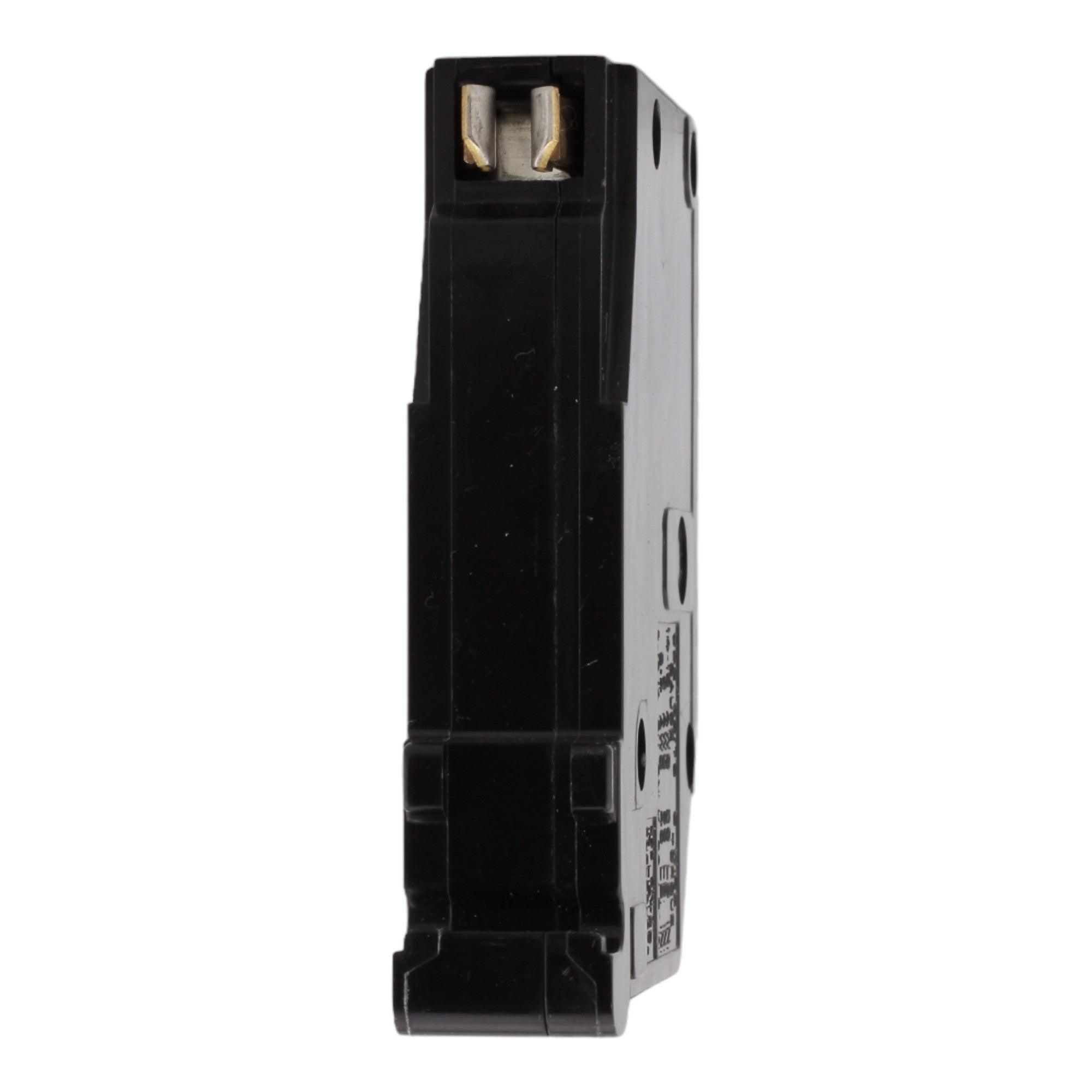

Eaton CH CHF115 15A 1P 120/240V Standard Circuit Breaker - Image 6

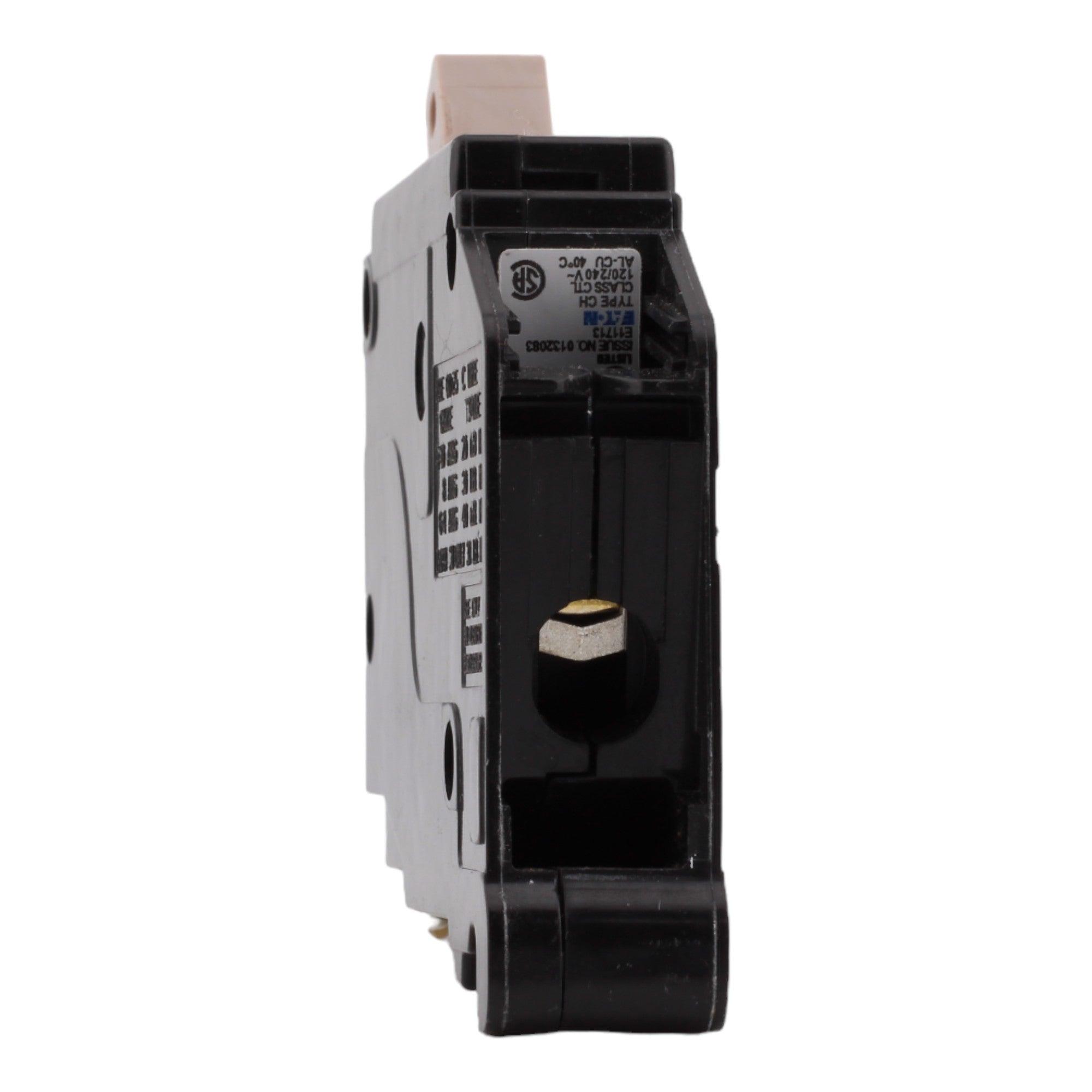

Eaton CH CHF115 15A 1P 120/240V Standard Circuit Breaker - Image 7

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eaton

Eaton CH CHF115 15A 1P 120/240V Standard Circuit Breaker

Out of stock
SKU: CHF115 UPC: 786685361833
(0)
$7.95
-1% $8.00 $7.95
Out of stock
Condition

Eaton CHF115: 15 Amp 1-Pole thermal-magnetic breaker, 120/240V, 10kA, lug terminals, UL listed, HACR rated, for CH loadcenters.

  • Manufacturer: Eaton
  • Brand: Eaton
  • Product Range: CH (for Eaton CH loadcenters and equipment)
  • UPC: 786685361833
  • Model Number: CHF115
  • Breaker Type: Thermal-Magnetic
  • Amperage: 15 Amps
  • Poles: 1-Pole
  • Voltage: 120/240 Volts AC
  • Interrupt Rating: 10 kAIC
  • Mounting Mode: Plug-on
  • Connections Terminals: Lug terminals
  • Wire Size: (1) #14-8 AWG, (2) #14-10 AWG Cu/Al
  • Tightening Torque: 20 lb-in
  • Dimensions: Height: 2.6 in; Width: 3.2 in; Depth: 0.7 in
  • Weight: 0.25 lbs
  • Certifications: UL Listed, HACR Rated
  • Special Features: Trip flag, switching duty rated

This Eaton CHF115 thermal-magnetic circuit breaker provides reliable 15A, 1-pole protection for 120/240V circuits in Eaton CH loadcenters. With a 10kA interrupt rating, lug terminals, and trip flag feature, it ensures robust overcurrent protection for residential and commercial applications.
