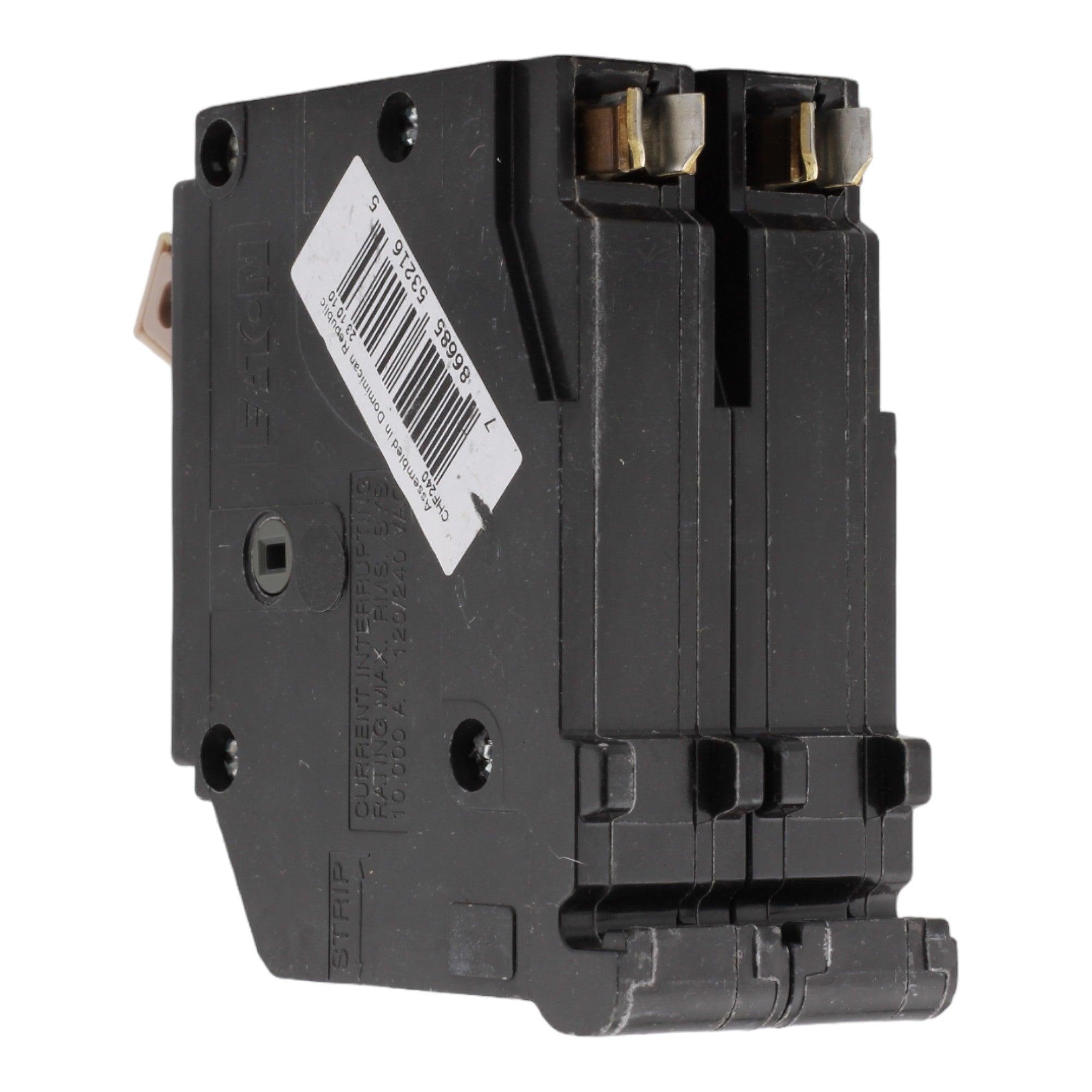

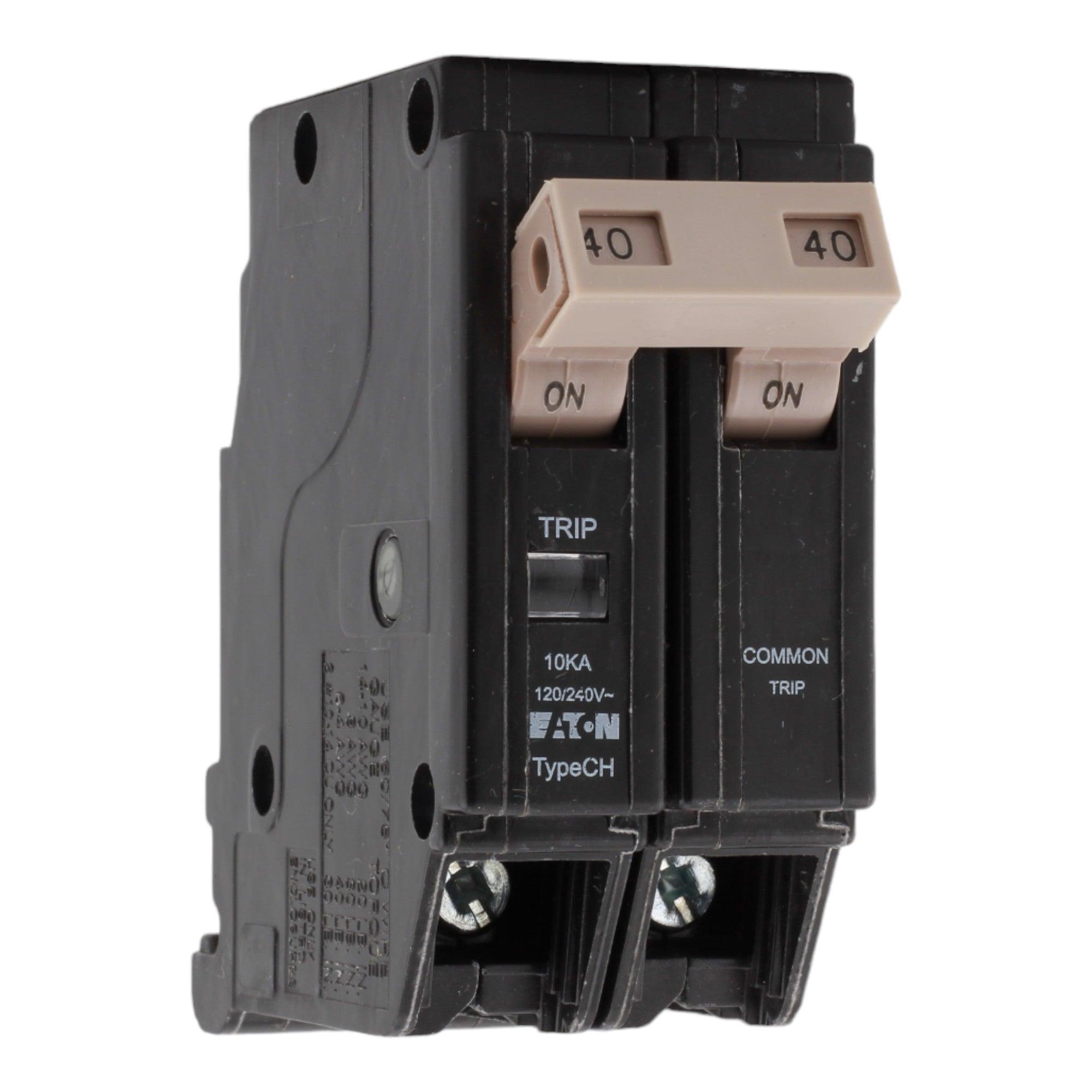

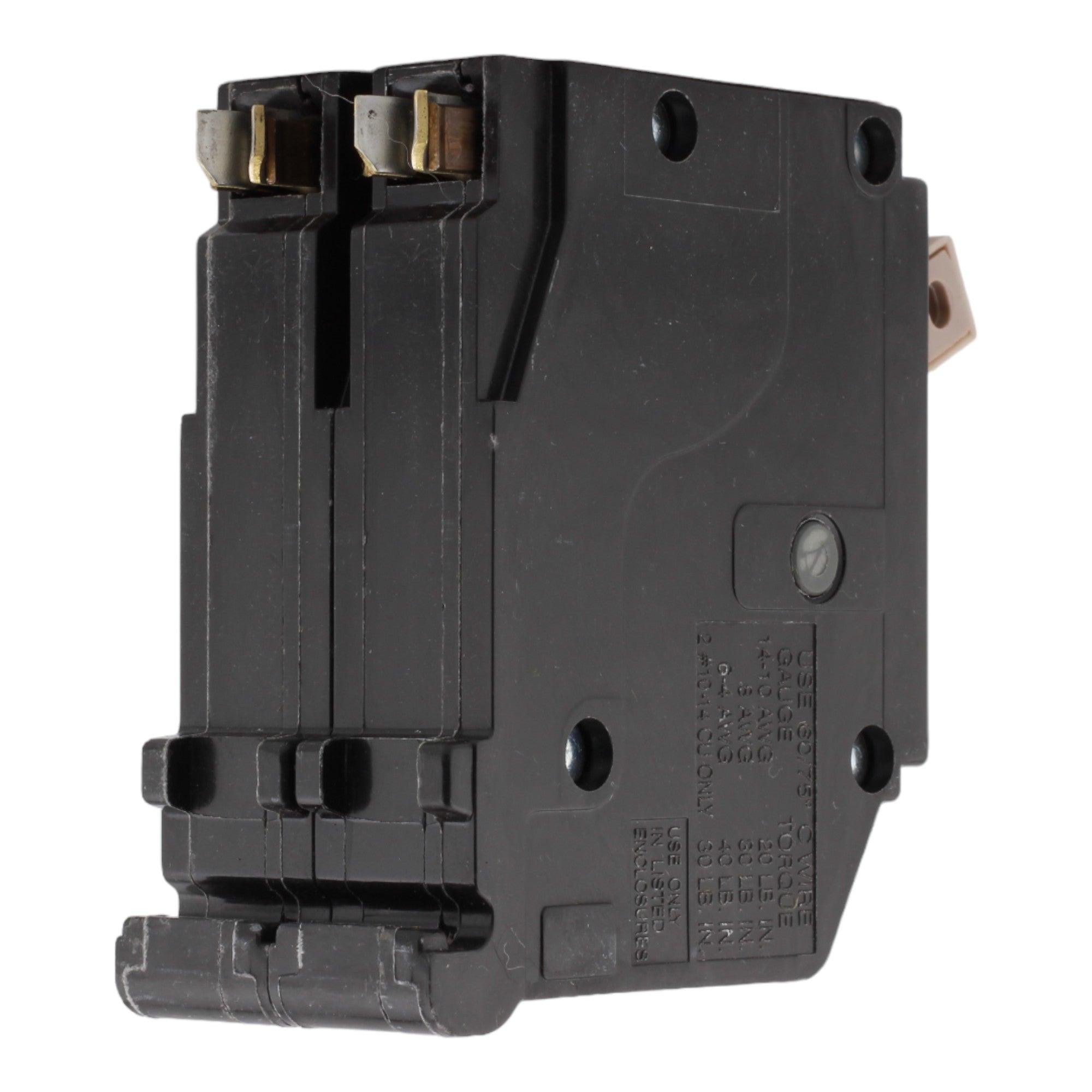

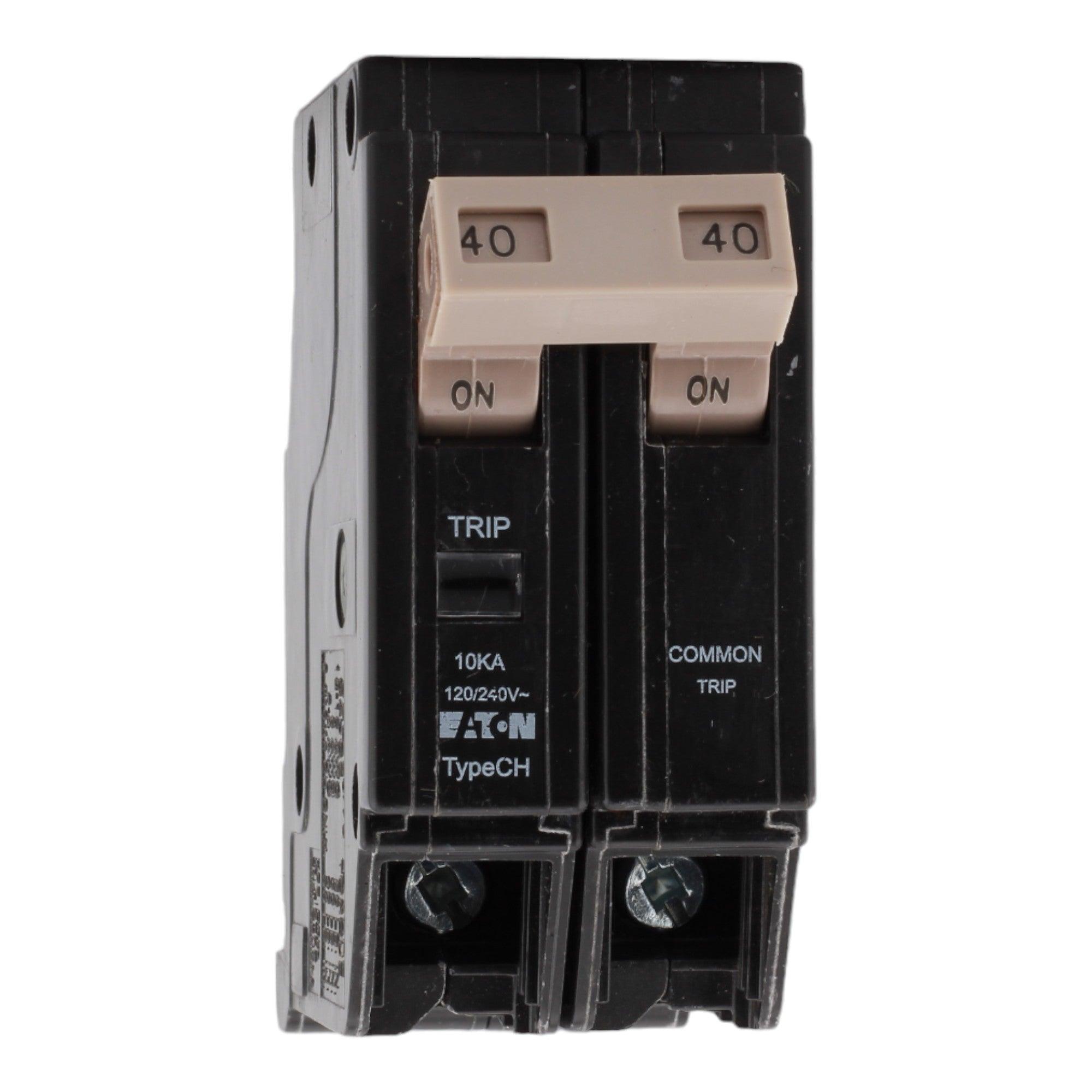

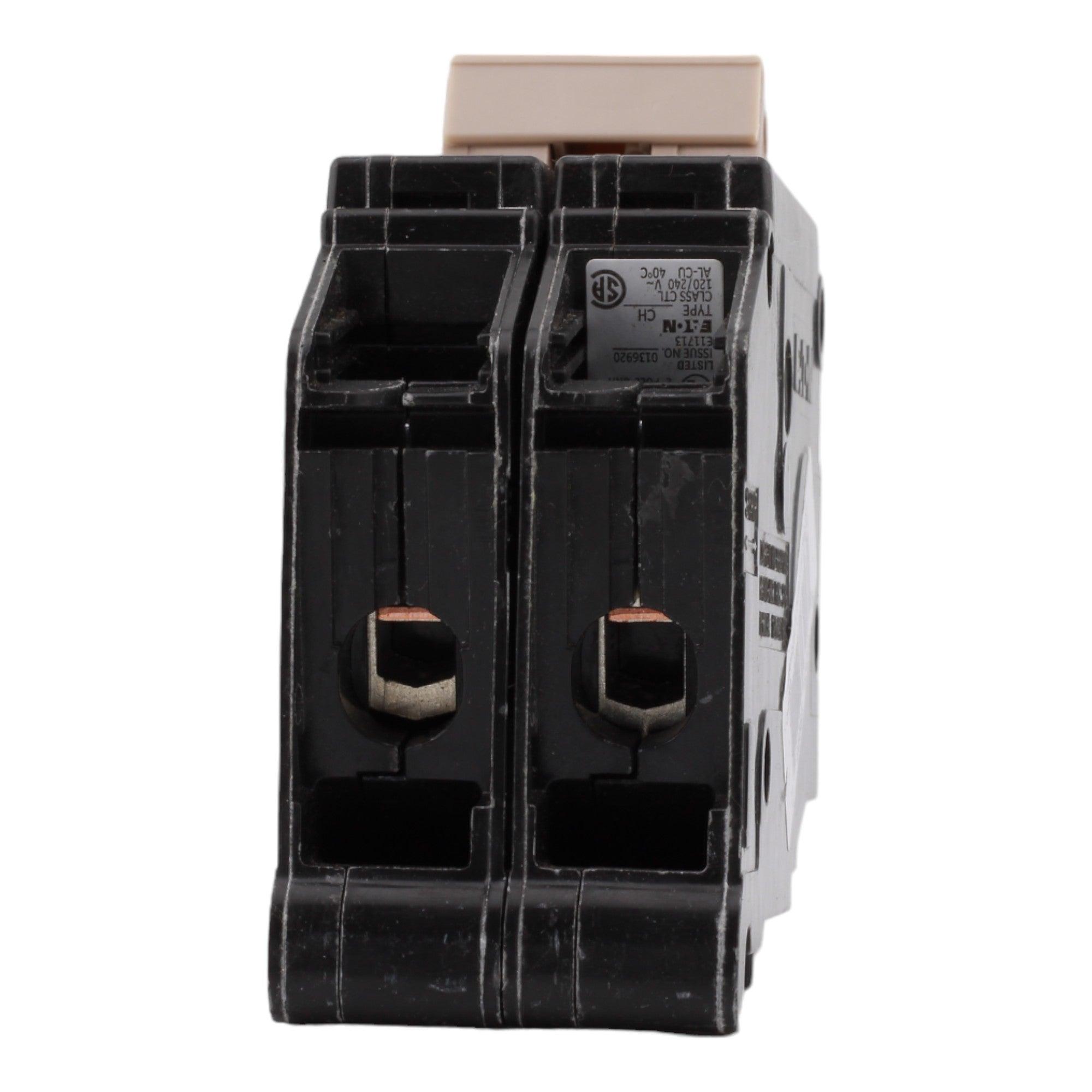

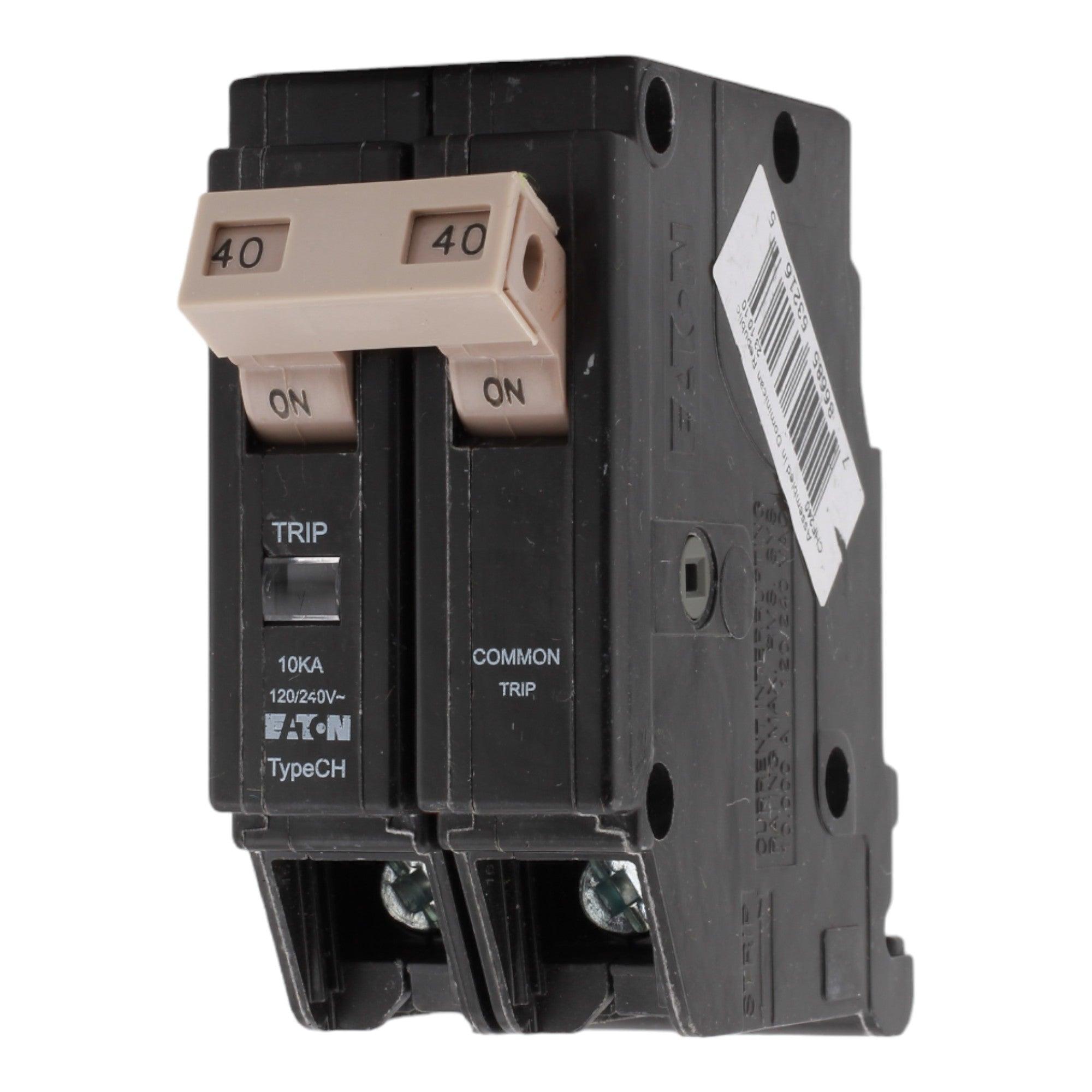

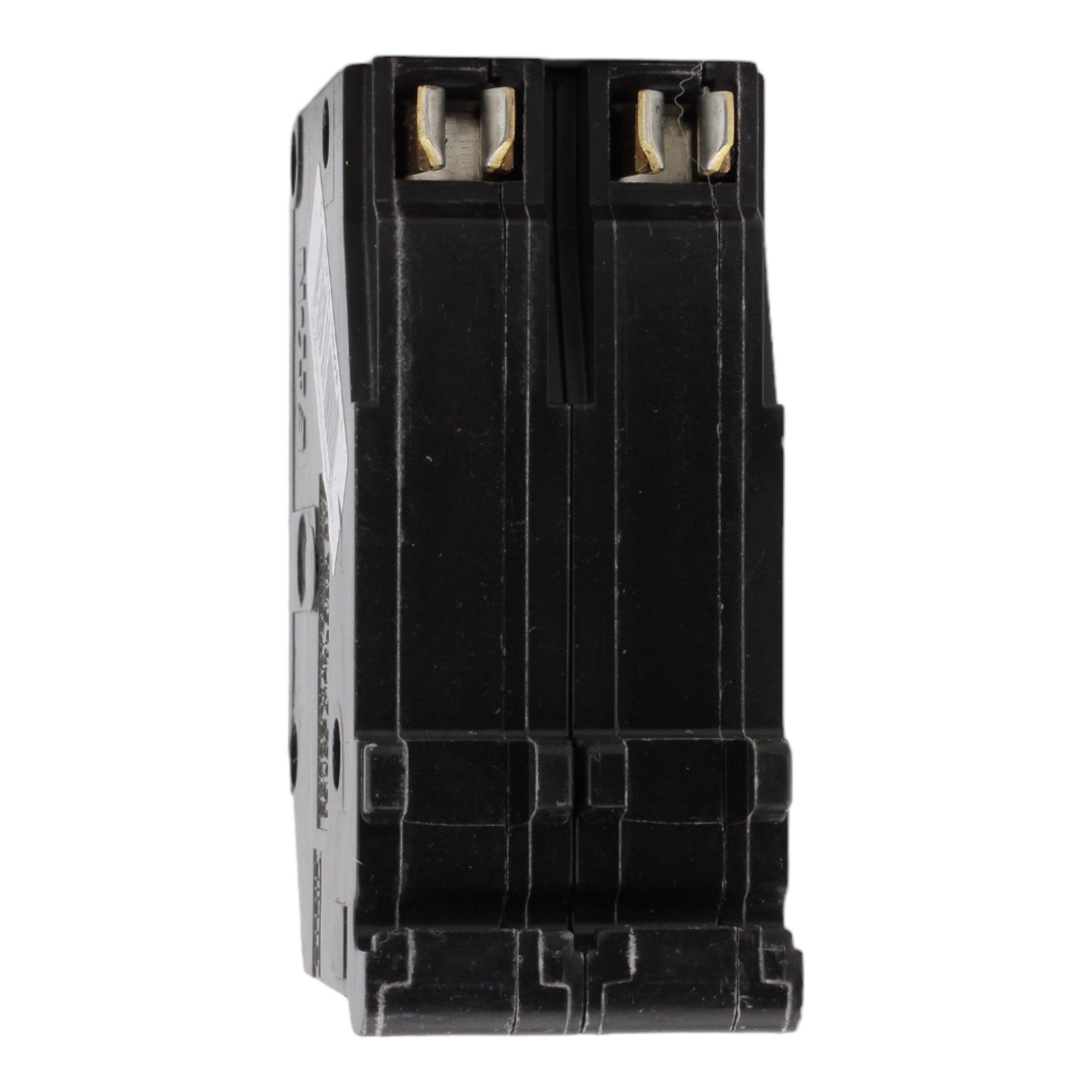

Eaton CH CHF240 40A 2P 120/240V Thermal-Magnetic Circuit Breaker

Eaton CHF240: 40 Amp 2-Pole thermal-magnetic breaker, 120/240V, 10kA, lug terminals, UL listed, HACR rated, for CH loadcenters.

• Manufacturer: Eaton
• Brand: Eaton
• Product Range: CH (for Eaton CH loadcenters and equipment)
• UPC: 786685532165
• Model Number: CHF240
• Breaker Type: Thermal-Magnetic
• Amperage: 40 Amps
• Poles: 2-Pole
• Voltage: 120/240 Volts AC
• Interrupt Rating: 10 kAIC
• Mounting Mode: Plug-on
• Connections Terminals: Lug terminals
• Wire Size: #10-1/0 AWG
• Tightening Torque: 65 lb-in
• Dimensions: Height: 2.6 in; Width: 3.3 in; Depth: 1.5 in
• Weight: 0.55 lbs
• Certifications: UL Listed, HACR Rated
• Special Features: Trip flag, common breaker trip

This Eaton CHF240 thermal-magnetic circuit breaker provides reliable 40A, 2-pole protection for 120/240V circuits in Eaton CH loadcenters. With a 10kA interrupt rating, lug terminals, and trip flag feature, it ensures robust overcurrent protection for residential and commercial applications.
