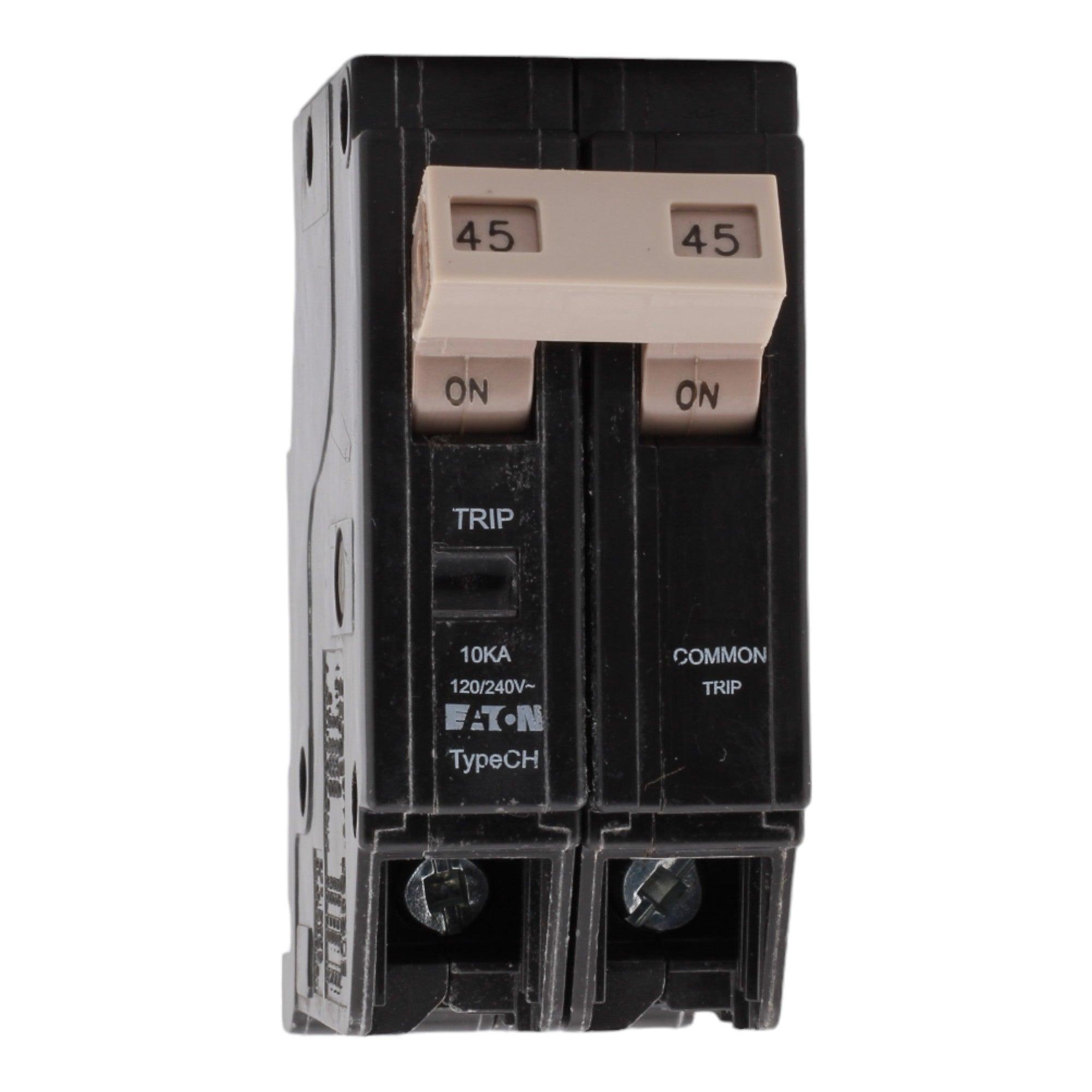

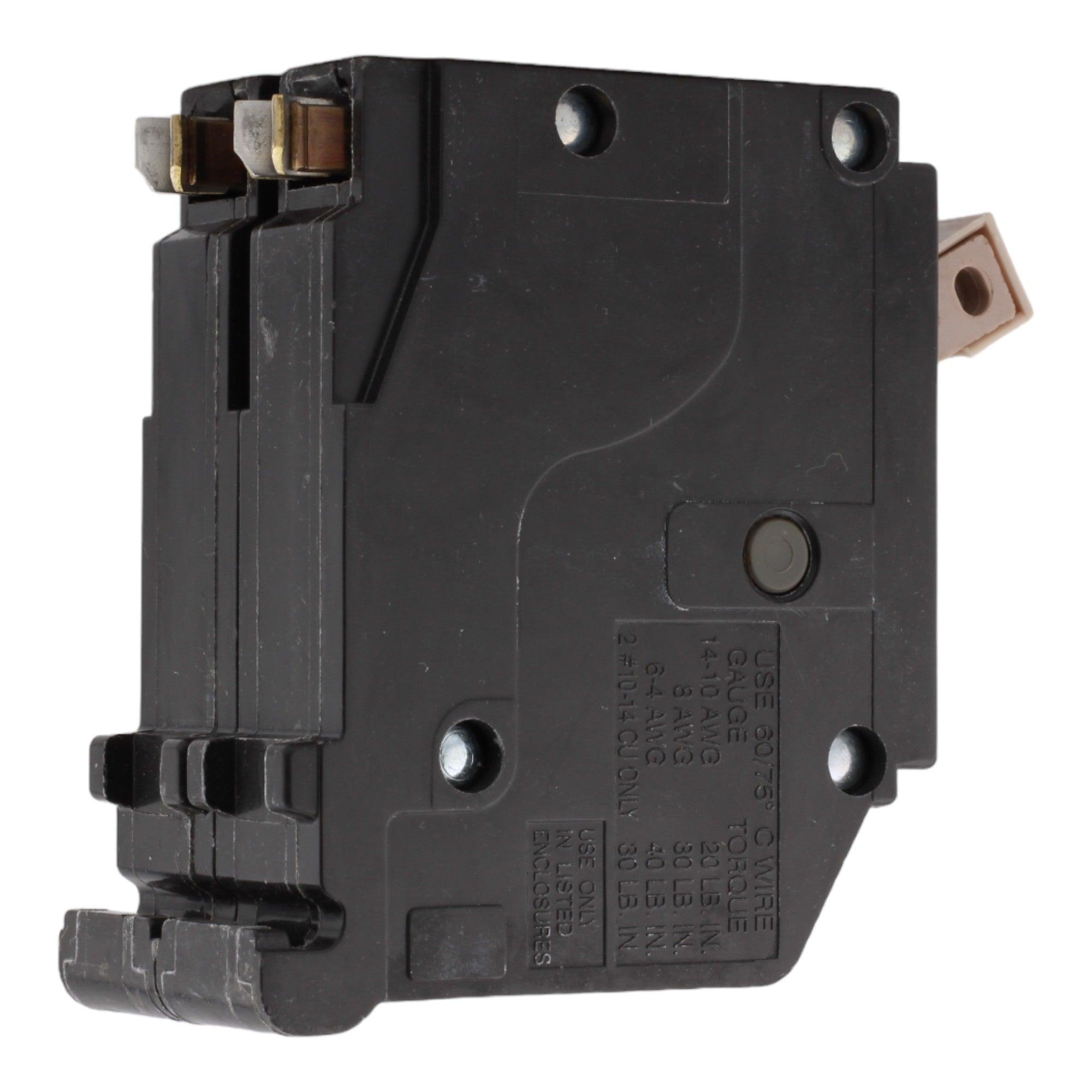

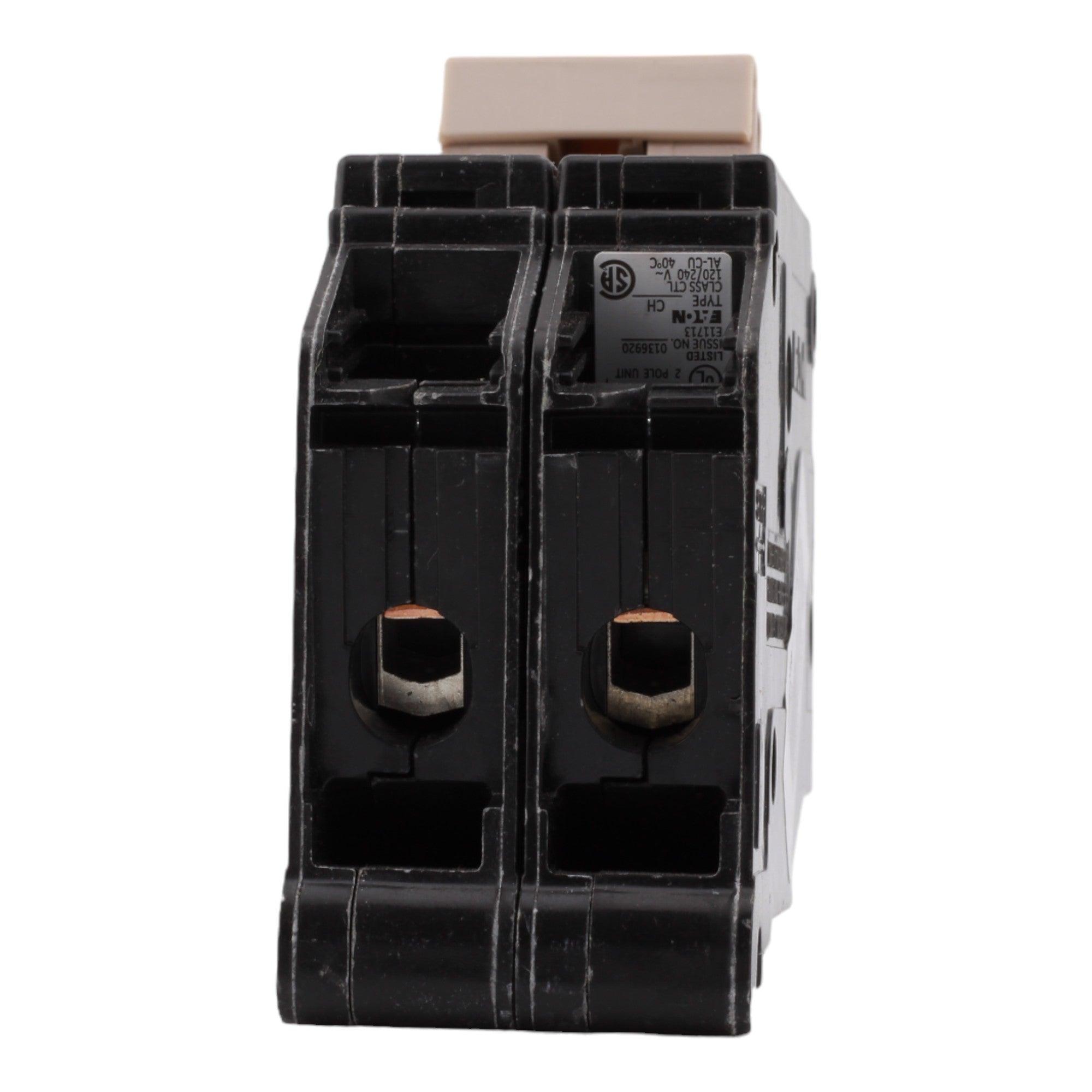

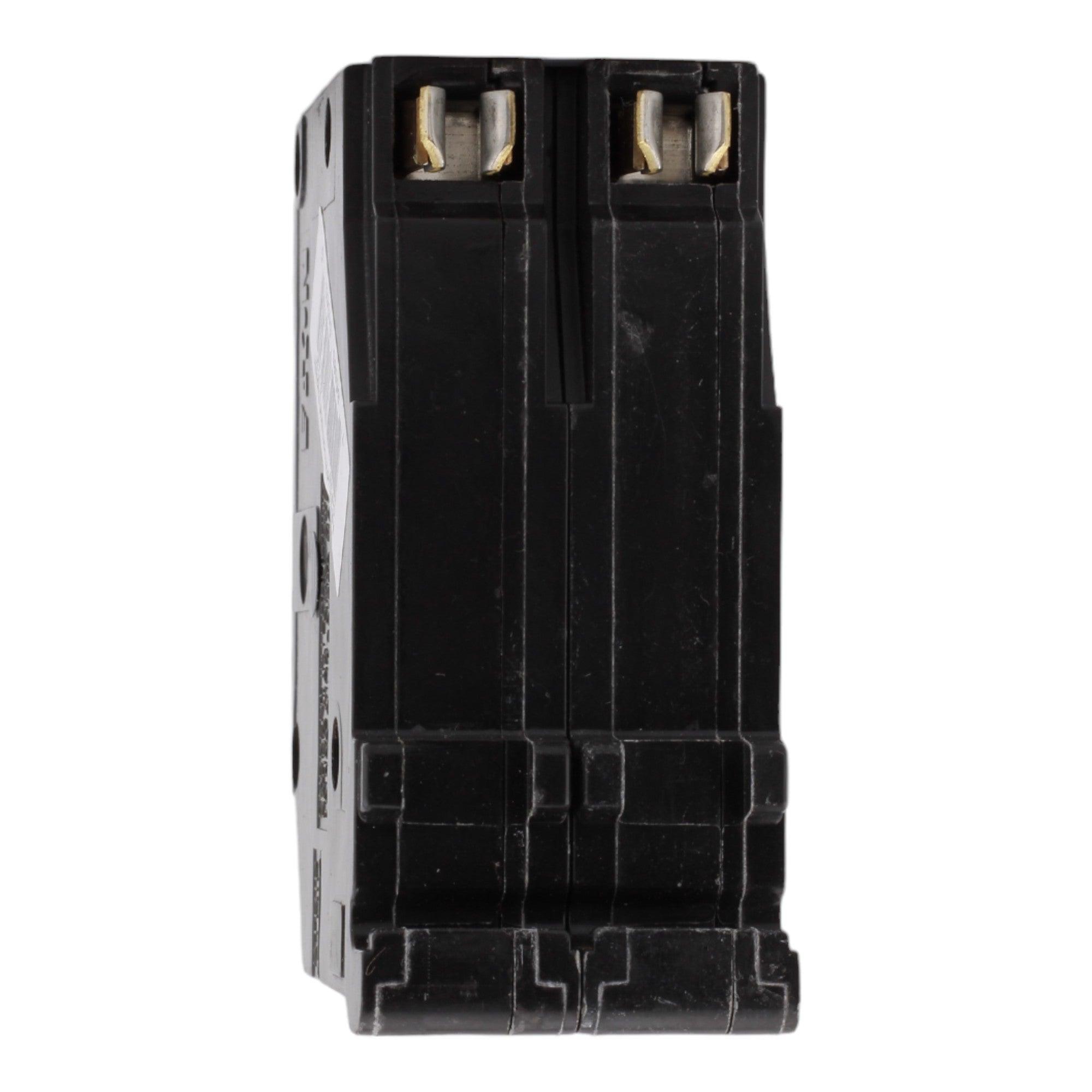

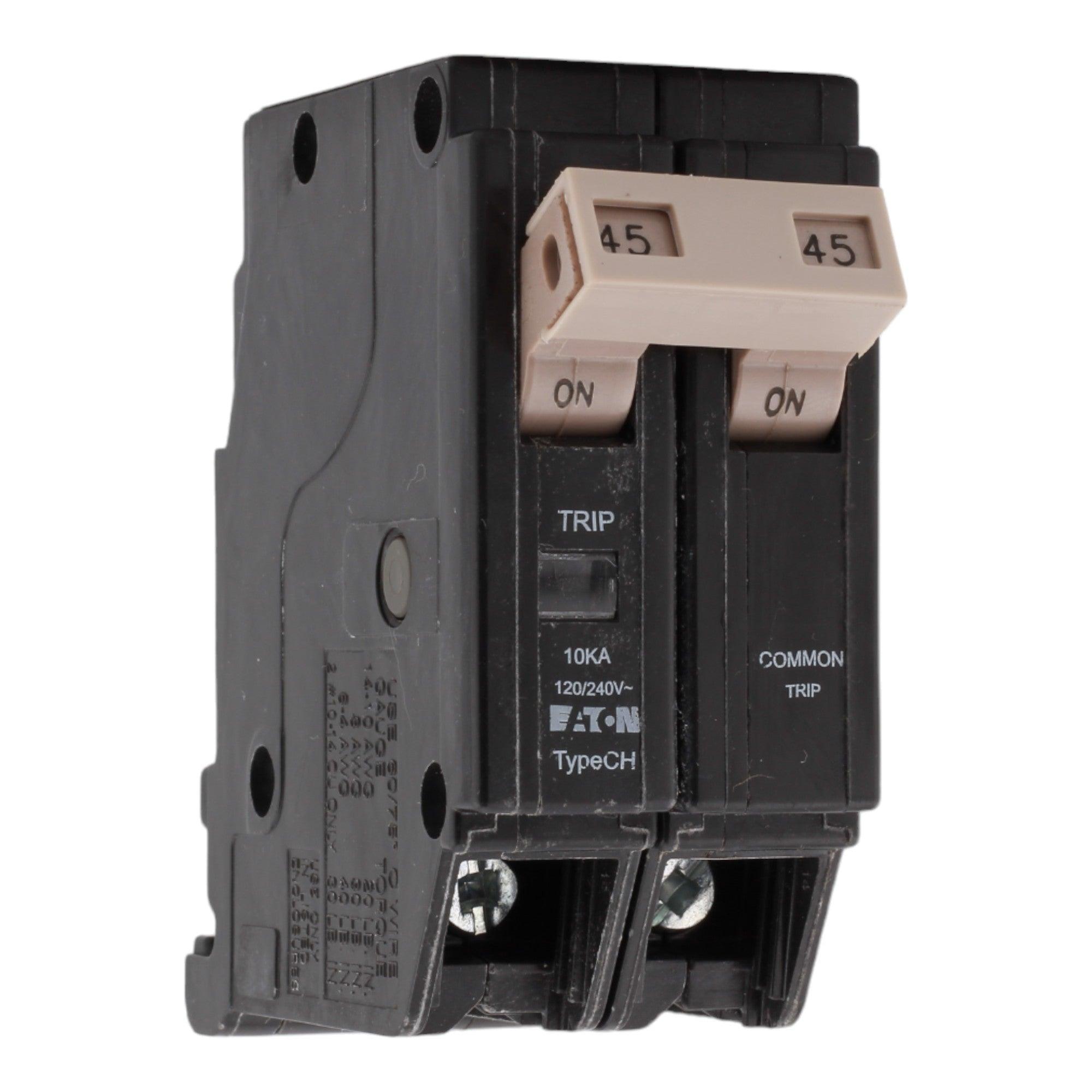

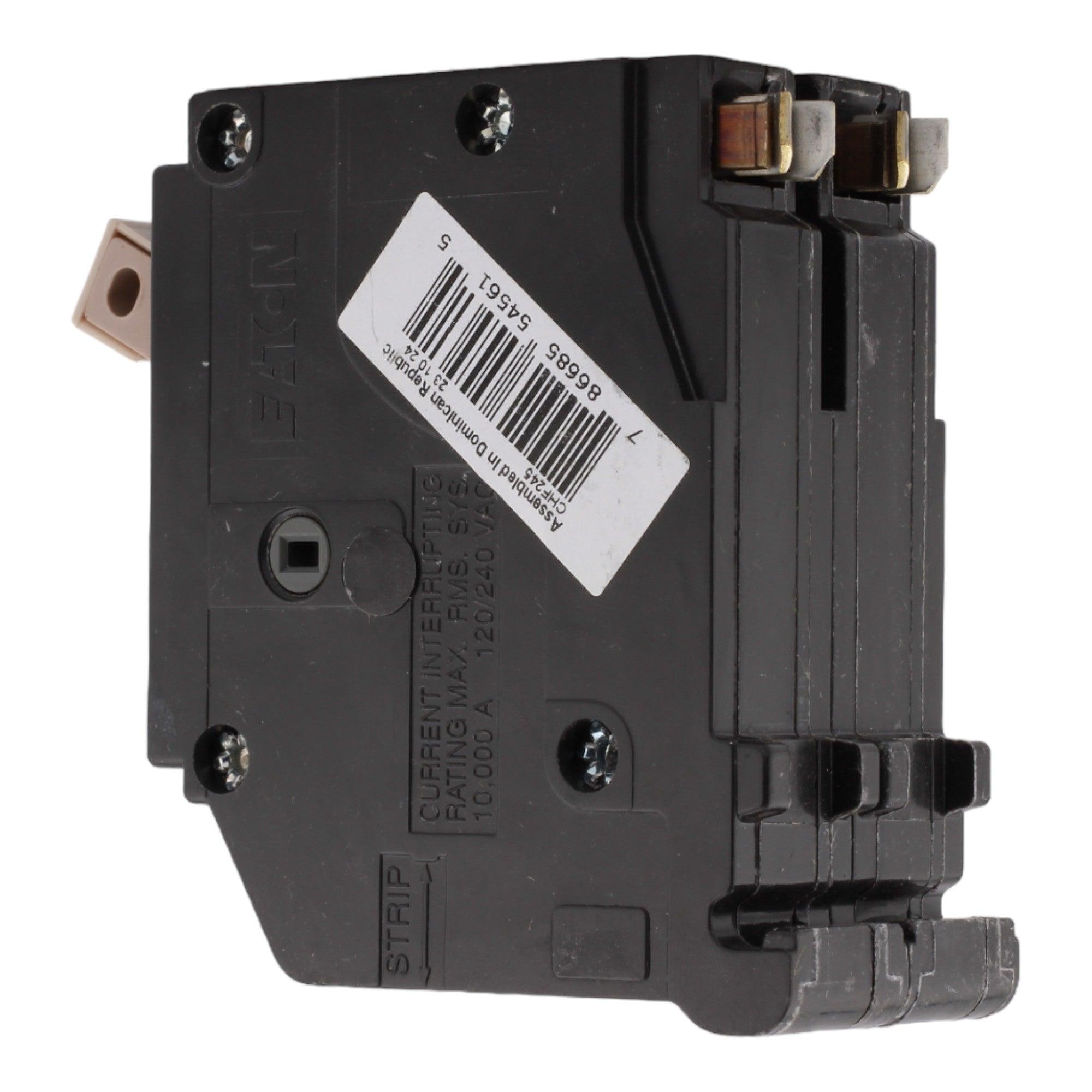

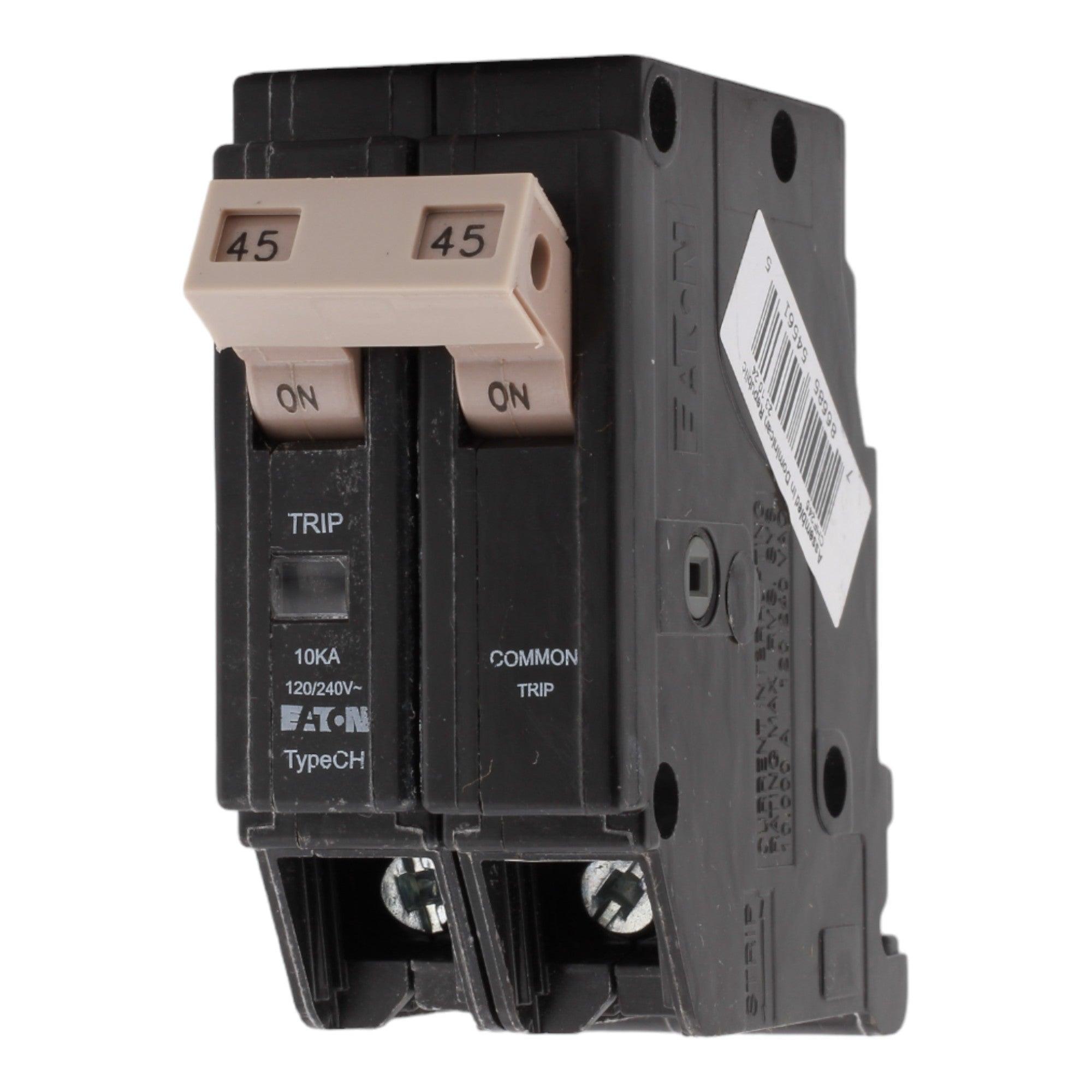

Eaton CH CHF245 45A 2P 120/240V Thermal-Magnetic Circuit Breaker

Eaton CHF245: 45 Amp 2-Pole thermal-magnetic breaker, 120/240V, 10kA, lug terminals, UL listed, HACR rated, for CH loadcenters.

• Manufacturer: Eaton
• Brand: Eaton
• Product Range: CH (for Eaton CH loadcenters and equipment)
• UPC: 786685545615
• Model Number: CHF245
• Breaker Type: Thermal-Magnetic
• Amperage: 45 Amps
• Poles: 2-Pole
• Voltage: 120/240 Volts AC
• Interrupt Rating: 10 kAIC
• Mounting Mode: Plug-on
• Connections Terminals: Lug terminals
• Wire Size: #14-2 AWG
• Tightening Torque: 65 lb-in
• Dimensions: Height: 2.6 in; Width: 3.2 in; Depth: 1.5 in
• Weight: 0.5 lbs
• Certifications: UL Listed, HACR Rated

This Eaton CHF245 thermal-magnetic circuit breaker provides reliable 45A, 2-pole protection for 120/240V circuits in Eaton CH loadcenters. With a 10kA interrupt rating, lug terminals, and trip flag feature, it ensures robust overcurrent protection for residential and commercial applications.

There is a $15 charge for delivery under $250 orders. Additional charges will be imposed by our couriers for delivery to remote areas, a surcharge may be levied to cover carriage to these areas.

Warranty Coverage

We stand behind every product we sell. Coverage depends on the condition of the item at time of purchase:

• New: 12-month warranty
• New Open Box: 10-month warranty
• Reconditioned: 90-day warranty

Warranty coverage begins on the date of delivery and covers manufacturing and functional defects under normal use. It does not cover damage from misuse, improper installation, or unauthorized repair. To make a warranty claim, contact us at support@breakersmart.com with your order number and a description of the issue.
