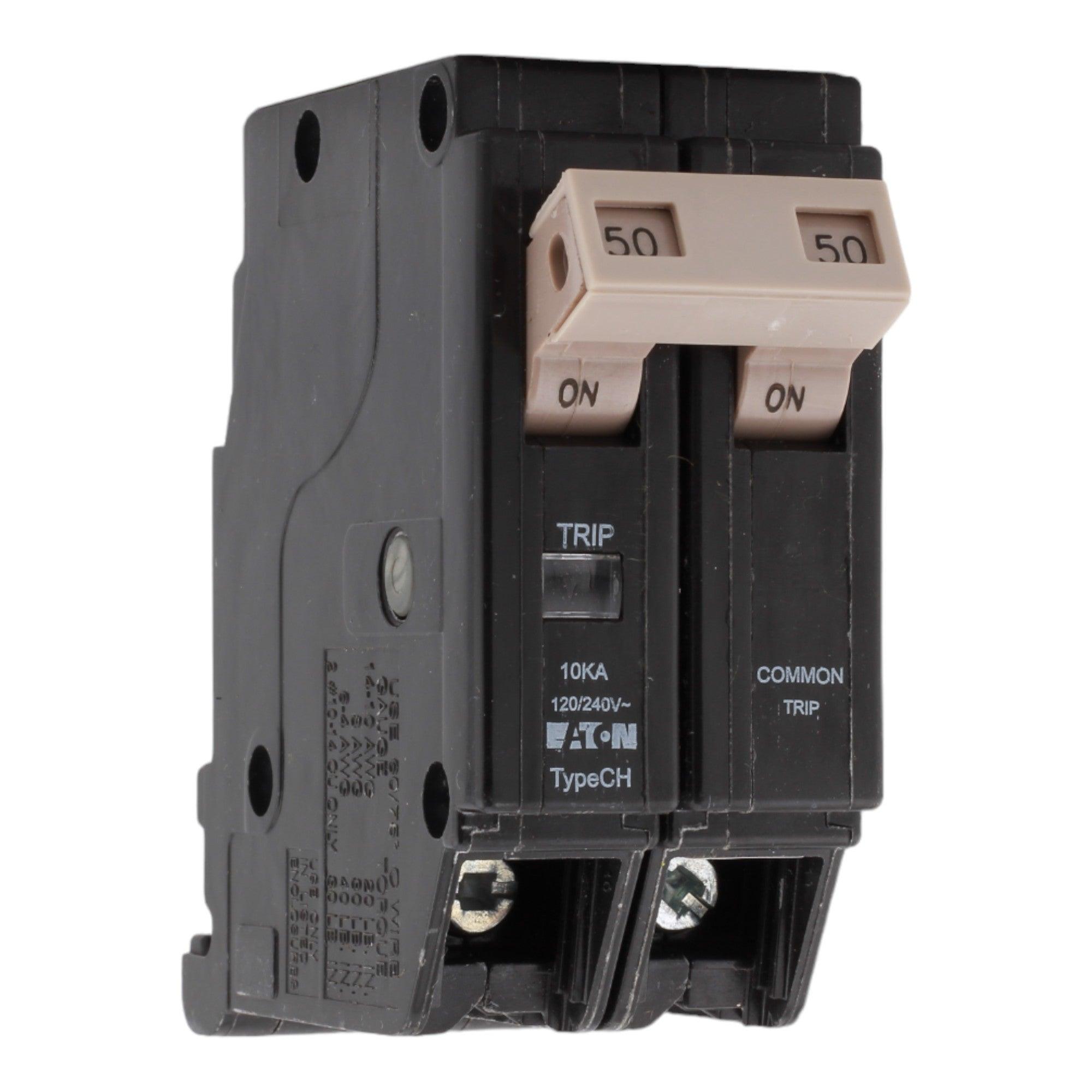

Eaton CH CHF250 50A 2P 120/240V Standard Circuit Breaker

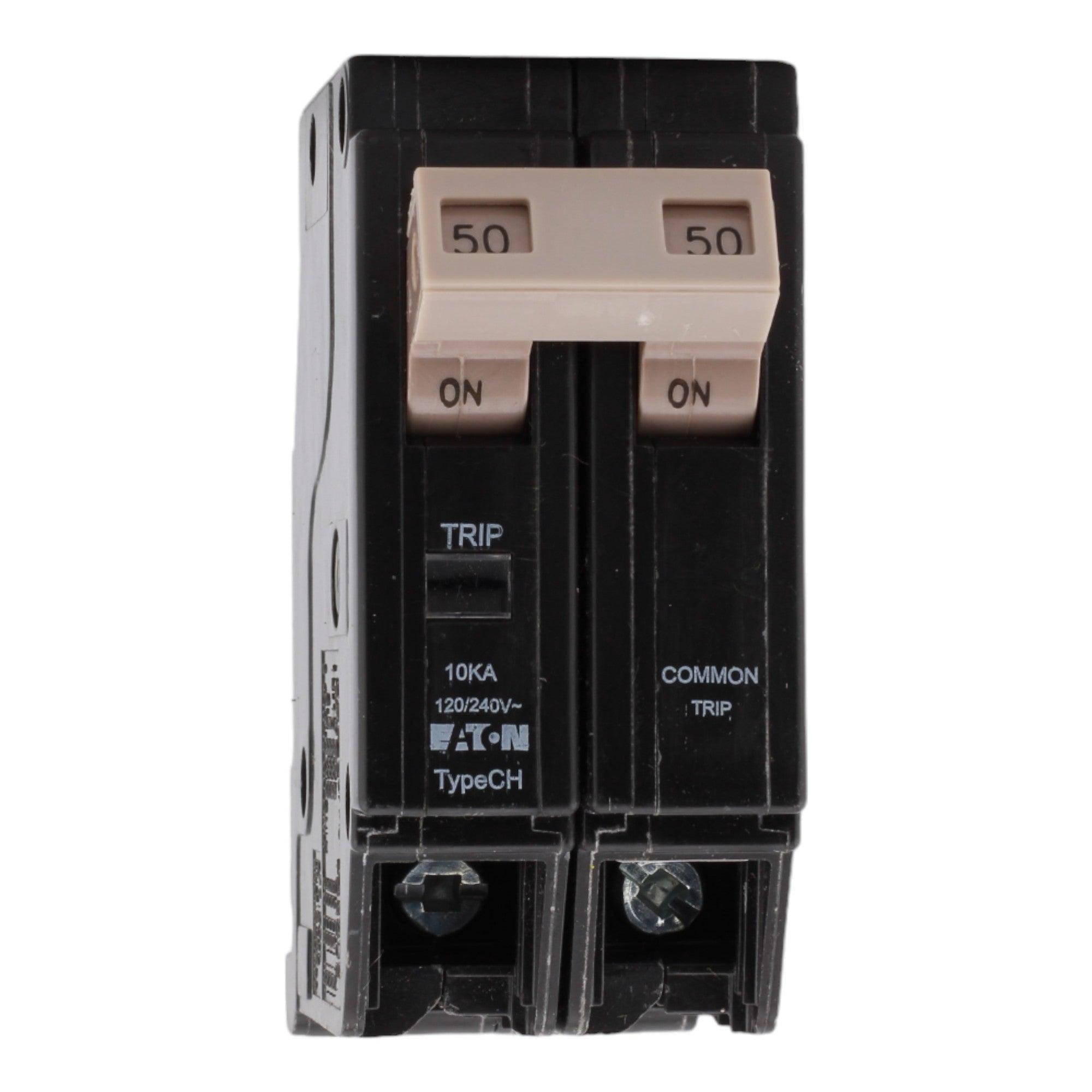

Eaton CH CHF250 50A 2P 120/240V Standard Circuit Breaker - Image 2

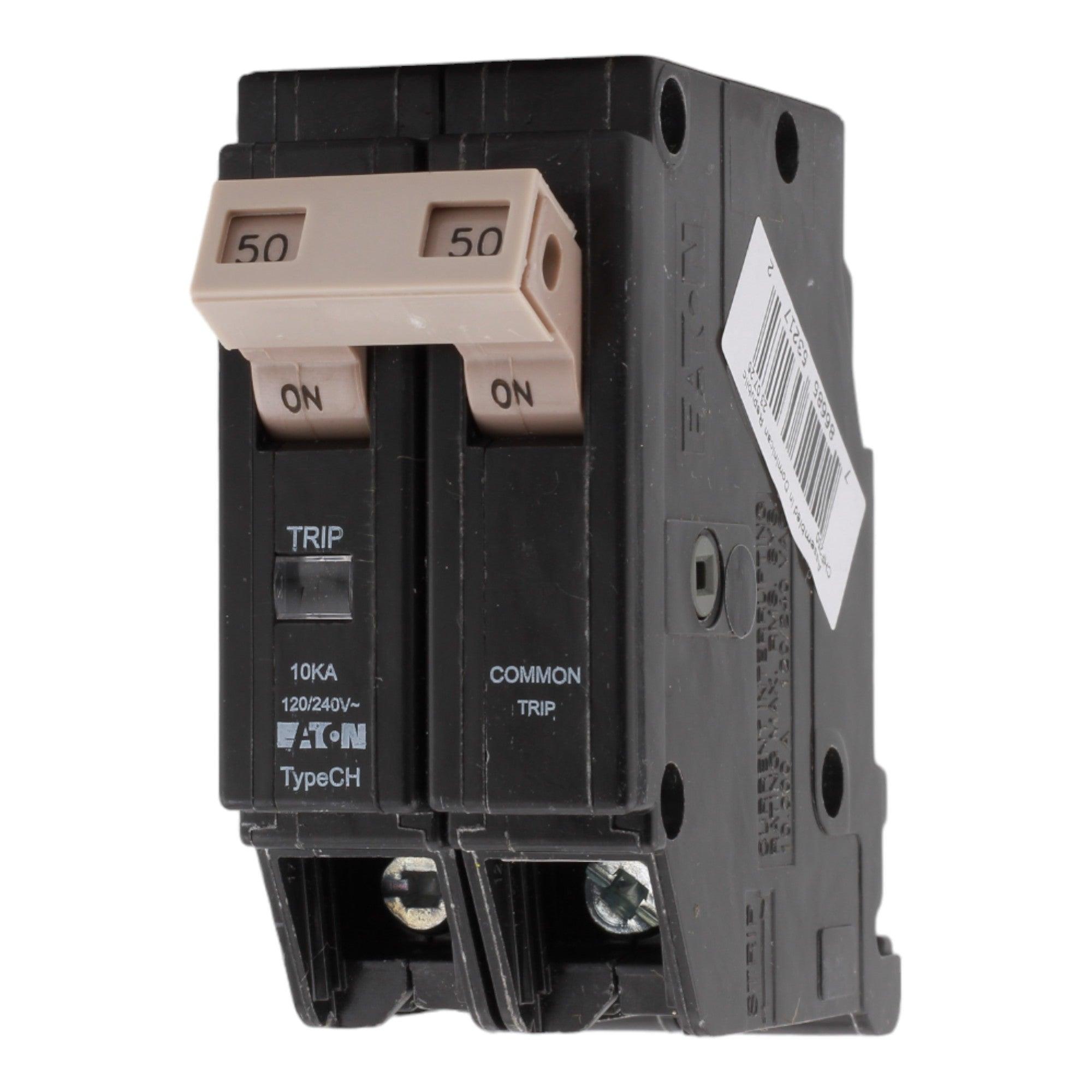

Eaton CH CHF250 50A 2P 120/240V Standard Circuit Breaker - Image 3

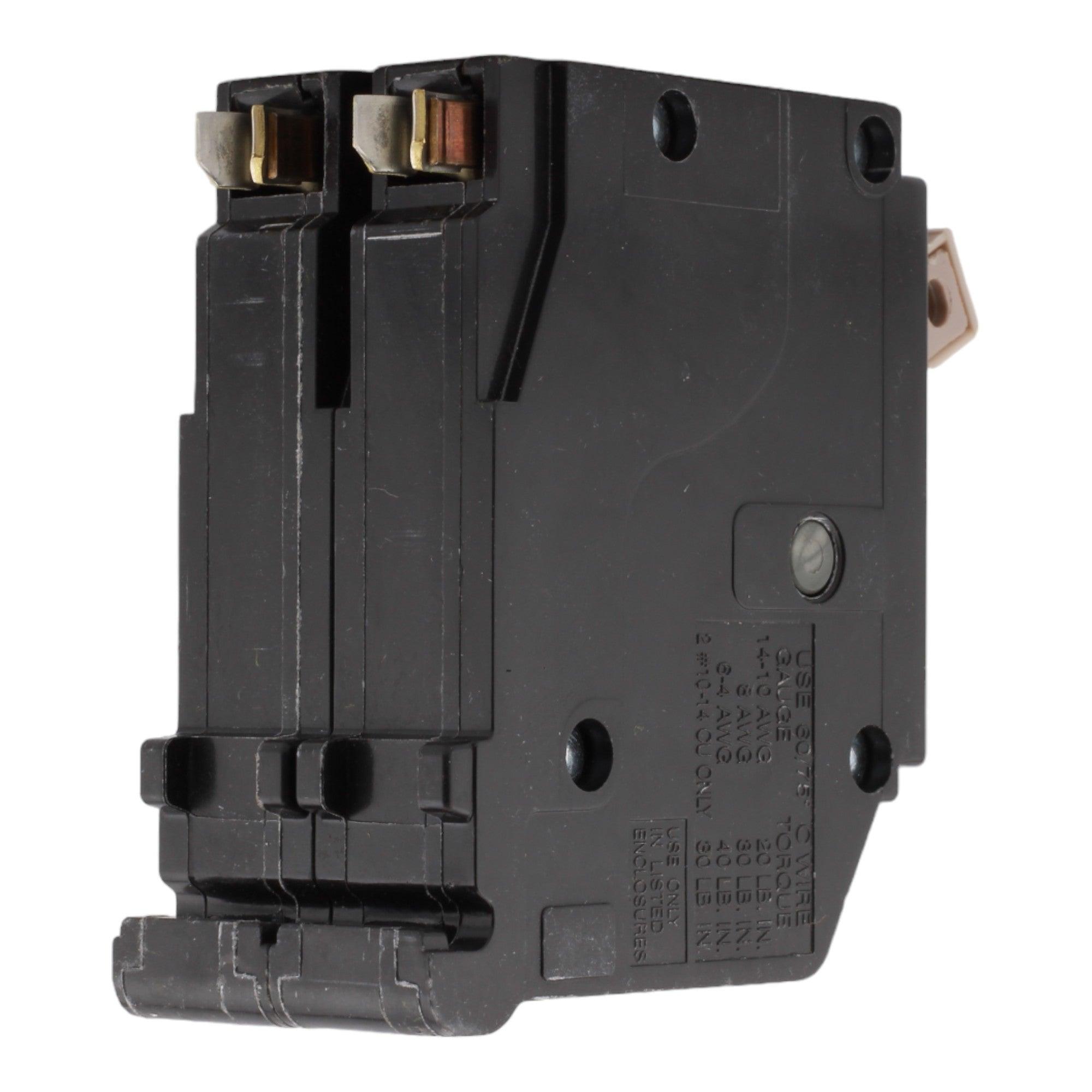

Eaton CH CHF250 50A 2P 120/240V Standard Circuit Breaker - Image 4

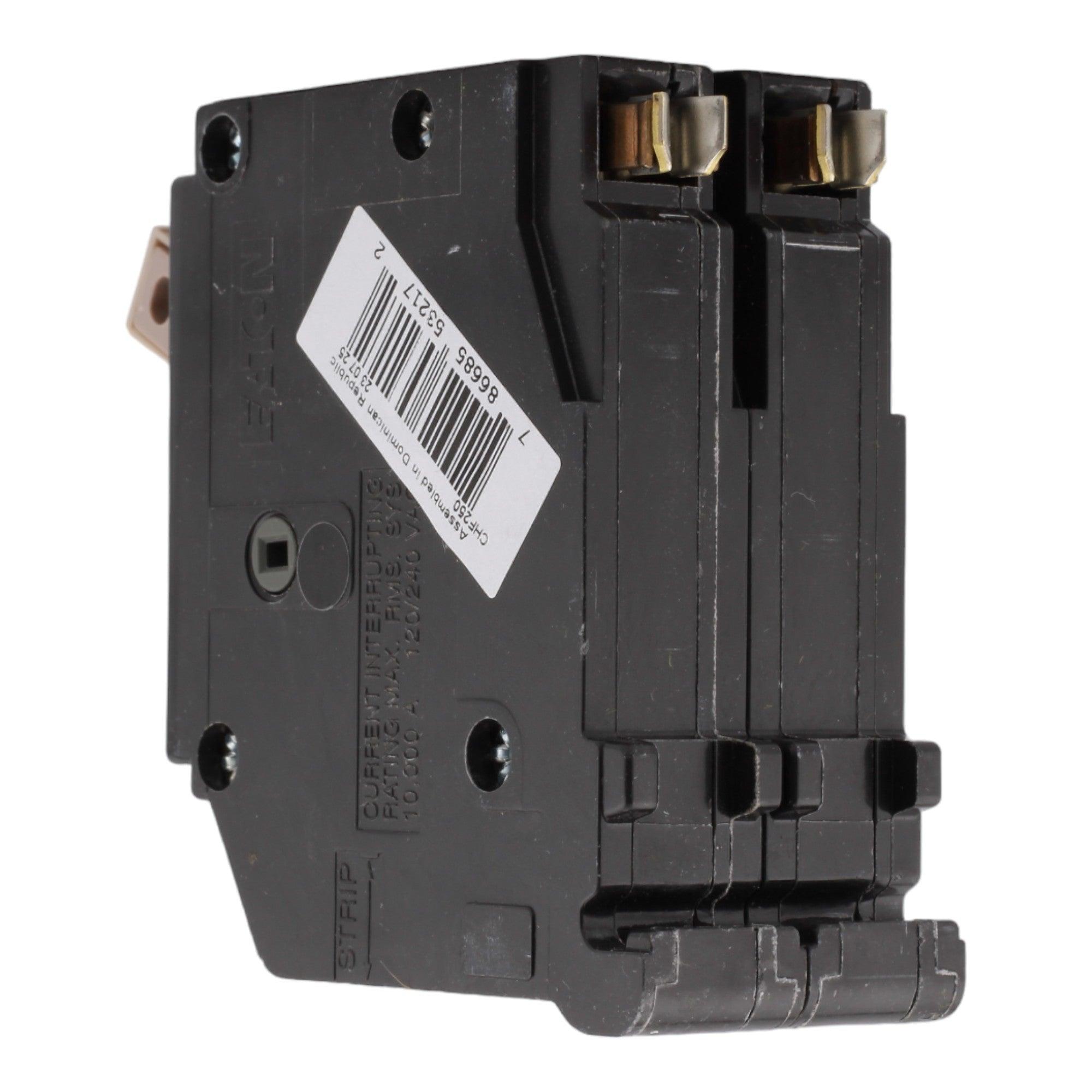

Eaton CH CHF250 50A 2P 120/240V Standard Circuit Breaker - Image 5

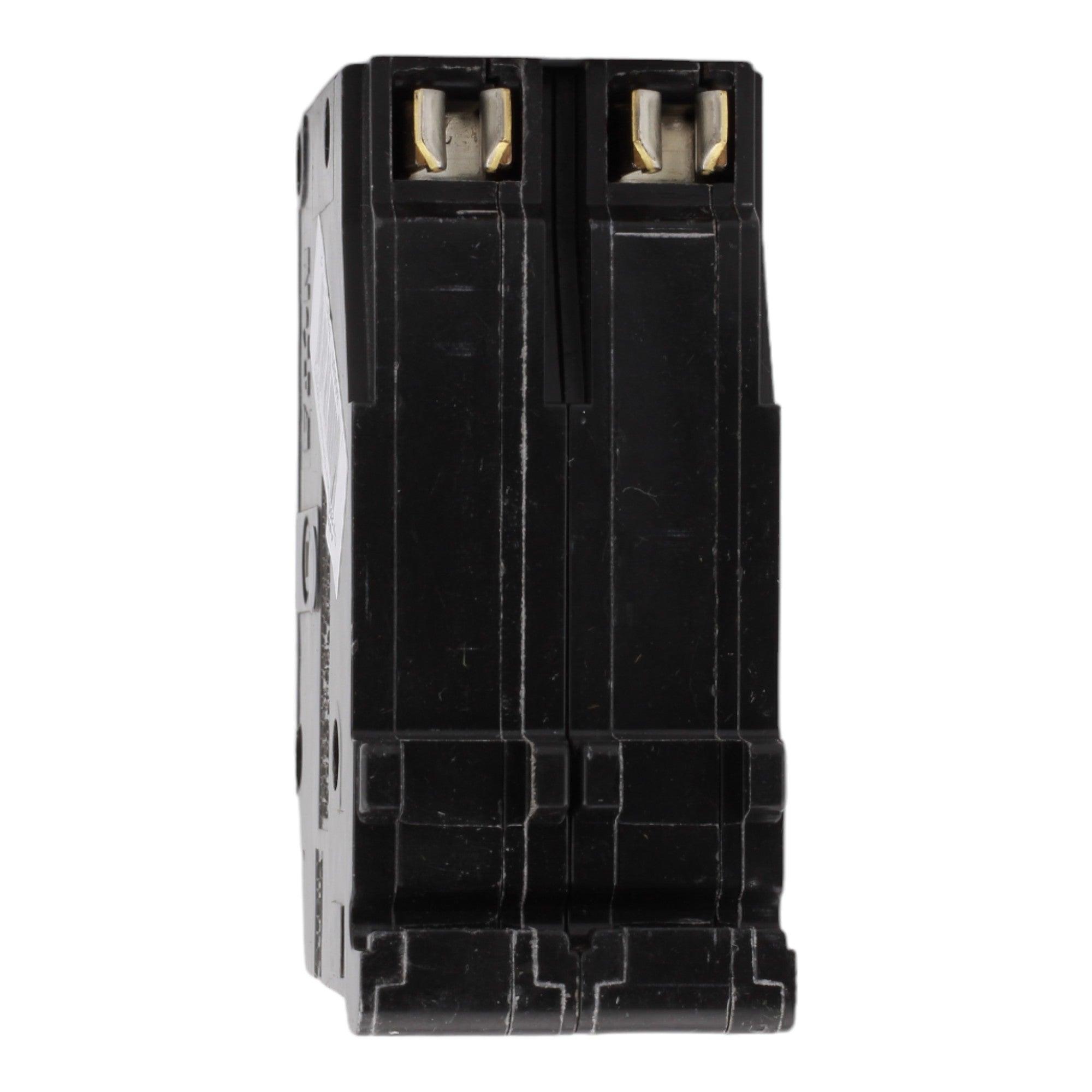

Eaton CH CHF250 50A 2P 120/240V Standard Circuit Breaker - Image 6

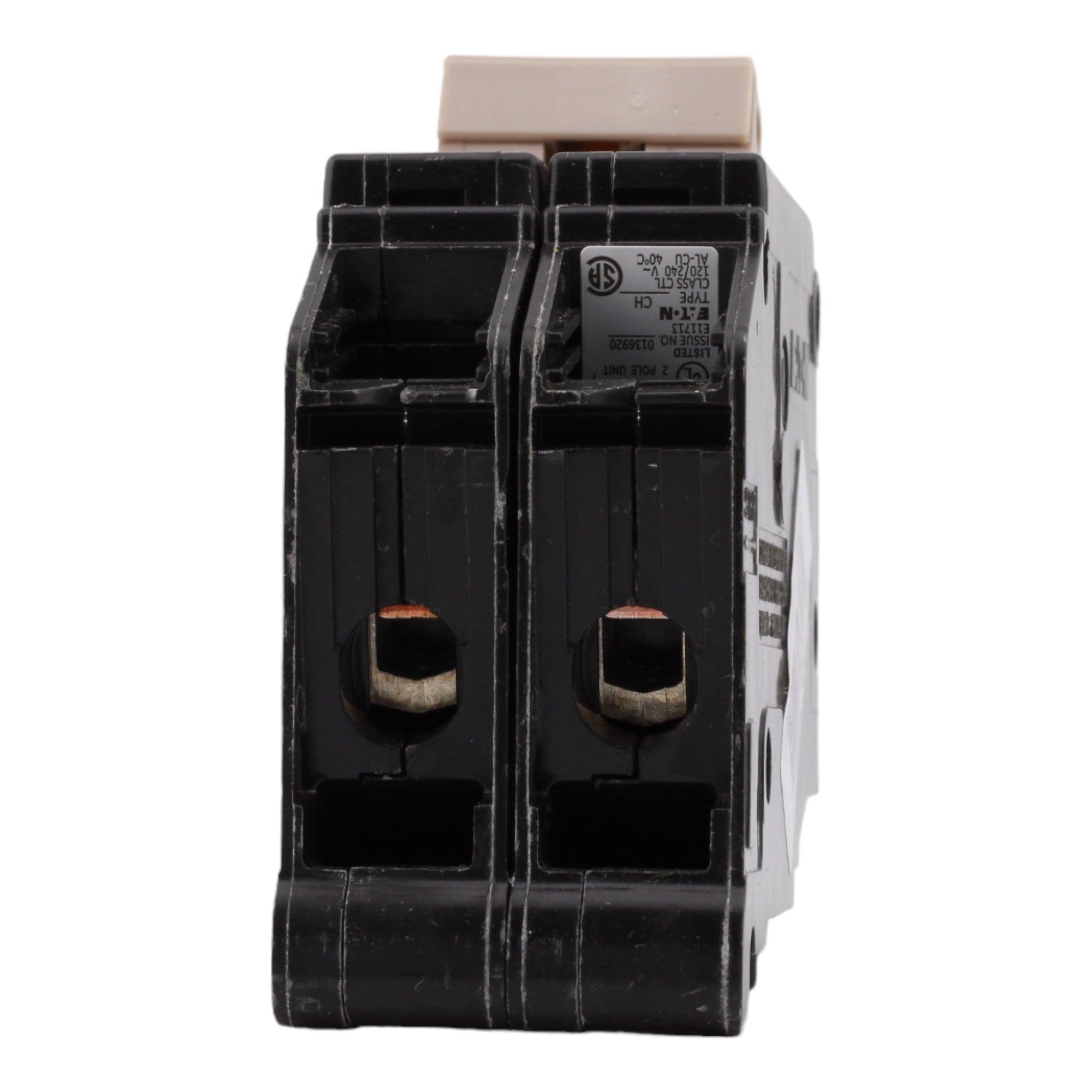

Eaton CH CHF250 50A 2P 120/240V Standard Circuit Breaker - Image 7

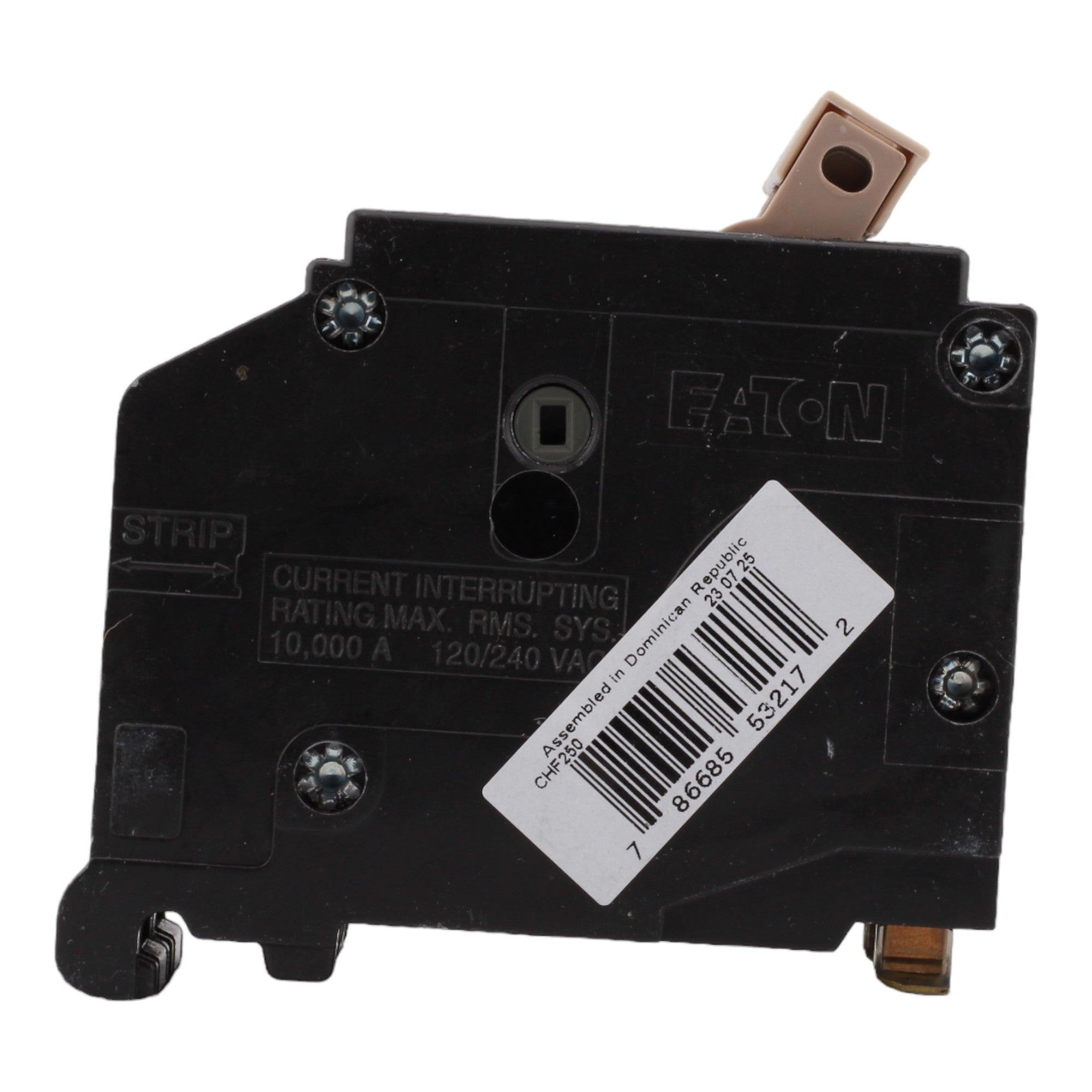

Eaton CH CHF250 50A 2P 120/240V Standard Circuit Breaker - Image 8
Eaton CH CHF250 50A 2P 120/240V Standard Circuit Breaker
Eaton CH CHF250 50A 2P 120/240V Standard Circuit Breaker - Image 2
Eaton CH CHF250 50A 2P 120/240V Standard Circuit Breaker - Image 3
Eaton CH CHF250 50A 2P 120/240V Standard Circuit Breaker - Image 4
Eaton CH CHF250 50A 2P 120/240V Standard Circuit Breaker - Image 5
Eaton CH CHF250 50A 2P 120/240V Standard Circuit Breaker - Image 6
Eaton CH CHF250 50A 2P 120/240V Standard Circuit Breaker - Image 7
Eaton CH CHF250 50A 2P 120/240V Standard Circuit Breaker - Image 8

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eaton

Eaton CH CHF250 50A 2P 120/240V Standard Circuit Breaker

SKU: CHF250
(0)
$26.00
-33% $39.00 $26.00
Out of stock
Condition

Eaton CHF250: 50 Amp 2-Pole Standard Circuit Breaker, 120/240V, 10kA, UL listed.

  • Manufacturer: Eaton
  • Brand: Eaton
  • Product Range: CH (for Eaton CH load centers and equipment)
  • UPC: 786685532172
  • Model Number: CHF250
  • Product Type: Miniature Circuit Breaker
  • Breaker Type: Standard
  • Amperage: 50 Amps
  • Poles: 2-Pole
  • Voltage: 120/240 Volts AC
  • Interrupt Rating: 10kA
  • Mounting Mode: Plug-in
  • Connections Terminals: Screw terminals
  • Wire Size: #10 to 1/0 AWG (Copper or Aluminum)
  • Tightening Torque: 20 lbf.in (2.3 N.m)
  • Dimensions: Height: 2.6 in; Width: 0.75 in; Depth: 1.5 in
  • Weight: 0.28 lbs
  • Certifications: UL Listed

This Eaton CHF250 50A 2-pole standard circuit breaker delivers reliable overcurrent protection for 120/240V circuits in CH load centers. Equipped with a trip flag indicator and common trip mechanism, it ensures robust performance for residential and light commercial applications, such as HVAC systems or heavy appliances.

There is a $15 charge for delivery under $250 orders. Additional charges will be imposed by our couriers for delivery to remote areas, a surcharge may be levied to cover carriage to these areas.

Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
