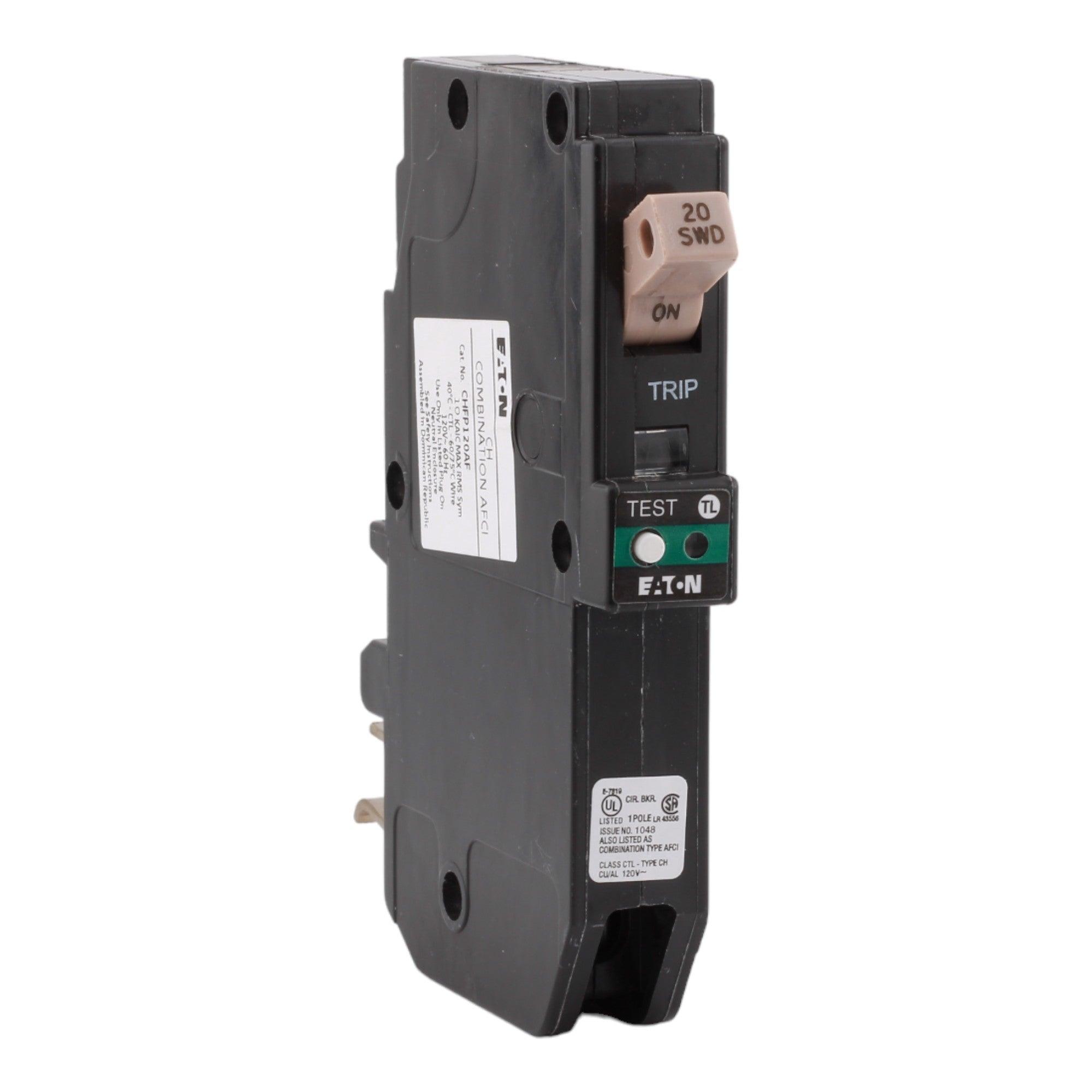

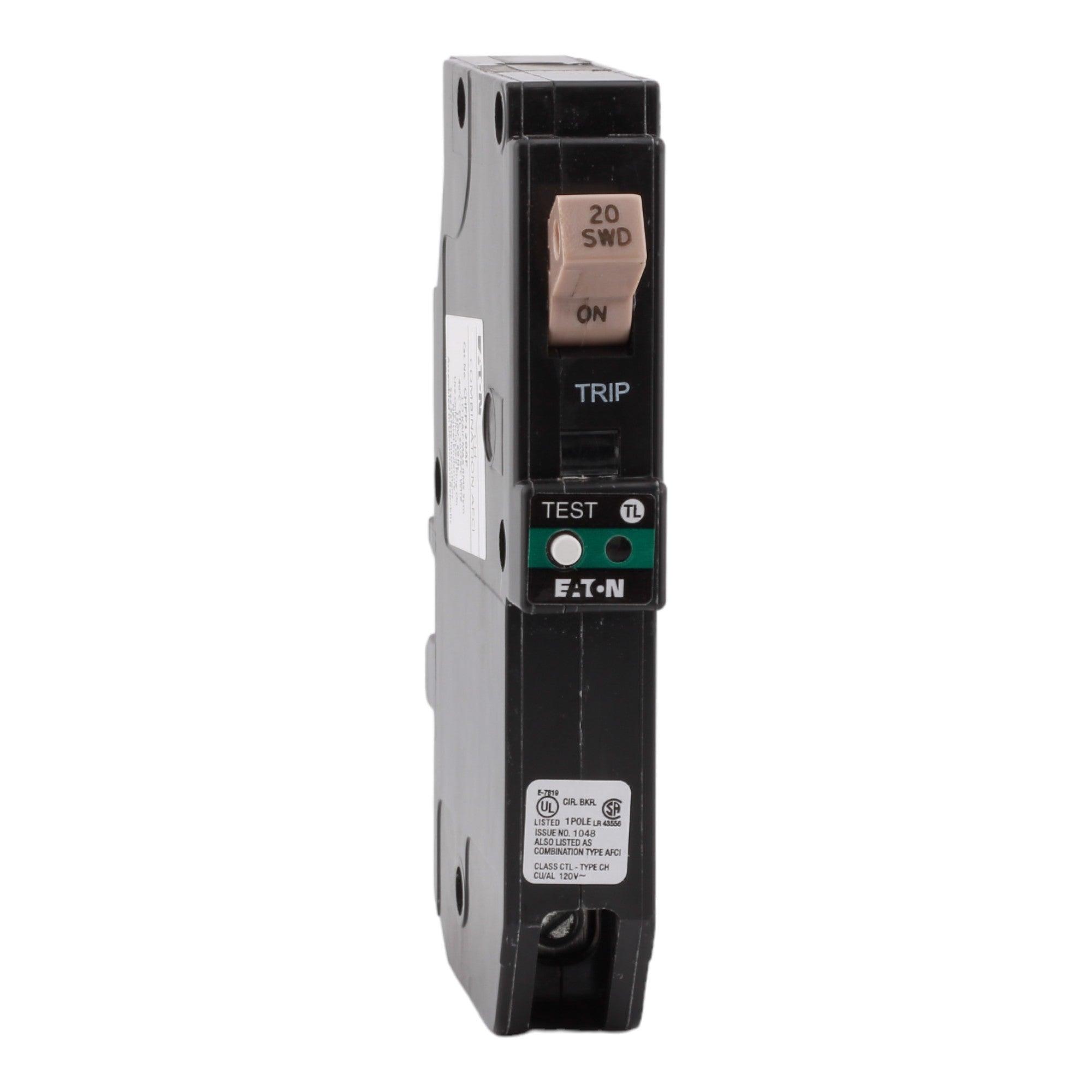

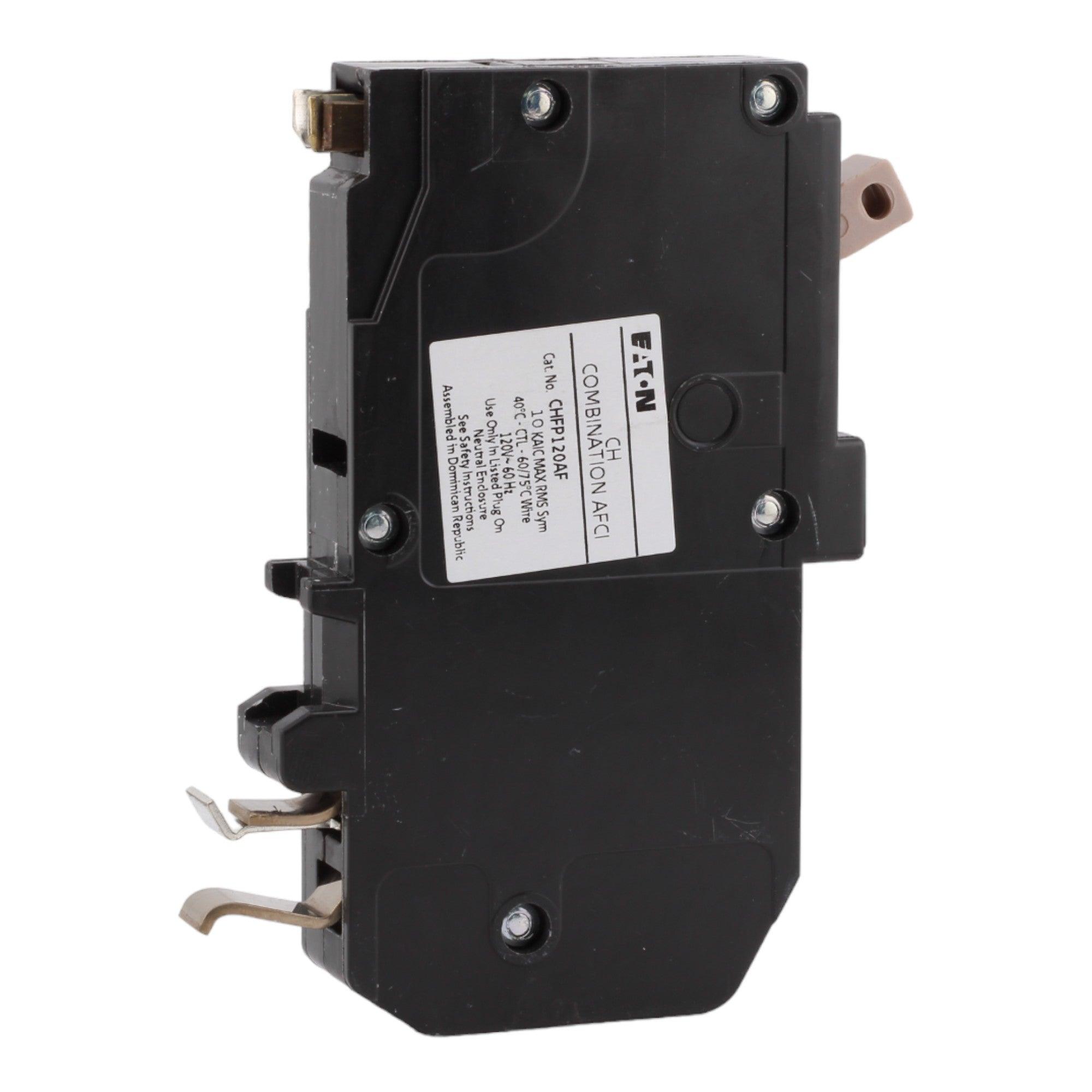

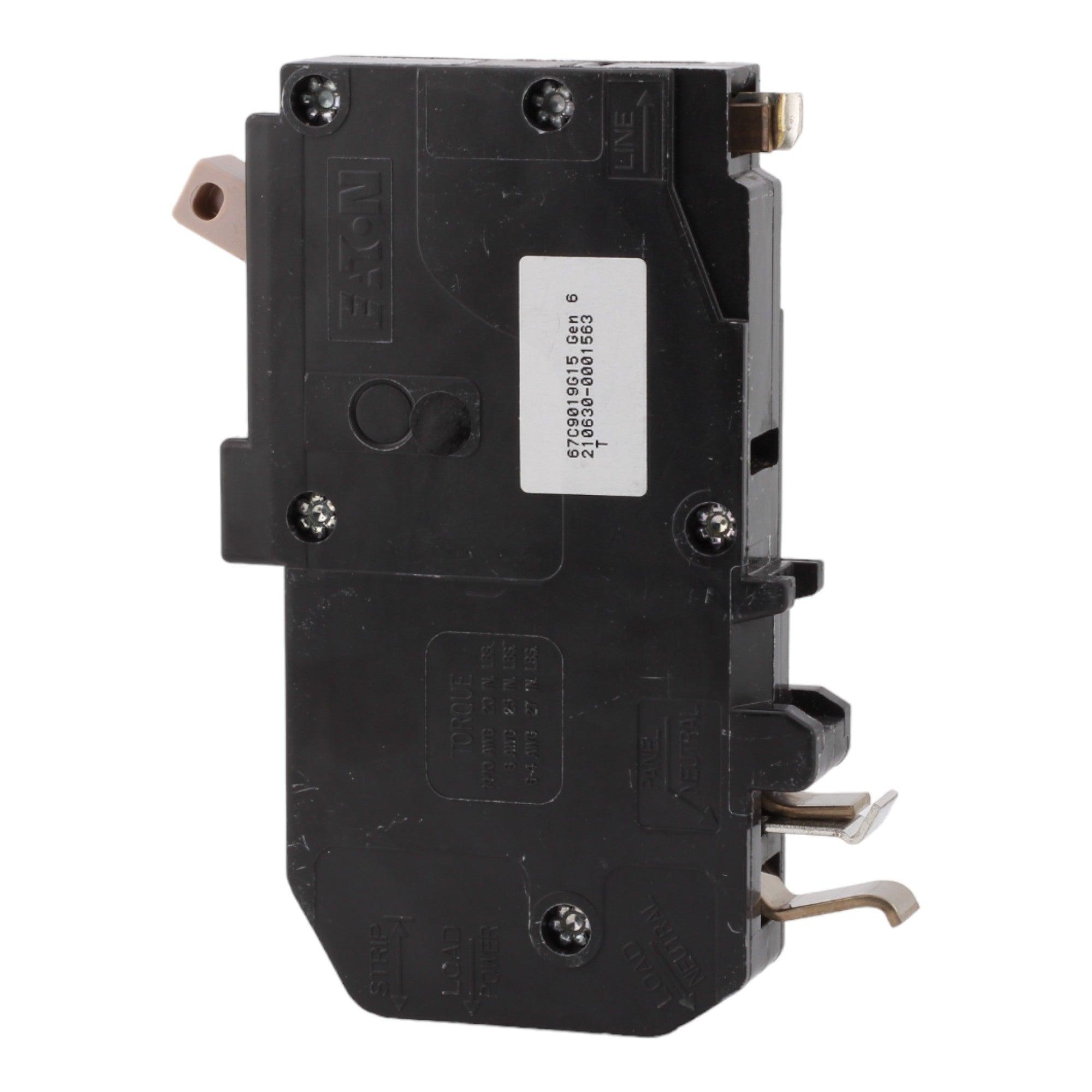

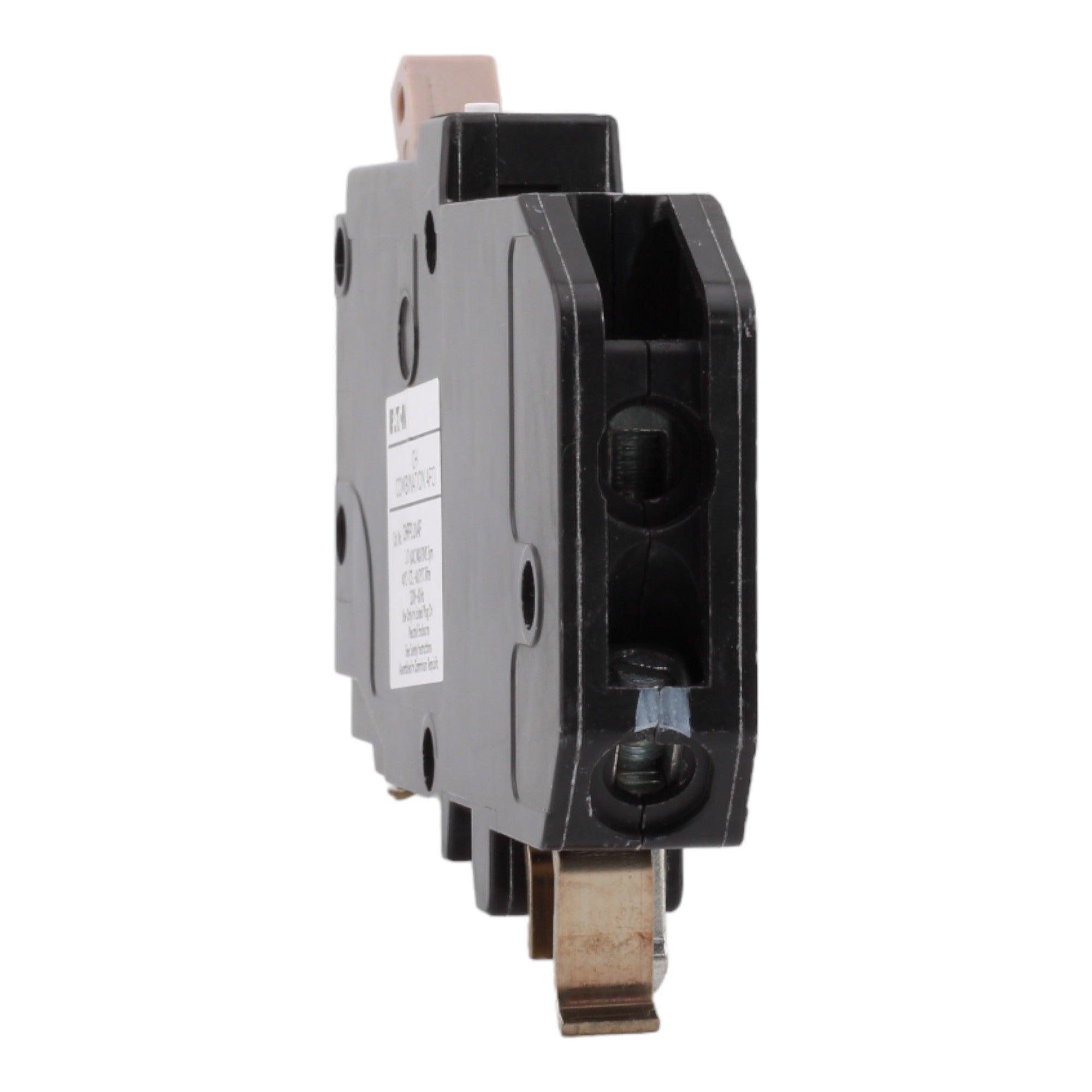

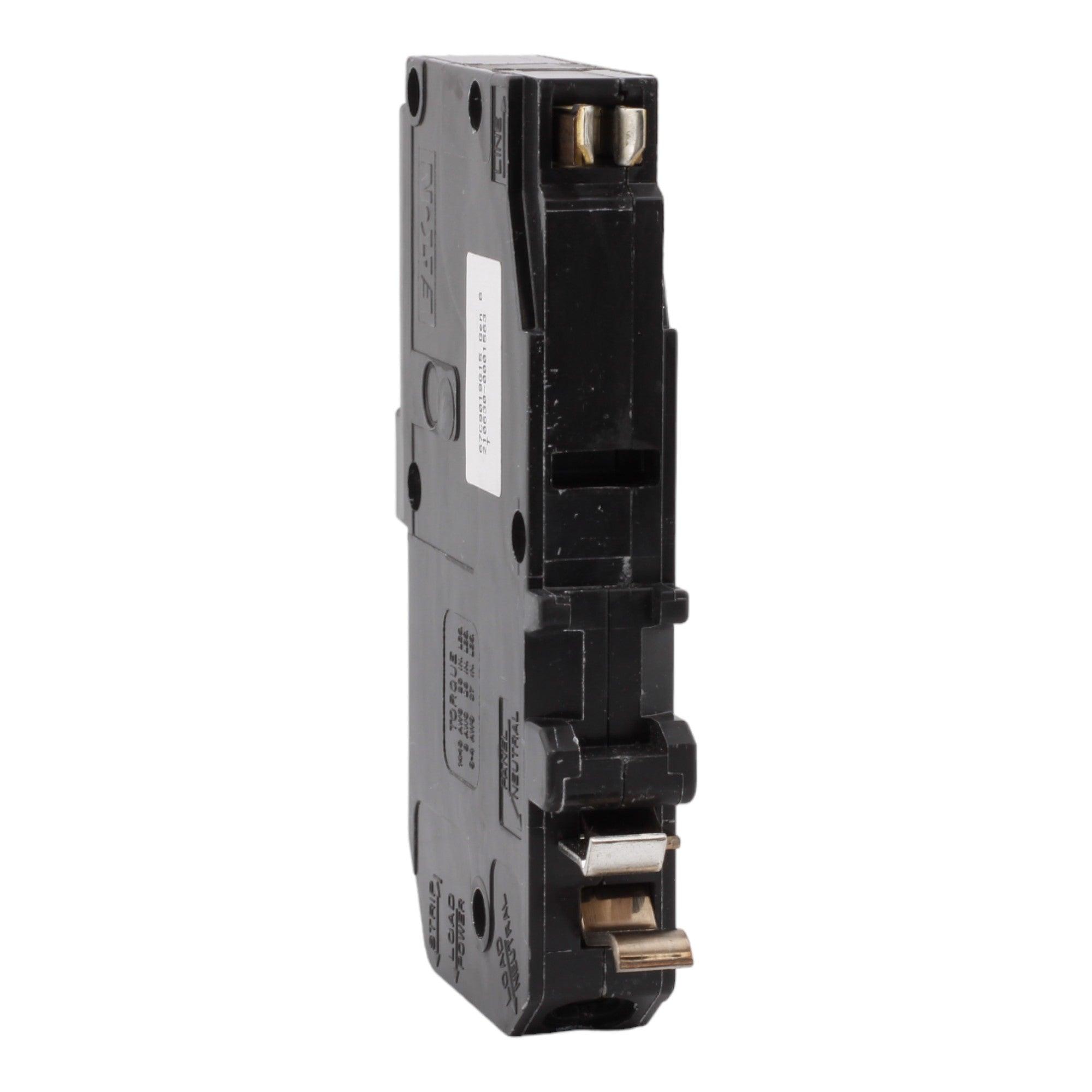

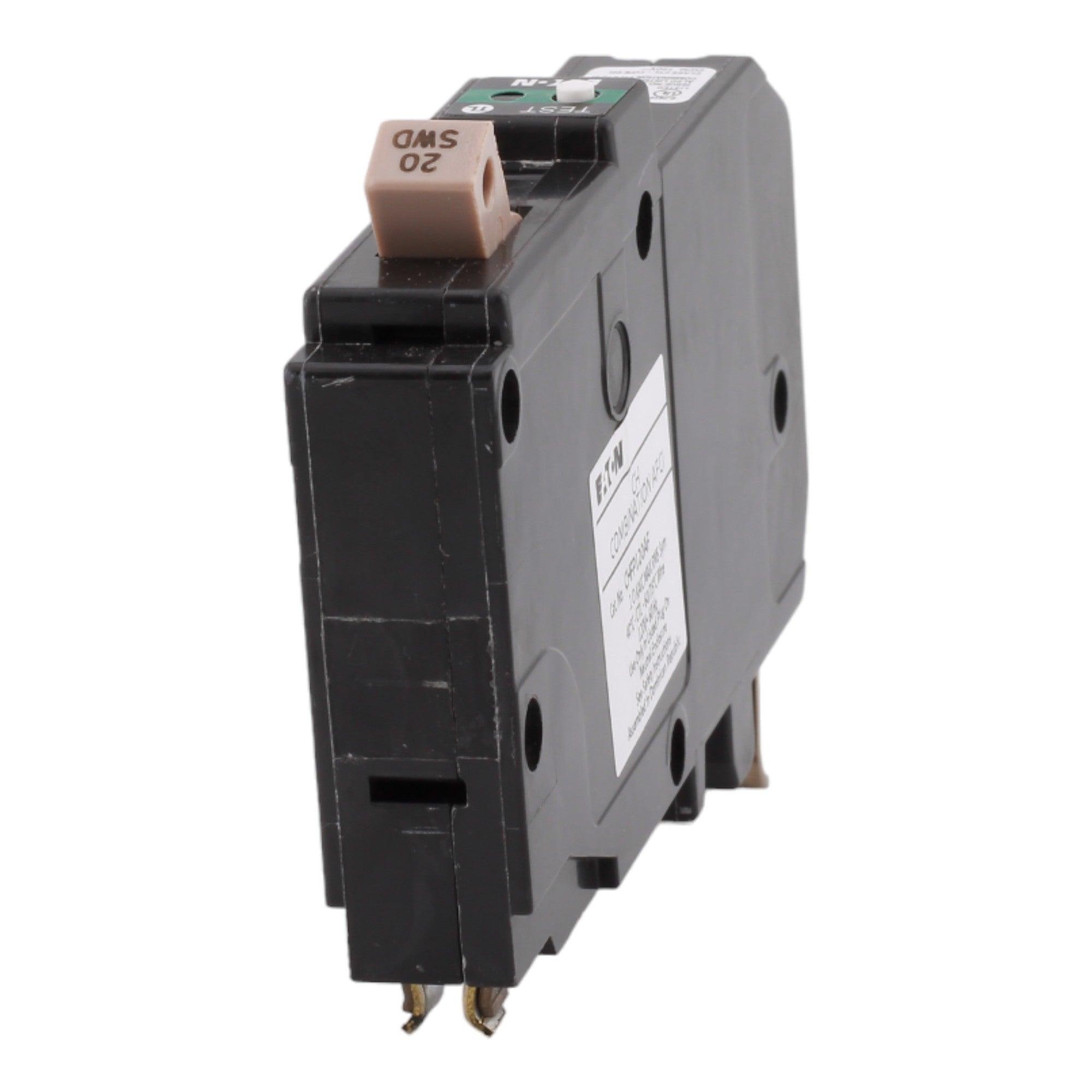

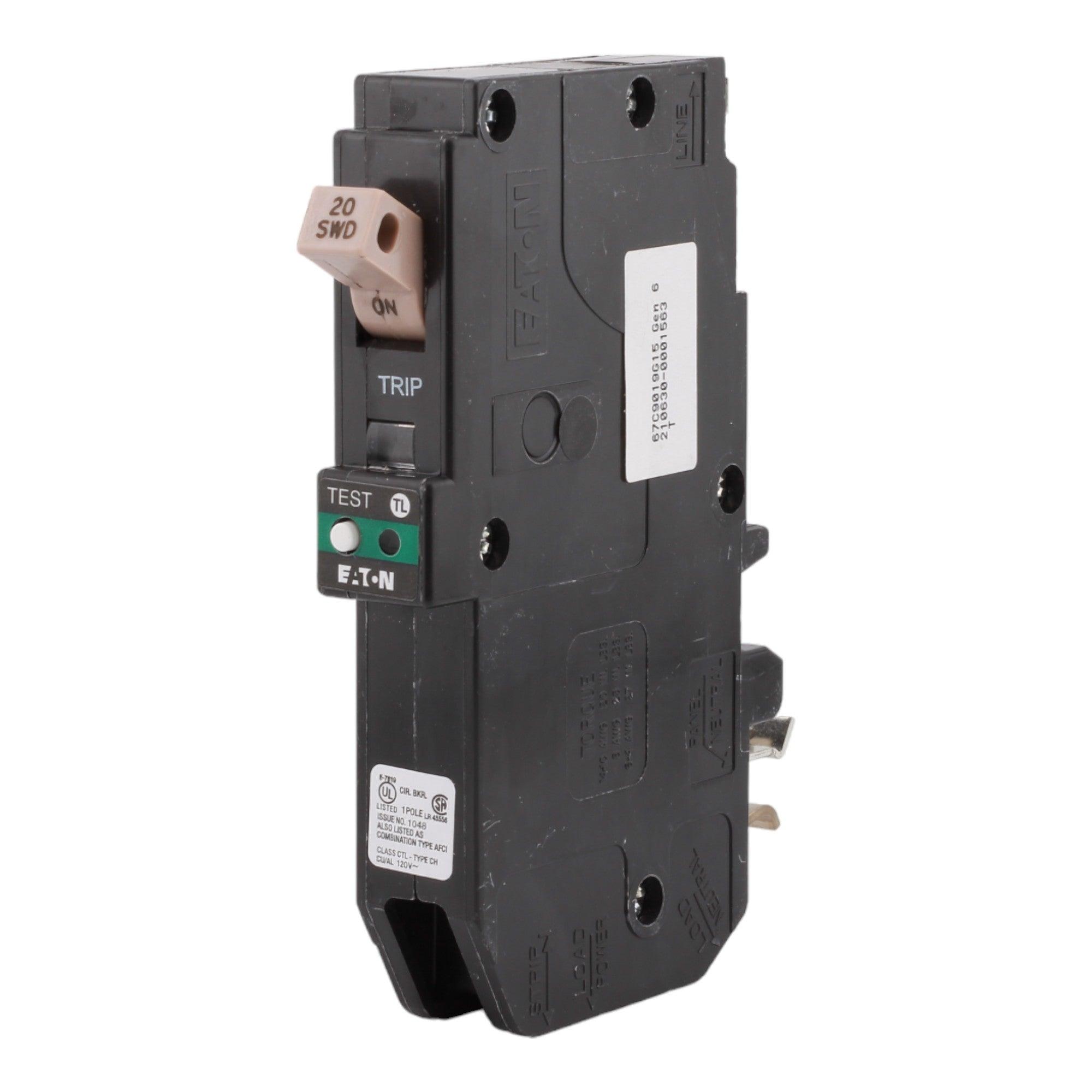

CHFP120AF is an Eaton CH part, not a BR part. It is a 20A, single-pole combination AFCI breaker built with Eaton’s CH plug-on-neutral connection. That family distinction is central to choosing the correct device because CH and BR catalog numbers are not interchangeable.
The CHFP120AF is AFCI-only. It should not be confused with a dual-function breaker that adds Class A ground-fault protection, or with an Eaton BR plug-on-neutral AFCI carrying a BRP catalog number. Matching the printed model prevents those three different choices from being collapsed into one.
Use the Eaton loadcenter label to confirm an approved CH plug-on-neutral breaker. Check the 20A rating, single-pole 120V circuit, 10 kAIC requirement, and conductor limits shown by the equipment. Similar handles and footprints do not establish compatibility. A qualified installer should confirm the application before energizing the circuit.
