| Specification | Detail |
|---|---|
| Brand | Eaton |
| Manufacturer | Eaton |
| Model Number | CHNSURGE |
| UPC | 786689353650 |
| Type | Type CH |
| Frequency Rating | 50/60 Hz |
| Interrupt Rating | 10 kAIC |
| Nominal Discharge Current | 3 kA |
| Protection | L-N, L-L |
| Measured Limiting Voltage | 600 V |
| Maximum Continuous Operating Voltage | 150 V L-N, 300 V L-L |
| Surge Current | 18 kA |
| Short-circuit Rating | 10 kA |
| Certifications | cUL Certified, UL 1449 |
| Dimensions (H × W × D) | 2.4 × 6.1 × 3.5 in |
| Weight | 0.45 lb |

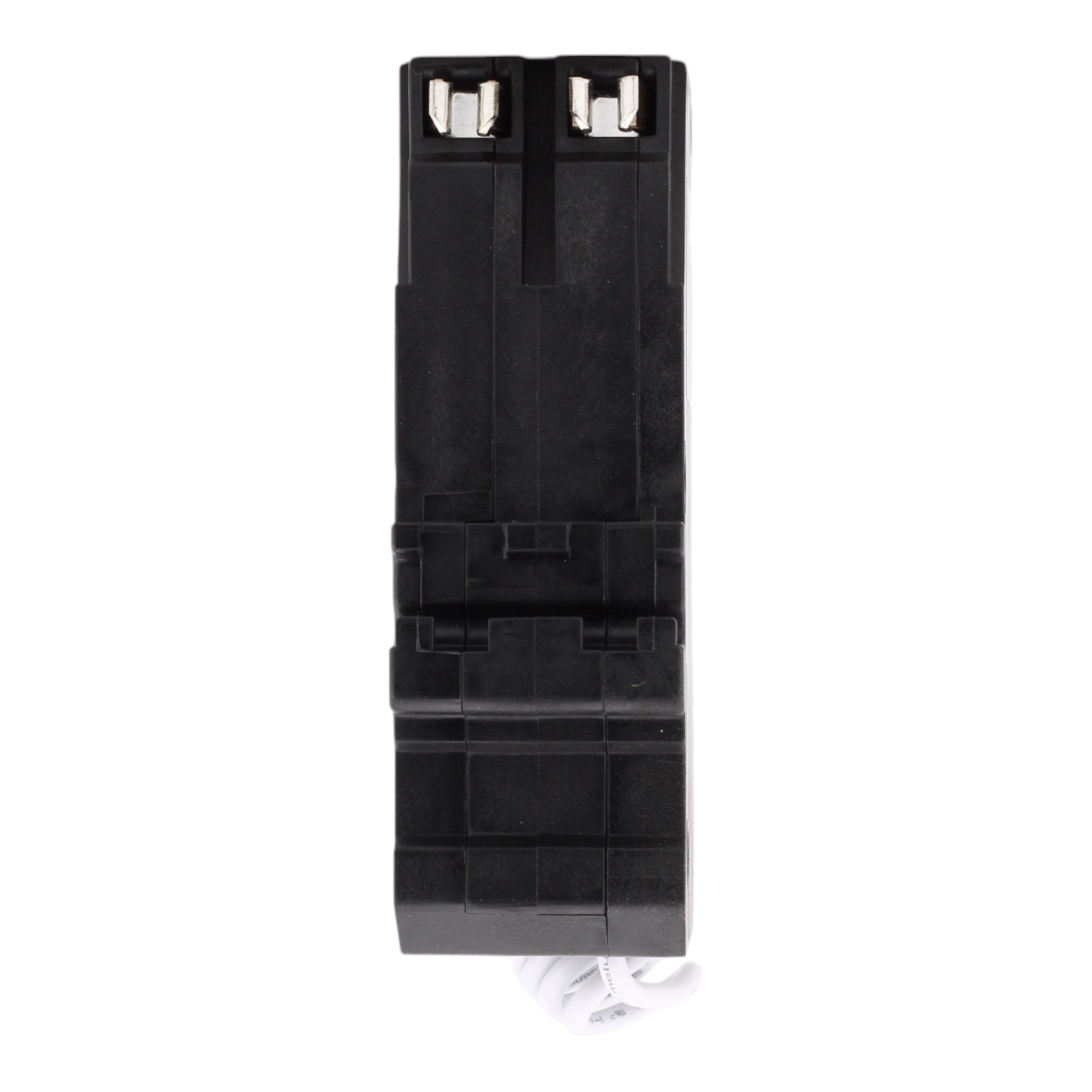

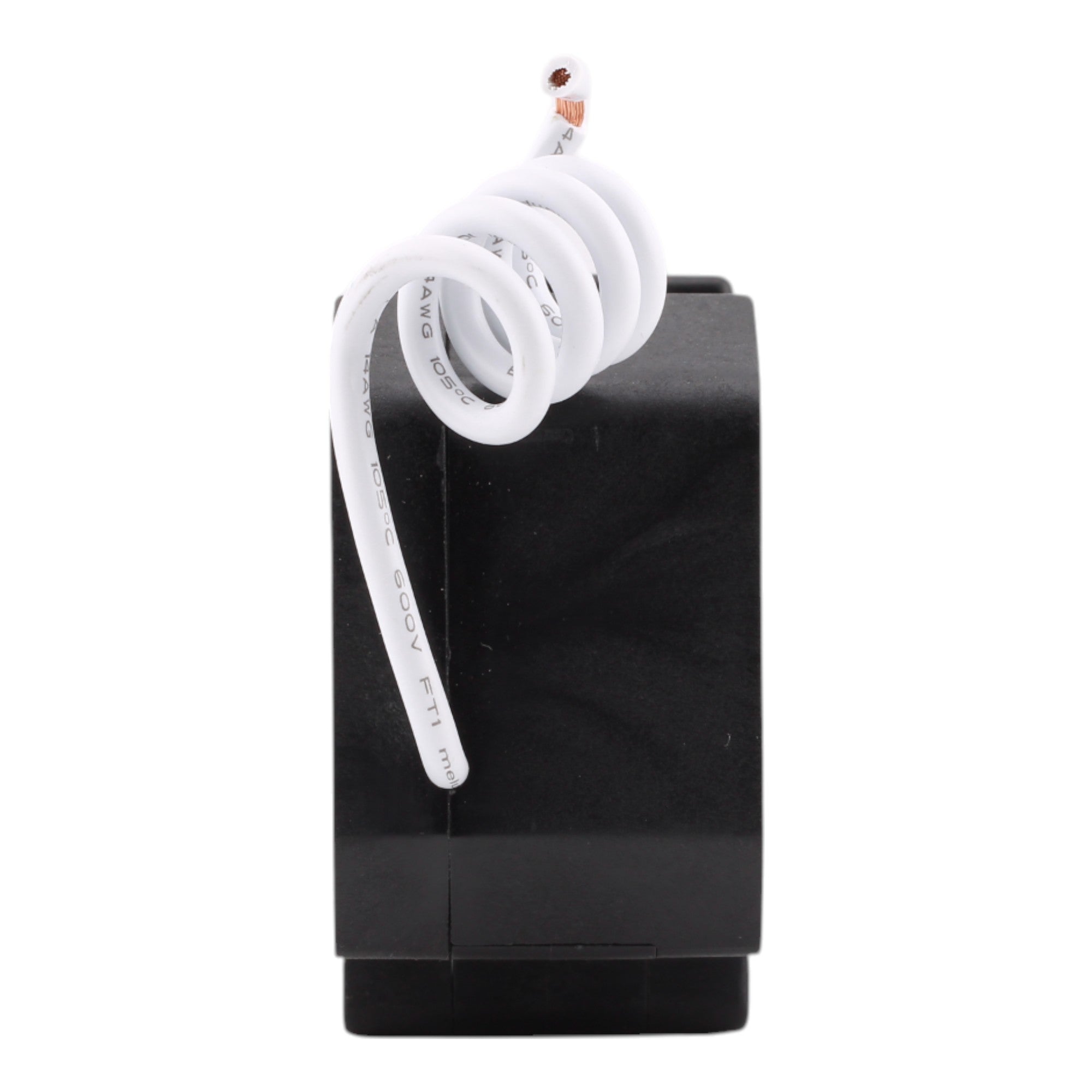

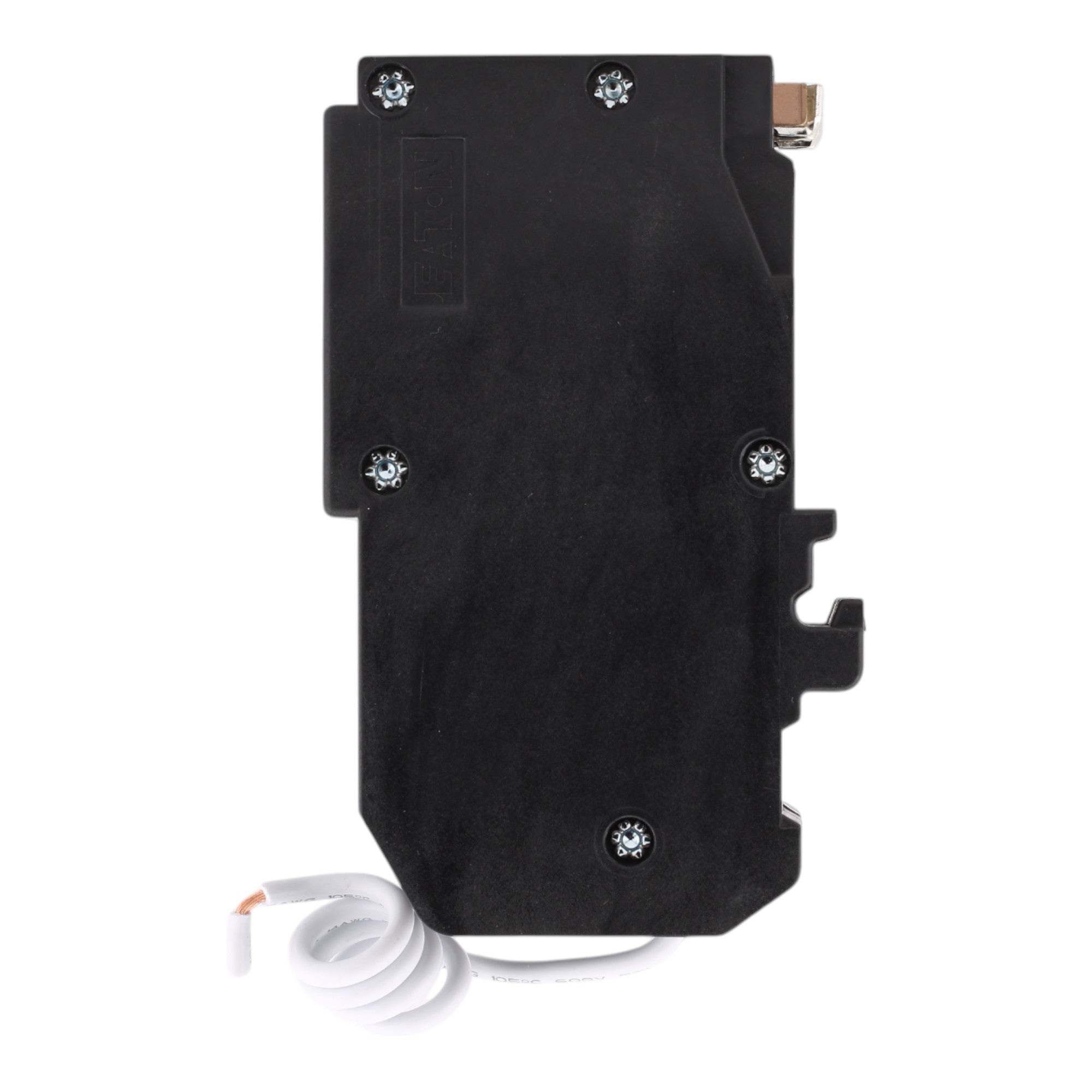

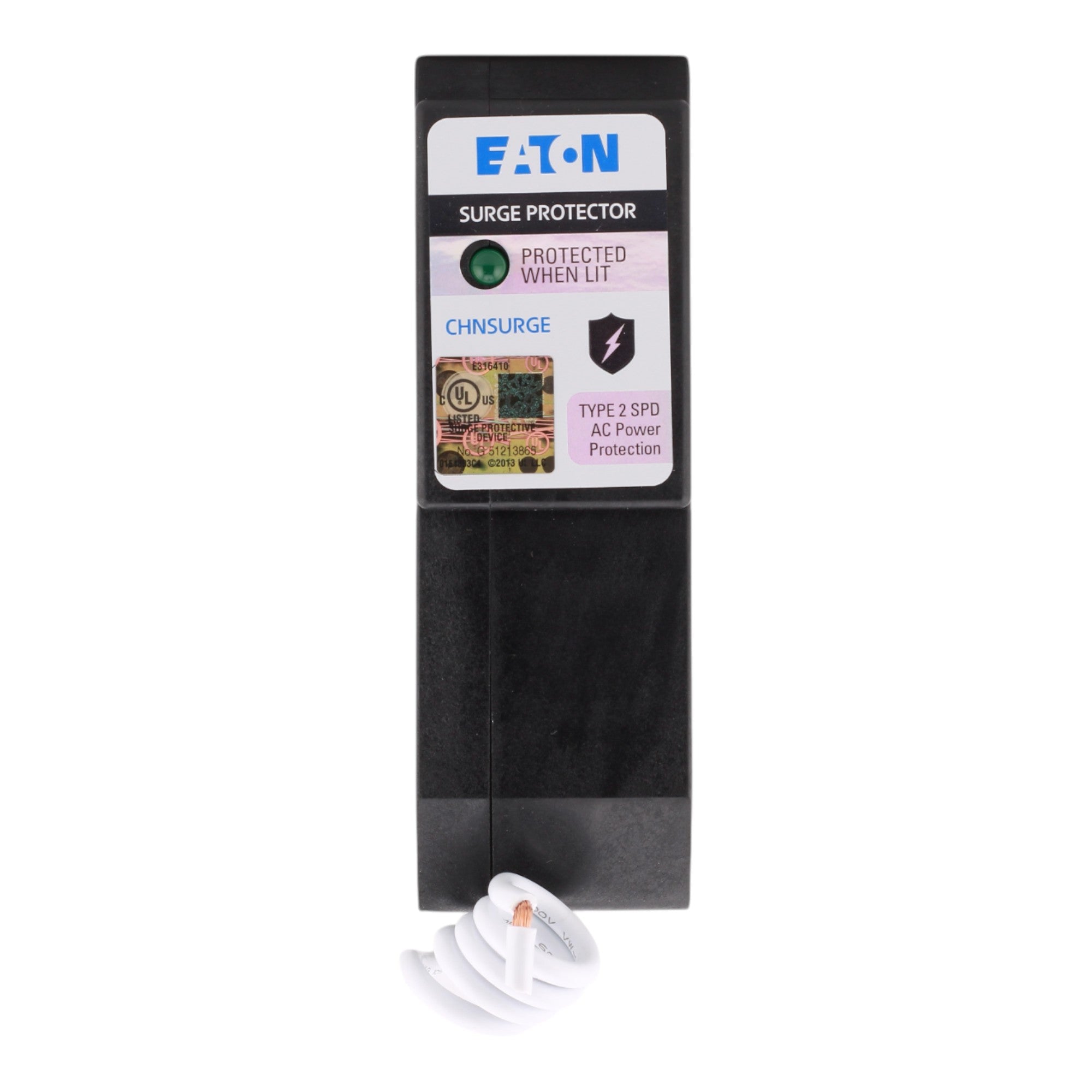

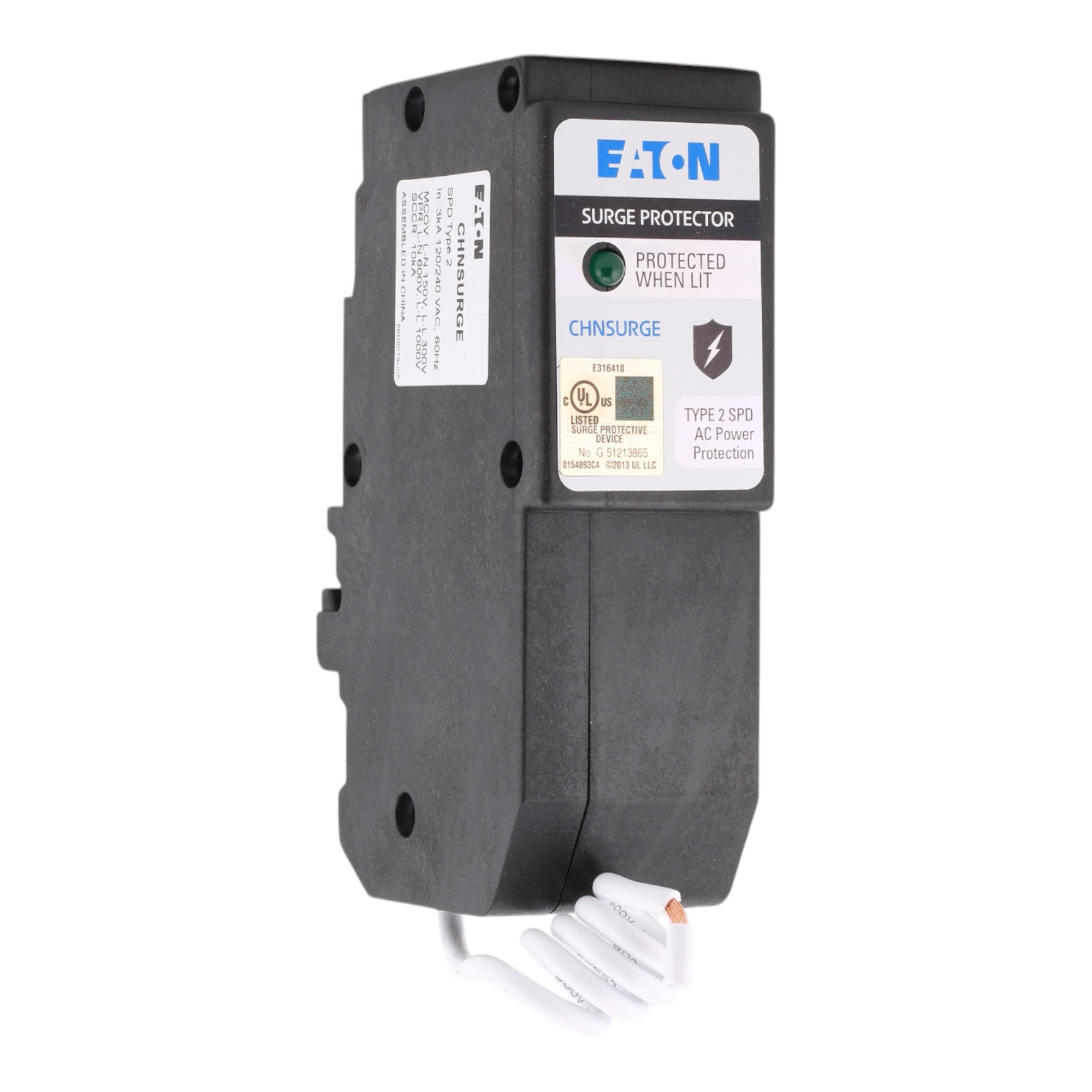

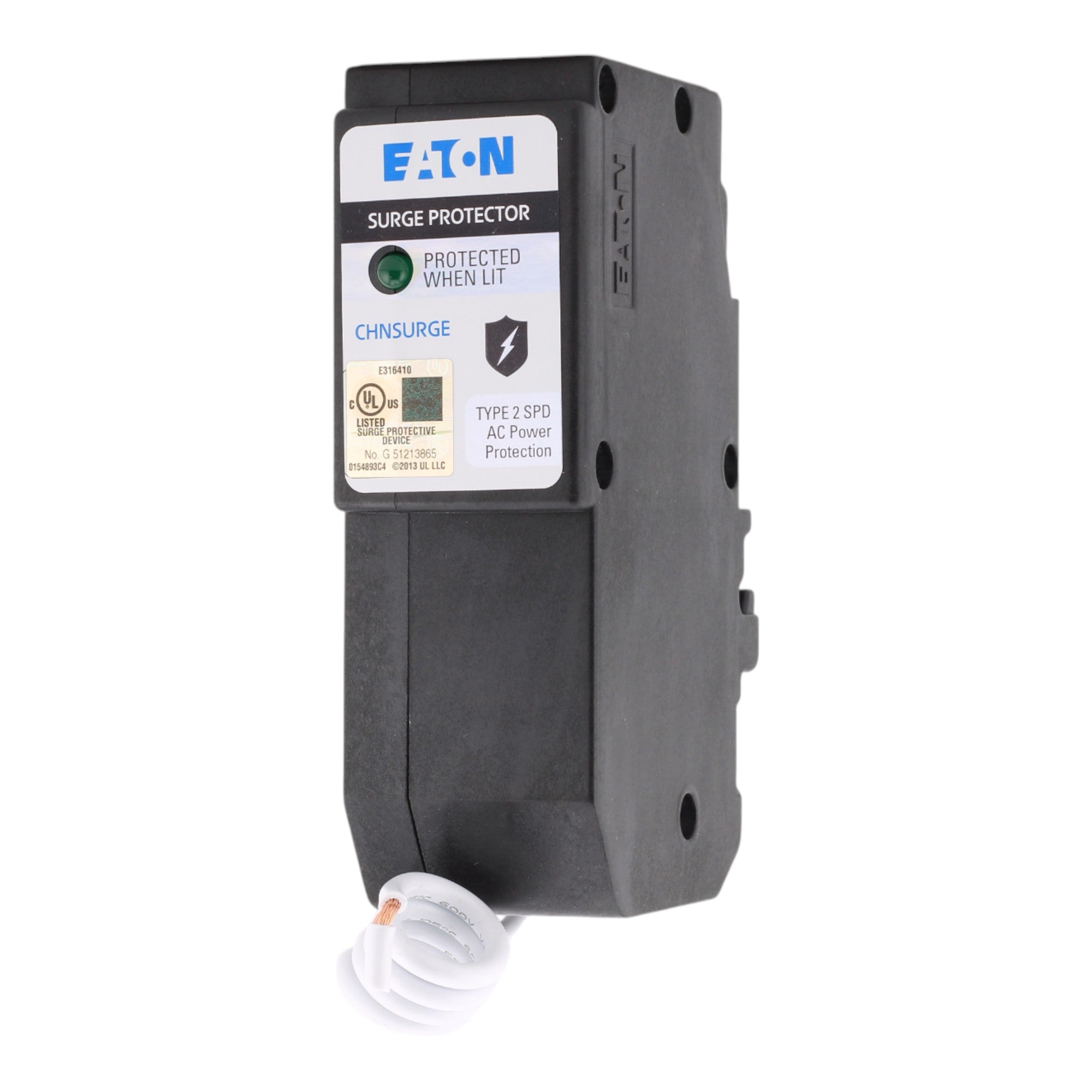

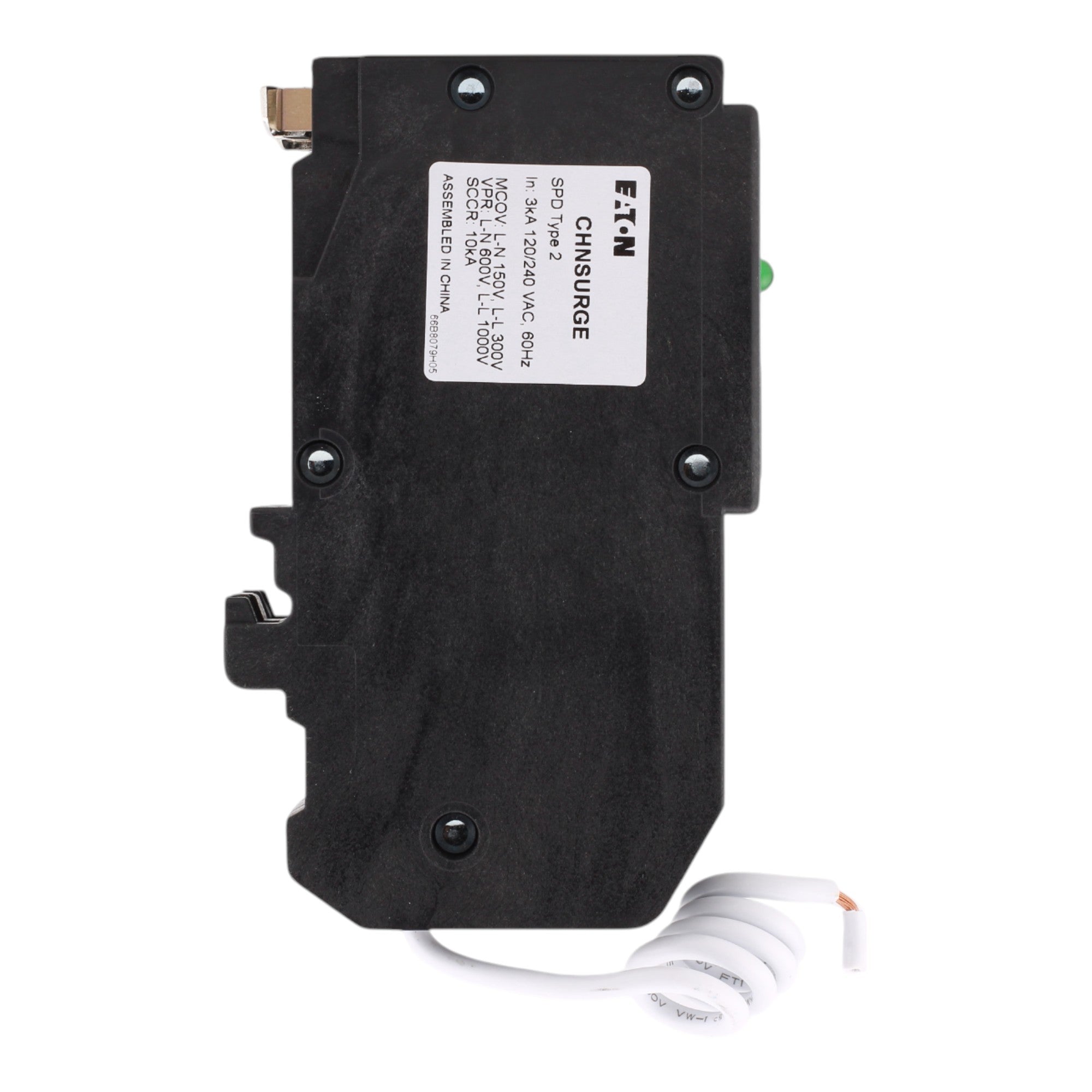

Eaton's CHNSURGE Type CH surge protective device, with a 10kAIC interrupt rating, providing surge current protection up to 18 kA. Certified under UL 1449 and cUL.
