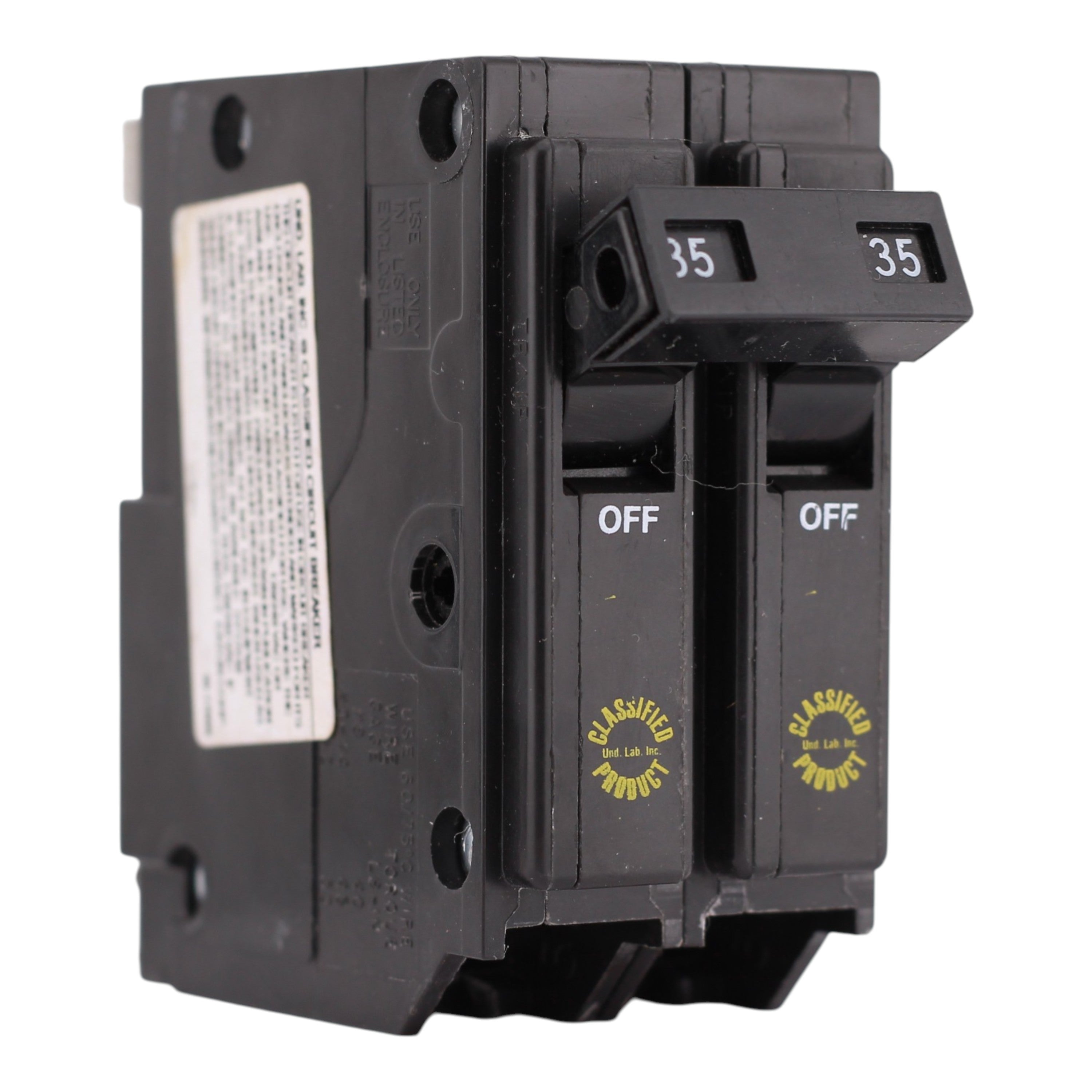

Eaton CHQ, CHQ235, 35A, 2P, 120/240V, Classified, Circuit Breaker

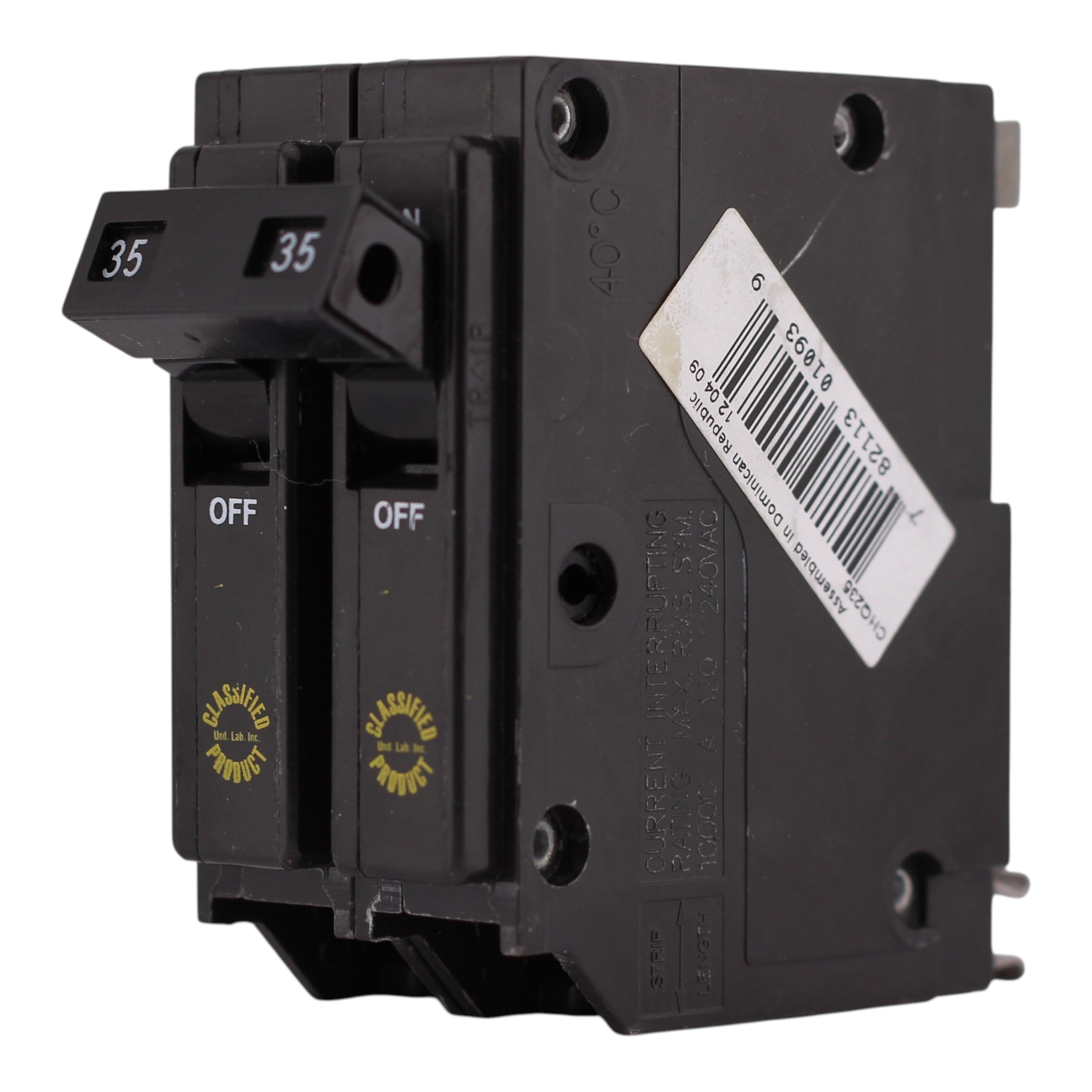

Eaton CHQ, CHQ235, 35A, 2P, 120/240V, Classified, Circuit Breaker - Image 2

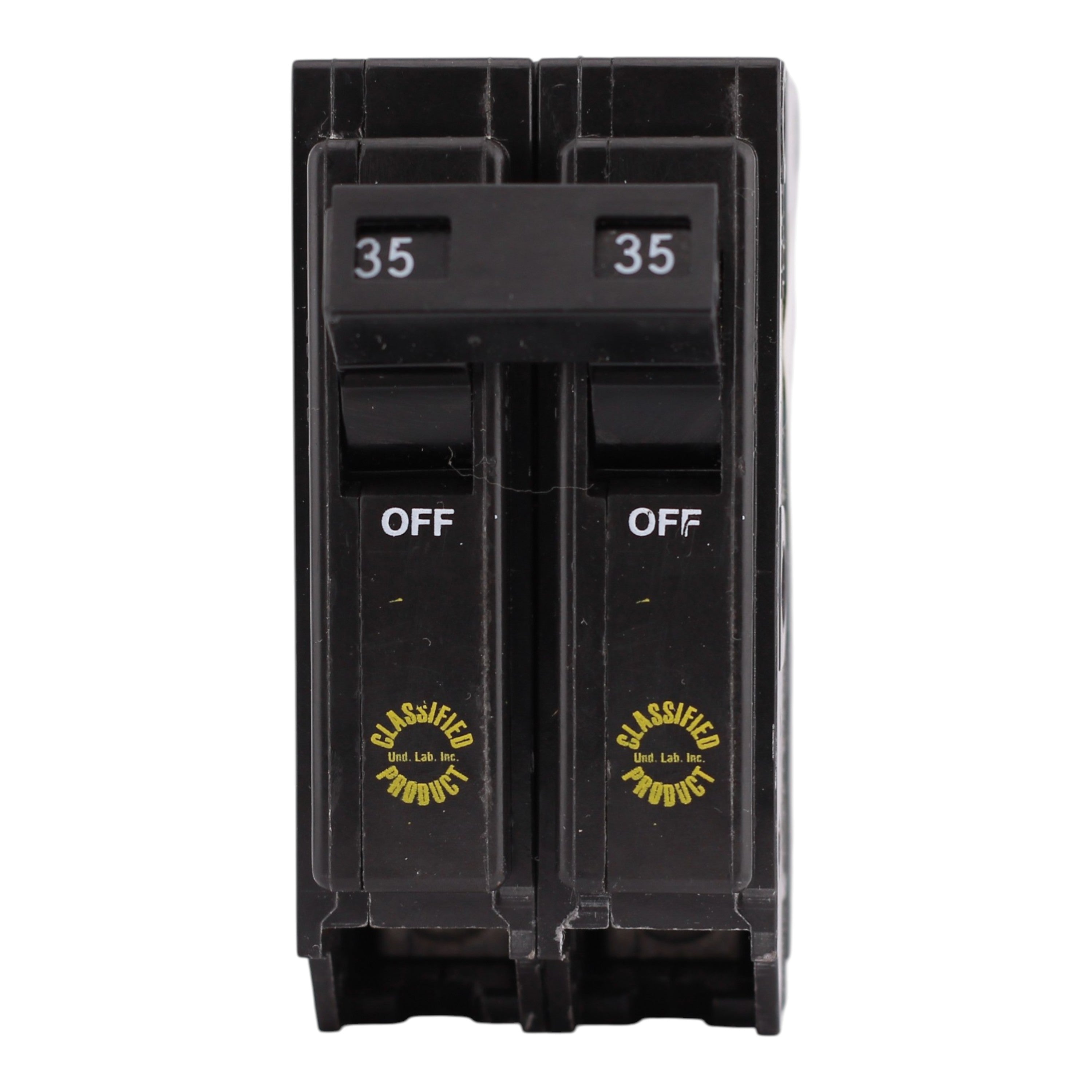

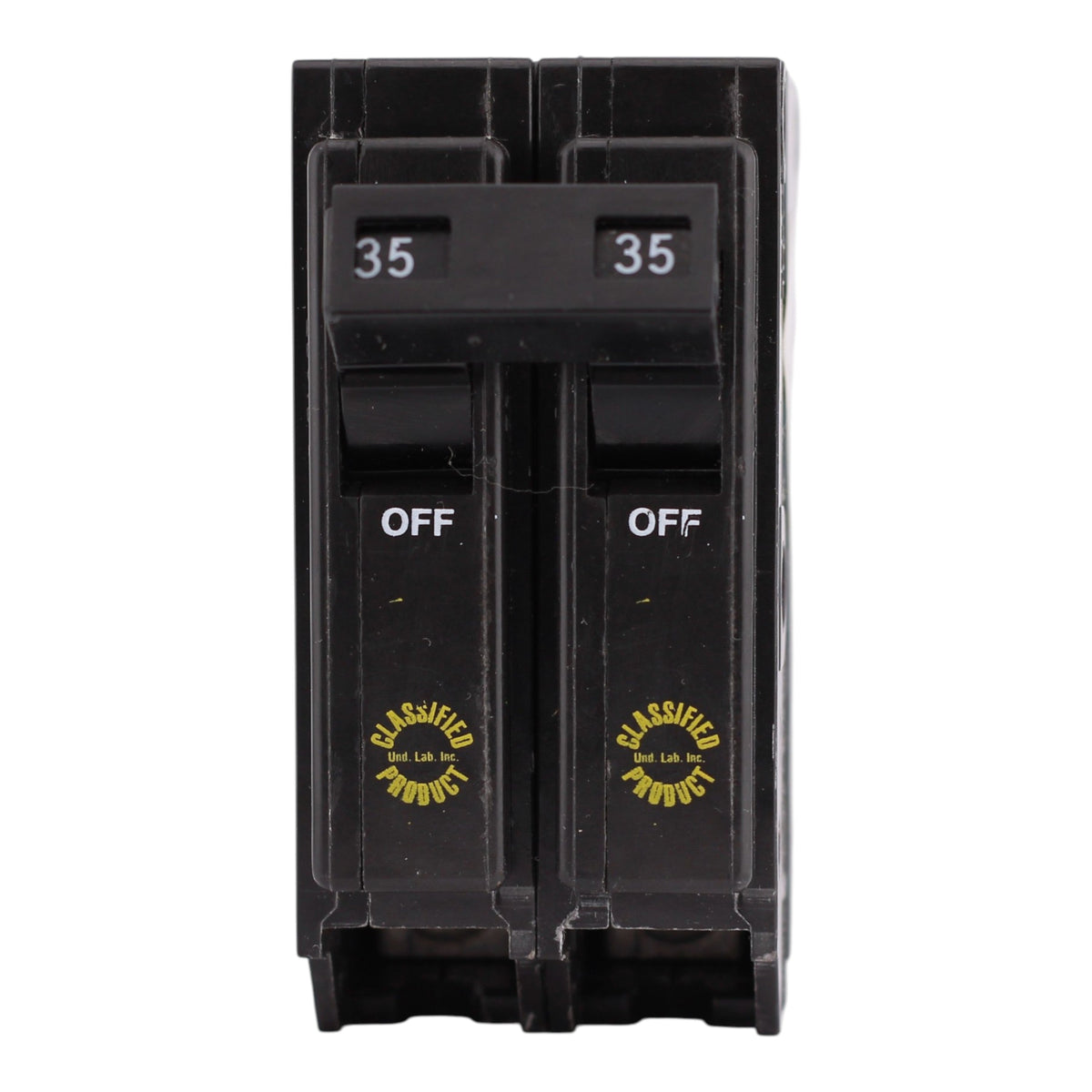

Eaton CHQ, CHQ235, 35A, 2P, 120/240V, Classified, Circuit Breaker - Image 3

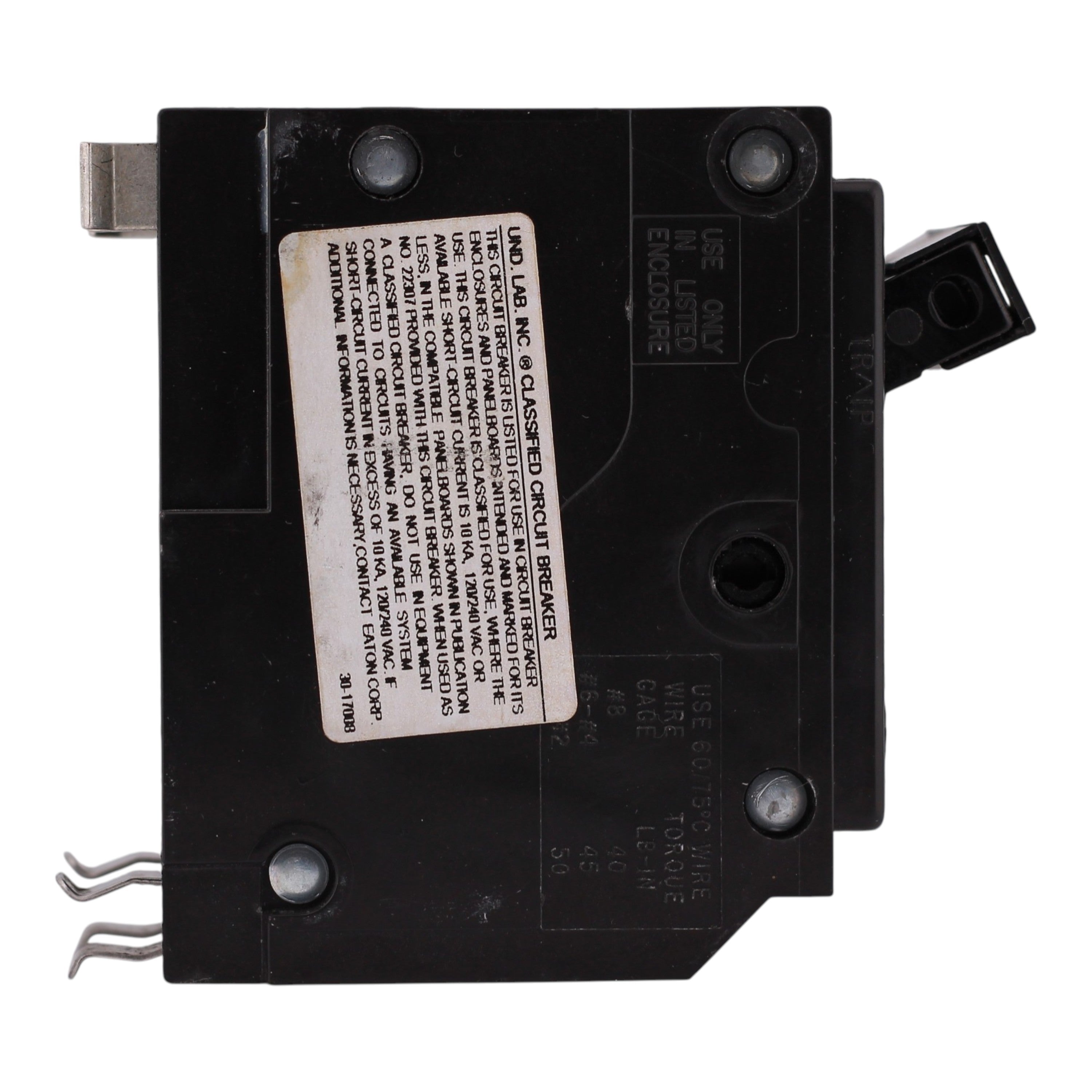

Eaton CHQ, CHQ235, 35A, 2P, 120/240V, Classified, Circuit Breaker - Image 4

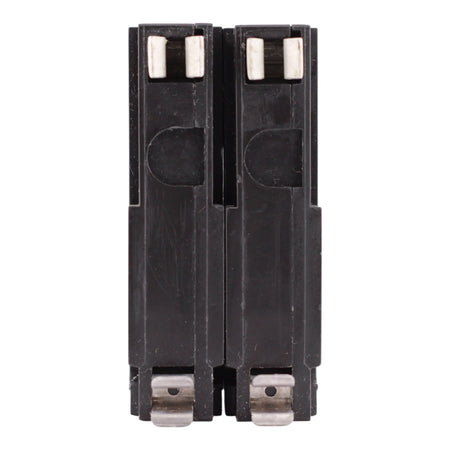

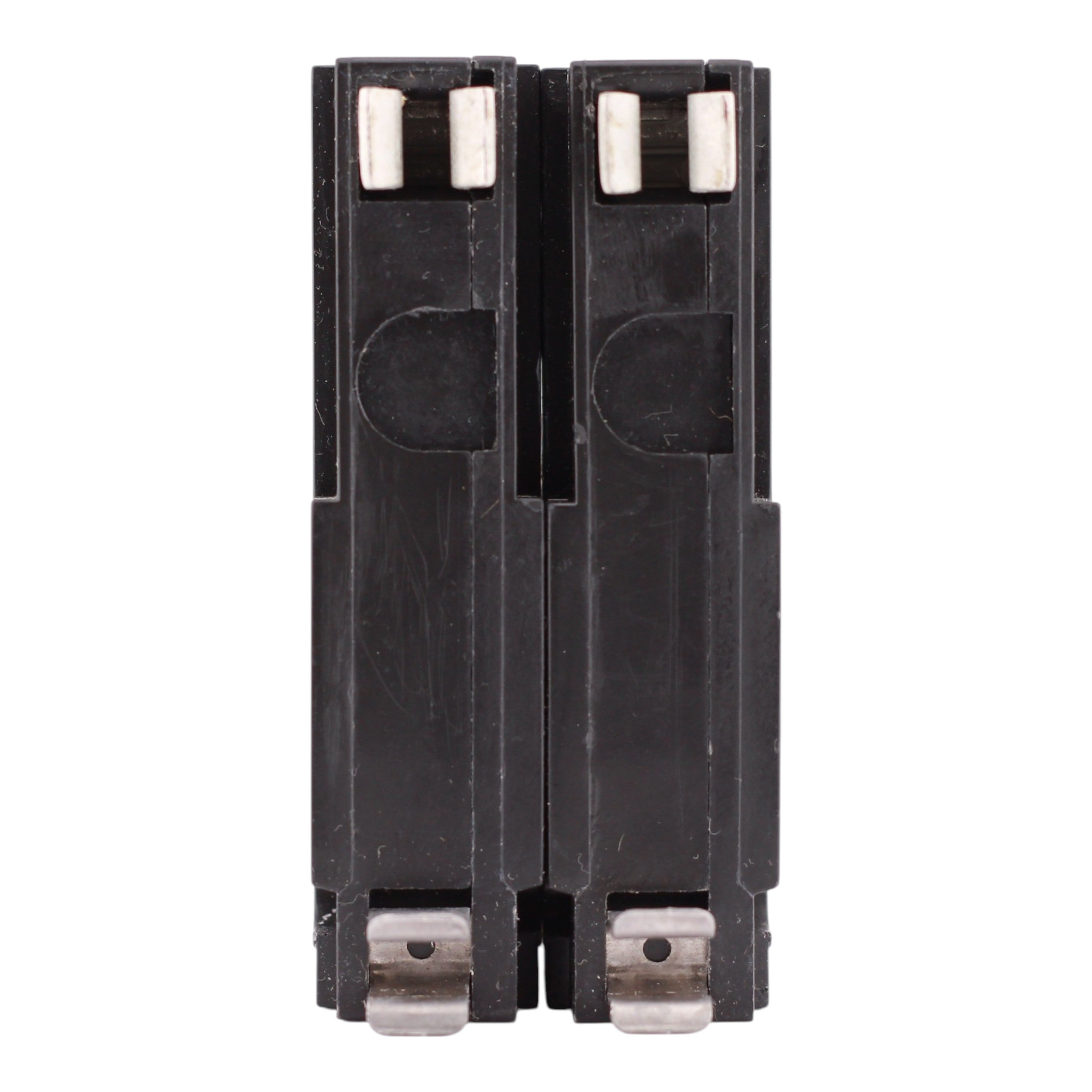

Eaton CHQ, CHQ235, 35A, 2P, 120/240V, Classified, Circuit Breaker - Image 5

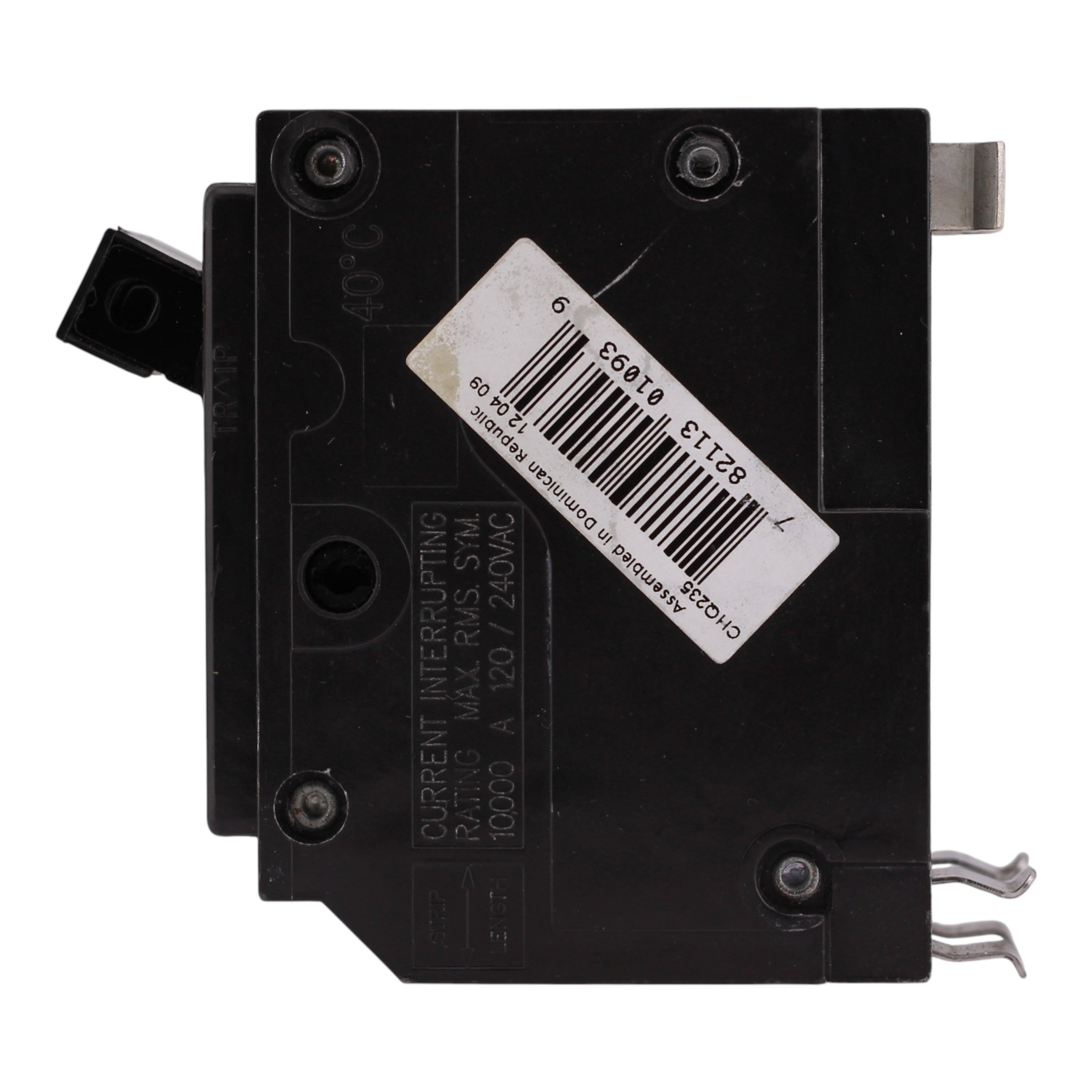

Eaton CHQ, CHQ235, 35A, 2P, 120/240V, Classified, Circuit Breaker - Image 6

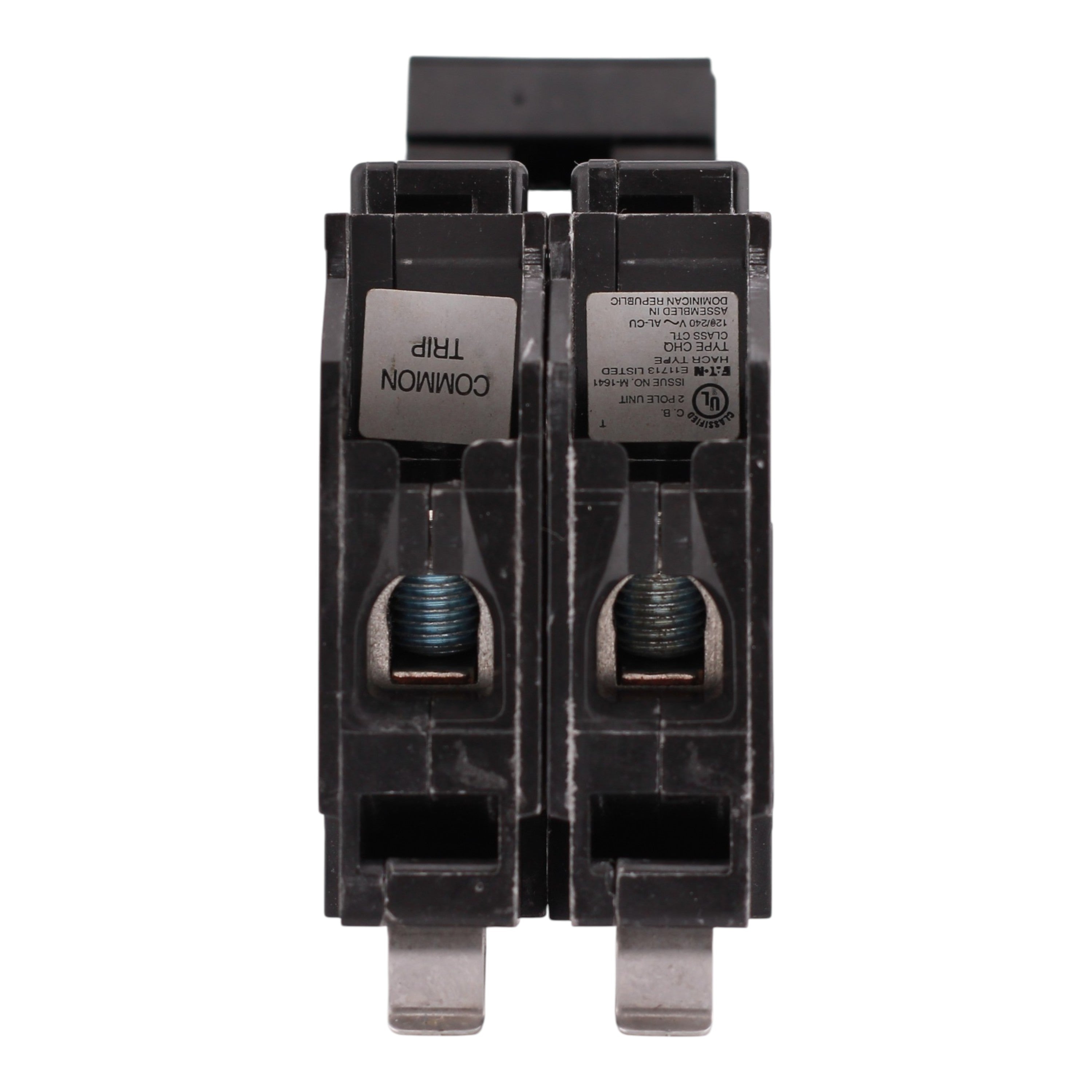

Eaton CHQ, CHQ235, 35A, 2P, 120/240V, Classified, Circuit Breaker - Image 7

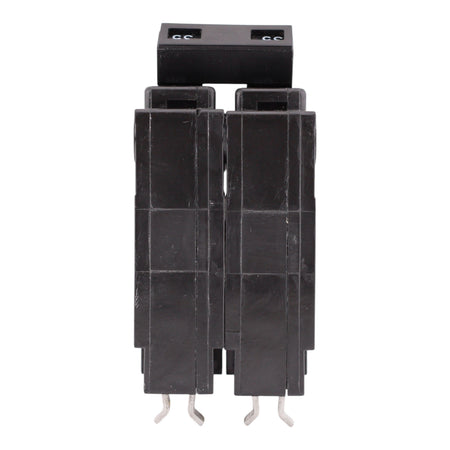

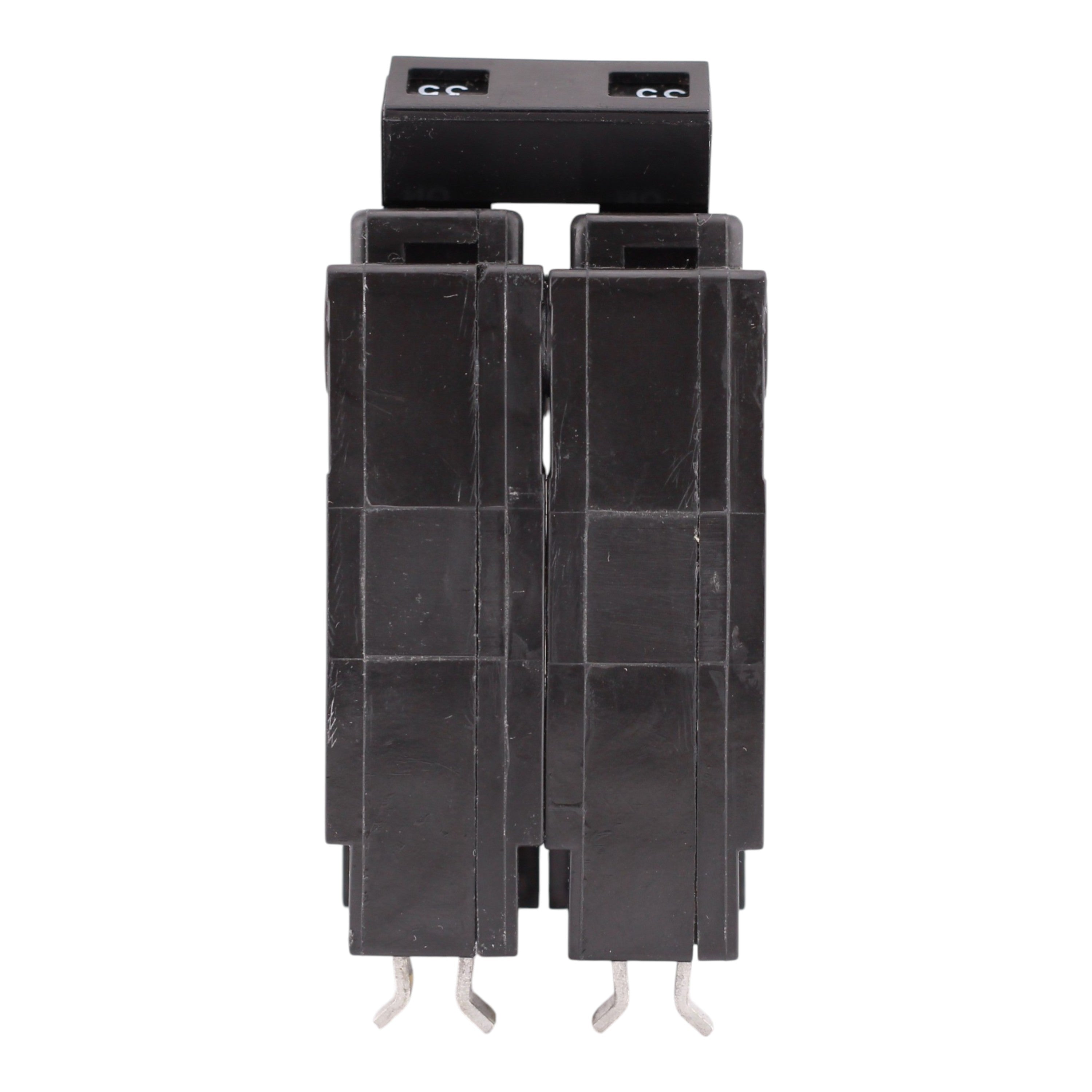

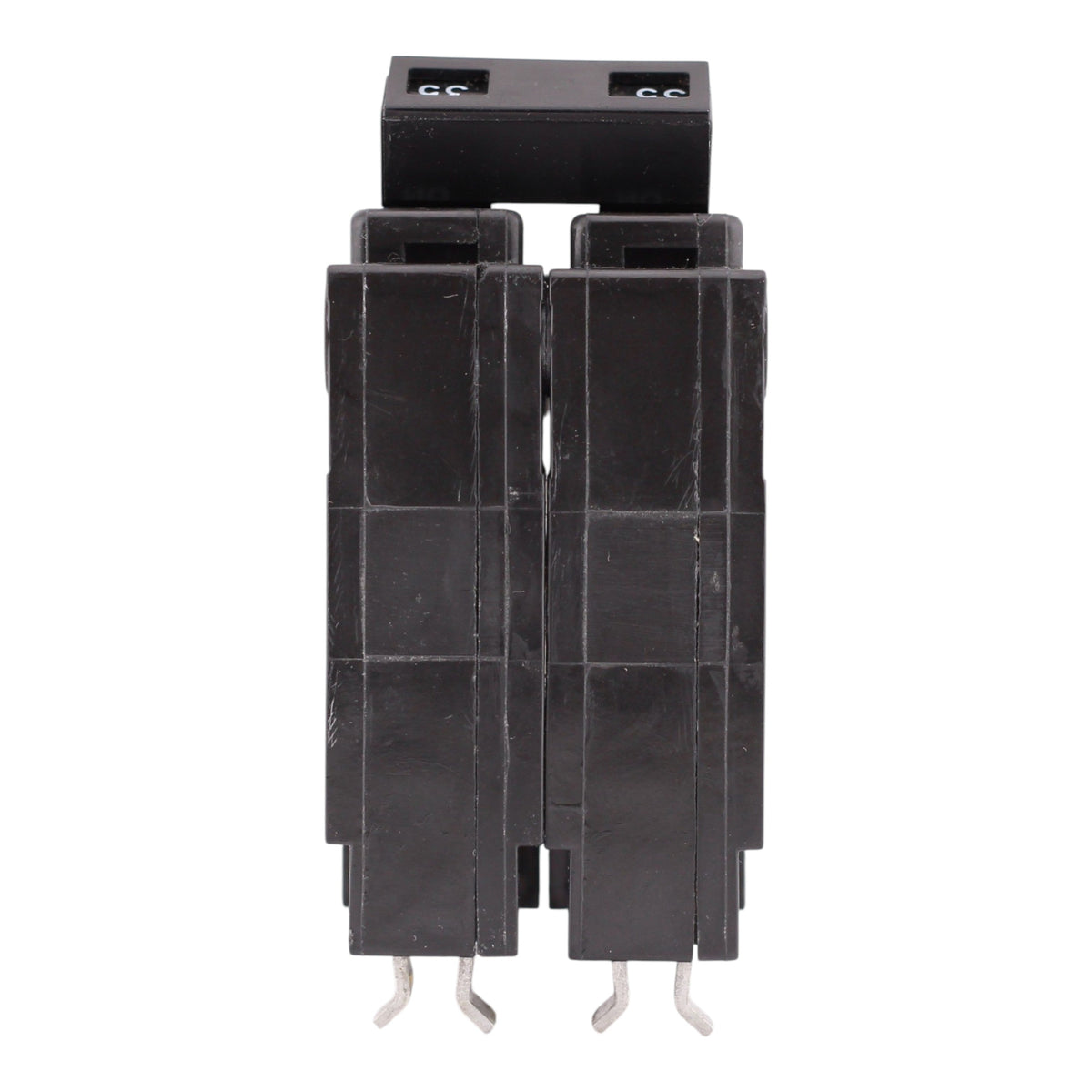

Eaton CHQ, CHQ235, 35A, 2P, 120/240V, Classified, Circuit Breaker - Image 8

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eaton

Eaton CHQ, CHQ235, 35A, 2P, 120/240V, Classified, Circuit Breaker

SKU: CHQ235
(0)
$17.00
-74% $65.00 $17.00
Out of stock
Condition

Eaton CHQ235: 35 Amp, 2-Pole, Classified Thermal Magnetic Circuit Breaker, 120/240V, 10kA, Square D QO replacement, UL listed.

Specifications

  • Manufacturer: Eaton
  • Brand: Eaton (Cutler-Hammer)
  • Product Range: CHQ (Type CHQ 3/4-Inch classified replacement for Square D Type QO loadcenters)
  • UPC: 782113010939
  • Model Number: CHQ235
  • Breaker Type: Thermal Magnetic (UL Classified Replacement)
  • Amperage: 35 Amps
  • Poles: 2-Pole
  • Voltage: 120/240 Volts AC
  • Interrupt Rating: 10 kAIC
  • Mounting Mode: Plug-in
  • Wire Size: (1) #14–8 AWG Cu/Al; (2) #14–10 AWG Cu/Al
  • Dimensions: Height: 3 in; Width: 0.75 in; Depth: 2.5 in
  • Weight: 0.6 lbs
  • Certifications: UL Listed (UL 489)

This Eaton CHQ235 thermal magnetic circuit breaker delivers dependable 35 Amp, 2-Pole protection for 120/240V circuits. A UL classified direct replacement for Square D Type QO breakers, designed for plug-in installation with 10kA interrupt rating for residential applications.
