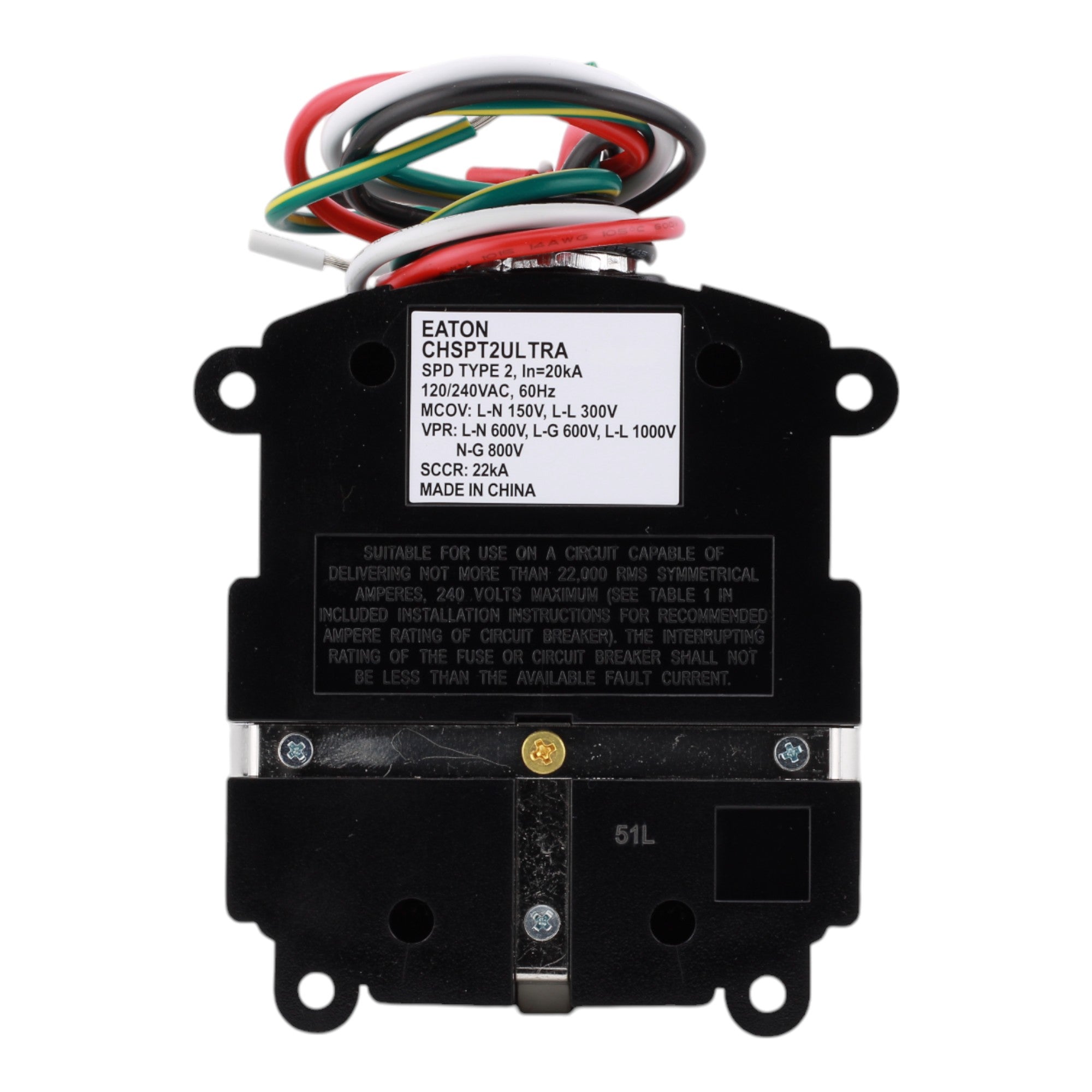

Eaton CHSPT2ULTRA Surge Protection Device, 120/240V, Single-Phase, 108 kA, NEMA 4 Enclosure, 20 kA Nominal Discharge Current

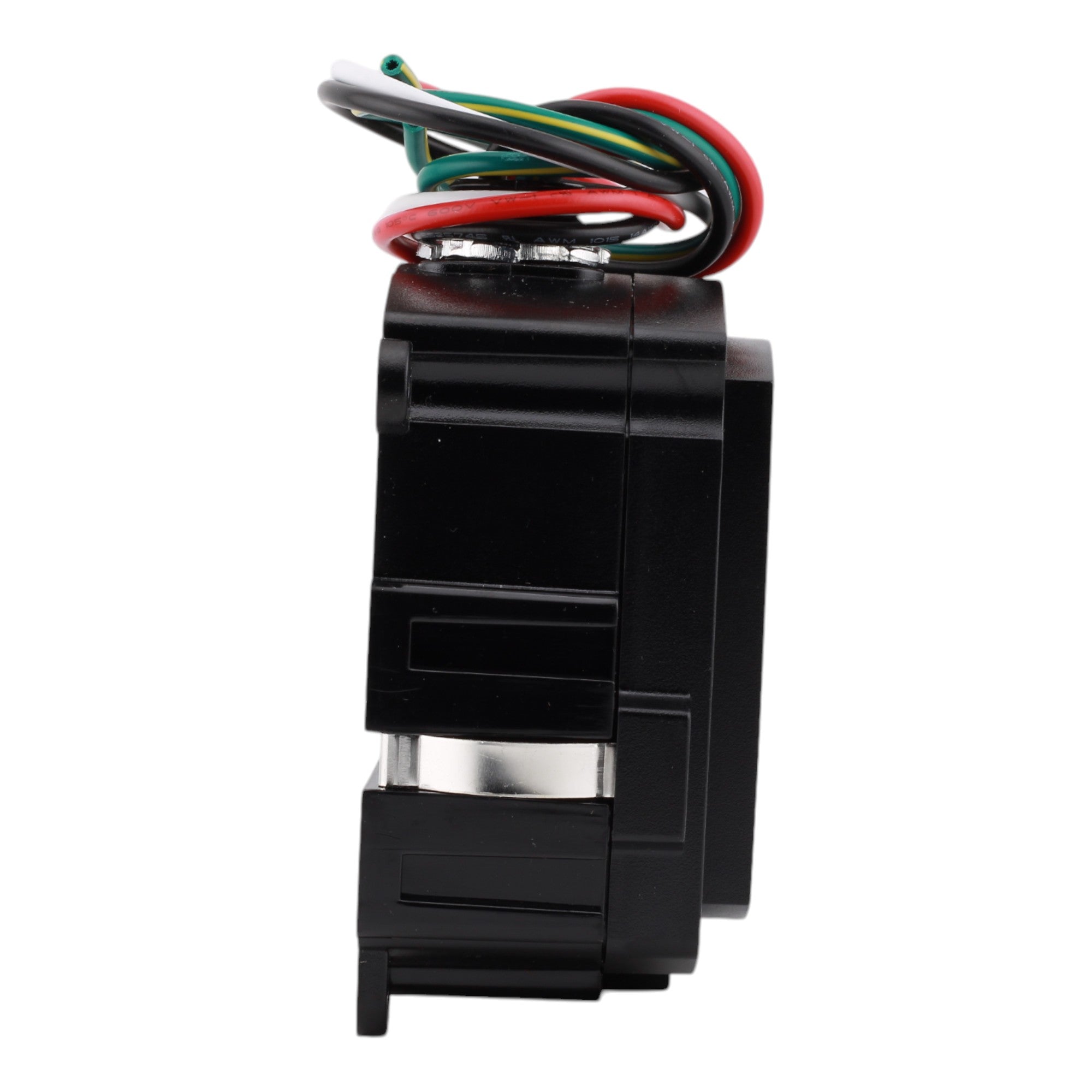

Eaton CHSPT2ULTRA Surge Protection Device, 120/240V, Single-Phase, 108 kA, NEMA 4 Enclosure, 20 kA Nominal Discharge Current - Image 2

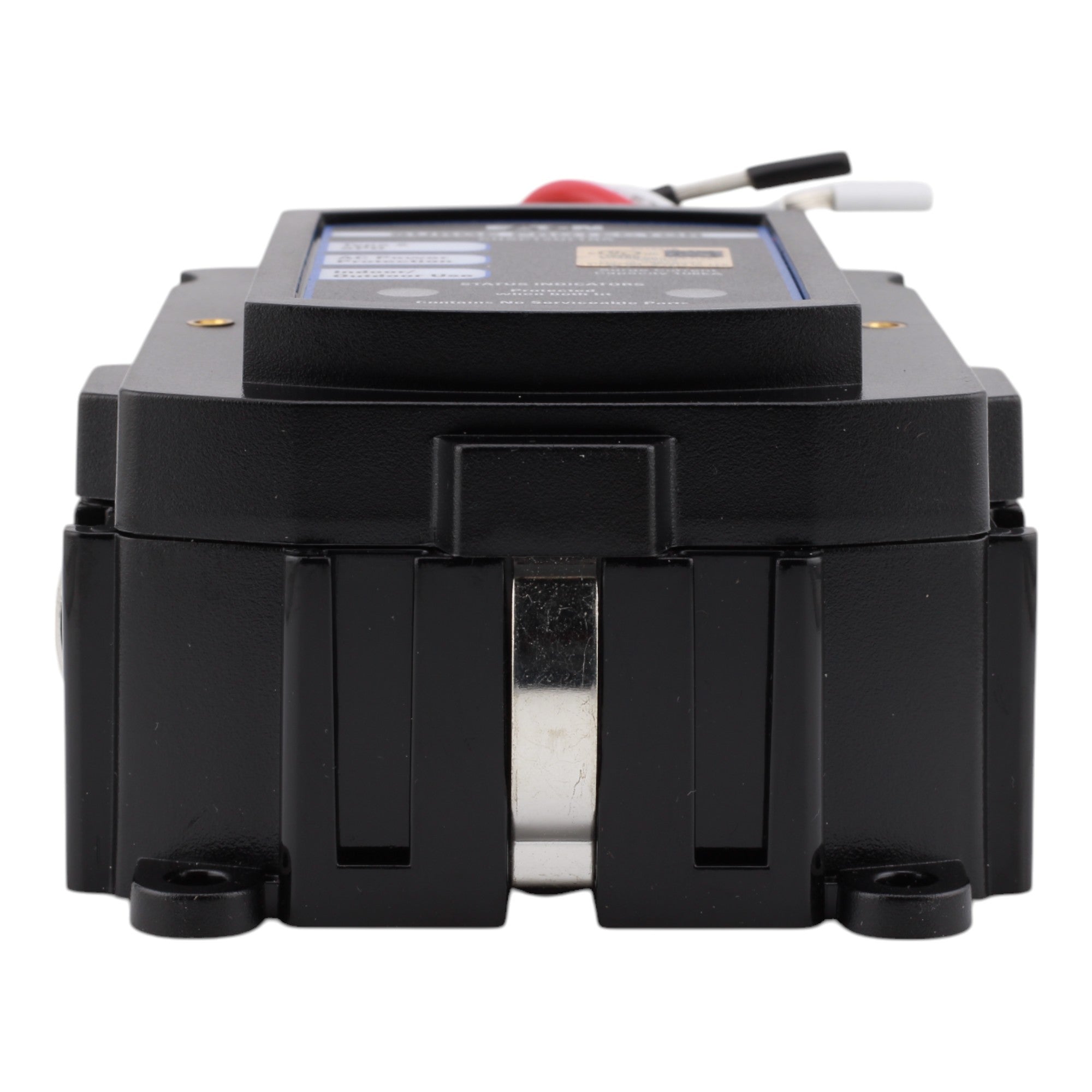

Eaton CHSPT2ULTRA Surge Protection Device, 120/240V, Single-Phase, 108 kA, NEMA 4 Enclosure, 20 kA Nominal Discharge Current - Image 3

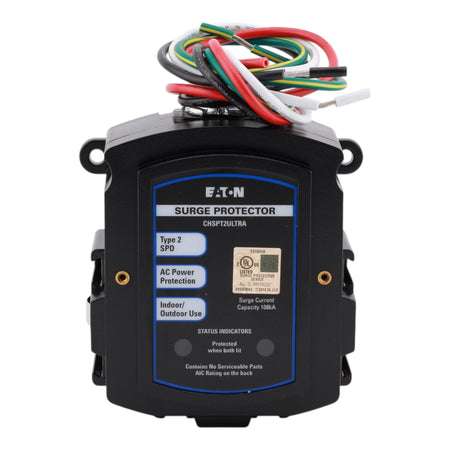

Eaton CHSPT2ULTRA Surge Protection Device, 120/240V, Single-Phase, 108 kA, NEMA 4 Enclosure, 20 kA Nominal Discharge Current - Image 4

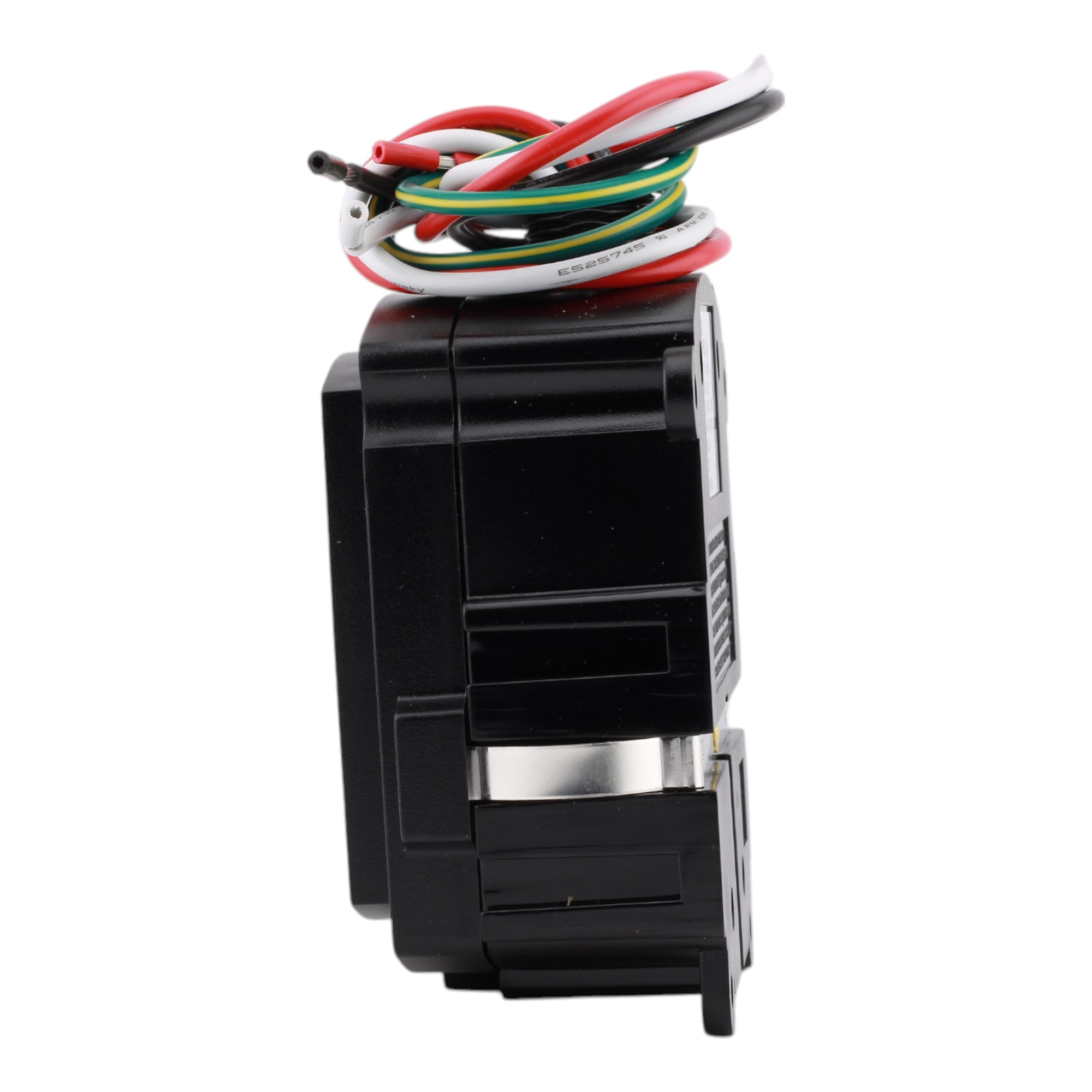

Eaton CHSPT2ULTRA Surge Protection Device, 120/240V, Single-Phase, 108 kA, NEMA 4 Enclosure, 20 kA Nominal Discharge Current - Image 5

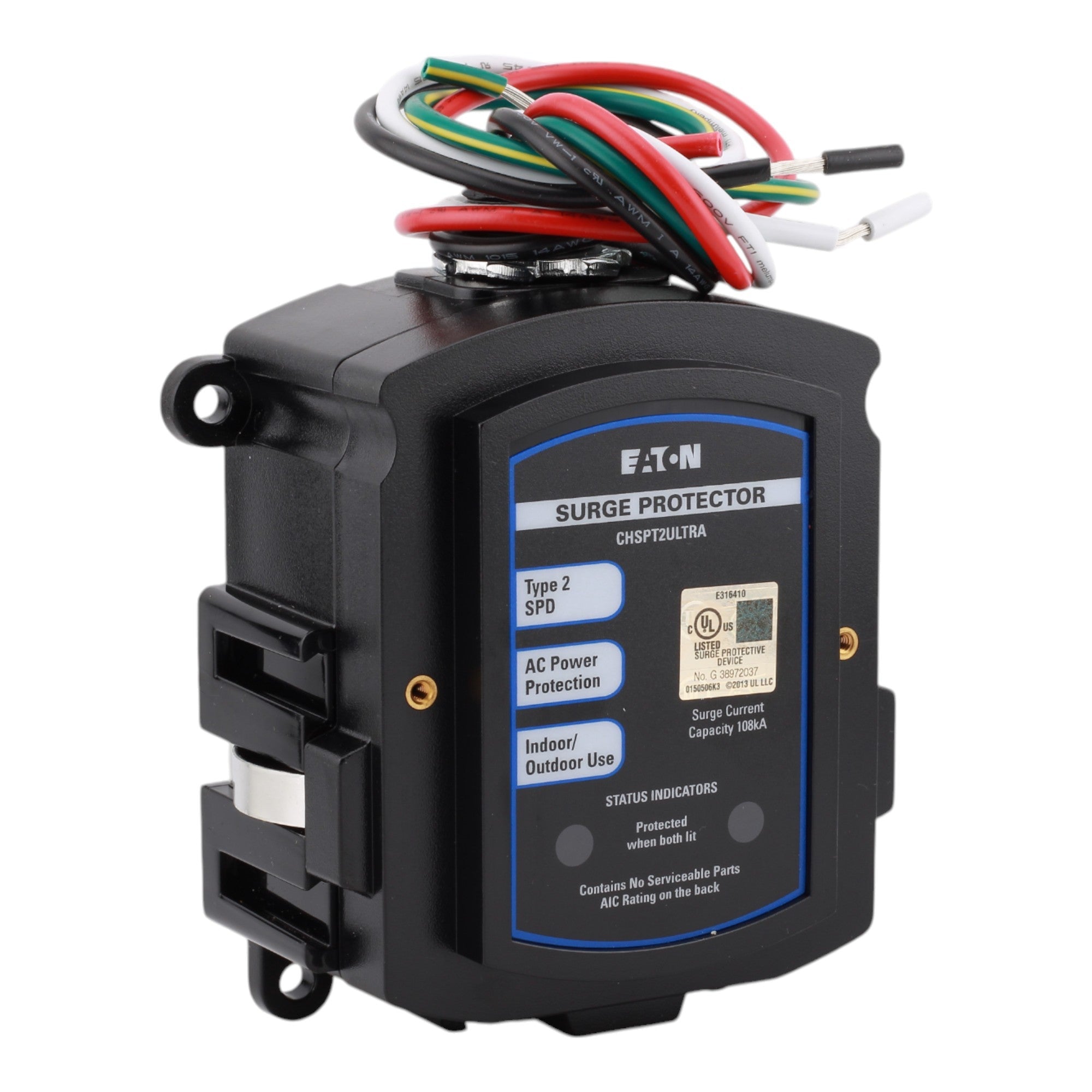

Eaton CHSPT2ULTRA Surge Protection Device, 120/240V, Single-Phase, 108 kA, NEMA 4 Enclosure, 20 kA Nominal Discharge Current - Image 6
Eaton CHSPT2ULTRA Surge Protection Device, 120/240V, Single-Phase, 108 kA, NEMA 4 Enclosure, 20 kA Nominal Discharge Current - Image 7

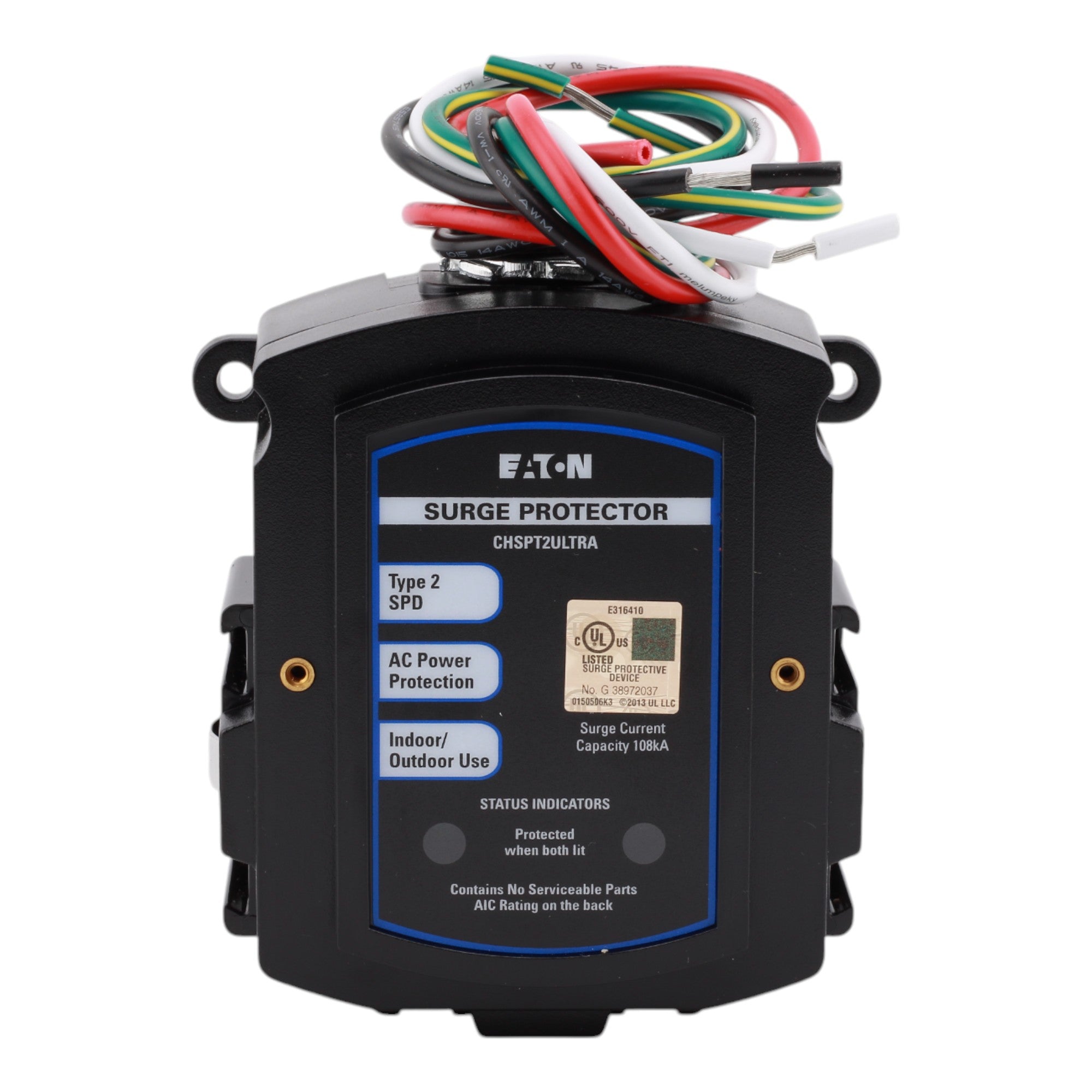

Eaton CHSPT2ULTRA Surge Protection Device, 120/240V, Single-Phase, 108 kA, NEMA 4 Enclosure, 20 kA Nominal Discharge Current - Image 8
Eaton CHSPT2ULTRA Surge Protection Device, 120/240V, Single-Phase, 108 kA, NEMA 4 Enclosure, 20 kA Nominal Discharge Current - Image 9
Eaton CHSPT2ULTRA Surge Protection Device, 120/240V, Single-Phase, 108 kA, NEMA 4 Enclosure, 20 kA Nominal Discharge Current
Eaton CHSPT2ULTRA Surge Protection Device, 120/240V, Single-Phase, 108 kA, NEMA 4 Enclosure, 20 kA Nominal Discharge Current - Image 2
Eaton CHSPT2ULTRA Surge Protection Device, 120/240V, Single-Phase, 108 kA, NEMA 4 Enclosure, 20 kA Nominal Discharge Current - Image 3
Eaton CHSPT2ULTRA Surge Protection Device, 120/240V, Single-Phase, 108 kA, NEMA 4 Enclosure, 20 kA Nominal Discharge Current - Image 4
Eaton CHSPT2ULTRA Surge Protection Device, 120/240V, Single-Phase, 108 kA, NEMA 4 Enclosure, 20 kA Nominal Discharge Current - Image 5
Eaton CHSPT2ULTRA Surge Protection Device, 120/240V, Single-Phase, 108 kA, NEMA 4 Enclosure, 20 kA Nominal Discharge Current - Image 6
Eaton CHSPT2ULTRA Surge Protection Device, 120/240V, Single-Phase, 108 kA, NEMA 4 Enclosure, 20 kA Nominal Discharge Current - Image 7
Eaton CHSPT2ULTRA Surge Protection Device, 120/240V, Single-Phase, 108 kA, NEMA 4 Enclosure, 20 kA Nominal Discharge Current - Image 8
Eaton CHSPT2ULTRA Surge Protection Device, 120/240V, Single-Phase, 108 kA, NEMA 4 Enclosure, 20 kA Nominal Discharge Current - Image 9

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eaton

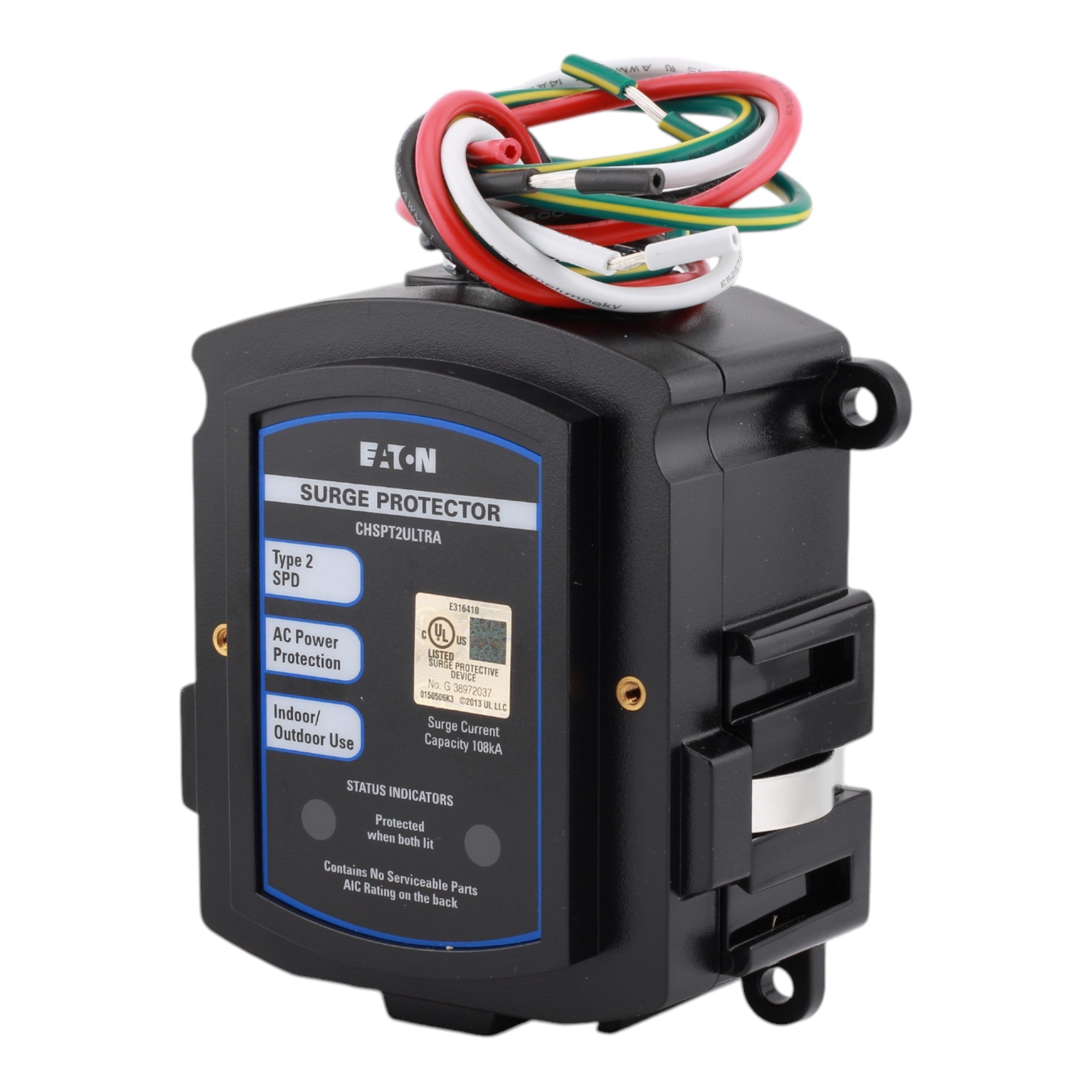

Eaton CHSPT2ULTRA Surge Protection Device, 120/240V, Single-Phase, 108 kA, NEMA 4 Enclosure, 20 kA Nominal Discharge Current

Out of stock
SKU: CHSPT2ULTRA UPC: 786685436883
(0)
$155.00
-3% $160.00 $155.00
Out of stock
Condition

CHSPT2ULTRA specifications

  • Brand: Eaton
  • Manufacturer: Eaton Corporation
  • Model Number: CHSPT2ULTRA
  • UPC Number: 786685436883
  • Type: Surge Protection Device (Type 2)
  • Voltage Rating: 120/240V
  • Phase: Single-Phase
  • Frequency Rating: 60 Hz
  • Operating Voltage: 150V L-N, 300V L-L
  • Protection Ratings: 600V L-N, 1000V L-L, 800V N-G, 600V L-G
  • Nominal Discharge Current: 20 kA
  • Surge Current Rating: 108 kA
  • Short-Circuit Rating: 22 kA
  • Interrupt Rating: 200 kAIC
  • Enclosure Type: NEMA 4
  • Dimensions (H × W × D): 2.5 Inches × 5 Inches × 7 Inches
  • Weight: 1 Pound
  • Operating Temperature: -40 to 50 °C
  • Certifications: UL 1449, cUL Certified, UL Recognized
  • Compliance: Meets or exceeds requirements specified in IBC® 2006, CBC 2007, and UBC® Zone 4

Key Features and Benefits

  • Type 2 Surge Protection: Protects against surges at the service entrance level.
  • High Surge Current Rating: 108 kA one-time surge current rating for robust protection.
  • NEMA 4 Enclosure: Weatherproof and durable for outdoor installation.
  • Wide Voltage Protection: Safeguards against surges on line-to-line, line-to-neutral, and neutral-to-ground circuits.
  • High Discharge Current: 20 kA nominal discharge current for superior performance.
  • Proven Performance: Meets or exceeds recognized industry standards for surge protection.

Applications

  • Residential Use: Provides whole-home surge protection for electronics, appliances, and systems.
  • Commercial Use: Ideal for small businesses, offices, and retail spaces needing reliable surge protection.
  • General Use: Suitable for any single-phase electrical system requiring surge protection.

Why Choose Eaton?

Eaton is a global leader in intelligent power management solutions, known for innovation and reliability. The CHSPT2ULTRA Surge Protection Device offers advanced surge protection, ensuring the safety and longevity of your electrical systems and connected devices.
