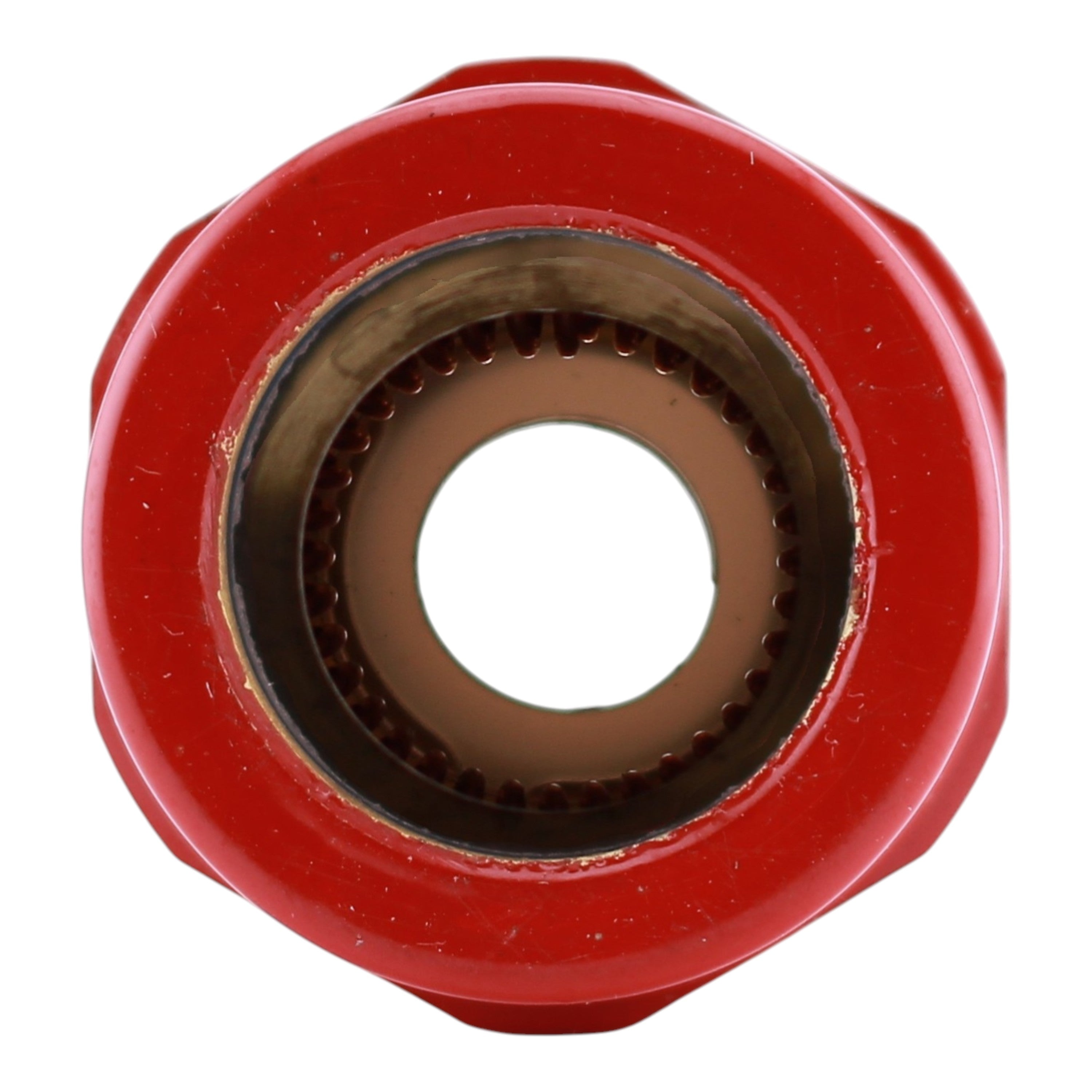

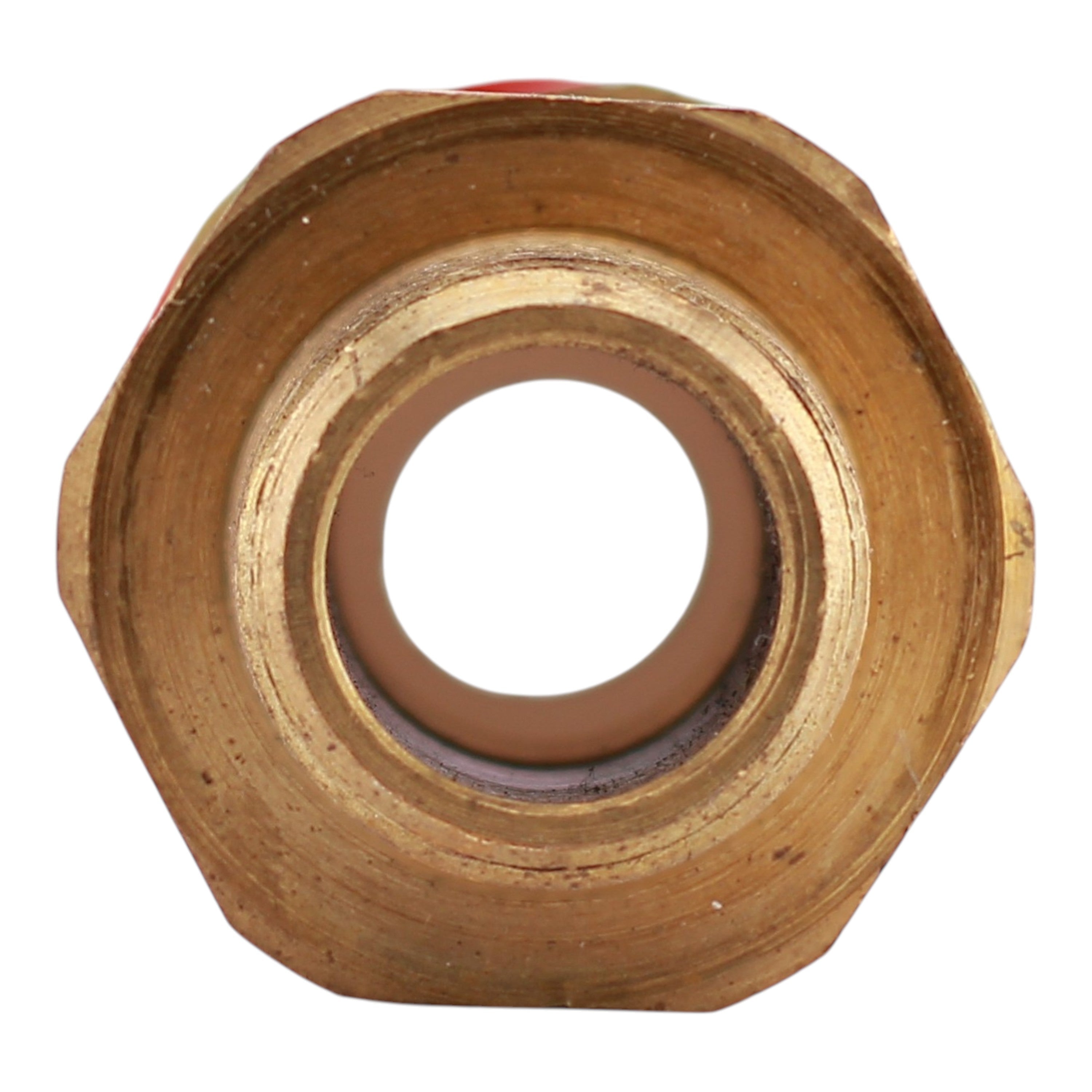

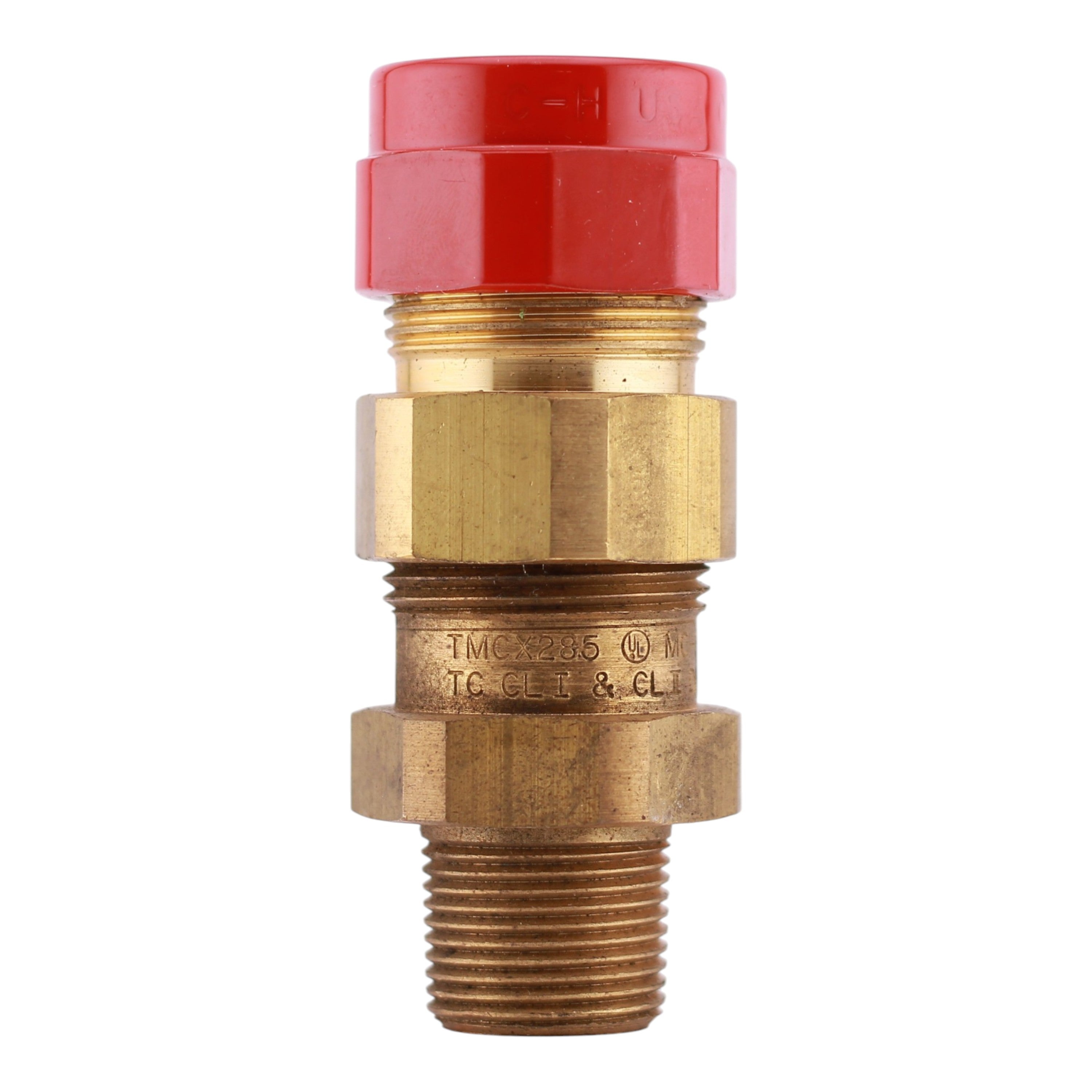

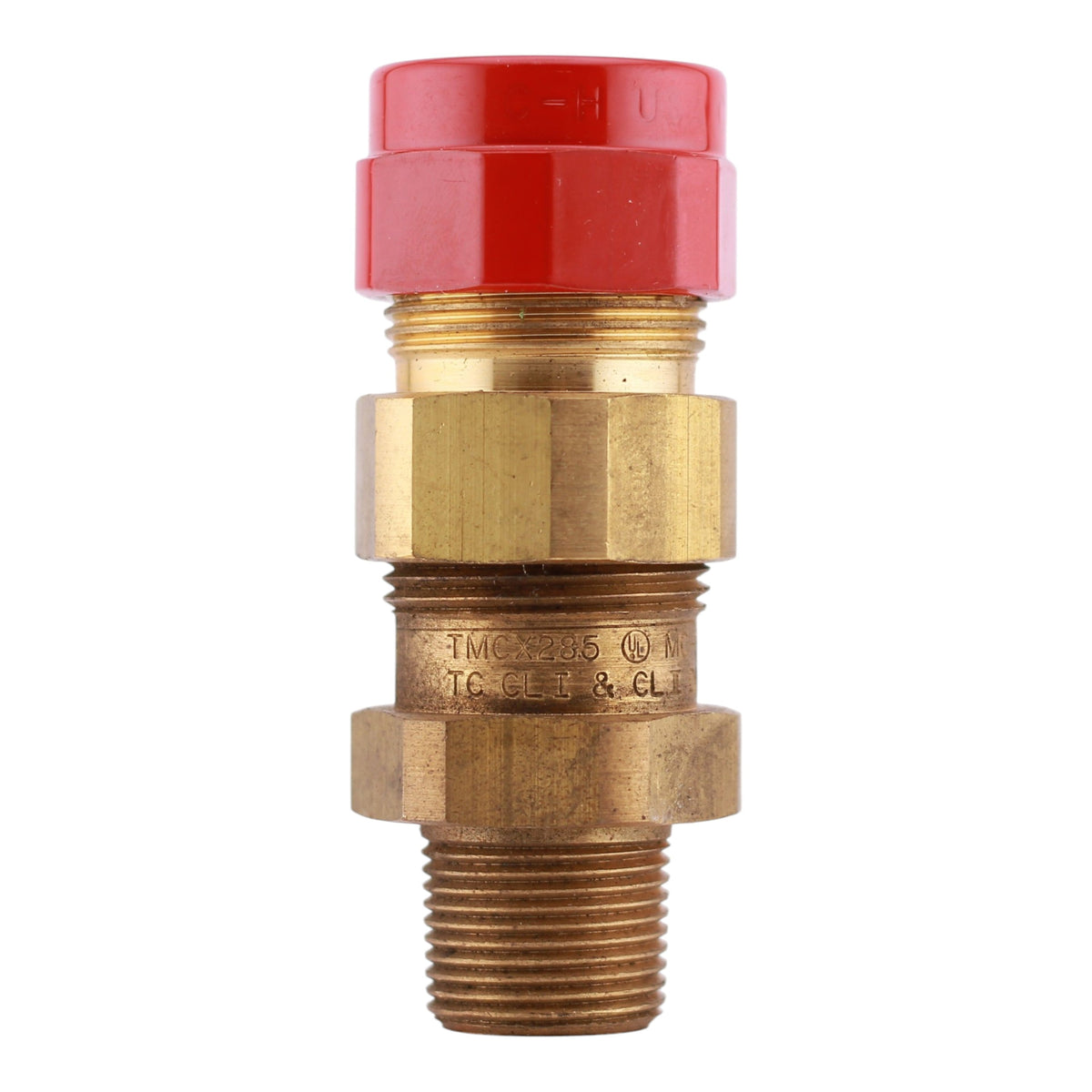

Eaton Crouse-Hinds TMCX, TMCX285 BR, 3/4" NPT, Brass, Explosionproof Armored Barrier Cable Gland

TMCX285 BR specifications

• Manufacturer: Eaton
• Brand: Eaton Crouse-Hinds
• Product Range: TMCX Series – Explosionproof Armored Barrier Cable Glands
• UPC: 30782274037296
• Model Number: TMCX285 BR
• Device Type: Cable Gland
• Gland Type: Armored Barrier and Non-Armored Barrier
• Protection Type: Explosion-proof
• Material: Brass
• Thread Size: 3/4"
• Thread Type: NPT
• Cable Type: Metal-clad with interlocked or continuously welded corrugated armor; TECK armored; tray cable
• Armor Range (min/max): 0.60–0.85 in
• Outer Sheath Range (min/max): 0.65–1.00 in
• Area Classification: Hazardous/Classified Locations
• NEC Hazardous Rating: Class I Division 1; Class II Division 1; Class III
• Standards: NEC/CEC
• NEMA Rating: NEMA 4
• Dimensions: Height: 1.63 in; Width: 1.63 in; Depth: 3.66 in
• Weight: 1.13 lbs

This Eaton Crouse-Hinds TMCX285 BR brass explosionproof cable gland provides reliable armored and non-armored barrier sealing for metal-clad, TECK armored, and tray cables in Class I, II, and III Division 1 hazardous locations. With a 3/4" NPT thread, NEMA 4 rating, and NEC/CEC compliance, it supports safe cable termination in industrial and classified-location installations.
