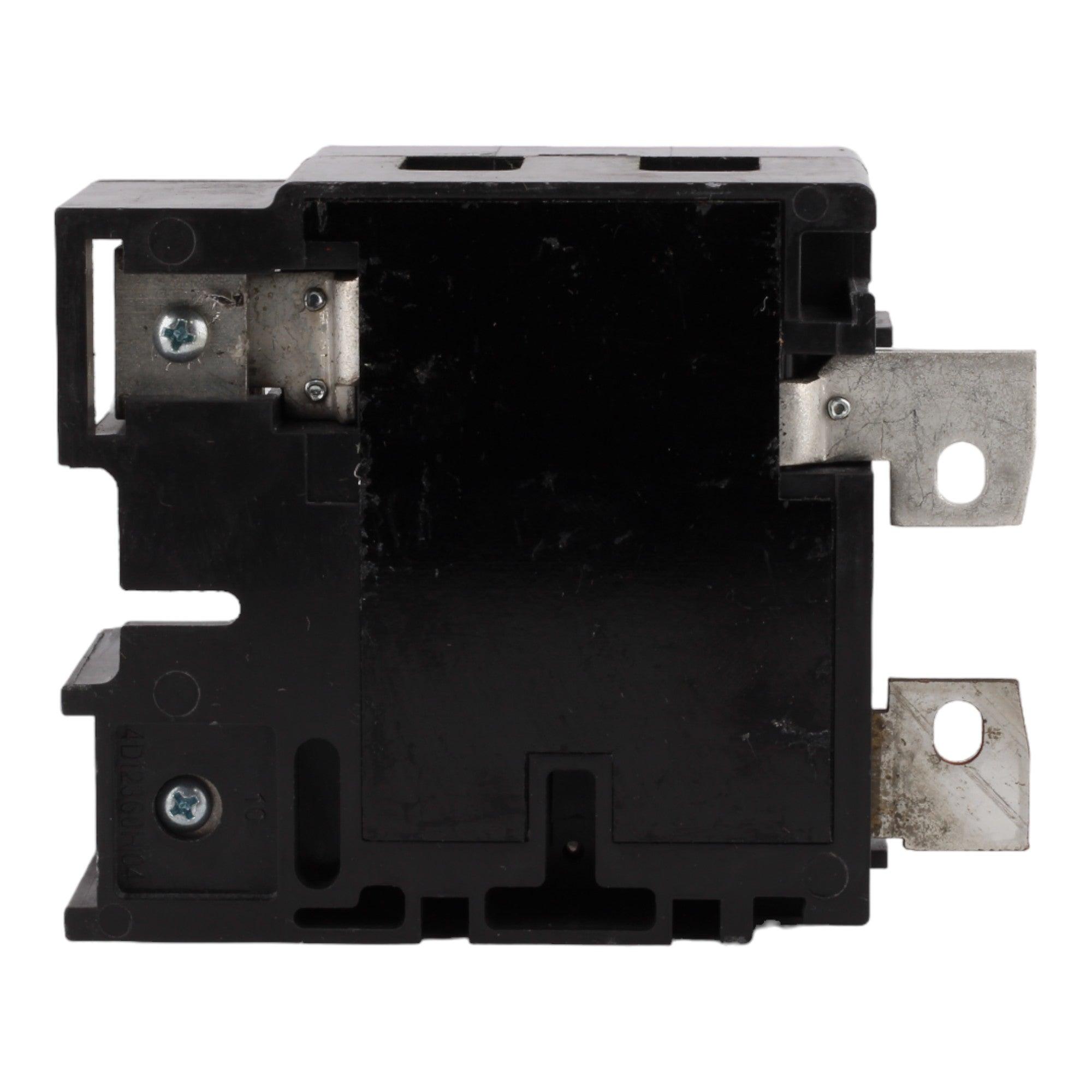

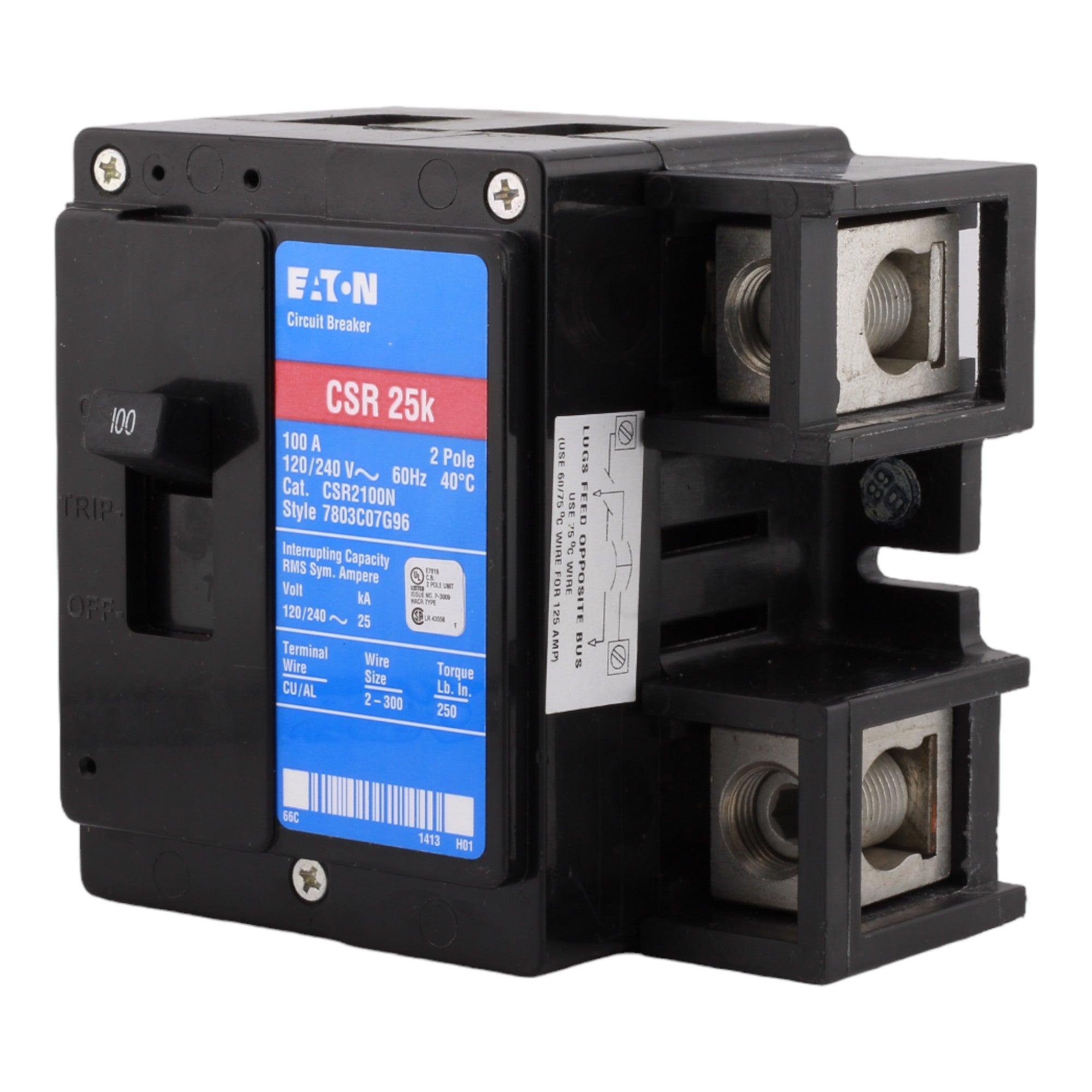

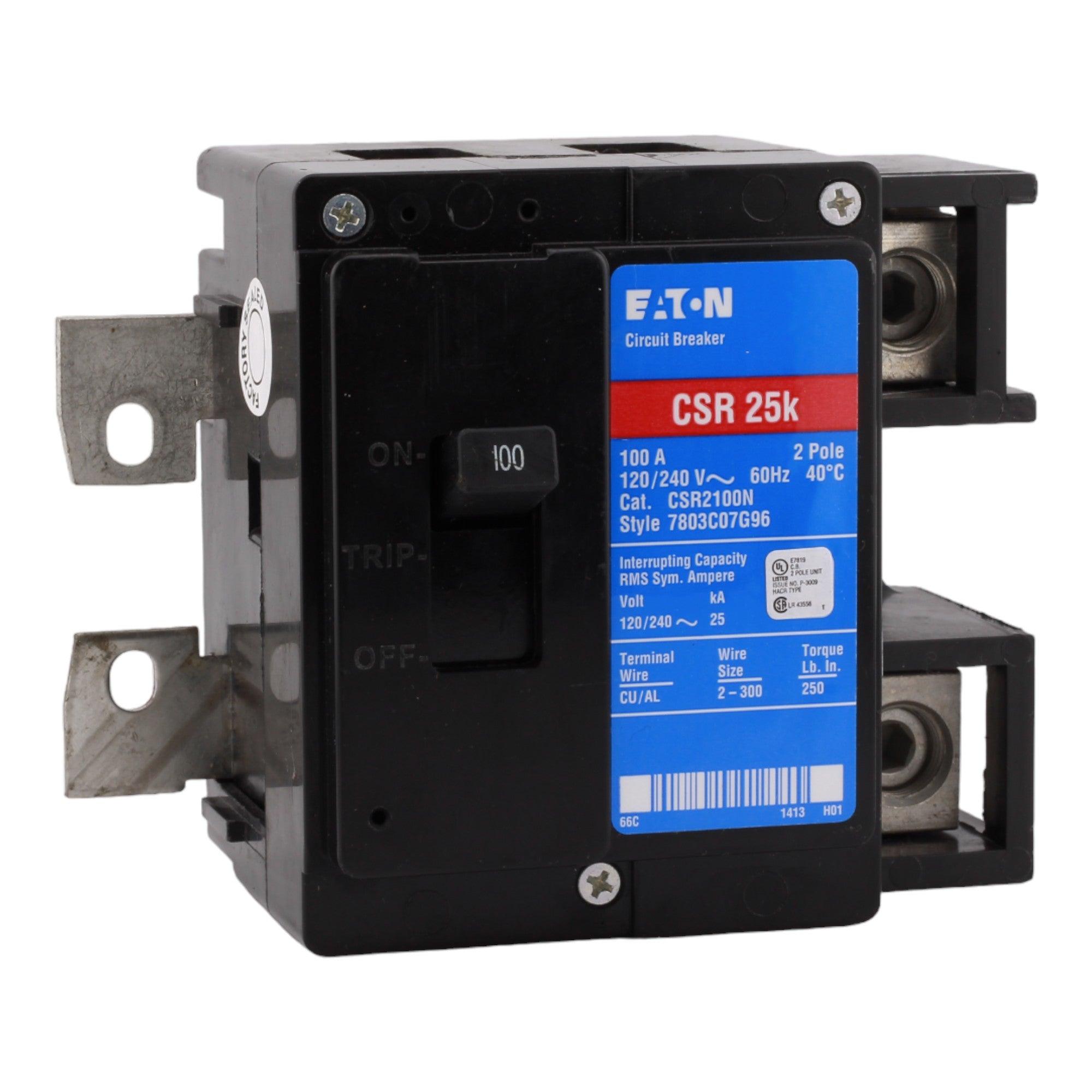

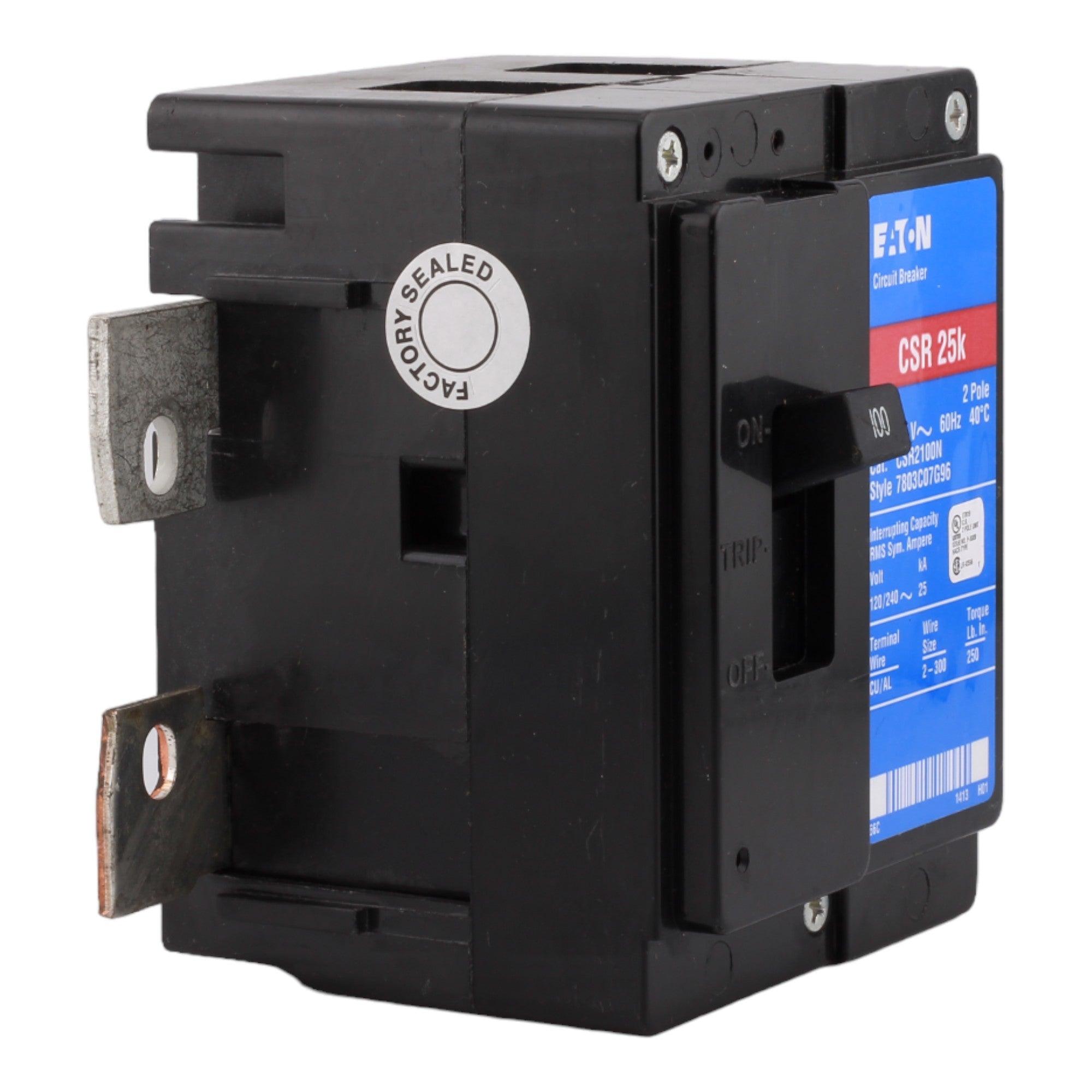

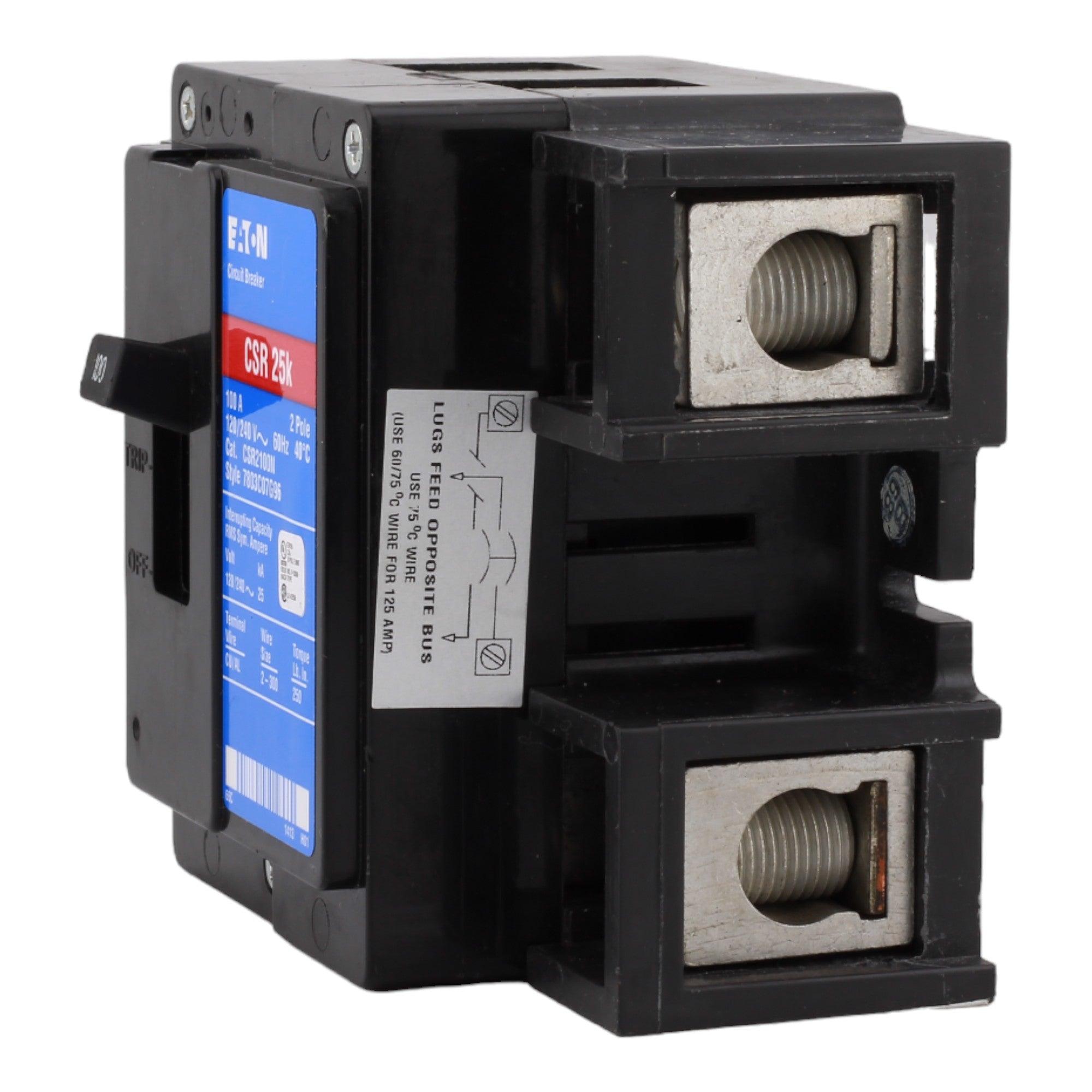

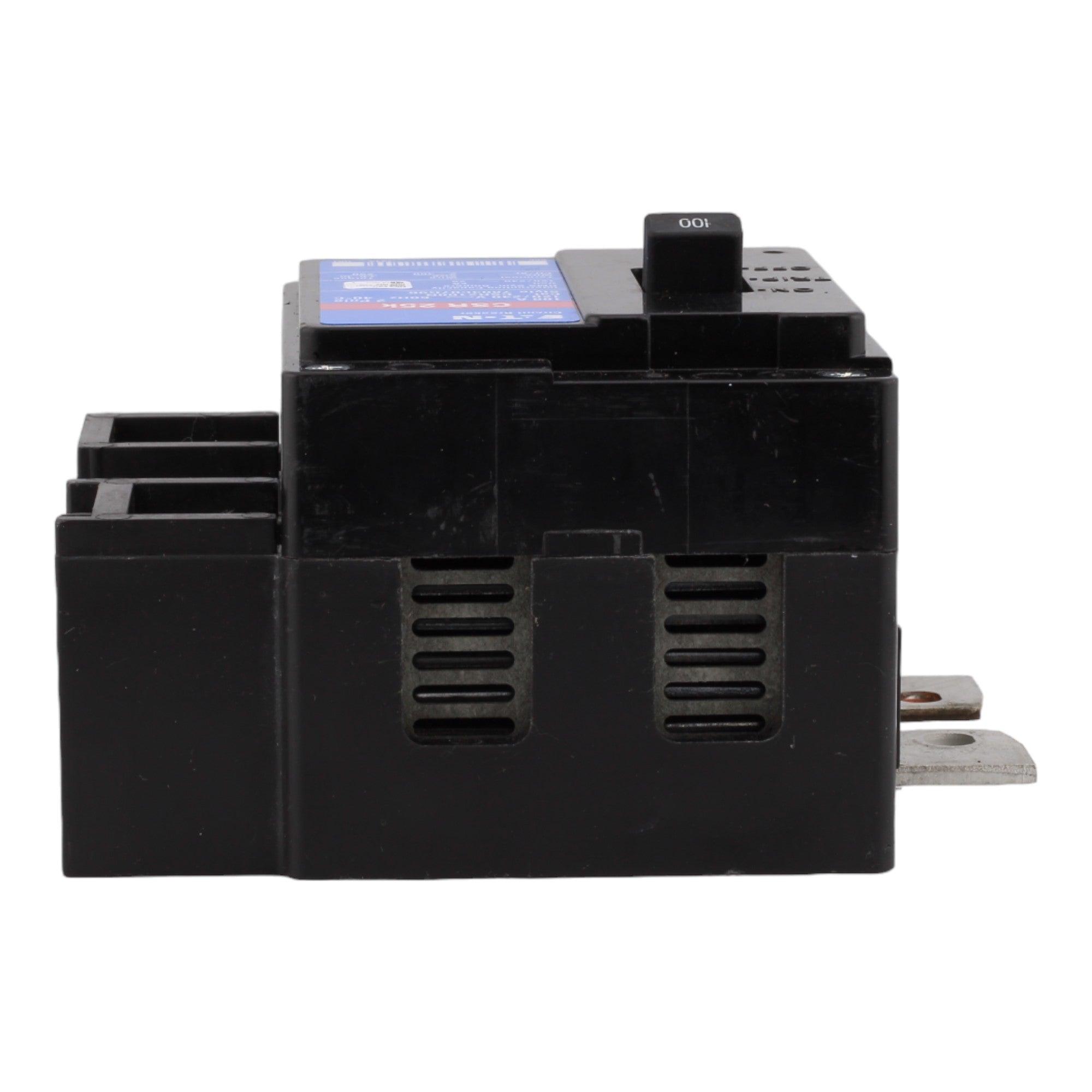

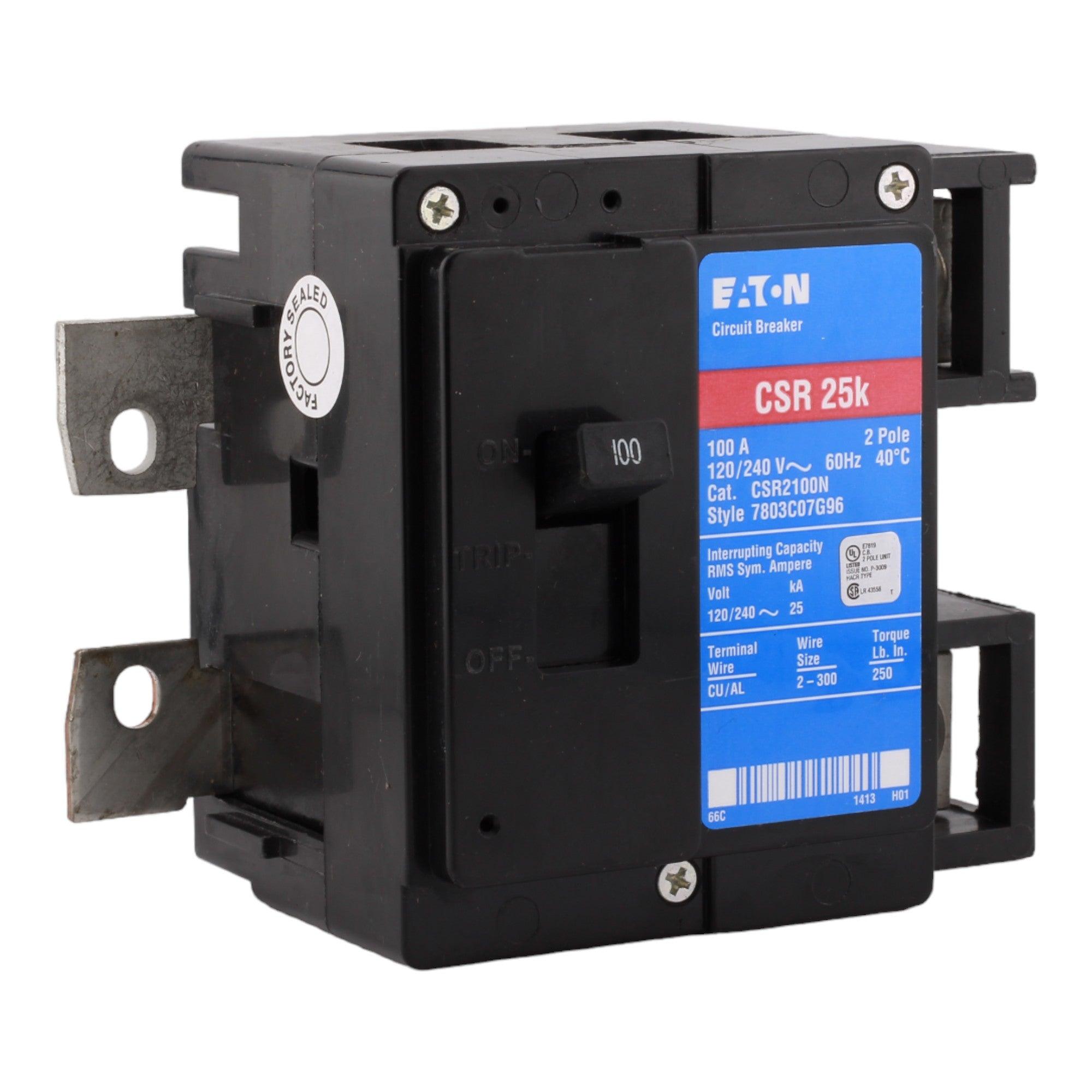

Eaton CH CSR2100N 100A 2P 120/240V Thermal-Magnetic Circuit Breaker

CSR2100N specifications

• Manufacturer: Eaton
• Brand: Eaton
• Product Range: CH (for Eaton CH loadcenters and equipment)
• UPC: 786689980566
• Model Number: CSR2100N
• Breaker Type: Thermal-Magnetic
• Amperage: 100 Amps
• Poles: 2-Pole
• Voltage: 120/240 Volts AC
• Interrupt Rating: 25 kAIC
• Mounting Mode: Bolt-on
• Connections Terminals: Lug terminals
• Wire Size: #2 AWG-300 kcmil
• Tightening Torque: 275 lb-in
• Dimensions: Height: 3.52 in; Width: 4.2 in; Depth: 5.3 in
• Weight: 2.5 lbs
• Certifications: UL Listed

This Eaton CSR2100N thermal-magnetic circuit breaker provides robust 100A, 2-pole protection for 120/240V circuits in Eaton CH loadcenters. With a 25kA interrupt rating and lug terminals, it ensures reliable overcurrent protection for residential and commercial applications.
