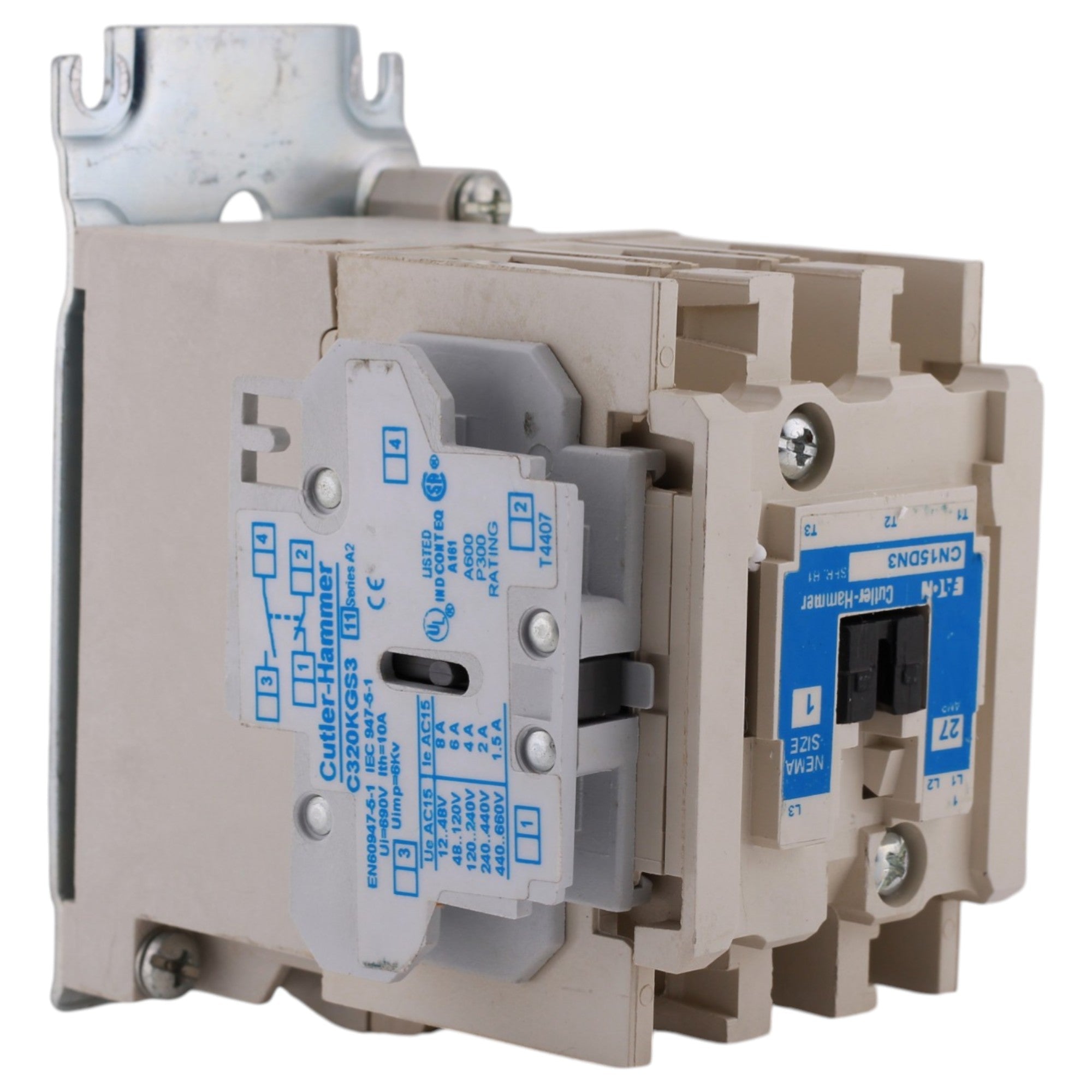

Eaton Cutler-Hammer, CN15DN3DB, 27A, 3-Pole, 600V, NEMA Size 1, Non-Reversing, Motor Contactor

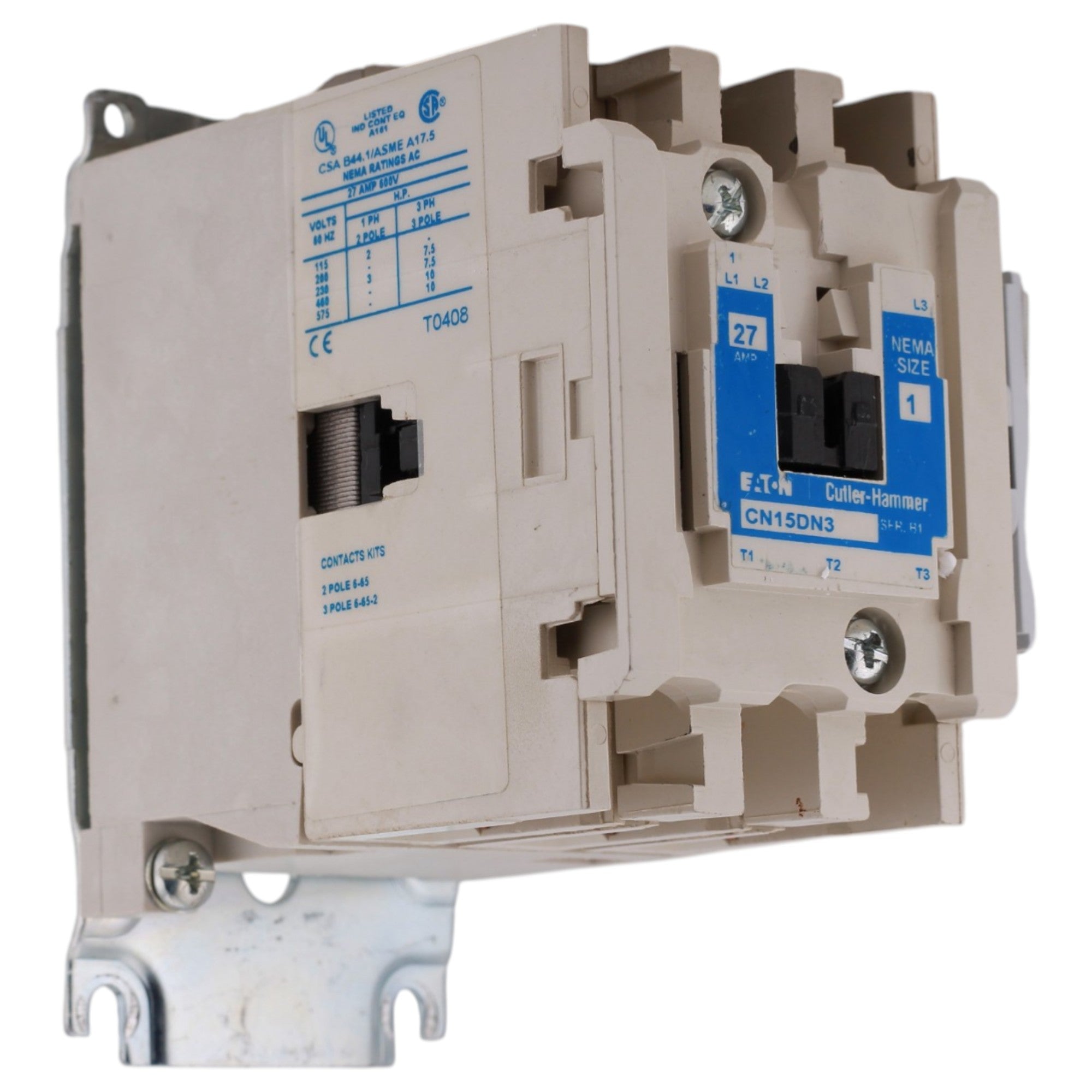

Eaton Cutler-Hammer, CN15DN3DB, 27A, 3-Pole, 600V, NEMA Size 1, Non-Reversing, Motor Contactor - Image 2

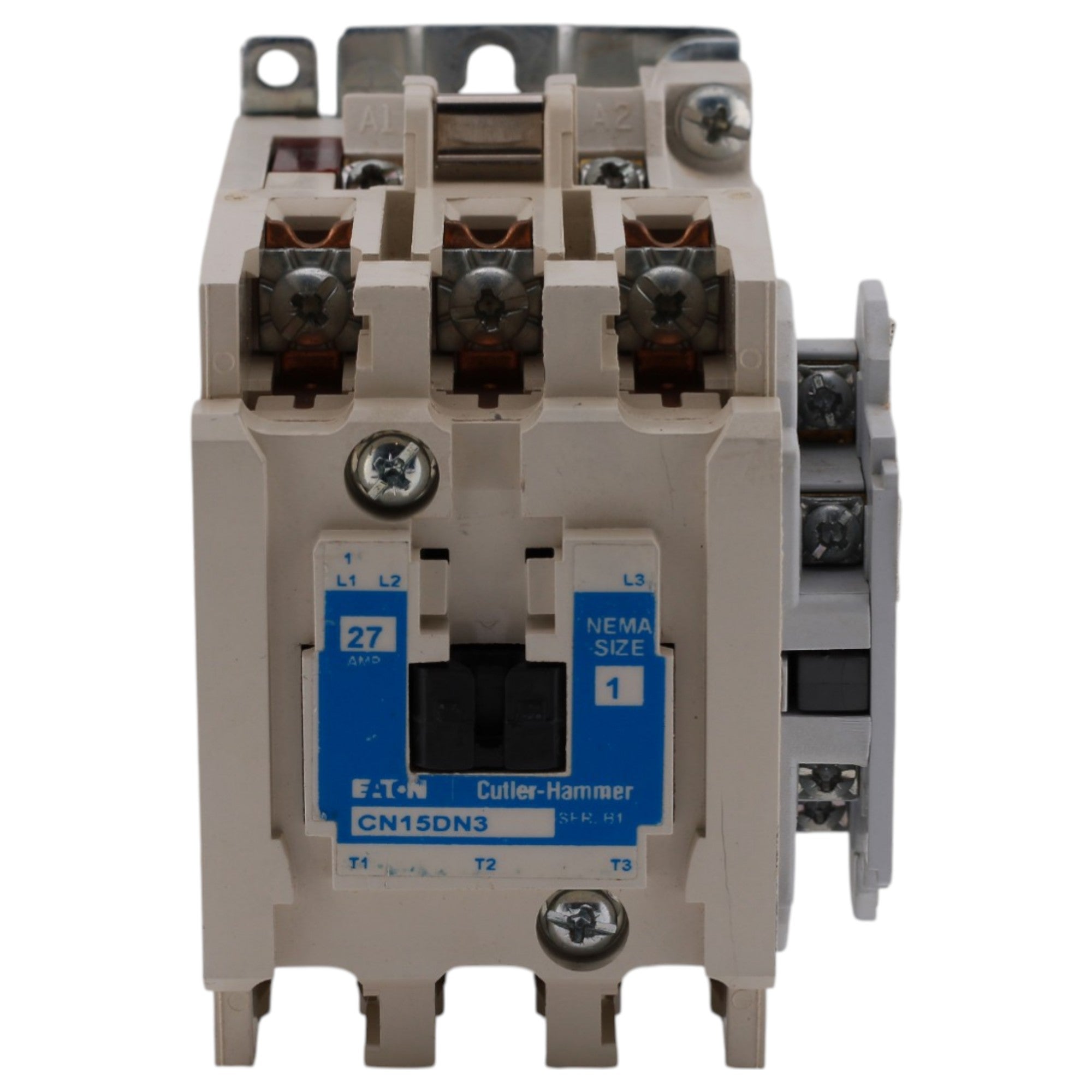

Eaton Cutler-Hammer, CN15DN3DB, 27A, 3-Pole, 600V, NEMA Size 1, Non-Reversing, Motor Contactor - Image 3

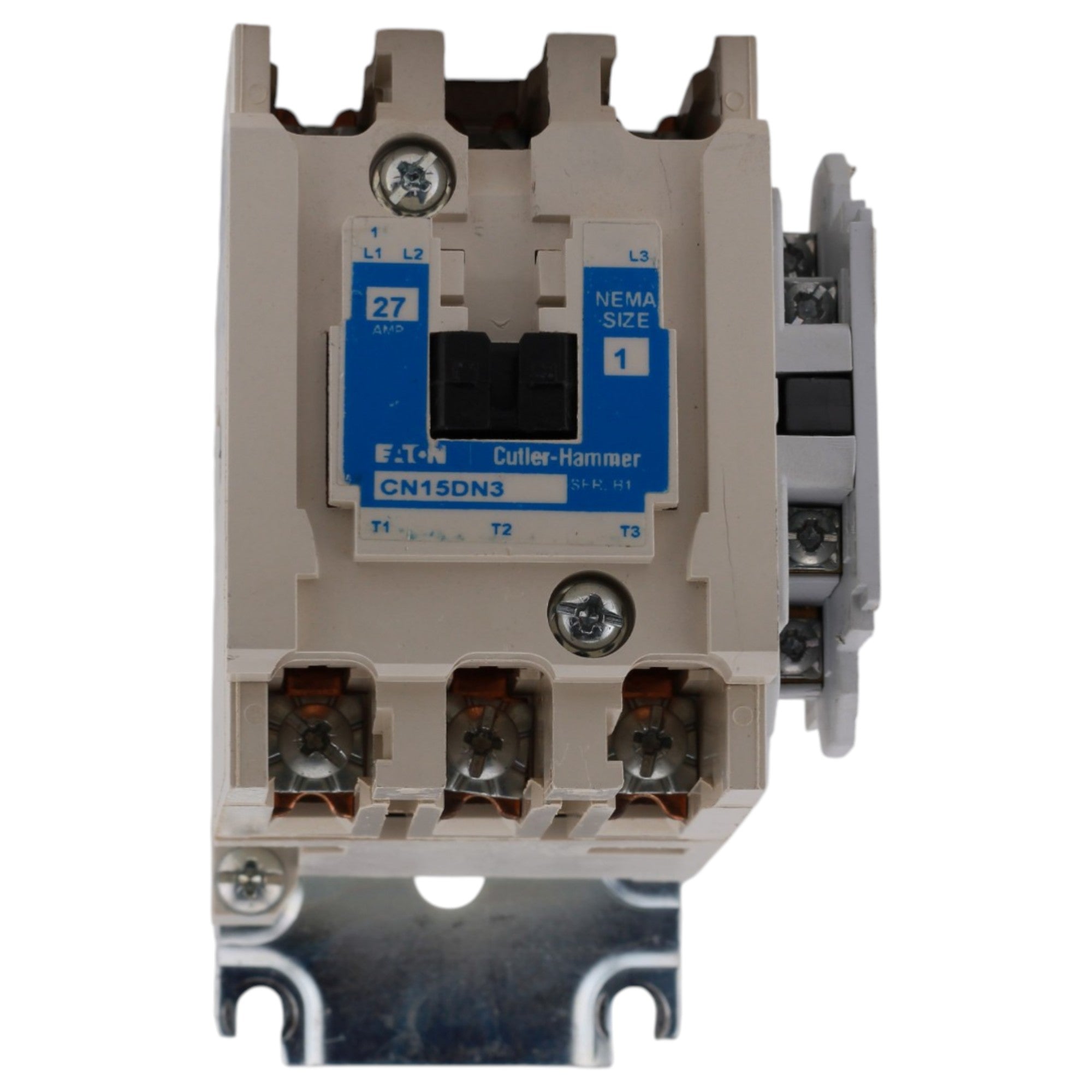

Eaton Cutler-Hammer, CN15DN3DB, 27A, 3-Pole, 600V, NEMA Size 1, Non-Reversing, Motor Contactor - Image 4

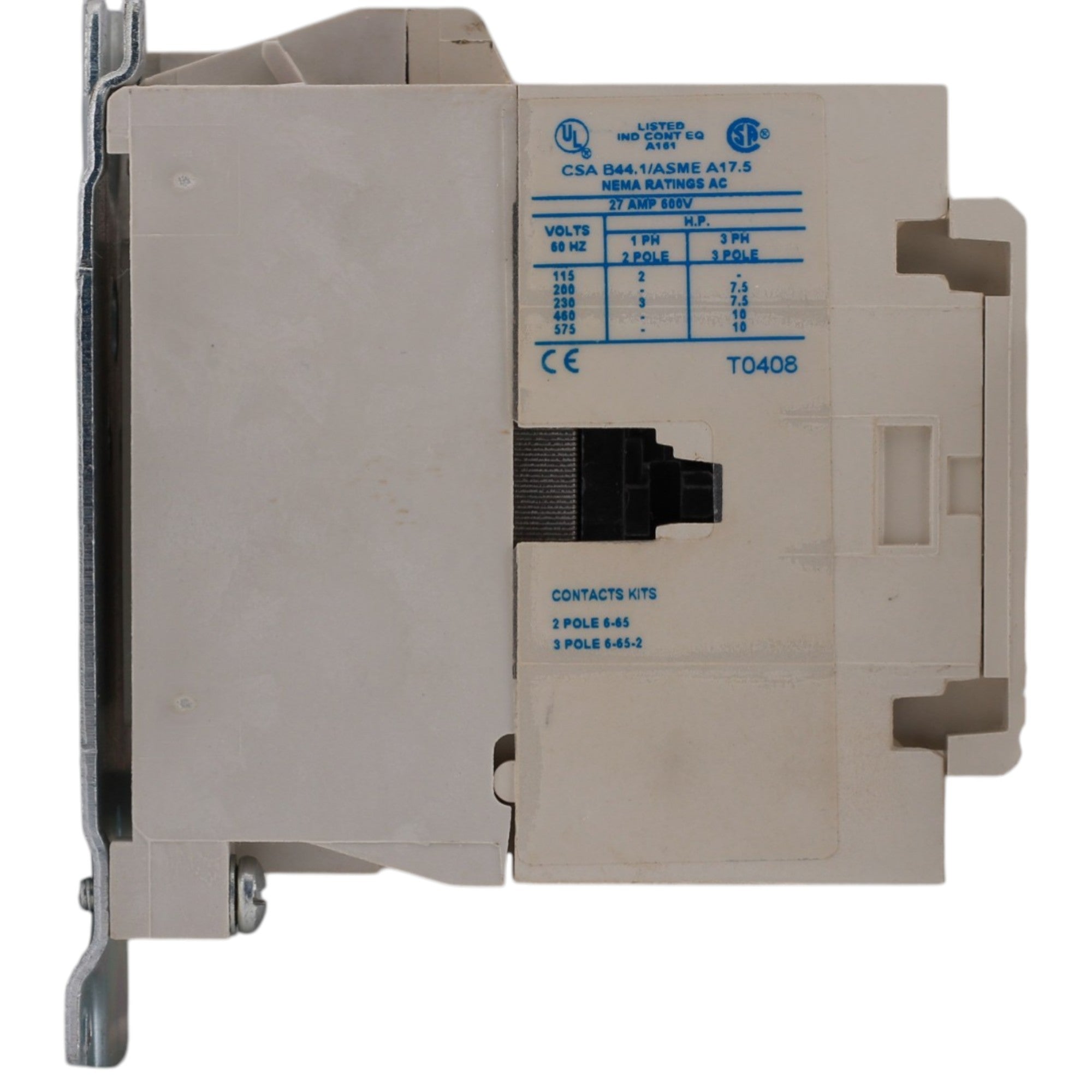

Eaton Cutler-Hammer, CN15DN3DB, 27A, 3-Pole, 600V, NEMA Size 1, Non-Reversing, Motor Contactor - Image 5
Eaton Cutler-Hammer, CN15DN3DB, 27A, 3-Pole, 600V, NEMA Size 1, Non-Reversing, Motor Contactor - Image 6

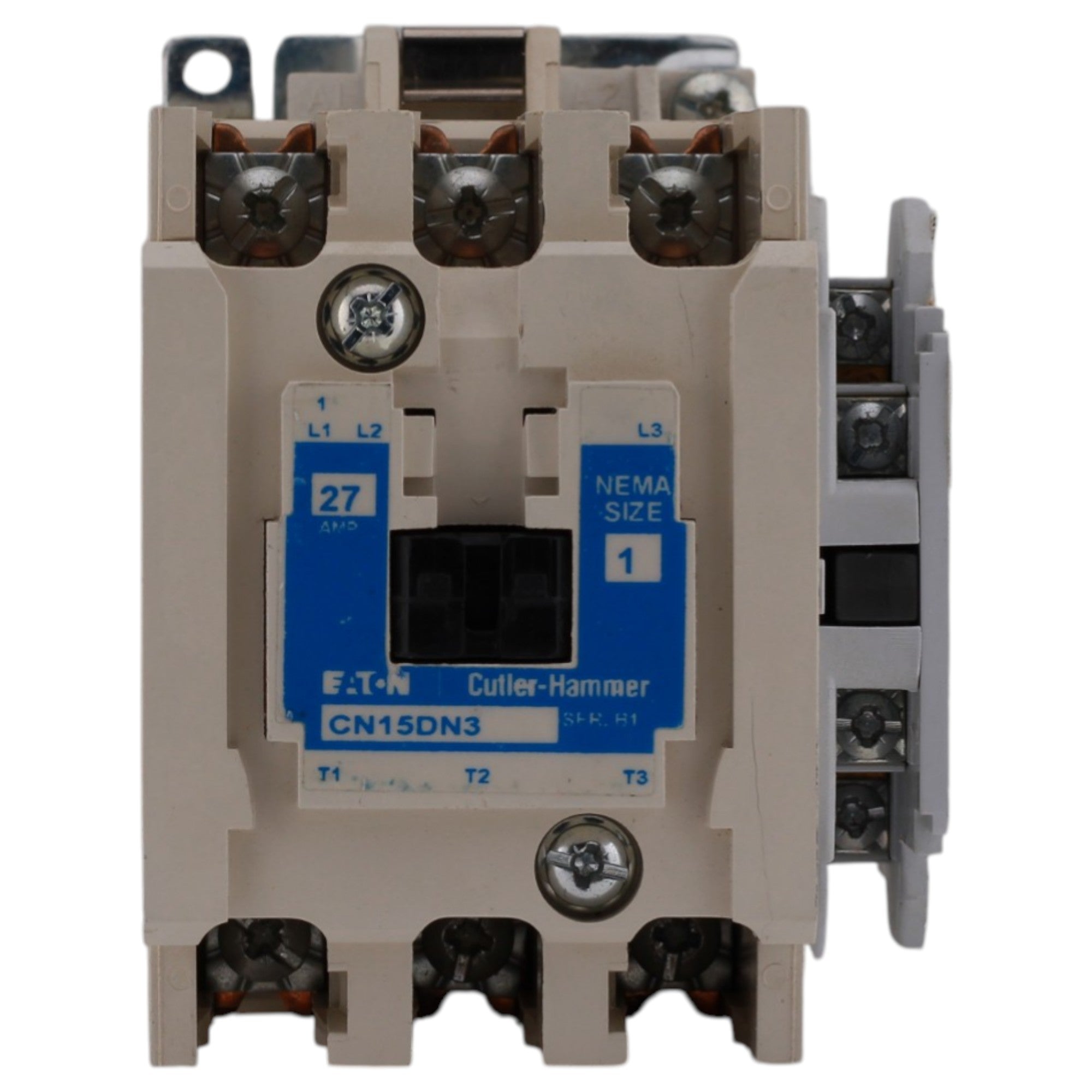

Eaton Cutler-Hammer, CN15DN3DB, 27A, 3-Pole, 600V, NEMA Size 1, Non-Reversing, Motor Contactor - Image 7

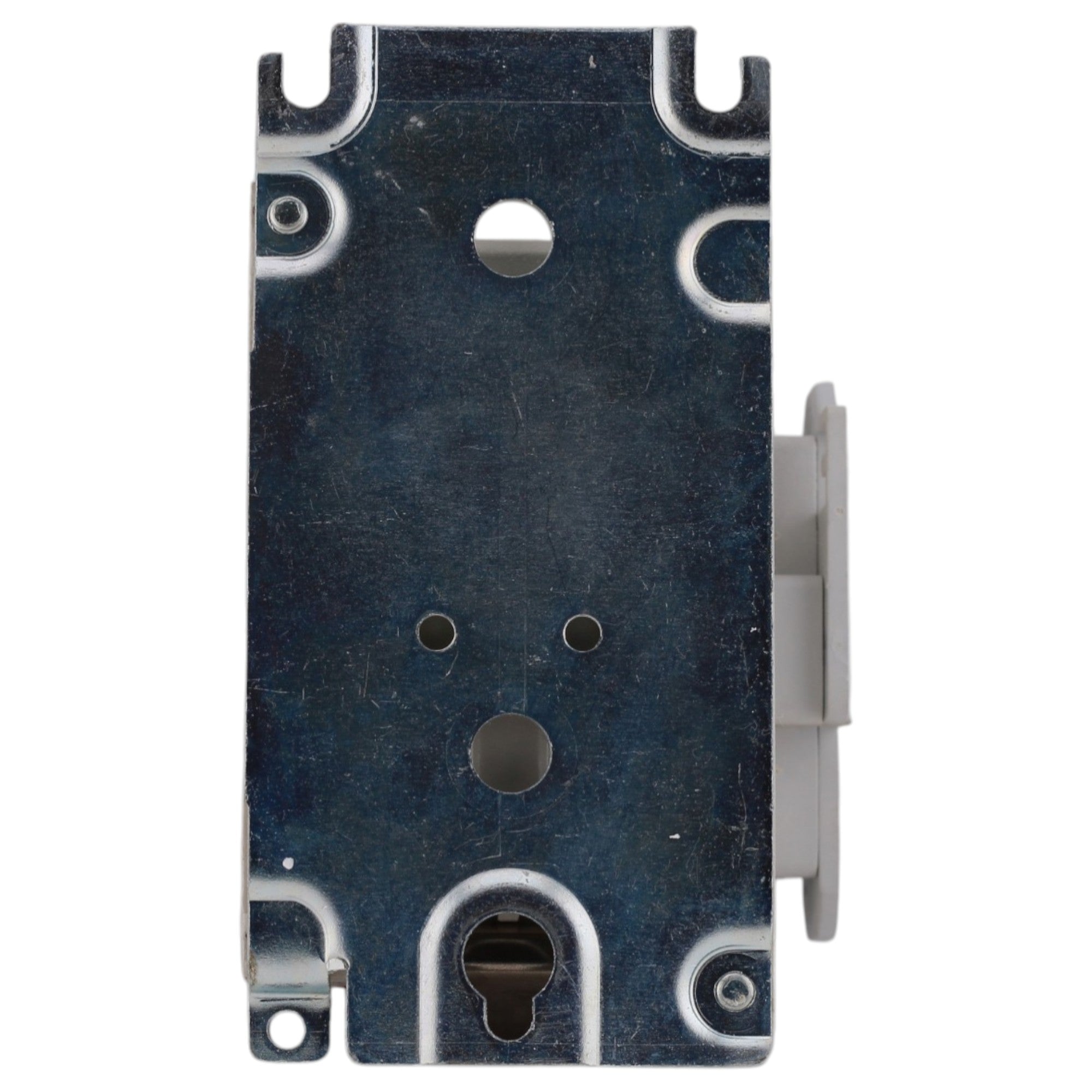

Eaton Cutler-Hammer, CN15DN3DB, 27A, 3-Pole, 600V, NEMA Size 1, Non-Reversing, Motor Contactor - Image 8

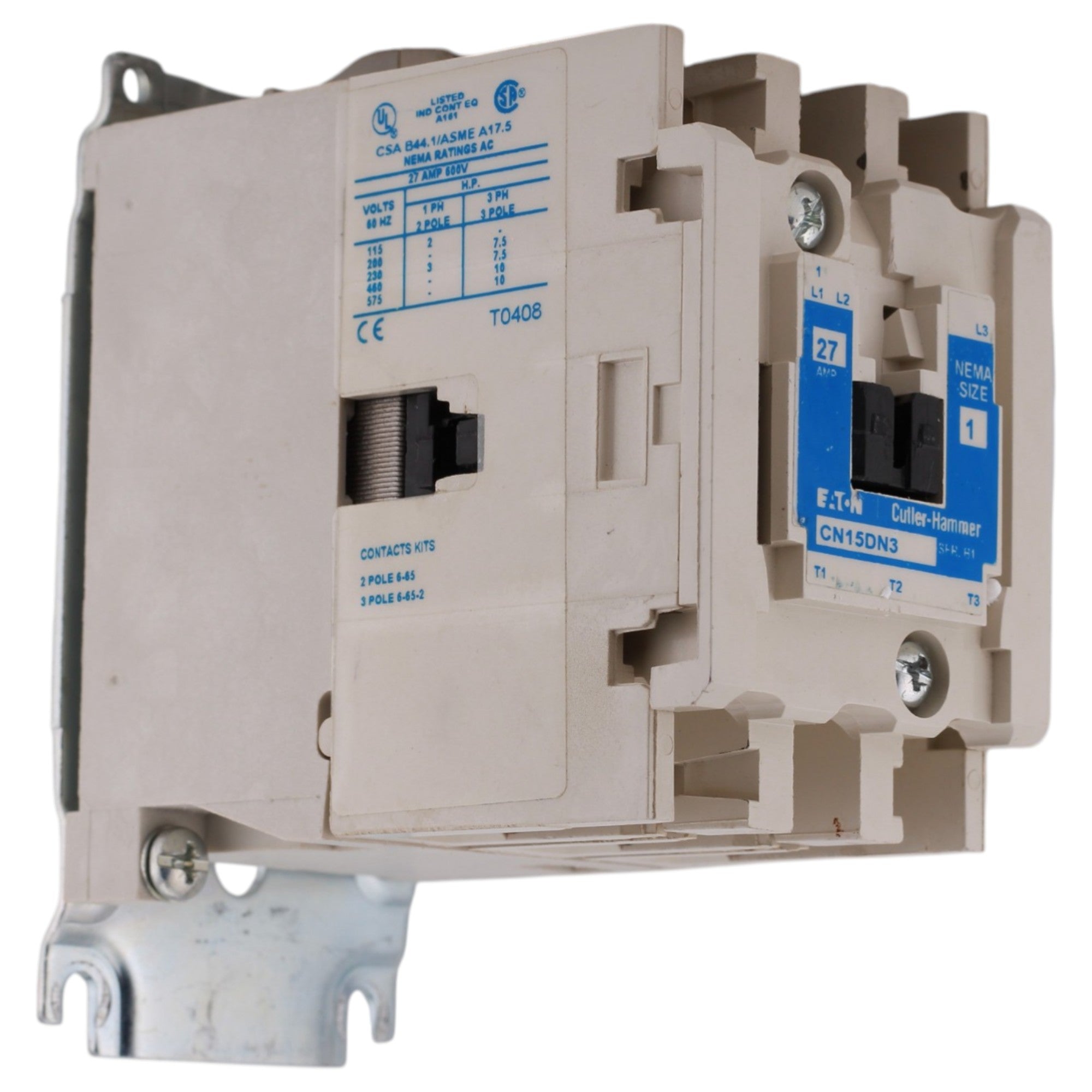

Eaton Cutler-Hammer, CN15DN3DB, 27A, 3-Pole, 600V, NEMA Size 1, Non-Reversing, Motor Contactor - Image 9

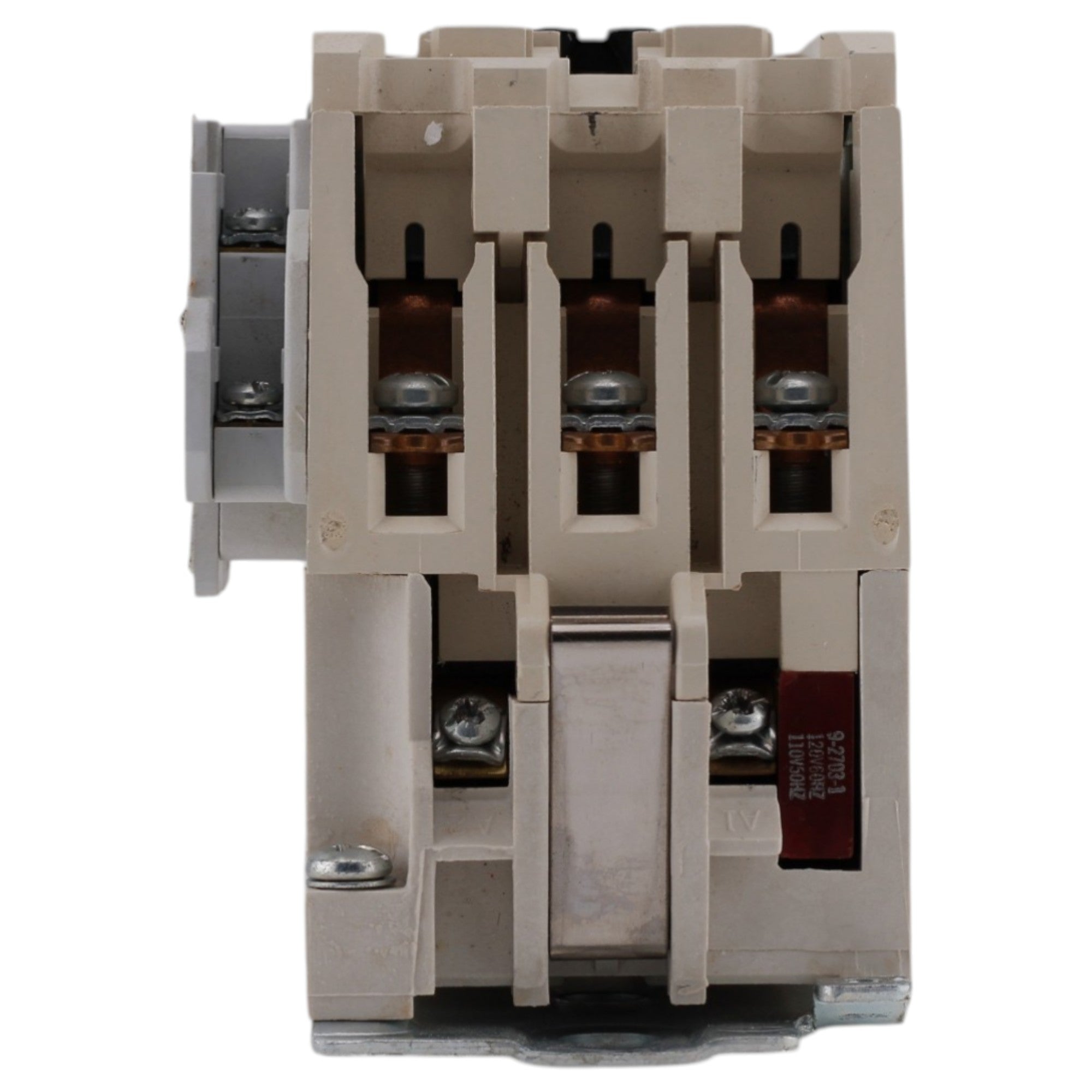

Eaton Cutler-Hammer, CN15DN3DB, 27A, 3-Pole, 600V, NEMA Size 1, Non-Reversing, Motor Contactor - Image 10

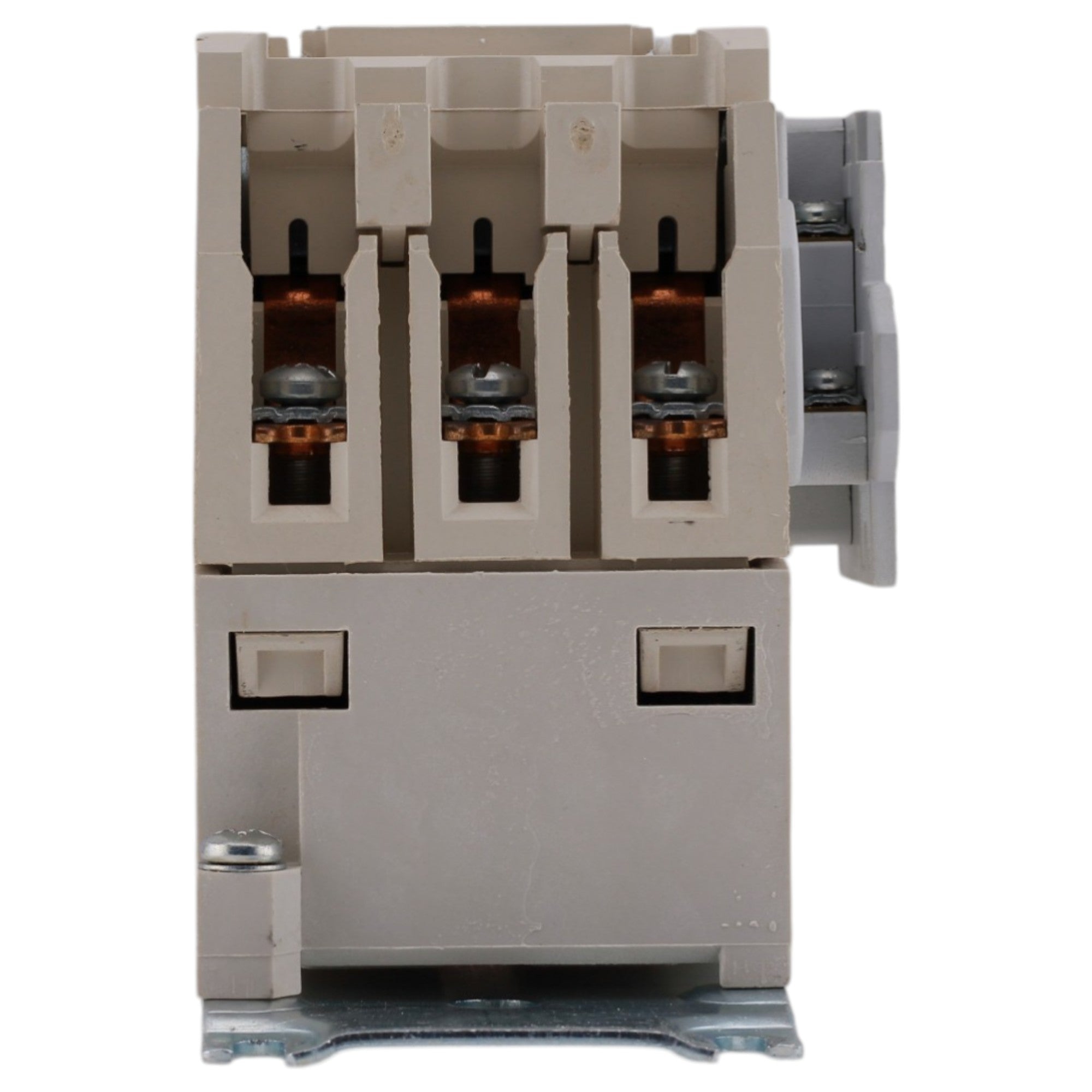

Eaton Cutler-Hammer, CN15DN3DB, 27A, 3-Pole, 600V, NEMA Size 1, Non-Reversing, Motor Contactor - Image 11

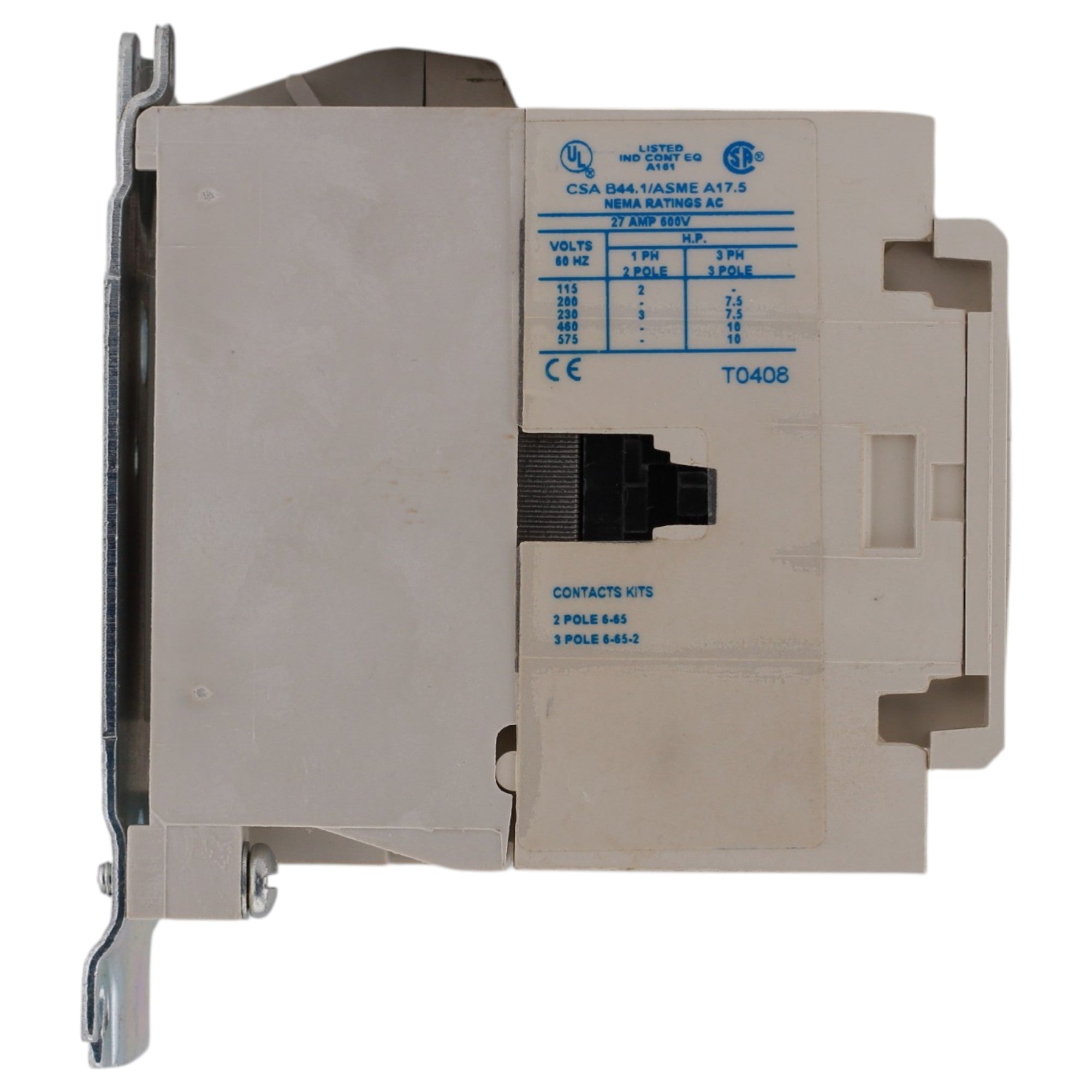

Eaton Cutler-Hammer, CN15DN3DB, 27A, 3-Pole, 600V, NEMA Size 1, Non-Reversing, Motor Contactor - Image 12

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eaton

Eaton Cutler-Hammer, CN15DN3DB, 27A, 3-Pole, 600V, NEMA Size 1, Non-Reversing, Motor Contactor

Out of stock
SKU: CN15DN3DB
(0)
$50.00
-23% $65.00 $50.00
Out of stock
Condition

CN15DN3DB specifications

  • Manufacturer: Eaton
  • Brand: Cutler-Hammer
  • Product Range: Freedom Series — CN15 NEMA Motor Control Contactors
  • Model Number: CN15DN3DB
  • Contactor Type: Full Voltage Non-Reversing (FVNR)
  • NEMA Size: Size 1
  • Amperage: 27 Amps
  • Poles: 3-Pole
  • Voltage Rating: 600 Volts AC (maximum)
  • Coil Voltage: 600V AC at 60 Hz / 550V AC at 50 Hz
  • Maximum Horsepower Ratings:
    • 2 hp @ 115V 1-Phase
    • 3 hp @ 230V 1-Phase
    • 7.5 hp @ 208V / 240V 3-Phase
    • 10 hp @ 480V / 600V 3-Phase
  • Auxiliary Contacts: 1 N.O. (C320KGS1 side-mounted auxiliary contact block included)
  • Contact Material: Twin break, silver cadmium oxide
  • Mounting Type: Panel / Steel mounting plate (open type)
  • Enclosure: Open (panel mount)
  • Electrical Life: 3,000,000 operations at maximum hp ratings
  • Standards: Meets or exceeds NEMA ICS 2-1993
  • Dimensions: 5.05 in L × 2.56 in W × 4.44 in H
  • Weight: 3.1 lbs
  • Certifications: UL Listed, CSA Certified

This Eaton Cutler-Hammer CN15DN3DB Freedom Series NEMA Size 1 contactor delivers dependable 27 Amp, 3-pole full voltage non-reversing motor control for 600V AC circuits. With a 600V/60Hz coil, twin break silver contacts, and included N.O. auxiliary, it is designed for industrial motor control, HVAC, and related applications.
