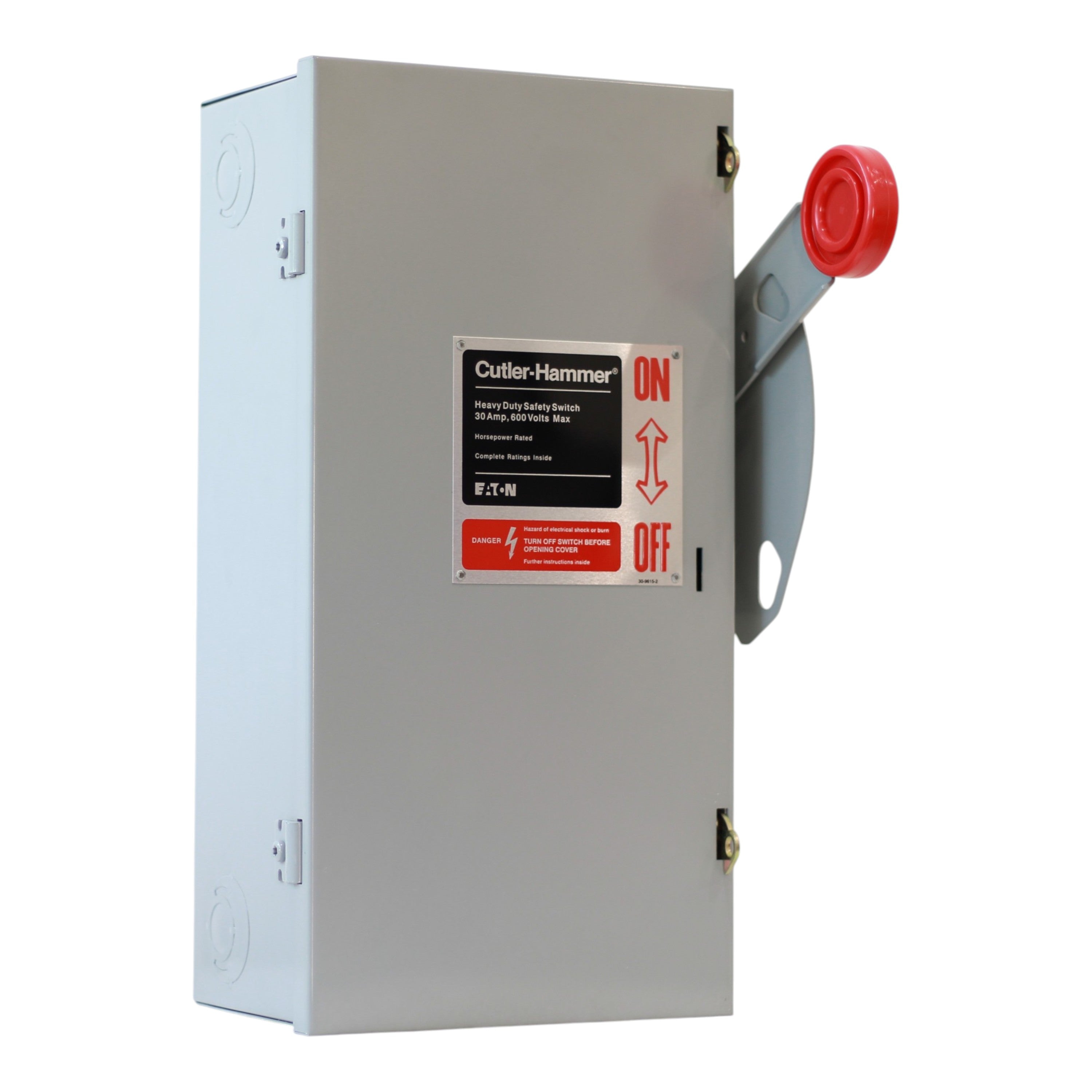

Eaton DH, DH261FGK, 30A, 2P, 600V, Fusible, Class H, NEMA 1, Heavy Duty Safety Switch

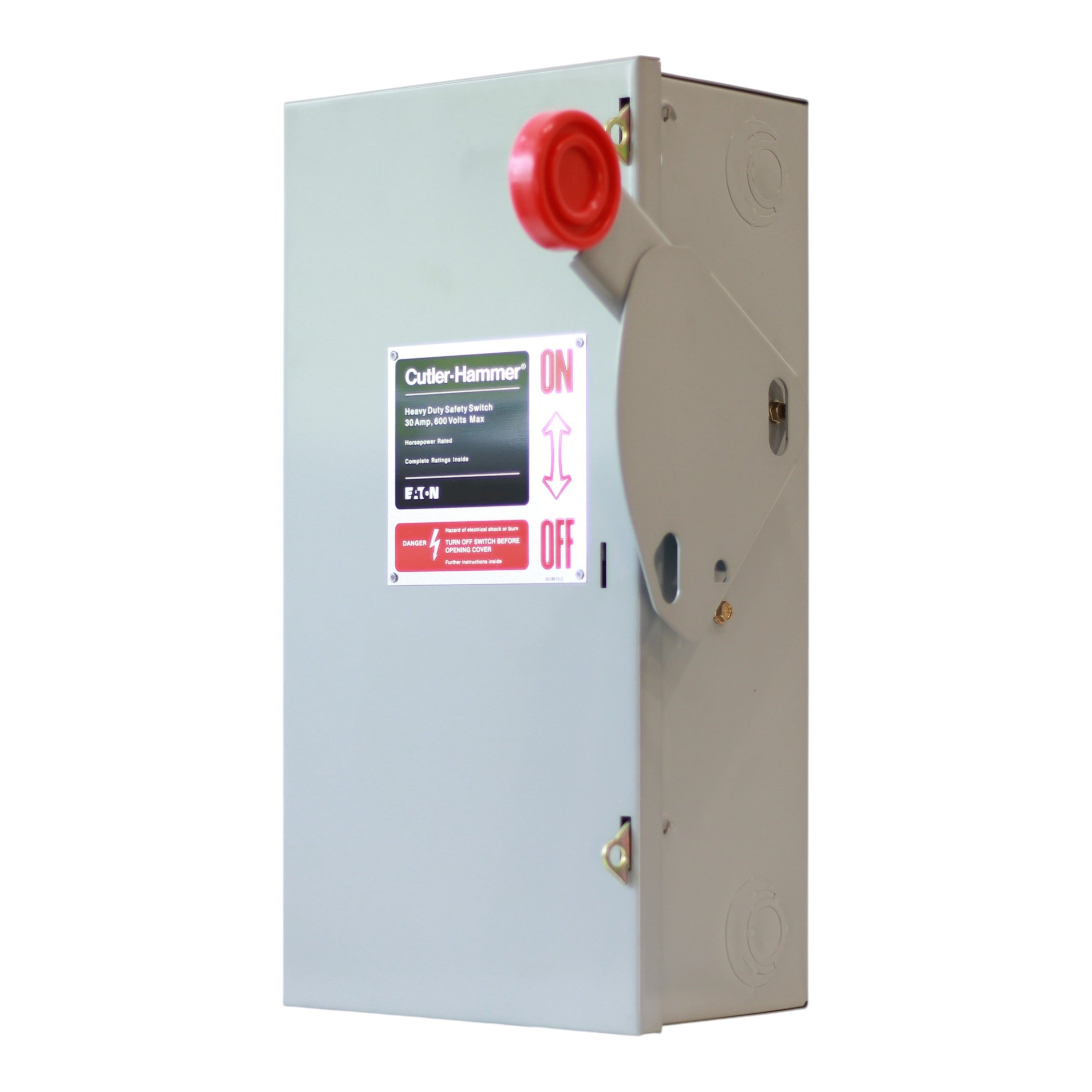

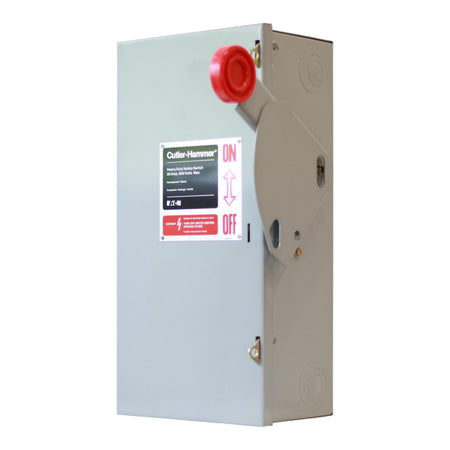

Eaton DH, DH261FGK, 30A, 2P, 600V, Fusible, Class H, NEMA 1, Heavy Duty Safety Switch - Image 2

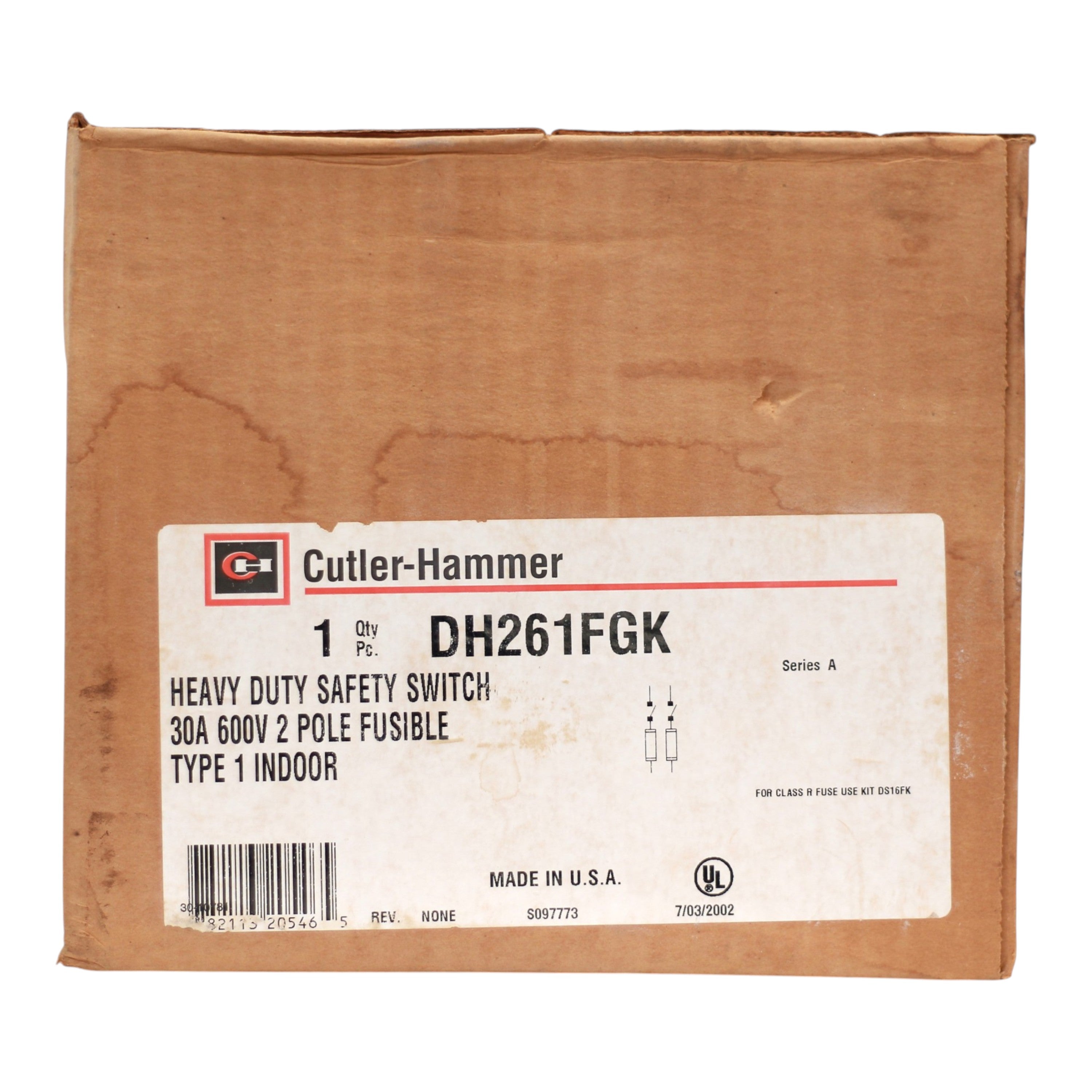

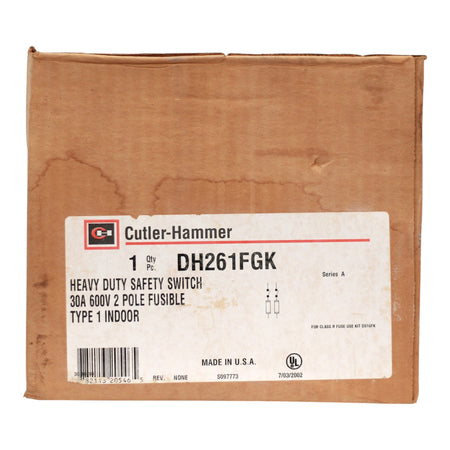

Eaton DH, DH261FGK, 30A, 2P, 600V, Fusible, Class H, NEMA 1, Heavy Duty Safety Switch - Image 3

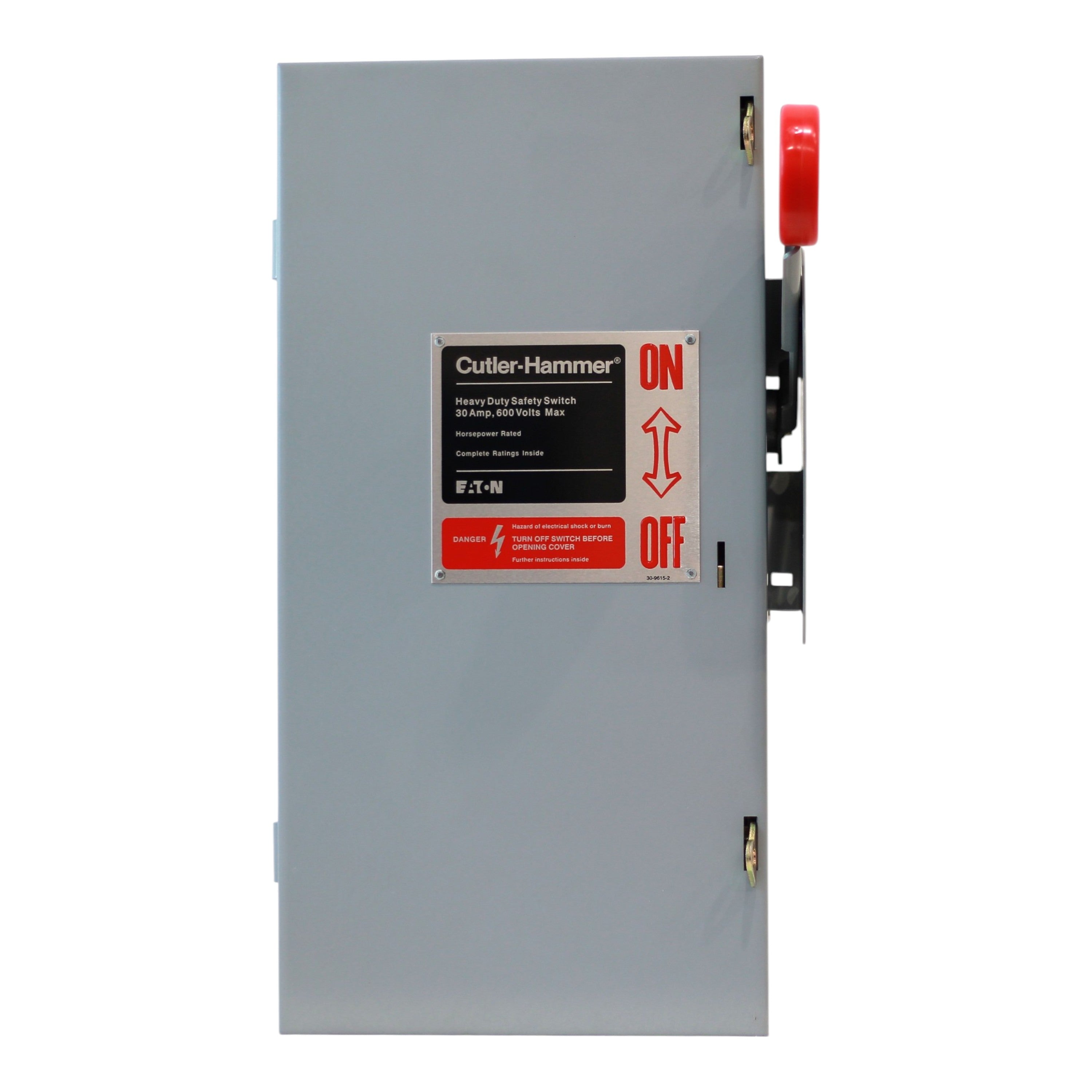

Eaton DH, DH261FGK, 30A, 2P, 600V, Fusible, Class H, NEMA 1, Heavy Duty Safety Switch - Image 4

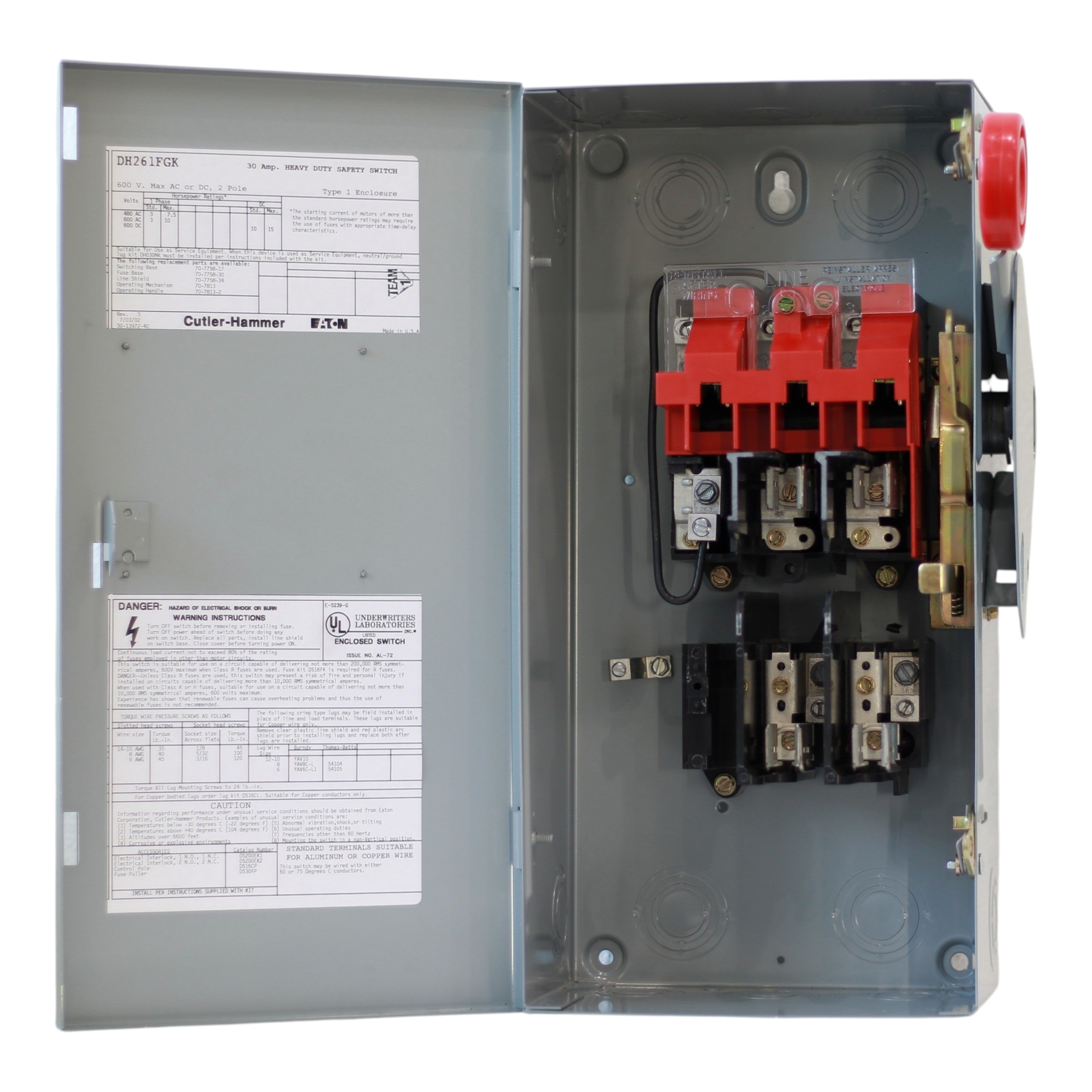

Eaton DH, DH261FGK, 30A, 2P, 600V, Fusible, Class H, NEMA 1, Heavy Duty Safety Switch - Image 5

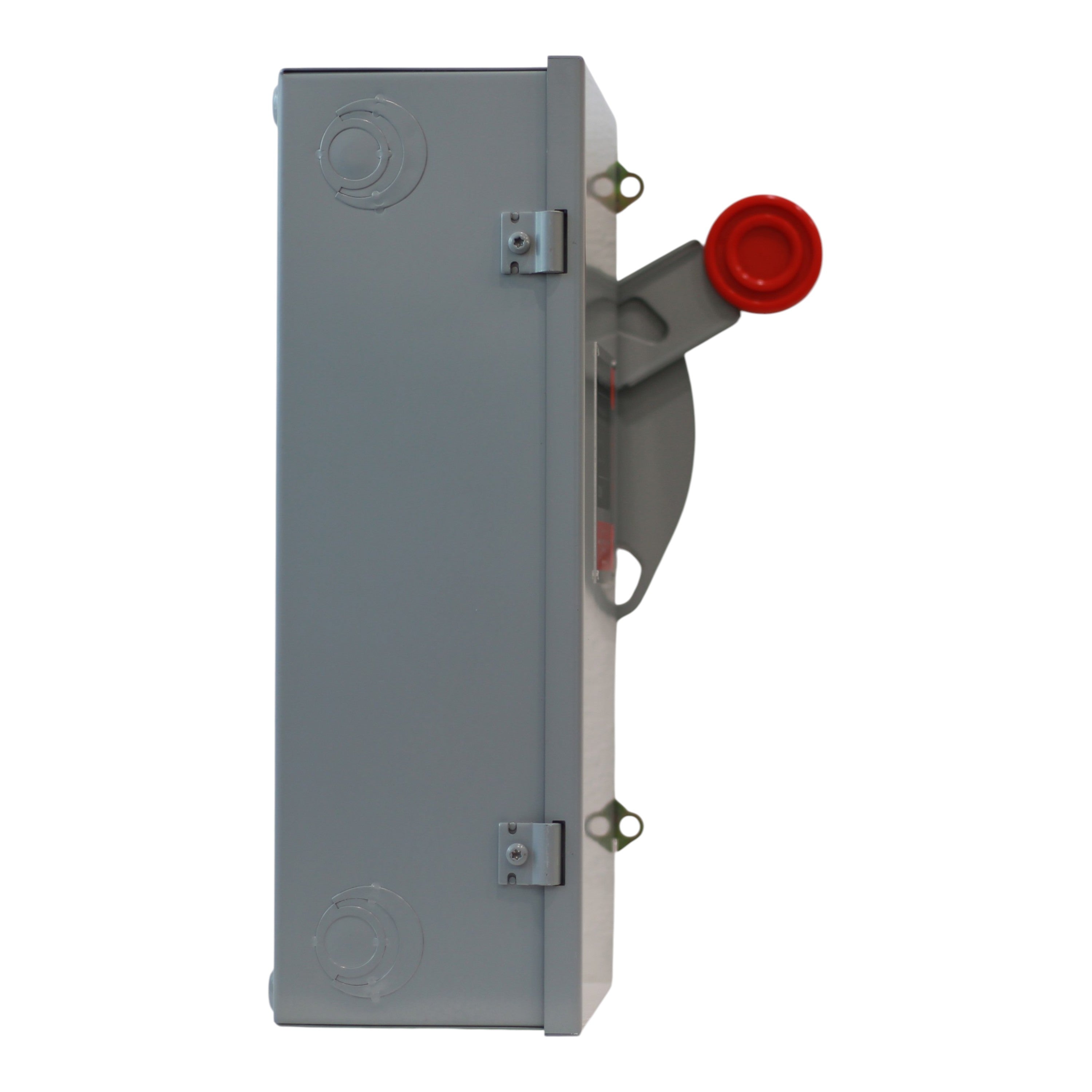

Eaton DH, DH261FGK, 30A, 2P, 600V, Fusible, Class H, NEMA 1, Heavy Duty Safety Switch - Image 6

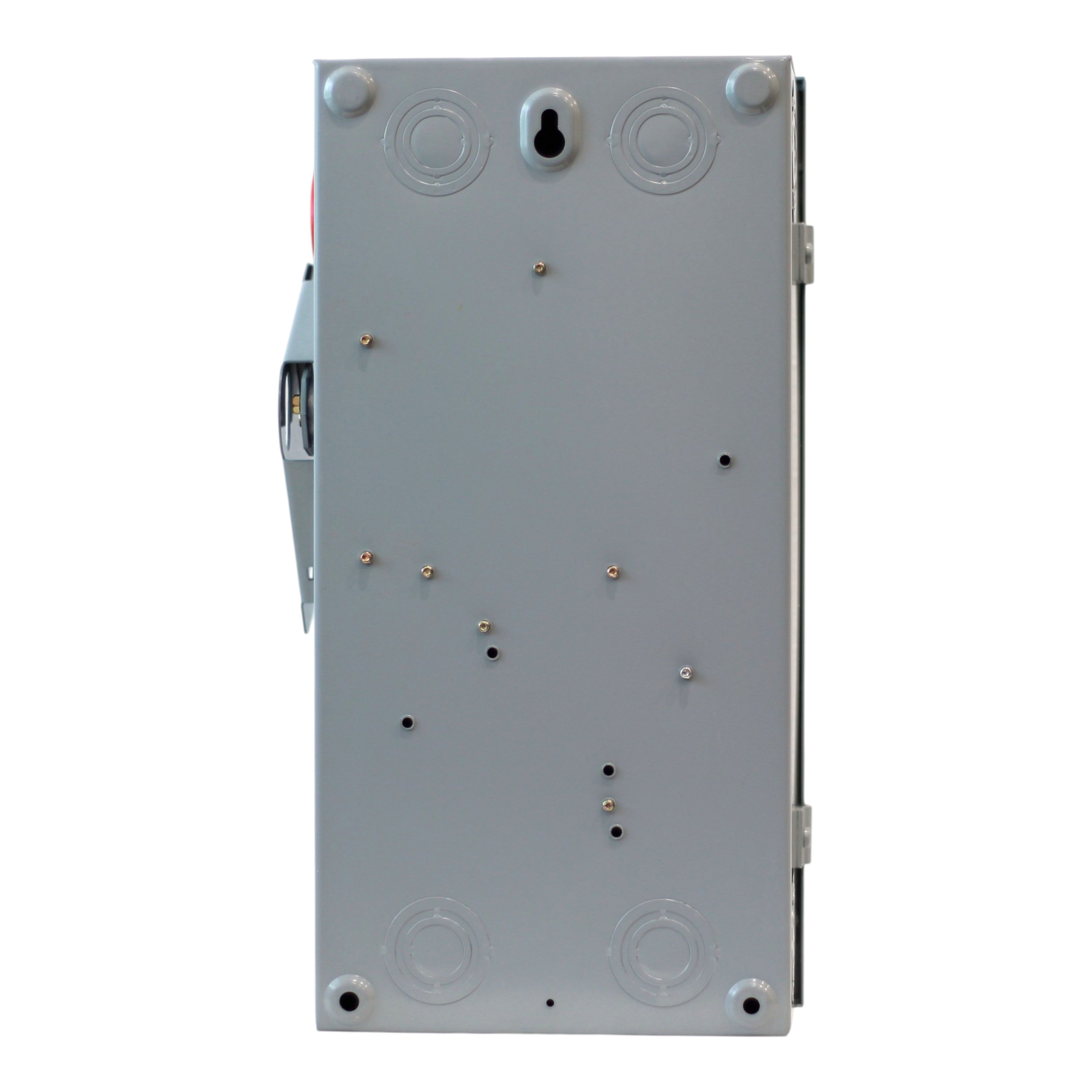

Eaton DH, DH261FGK, 30A, 2P, 600V, Fusible, Class H, NEMA 1, Heavy Duty Safety Switch - Image 7

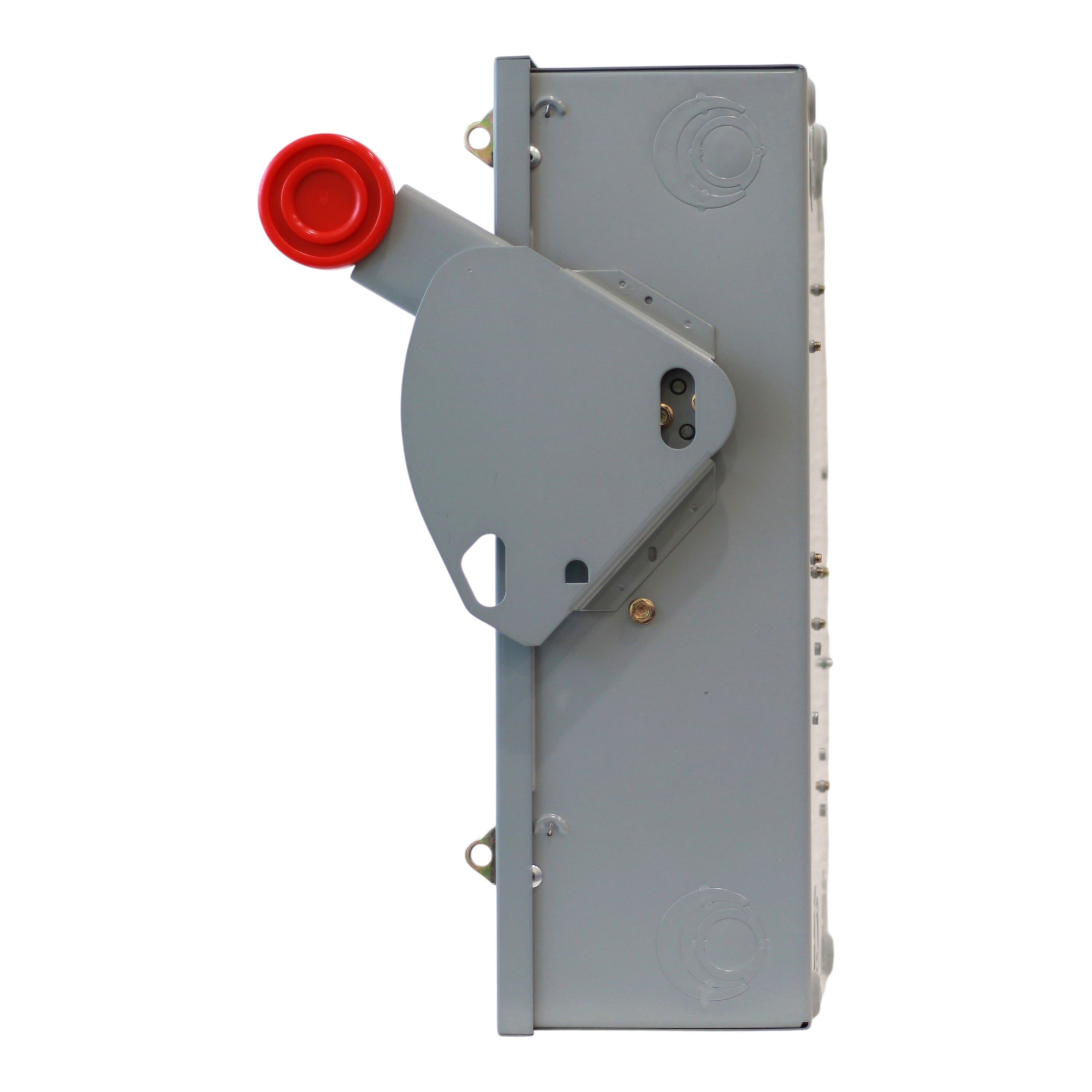

Eaton DH, DH261FGK, 30A, 2P, 600V, Fusible, Class H, NEMA 1, Heavy Duty Safety Switch - Image 8

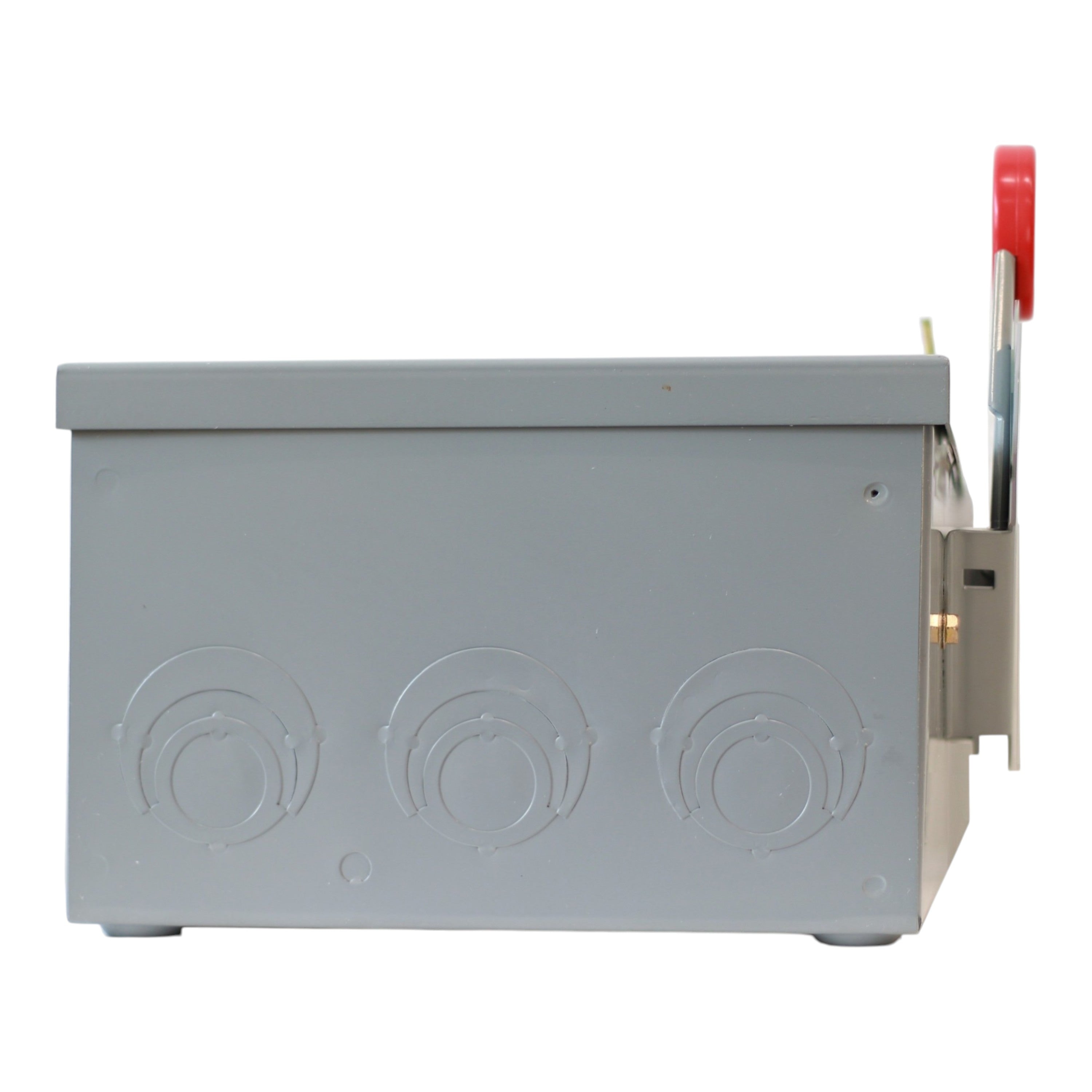

Eaton DH, DH261FGK, 30A, 2P, 600V, Fusible, Class H, NEMA 1, Heavy Duty Safety Switch - Image 9

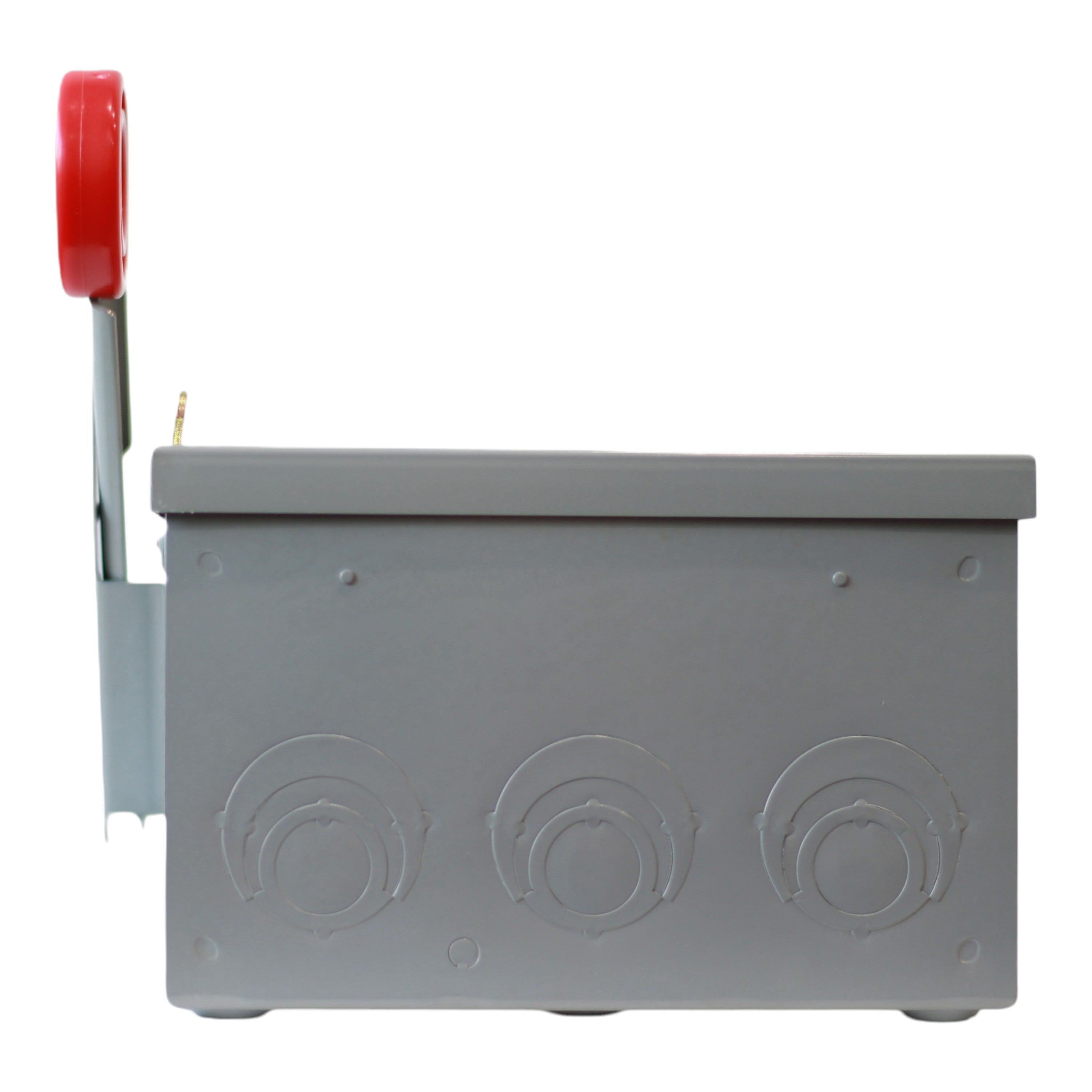

Eaton DH, DH261FGK, 30A, 2P, 600V, Fusible, Class H, NEMA 1, Heavy Duty Safety Switch - Image 10

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eaton

Eaton DH, DH261FGK, 30A, 2P, 600V, Fusible, Class H, NEMA 1, Heavy Duty Safety Switch

Out of stock
SKU: DH261FGK UPC: 782113205465
(0)
$55.00
-58% $130.00 $55.00
Out of stock
Condition

Eaton DH261FGK: 30 Amp, 2-Pole, 2-Wire, Heavy Duty Fusible Safety Switch, 600V, Class H, NEMA 1, painted steel, UL listed.

  • Manufacturer: Eaton
  • Brand: Eaton (Cutler-Hammer)
  • Product Range: DH K Series – Heavy Duty Safety Switches (for commercial and industrial motor circuit and service entrance applications)
  • UPC: 782113205465
  • Model Number: DH261FGK
  • Switch Type: Fusible Heavy Duty Safety Switch (Single-Throw, Enhanced Visible Blade)
  • Amperage: 30 Amps
  • Poles: 2-Pole
  • Number of Wires: 2-Wire (without neutral)
  • Voltage: 600 Volts AC / 600 Volts DC
  • Fuse Class Provision: Class H (not included)
  • Short Circuit Current Rating (SCCR): 200 kA @ 600V
  • HP Rating: 7.5 HP @ 480V AC (1Ph, TD); 10 HP @ 600V AC (1Ph, TD); 15 HP @ 600V DC (1Ph, TD)
  • Wire Size: #14–#2 AWG Cu/Al
  • Mounting Mode: Surface mount
  • Enclosure: NEMA 1, Painted Steel
  • Catalog Notes: Suitable for service entrance use with neutral or ground lug kit installed (sold separately)
  • Dimensions: Height: 7.5 in; Width: 9.5 in; Depth: 18 in
  • Weight: 14 lbs
  • Certifications: UL Listed, NEC 230.62(C) Compliant Barrier

This Eaton DH261FGK heavy duty fusible safety switch delivers dependable 30 Amp, 2-Pole manual disconnection and overcurrent protection for 600V AC/DC commercial and industrial motor circuit and service entrance applications. With Class H fuse provision, 200 kA SCCR, enhanced visible blade design, and a NEMA 1 painted steel enclosure, it ensures safe and reliable power isolation in demanding environments.
