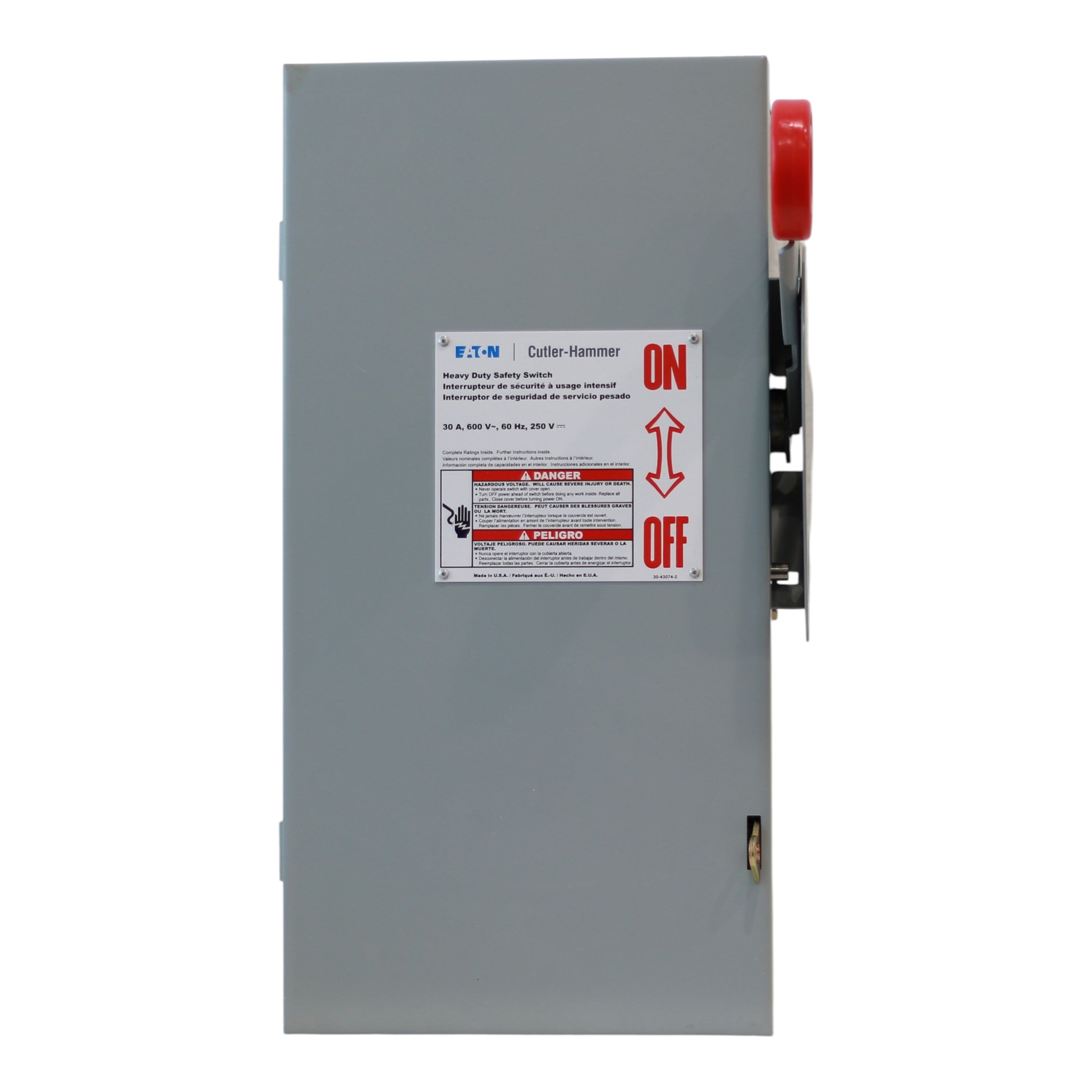

Eaton DH, DH361UGK, 30A, 3P, 600V, Non-Fusible, NEMA 1, Heavy Duty Safety Switch - Image 4
Eaton DH, DH361UGK, 30A, 3P, 600V, Non-Fusible, NEMA 1, Heavy Duty Safety Switch - Image 5

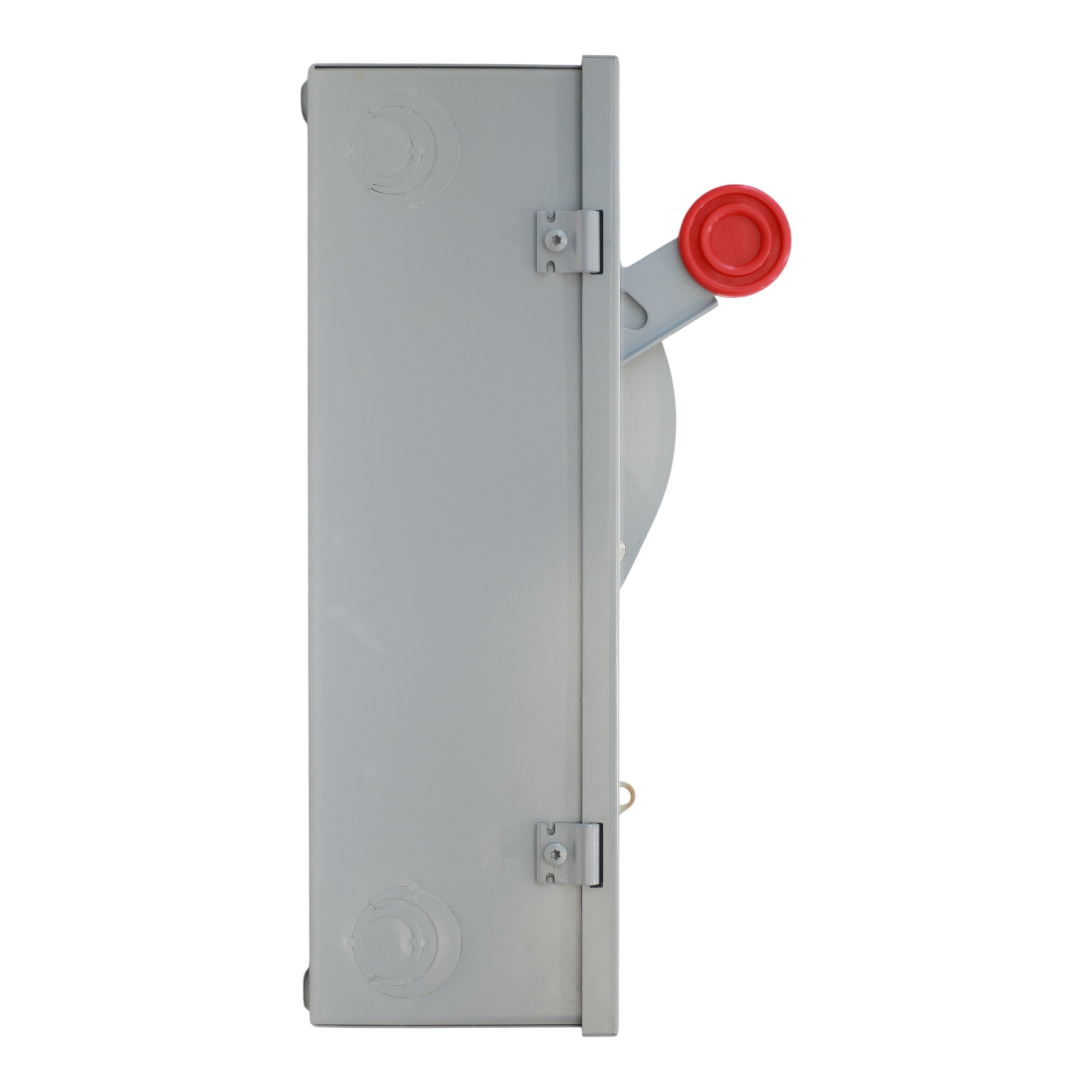

Eaton DH, DH361UGK, 30A, 3P, 600V, Non-Fusible, NEMA 1, Heavy Duty Safety Switch - Image 6
Eaton DH, DH361UGK, 30A, 3P, 600V, Non-Fusible, NEMA 1, Heavy Duty Safety Switch - Image 7
Eaton DH, DH361UGK, 30A, 3P, 600V, Non-Fusible, NEMA 1, Heavy Duty Safety Switch - Image 8
Eaton DH, DH361UGK, 30A, 3P, 600V, Non-Fusible, NEMA 1, Heavy Duty Safety Switch - Image 9
Eaton DH, DH361UGK, 30A, 3P, 600V, Non-Fusible, NEMA 1, Heavy Duty Safety Switch - Image 10

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eaton

Eaton DH, DH361UGK, 30A, 3P, 600V, Non-Fusible, NEMA 1, Heavy Duty Safety Switch

Out of stock
SKU: DH361UGK UPC: 782113205502
(0)
$57.50
-65% $165.00 $57.50
Out of stock
Condition

Eaton DH361UGK: 30 Amp, 3-Pole, 3-Wire, Heavy Duty Non-Fusible Safety Switch, 600V, 200kA SCCR, NEMA 1, painted steel, UL listed.

  • Manufacturer: Eaton
  • Brand: Eaton (Cutler-Hammer)
  • Product Range: DH K Series – Heavy Duty Safety Switches (for commercial and industrial motor circuit and service entrance applications)
  • UPC: 782113205502
  • Model Number: DH361UGK
  • Switch Type: Non-Fusible Heavy Duty Safety Switch (Single-Throw)
  • Amperage: 30 Amps
  • Poles: 3-Pole
  • Number of Wires: 3-Wire
  • Voltage: 600 Volts AC
  • Short Circuit Current Rating (SCCR): 200 kA
  • HP Rating: 7.5 HP @ 480V AC (1Ph); 10 HP @ 600V AC (1Ph); 10 HP @ 240V AC (3Ph); 20 HP @ 480V AC (3Ph); 30 HP @ 600V AC (3Ph); 5 HP @ 250V DC
  • Mounting Mode: Surface mount (panel mount)

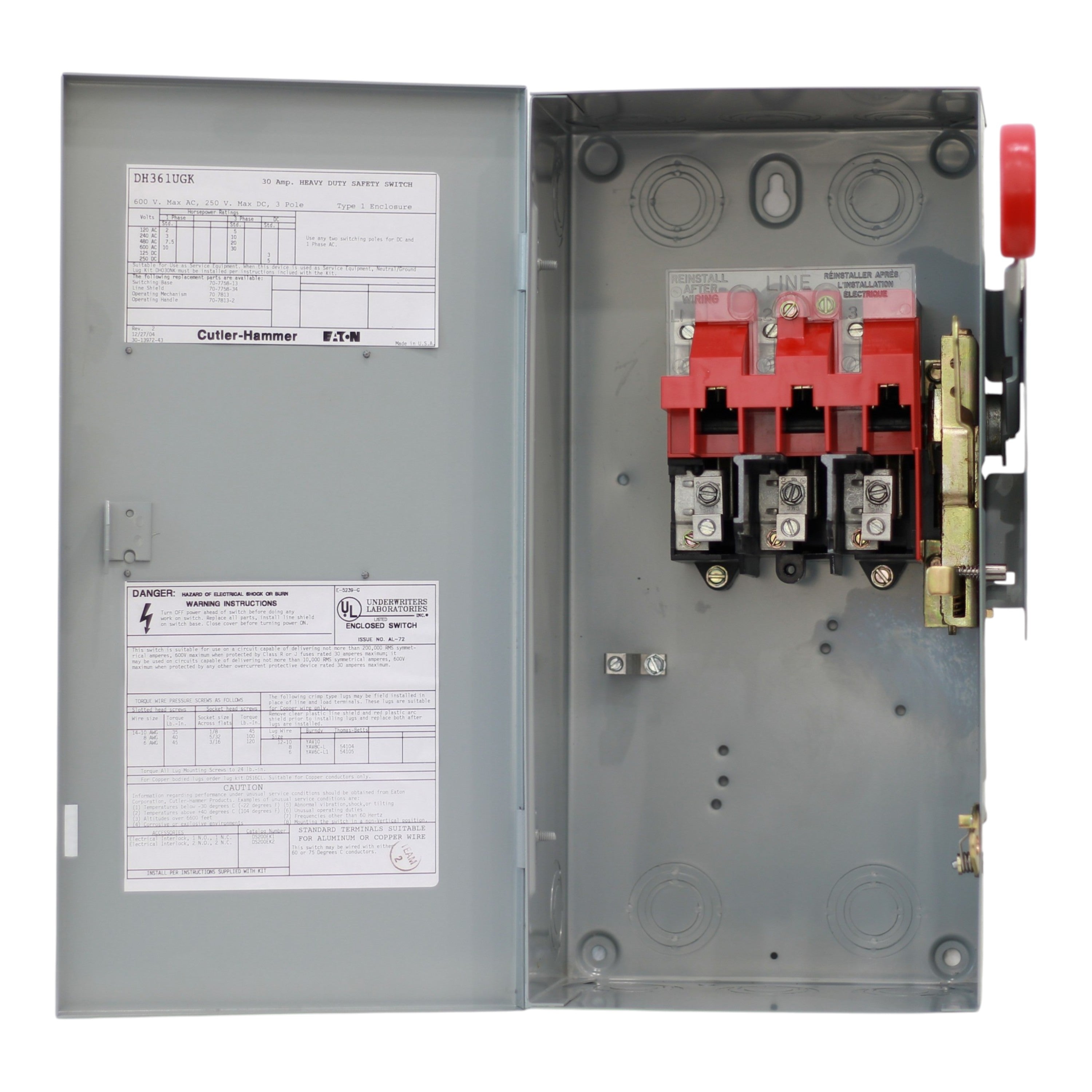

  • Mechanism: Visible double-break, quick-make / quick-break; deionizing arc chutes
  • Enclosure: NEMA 1, Painted Steel
  • Catalog Notes: Suitable for service entrance use with neutral or ground lug kit installed (sold separately)
  • Dimensions: Height: 15.81 in; Width: 8.81 in; Depth: 9.89 in
  • Weight: 17 lbs
  • Certifications: UL Listed, NEC 230.62(C) Compliant Barrier

This Eaton DH361UGK heavy duty non-fusible safety switch delivers dependable 30 Amp, 3-Pole manual disconnection for 600V commercial and industrial motor circuit and service entrance applications. With a 200 kA SCCR, mechanically interlocked cover, and NEMA 1 painted steel enclosure, it ensures safe and reliable power isolation in demanding environments.
