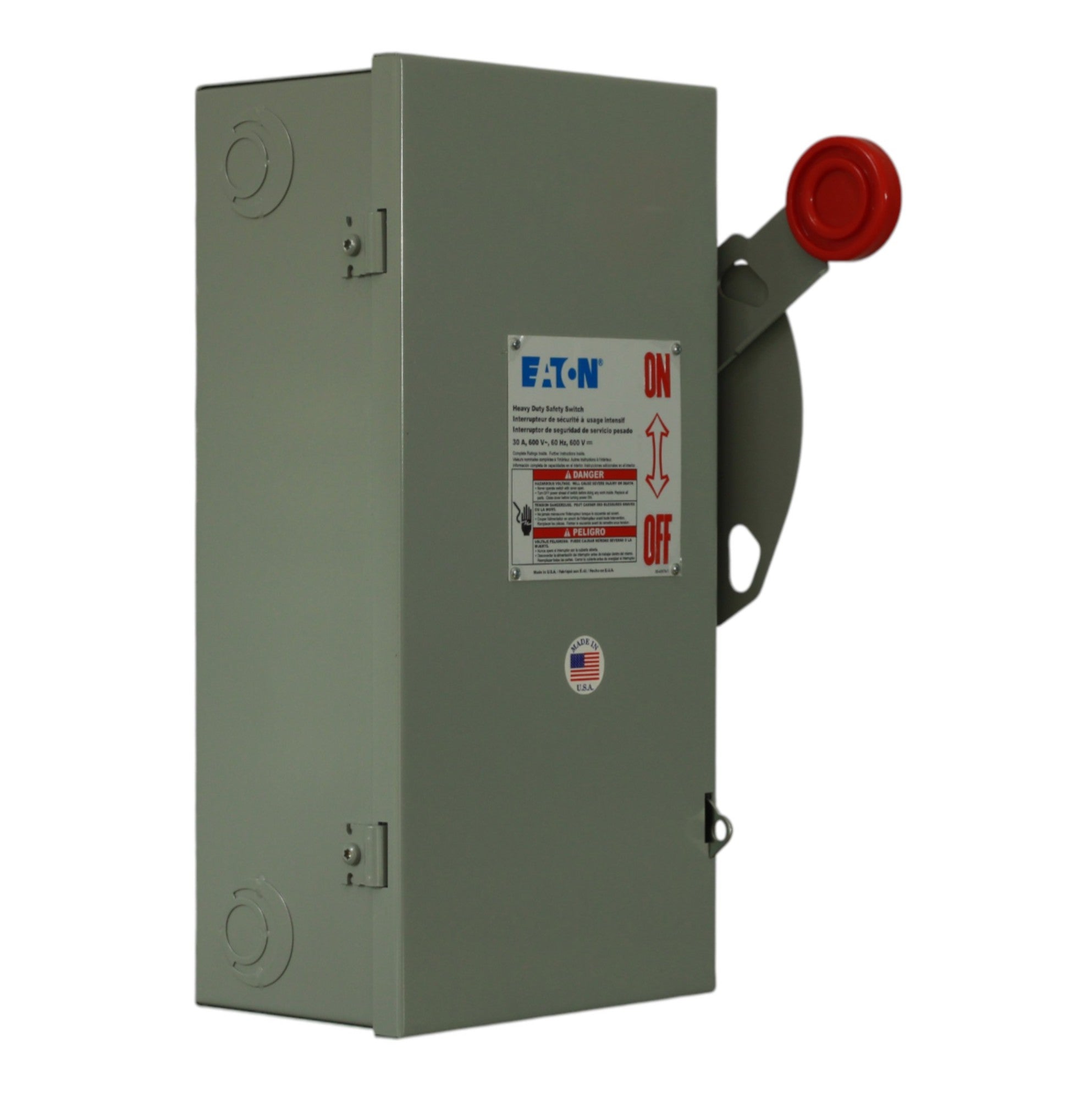

Eaton DH261UGK 30A 2P 600V Non-Fusible Heavy Duty Safety Switch NEMA 1

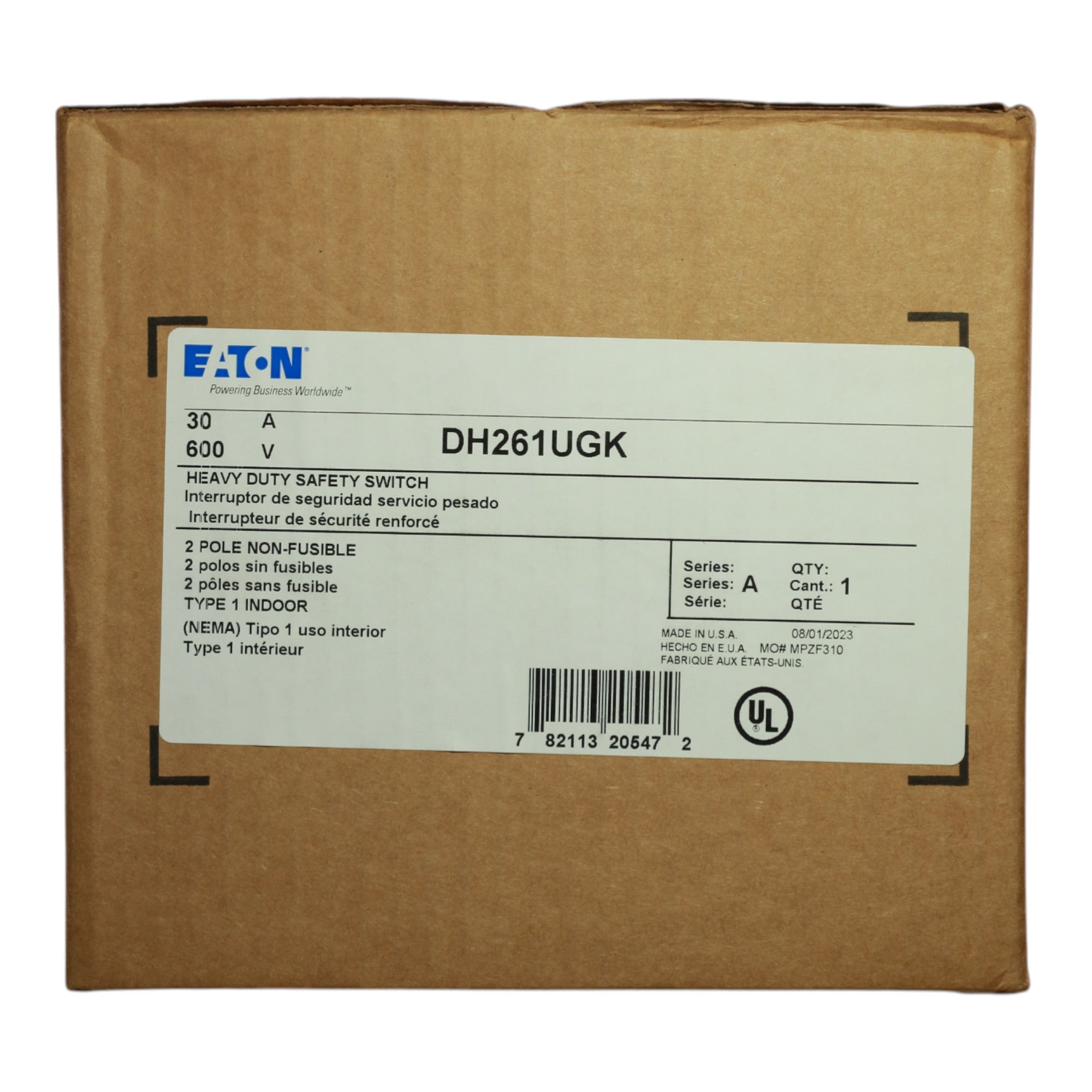

Eaton DH261UGK 30A 2P 600V Non-Fusible Heavy Duty Safety Switch NEMA 1 - Image 2

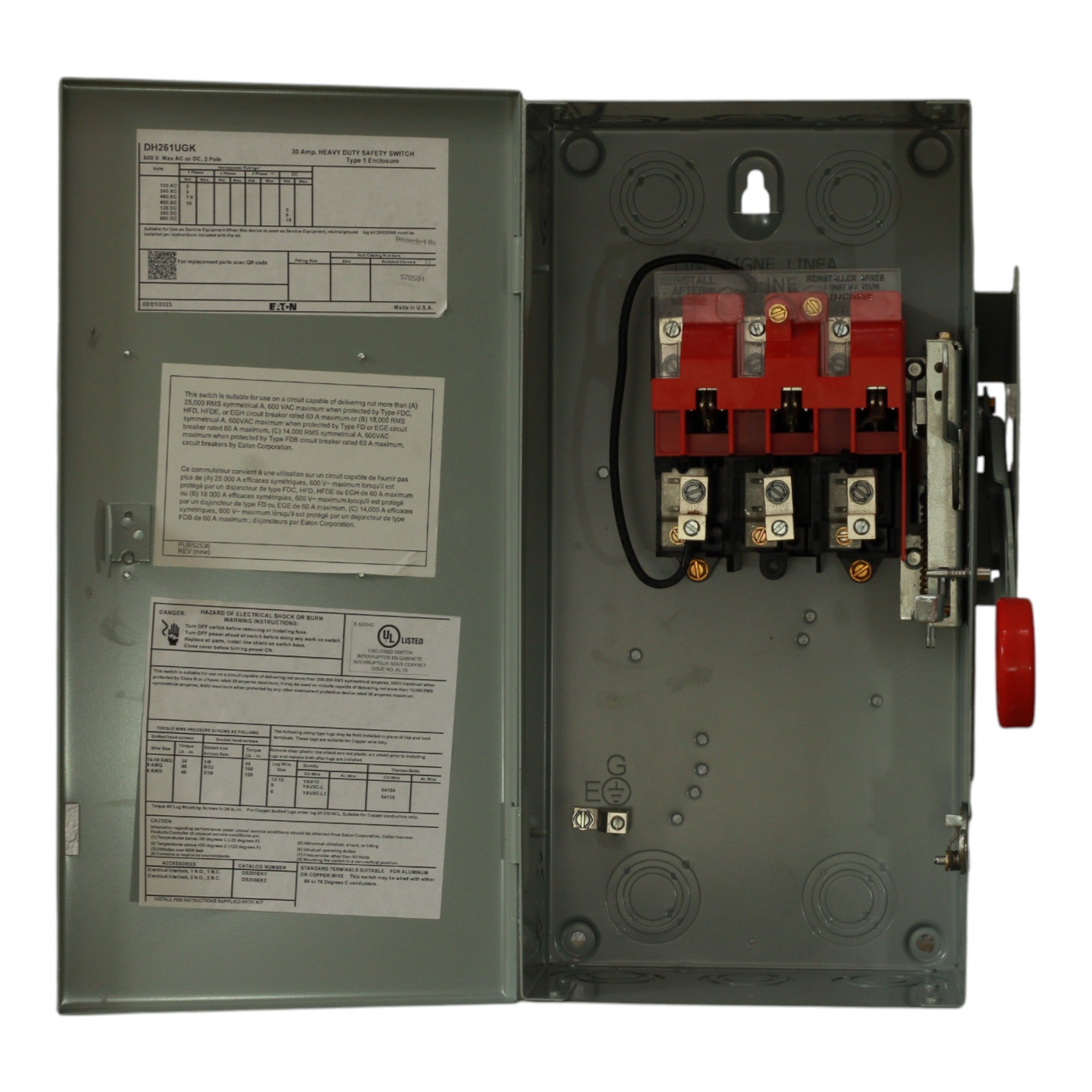

Eaton DH261UGK 30A 2P 600V Non-Fusible Heavy Duty Safety Switch NEMA 1 - Image 3

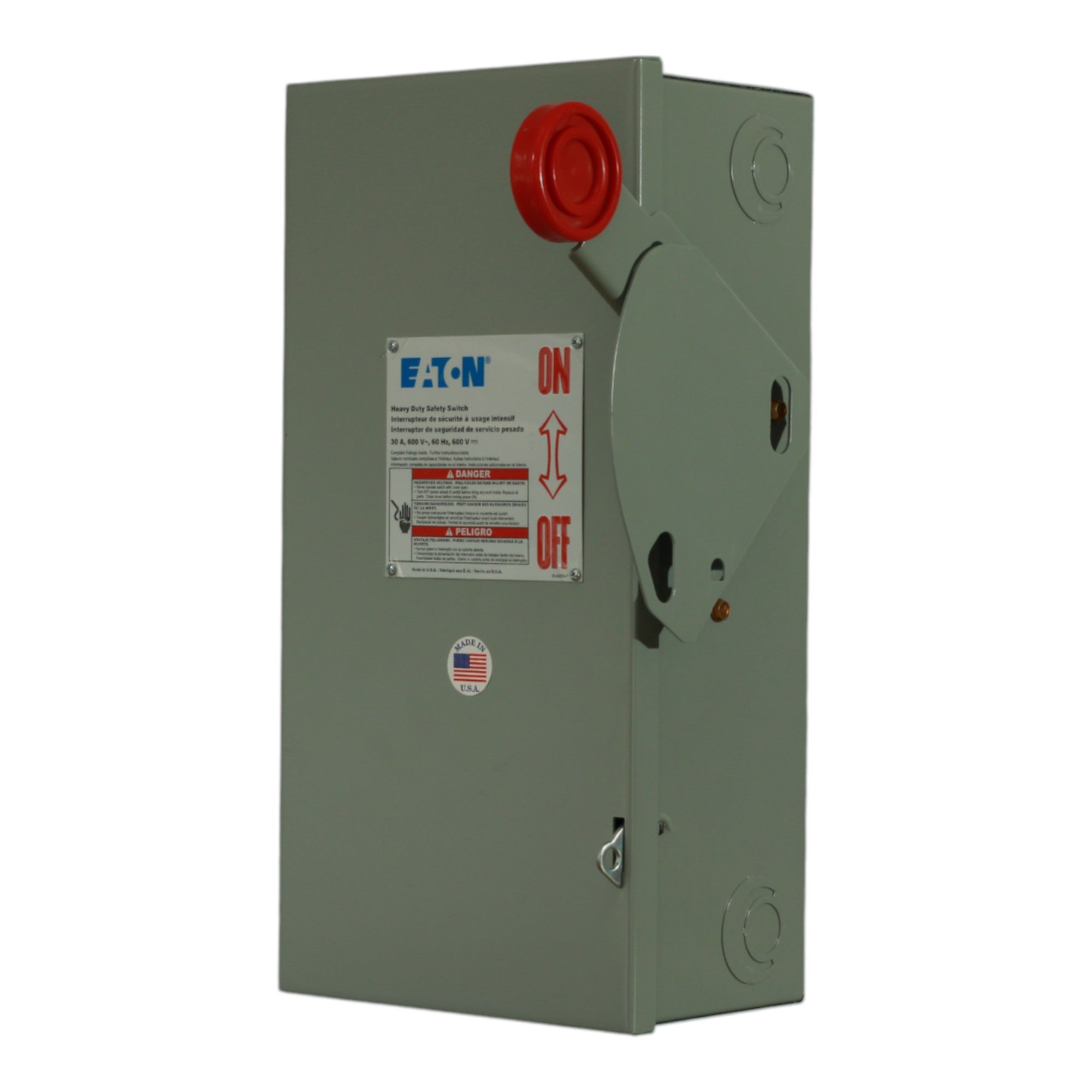

Eaton DH261UGK 30A 2P 600V Non-Fusible Heavy Duty Safety Switch NEMA 1 - Image 4

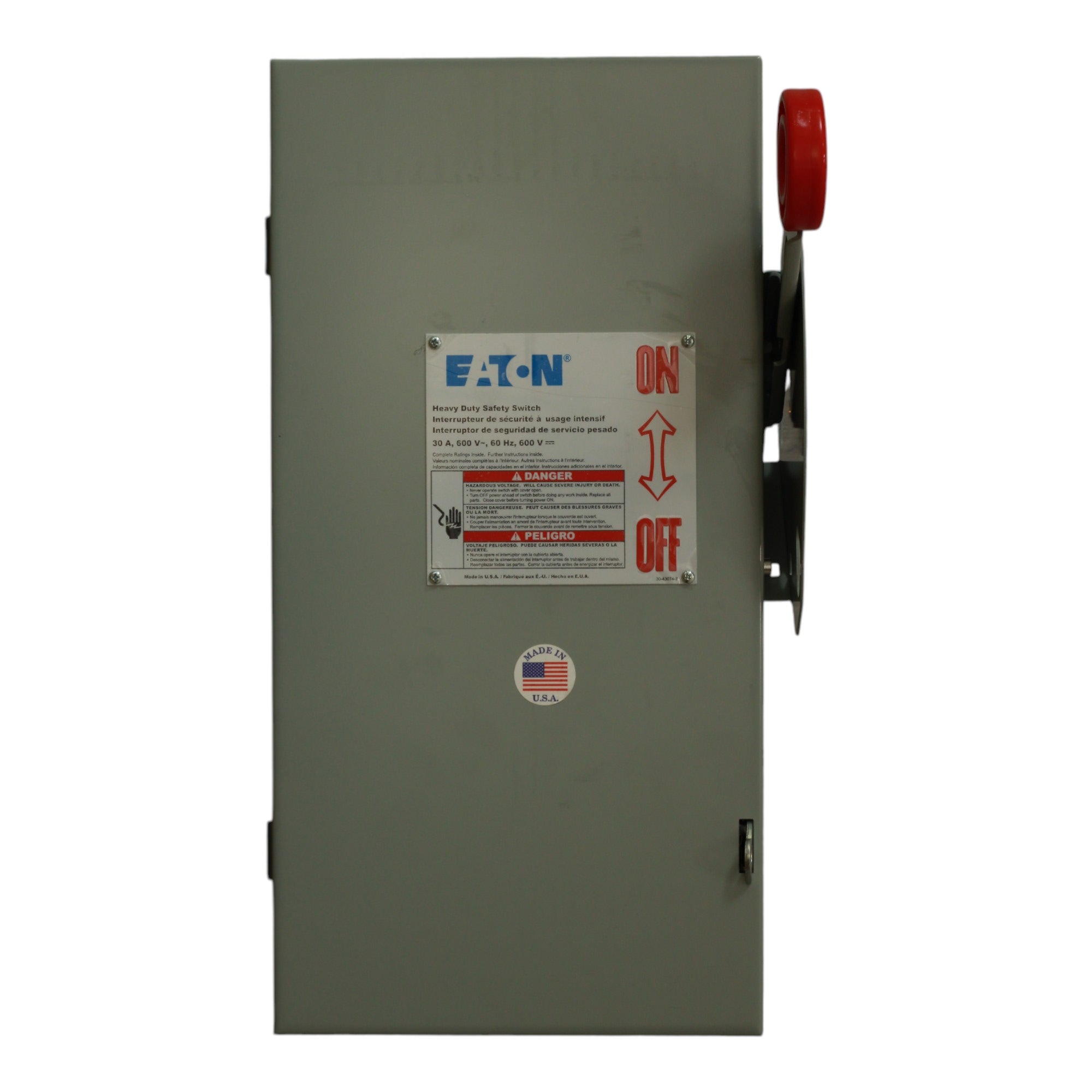

Eaton DH261UGK 30A 2P 600V Non-Fusible Heavy Duty Safety Switch NEMA 1 - Image 5

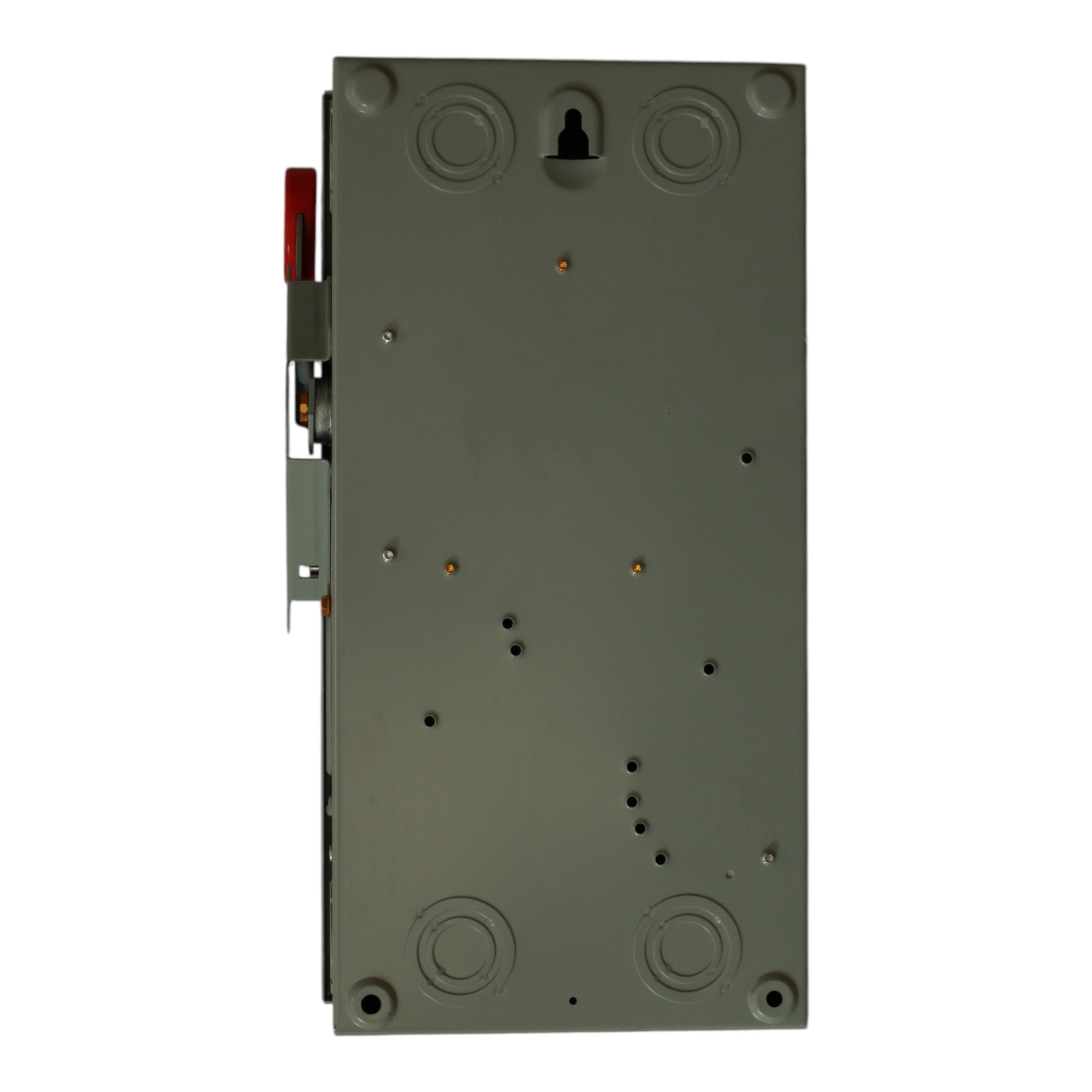

Eaton DH261UGK 30A 2P 600V Non-Fusible Heavy Duty Safety Switch NEMA 1 - Image 6

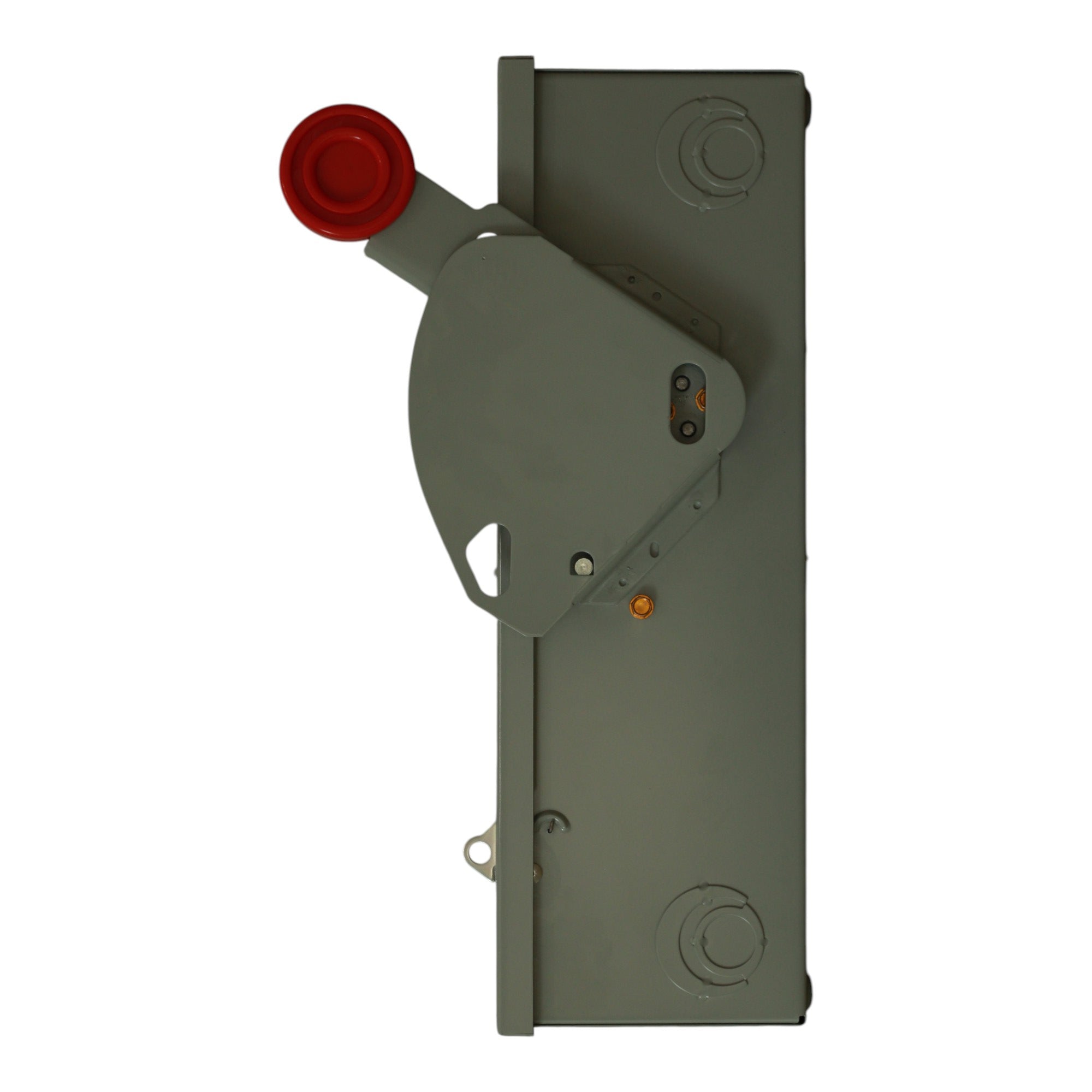

Eaton DH261UGK 30A 2P 600V Non-Fusible Heavy Duty Safety Switch NEMA 1 - Image 7

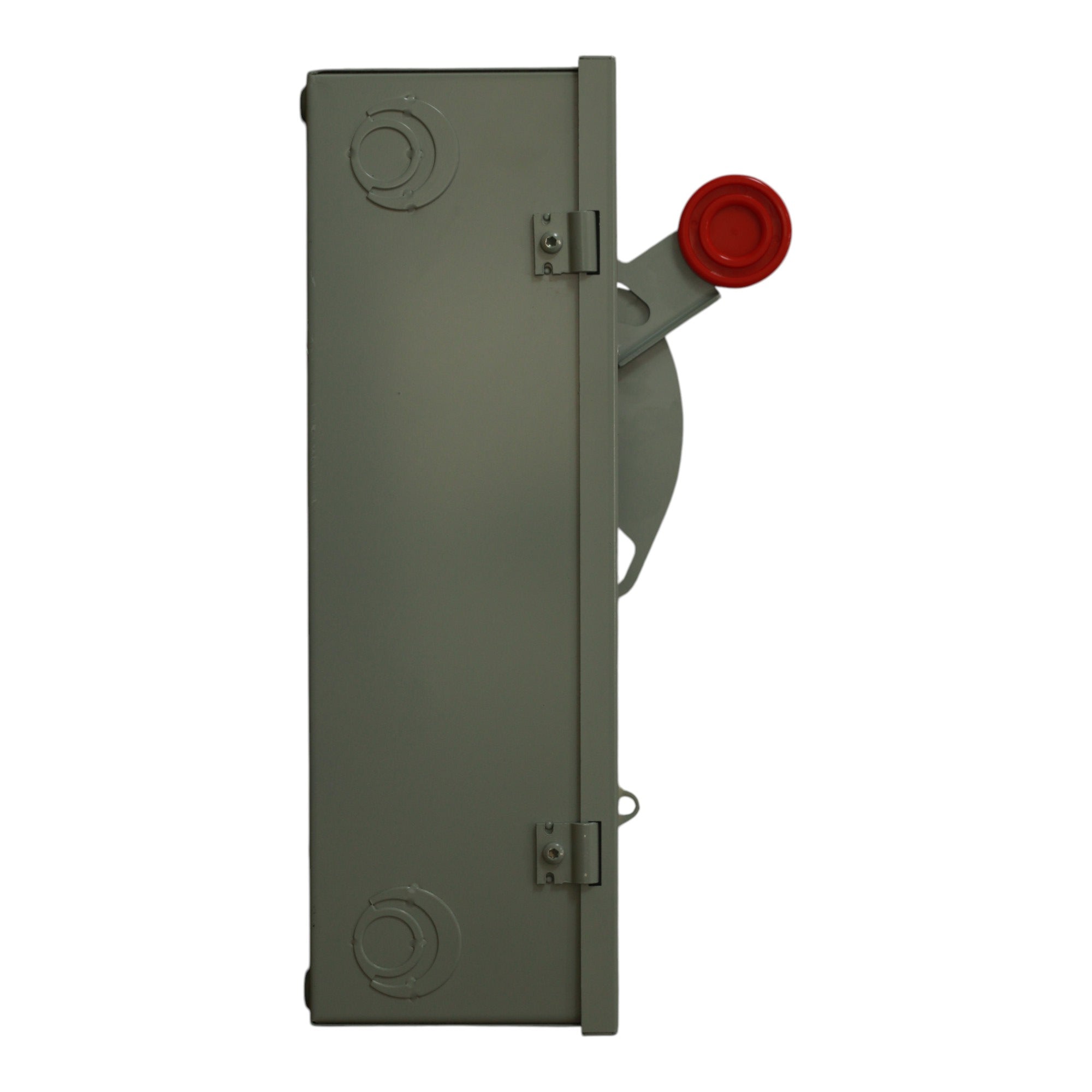

Eaton DH261UGK 30A 2P 600V Non-Fusible Heavy Duty Safety Switch NEMA 1 - Image 8

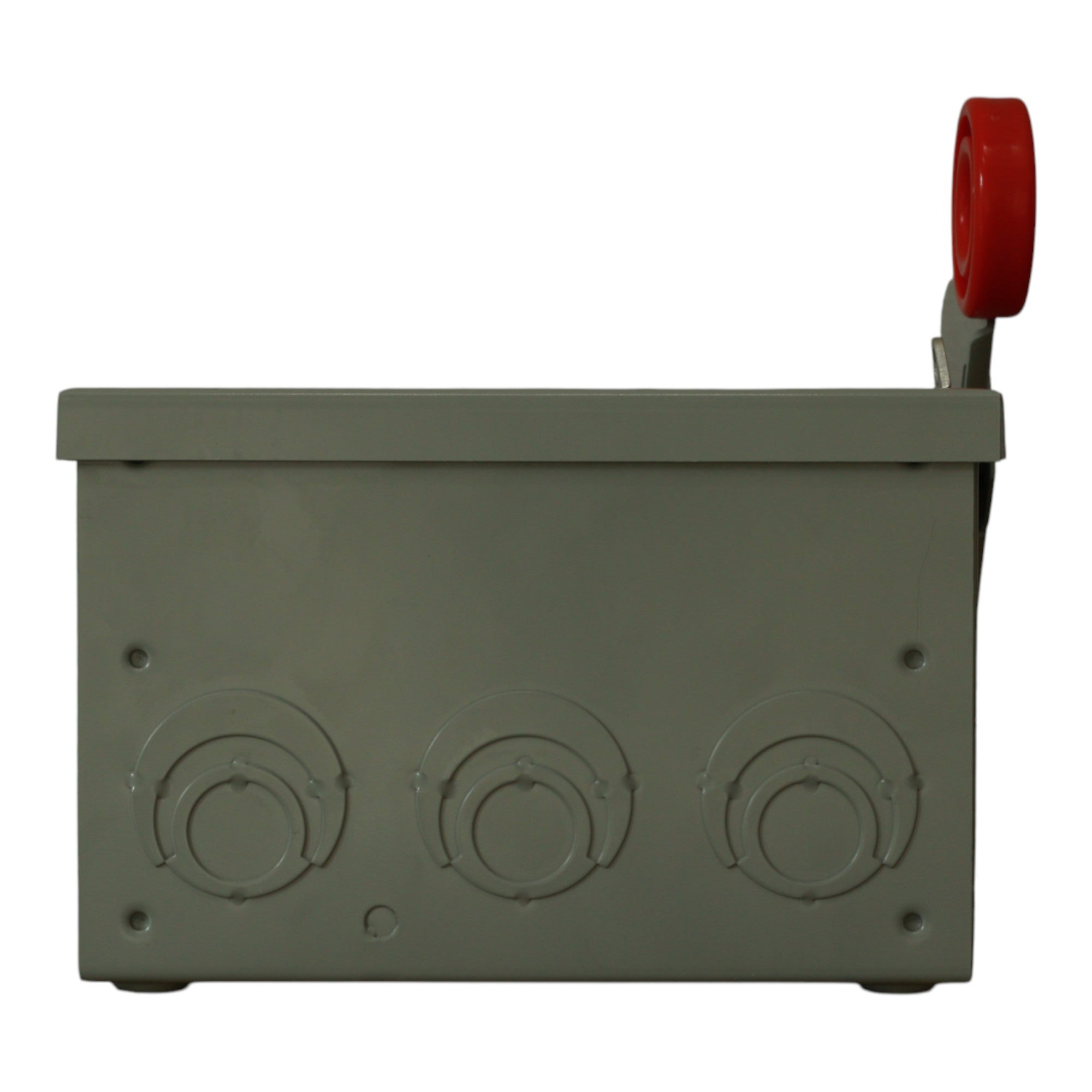

Eaton DH261UGK 30A 2P 600V Non-Fusible Heavy Duty Safety Switch NEMA 1 - Image 9

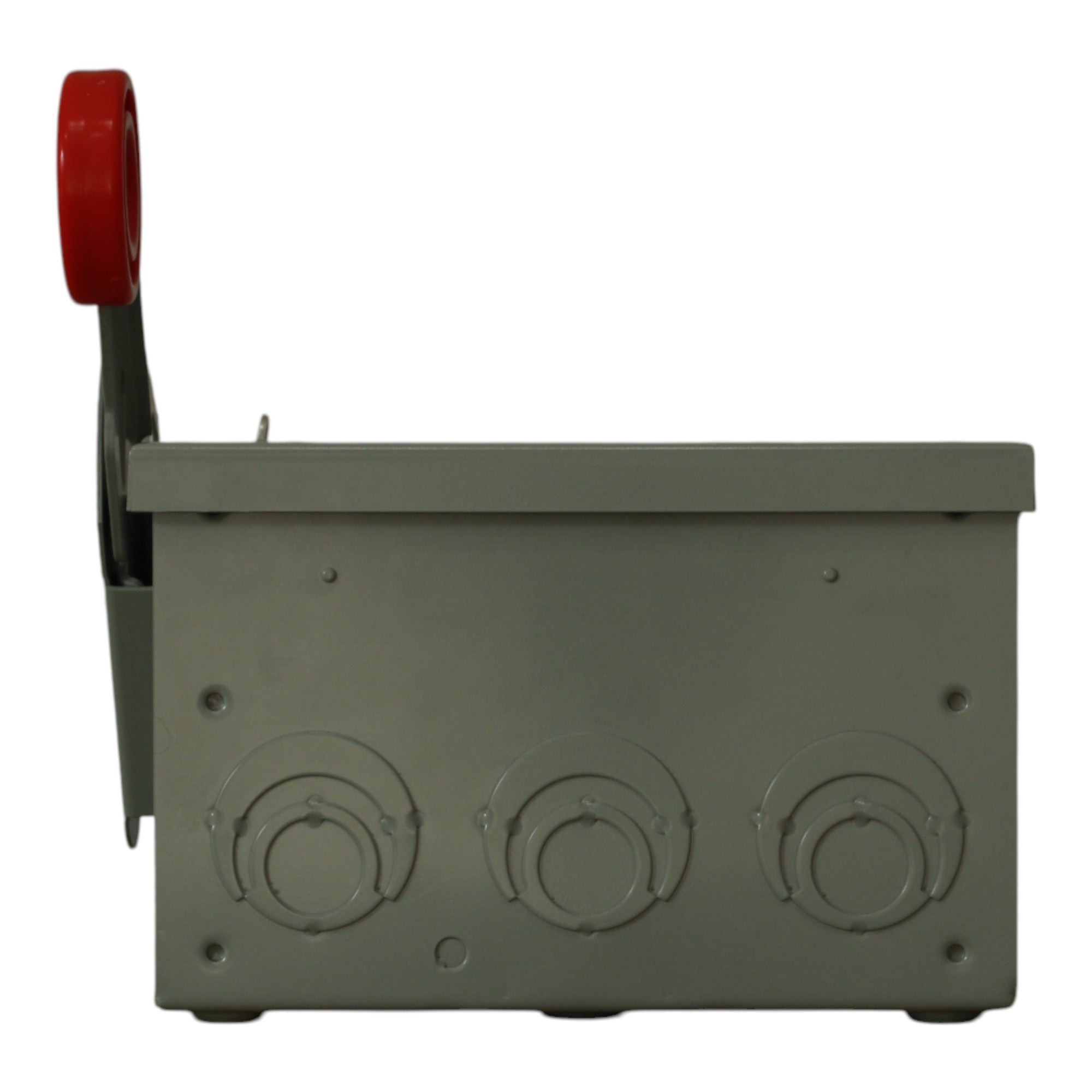

Eaton DH261UGK 30A 2P 600V Non-Fusible Heavy Duty Safety Switch NEMA 1 - Image 10

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eaton

Eaton DH261UGK 30A 2P 600V Non-Fusible Heavy Duty Safety Switch NEMA 1

Out of stock
SKU: DH261UGK UPC: 782113205739
(0)
$34.50
-1% $35.00 $34.50
Out of stock
Condition

DH261UGK specifications

  • Manufacturer: Eaton
  • Brand: Eaton
  • Product Range: Heavy Duty Safety Switches
  • UPC: 782113205472
  • Model Number: DH261UGK
  • Product Type: Heavy Duty Non-Fusible Safety Switch
  • Amperage: 30 Amps
  • Poles: 2-Pole
  • Voltage: 600 Volts AC
  • Number of Wires: 2
  • HP Rating: 3 HP at 240 Vac TD 1 Ph, 7.5 HP at 480 Vac TD 1 Ph, 10 HP at 600 Vac TD 1 Ph, 15 HP at 600 Vdc
  • Fuse Configuration: Non-Fusible
  • Mounting Mode: Surface Mount
  • Enclosure: NEMA 1
  • Enclosure Material: Painted Steel
  • Dimensions: Height: 15.81 in; Width: 8.81 in; Depth: 9.89 in
  • Weight: 12 LB
  • Certifications: UL Listed, NEC 230.62 (C) Compliant Barrier

This Eaton DH261UGK non-fusible heavy duty safety switch provides reliable 30A, 2-pole disconnection for 600V circuits. Designed for service entrance use with a neutral or ground lug kit, it features a NEMA 1 painted steel enclosure for indoor applications. Ideal for branch circuit protection, motor disconnects, and lock-out, tag-out (LOTO) applications, it ensures safety and durability in commercial and industrial settings.
