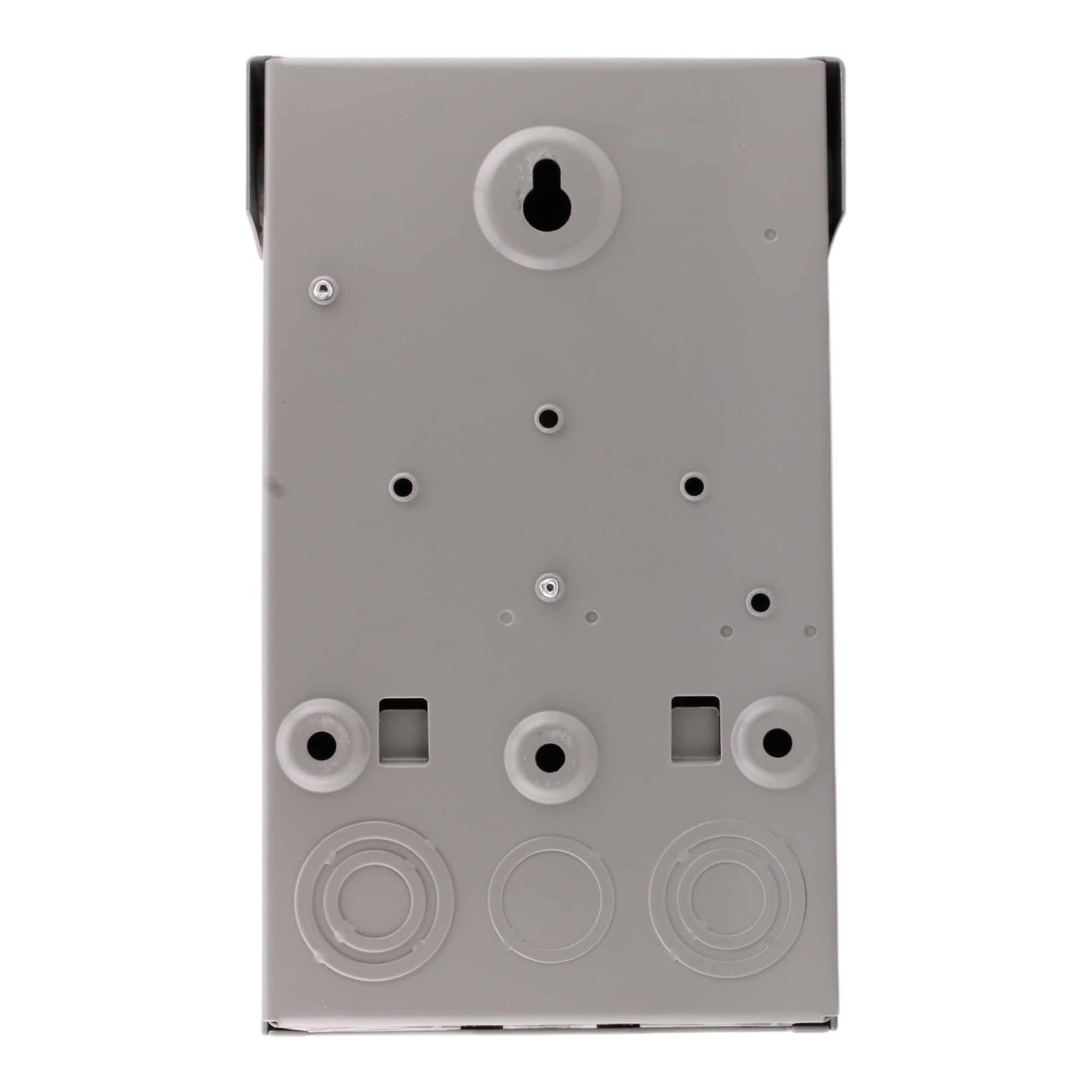

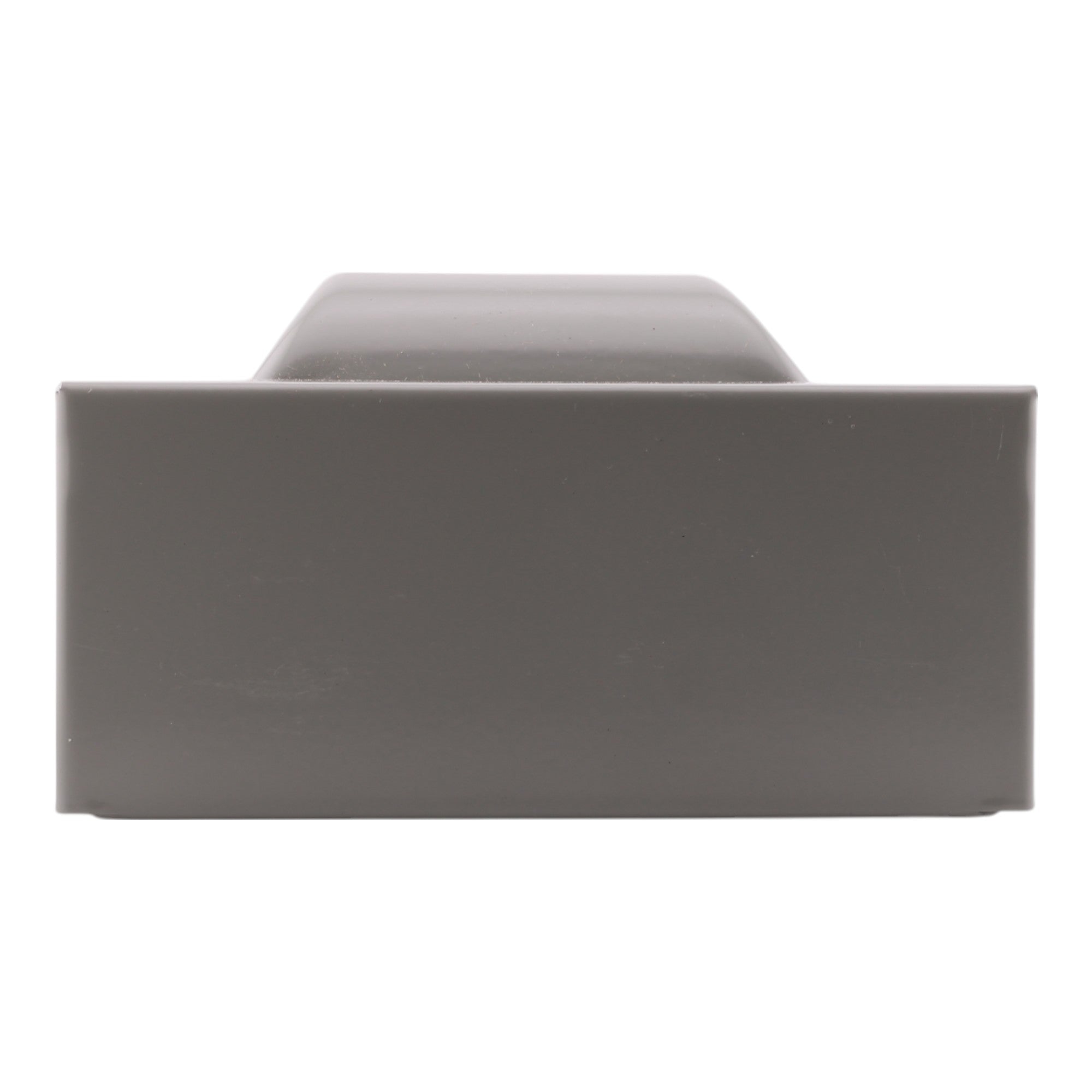

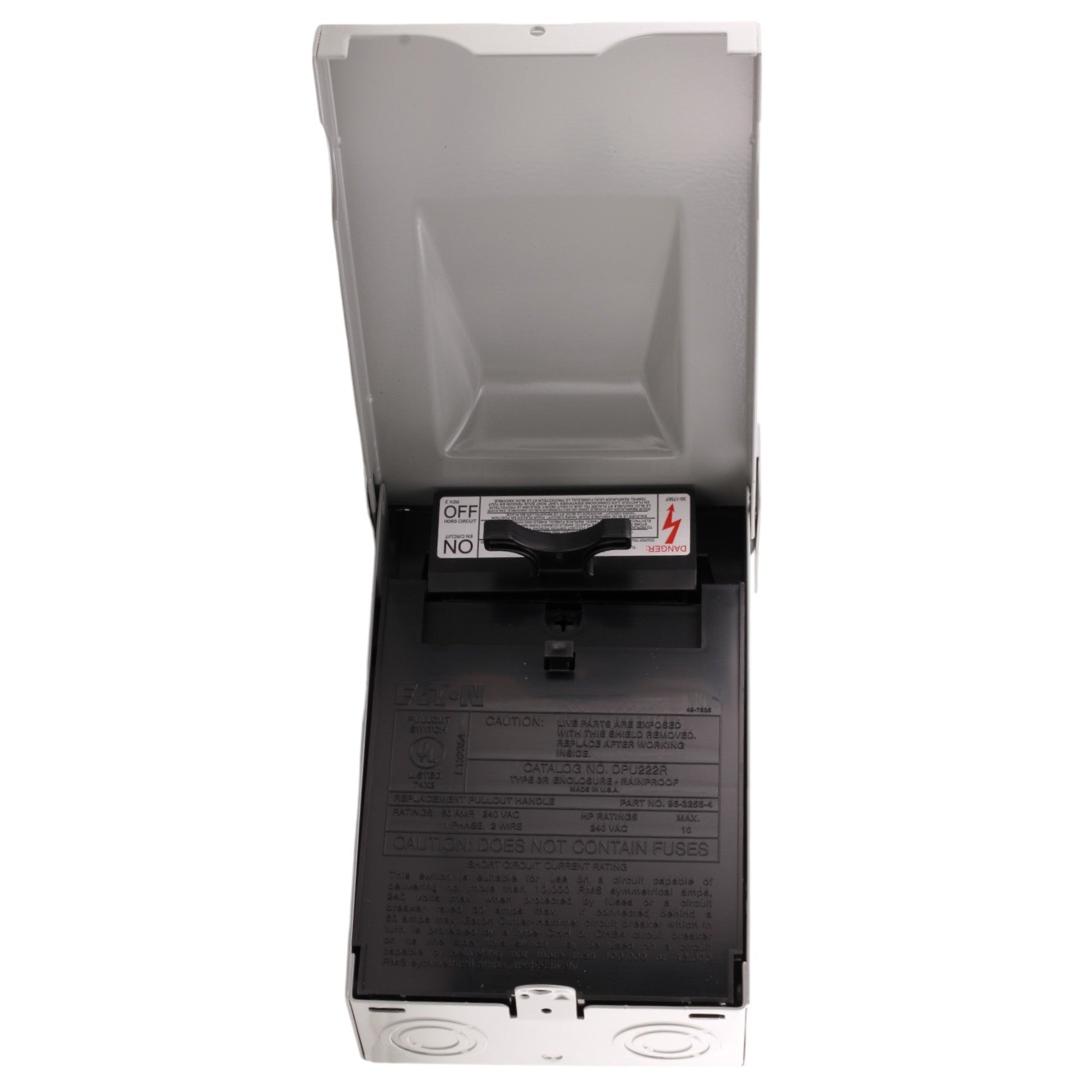

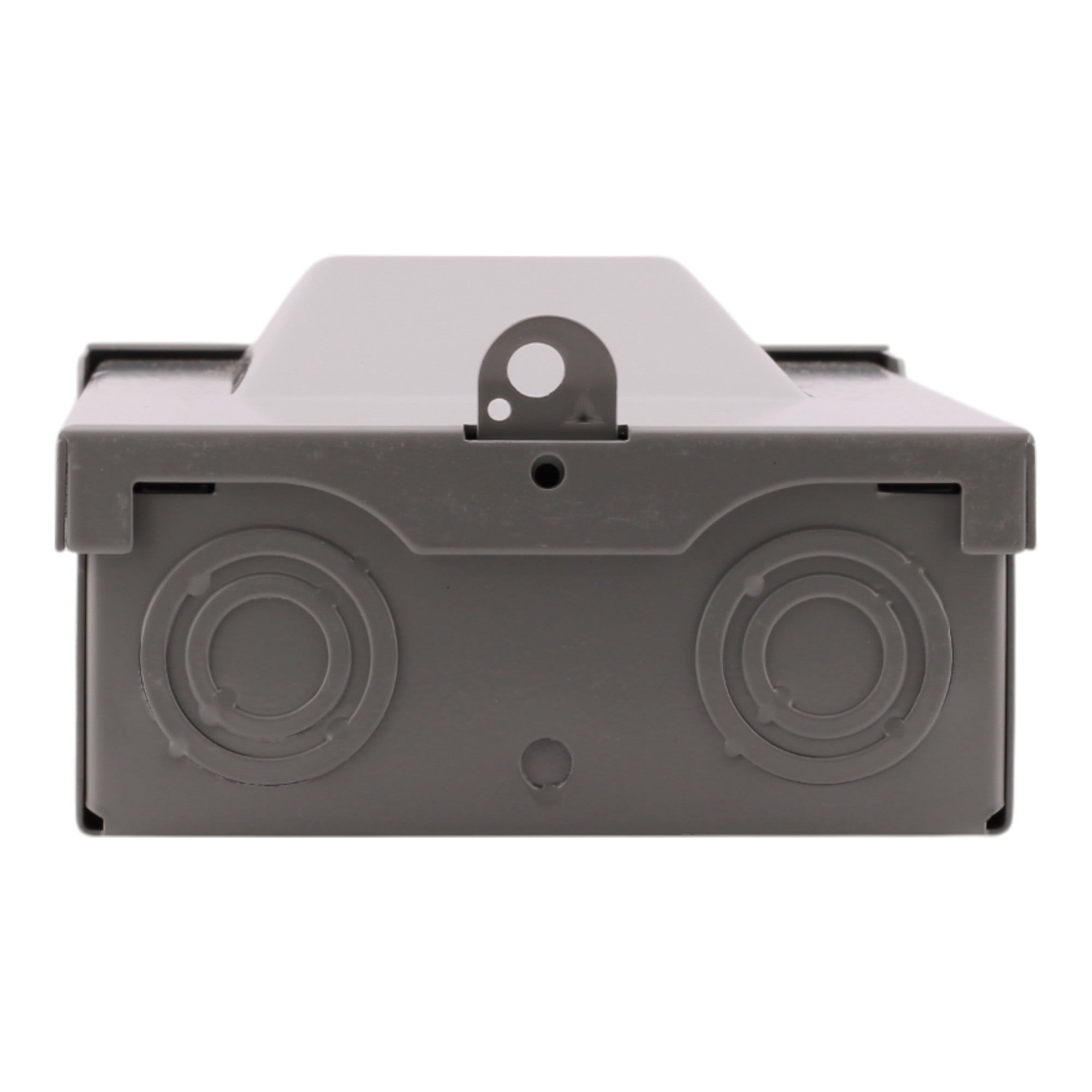

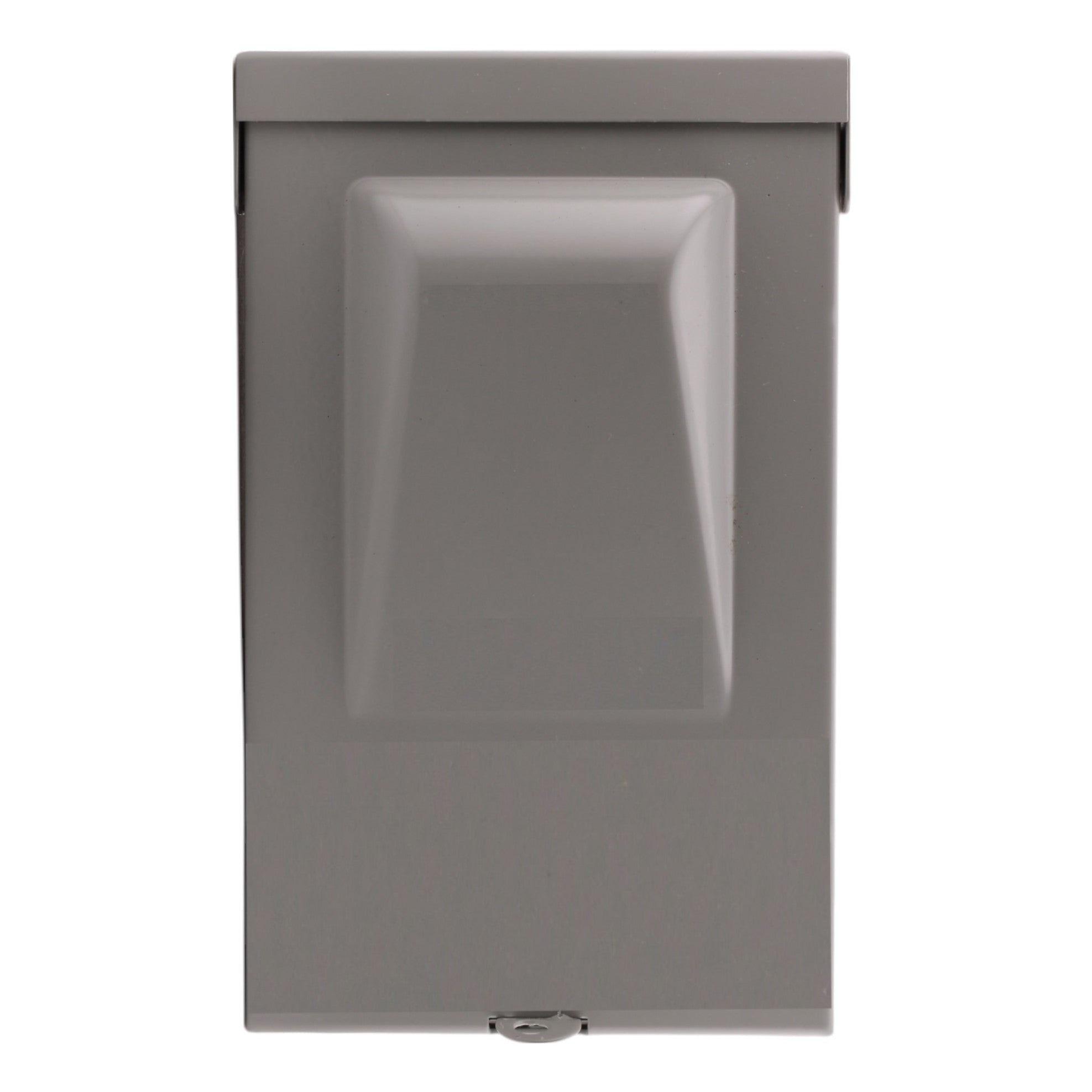

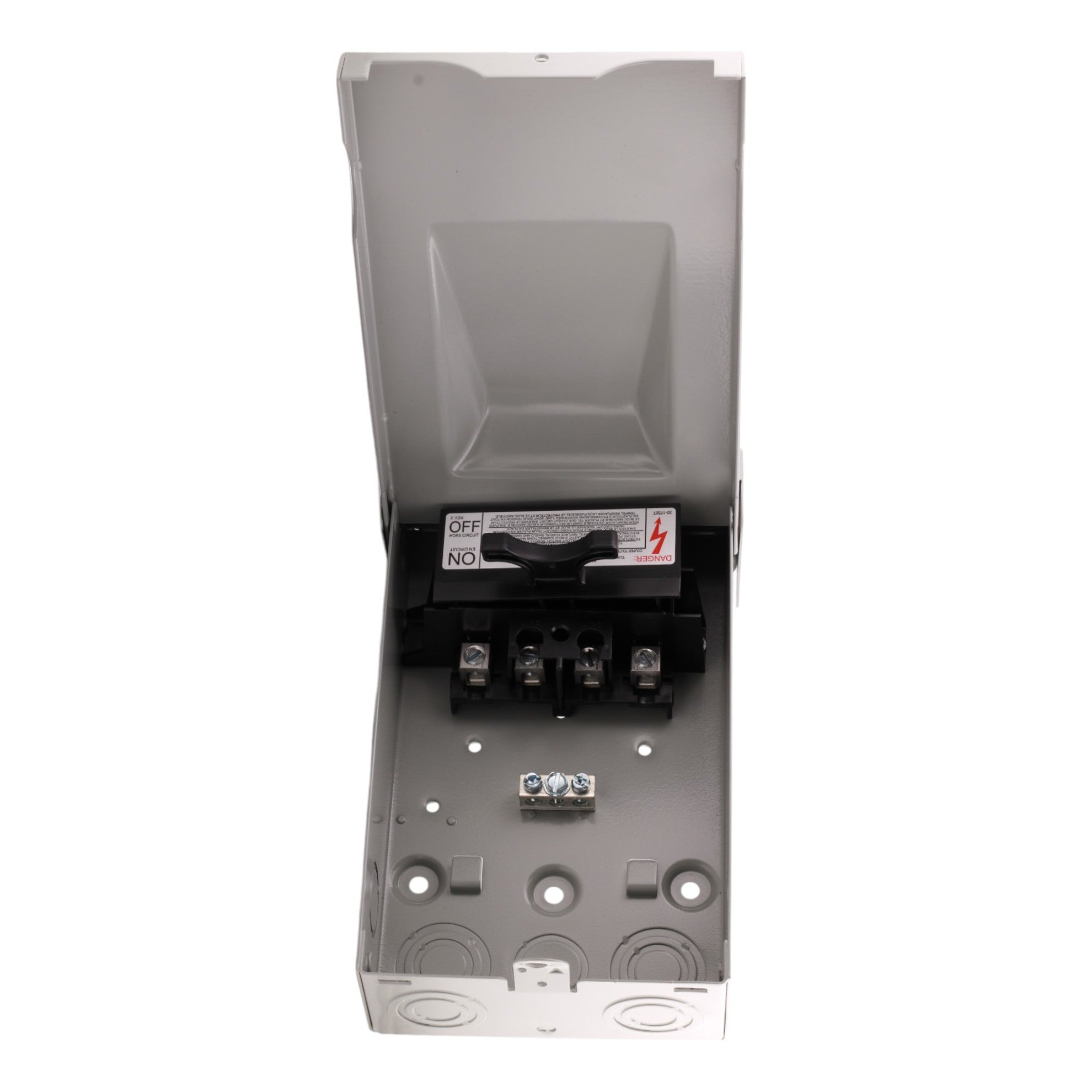

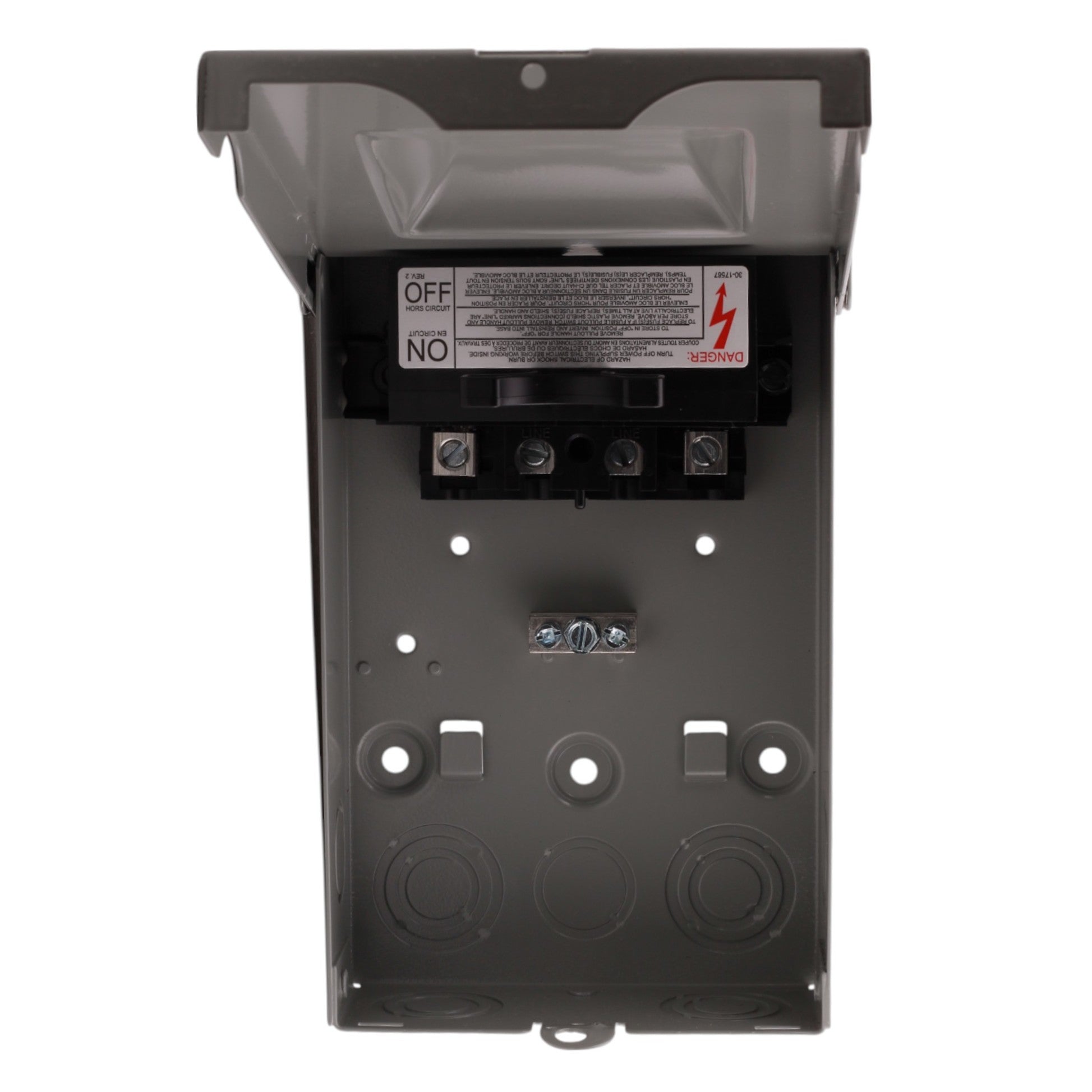

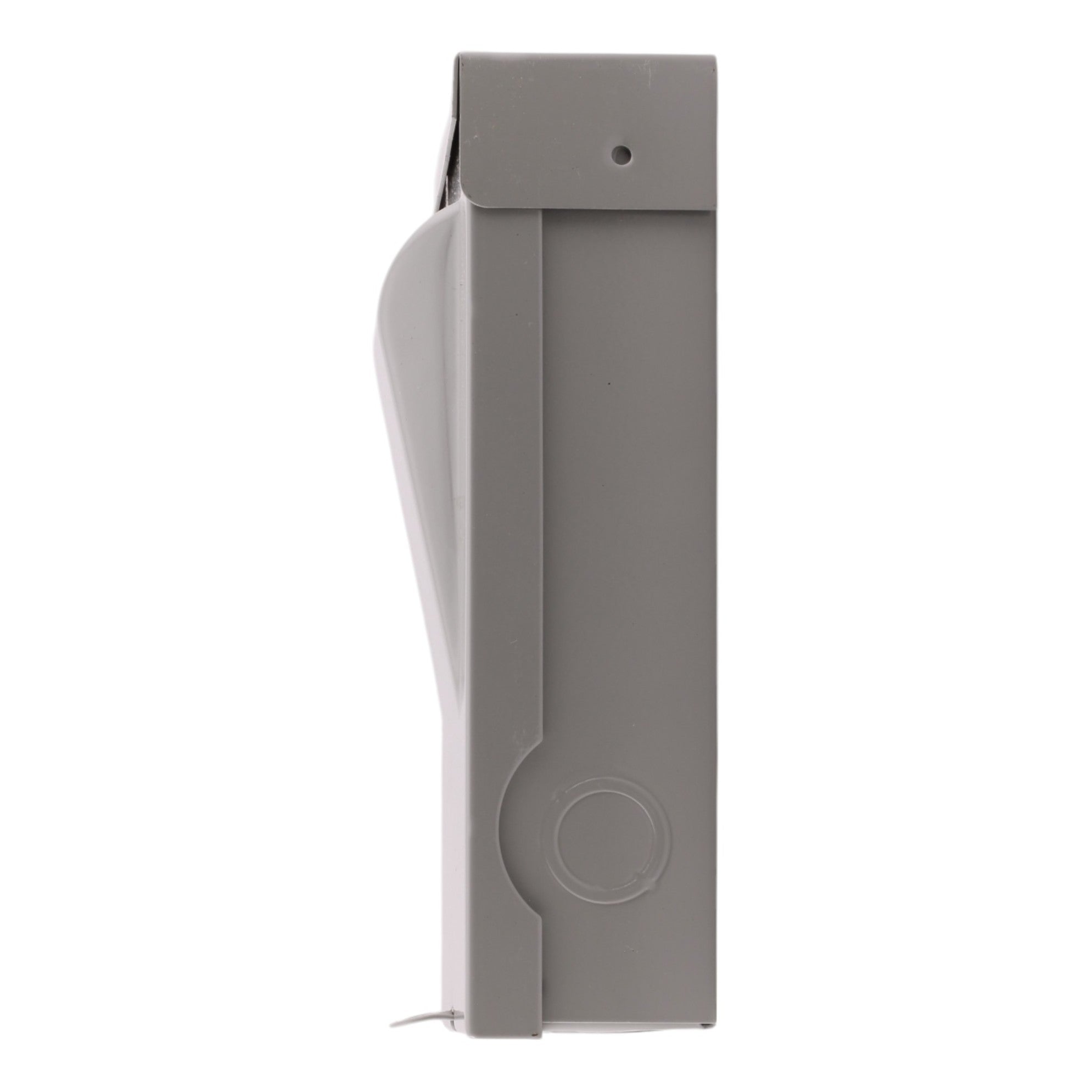

Eaton DPU222R: 60 Amp 2-Pole Non-Fused Pullout Air Conditioning Disconnect, 120/240V, 10kA, NEMA 3R Galvanized Steel Enclosure, 10 hp at 240V, UL Listed.
-
Manufacturer: Eaton
-
Brand: Eaton
-
Product Range: Air Conditioning Disconnects
-
UPC: 782113926858
-
Model Number: DPU222R
-
Product Type: Air Conditioning Disconnect
-
Type: Non-fused pullout
-
Amperage: 60 Amps
-
Poles: 2-Pole
-
Voltage: 120/240 Volts AC
-
Interrupt Rating: 10 kAIC
-
Horsepower: 10 hp at 240V
-
Mounting Mode: Surface
-
Connections Terminals: #14-3 AWG Cu/Al
-
Operating Temperature: 60°C to 75°C
-
Dimensions: Height: 2.0 in; Width: 5.5 in; Depth: 9.0 in
-
Weight: 3.0 lbs
-
Enclosure Rating: NEMA 3R
-
Enclosure Material: Galvanized Steel
-
Color: ANSI 61 Gray
-
Certifications: UL Listed, CSA Certified
This Eaton DPU222R non-fused pullout air conditioning disconnect provides reliable 60A, 2-pole disconnection for 120/240V air conditioning units, heat pumps, and other residential or light commercial applications. Housed in a durable NEMA 3R galvanized steel enclosure, it ensures weather-resistant performance and easy access for maintenance with a removable pullout handle. Ideal for safe and efficient power management in outdoor installations.
