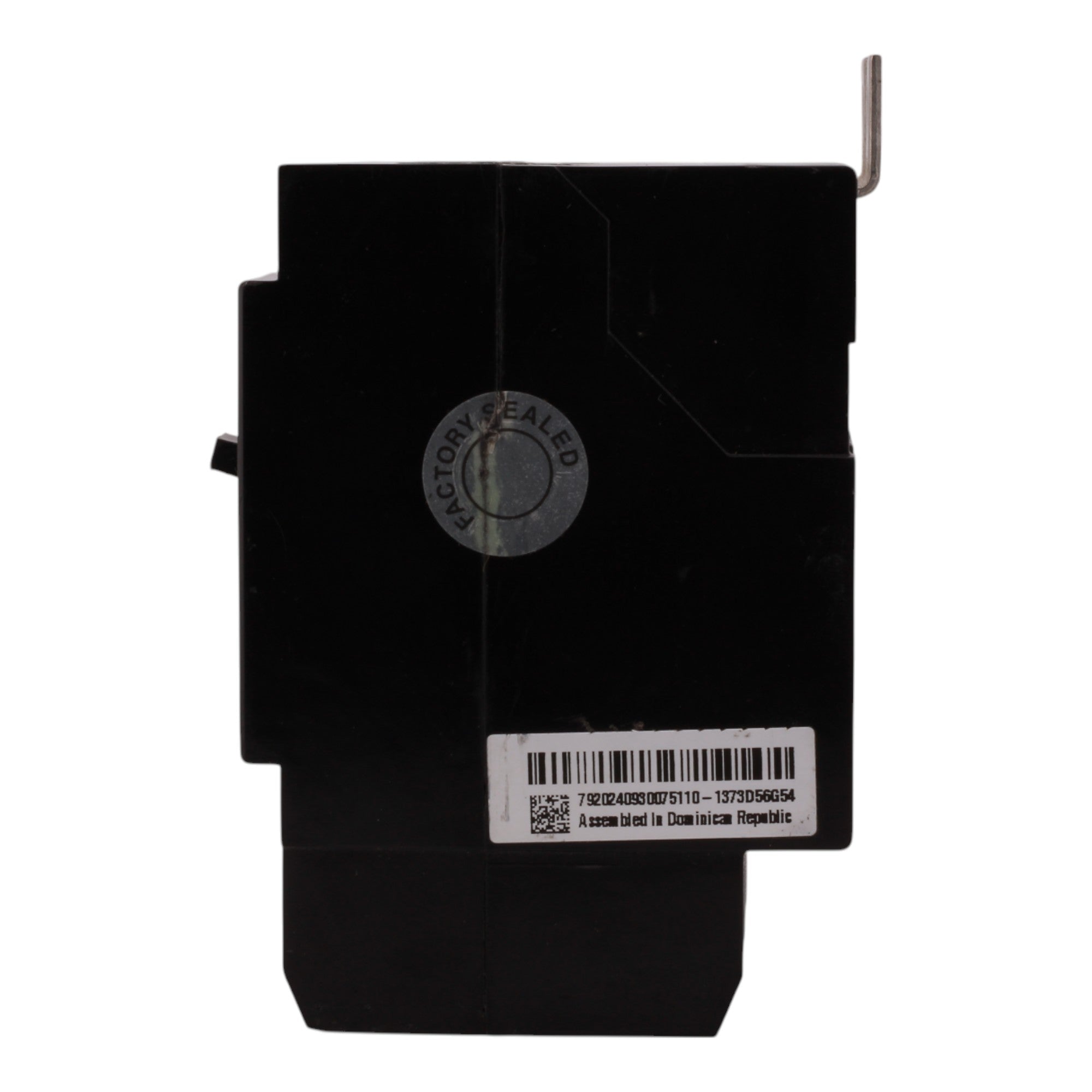

Eaton GHB2020 20A 2P 480V G-Frame Molded Case Circuit Breaker - Image 5
Eaton GHB2020 20A 2P 480V G-Frame Molded Case Circuit Breaker - Image 6
Eaton GHB2020 20A 2P 480V G-Frame Molded Case Circuit Breaker - Image 7
Eaton GHB2020 20A 2P 480V G-Frame Molded Case Circuit Breaker - Image 8

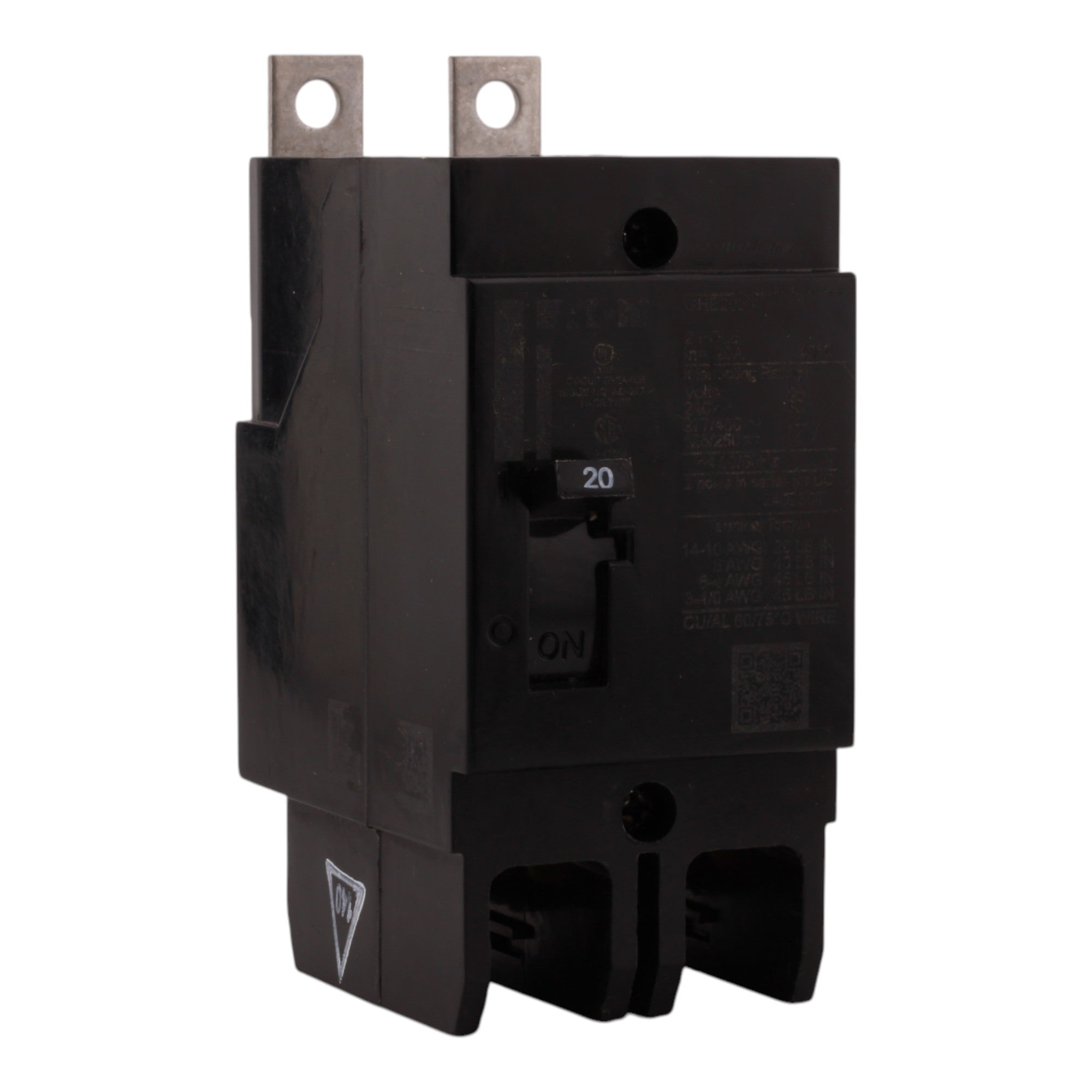

Eaton GHB2020 20A 2P 480V G-Frame Molded Case Circuit Breaker

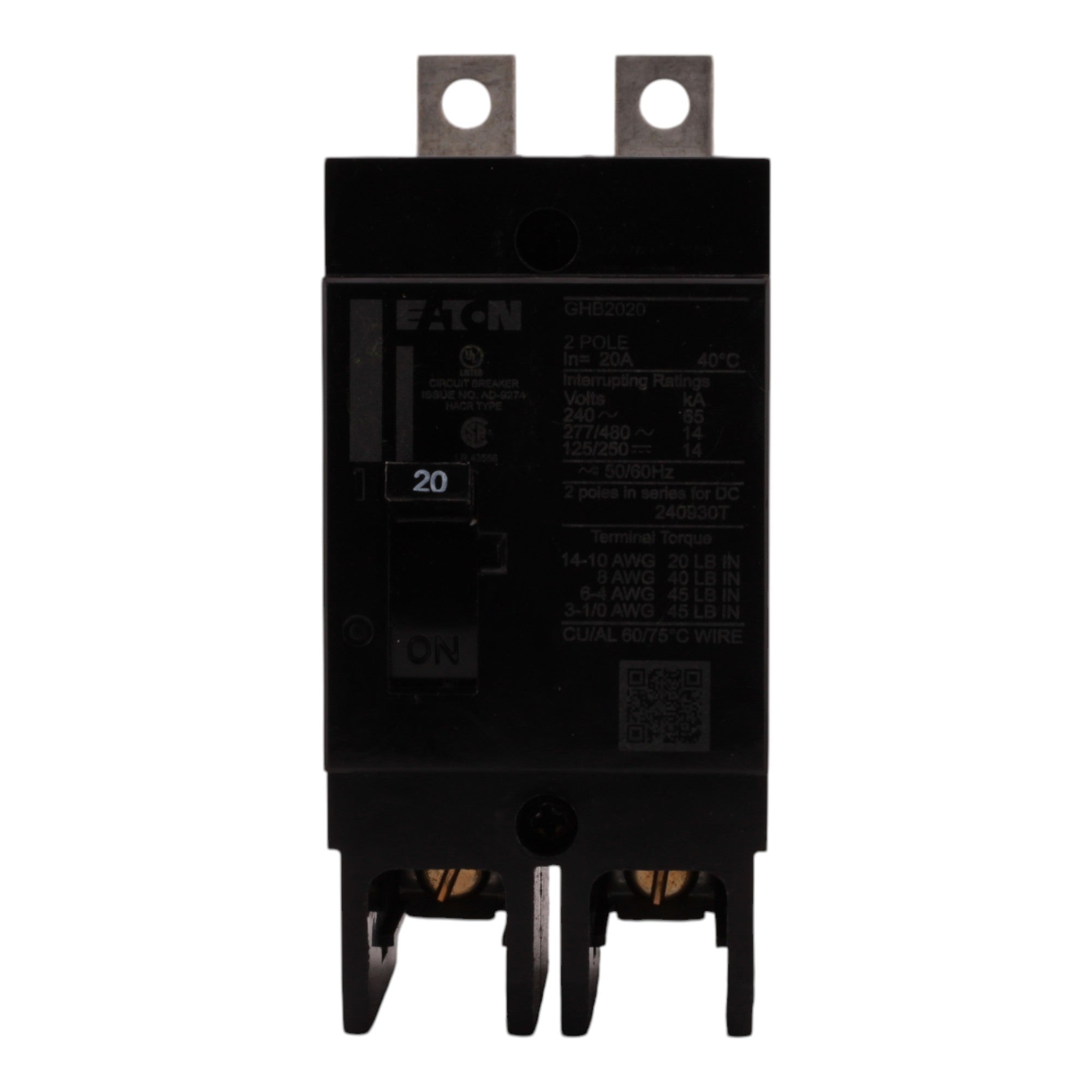

Eaton GHB2020 20A 2P 480V G-Frame Molded Case Circuit Breaker - Image 2

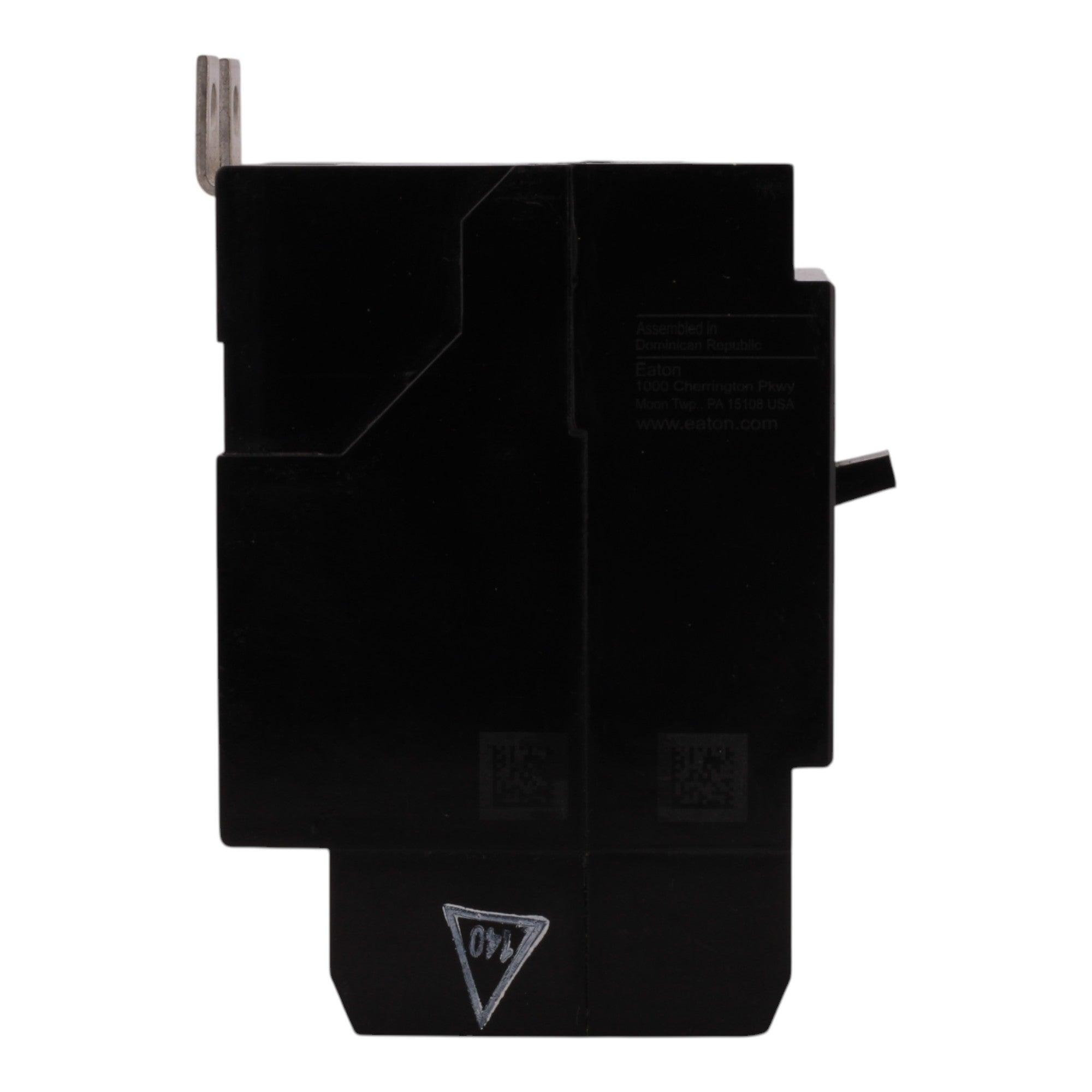

Eaton GHB2020 20A 2P 480V G-Frame Molded Case Circuit Breaker - Image 3

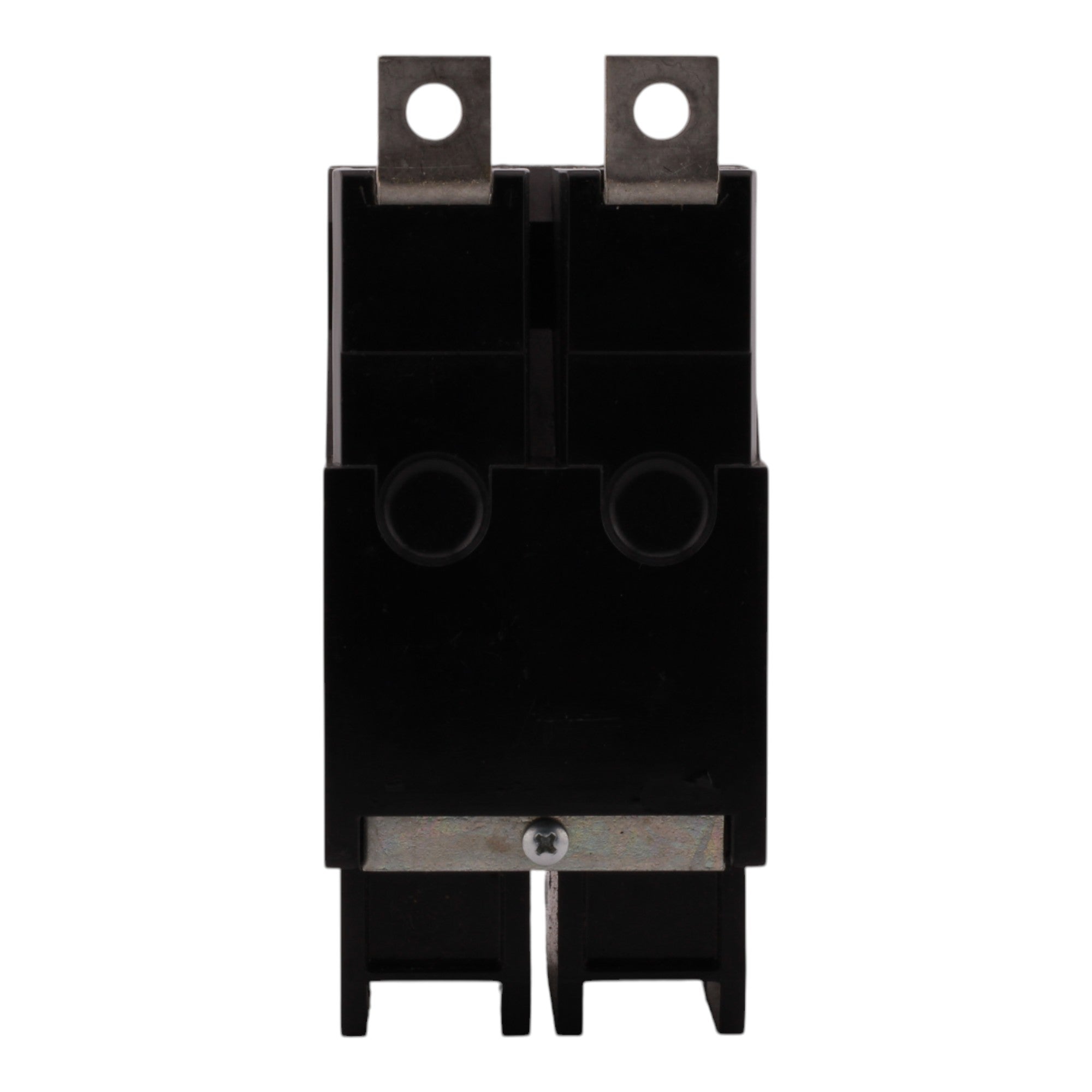

Eaton GHB2020 20A 2P 480V G-Frame Molded Case Circuit Breaker - Image 4
Eaton GHB2020 20A 2P 480V G-Frame Molded Case Circuit Breaker - Image 5

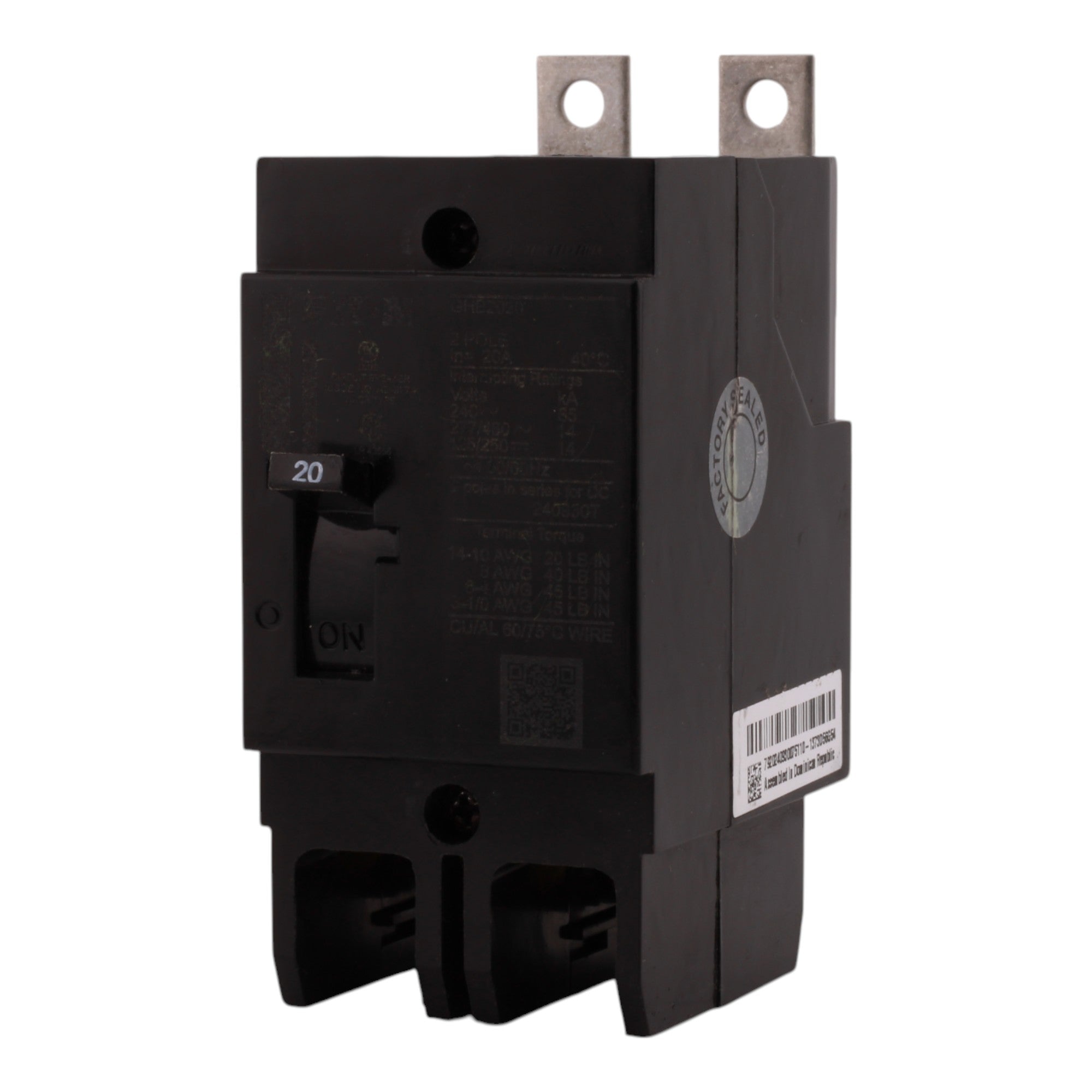

Eaton GHB2020 20A 2P 480V G-Frame Molded Case Circuit Breaker - Image 6

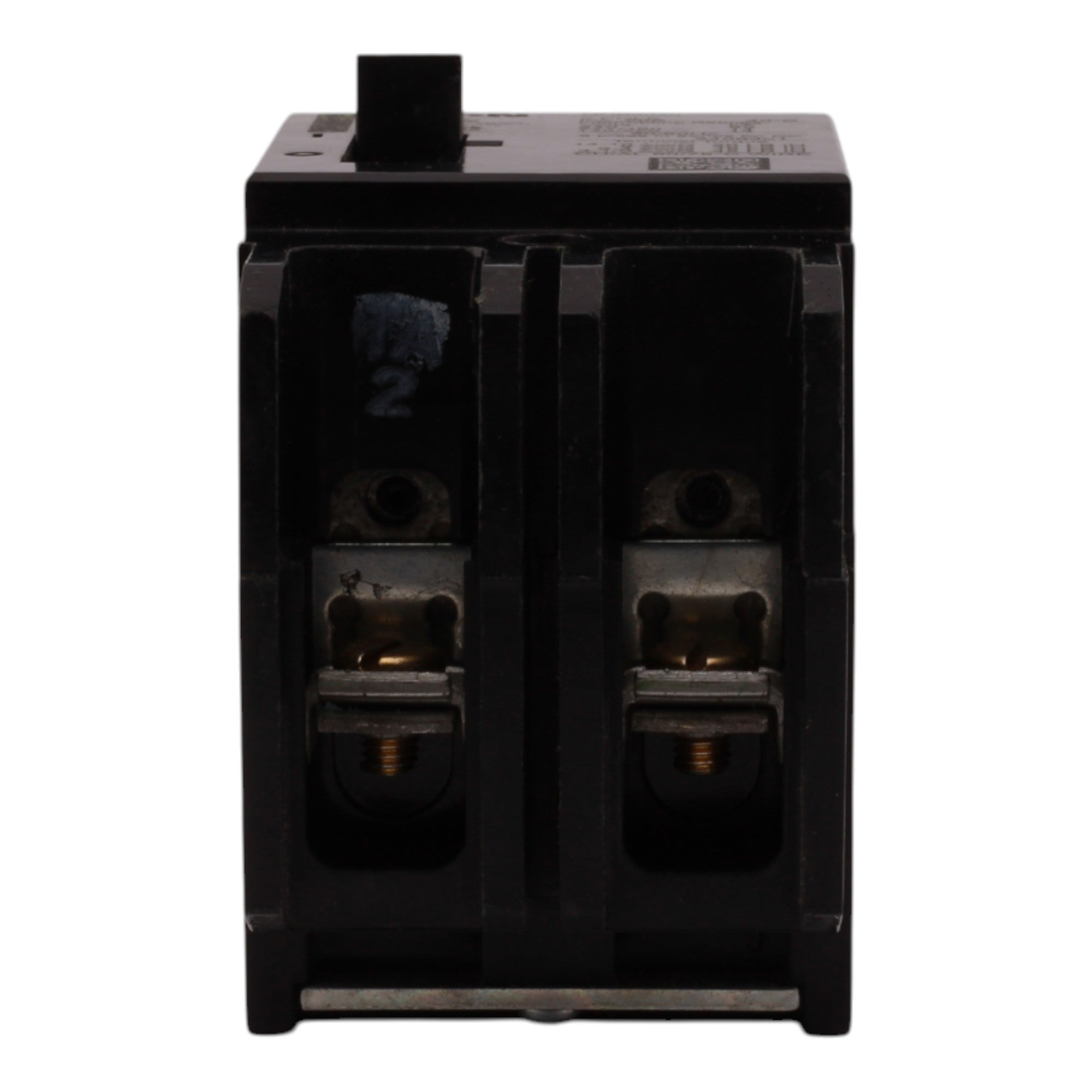

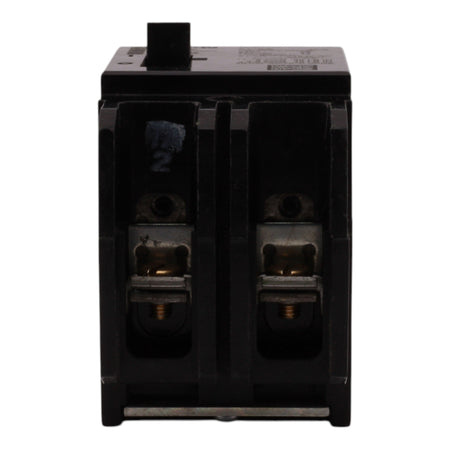

Eaton GHB2020 20A 2P 480V G-Frame Molded Case Circuit Breaker - Image 7

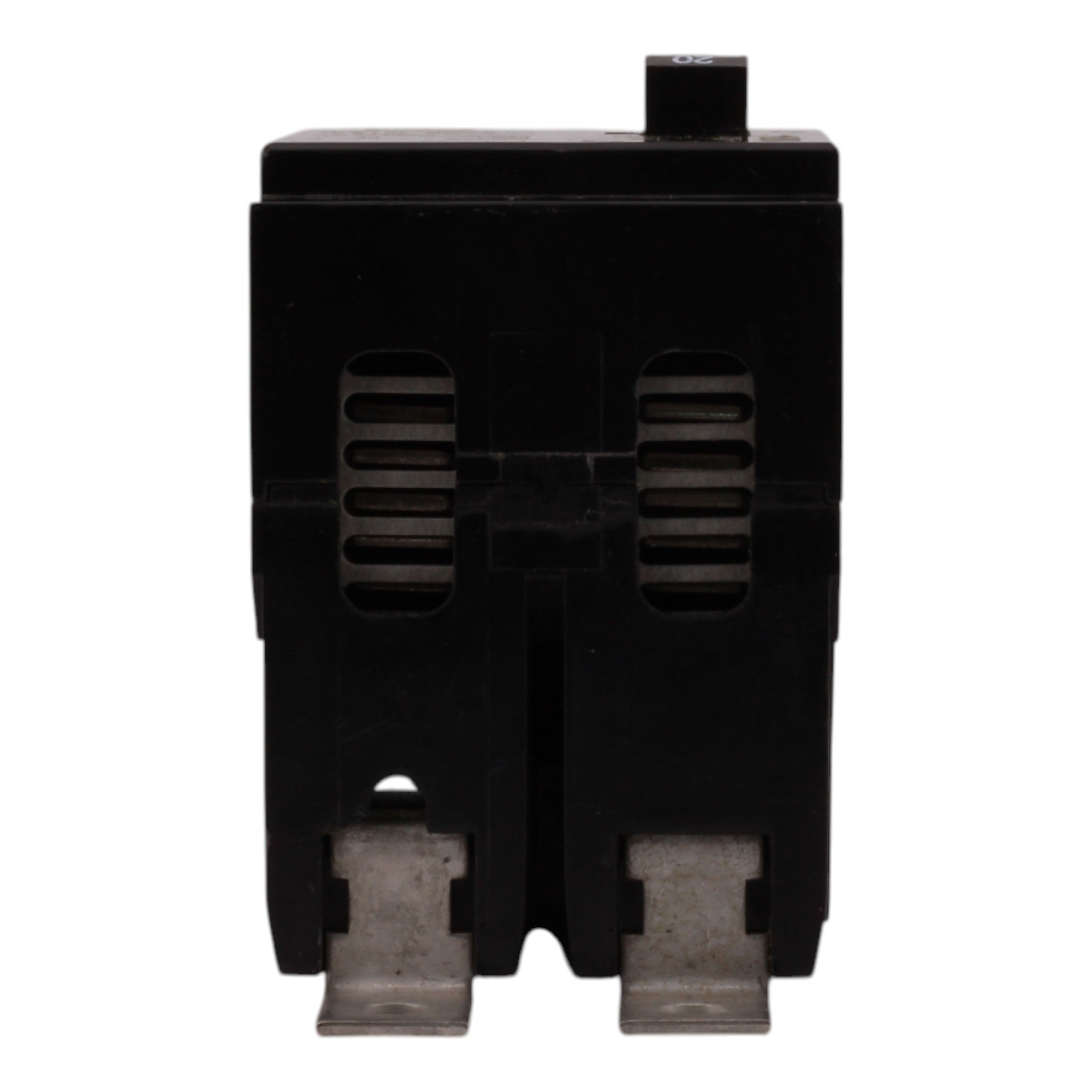

Eaton GHB2020 20A 2P 480V G-Frame Molded Case Circuit Breaker - Image 8

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eaton

Eaton GHB2020 20A 2P 480V G-Frame Molded Case Circuit Breaker

SKU: GHB2020
(0)
$119.00
-26% $160.00 $119.00
Out of stock
Condition

Eaton GHB2020: 20 Amp Two-Pole Molded Case Circuit Breaker, G-Frame, 480Y/277V, 65kAIC, Fixed Thermal/Magnetic Trip

Product Specifications

  • Manufacturer: Eaton
  • Model Number: GHB2020
  • UPC: 786679911204
  • Product Type: Series C Molded Case Circuit Breaker
  • Circuit Breaker Frame: G-Frame
  • Breaker Type: GHB Complete Breaker
  • Amperage Rating: 20 Amps
  • Poles: Two-Pole
  • Voltage Rating:
    • 480Y/277V AC
    • 125/250V DC
  • Frequency: 50/60 Hz
  • Interrupt Rating:
    • 65 kAIC at 240V AC
    • 14 kAIC at 480Y/277V AC
  • Trip Type: Fixed Thermal, Fixed Magnetic (T186)
  • Dimensions:
    • Length/Depth: 2.63 in
    • Height: 4 in
    • Width: 2 in
  • Weight: 0.95 lb
  • Certifications:
    • UL Listed
    • Federal Specifications Classification W-C375B
