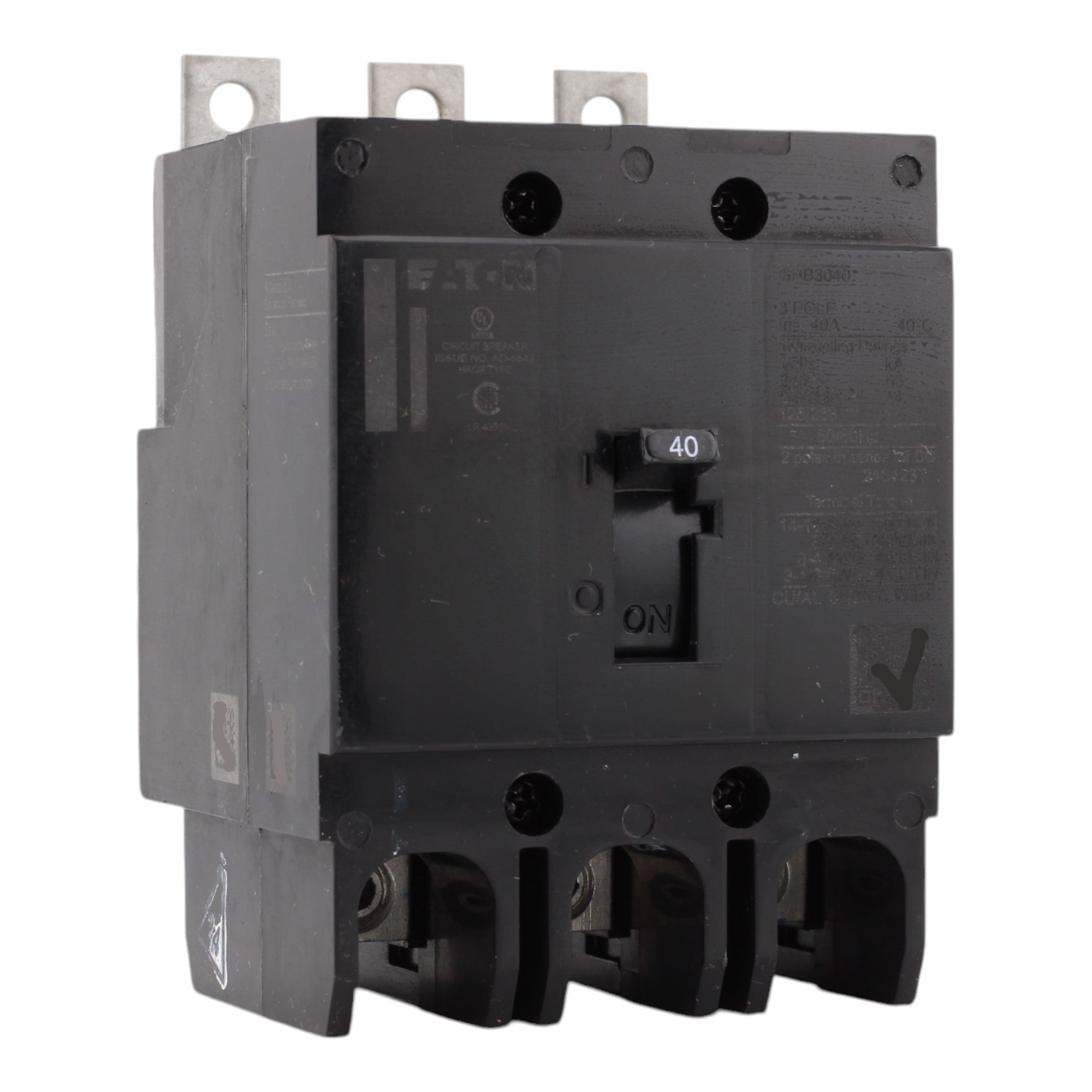

Eaton GHB3040 40A 480Y/277V 3P Molded Case Circuit Breaker, Fixed Thermal Magnetic

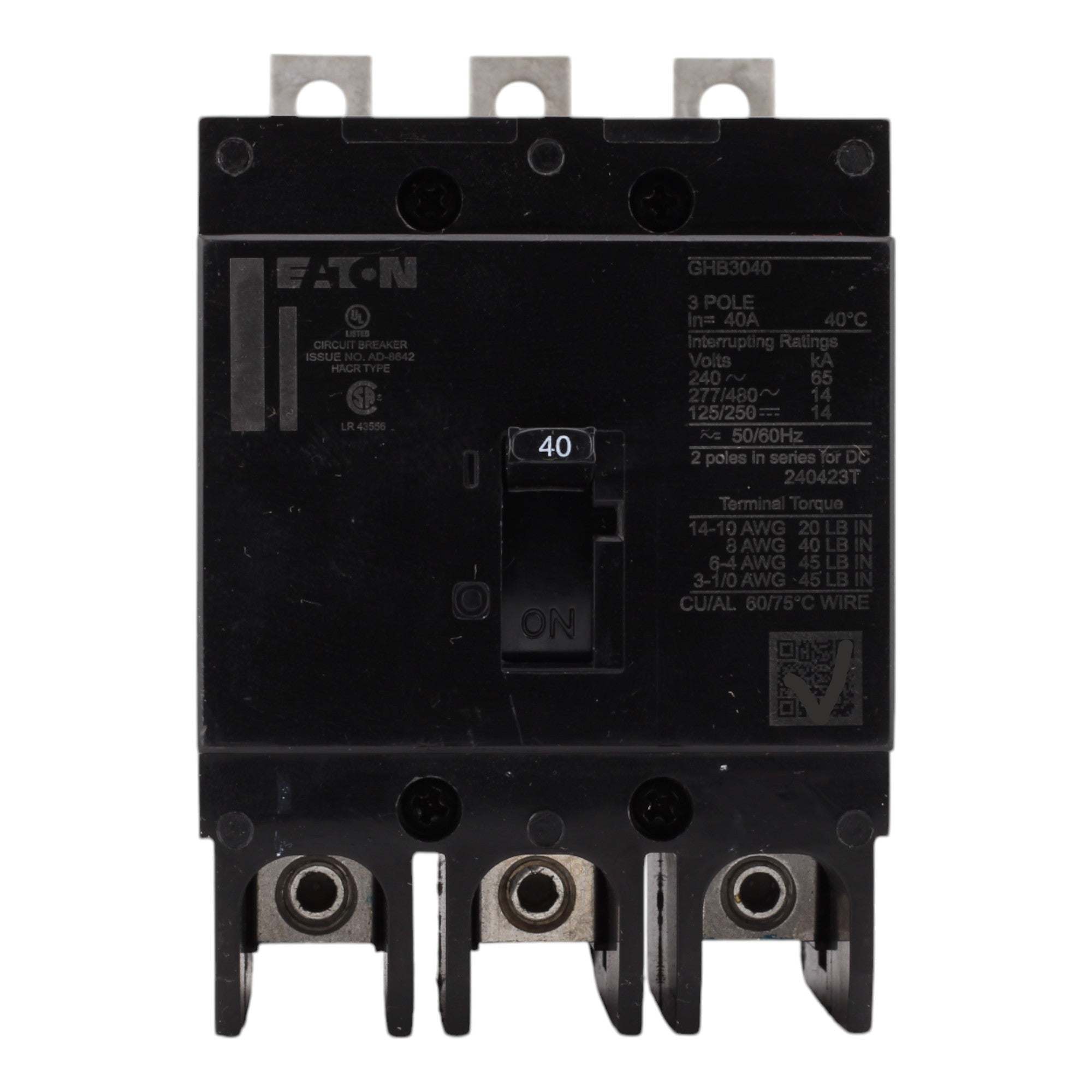

Eaton GHB3040 40A 480Y/277V 3P Molded Case Circuit Breaker, Fixed Thermal Magnetic - Image 2

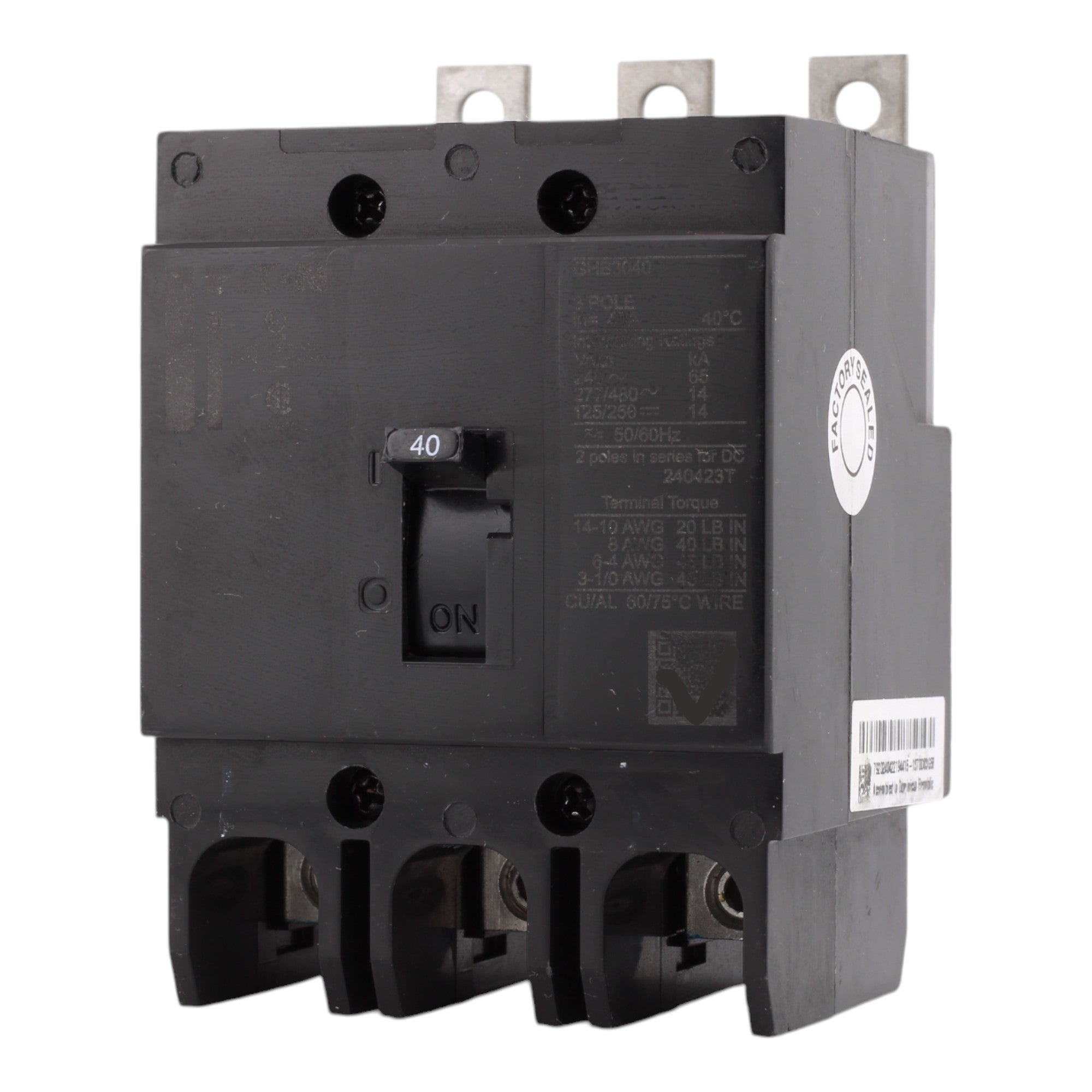

Eaton GHB3040 40A 480Y/277V 3P Molded Case Circuit Breaker, Fixed Thermal Magnetic - Image 3

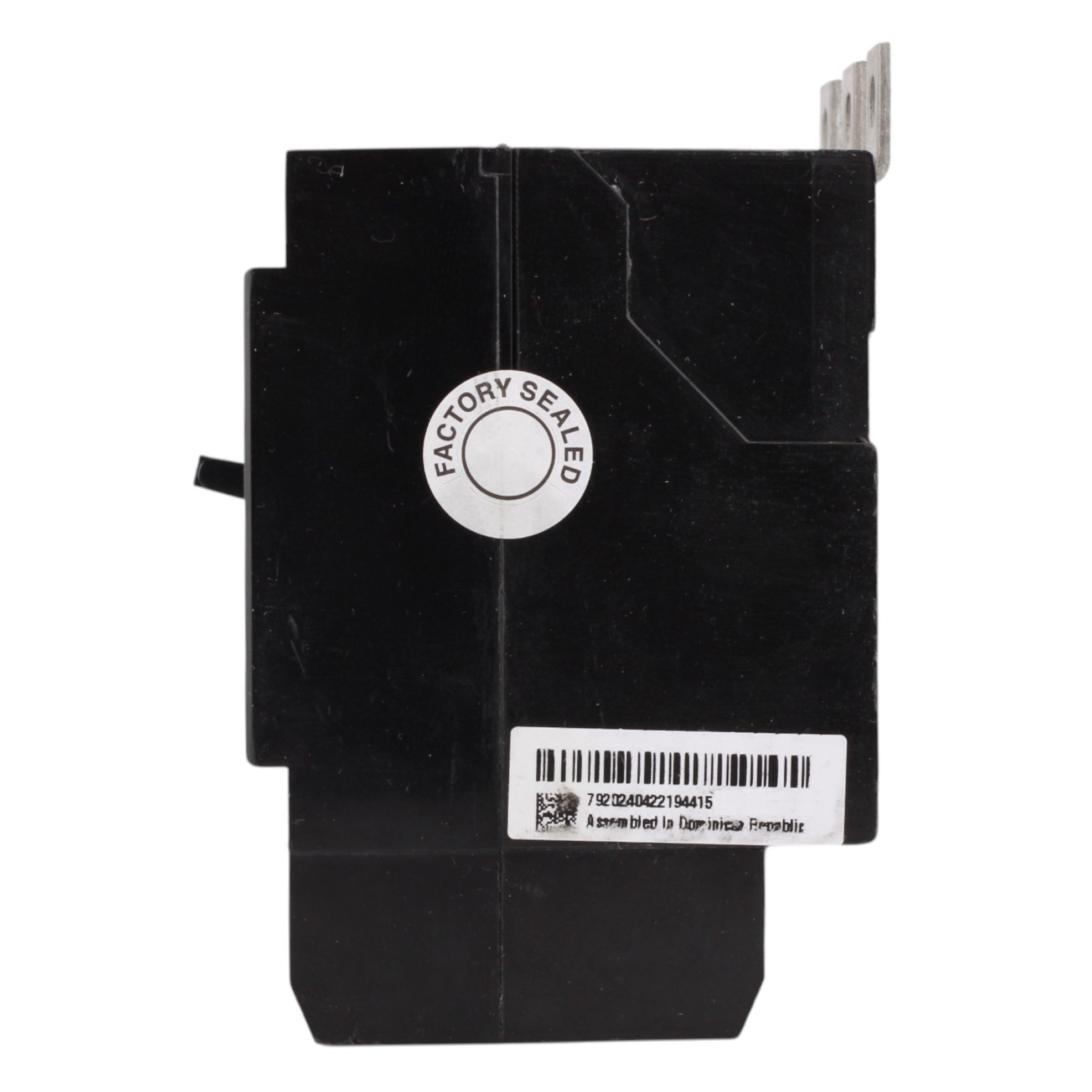

Eaton GHB3040 40A 480Y/277V 3P Molded Case Circuit Breaker, Fixed Thermal Magnetic - Image 4

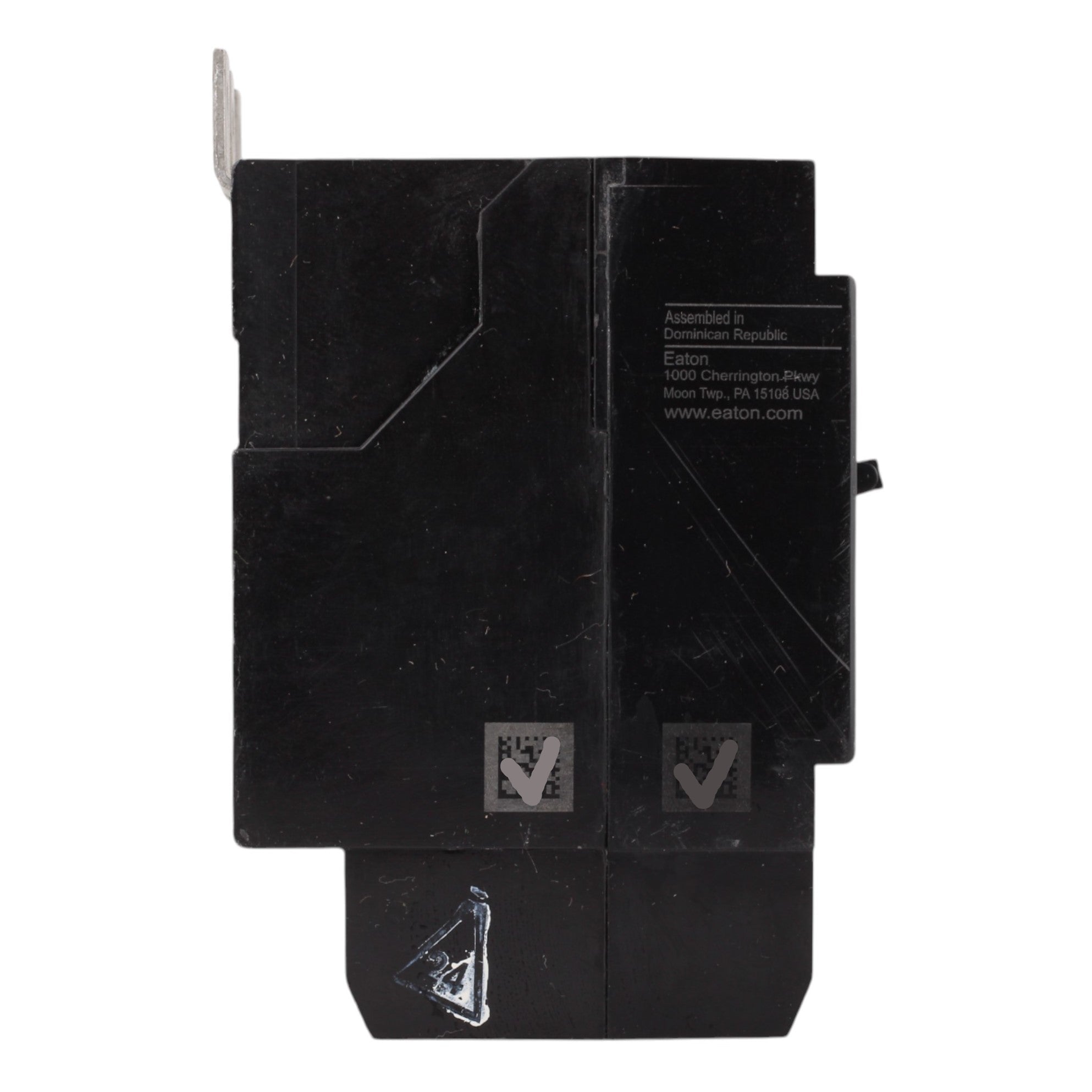

Eaton GHB3040 40A 480Y/277V 3P Molded Case Circuit Breaker, Fixed Thermal Magnetic - Image 5

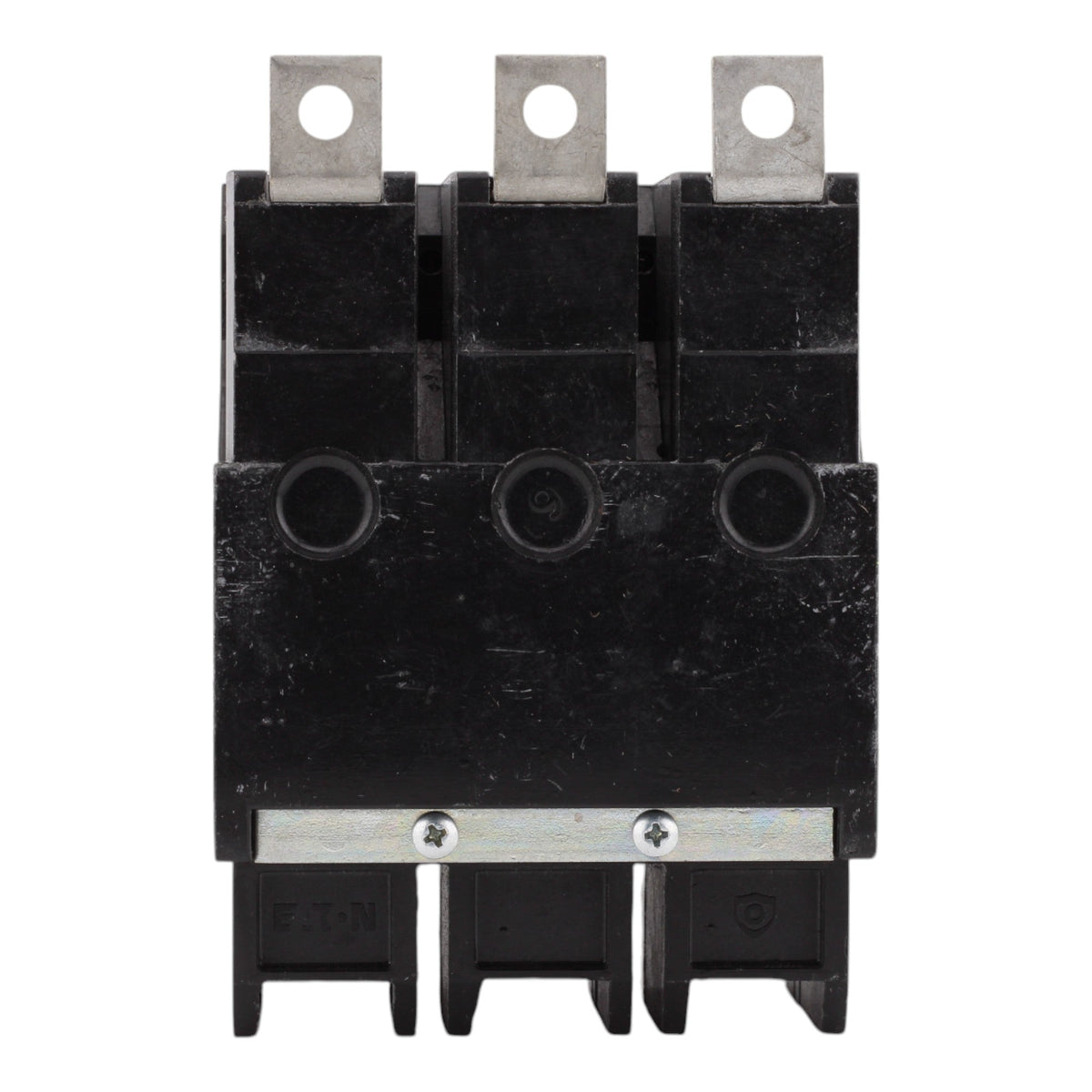

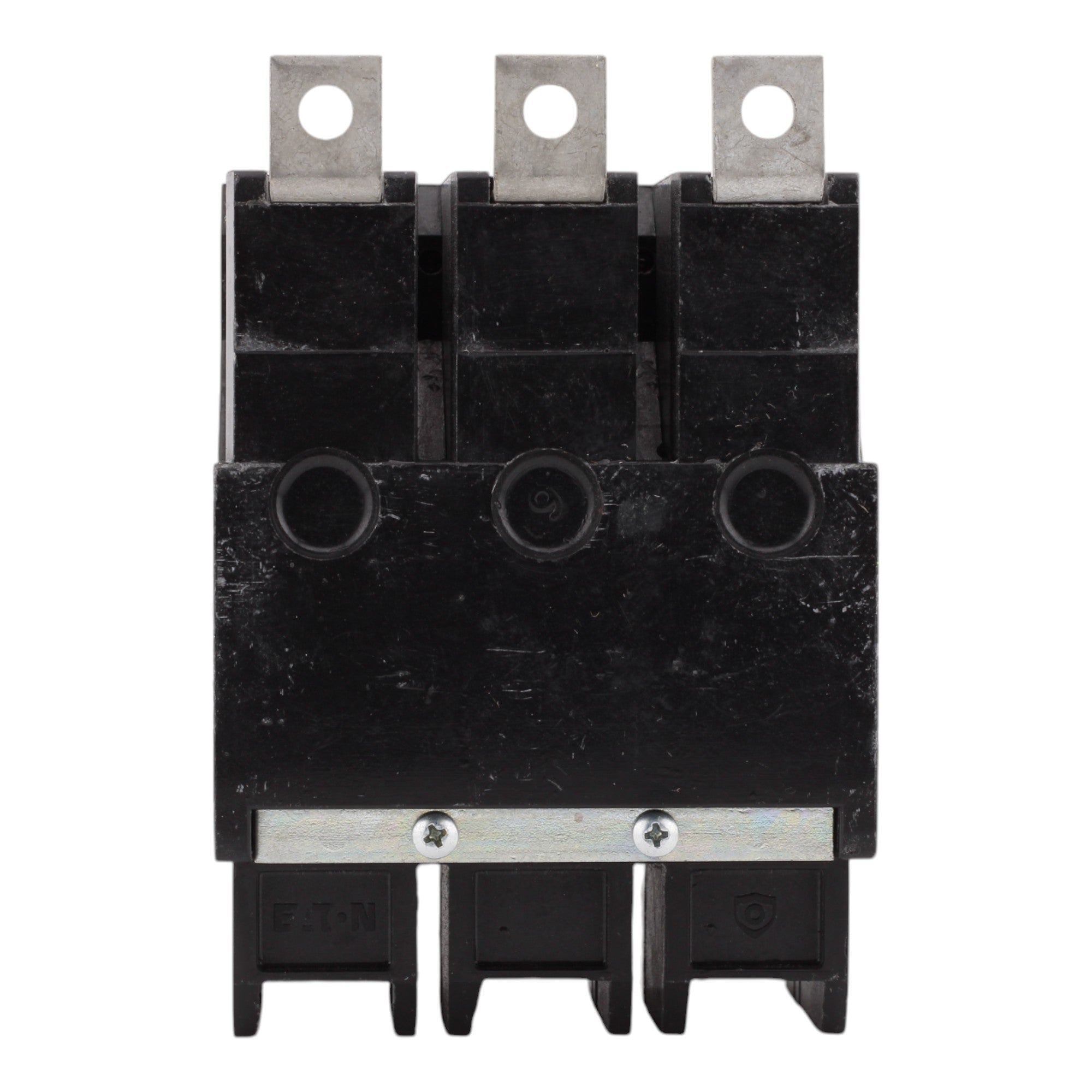

Eaton GHB3040 40A 480Y/277V 3P Molded Case Circuit Breaker, Fixed Thermal Magnetic - Image 6
Eaton GHB3040 40A 480Y/277V 3P Molded Case Circuit Breaker, Fixed Thermal Magnetic
Eaton GHB3040 40A 480Y/277V 3P Molded Case Circuit Breaker, Fixed Thermal Magnetic - Image 2
Eaton GHB3040 40A 480Y/277V 3P Molded Case Circuit Breaker, Fixed Thermal Magnetic - Image 3
Eaton GHB3040 40A 480Y/277V 3P Molded Case Circuit Breaker, Fixed Thermal Magnetic - Image 4
Eaton GHB3040 40A 480Y/277V 3P Molded Case Circuit Breaker, Fixed Thermal Magnetic - Image 5
Eaton GHB3040 40A 480Y/277V 3P Molded Case Circuit Breaker, Fixed Thermal Magnetic - Image 6

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eaton

Eaton GHB3040 40A 480Y/277V 3P Molded Case Circuit Breaker, Fixed Thermal Magnetic

Out of stock
SKU: GHB3040 UPC: 786679911280
(0)
$249.00
-27% $340.00 $249.00
Out of stock
Condition
Specification Detail
Brand Eaton
Manufacturer Eaton
Model Number GHB3040
UPC Number 786679911280
Voltage Rating 480Y/277 Vac, 125/250 Vdc
Amperage Rating 40 A
Number of Poles Three-pole (3P)
Breaker Type Molded Case Circuit Breaker (GHB)
Trip Type Fixed Thermal, Fixed Magnetic
Mounting Type Not Specified
Connection Type Not Specified
Interrupt Rating 14 kAIC at 480Y/277 Vac, 65 kAIC at 240 Vac
Frame Type G-Frame
Frequency Rating 50/60 Hz
Dimensions 4" H × 3" W × 2.63" D
Weight 1.75 lbs
Certifications UL Listed
Special Features Complete Breaker, High Interrupt Rating
